China Wholesale led ir 940nm ir led diode infrared emitting diode

Product Overview

Description

Infrared 940Nm Ir Led Emitting Diode remote control led diode manufacturer

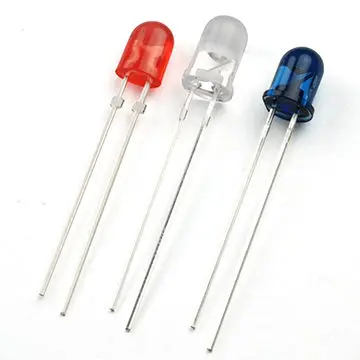

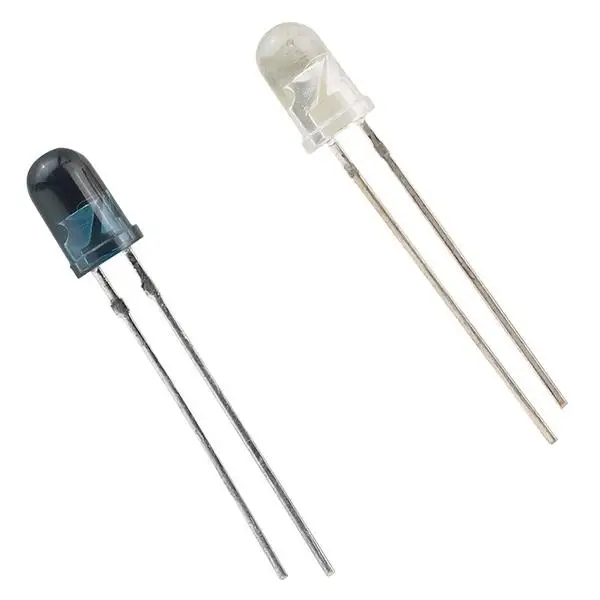

Product picture:

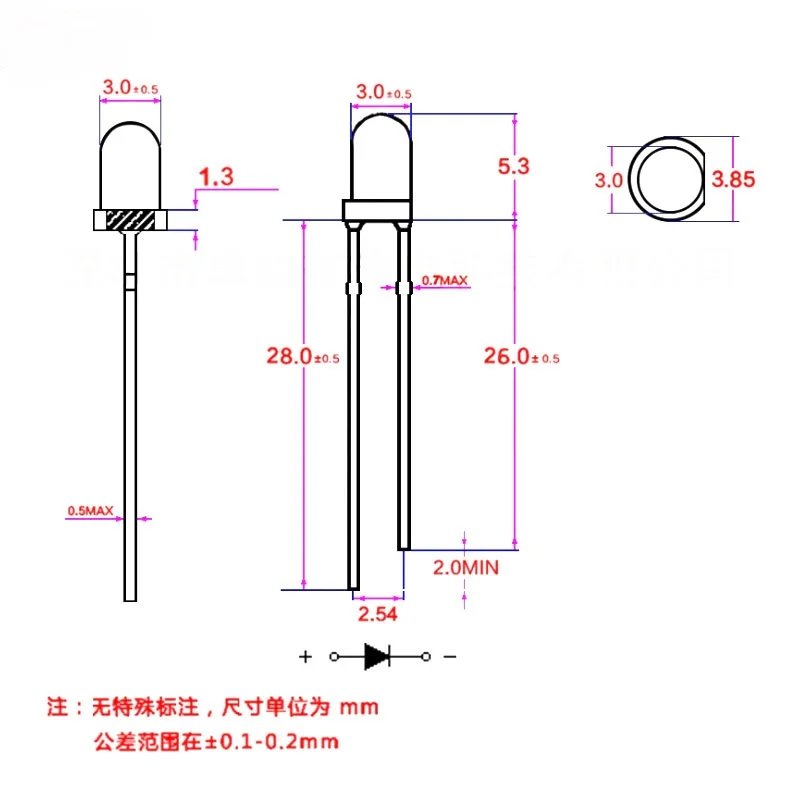

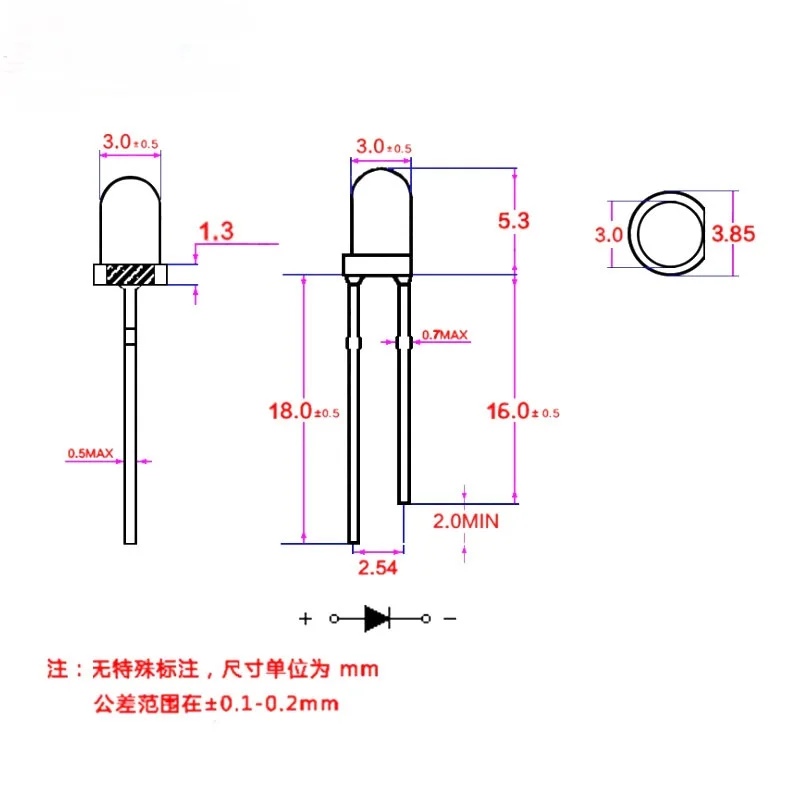

Product specification:

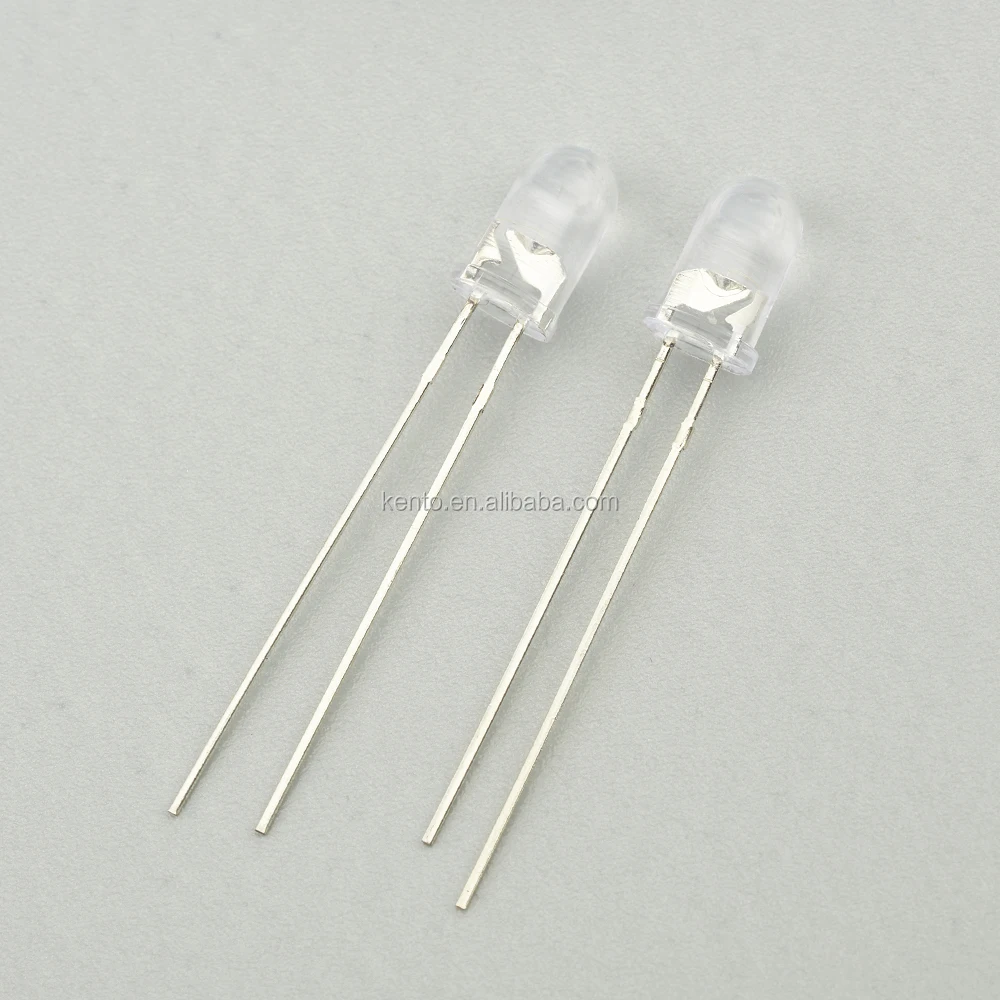

   Model:5308IRC-10



Typical Electrical & Optical Characteristics (Ta = 25℃)
	SYMBOL	CONDITION	MIN.	TYP.	MAX.	UNIT
Forward Voltage	VF	IF = 20mA	---	1.27	1.4	V
Reverse Current	IR	VR = 5V	---	---	10	μΑ
Peak Wavelength	λD	IF = 20mA	---	940	---	nm
Radiation Distance		IF = 20mA				m
50% Power Viewing Angle	2θ½	IF = 20mA	17	---	20	deg
Absolute Maximum Ratings at (Ta = 25℃)
ITEMS	SYMBOL	ABSOLUTE MAXIMUM RATING				UNIT
Forward Current	IF	50				mA
Peak Forward Current	IFP	200				mA
Continuous Forward Current	IL	20				mA
Reverse Voltage	VR	5				V
Power Dissipation	PD	20				mW
Operation Temperature	Topr	-40 ~ +80				℃
Storage Temperature	Tstg	-40 ~ +80				℃
Lead Soldering Temperature	Tsol	Max.260°C for 5 sec Max.
IFP Conditions:Pulse Width≤10msec duty≤1/10
Tsol Conditions:4mm from the base of the epoxy bulb

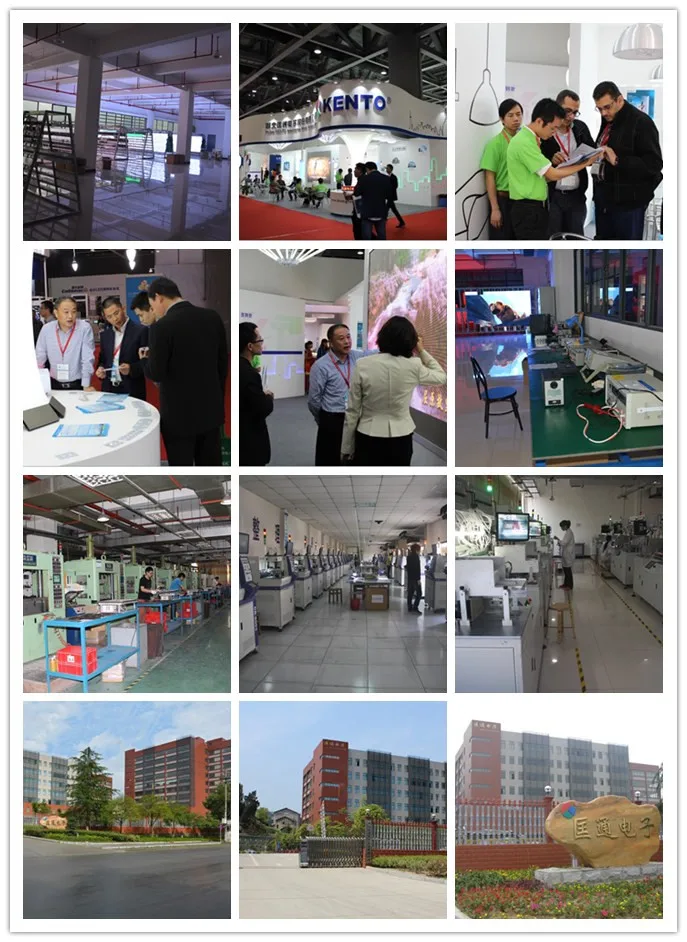

Company Profile:







FAQ



Q1: Are you a factory?
A: Yes,we have our own factory at Hubei Province.And our trading department and warehouse are at Shenzhen city,Guangdong province.

Q2: Could you please send me the free sample,so that I could see and check its quality?
A: Yes.We can send you free samples first,if the value is low.But our clients should pay for the shipping freight themselves. Samples fee needs to be charged if the value is high.

Q3: What will be the types of payment?
A: The payment we can accept are T/T transaction,Paypal,Letter of credit,Western Union,etc.

Q4: Do you have any other website?
A: Yes. We have two English websites. You can copy to check them.
//www.kentolights.com/
//kento.en.alibaba.com

Q5: Can you accept OEM and ODM order?
A: Yes. We are able to complete your OEM and ODM orders. We have large quantities of led products in stock for normal models.For special models,it will takes some time to customize them.

Q6:What will be the delivery way?
A:We will communicate with our clients and choose a best shipping way together. In general, samples order will be delivered through DHL,FeDex,TNT,UPS,EMS. Bulk order will be delivered by air or by sea.
