2022 New sport water bottle making PC PET Tritan injection stretch blow molding machine
- Category: >>>
- Supplier: Liuzhou Jingye Machinery Co. Ltd.
Share on (1600529321954):
Product Overview
Description
Product Overview

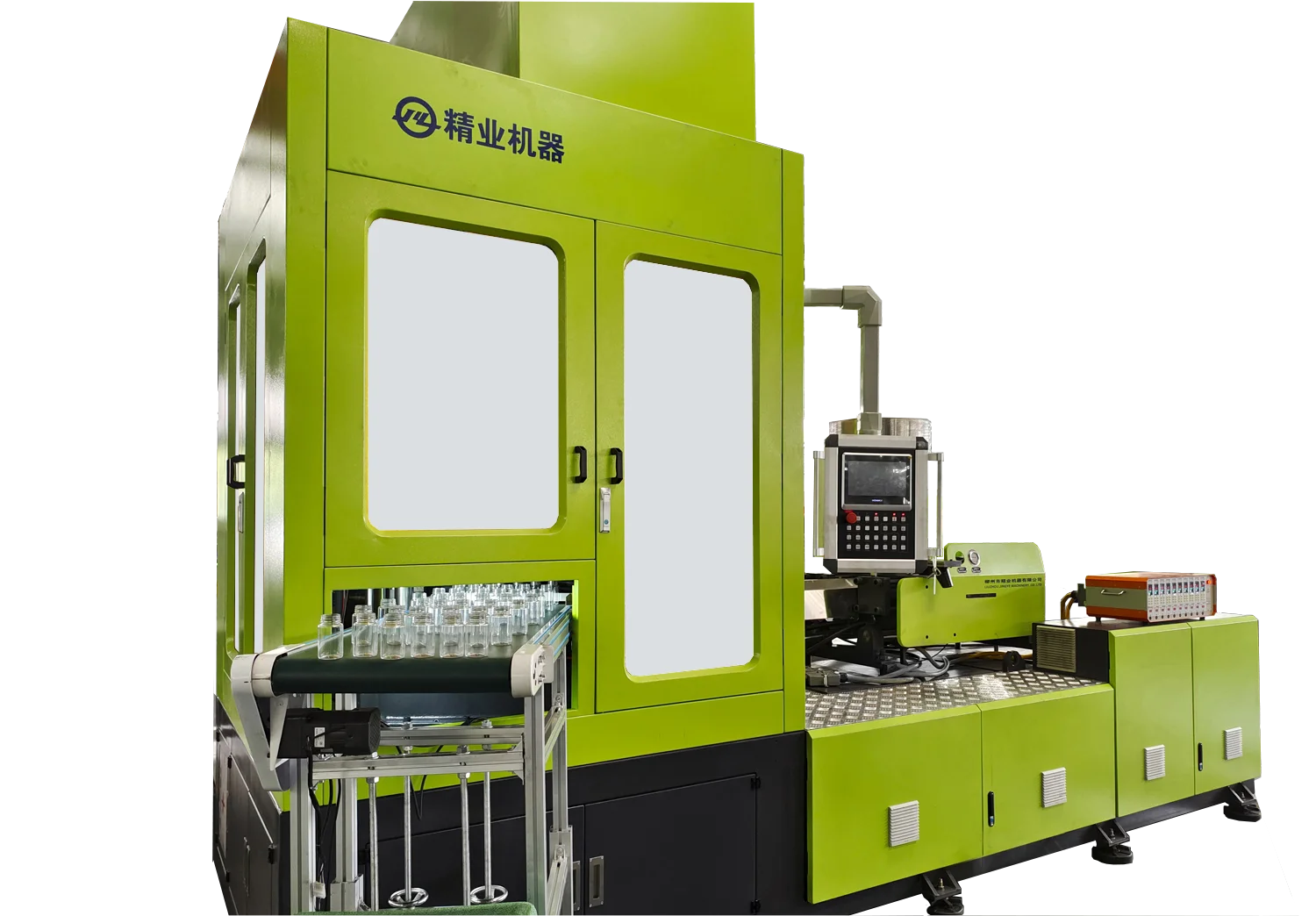

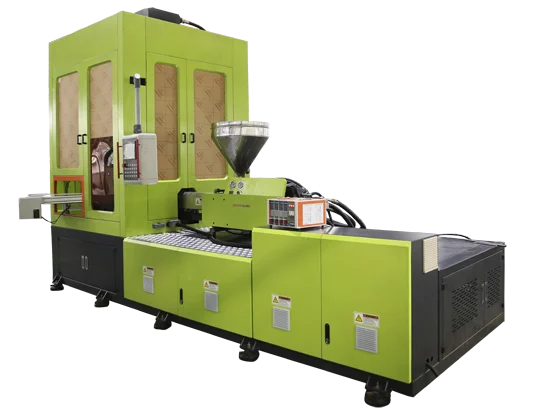

Injection stretch blow moulding machine
This is our highest selling product and provides a high-quality basis for the bottle manufacturing. So far, it has been used in many packaging enterprises.
The functions of 3 stations are following:
1. Injection station - for injection preform from raw material.
2. Stretch & blow station - for stretching & blowing preform to finished bottle.
3. Ejection station - for releasing finished bottle from molds.
1. Injection station - for injection preform from raw material.
2. Stretch & blow station - for stretching & blowing preform to finished bottle.
3. Ejection station - for releasing finished bottle from molds.
Product Specification
Item | Data |
Screw Diameter | 50 mm |
Theoretical Injection Capacity | 390 cm3 |
Injection Clamping Force | 406.9 kN |
Blow Clamping Force | 203.4 kN |
Motor Power | 26 + 26 kW |
Heater Capacity | 11 kW |
Blow Air Pressure | 2.5 - 3.0 MPa |
Cooling Water Pressure | 0.2 - 0.3 MPa |
Machine Size | 4850 * 1850 * 3380 mm |
Machine Weight | 10000 kg |
(The above parameters are for reference only. More specific parameters please contact us.)

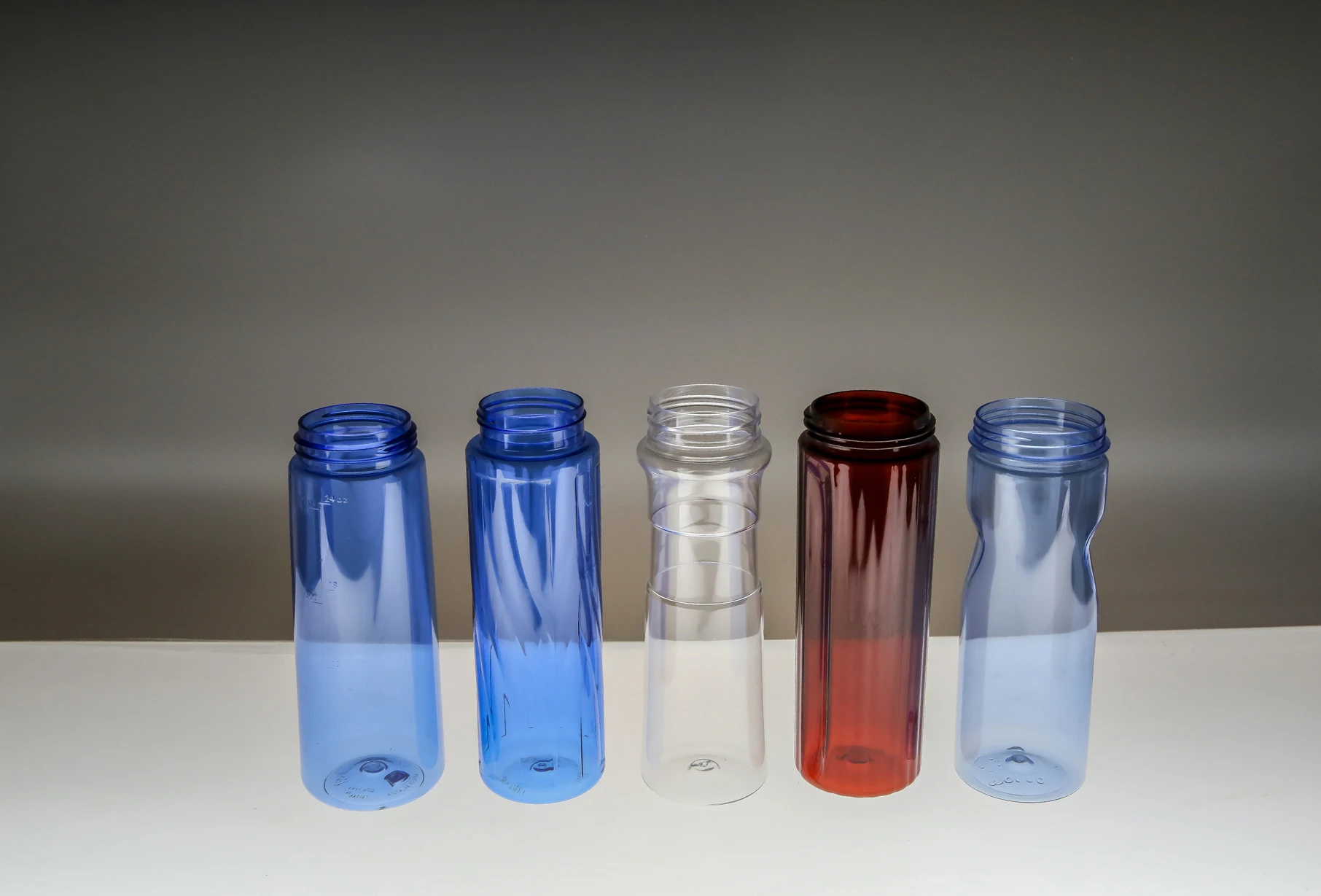

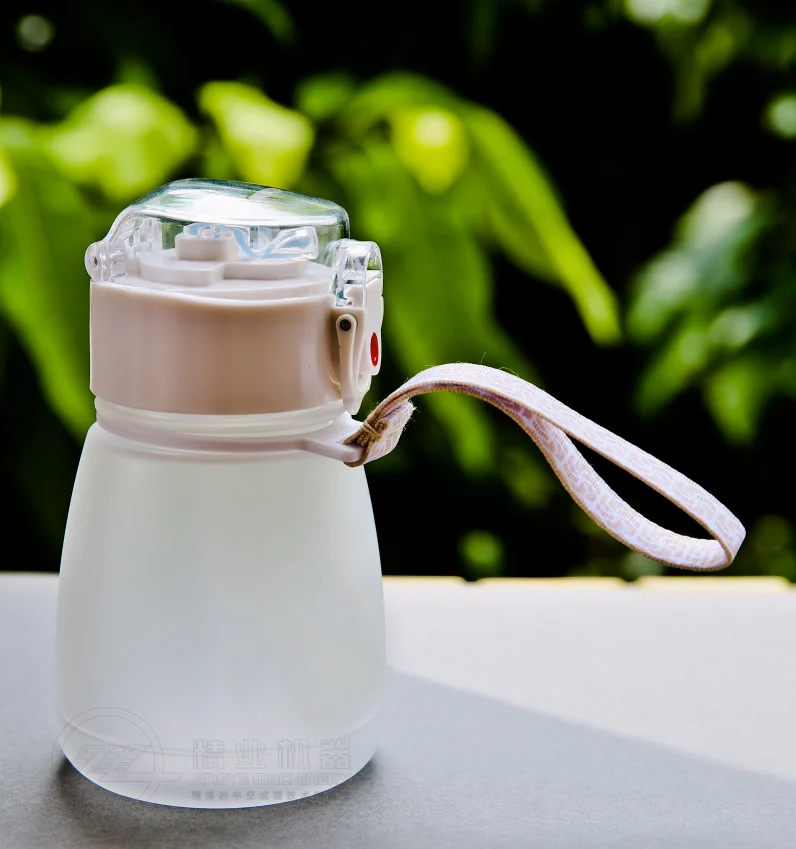

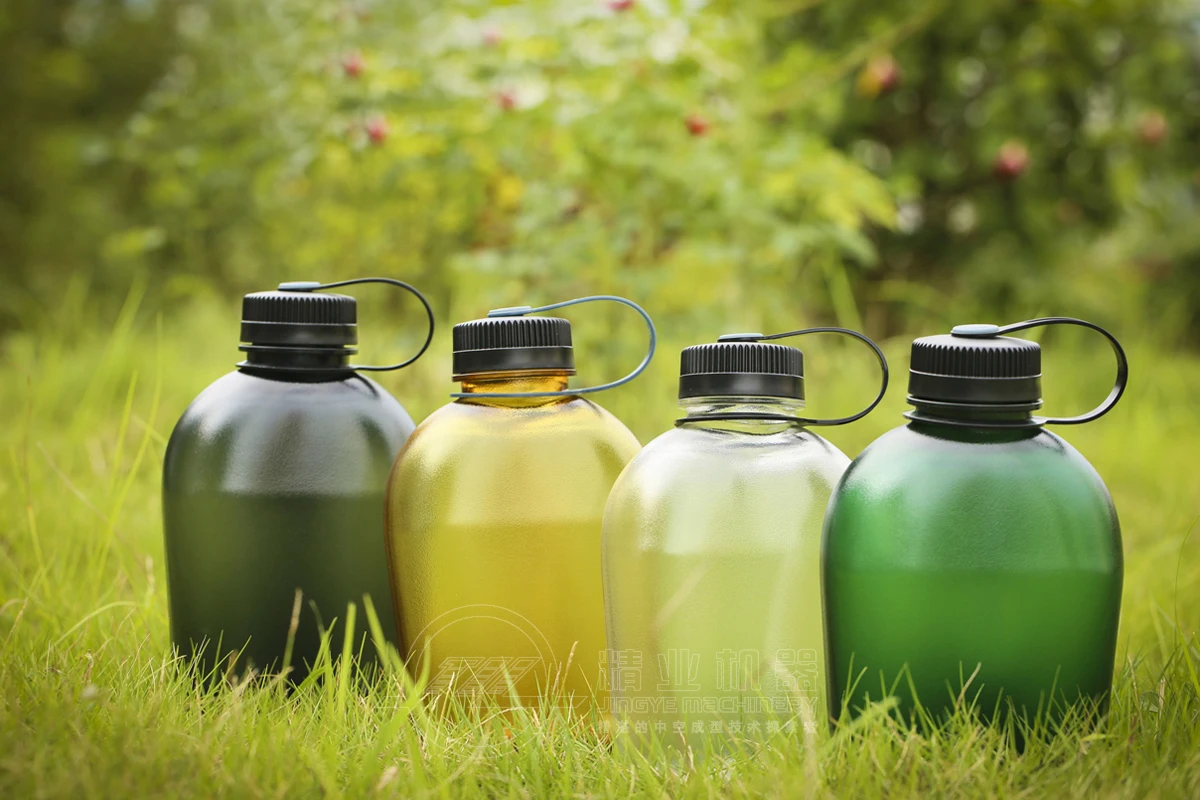

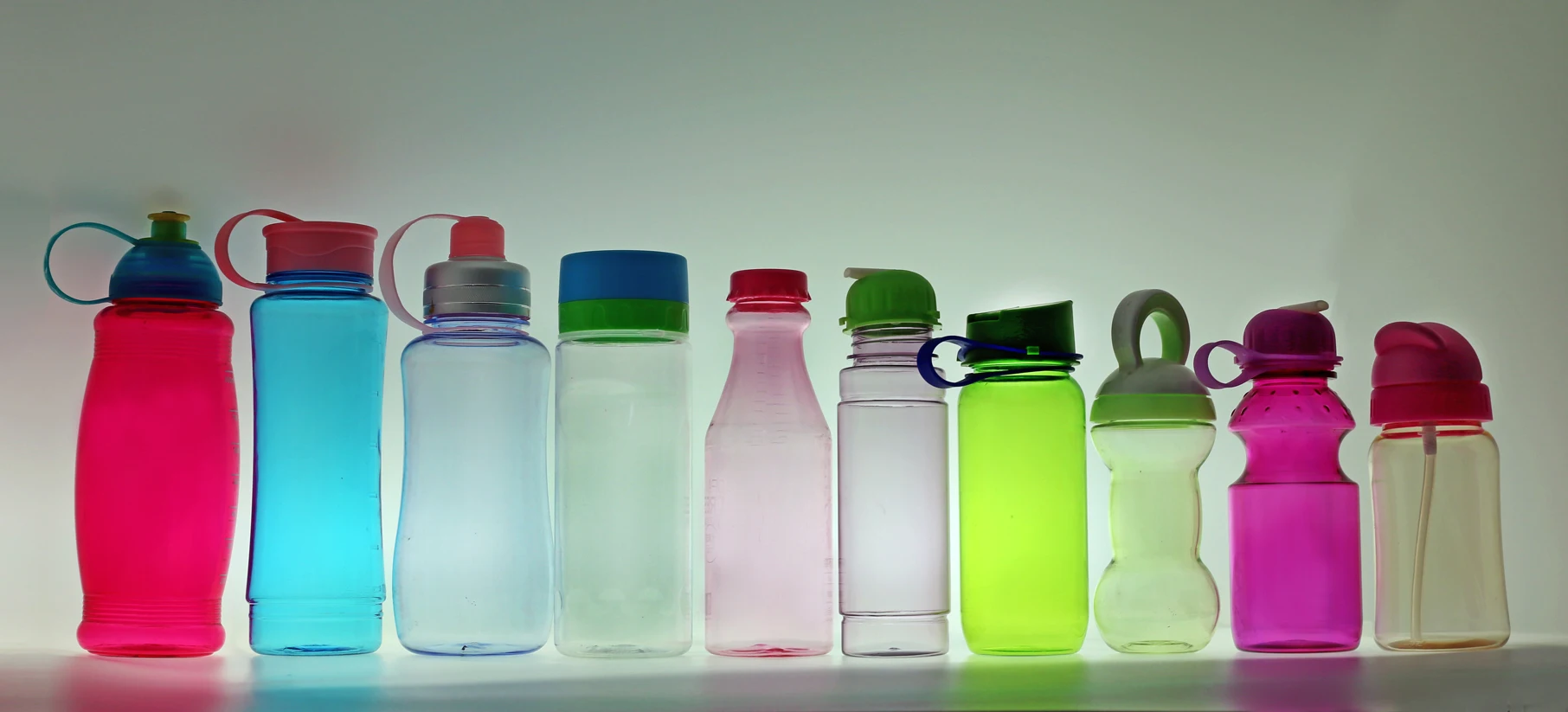

Sample
More shapes
More colors
Bigger size
Map for international customers

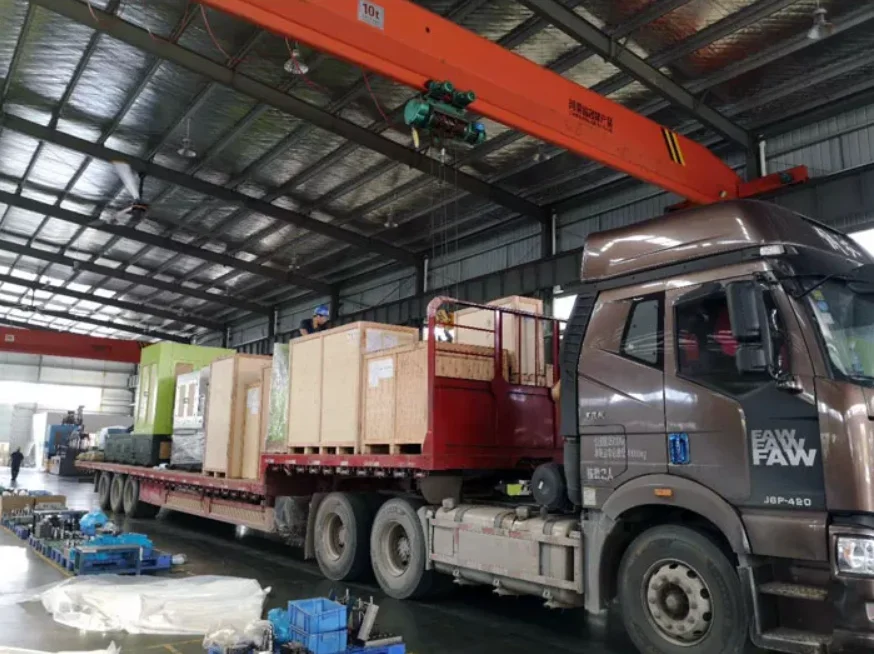

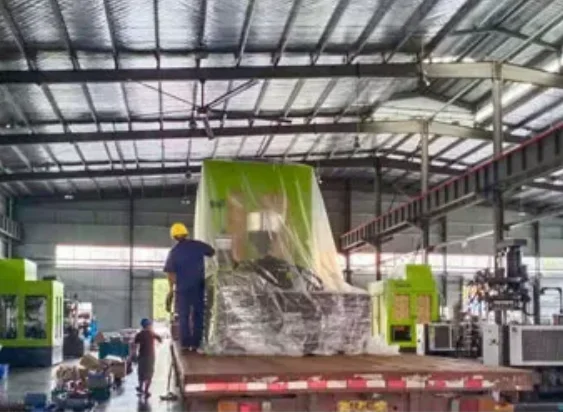

Product packaging
Manufacturing Plant
Factory Gate
Machine & Mold Testing Workshop
CNC Workshop
R & D Department
Exhibition
