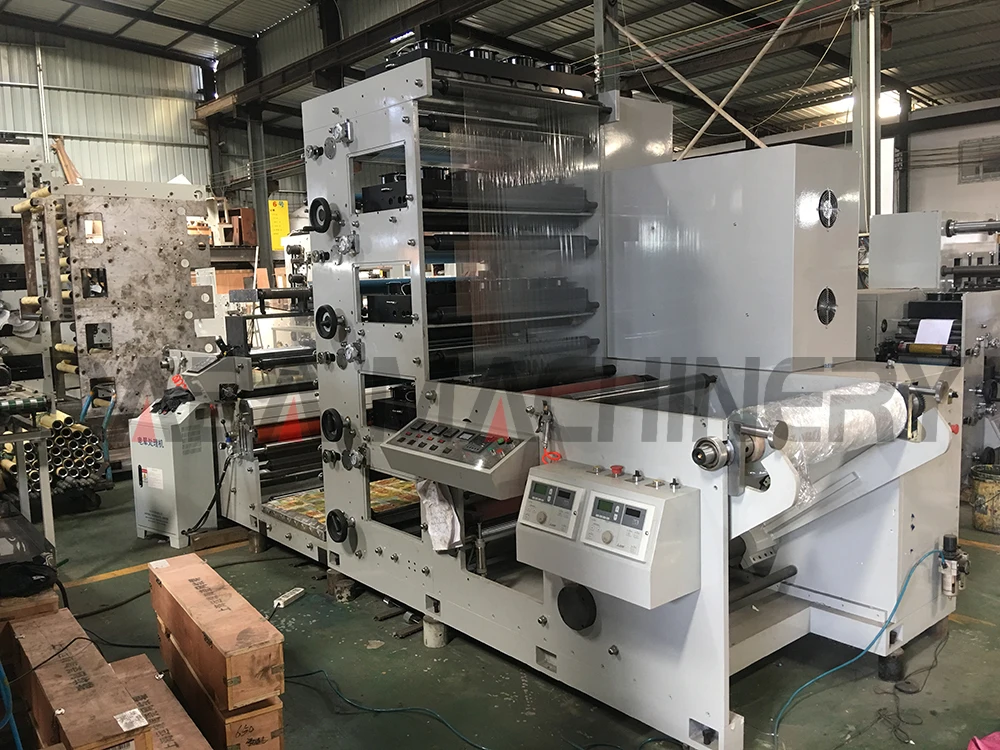

DINGYU Flexo sheet transparent vinyl sticker label pvc printing machine
- Category: >>>
- Supplier: Wenzhou Dingyu Machinery Co. Ltd.
Share on (1600529329887):
Product Overview
Description
Products Description
Main Features
* 1. Main motor adopts imported frequency step-less speed regulator.
* 2. Unwinding,traction and rewinding are controlled by magnetic powder arrester,clutch and tension inspector. Tension controller is automatic type.
* 3. Machine adopts ceramic anilox roller, which is characterized by wearable,rust-resistant and long using life, etc.It can
improve the printing efficiency.
* 4. Printing unit adopt plate register function,each veins roller can print independently,without effecting others when leave it alone.
* 5. Each printing unit collocated with IR dryer, the UV dryer is optional.
* 6. The ink roller can break away automatically when machine stops,and it still run in a low speed avoid the ink dry or
asymmetric.
* 7. Unwinding and rewinding shaft adopt air shaft,it's convenient to change load and unload the material.
* 8. From material-feeding, printing, drying, glazing, laminating, molding, die-cutting, rewinding to waste-collecting can be done in the same machine, the machine is known for machine characteristics such as wide printing range, environmental ink, fast printing speed, convenient operation, high economic benefit and so on. It's the best choice for note, paperboard and label printing factories.
* 2. Unwinding,traction and rewinding are controlled by magnetic powder arrester,clutch and tension inspector. Tension controller is automatic type.
* 3. Machine adopts ceramic anilox roller, which is characterized by wearable,rust-resistant and long using life, etc.It can
improve the printing efficiency.
* 4. Printing unit adopt plate register function,each veins roller can print independently,without effecting others when leave it alone.
* 5. Each printing unit collocated with IR dryer, the UV dryer is optional.
* 6. The ink roller can break away automatically when machine stops,and it still run in a low speed avoid the ink dry or
asymmetric.
* 7. Unwinding and rewinding shaft adopt air shaft,it's convenient to change load and unload the material.
* 8. From material-feeding, printing, drying, glazing, laminating, molding, die-cutting, rewinding to waste-collecting can be done in the same machine, the machine is known for machine characteristics such as wide printing range, environmental ink, fast printing speed, convenient operation, high economic benefit and so on. It's the best choice for note, paperboard and label printing factories.
Machine Parameter | ||||||||||||||||
Model | DBRY -1C | DBRY-2C | DBRY -3C | DBRY -4C | DBRY -5C | DBRY -6C | DBRY -7C | DBRY -8C | ||||||||
Printing speed | 70m/min | 60-80m/min | ||||||||||||||
Printing color quantity | 1-12 COLORS | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ||||||||
Max. web width | 330-680mm | |||||||||||||||
Max. Printing width | 320-650mm | |||||||||||||||
Min. Printing width | 35mm | |||||||||||||||
Max. unwinding diameter | 600mm | |||||||||||||||
Max. rewinding diameter | 600mm | |||||||||||||||
Precision of chromatography | ±0.10mm | |||||||||||||||
Machine weight | 1800KG | 2100KG | 2400KG | 2700KG | 3000KG | 3300KG | 3600KG | 3900KG | ||||||||
Application and Sample
Details Images
Unwinding Unit
o Standard Cantilever unwinding station,maximum unwind diameter: 600mm o 76mm (3″) air shaft roller.
o Electromagnetic power brake.
o Auto tension control–No roll-followers or external sensors to be adjusted or maintained. Support a stable unwinding
tension.
tension.
Web guide system
o EPC system to ensure the printing material the lateral position before feeding to the printing station.
o Ultrasonic Web Guide System,transparent products can be easily detected.
o The precision is ±0.1mm.
Splice Table
Tension Control System
Turn Bar Horizontal Adjuster
quick change air shaft. Feeding by motor.
Turn Bar Vertical Adjuster
quick change air shaft. Feeding by motor.

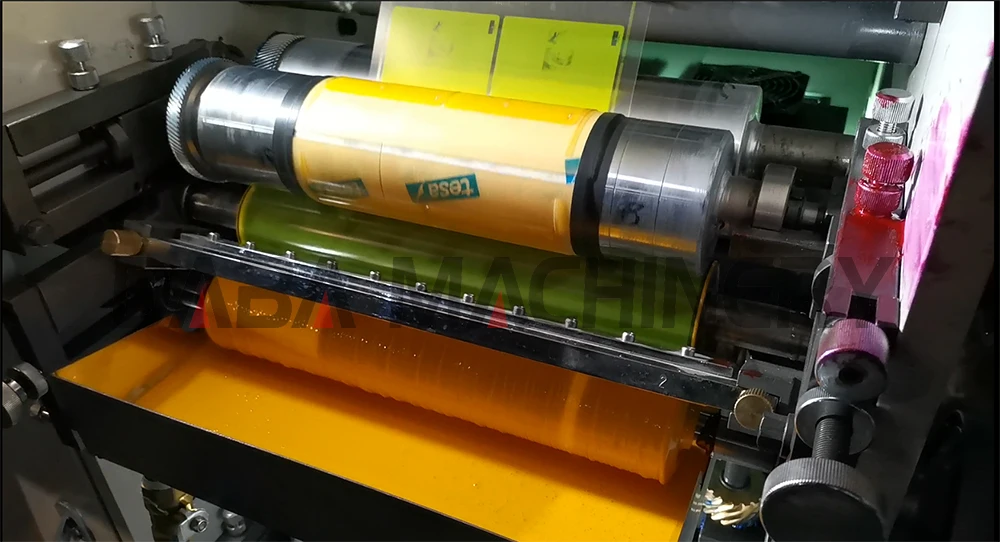

Flexo Printing Unit
o Printing width:320 mm o Max printing area: 320mm x 580mm
o Printing repeat Range :178-580 mm（56T-182T）
o Printing driven by 4 kw motor. It could by controlled at the control panel independently
o Gearing – 1/8 cp o Printing plate thickness:1.7 or 1.14 mm
oBoth sides tape thickness:0.38mm(3M)
o Printing station consist with :Measuring roller(Rub roller) ,Ceramic anilox roller, printing roller, scrapper
o 360°degree printing adjustment .
o Anilox roller-Ceramic type form 100 LPI -1100 LPI Could be choosed .
o Anilox roller-Ceramic type form 100 LPI -1100 LPI Could be choosed .
Die Cutting Unit
o Gearing – 1/8 cp, 20 degree pressure angle.
o Precision ground steel die plates –320mm (12.75″) model
o A driven capstan roller with adjustable tension control ensures reliable matrix stripping,enabling high speed running even if the matrix rewind becomes unstable.
o Matrix / Waste Rewind – 400mm (15.75″) diameter.
o 76mm (3″) air shaft for waste rewind.
Waste Matrix Unit
o Gearing – 1/8 cp, 20 degree pressure angle.
o Precision ground steel die plates –320mm (12.75″) model
o A driven capstan roller with adjustable tension control ensures reliable matrix stripping,enabling high speed running even if the matrix rewind becomes unstable.
o Matrix / Waste Rewind – 400mm (15.75″) diameter.
o 76mm (3″) air shaft for waste rewind.
UV LED DRYER
Camera
Die hoist

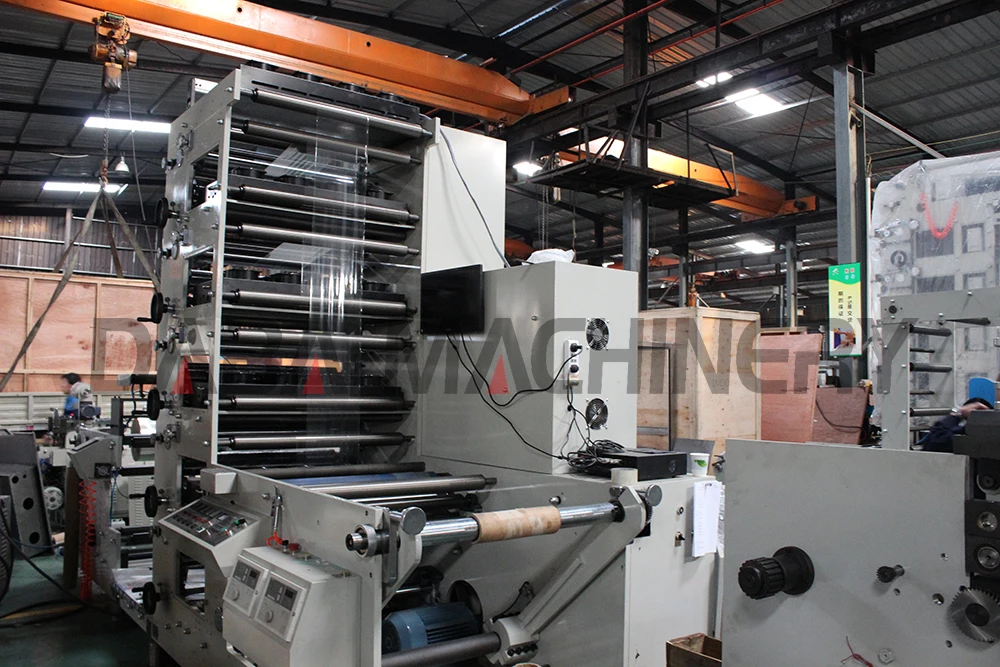

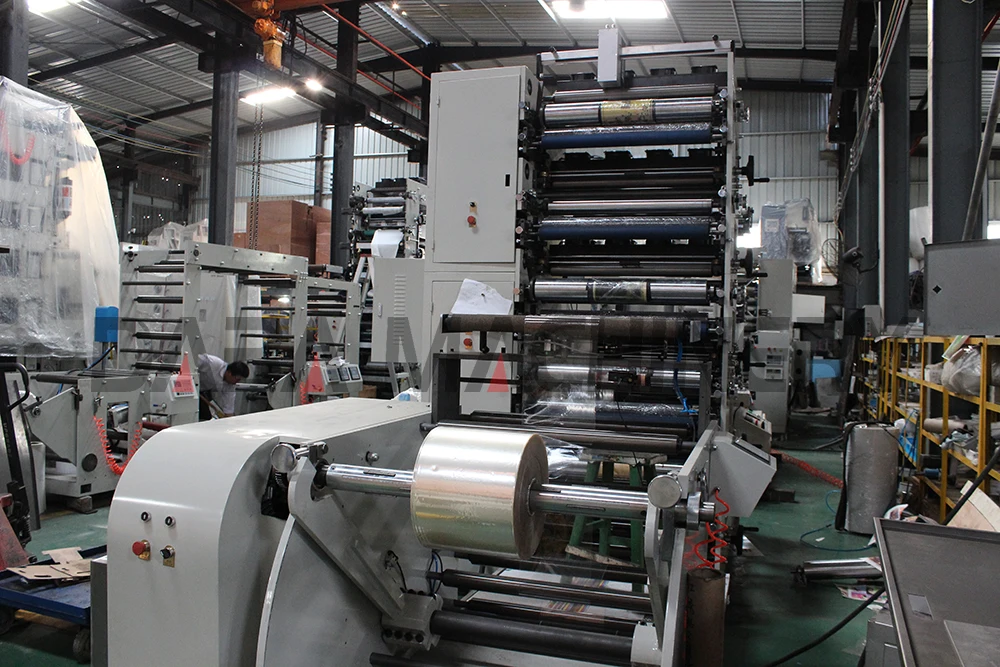

In Factory Photo
Services
1.Purchase Service
DABA COMPANY have a specialize and efficiency working team.If you are new onthe printing and packing area Some samples of your
products could be shew to uswill be appreicate we will give you specialized suggestion of whole work
2.Shipping Service
DABA COMPANY have a spcialized and independent department which just for
shipping the buyer's goods.The workers are knowing T/T,L/C Items well.All Exporteddocuments could be made perfectly
DABA COMPNAY cooperate with the most famous shipping company in China also.
They could provide the best and economic shipping ways to the buyer's port.
3.Installation Services
Installation Services are available with all DABA Company machines.DABA Comapnywill dispatch technician to The Buyer's factory to
installation and preoperation ofmachines But the buyer need to surpply the round trip tickets food hotel cost.
4.Clients Training Services
DABA Company advise The buyer could send own technican come to DABA factoryto learn how to operate machines.DABA Company
technician will teach and train thelerners hand by hand till he can operate machine by himself.
Obviouslly,Traning within Installation period is acceptable.
5.After Sales Service
DABA Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with
machines.Any parts broken Just a pictures or a videos.The new free parts will reachwithin 3-7 Express working days.
DABA COMPANY have a specialize and efficiency working team.If you are new onthe printing and packing area Some samples of your
products could be shew to uswill be appreicate we will give you specialized suggestion of whole work
2.Shipping Service
DABA COMPANY have a spcialized and independent department which just for
shipping the buyer's goods.The workers are knowing T/T,L/C Items well.All Exporteddocuments could be made perfectly
DABA COMPNAY cooperate with the most famous shipping company in China also.
They could provide the best and economic shipping ways to the buyer's port.
3.Installation Services
Installation Services are available with all DABA Company machines.DABA Comapnywill dispatch technician to The Buyer's factory to
installation and preoperation ofmachines But the buyer need to surpply the round trip tickets food hotel cost.
4.Clients Training Services
DABA Company advise The buyer could send own technican come to DABA factoryto learn how to operate machines.DABA Company
technician will teach and train thelerners hand by hand till he can operate machine by himself.
Obviouslly,Traning within Installation period is acceptable.
5.After Sales Service
DABA Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with
machines.Any parts broken Just a pictures or a videos.The new free parts will reachwithin 3-7 Express working days.
Contact
Packaging
Company Profile
FAQ
Q: What's your delivery date?
A: Usually finish the production within 30days after your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T, 30% in advance and 70% balanced against B/L copy.
We accept L/C at sight. We accept Cash.
Q: How many days will you finish installing ?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, however, if require overseas service, you need pay salary to our technician 100USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
Q: How many worker do we need running those machines?
A: For flexo printing, slitting, die-cutting machine, only need one person for each.
Q: What should we charge for your engineer?
A: You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 100USD one day per person.
A: Usually finish the production within 30days after your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T, 30% in advance and 70% balanced against B/L copy.
We accept L/C at sight. We accept Cash.
Q: How many days will you finish installing ?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, however, if require overseas service, you need pay salary to our technician 100USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
Q: How many worker do we need running those machines?
A: For flexo printing, slitting, die-cutting machine, only need one person for each.
Q: What should we charge for your engineer?
A: You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 100USD one day per person.
