China manufacturer automatic drywall screw making machine factory price
- Category: >>>
- Supplier: Ningbo Bysen Machinery Co. Ltd.
Share on (1600529357543):
Product Overview
Description
Product Description

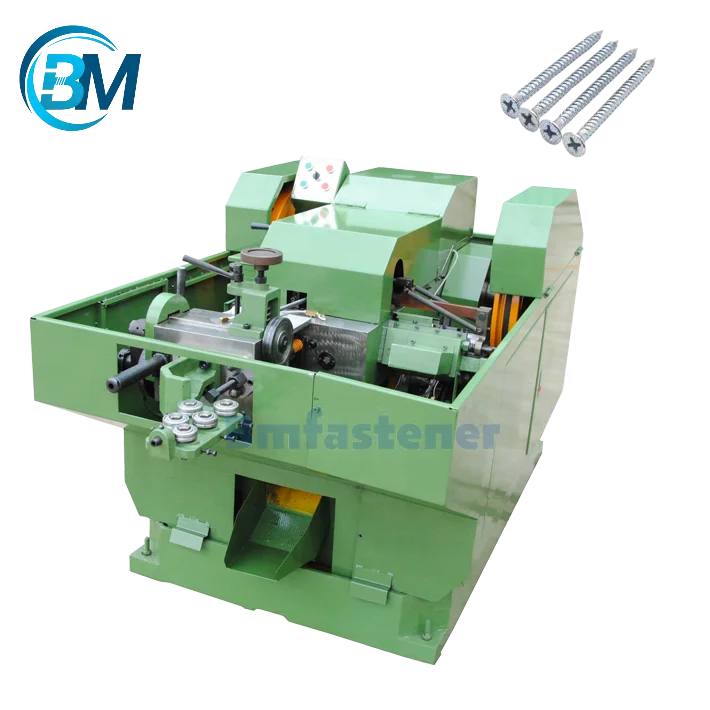

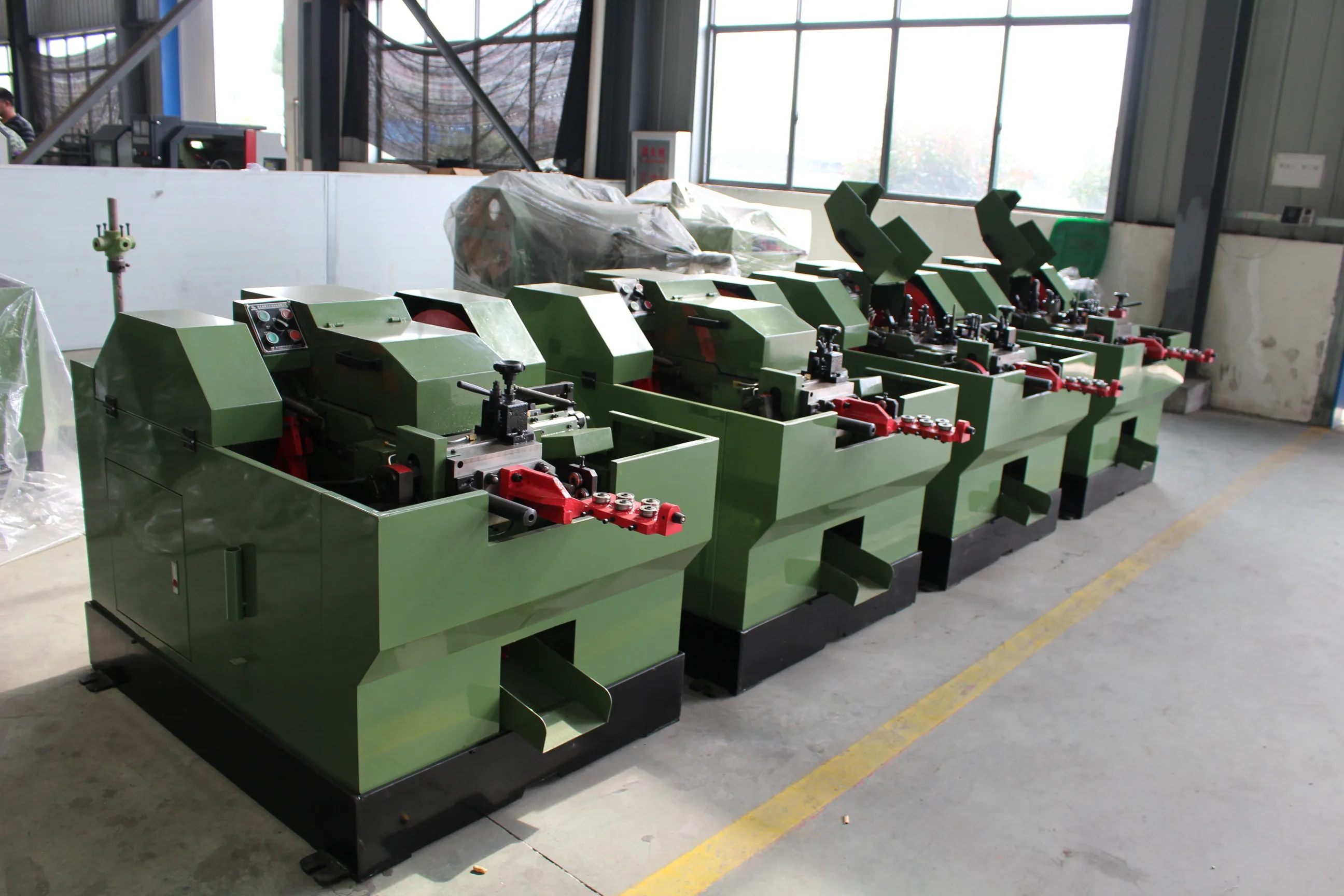

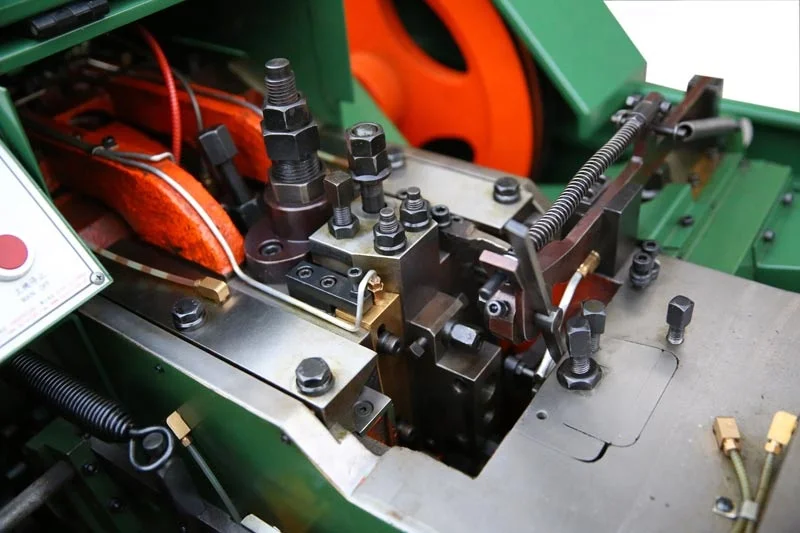

1-Die 2-Blow High Speed Automatic Cold Heading Machine is mainly used to form the head of the screw. Its working principle is that the first punch is forged and the second punched blank is withdrawn. Various metal materials can be upset: ordinary steel, carbon steel, stainless steel, copper, aluminum, alloy steel and other materials, used for various screws such as drywall screws, self-tapping screws, chipboard screws, electrical screws, micro screws, self-drilling screws, fiberboard screws, budle head screws, flat head screws, pan head screws, oval head screws, truss head screws, countersunk head screws and other screws.

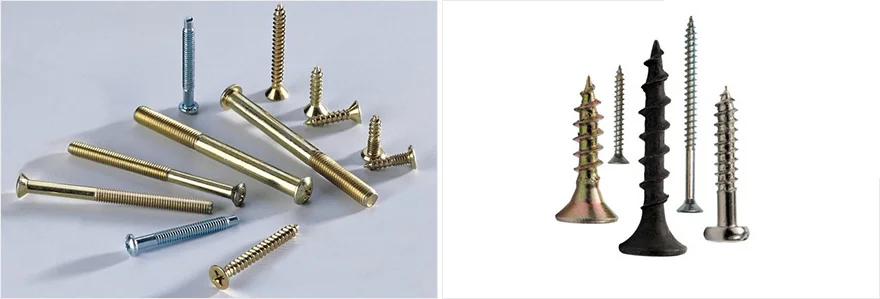

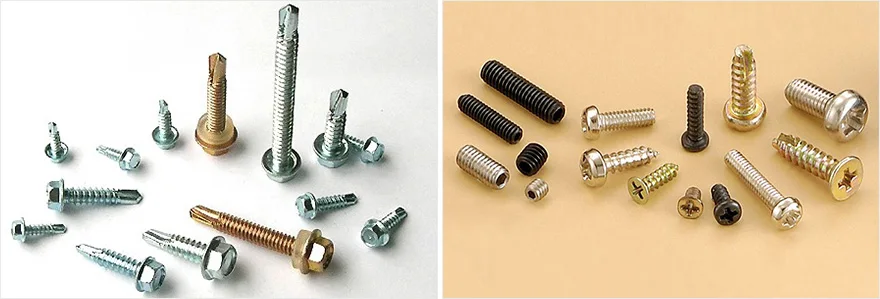

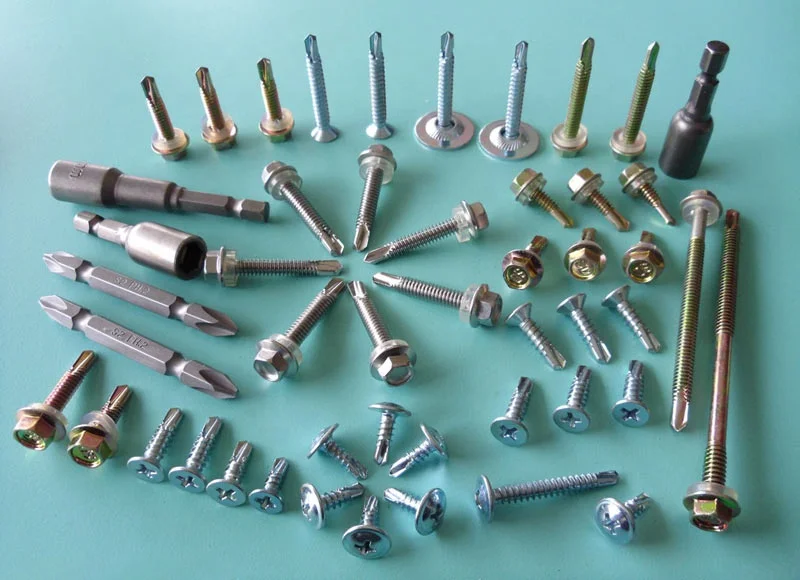

Screws that made by screw making machine
Specification
MODEL | BHD3-20 | BHD4-40 | BHD5-60 |
Max.Blank Diameter/mm | φ1.6-3.0 | φ2.0-4.0 | φ3.0-5.0 |
Max.Blank Length/mm | 20 | 40 | 60 |
Max.Cut-off length/mm | 30 | 47 | 67 |
Stroke/mm | 37 | 60 | 90 |
Capacity/ pcs/min | 150-210 | 160-180 | 110-140 |
Main Die Diameter/mm | φ20x35 | φ30x60 | φ32x80 |
The first Punch Die Diameter/mm | φ18x50 | φ25x65 | φ30x75 |
The second Punch Die Diameter/mm | φ18x50 | φ25x65 | φ30x75 |
Cut-0ff Die Diameter/mm | φ13x25 | φ15x30 | φ20x35 |
Main Motor Power/kW | 1.5HP/1.1kW | 3.0HP/2.2kW | 4.0HP/3.0kW |
Volume (LxWxH) /m | 1.40x0.75x0.9 | 1.80x0.85x1.15 | 2.30x1.08x1.25 |
Weight/kg | 625 | 1275 | 2080 |
We can offer M1-M12 Two stroke cold heading machines. For other unshown models, please contact us directly to get more information.
Email: Sophie@bmfastener.com
Tel/WhatsApp: +86-18606605063
Company profile
About us
Founded in April 2003, Ningbo Bysen Machinery Co., Ltd. which is located in Lijiaqiao Industrial Park, Ningbo, convenient transportation.
Our company specializes in the production and selling of Cold Forging Machine, Nut Maker, Bolt Maker, Part Former, Wire Drawing Machine, Heading Machine, Thread Rolling Machine, Spring Washer machine, and other series fasteners equipment, we can design complete sets of programs for fasteners manufacturers and fasteners mold product development.
Our company specializes in the production and selling of Cold Forging Machine, Nut Maker, Bolt Maker, Part Former, Wire Drawing Machine, Heading Machine, Thread Rolling Machine, Spring Washer machine, and other series fasteners equipment, we can design complete sets of programs for fasteners manufacturers and fasteners mold product development.
Backed by rich experience and resources, we have earned trust from a great many clients abroad, we not only offer the machine but also the solutions and service.We have partners in India, Europe,Africa,America and Southeast Asia and are trusted by various hardware fastener manufacturers to become quality partners.
FAQ
Q1：What Should I Do if I Just Start a New Business?
A1: Contact us immediately, we provide free consultant pre-sales service. We can provide you: new-plant construction guidance, designing and manufacturing non-standard equipment, professional technical training and guidance on site.
Q2: Do You Only Manufacture Standard Machines?
A2:No, we not only design and manufacture standard machines, but also design and manufacture machines according to customers’ specifications, using top brand components. What’s more, some popular machines are in stock.
Q3: What is the Warranty?
A3:We provide 12-20 months free warranty, and free technical support for the whole life of any machine.
Q4: What Service Can You Provide Before Order?
A4:About the pre-sale service. We provide you professional answers of all your questions on our machines, such as technical parameter, price, payment terms, etc. If you want visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
A1: Contact us immediately, we provide free consultant pre-sales service. We can provide you: new-plant construction guidance, designing and manufacturing non-standard equipment, professional technical training and guidance on site.
Q2: Do You Only Manufacture Standard Machines?
A2:No, we not only design and manufacture standard machines, but also design and manufacture machines according to customers’ specifications, using top brand components. What’s more, some popular machines are in stock.
Q3: What is the Warranty?
A3:We provide 12-20 months free warranty, and free technical support for the whole life of any machine.
Q4: What Service Can You Provide Before Order?
A4:About the pre-sale service. We provide you professional answers of all your questions on our machines, such as technical parameter, price, payment terms, etc. If you want visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
For any questions about our equipment, please contact us!
Email: Sophie@bmfastener.com
Tel/WhatsApp: +86-18606605063
