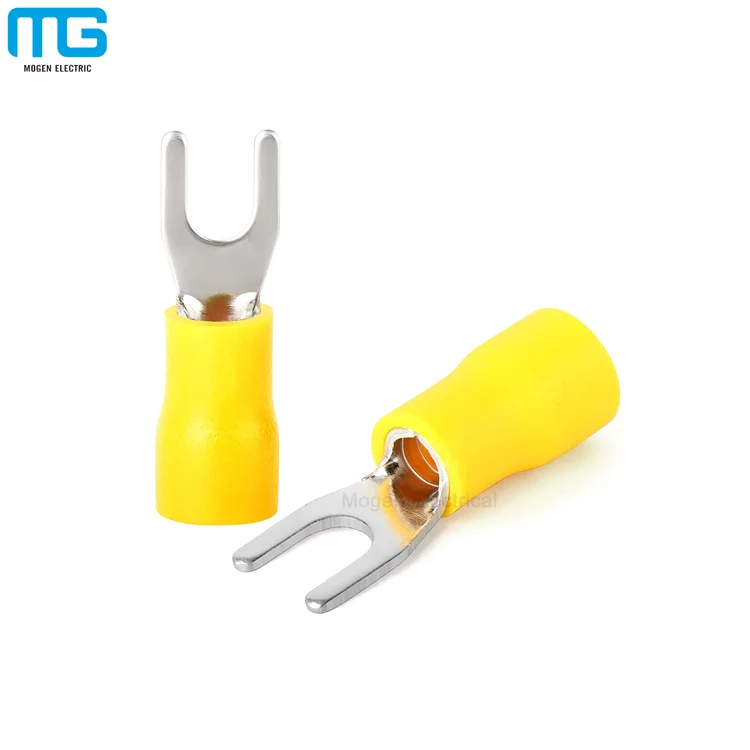

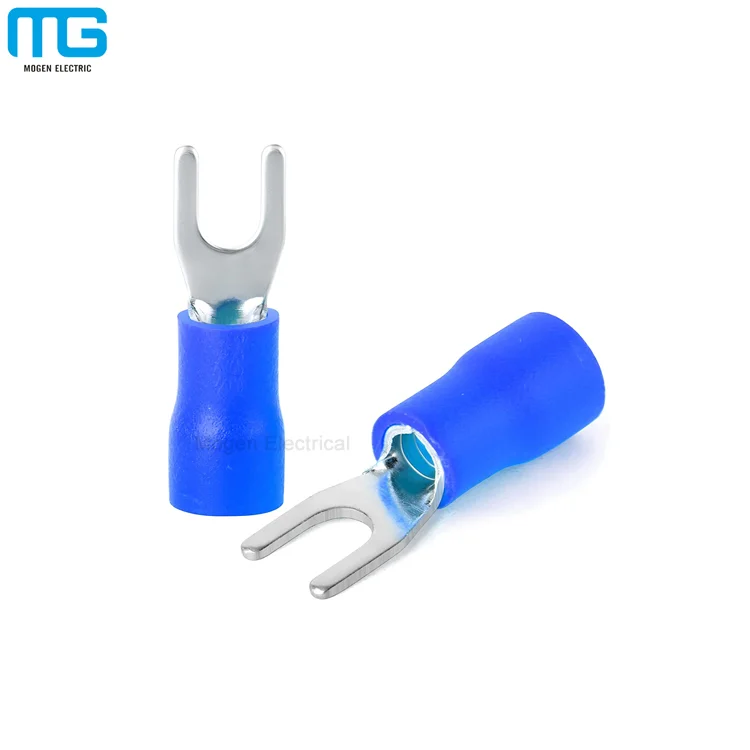

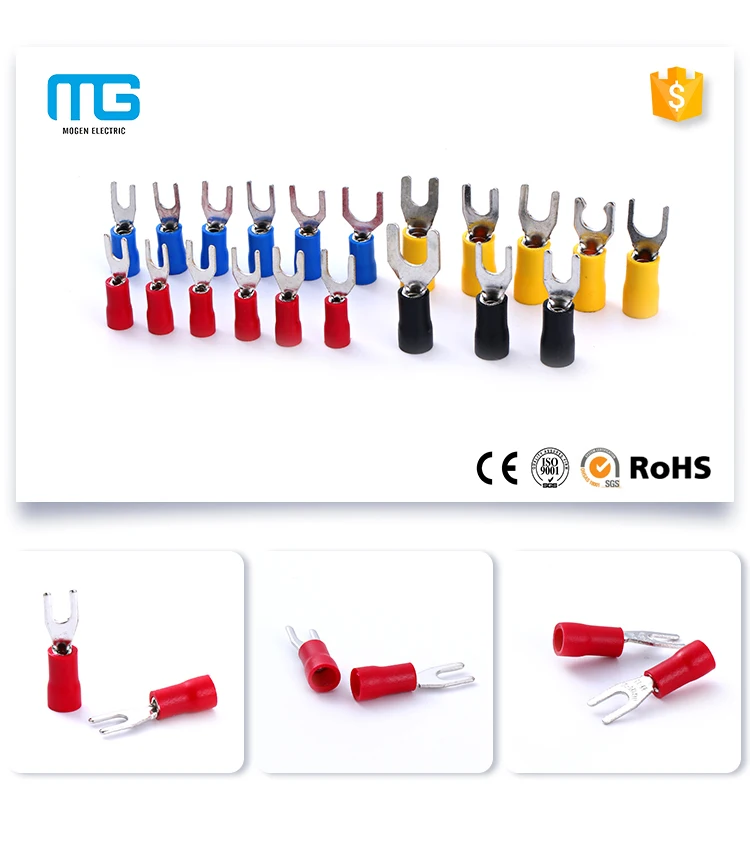

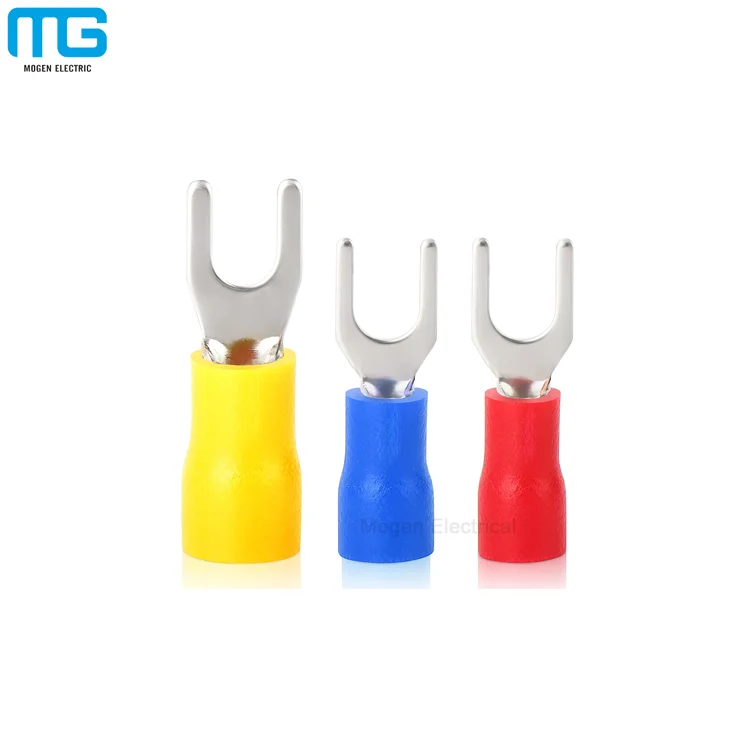

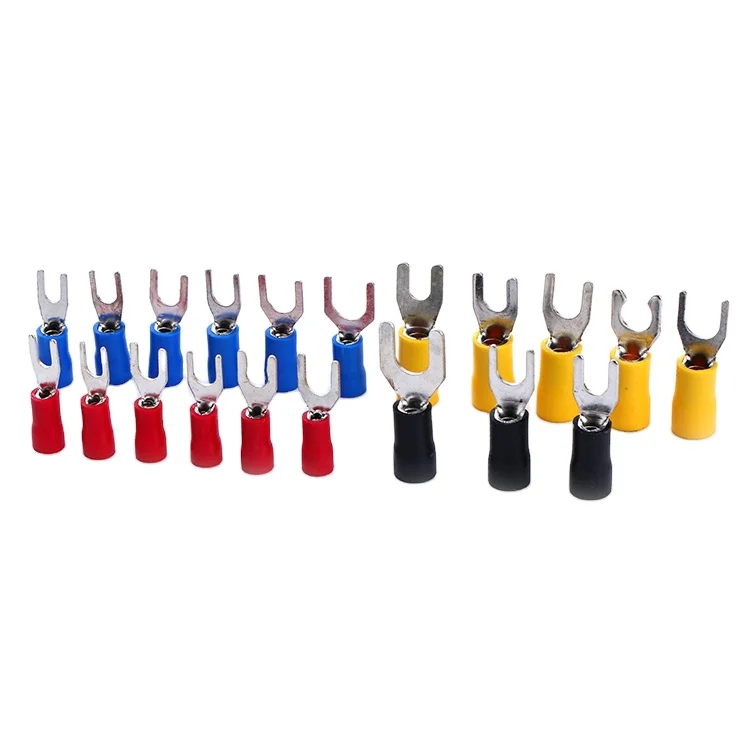

Insulated fork spade wire connectors U type electrical copper brass crimp terminal lug
- Category: >>>
- Supplier: Zhejiang Mogen Import & Export Co. Ltd.
Share on (1600529365557):
Product Overview
Description
Insulated fork spade wire connectors U type electrical copper brass crimp terminal lug
Product Description
| Conductor section :4-6mm2 (A.W.G 12-10) Max Current:1max=48A | ||||||||

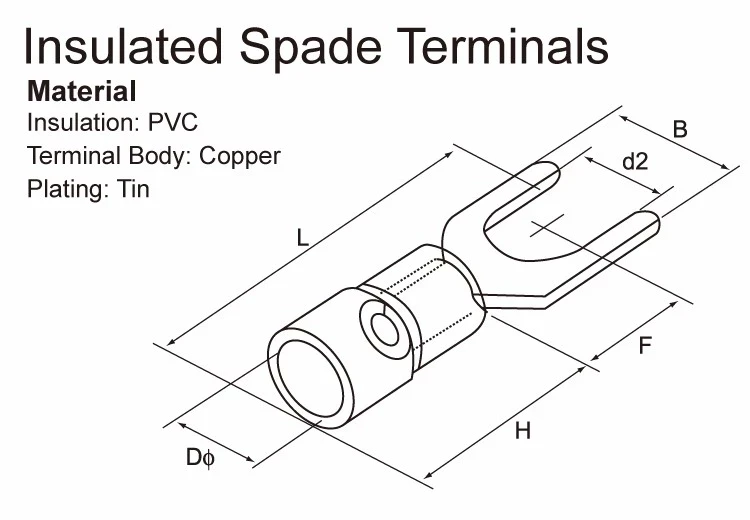

| Item No | American | Dimension(mm) | Color | |||||
| Bolt number | d2Φ | B | L | F | H | DΦ | ||
| SV5.5-3.5 | #6 | 3.7 | 7.2 | 21.4 | 5.9 | 13 6.7 Yellow | ||
| SVS5.5-4 | #8 | 4.3 | 7.2 | 21.4 | 5.9 | |||
| SVL5.5-4 | #8 | 4.3 | 9.5 | 25.5 | 8.3 | |||
| SV5.5-5 | #10 | 5.3 | 9.5 | 25.5 | 8.3 | |||
| SV5.5-6 | 1/4 | 6.4 | 12 | 34.5 | 13 | |||
| SV5.5-8 | 5/16 | 8.4 | 15 | 33.7 | 13.7 | |||
| SV5.5-10 | 3/8 | 10.5 | 15 | 33.7 | 13.7 | |||
| SV5.5-12 | 1/2 | 13 | 19.2 | 38.1 | 16 | |||
