Price:$68.00 - $88.00

Quantity:


Product Overview

Description



Products Description




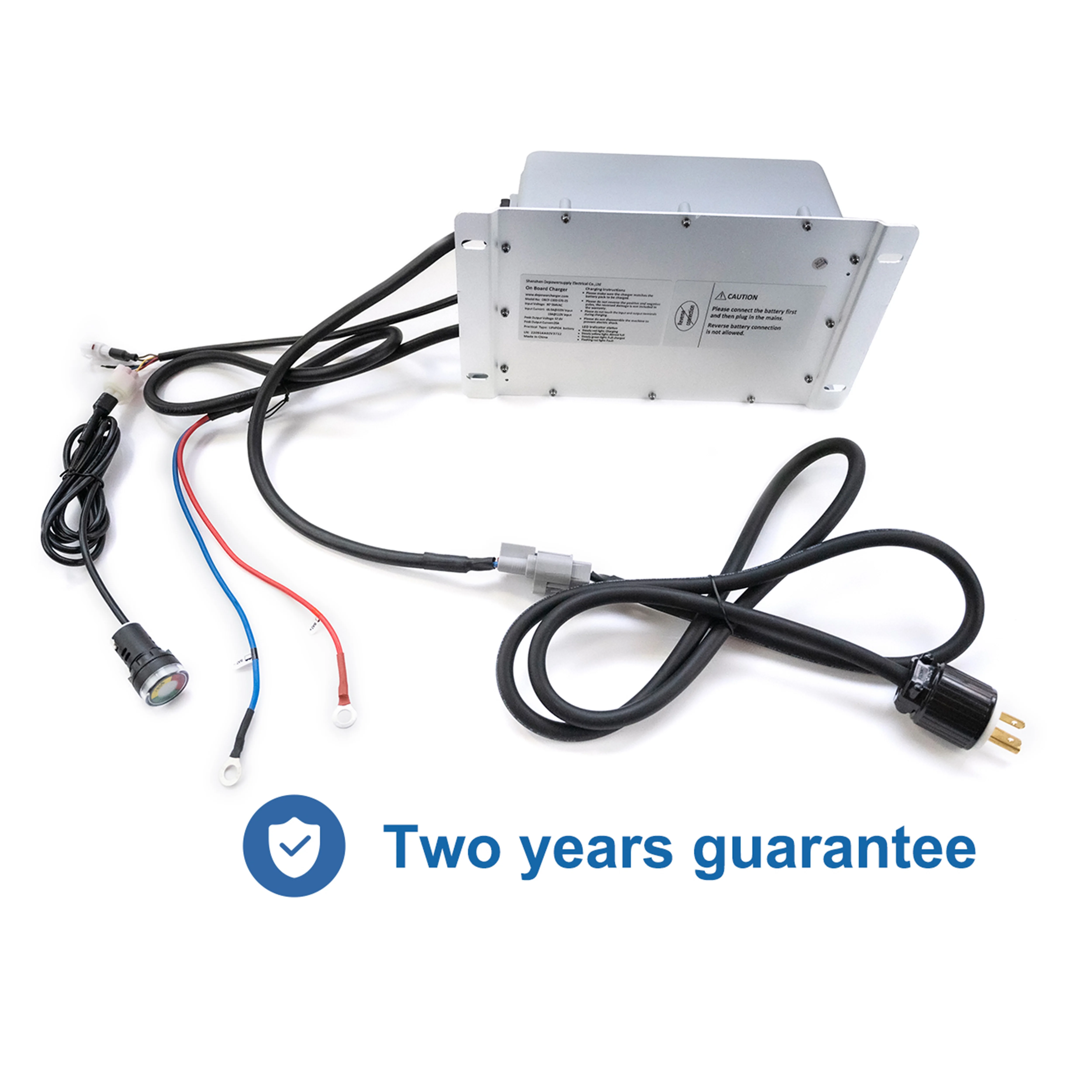

RXV Yamaha Club Car DS E-Z-GO TXT GOLF CART EV E-Bike
E-Motorcycle On-board Battery Charger
Battery type
15Series 16Series LiFePO4/13Series NMC
Model name
OBCD-1000-540-20-(CAN)
(For 15S LiFePO4 Battery)
OBCD-1300-540-25-(CAN)
(For 15S LiFePO4 Battery)
OBCD-1600-540-30-(CAN)
(For 15S LiFePO4 Battery)
OBCD-1000-576-20-(CAN)
(For 16S LiFePO4 Battery)
OBCD-1300-576-25-(CAN)
(For 16S LiFePO4 Battery)
OBCD-1600-576-30-(CAN)
(For 16S LiFePO4 Battery)
OBCD-1000-546-20-(CAN)
(For 13S NMC Battery)
OBCD-1300-546-25-(CAN)
(For 13S NMC Battery)
OBCD-1600-546-30-(CAN)
(For 13S NMC Battery)








Input
Voltage range
90～264VAC
Frequency range
45～65Hz
Input current(Typ.)
5A
6.5A
8A
Power Factor(Typ.)
≥0.98（Tested when the power is above half power）
Inrush current(Typ.)
Cold start 50A at 220VAC
Max. Efficiency
93%(220VAC); 91%(110VAC)
Leakage current
<0.5mA/220VAC (60335-1/2-29), 1.5mA Peak/240VAC (62368-1)









Output
Charging phase
Without CAN: pre-charge + constant current + constant voltage
With CAN: work on command
Max. output power
1000W@220VAC
500W@110VAC
1300@220VAC
650W@110VAC
1600W@220VAC
800W@110VAC
Max. output current
20A@220VAC
10A@110VAC
25A@220VAC
12.5A@110VAC
30A@220VAC
15A@110VAC
Output voltage range
40~54.0V(LiFePO4 in 15 S)/ 40~57.6V(LiFePO4 in 16 S)/ 40~54.6V(NMC in 13 s)
Constant voltage

54.0V(LiFePO4 in 15 Series)/ 57.6V(LiFePO4 in 16 Series)/ 54.6V(NMC in 13 series)
Max. current ripple
500mAp-p
Static power
<8W
Protection
Short circuit
Yes
Over temperature
Yes
Function
Indicator light
Yes
Interlock
Normally open when charging, normally closed when not charging







Environment
Cooling
Fan cooling

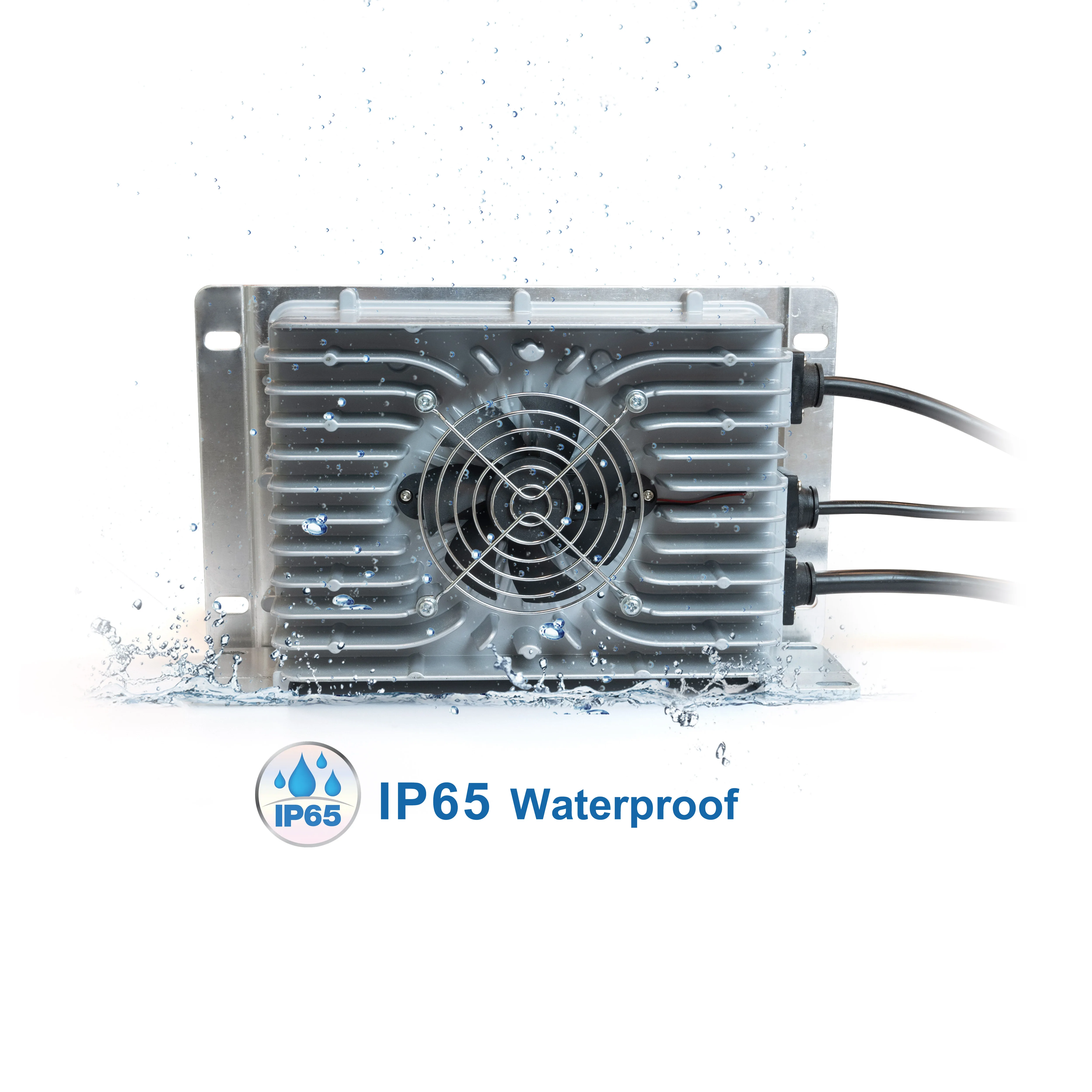

Waterproof
IP65
Working Temp.
–20～50℃
Working humidity
10%～95% RH non-condensing
Storage temp.,
humidity
–40～80℃, 10%～90% RH non-condensing
Vibration resistant
10～500HZ, 2G 10 minutes/cycle, X, Y, Z axis each 60 minutes





SAFETY &  EMC
Safety standards
EN60335, GB/T4706
Withstand voltage
I/P-O/P: 3KVAC ;I/P-FG: 2KVAC;O/P-FG: 0.5KVAC
Isolation resistance
I/P-O/P, I/P-FG, O/P-FG: 100M ohms/500VDC/25℃/70%RH
EMC emission
EN55022 Class A, GB/T 9254 Class A
EMC immunity
EN 55024:2010, GB/T17618




Indicator
state
Steady red light
Charging
Steady yellow light
Almost full
Steady green light
Full charged
Red light flashing
Charger broken


Others
MTBF
>70K hours
Weight
4.5KG
5KG
Dimensions
289*158*82 mm
(Pic2)
286*197*90 mm (Pic3)

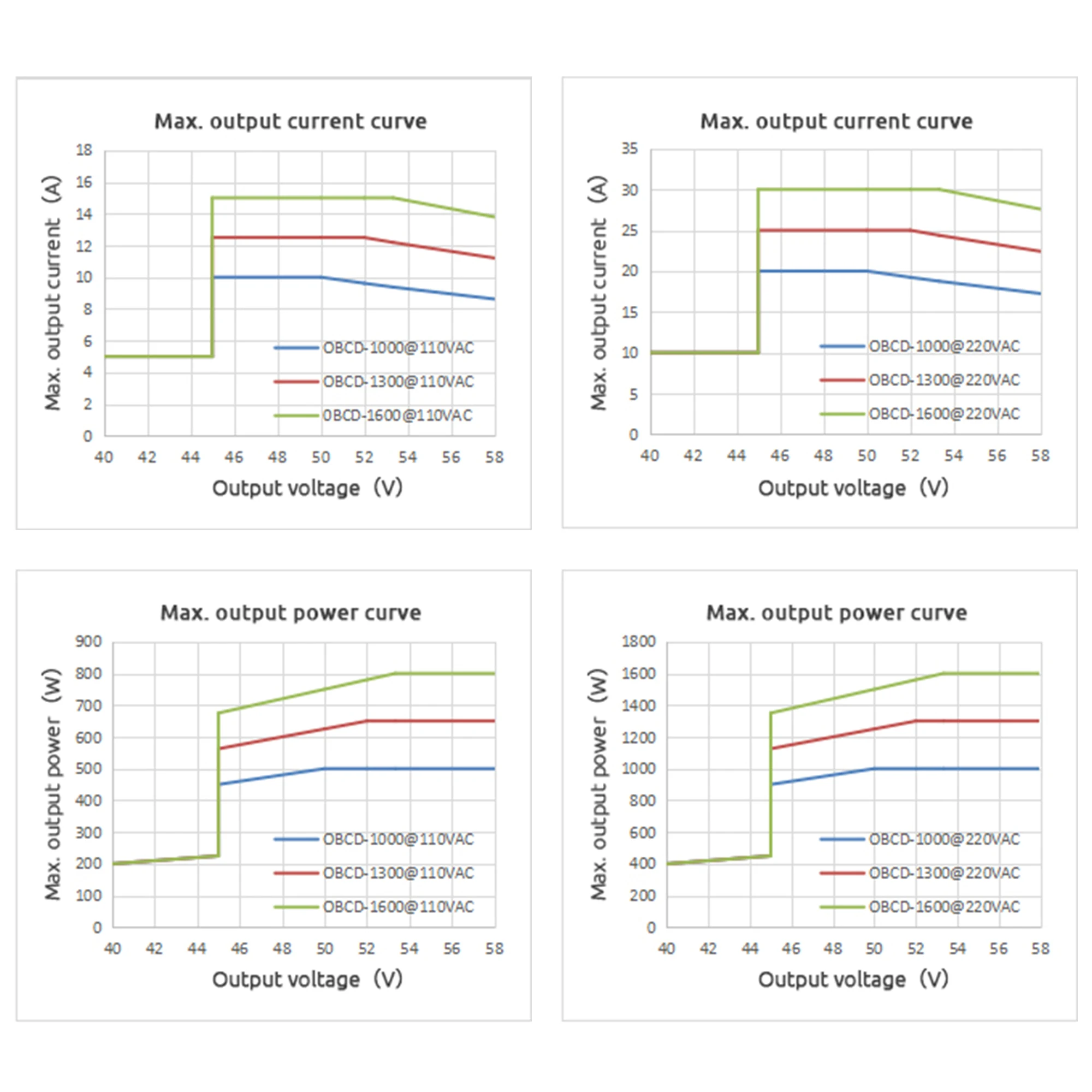

Max output current curve & Max output power curve--15S/16S LiFePO4 13S NMC
Note: 40-45V is a small current (10A constant current) precharge stage, and the current cannot be set.
Its purpose is to protect over-discharged batteries (high current charging is prohibited).


On-board Battery Charger For 72V LiFePO4 in 20 Series/71.4V NMC in 17 Series Battery
Battery Type
LiFePO4 in 20 Series/ NMC in 17 series
Model name
OBCD-1000-720-15-(CAN)(For 20S LiFePO4 Battery)
OBCD-1300-720-20-(CAN)(For 20S LiFePO4 Battery)
OBCD-1600-720-25-(CAN)(For 20S LiFePO4 Battery)
OBCD-2000-720-30-(CAN)(For 20S NMC Battery)
OBCD-1000-714-15-(CAN)(For 17S NMC Battery)
OBCD-1300-714-20-(CAN)(For 17S NMC Battery)
OBCD-1600-714-25-(CAN)(For 17S NMC Battery)
OBCD-2000-714-30-(CAN)(For 17S NMC Battery)
Input Voltage range
90～264VAC
Input Frequency range
45～65Hz
Input Current
5A
6.5A
8A
10A
Input Power
Factor
≥0.98（Tested when the power is above half power）
Input Inrush
Current
Cold start 50A at 220VAC
Input Max. Efficiency
93%(220VAC); 91%(110VAC)
Input Leakage Current
<0.5mA/220VAC (60335-1/2-29), 1.5mA Peak/240VAC (62368-1)
Output Charging Phase
Without CAN: pre-charge + constant current + constant voltage
With CAN: work on command
Max. Output
Power
1000W@220VAC
500W@110VAC
1300@220VAC
650W@110VAC
1600W@220VAC
800W@110VAC
2000W@220VAC
1000W@110VAC
Max. Output
Current
15A@220VAC
7.5A@110VAC
20A@220VAC
10A@110VAC
25A@220VAC
12.5A@110VAC
30A@220VAC
15A@110VAC
Output vol range
40~72.0V(LiFePO4 in 20 Series)/ 40~71.4V(NMC in 17 series)
Output Constant Voltage
72.0V(LiFePO4 in 20 Series)/ 71.4V(NMC in 17 series)
Max.Output Current
Ripple
500mAp-p
Output Static Power
<8W
Short Circuit Protection
Yes
Over Temperature  Protection
Yes

Function
Indicator light:Show the charging status
Interlock wire: Normally open when charging, normally closed when not charging






Environment
Fan cooling
IP65 Waterproof Degree
–20～50℃ Working Temp.
Working humidity:10%～95% RH non-condensing
Storage temp., humidity:–40～80℃, 10%～90% RH non-condensing
Vibration resistant:10～500HZ, 2G 10 minutes/cycle, X, Y, Z axis each 60 minutes




SAFETY&EMC
Safety standards:EN60335, GB/T4706
Withstand voltage:I/P-O/P: 3KVAC I/P-FG: 2KVAC O/P-FG: 0.5KVAC
Isolation resistance:I/P-O/P, I/P-FG, O/P-FG: 100M ohms/500VDC/25℃/70%RH
EMC emission:EN55022 Class A, GB/T 9254 Class A
EMC immunity:EN 55024:2010, GB/T17618
Indicator state
Steady red light：Charging
Steady yellow light:Almost full
Steady green light:Full charged
Red light flashing:Charger broken
Others
MTBF>70000 Hours
Weight
4.5KG
5KG
Dimensions
289*158*82 mm (Pic2)
286*197*90 mm (Pic3)

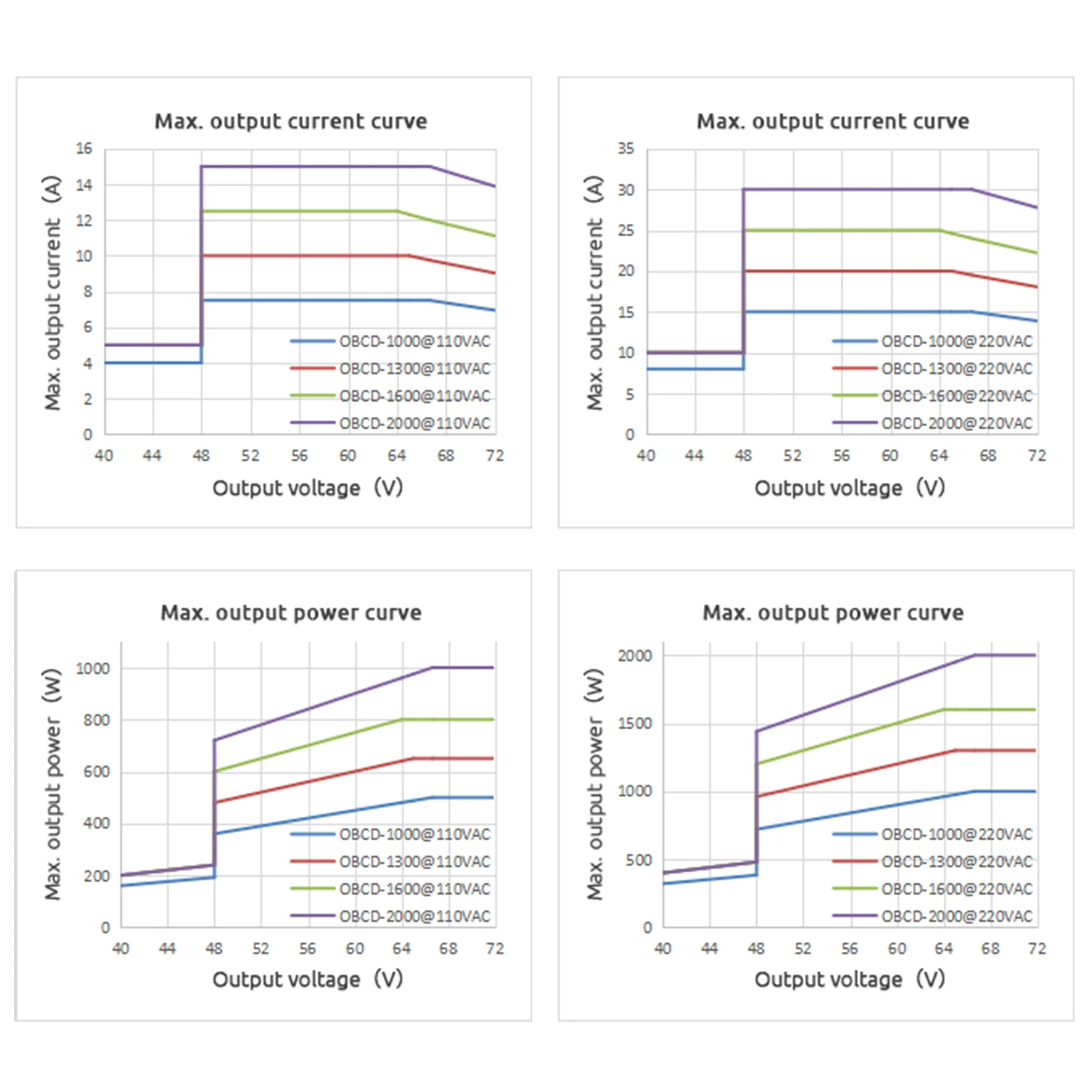

Max output current curve & Max output power curve--20S LiFePO4/17S NMC
Note: 40-48V is a small current (10A constant current) pre-charge stage, and the current cannot be set.
Its purpose is to protect over-discharged batteries (high current charging is prohibited).


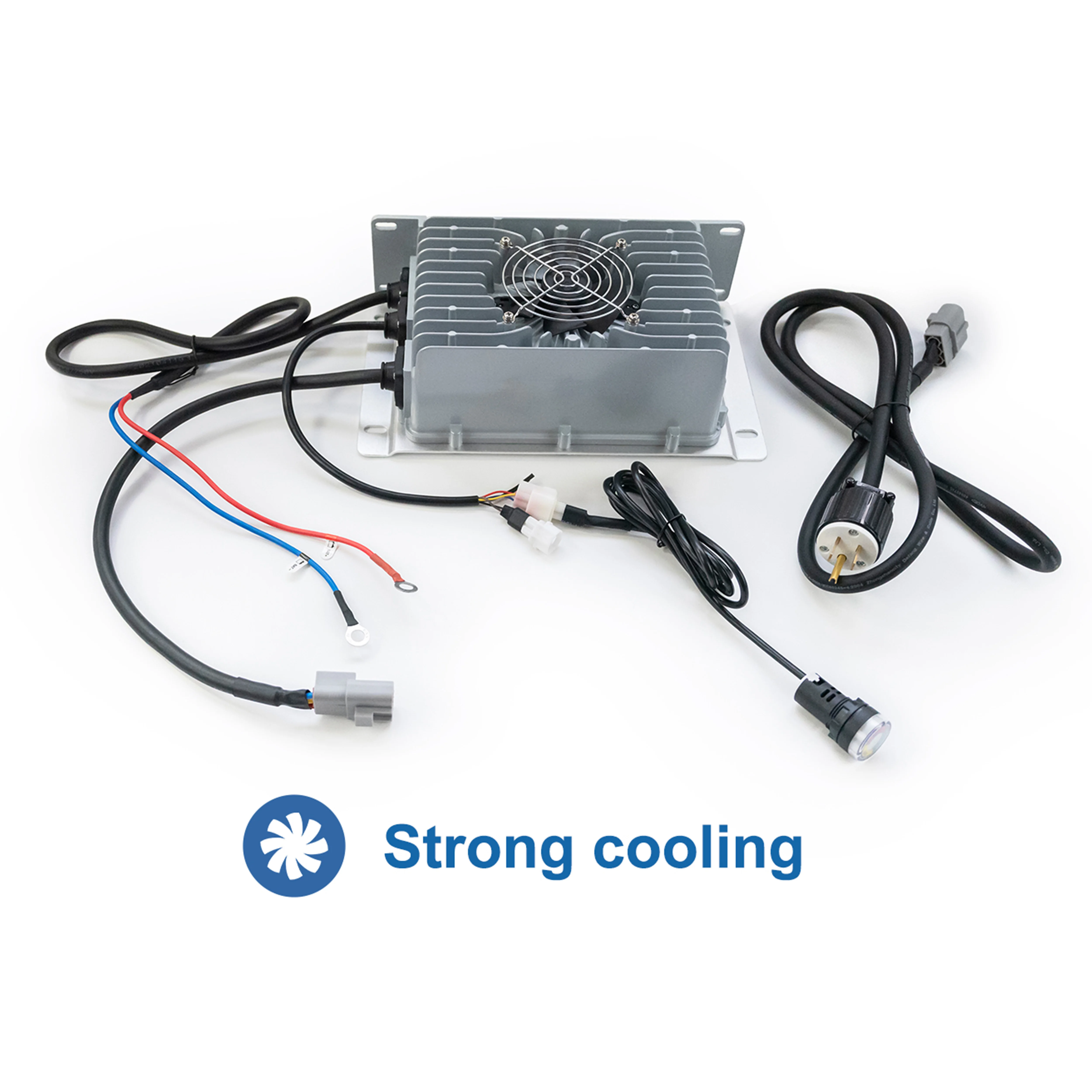

On-board Battery Charger For 86.4V LiFePO4 in 24 Series/84V NMC in 20 Series Battery
Battery type
86.4V LiFePO4 in 24 Series/84V NMC in 20 series
Model name
OBCD-1300-864-15-(CAN)
（For 24S LiFePO4 Battery)
OBCD-1600-864-20-(CAN)
(For 24S LiFePO4 Battery)
OBCD-2000-864-25-(CAN)
(For 24S LiFePO4 Battery)
OBCD-1300-840-15-(CAN)
(For 20S NMC Battery)
OBCD-1600-840-20-(CAN)
(For 20S NMC Battery)
OBCD-2000-840-25-(CAN)
(For 20S NMC Battery)








Input
Voltage range
90～264VAC
Frequency range
45～65Hz
Current
6.5A
8A
10A
Power Factor
≥0.98（Tested when the power is above half power）
Inrush current
Cold start 50A at 220VAC
Max. Efficiency
94%(220VAC); 91%(110VAC)
Leakage current

<0.5mA/220VAC (60335-1/2-29), 1.5mA Peak/240VAC (62368-1)







Output
Charging phase
Without CAN: pre-charge + constant current + constant voltage
With CAN: work on command
Max. output power
1300@220VAC
650W@110VAC
1600W@220VAC
800W@110VAC
2000W@220VAC
1000W@110VAC
Max. output current
15A@220VAC
7.5A@110VAC
20A@220VAC
10A@110VAC
25A@220VAC
12.5A@110VAC
Output vol range
50~86.4V(LiFePO4 in 24 Series)/ 50~84.0V(NMC in 20 series)
Constant voltage
86.4V(LiFePO4 in 24 Series)/ 84.0V(NMC in 20 series)
Max. current ripple
500mAp-p
Static power
<8W

Protection
Short circuit
Yes
Over temperature
Yes

Function
Indicator light
Yes
Interlock
Normally open when charging, normally closed when not charging






Environment
Cooling
Fan cooling
Waterproof
IP65
Working Temp.
–20～50℃
Working humidity
10%～95% RH non-condensing
Storage temp.,
humidity
–40～80℃, 10%～90% RH non-condensing
Vibration resistant

10～500HZ, 2G 10 minutes/cycle, X, Y, Z axis each 60 minutes
SAFETY & EMC
Safety standards
EN60335, GB/T4706
Withstand voltage
I/P-O/P: 3KVAC  I/P-FG: 2KVAC  O/P-FG: 0.5KVAC
Isolation resistance
I/P-O/P, I/P-FG, O/P-FG: 100M ohms/500VDC/25℃/70%RH
EMC emission
EN55022 Class A, GB/T 9254 Class A
EMC immunity
EN 55024:2010, GB/T17618
Indicator
Status
Steady red light
Charging
Steady yellow light
Almost full
Steady green light
Full charged
Red light flashing
Charger broken
MTBF
>70000Hours
Weight
5KG
6KG
Dimensions
289*158*82 mm (Pic2)
286*197*90 mm (Pic3)

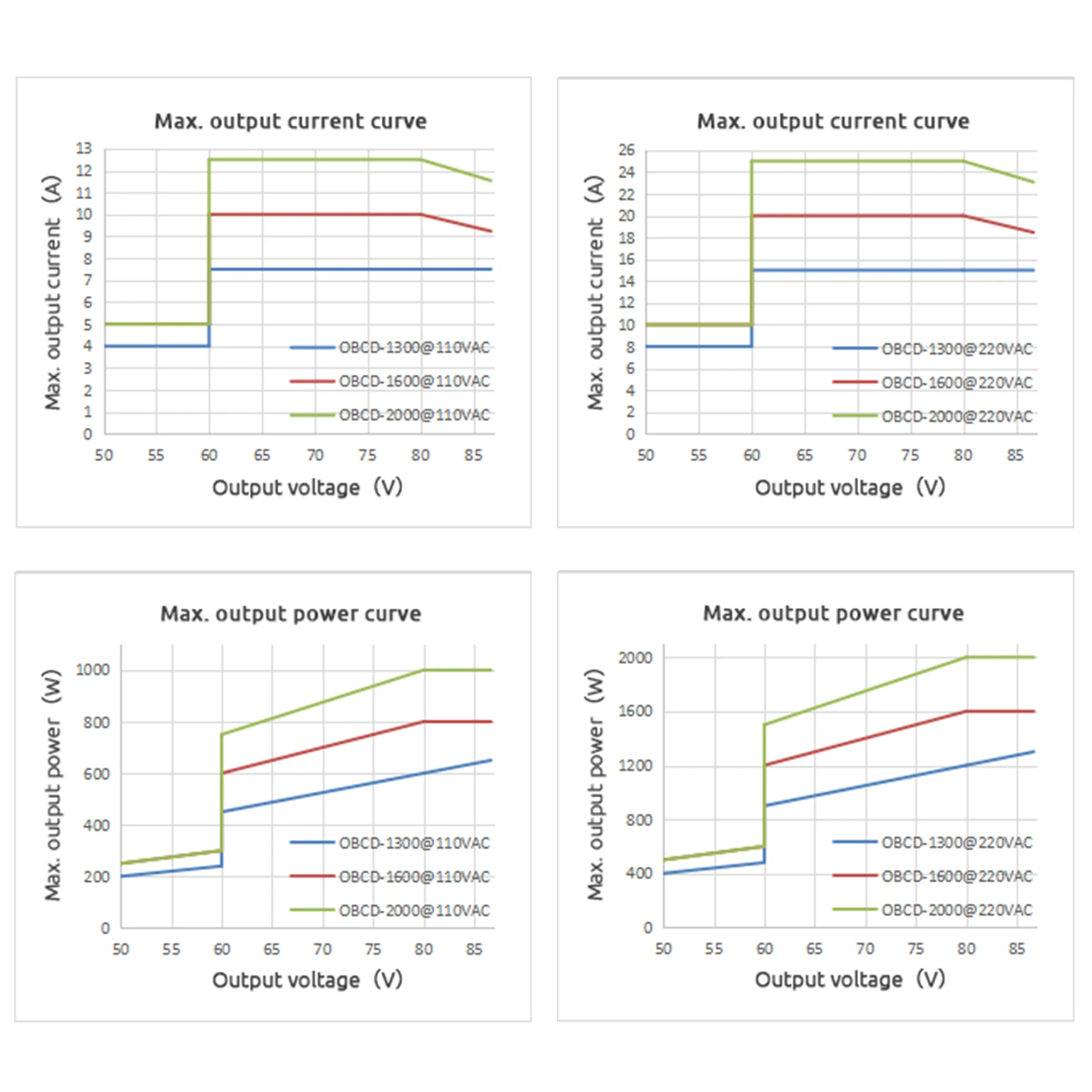

Max output current curve & Max output power curve--24S LiFePO4/20S NMC
Note: 60-65V is a small current (10A constant current) pre-charge stage, and the current cannot be set.
Its purpose is to protect over-discharged batteries (high current charging is prohibited)

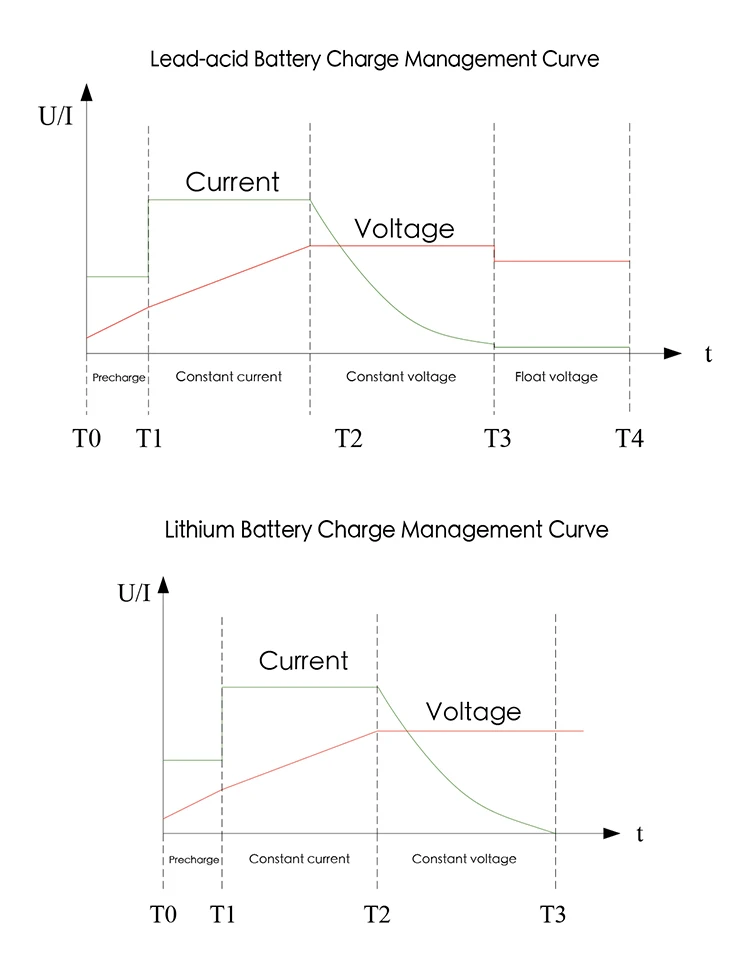

Charge management curve
333

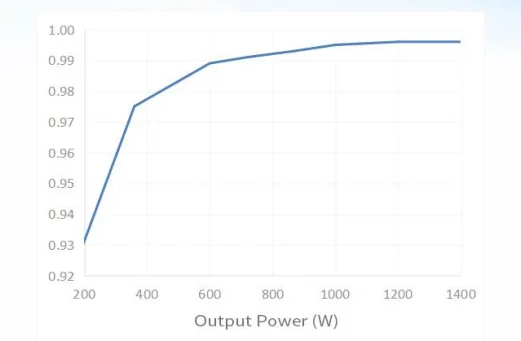

Power factor graph

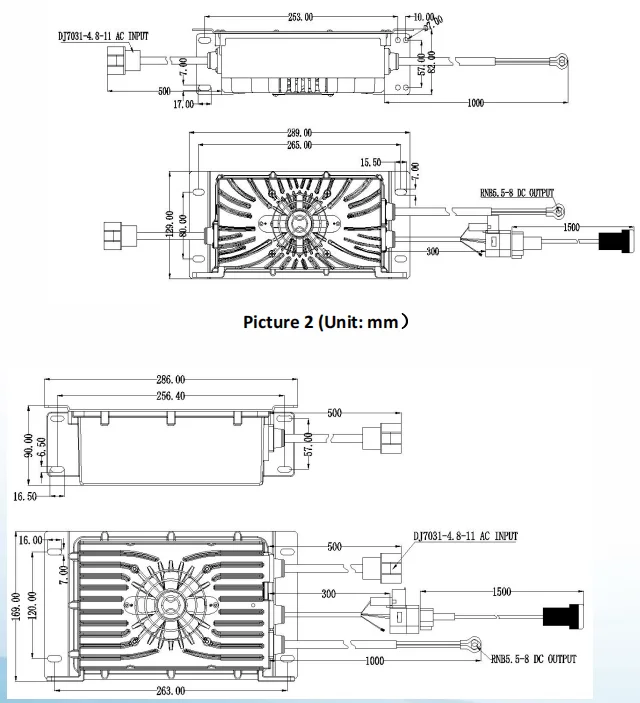

Product Dimensions
333


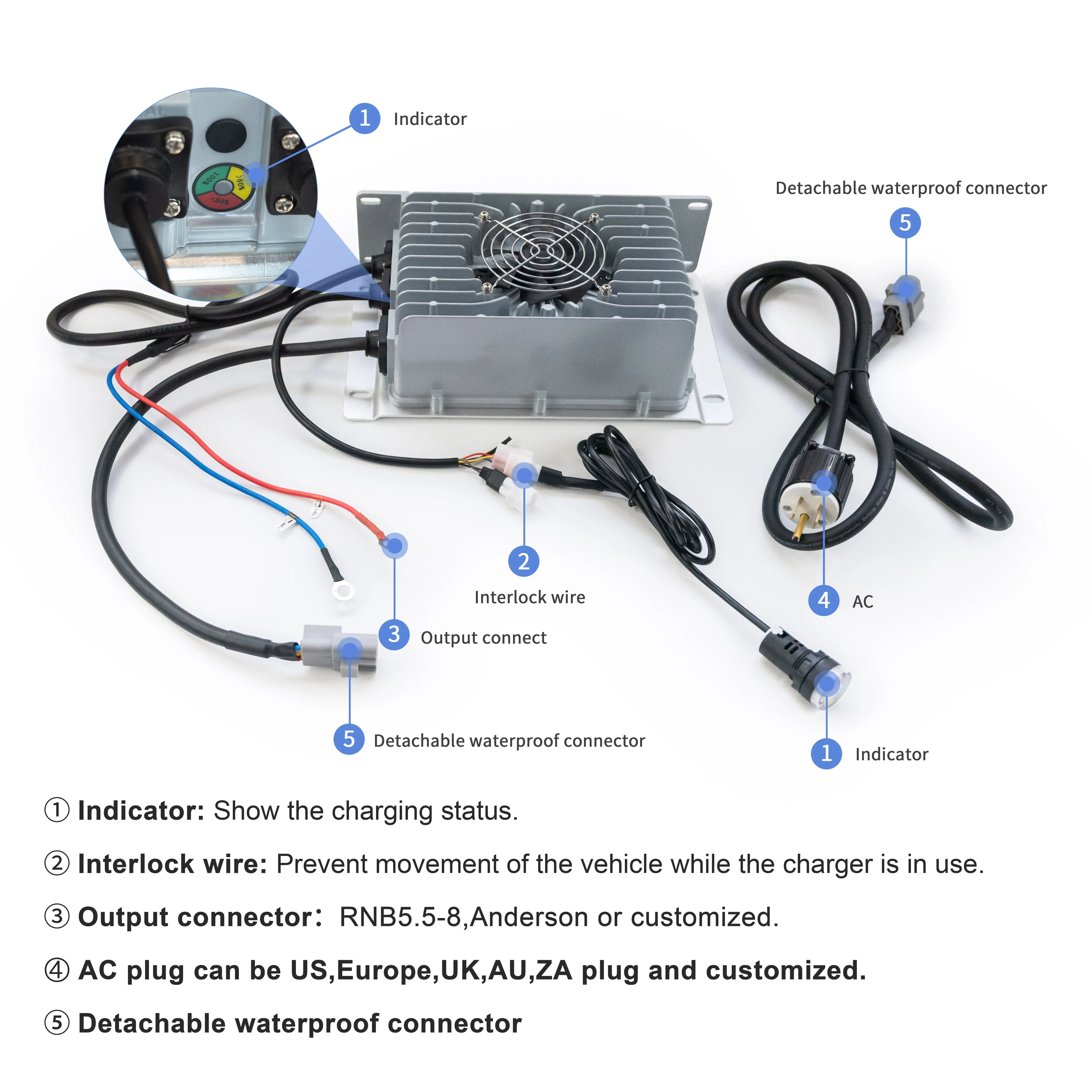

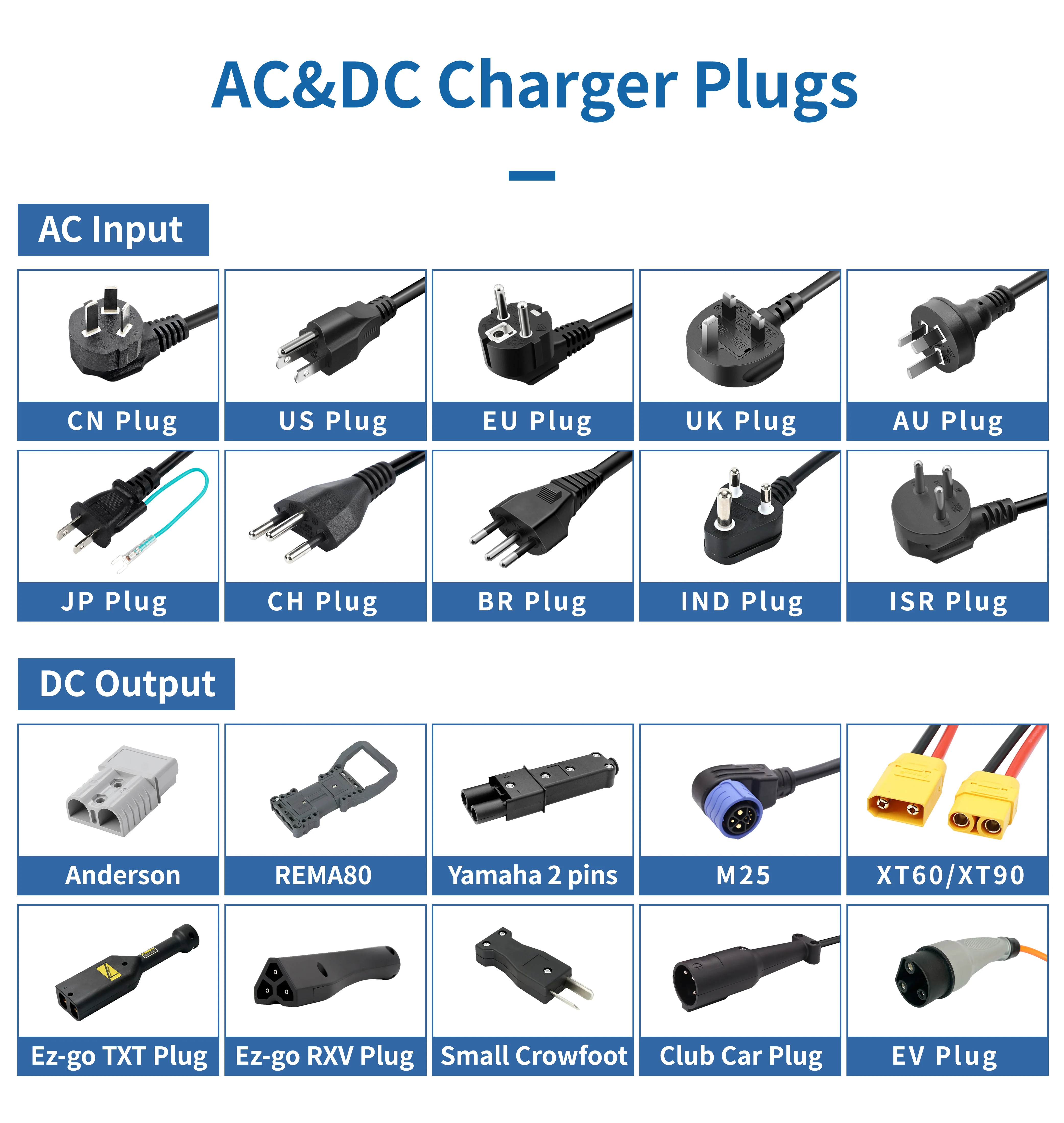

AC Input Plug&DC Output Connector
