Машина для производства пластиковых питьевых трубок PP PE PLA
- Category: Straw Making Machines >>>
- Supplier: Suzhou Deedo Machinery Co. Ltd.
Share on (1600529397311):
Product Overview
Description

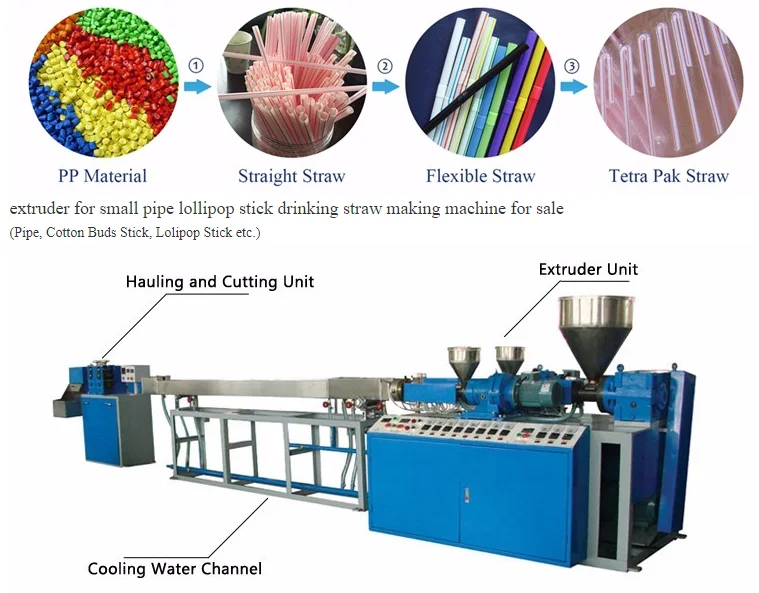

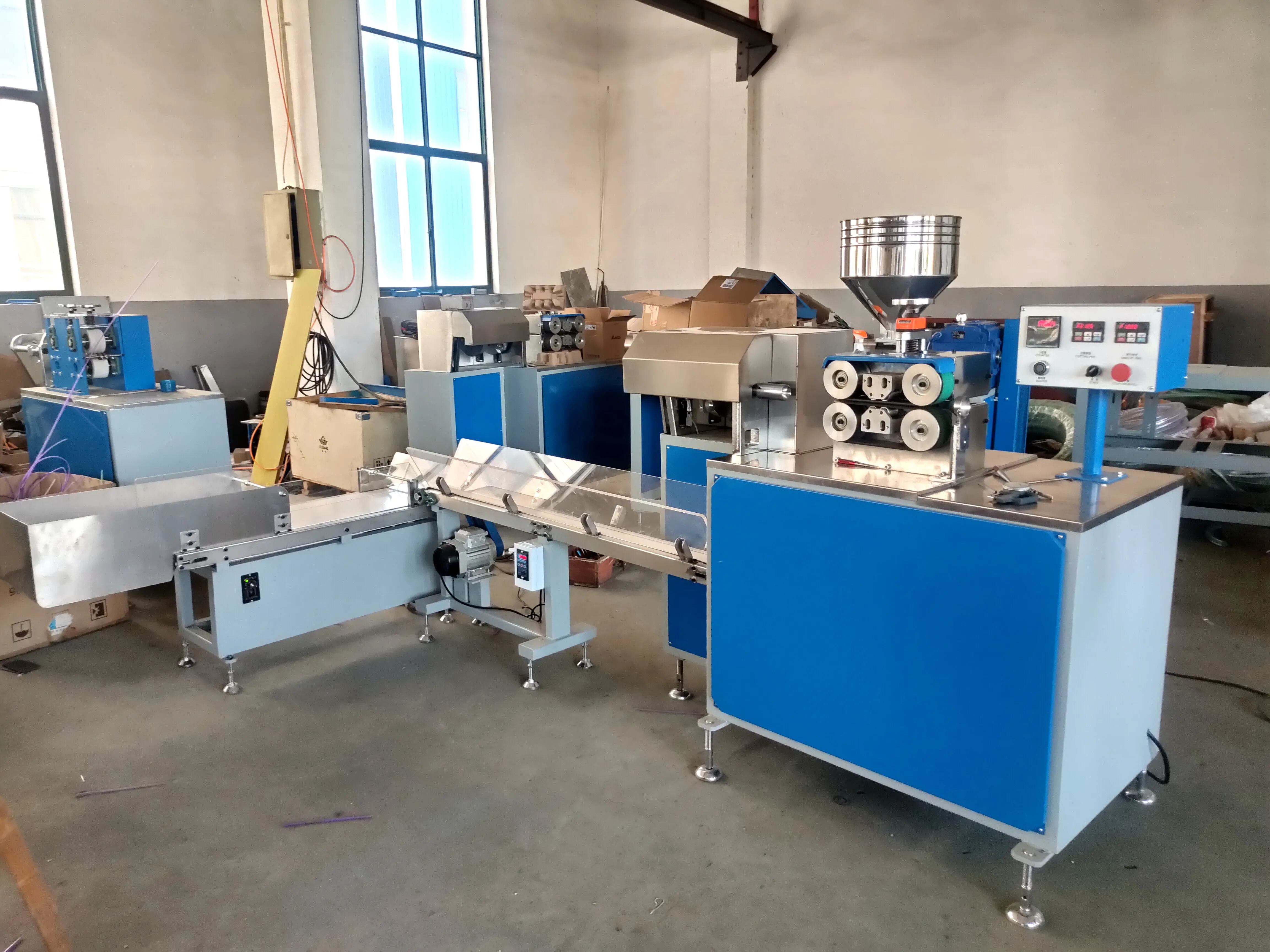

PP PE PLA PLASTIC Drinking straw making machine extruder machines line
Products Description
Applications：Food industry: Drinking Straw, Coffee stirring stick, Lollipop sticks, candy floss sticks, ice cream bars, etc.
Industrial applications: cartridge, pen, spray straw, cotton swab stick, medical tubes, toys tube, threading pipe, tube, brake
tubes and other small profile
Irrigation System: Micro-drip irrigation pipe, etc.
Drinking Straws: 30,000～40,000pcs/h
Cotton swab sticks: 80,000pcs/h
Pen Refills: 60,000pcs/h
Material: PP, PE
Cutting edge: 90°/90°,90°/45°,90°/60°,45°/45°,60°/60°
Color：Single / Two / Three
Operator：One operator is sufficient to run the line
Industrial applications: cartridge, pen, spray straw, cotton swab stick, medical tubes, toys tube, threading pipe, tube, brake
tubes and other small profile
Irrigation System: Micro-drip irrigation pipe, etc.
Drinking Straws: 30,000～40,000pcs/h
Cotton swab sticks: 80,000pcs/h
Pen Refills: 60,000pcs/h
Material: PP, PE
Cutting edge: 90°/90°,90°/45°,90°/60°,45°/45°,60°/60°
Color：Single / Two / Three
Operator：One operator is sufficient to run the line
Product Paramenters
General description | Main electric elements | Frequency inverter: Delta Contactor: Delixi Temperature controller: Huibang Motor: Made in China |
Output(max) | 35kg/h | |
Connect type of extruder and mould | Bolt connection | |
Advantages | Main parts adopt top-rank brand Strict real time quality control | |
Screw | Diameter(mm) | 50mm (1 set) |
L/D | 28/1 | |
Material | 38CrMoAlA, Nitrogen treated | |
Heating | Common heater with outer cover | |
Heating segments | 4zone | |
Heating power | 14kw | |
Temperatrue control | 11 set | |
Barrel | Barrel type | With feeding groove |
Cooling | Cooling by water, temperature control accuracy: ±1℃ | |
Cooling segment | 3 segments | |
Material | 38CrMoAlA, Nitrogen treated | |
Drive and Transmission system | Main motor power（KW） | 11kw |
Speed adjusting mode of main motor | Variable frequency conversion | |
Extruder | Figure dimension(mm) | 2100*1300*1500 |
Weight(kg) | 800 |
Details Images

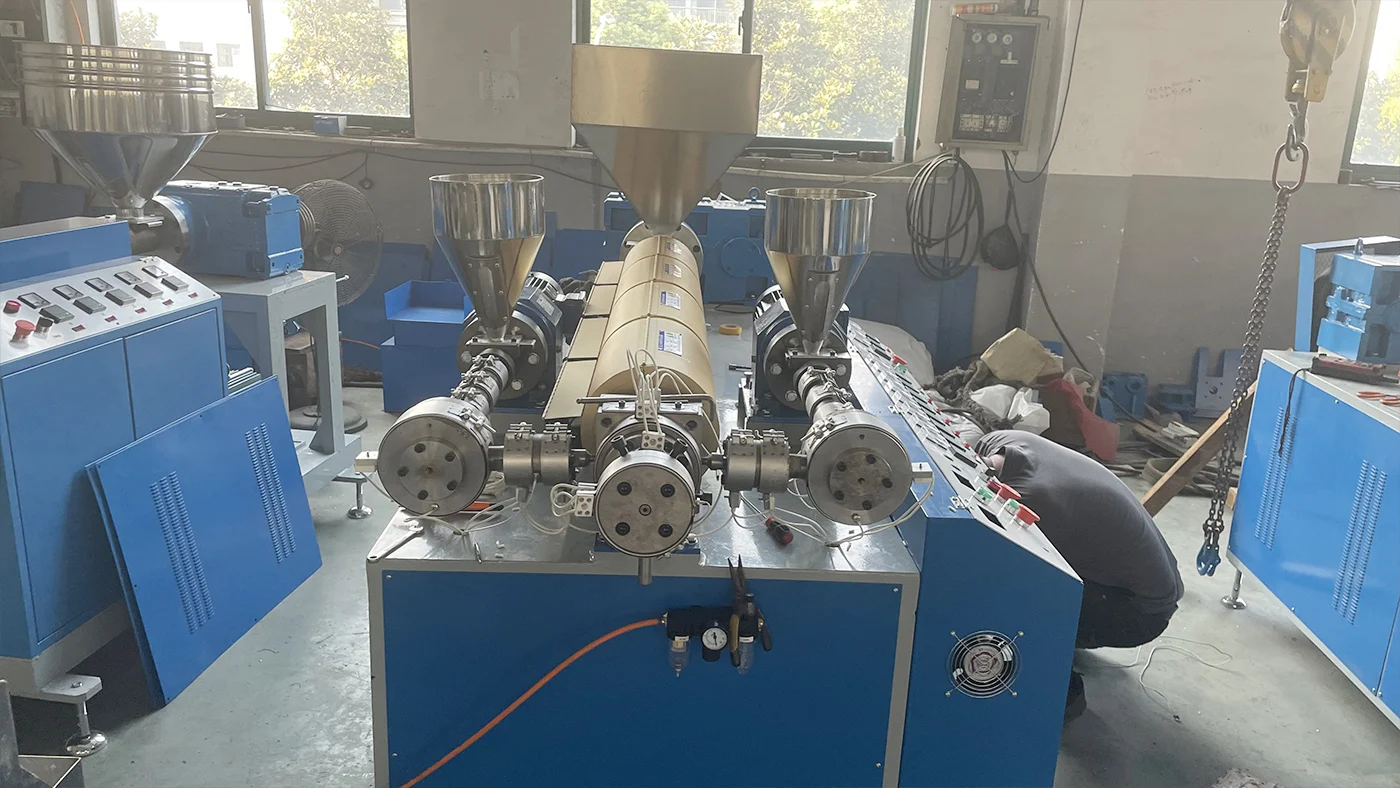

Extruder:Die mould and heating ring
Diameter range (OD): 2.5-12mm;
Wall thickness: 0.08-1mm;
Material of the mould body: steel 45#;
Material of inner mould parts:40Cr
Diameter range (OD): 2.5-12mm;
Wall thickness: 0.08-1mm;
Material of the mould body: steel 45#;
Material of inner mould parts:40Cr

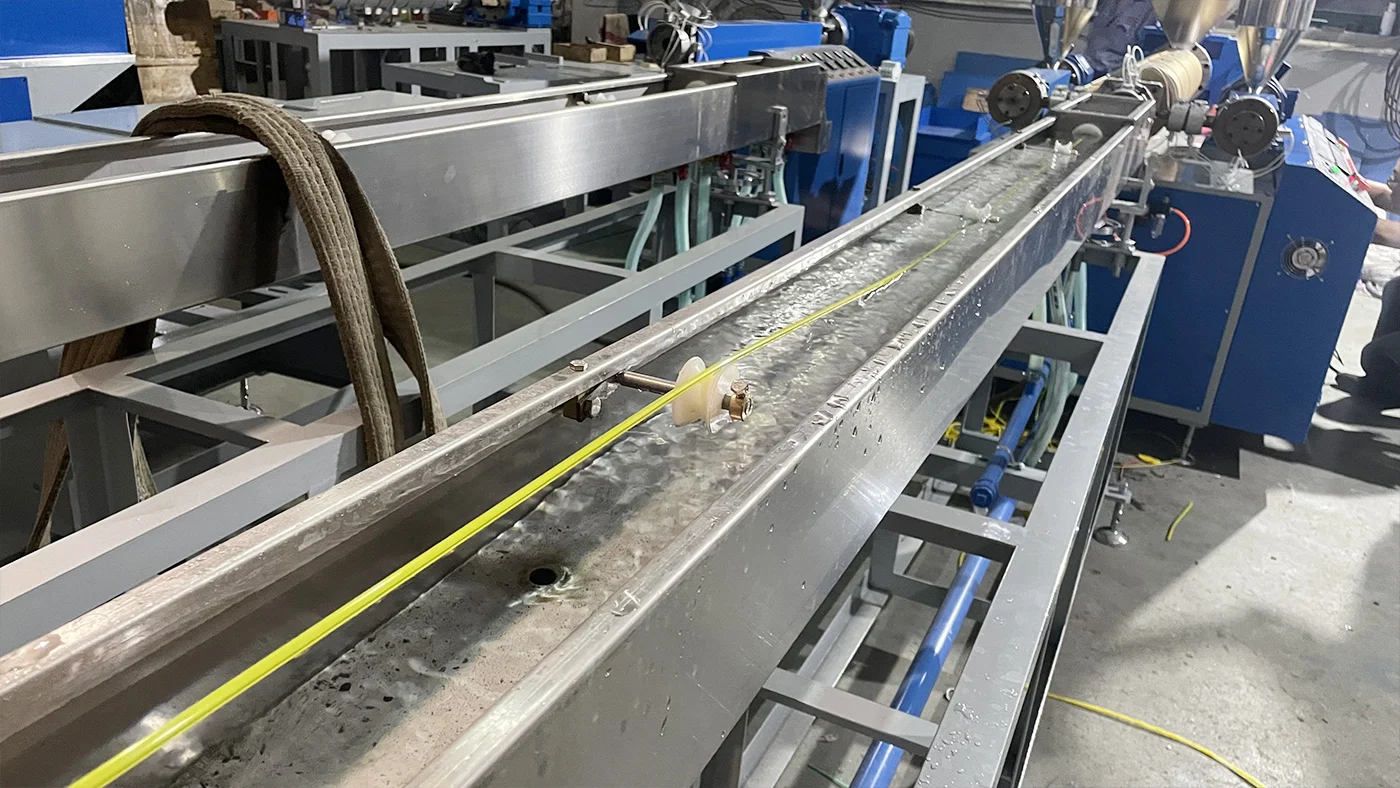

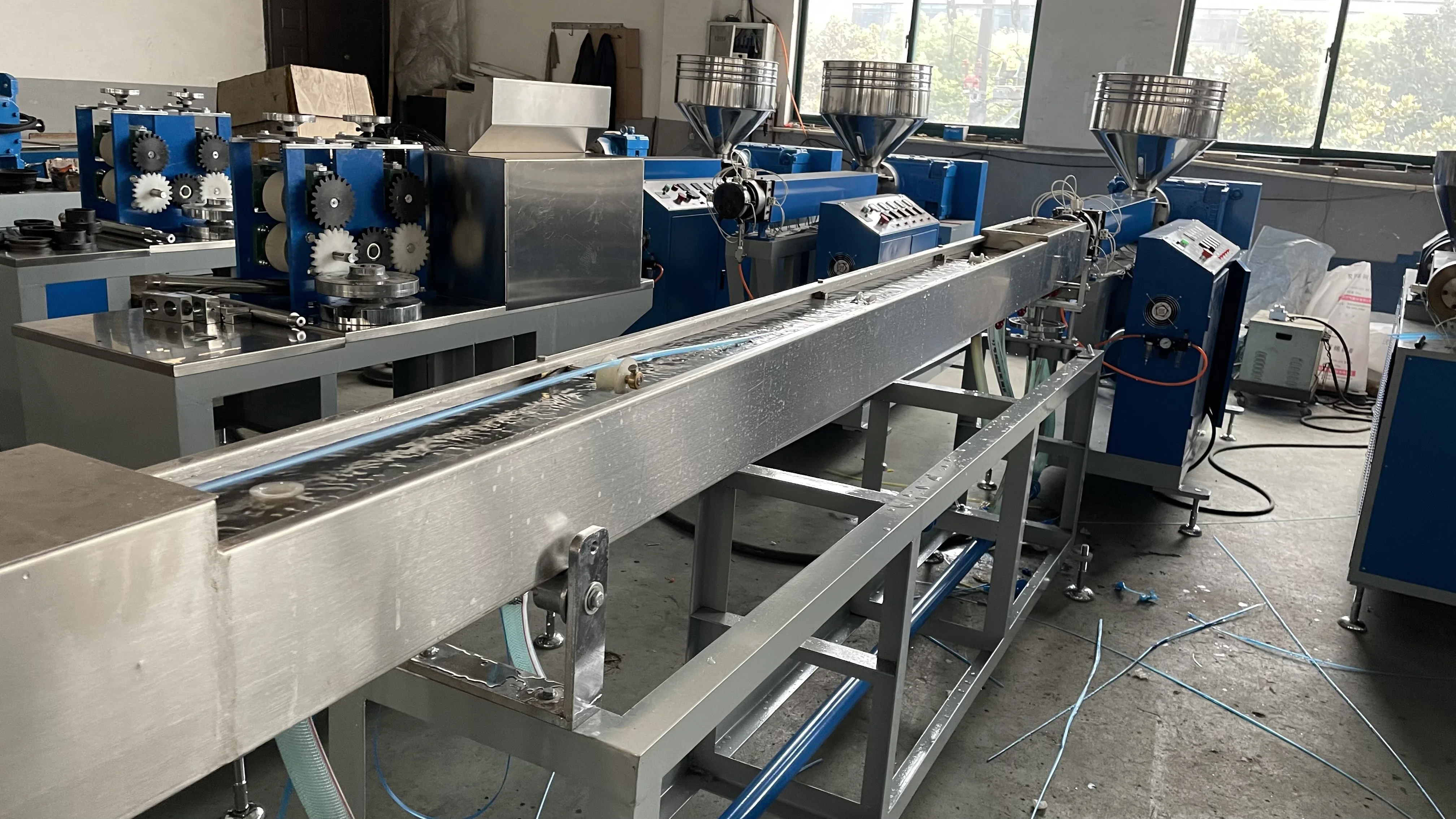

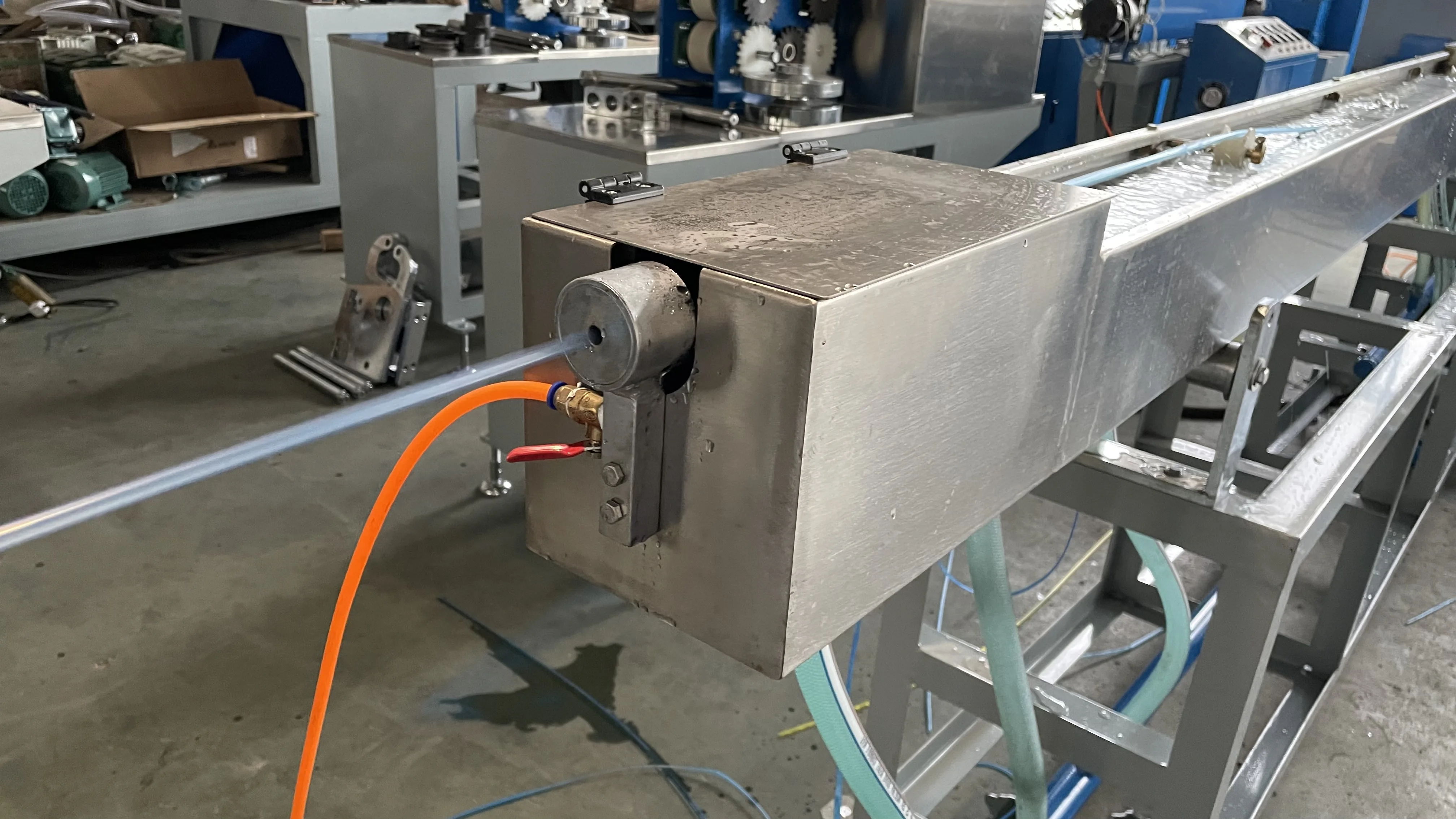

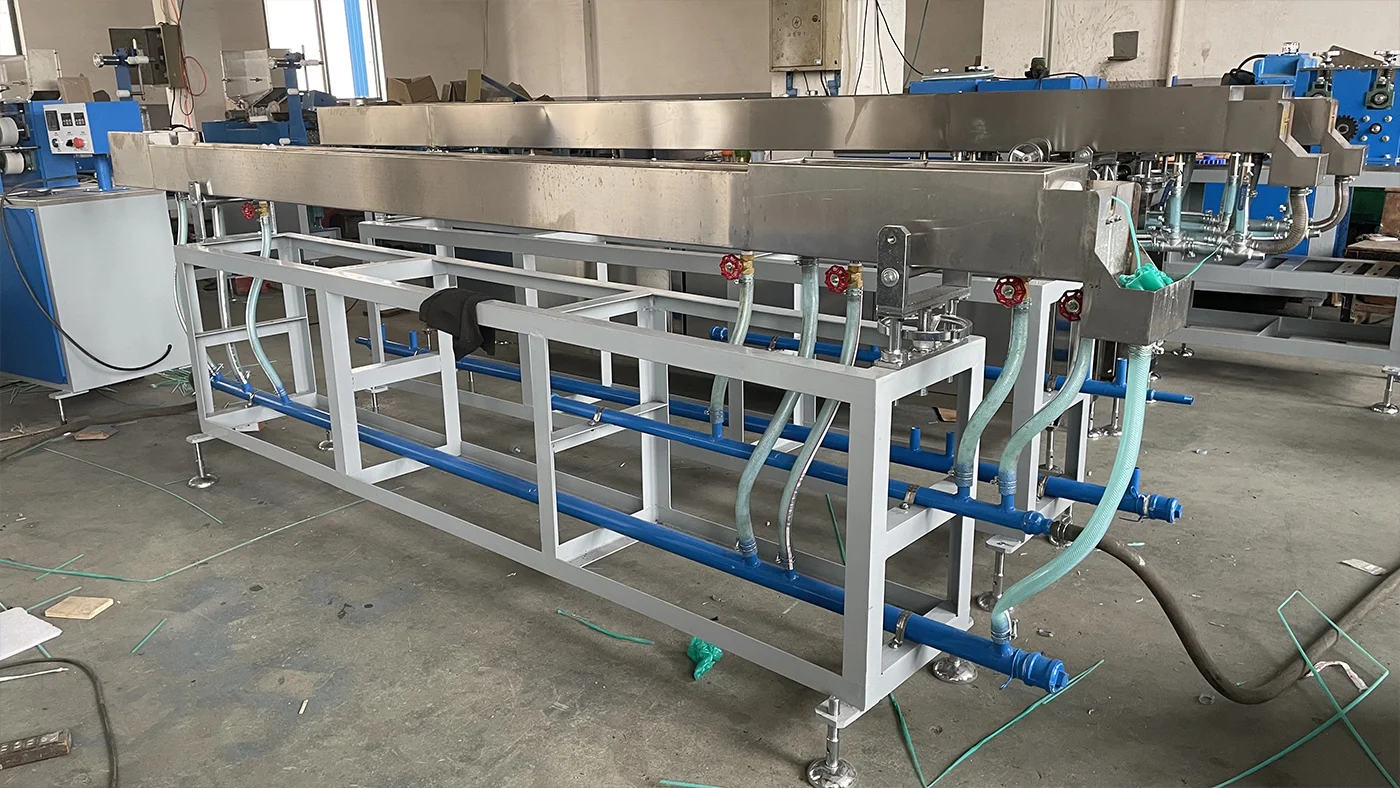

Water cooling tank:
Function: calibrate the outer diameters andcooling pipe primarily;
Material: stainless steel, SUS304;
Cooling mode: spray-pouring cooling;
Pouring areas: 3 in 4 out.
Function: calibrate the outer diameters andcooling pipe primarily;
Material: stainless steel, SUS304;
Cooling mode: spray-pouring cooling;
Pouring areas: 3 in 4 out.

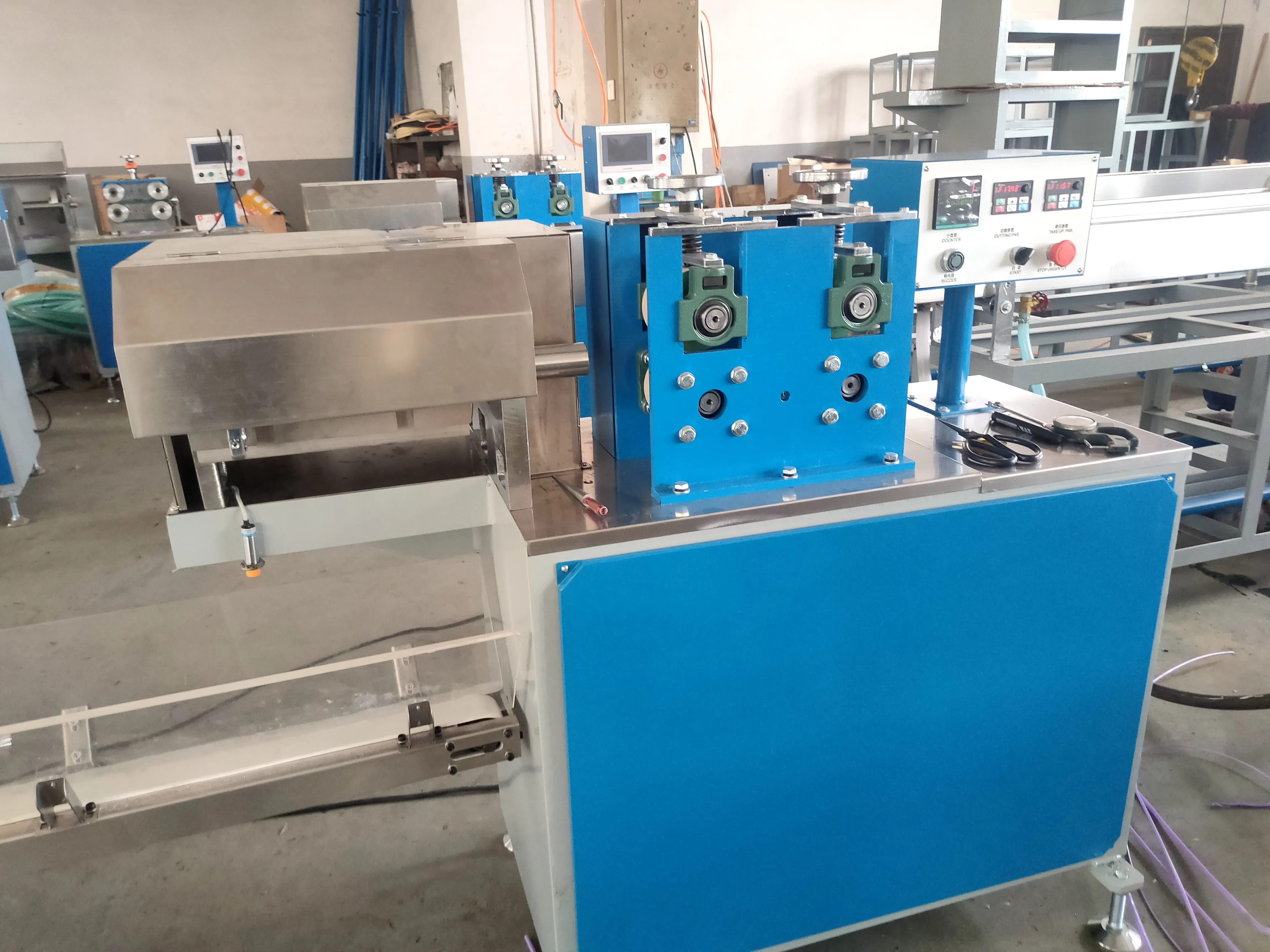

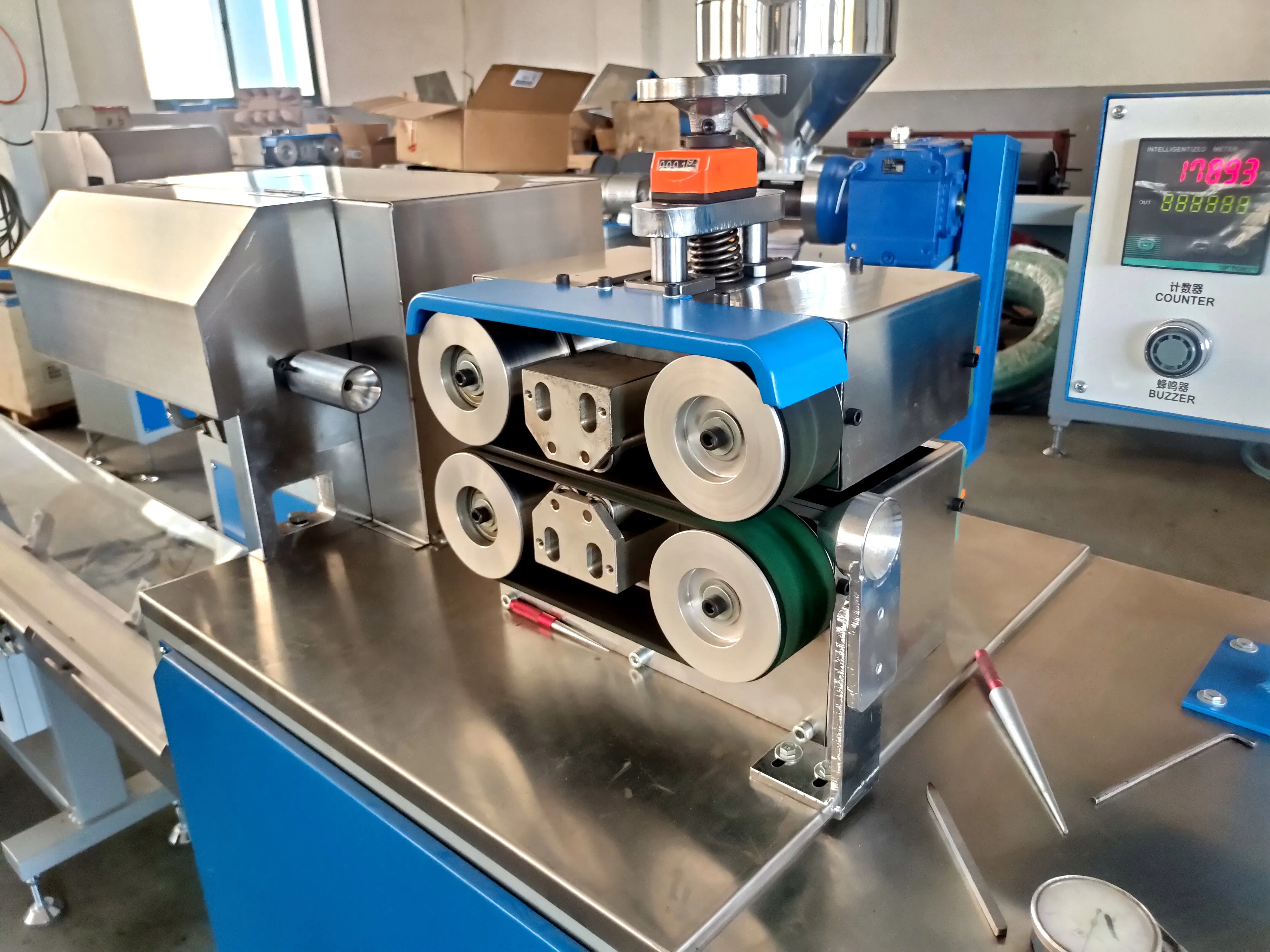

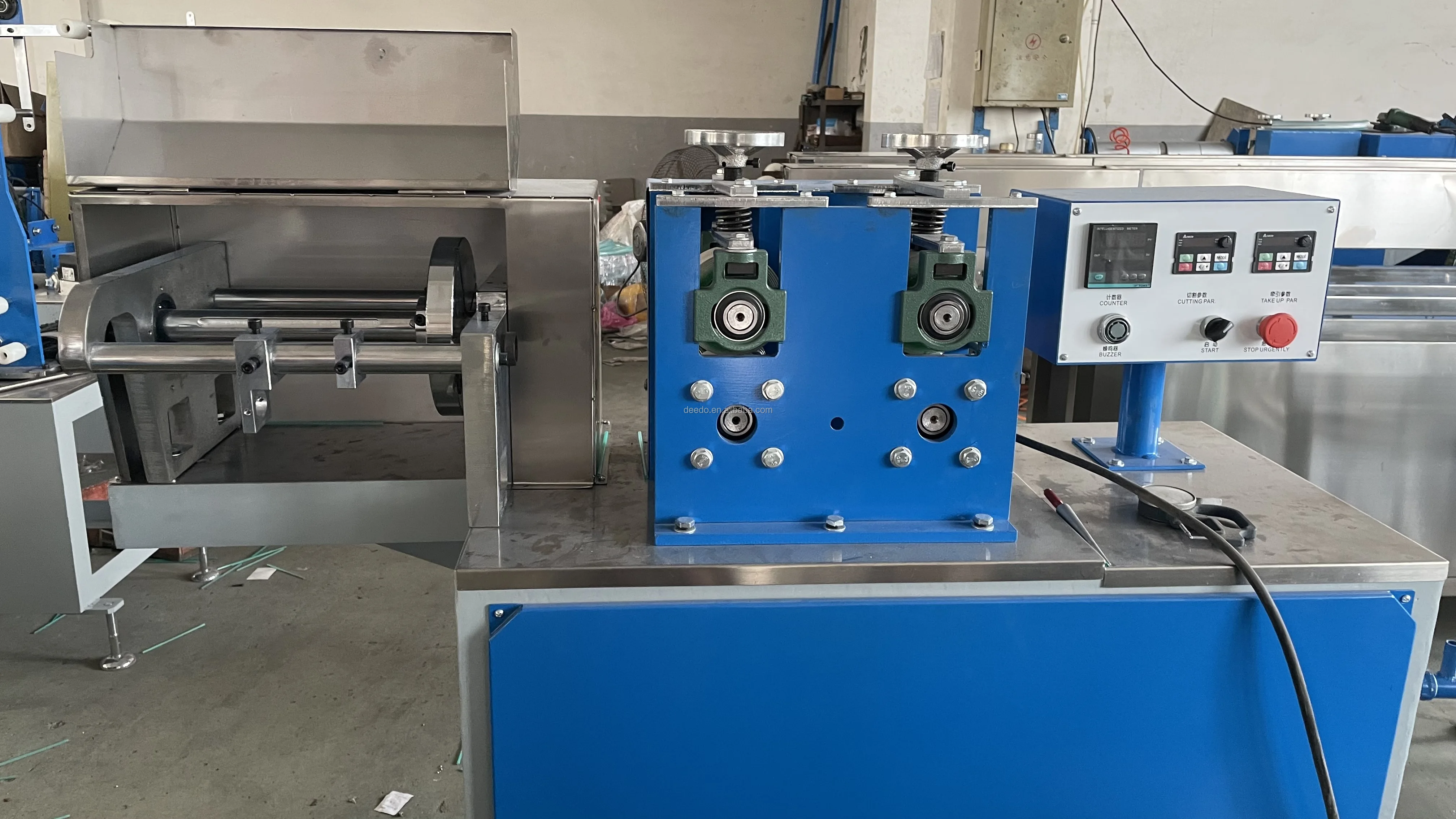

Haul off and cutting machine
Available pretrial length: 5-800mm;
Speed adjusting mode: frequency conversion;
Hauling speed: 0-250.
Available pretrial length: 5-800mm;
Speed adjusting mode: frequency conversion;
Hauling speed: 0-250.

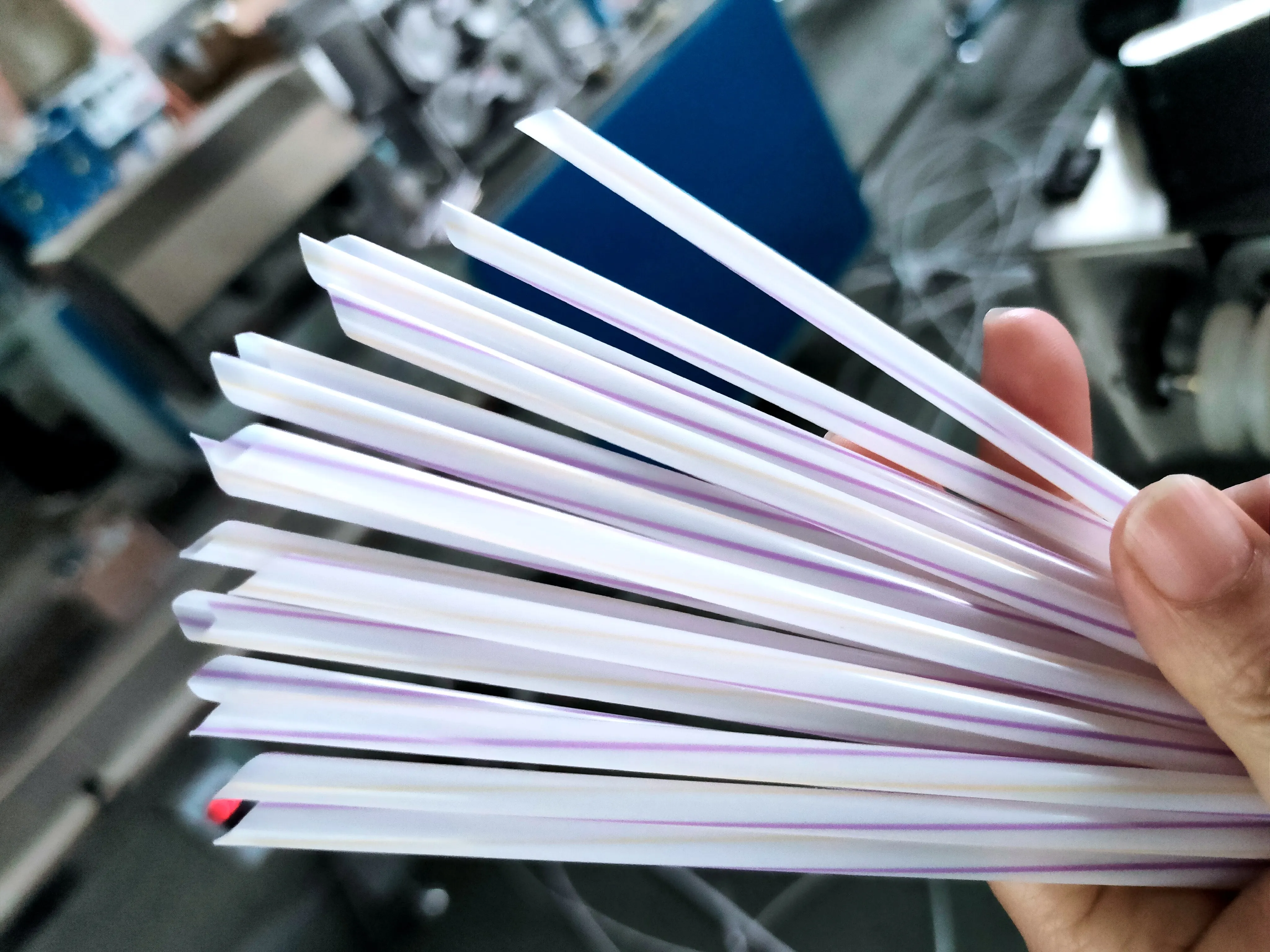

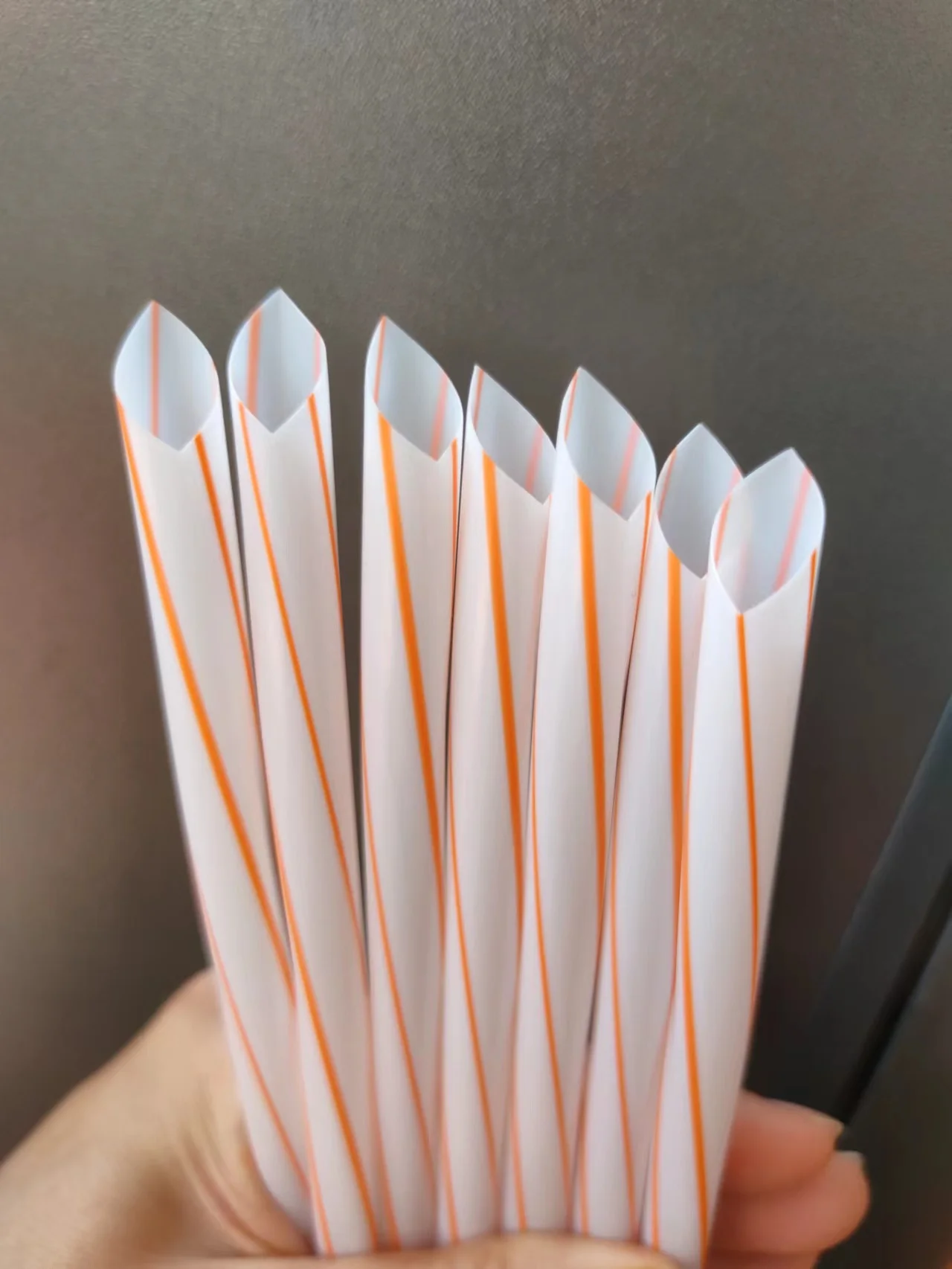

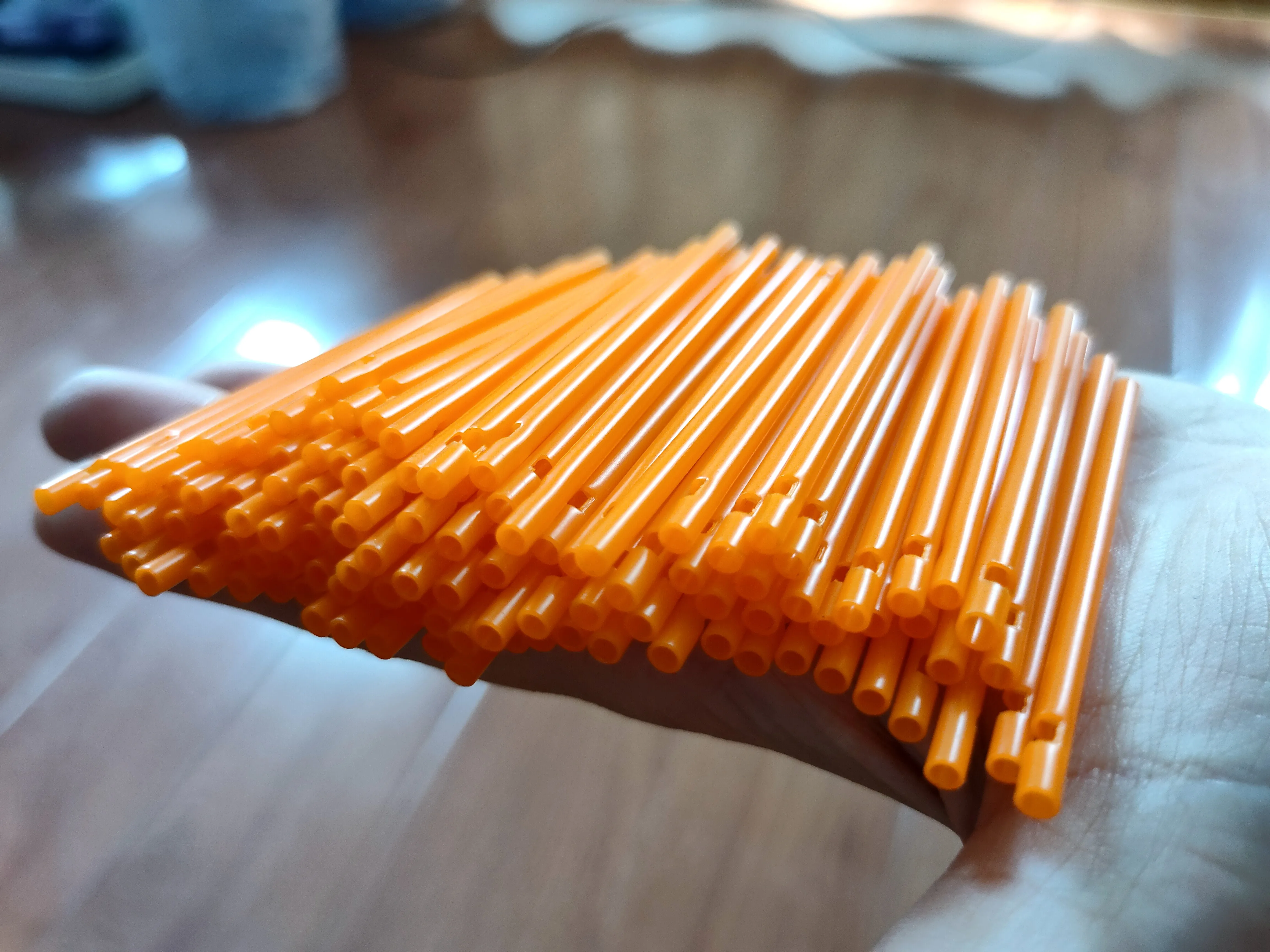

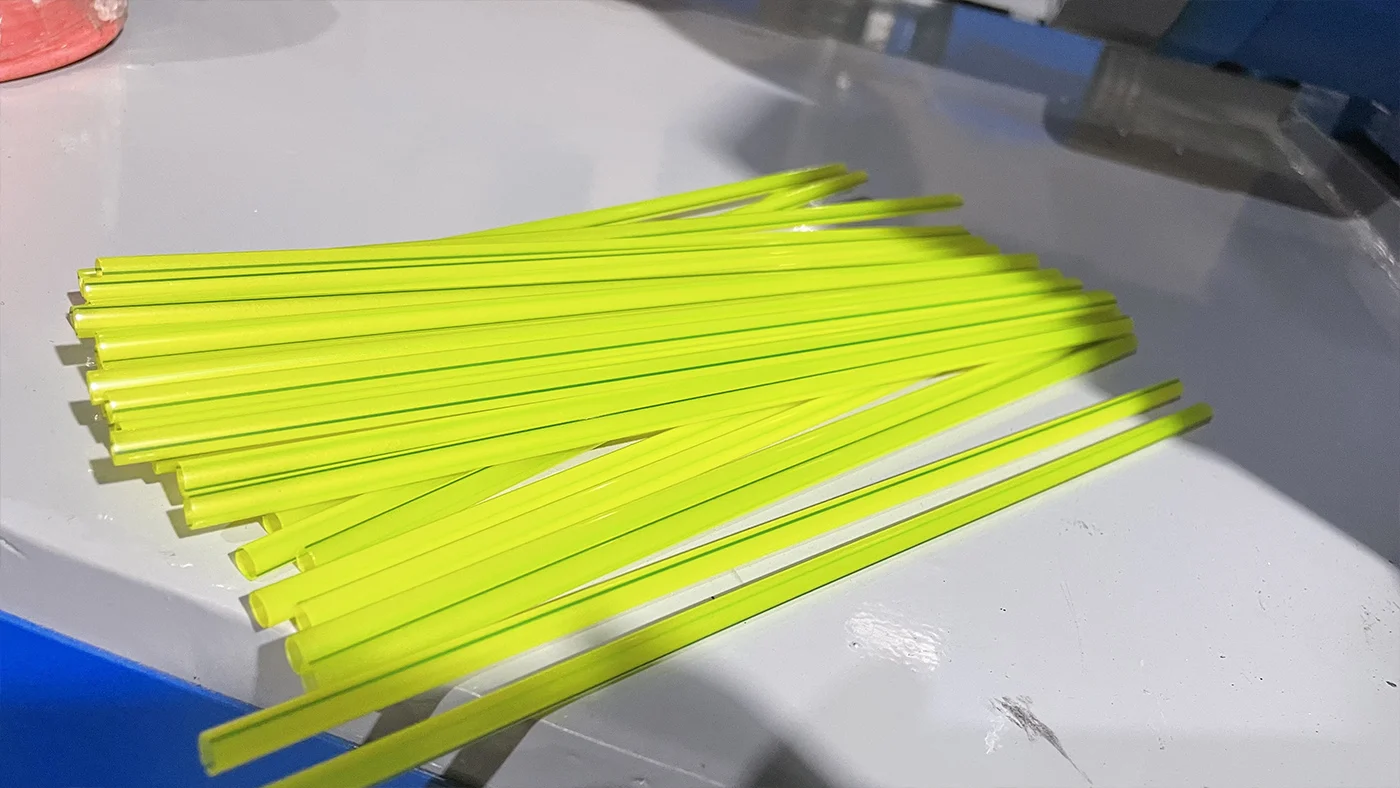

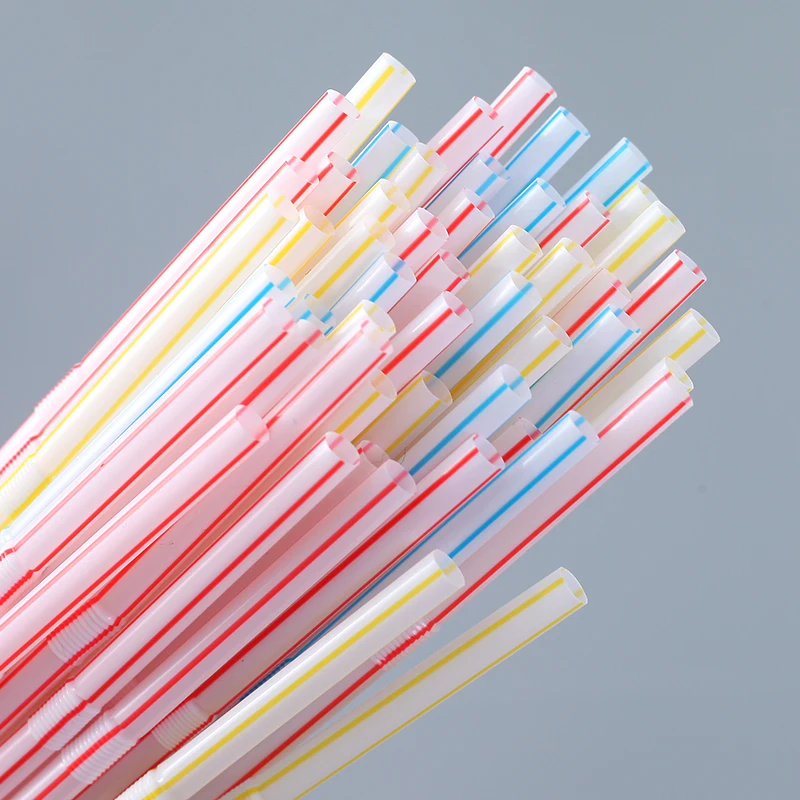

Final Product
product
Can do 1 color, 2 colors, 3 colors
