Product Overview
Description
Product Overview

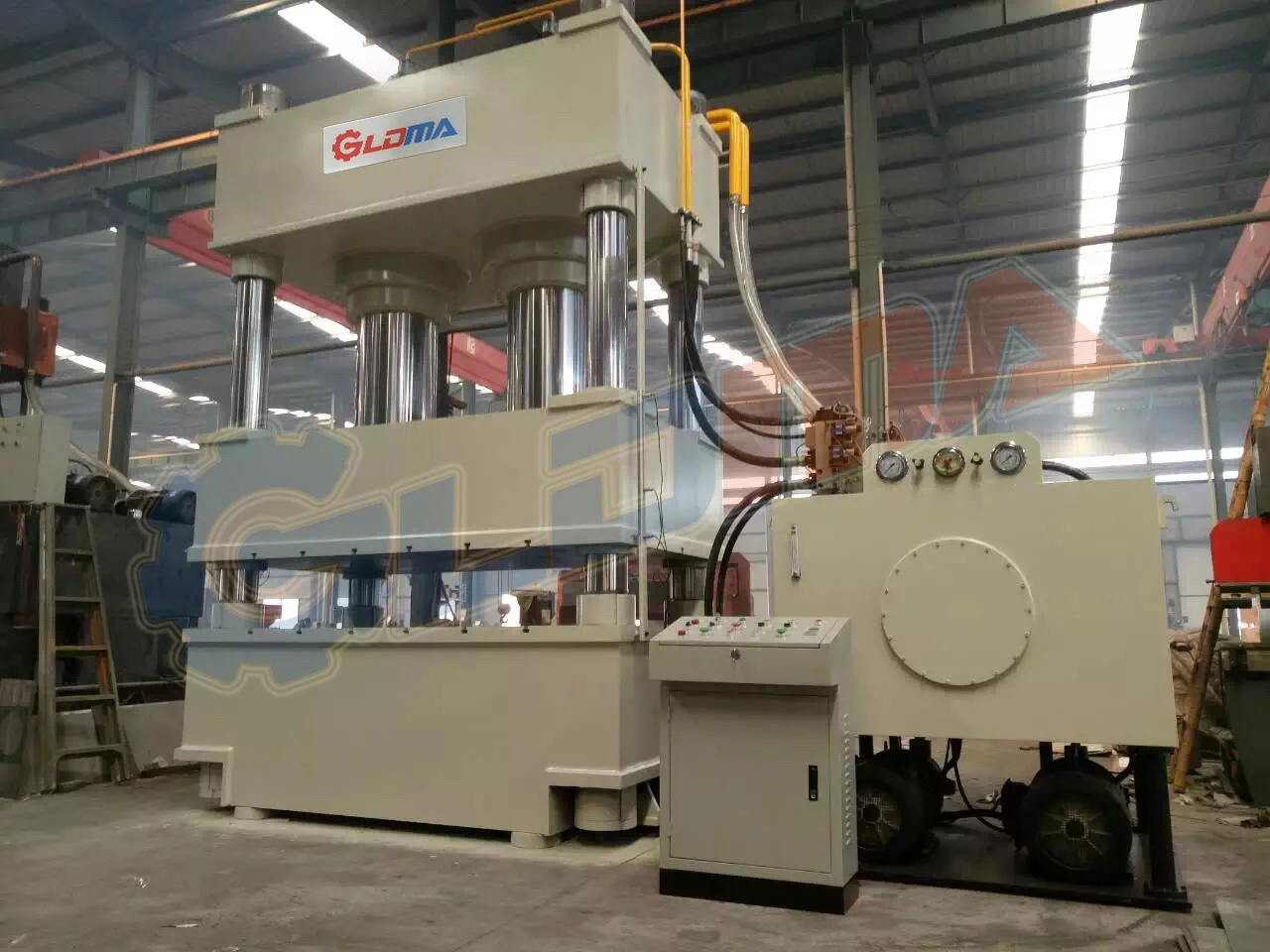

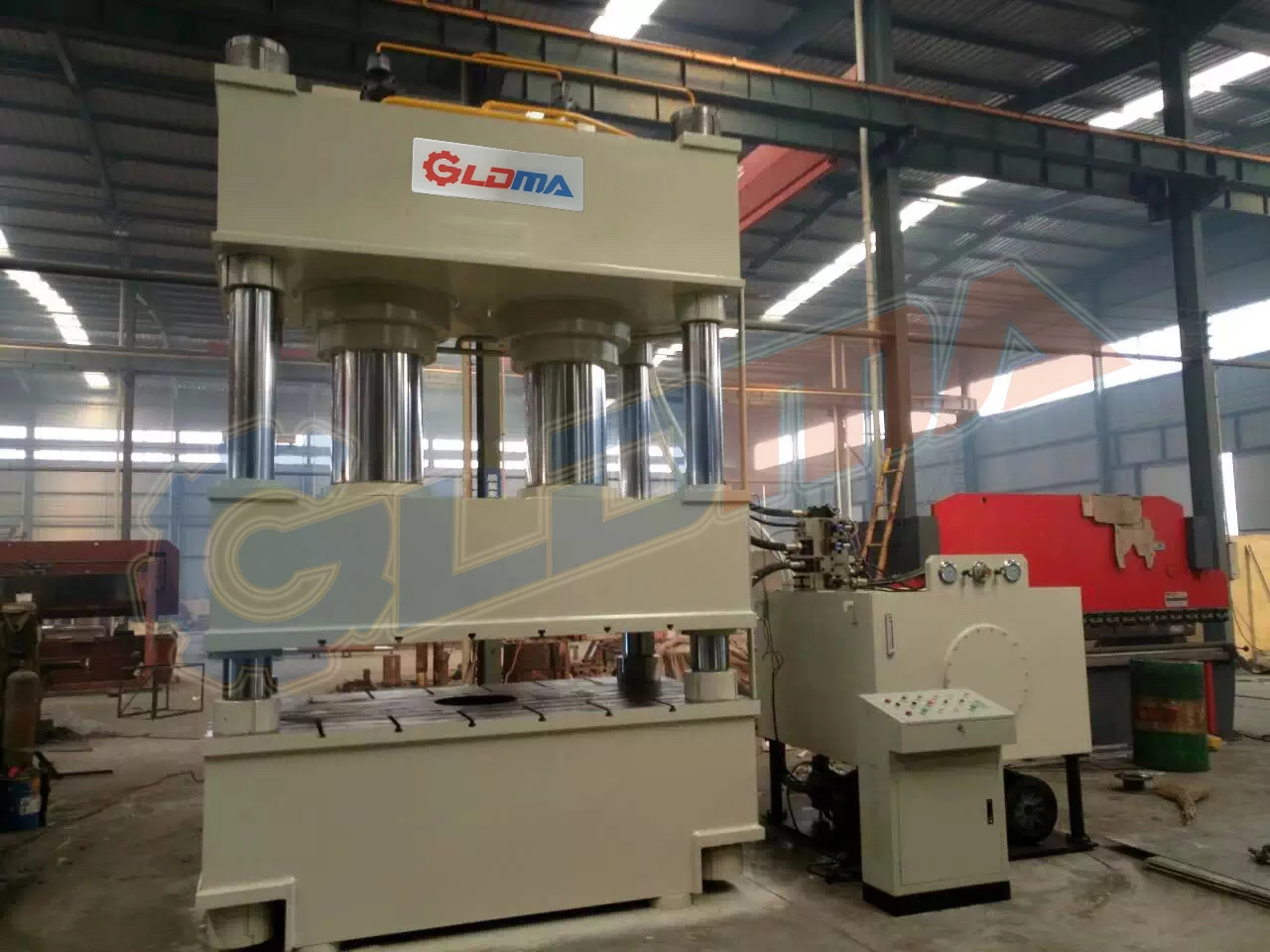

Hydraulic press mahcine
1. Y32 Series Four-Column Hydraulic Press is one of the new generation of plate process. Three-beam and four-pole structure design for large operating spaces - suitable for automatic operation forming, punching, bending, straightening and multi-press assemblies to form automatic production line.
2. Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts, slide and bolster tables with T-slots.
3. Uses a variable flow piston pump - offers high pressure resistance, high velocity, good durability and low noise.
4. Hydraulic pipe system uses integrated circuits - manifold block fits inside the press to reduce piping and oil leaks, easy to maintain, simple and safe. Hydraulic system is from Bosch, Germany.
5. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.
6. Front Side Covers with safety switches, back light safety guards (Category-4), foot pedal conforming to CE regulation.
7. Guiding device: adopts four cylindrical location guiding to make sure of the steady precision, and it's easy to test and
maintain.
maintain.
8. Presses operated with automatic one cycle design; two hand push button design for simple and safe operation. Presses which could realize three-operation mode: adjustment, manual and semi-automatic.
9. PLC press control is flexible and safe. Adjustable proximity switches allows stroke adjustments in seconds.
10.All our electrical, hydraulic and mechanical parts meet the standard in the industry and available throughout North America and Europe.
11. The Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
12. Dual control you can select to use:
a. Moveable pedestal height for comfort and ease of operation, c/w dual electric palm buttons & extra emergency stop.
b. Movable single-hand pedal switch .

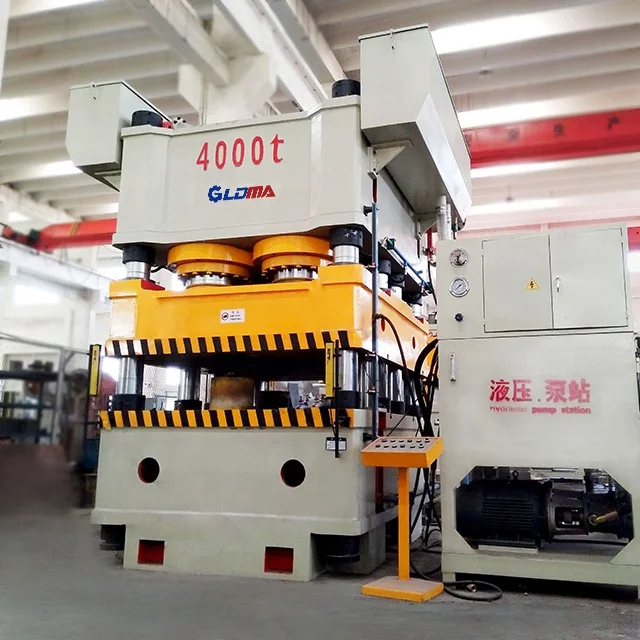

Details Images

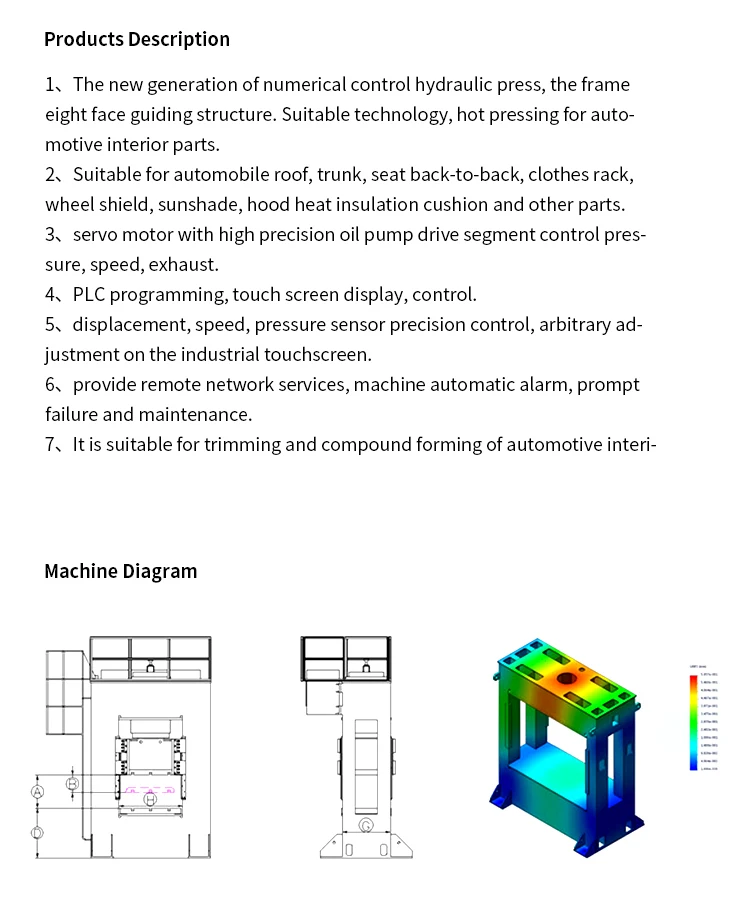

Products Description
PRODUCT SPECIFICATIONS
Model | Unit | 100T | 160T | 200T | 250T | 315T | 400T | 500T |
Nominal Pressure | KN | 1000 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
Ejecting Force | KN | 200 | 250 | 400 | 500 | 630 | 630 | 1000 |
Slider Stroke | MM | 500 | 500 | 700 | 700 | 800 | 800 | 900 |
Max. Opening Height | MM | 900 | 900 | 1120 | 1120 | 1250 | 1400 | 1500 |
Ejecting Stroke | MM | 200 | 200 | 250 | 250 | 300 | 300 | 300 |
Max. Working Pressure Of Liquid | MPA | 26.2 | 26 | 25 | 25 | 25 | 25 | 26 |
Motor Power | KW | 7.5 | 15 | 18.5 | 18.5 | 22 | 22 | 38.5 |
Weight | T | 4 | 7 | 12 | 13 | 15 | 20 | 30 |
SALES AND SERVICE NETWORK

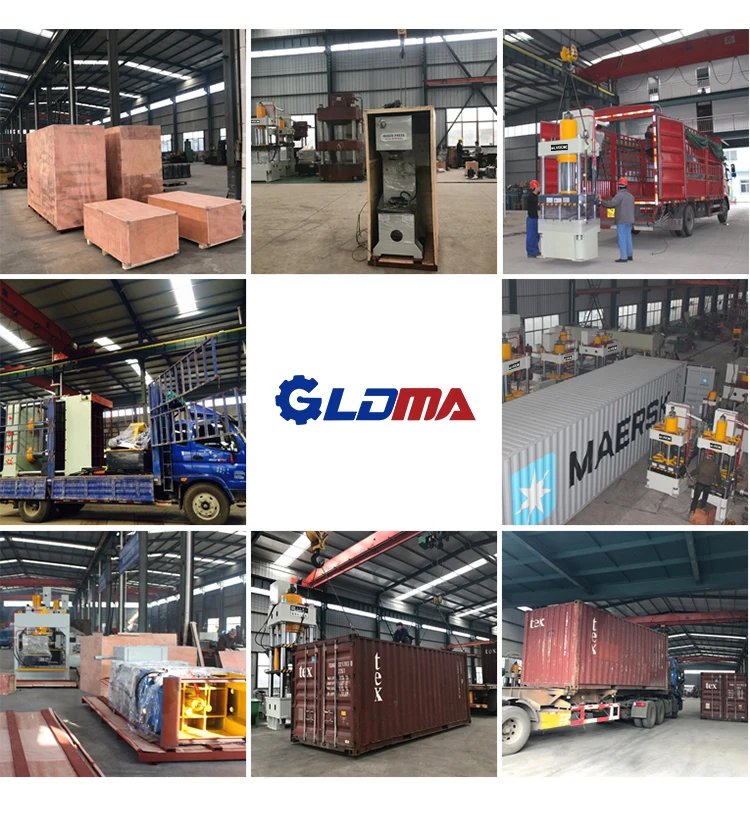

Product packaging
Our Service
1.Installation Service
We dispatch technician to customer's factory for installation and preoperation of machines. (Customers only need to pay for the airfare and hotel expense.)
2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines. ( Customers only need to pay for the airfare and hotel expense.)
3.Quality Guarantee
We arrange a final test before shipment. We will make shipments after making sure machine is in the best performance. Machine warranty is 3 year.
