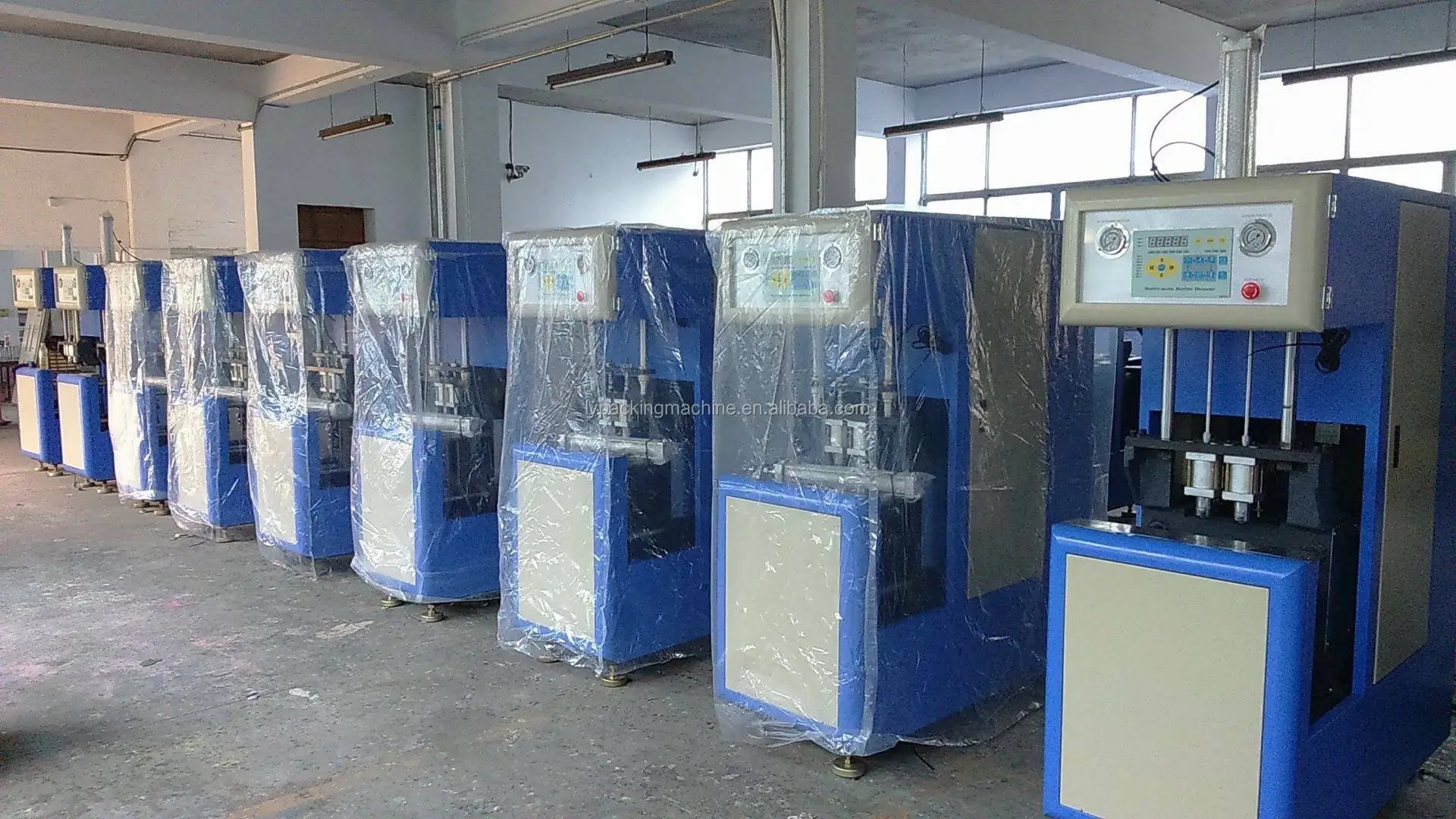

HZ 880 chum power semi auto pet bottle blowing machine
- Category: >>>
- Supplier: Zhejiang Lianyuan Machinery Co. Ltd.
Share on (1600529468358):
Product Overview
Description
Product Description
HZ-880 PET Bottle Blow Molding Machine Manufacturer, Linear Blow Moulding Machine, Electric Blow Moulding Machines, Automatic Bottle Blowing Moulding Machine
Features
Specifications
HZ-880 Bottle Blowing Machine:,Operated step-by-step and in semi-auto maode.Wide-mouth jar and hot-fill bottles can also be made. HZ-880 Bottle Blowing Machine
HZ-880 Stretch Blow Molding Machine is suitable to produce different shapes of PET/PC/PE bottles. It can blow from 100ml to 6000ml bottles and is widely used to produce mineral water bottles,carbonater soft drink bottles,juice bottles,medical botties,cosmetic and oil bottles etc.

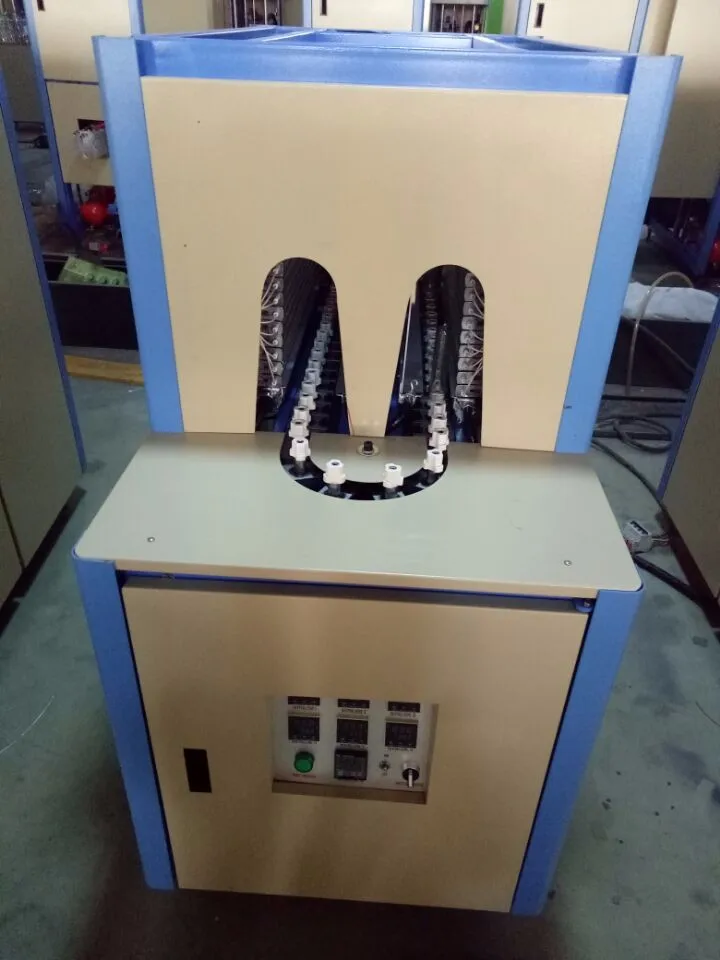

1. Infrared lamps adoped in the pre-heater ensures PET preforms being heated evenly.
2. Mechanical-double-arm calmping ensures mould being tightly closed under hight pressure and high temperature.
3. Pneumatic system consists of two parts. pneumatic acting part and bottle blowing part in order to meet different requirements for both acting and blowing. It provides sufficient steady high pressure to blowing. It provides sufficient steady high pressure to bloww large irregular shape bottles.
4. Equipped with silencer and oiling system to lubricate the mechanical pars of the machine.
5. Operated step-by-step and in semi-auto maode.
6. Wide-mouth jar and hot-fill bottles can also be made.
Technical Parameters
TYPE | ITEM | MEASUREMENT | HZ-880 Standard type |
END PRODUCT | Material | / | PET/PP/PE/PC |
Volume | L | 0.05-2.5 (2-cavity) 3-6 (1-cavity) | |
Theoretical output | Pcs/h | 0.05-2.5L/850 3-6L/400 | |
Max.length | mm | 360 | |
max.diameter | mm | 180 | |
MOULD PLATE | Max.mould plate dimension(L×H) | mm | 420*500 |
Max.mould thickness | mm | 160-240 | |
Clamping force | KN | 90 | |
Mold opening stroke (adjustable) | mm | 200 | |
AUXILARY | High pressure Compressor M3/M pa | KW | >=0.7/3.0*2sets 22 |
Precision air filters | M3/M pa | >=1.0/3.0*2pcs | |
MAIN MACHINE ELECTRICITY | Power | KW | 12 |
Voltage/Frequency | V/HZ | 220-380/50-60 | |
MACHINE SIZE AND WEIGHT | Main body dimension(L×W×H) | M | 1.45*0.6*1.75 |
Main body weight | T | 0.6 | |
Conveyor dimension(L*W*H) | M | 1.40*0.62*1.25 | |
Conveyor weight | T | ||
SAFTY | Auto-emergency alarm | SAFETY INTER-LOCKING DEVICE |

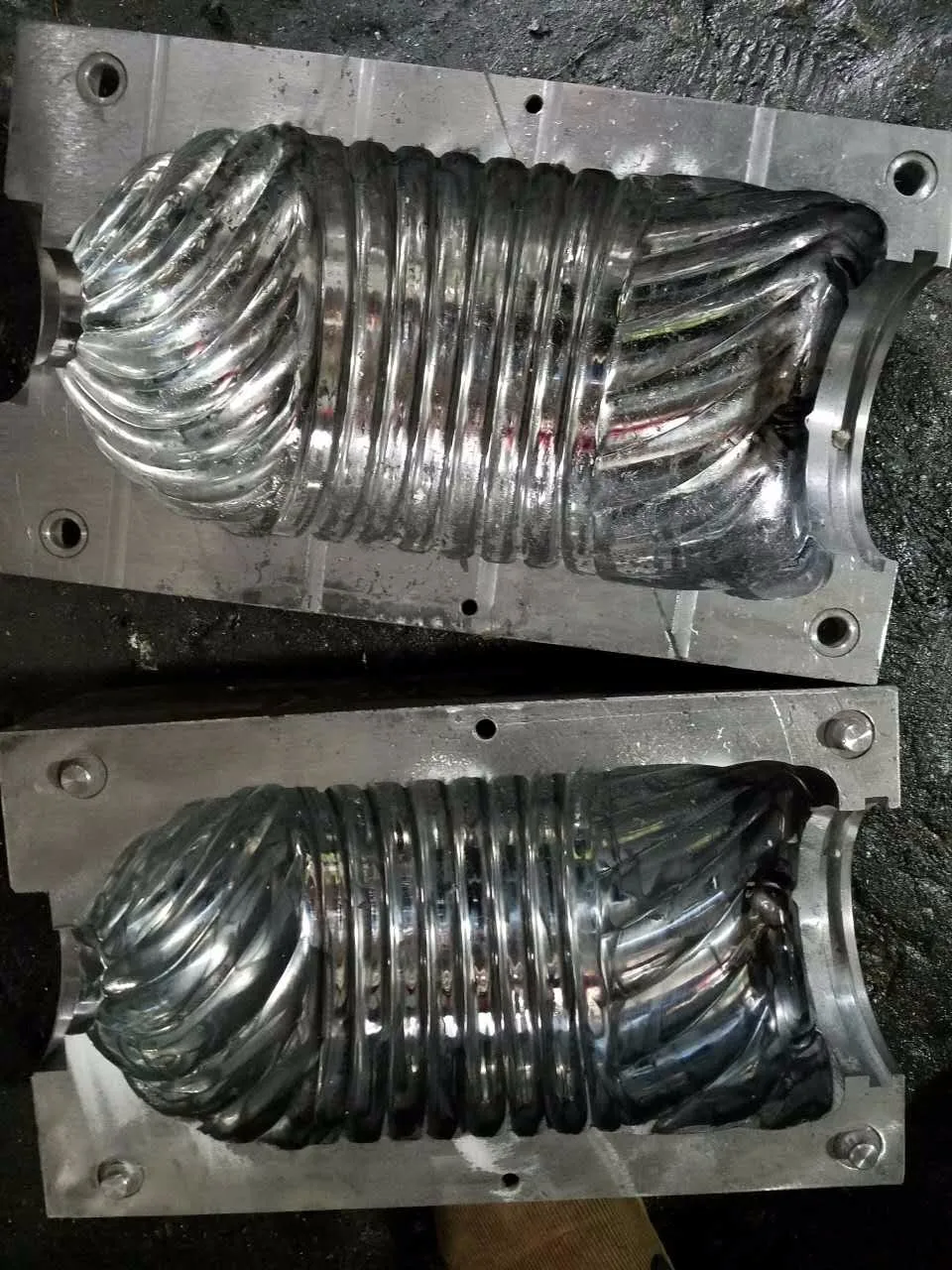

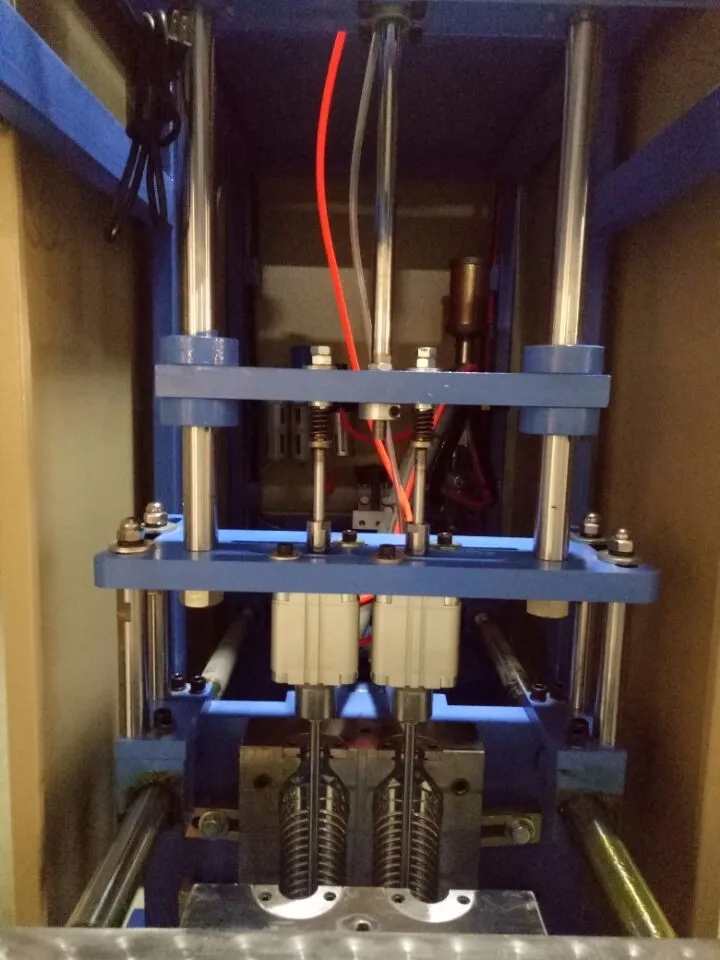

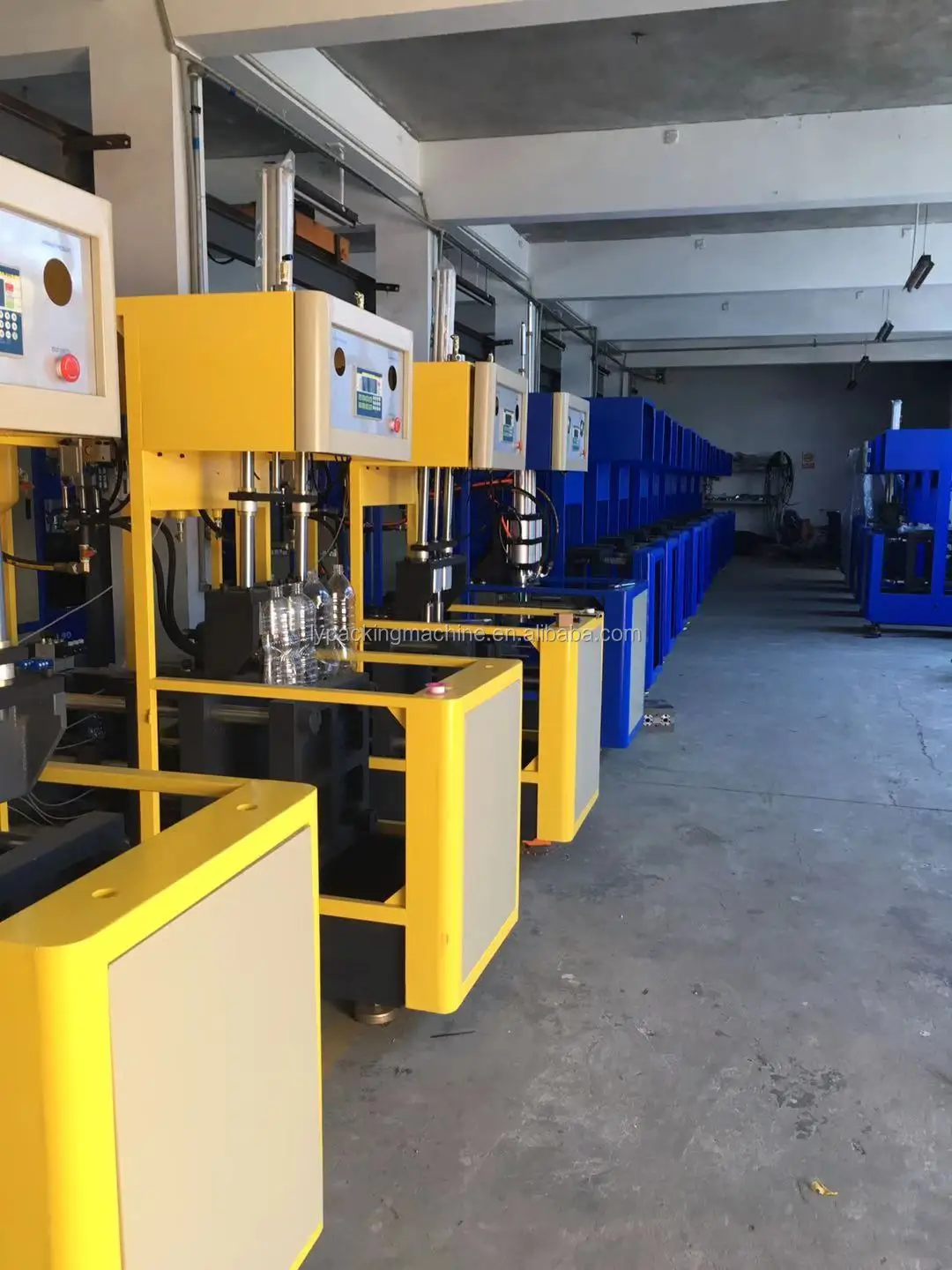

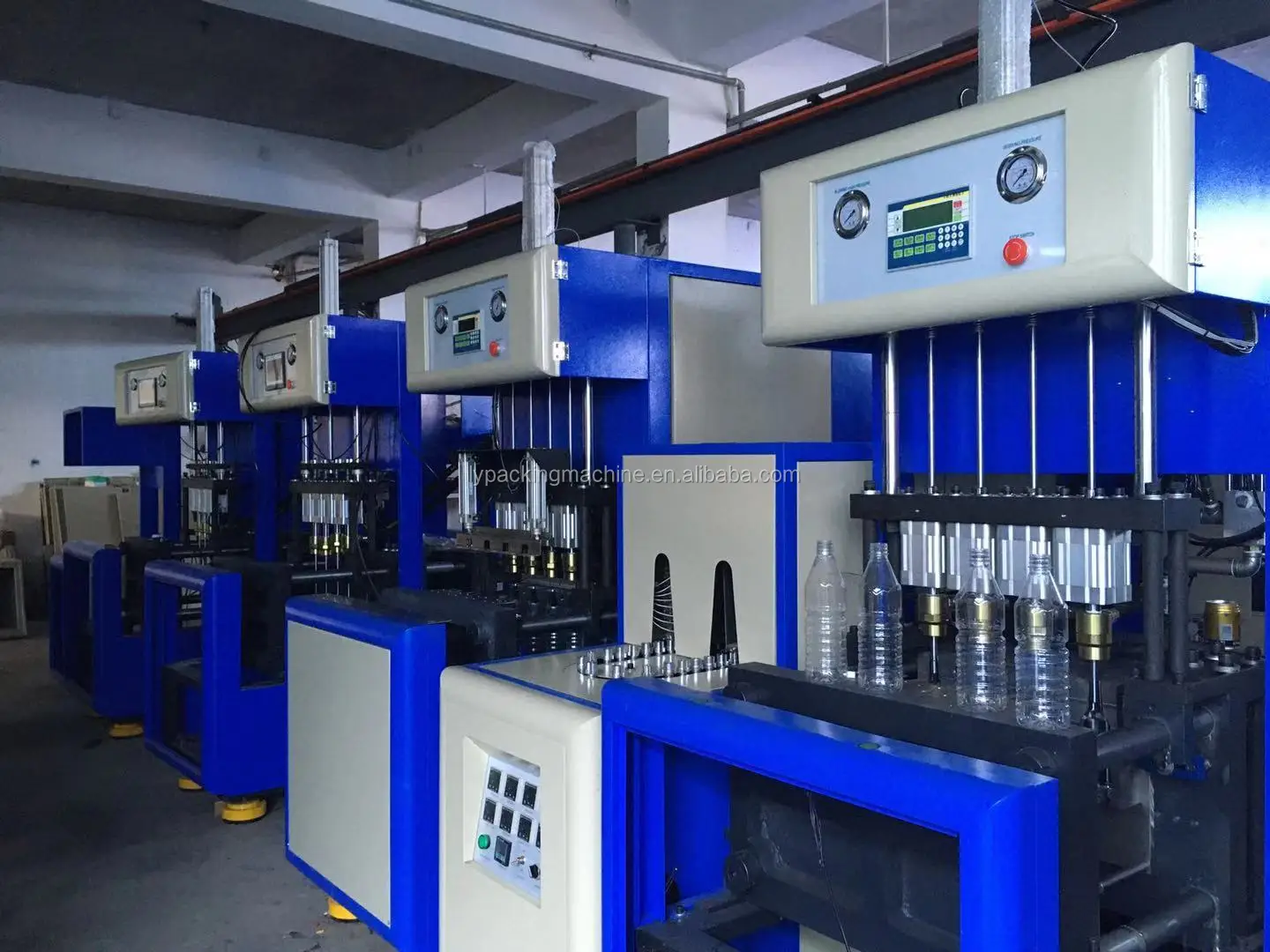

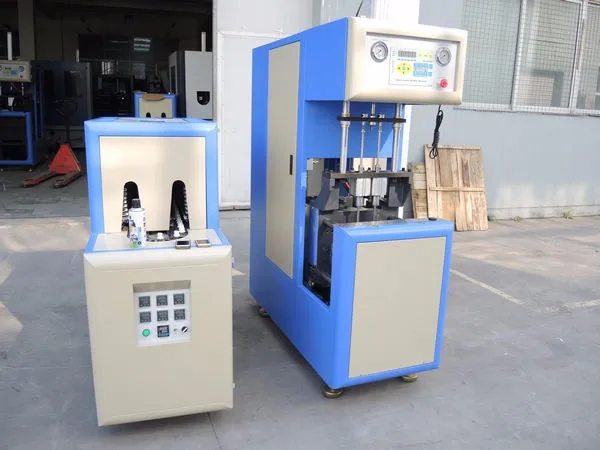

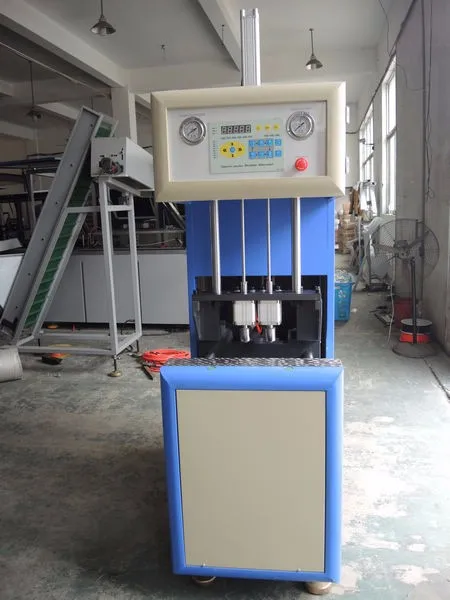

Detailed Images
Packing & Delivery
