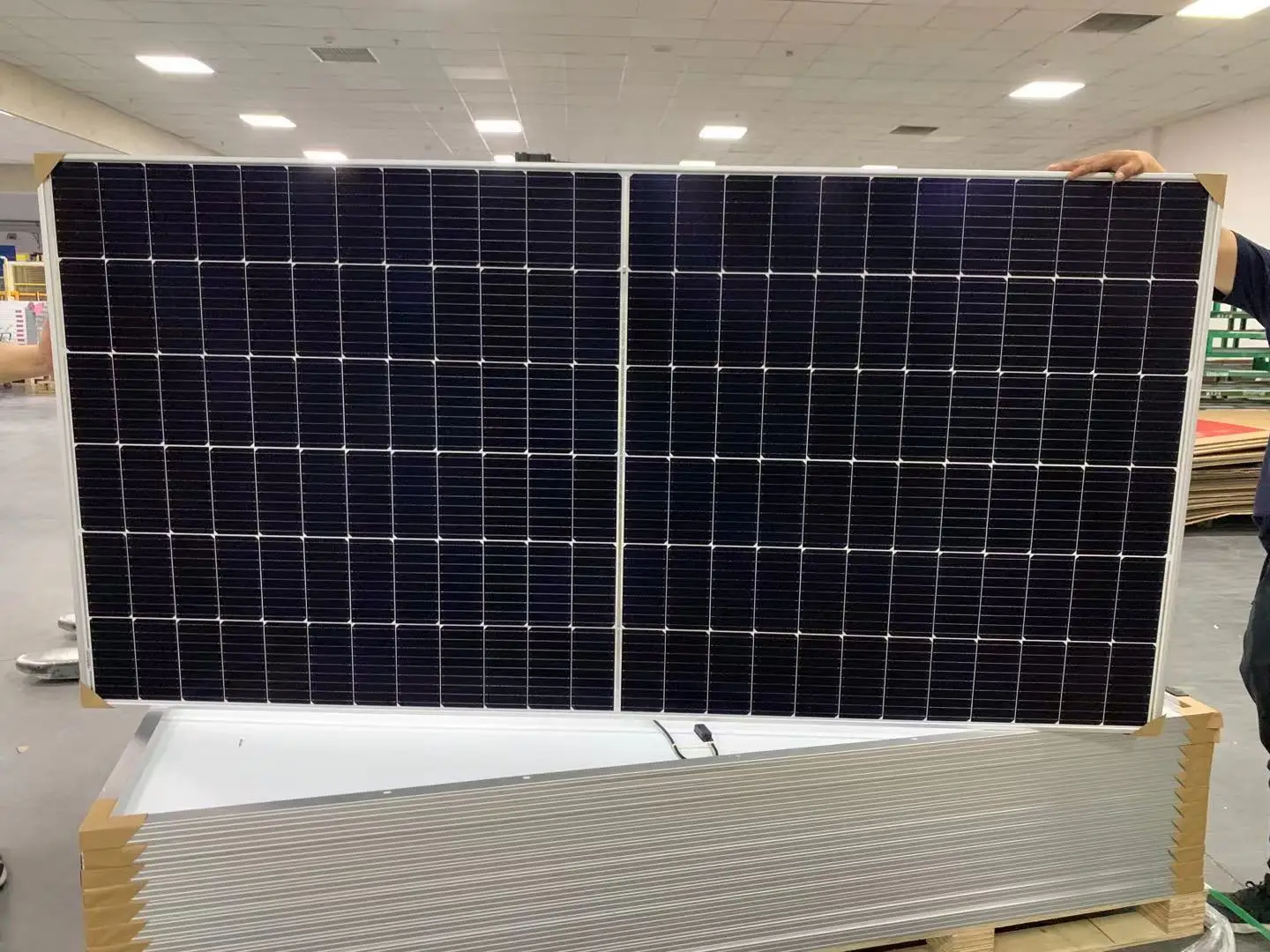

Half Cut Cell Mono 540w 550w 560w Solar Panel For Energy Solar Panel System With Solar Mounting System
Half Cut Cell Mono 540w 550w 560w Solar Panel For Energy Solar Panel System With Solar Mounting System
Half Cut Cell Mono 540w 550w 560w Solar Panel For Energy Solar Panel System With Solar Mounting System
Half Cut Cell Mono 540w 550w 560w Solar Panel For Energy Solar Panel System With Solar Mounting System
Half Cut Cell Mono 540w 550w 560w Solar Panel For Energy Solar Panel System With Solar Mounting System
Half Cut Cell Mono 540w 550w 560w Solar Panel For Energy Solar Panel System With Solar Mounting System
Half Cut Cell Mono 540w 550w 560w Solar Panel For Energy Solar Panel System With Solar Mounting System

Half Cut Cell Mono 540w 550w 560w Solar Panel For Energy Solar Panel System With Solar Mounting System

Share on (1600529469808):


Price:$0.22 - $0.27

Quantity:


Product Overview

Description



Product Description

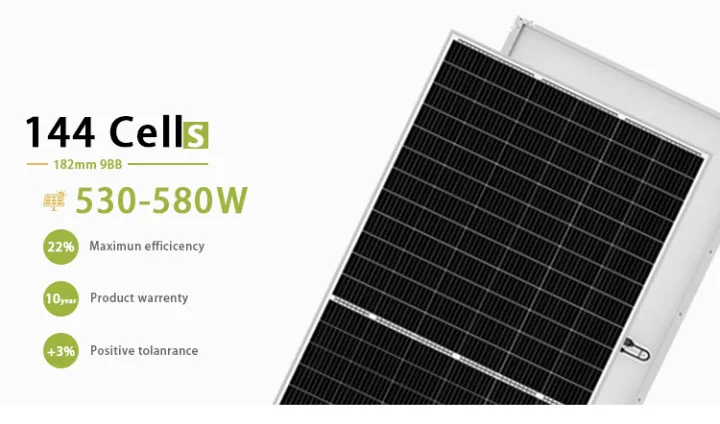

Module
AX540W-144HM
AX550W-144HM
AX560W-144HM
AX570W-144HM
AX580W-144HM
Rated Maximum Power at STC(Wp)
540
550
560
570
580
Open Circuit Voltage(Voc/V)
49.5
49.8
50.1
50.4
50.7
Maximum Power Voltage(Vmp/V)
41.65
41.96
42.27
42.57
42.87
Short Circuit Current(Isc/A)
13.85
13.99
14.13
14.27
14.41
Maximum Power Current(Imp/A)
12.97
13.11
13.25
13.39
13.53
Module Efficiency(%)
20.9
21.3
21.7
22.0
22.4
Power Output Tolerance-Pmax(W)
0~+5w
Temperature Coefficient of Pmax
-0.36%/℃
-0.39%/℃
Temperature Coefficient of Voc


-0.28%/℃


-0.29%/℃

Temperature Coefficient of Isc STC
0.05%/℃
0.05%/℃
Standard Test Condition(STC)
Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5


Detailed Images



Solar cells
*Anti PID
*High Eficiency PV Cells
*Appearance Consistency
*Color soring ensure consistent appearance on each module



Glass
*Ant-reflectite glass
*Self-cleaning function
*Module efficiency is increased by 2%
*Service life 25 years
*Translucency of normal luminosiy is increased 2%


Frame
*Conventional frame
*Seal-lip design glue injection
*Silver or black frames are optional
*Serrated-clip design tensile strength
*Boost bearing capability and prolong service life

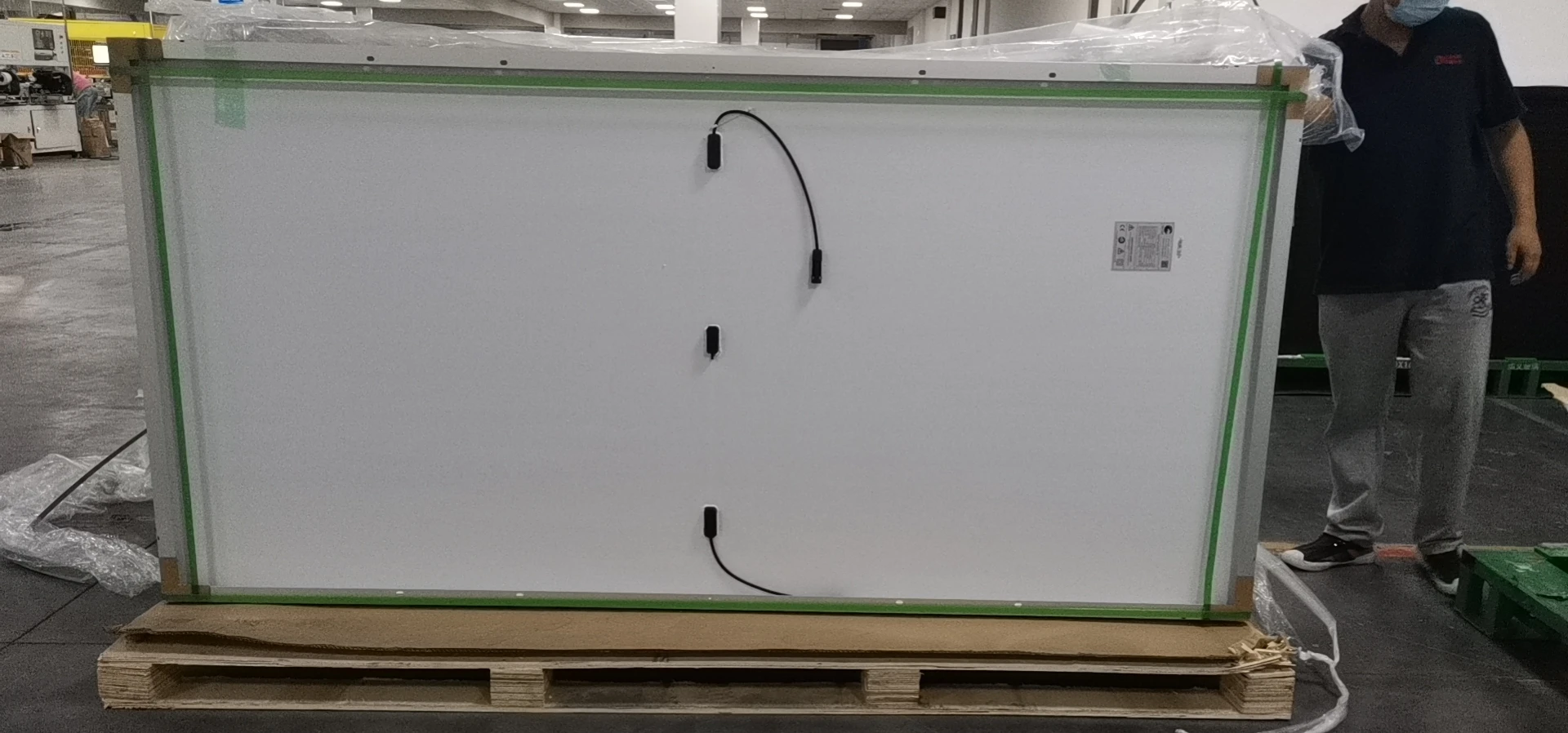

Junction box
*Heat disspation
*Long service life
*IP67 protection level
*Quality diode ensures module running safety
*Conventional standalone edition and engineering custom edition

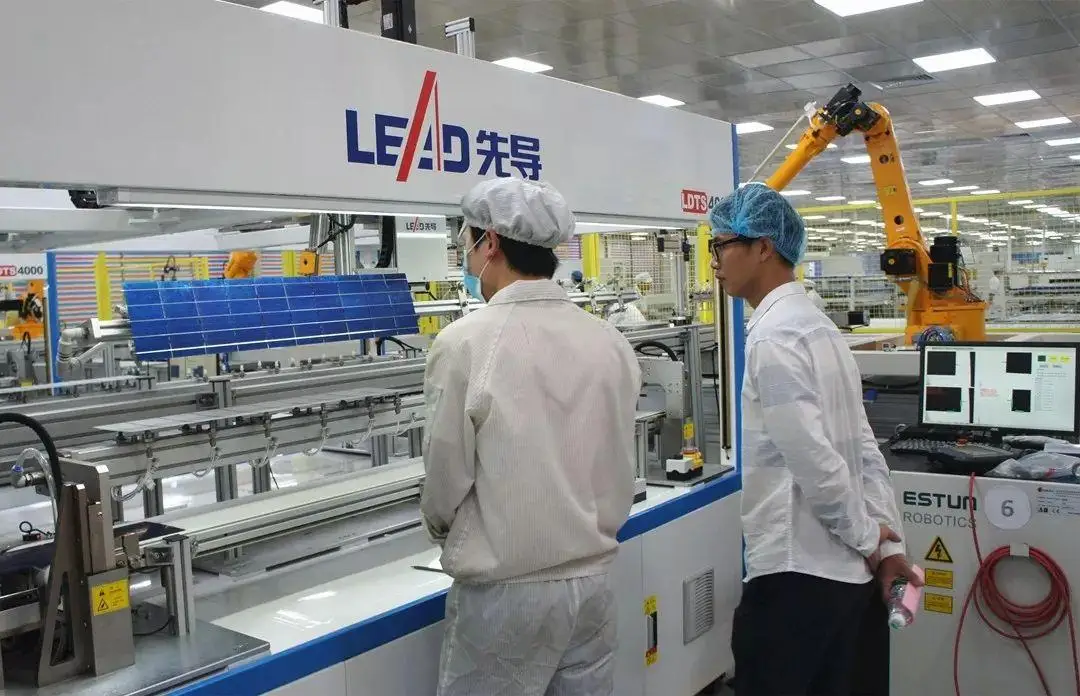

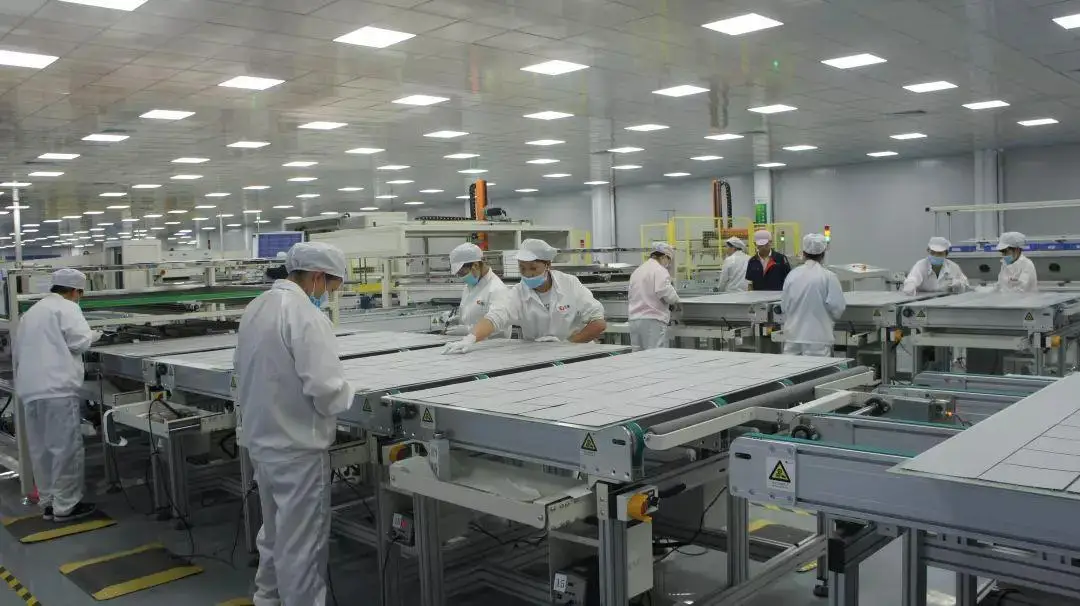

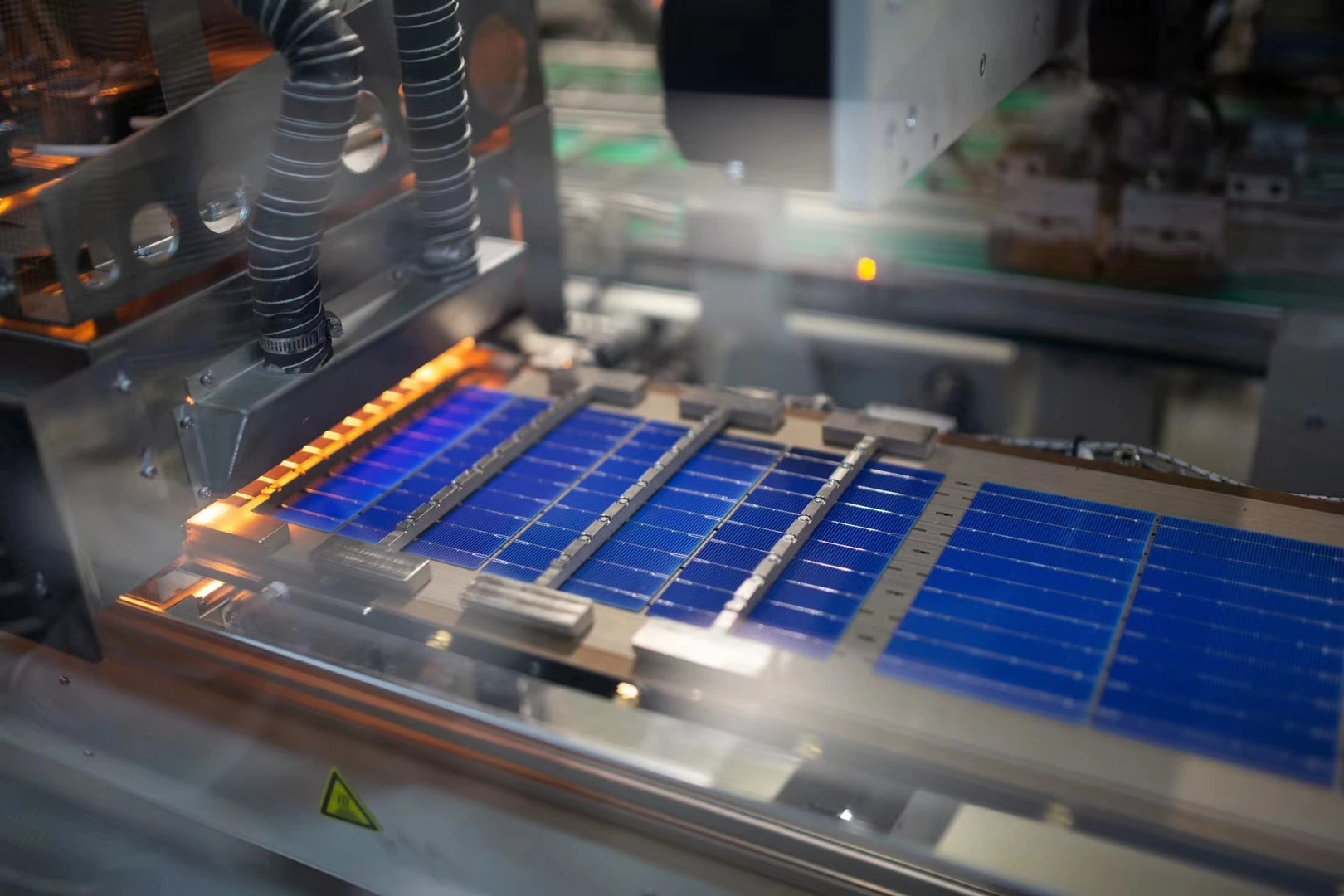

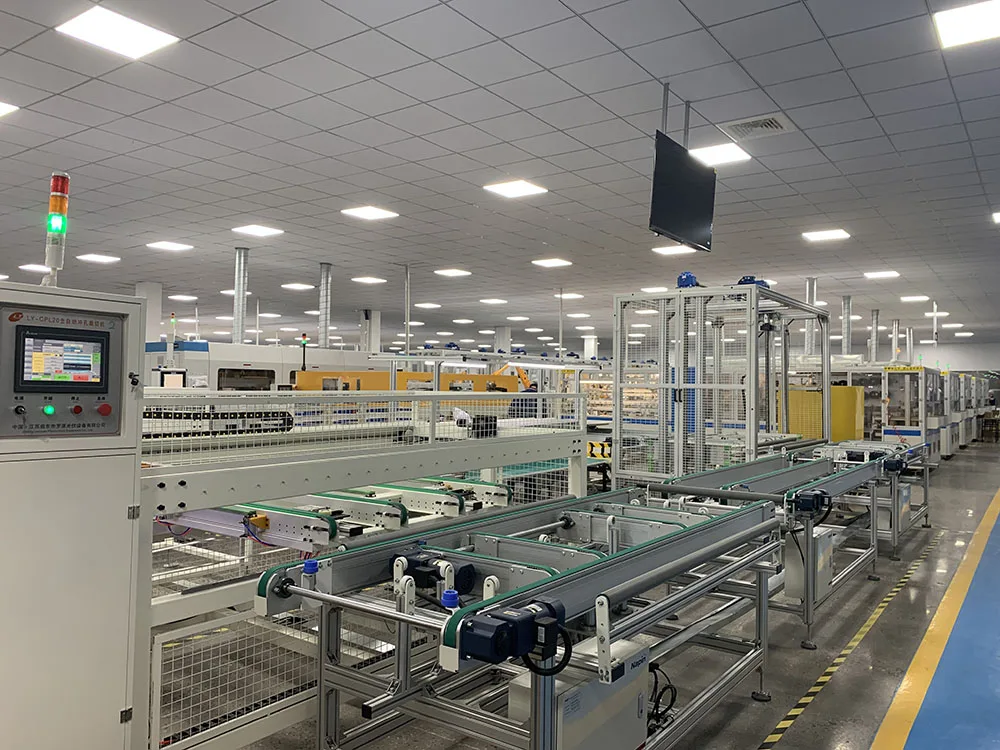

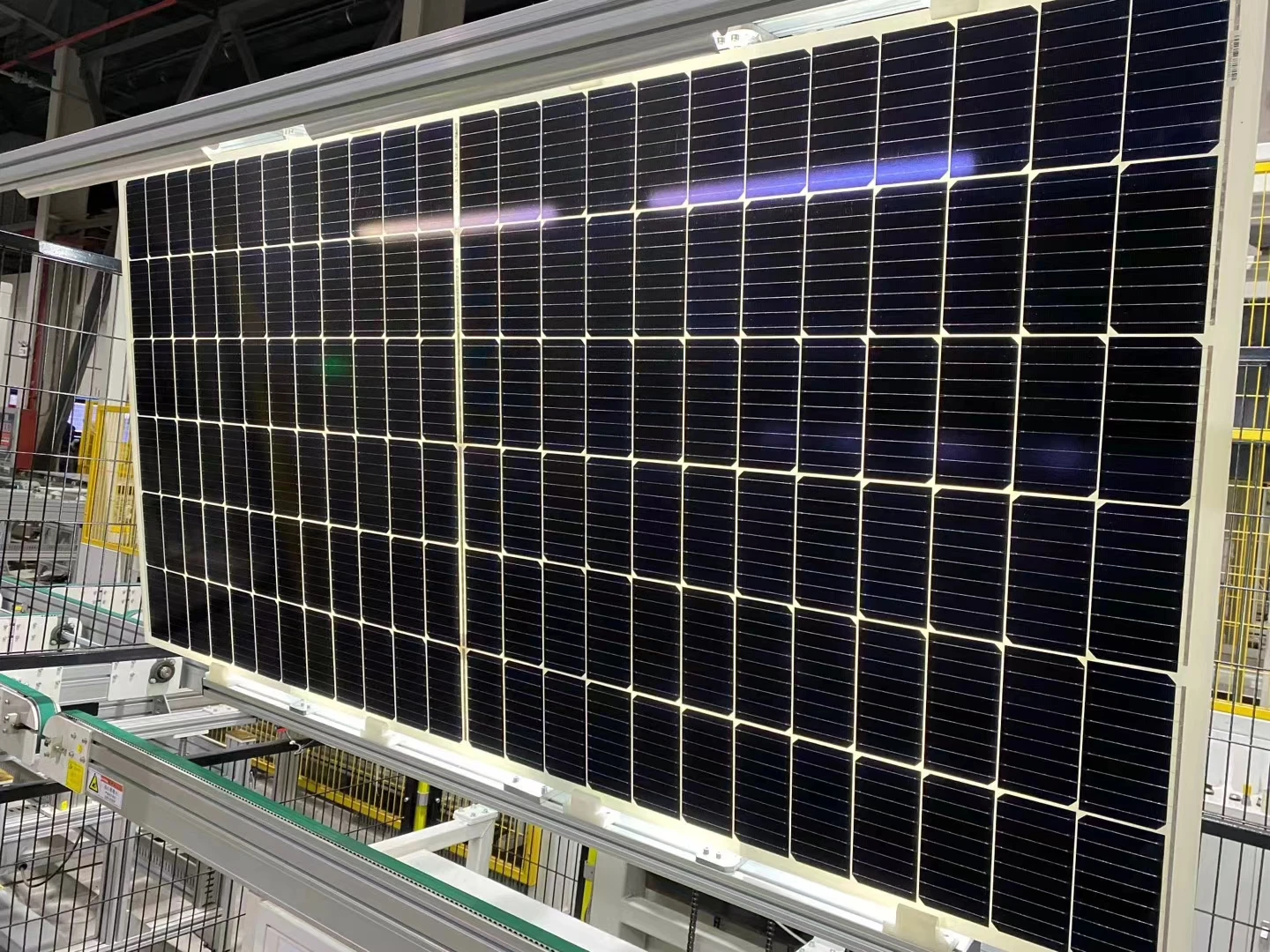

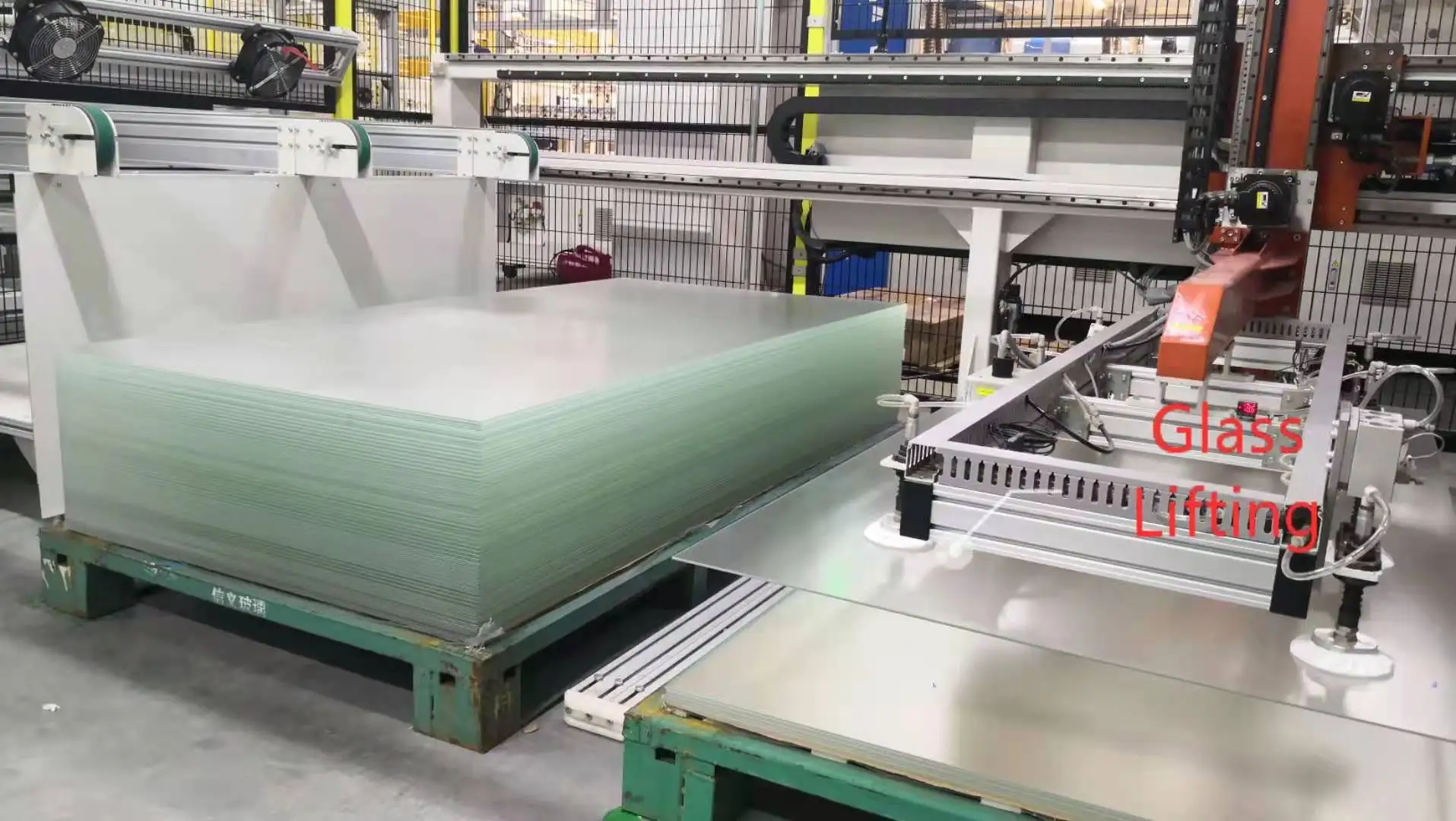

Production Line


Solar cell sorting
Solar cell welding
Assembling


Lamination

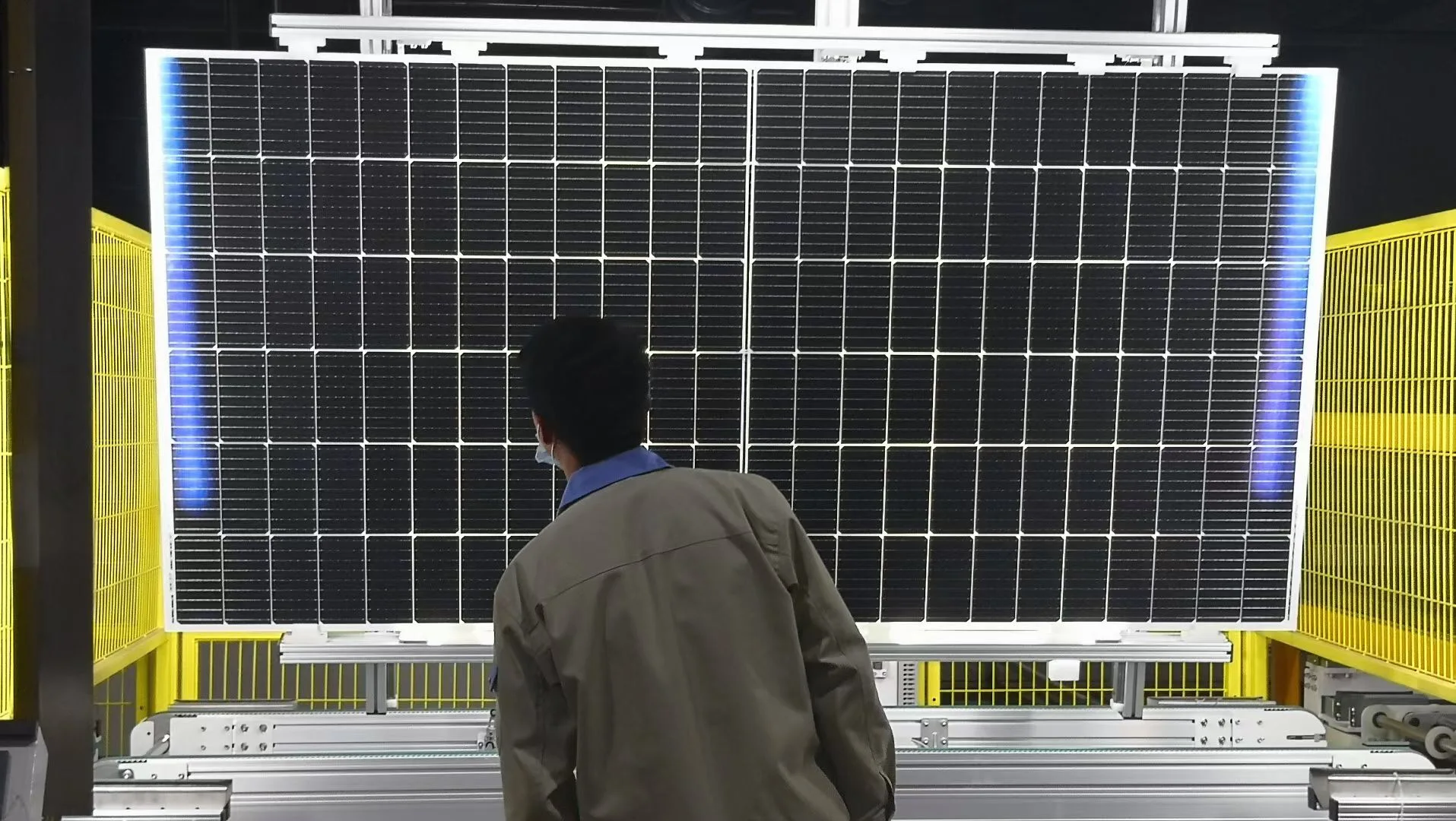

First EL testing
First visual inspection


Second EL testing
Second visual inspection
Clean the whole solar panel


Automatic framing
Ready for labelling
Ready for packaging

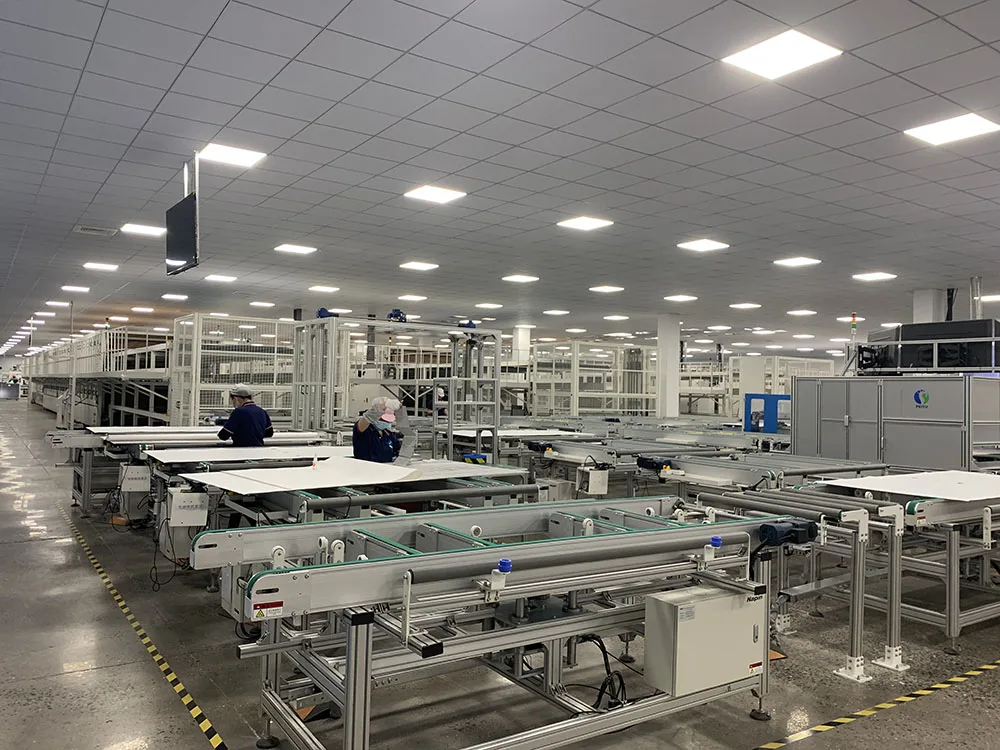

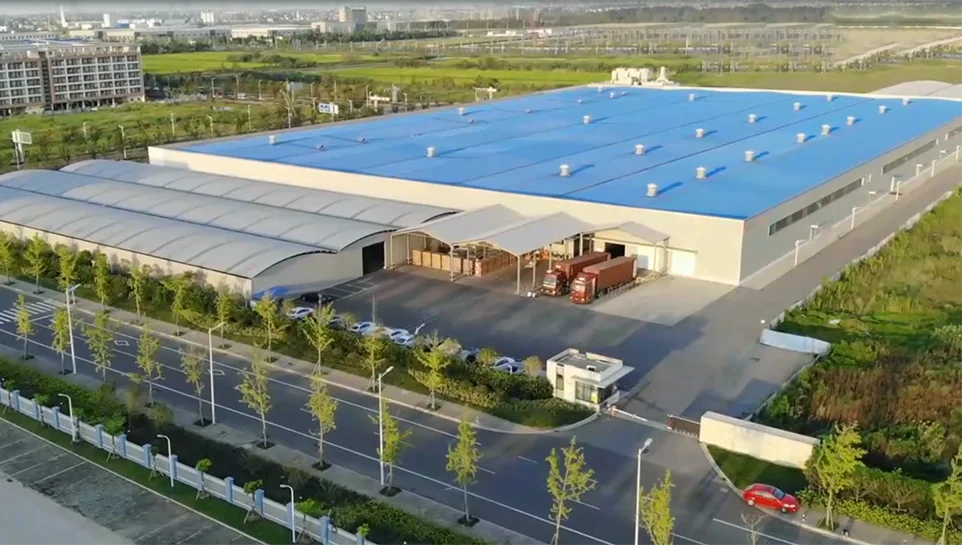

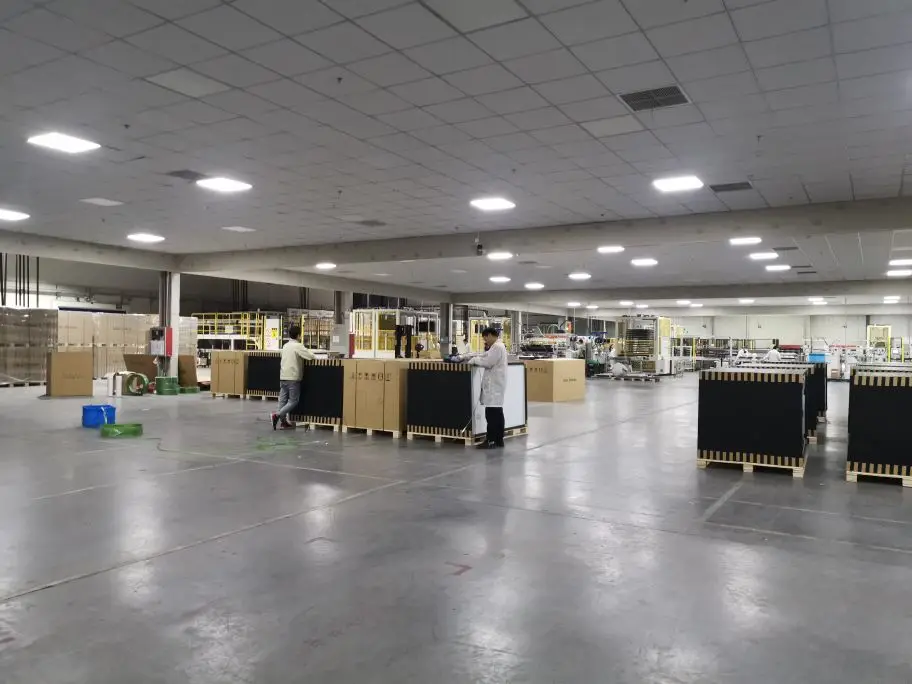

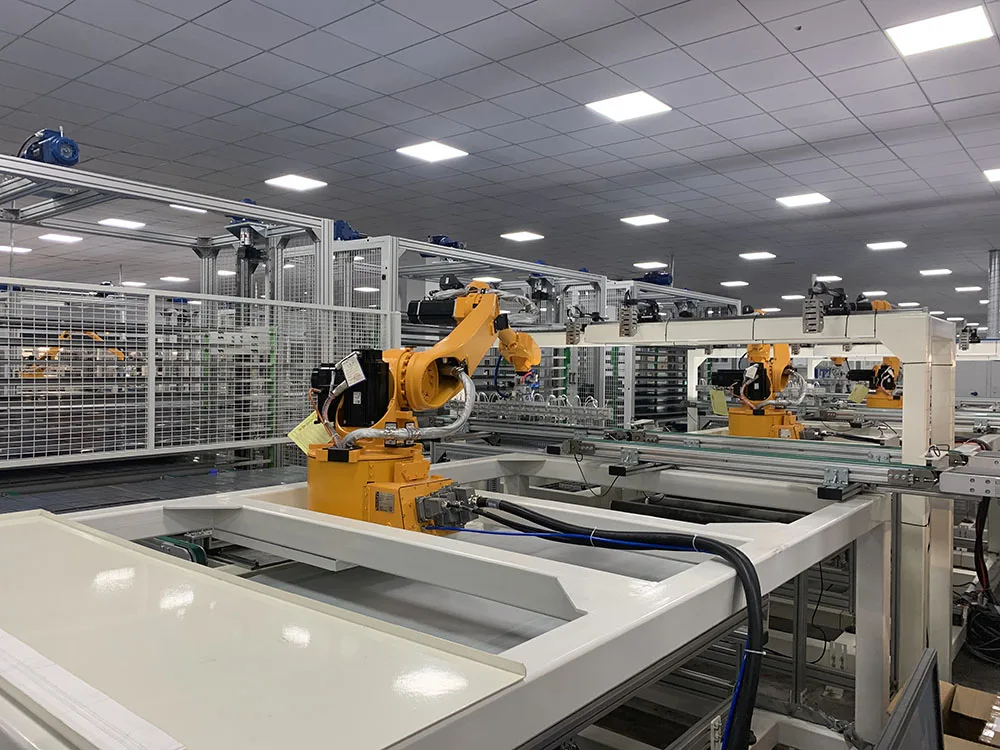

Our Factory

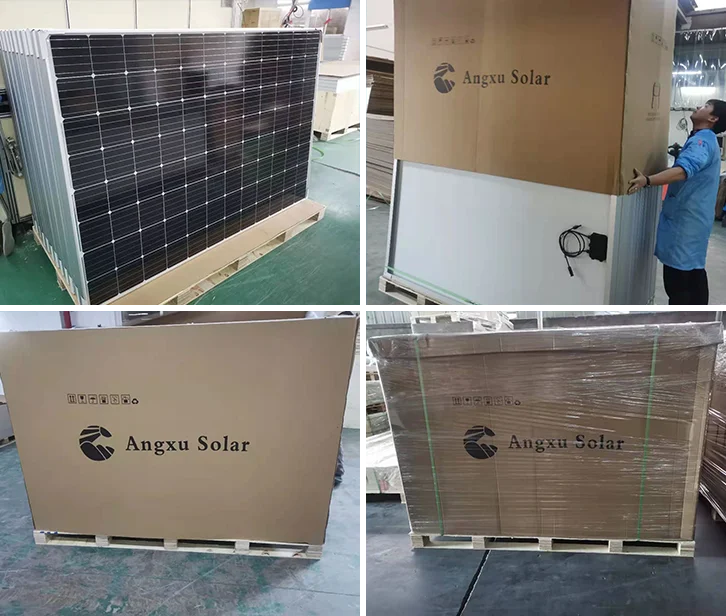

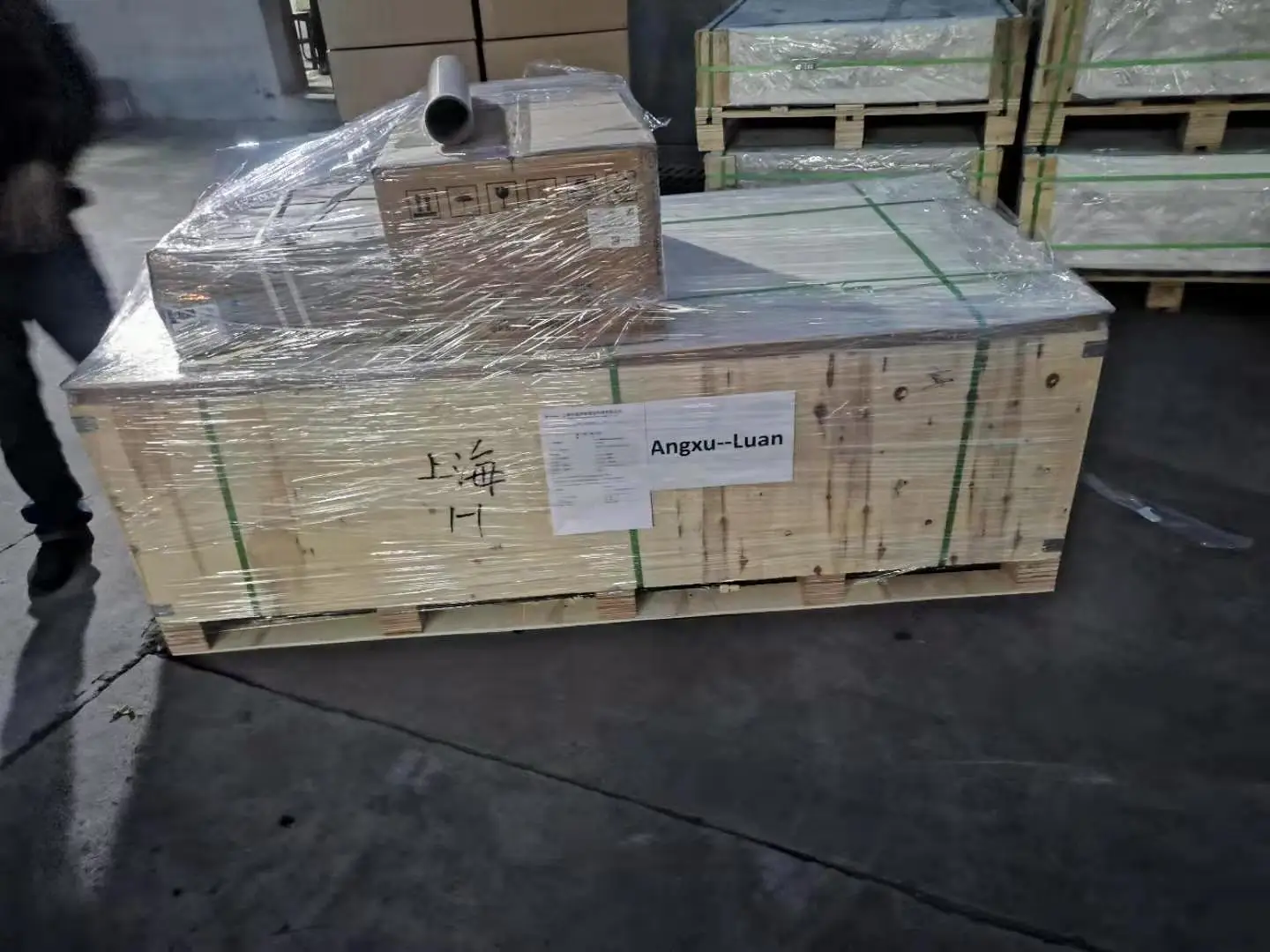

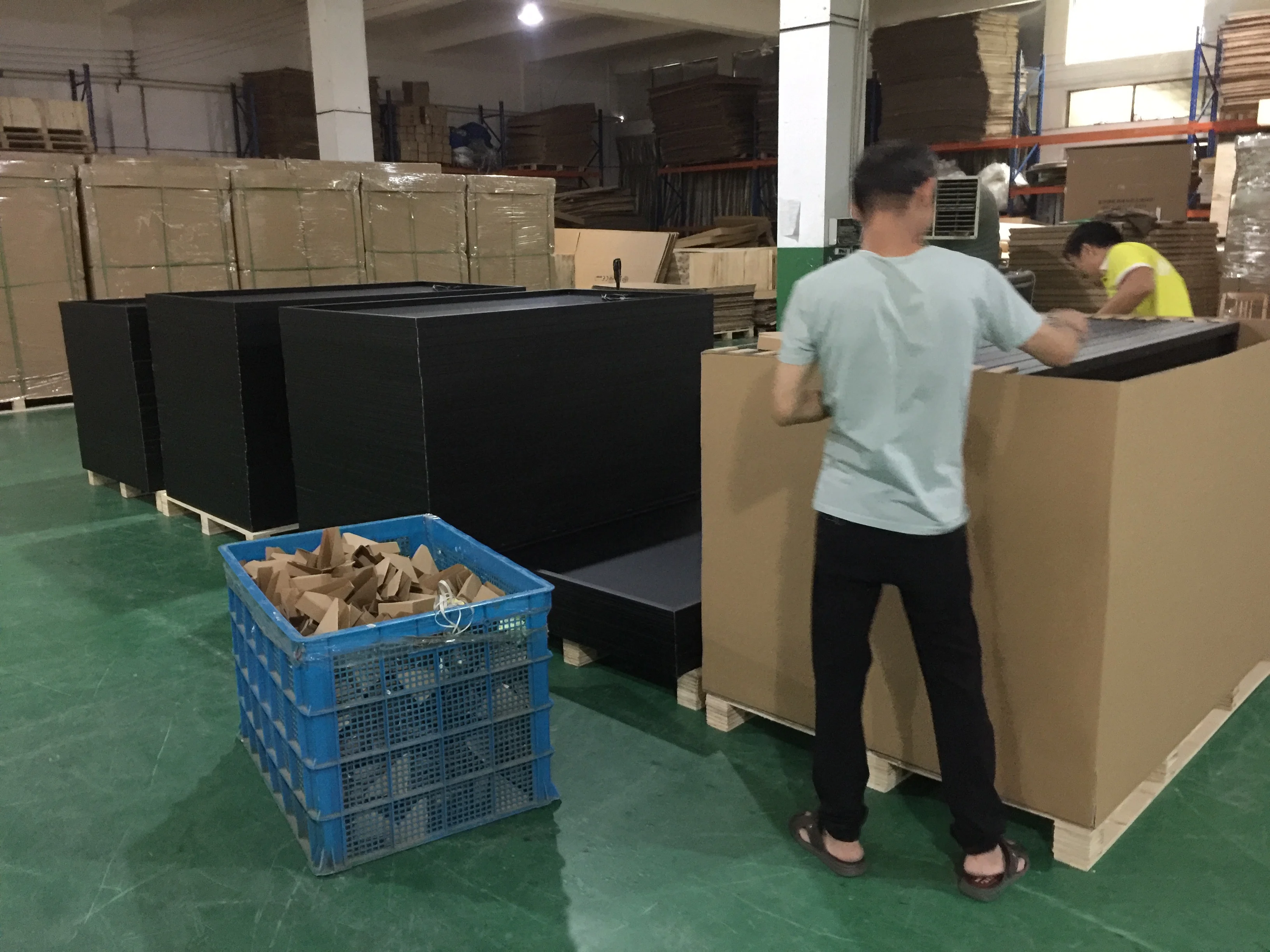

Packing&Shipping










By sea
Delivered from Shanghai/Ningbo seaport and so on
By express
Delivered by TNT,UPS,DHL
By air
Delivered from Shanghai Pudong Airport

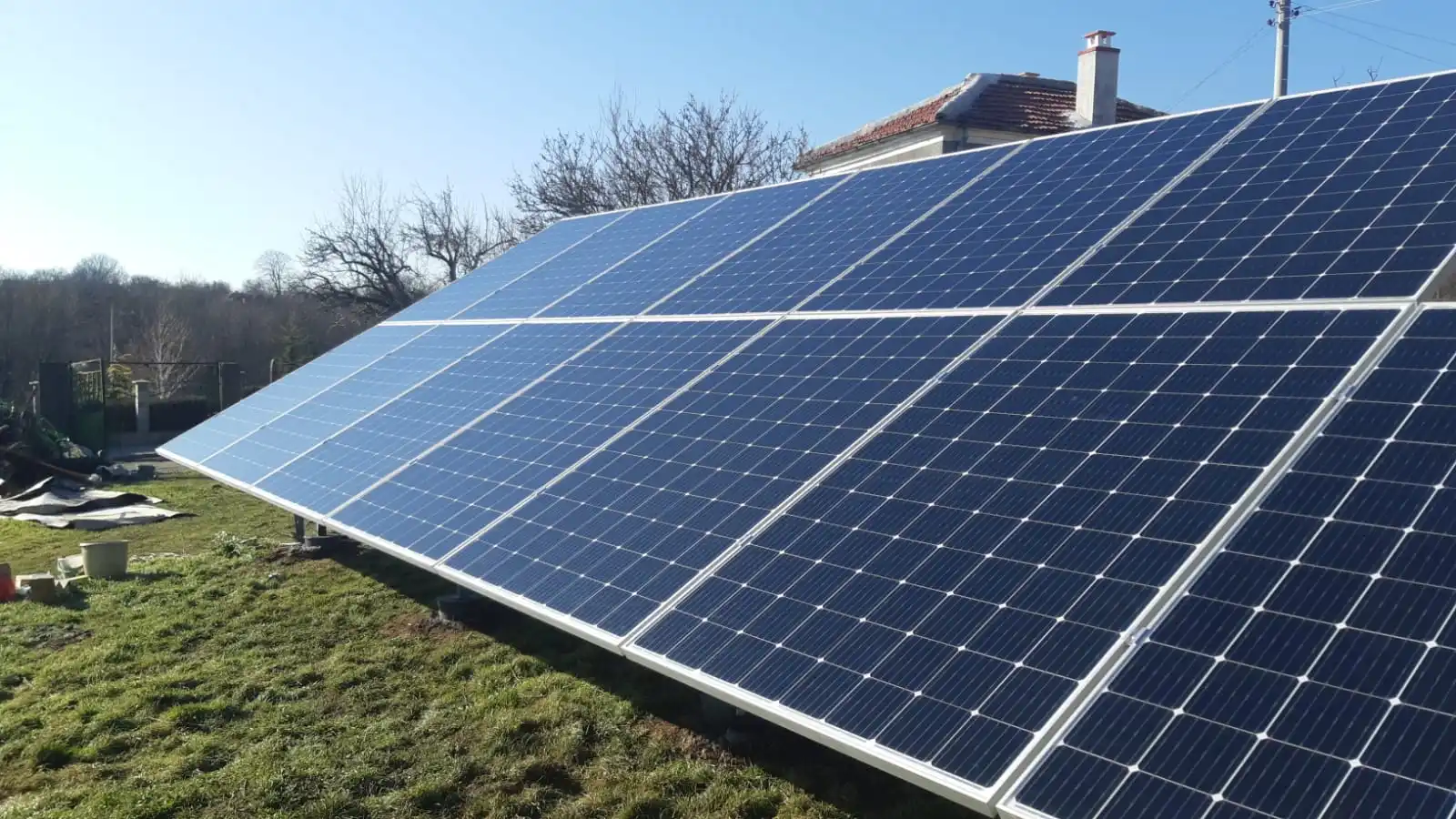

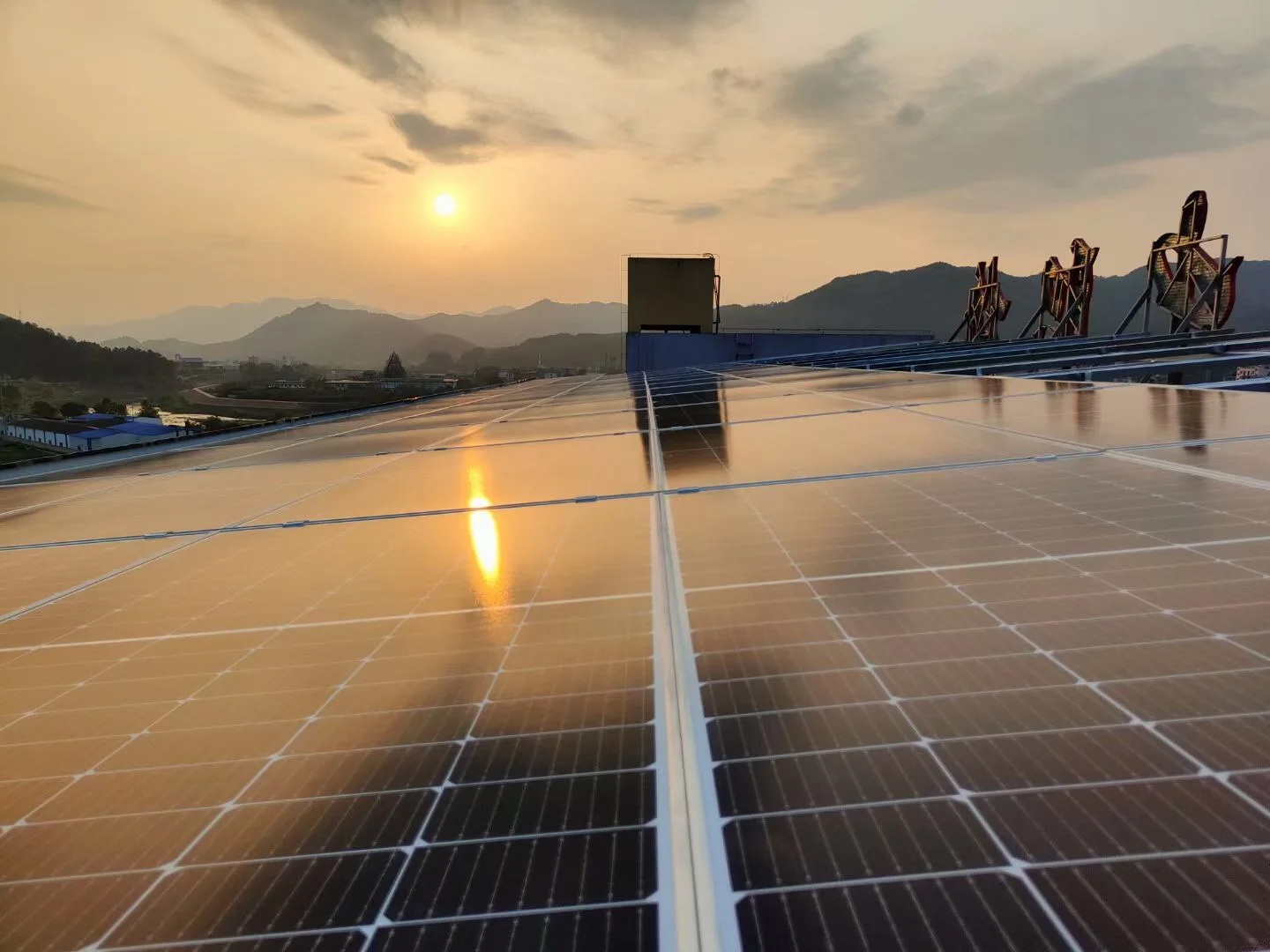

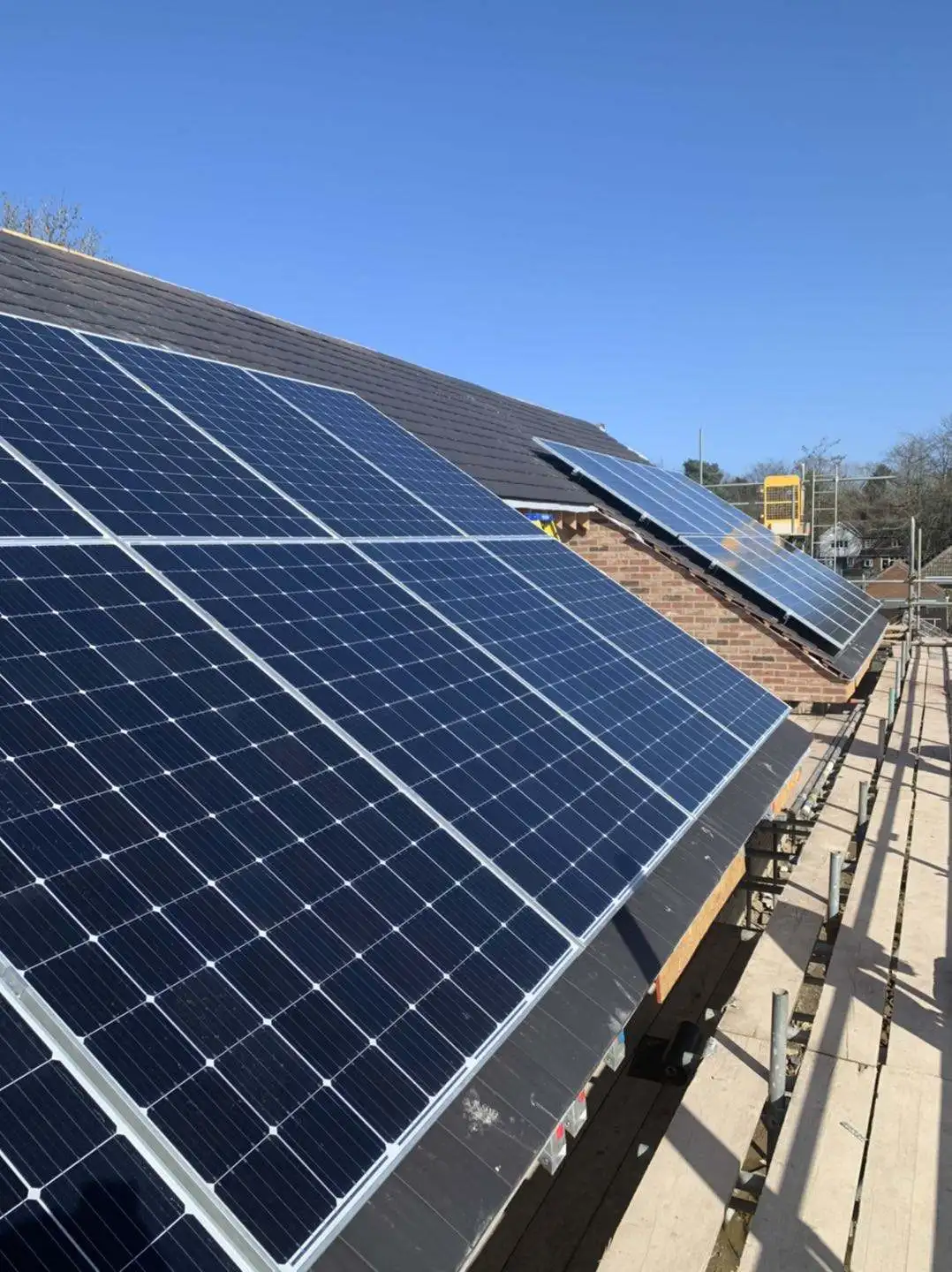

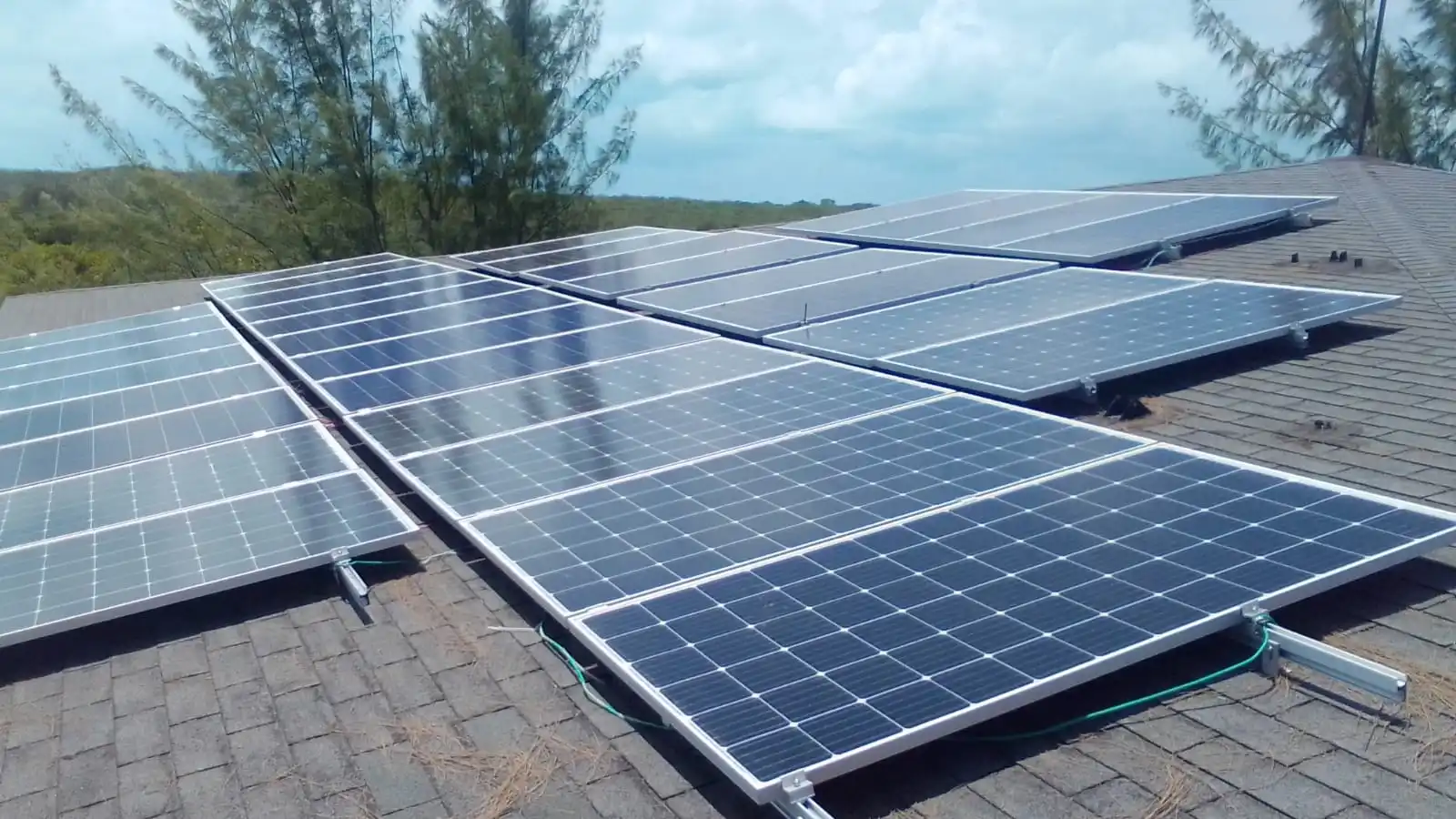

Project


5MW in Mexico
100KW in Poland






50kw in USA
300KW in Germany


More Details







Hi, this  is Tina.
Welcome contact with us
for more detailed information.


Whatsapp/Skype:+86 18156985210
E-mail: tina@angxusolar.com
