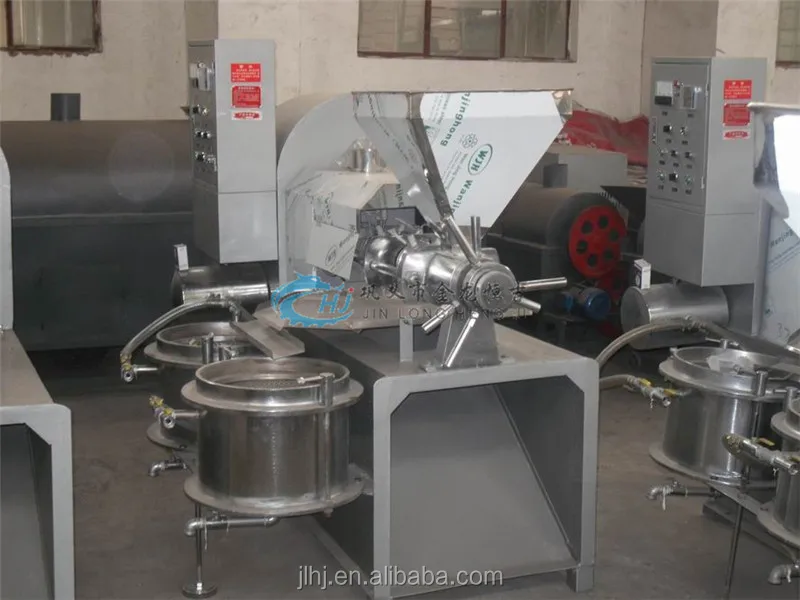

Customized Cold and Hot Oil Presser Peanut/Sesame/Soy Bean Press Machine

Product Overview

Description

Customized Cold and Hot Oil Presser Peanut/Sesame/Soy Bean  Press Machine

Working principle of oil press machine

1.When oil press is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.

2.Under hightemperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.

3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.

4.Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.

5.Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.

6.Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.

Feature of oil press machine



1. Automatic temperature control



2. Simple structure, easy to operate



3. High oil extraction rate.



4. Easy to load, unload and transport.



Model parameter of oil press machine





Model		D-1685	D-1688	D-125	D-150
Power(kw)	Main Machine	Y112M-6 5.5	Y132M-6 7.5	Y160M-4 11	Y160S-4 15
	Heater	3	3.5	4	Y801-41.1
	Vacuum Pump	0.55	0.75	0.75	4
Weight(kg)		830	1100	1500	1950
Size(mm)		1650*1440 *1700	1960*1630 *1900	2100*1680 *1900	2380*1850 *2000
Screw Speed(r/min)		63	43	36	33-42
Capacity(kg/h)		80-150	150-250	250-350	300-450
Screw Diameter(mm)		80	100	125	150

Raw material of oil press machine

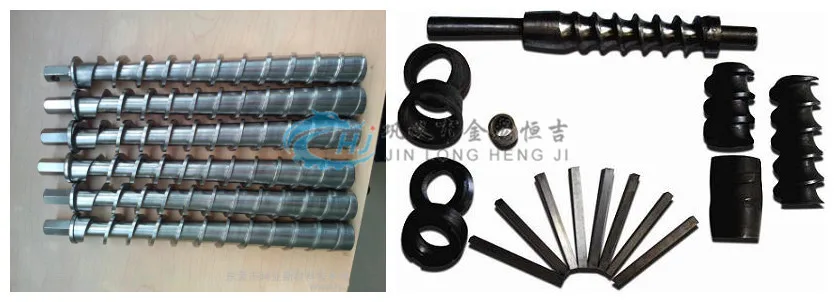

Main parts and saute pan

Company Information



Gongyi Jinlong Hengji Heavy Machinery Co. Ltd. is a professional production of large and medium



crushing, grinding, sand making equipment ,pelletizing machine equipment research, production,



marketing trinity of the private sector. Company headquarters is located in a blend of traditional and innovative mechanical Gongyi City Industrial Development Zone,over the years,the company adhering to the scientific management of modern enterprises , precision manufacturing ,forge ahead, innovation, rapid rise to become the leader in equipment manufacturing deserved.







Welcome to visit our factory! We will provide you our best equipments at the

reasonable price to meet your requirment.

Oil press machine is hot sale, preferential prices tend to produce in communication.
