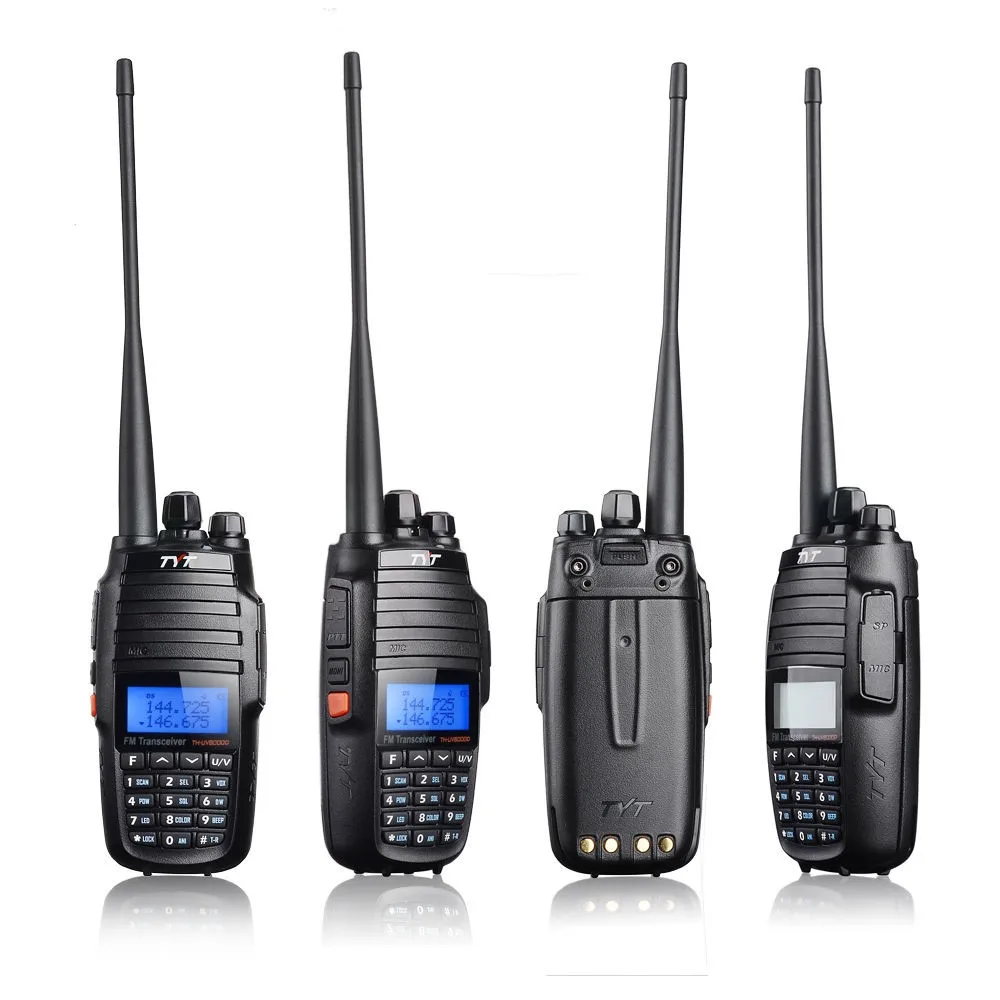

TYT TH UV8000D 10 Watt 3600mAh Cross band Repeater Function dual band 136 174 & 400 520MHz walkie talkie Factory direct sale

TYT TH UV8000D 10 Watt 3600mAh Cross band Repeater Function dual band 136 174 & 400 520MHz walkie talkie Factory direct sale

Category: >>>
Supplier: Shenzhen Huahowei Electronic Co. Ltd.

Price:$40.00 - $48.00

Quantity:

Product Overview

Description

Product Description

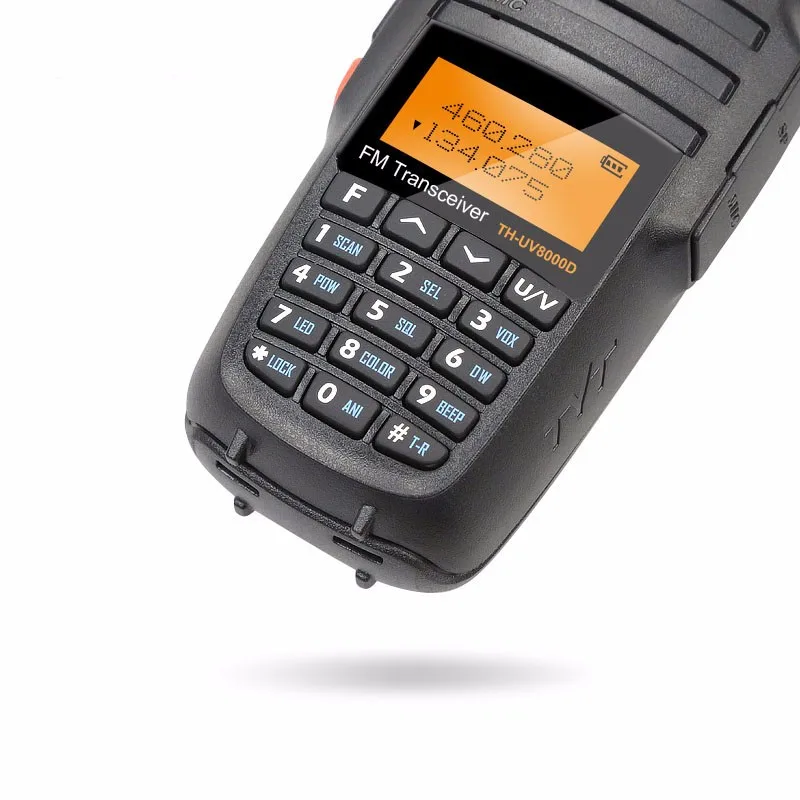

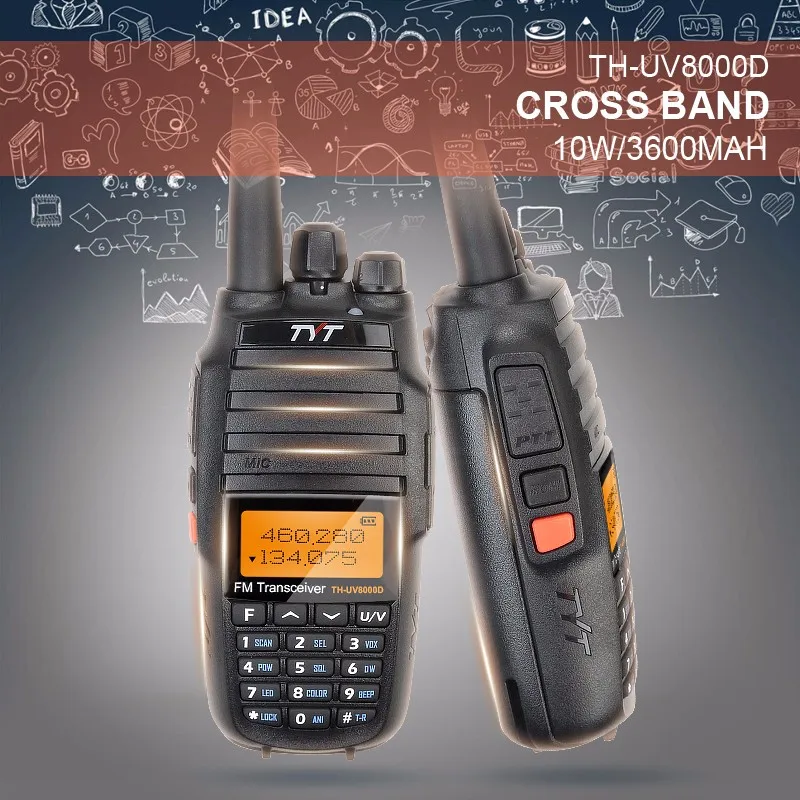

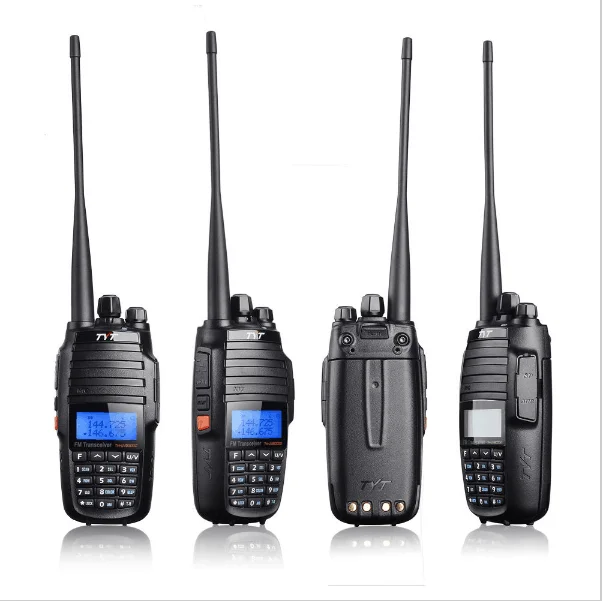

Upgrade Version Original TYT TH-UV8000D Portable Radio Walkie Talkie Amateur Handheld Transceiver Dual Band 10W Two Way Radio

General
Frequency range	VHF:136~174MHZ UHF:400~520MHZ
Frequency Stability	±2.5PPm
Operating voltage	DC 7.2V (Rechargeable Li-ion battery)
Channel NO.	128
Antenna impedance	50 ohm
Mode of operation	Simplex or semi-duplex
Battery capacity	3600mAh
Color	Black
Dimension(Exclude antenna)	13x6x3.5cm
Weight	291g
Receiver
RF Sensitivity	-122dBm(12dB SINAD)
Audio power	>0.5W
Audio distortion	<10%
Blocking	>=85dB
Intermediation	>=60dB, >=55dB
Selectivity	>=65dB, >=60dB
Spurious rejection	>=65dB
Transmitter
Output power	<=10w, >=5W
Modulation mode	F3E
Maximum deviation	<5KHz/<2.5KHz
Adjacent Ch. power	<=-65dB/ <=-60dB
Spurious radiation	<7µW
Pre-emphasis characteristics	6dB
Current	<=2.8A(10W),<=1.8A(5W)
CTCSS/DCS deviation	0.55KHz±20.15KHz, 0.4KHz±20.1KHz
Intermediation sensitivity	8~12mV
Intermediation distortion	<5%
