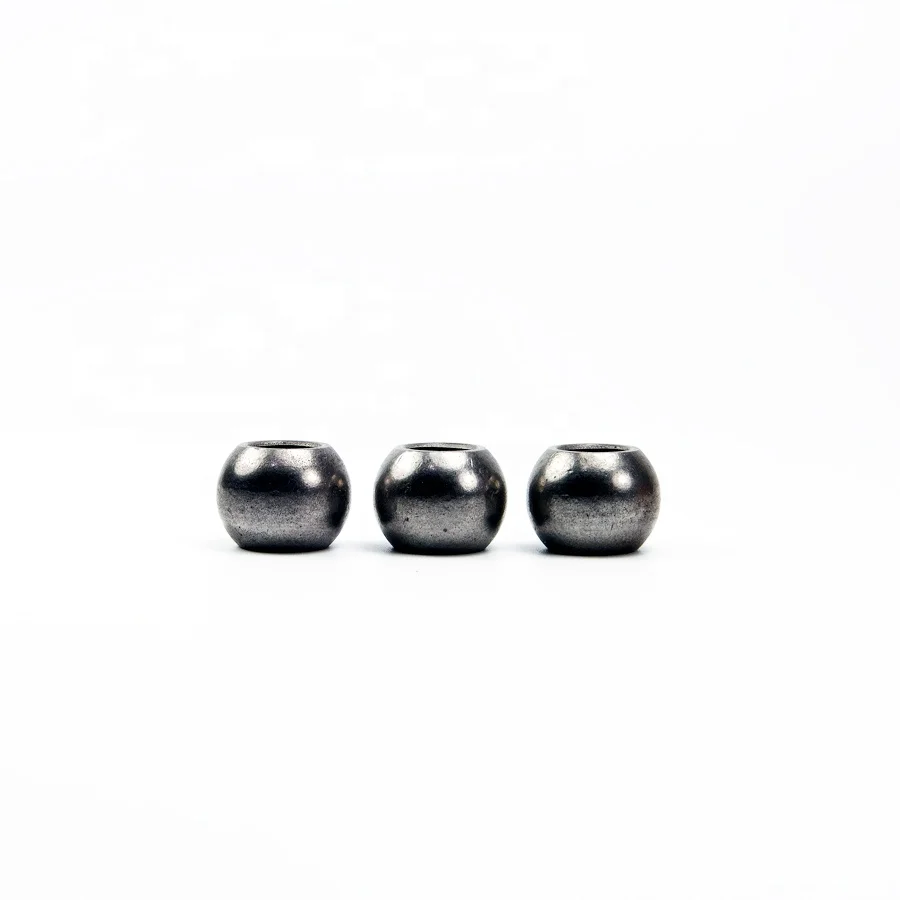

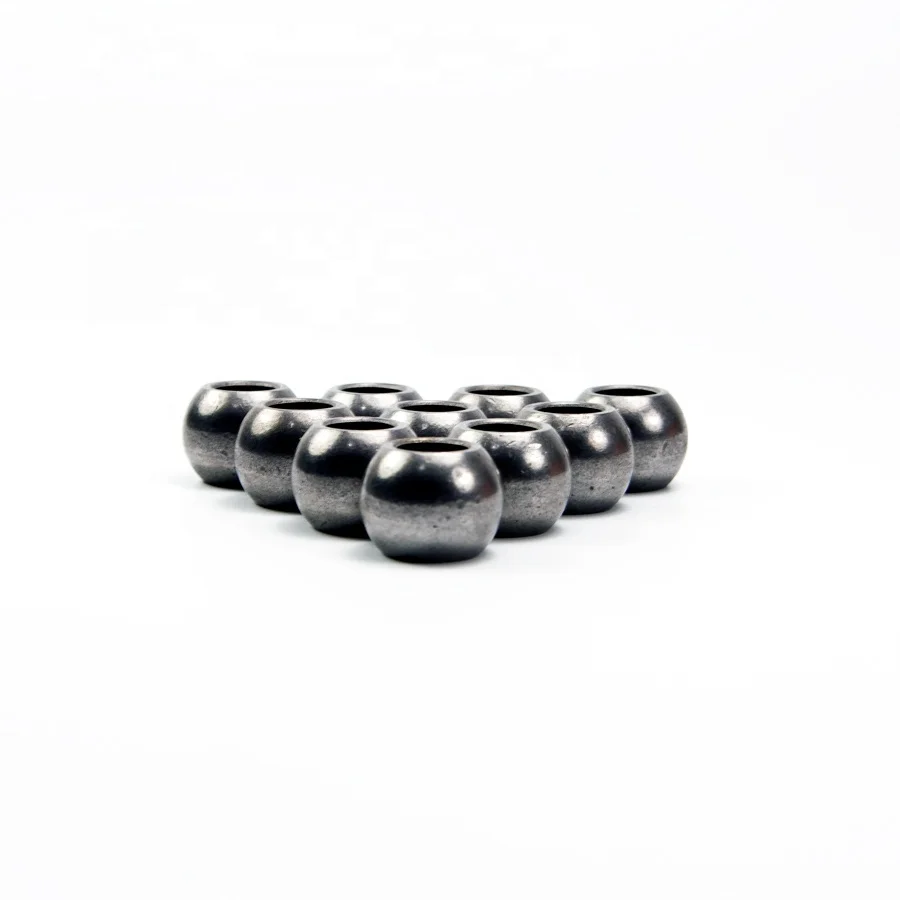

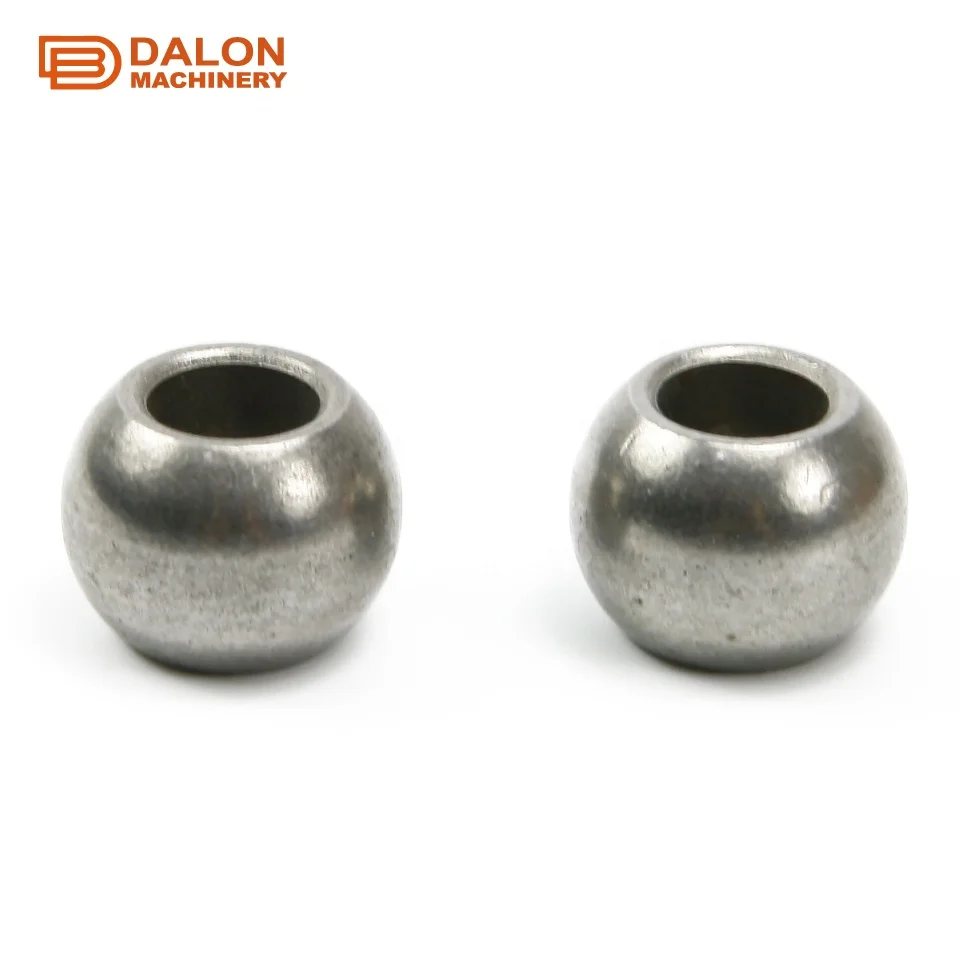

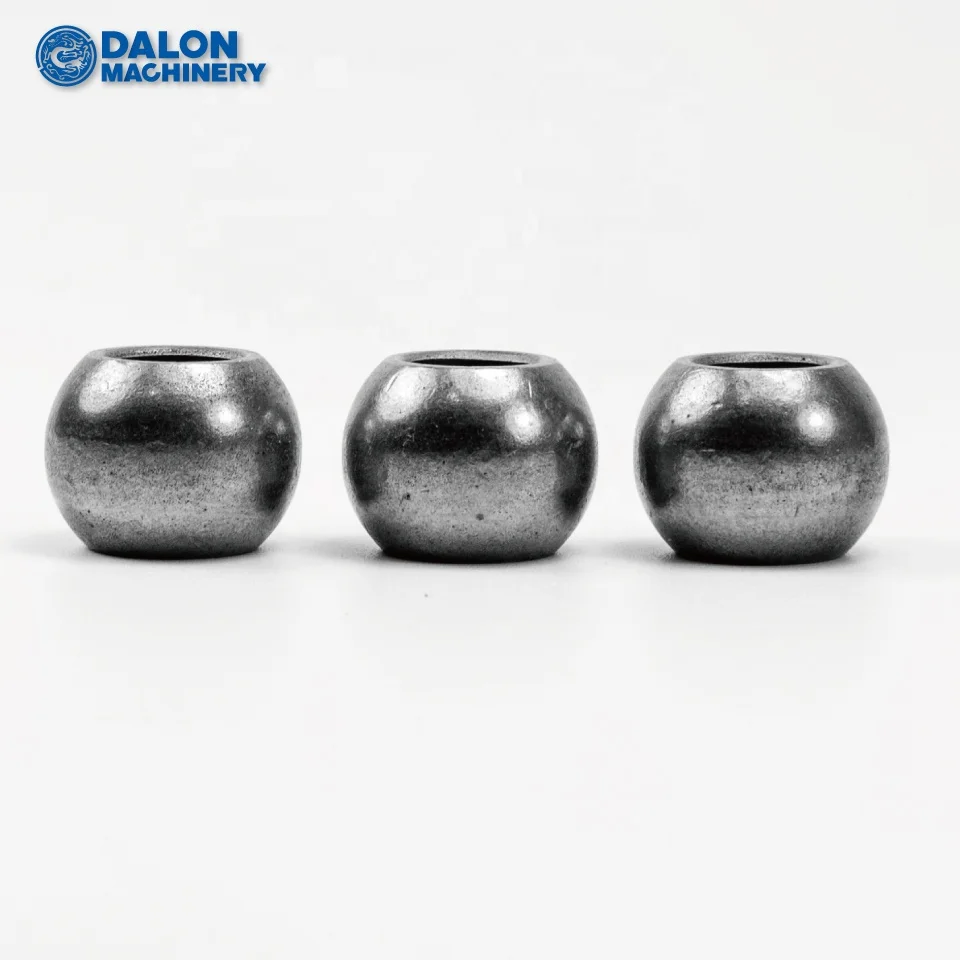

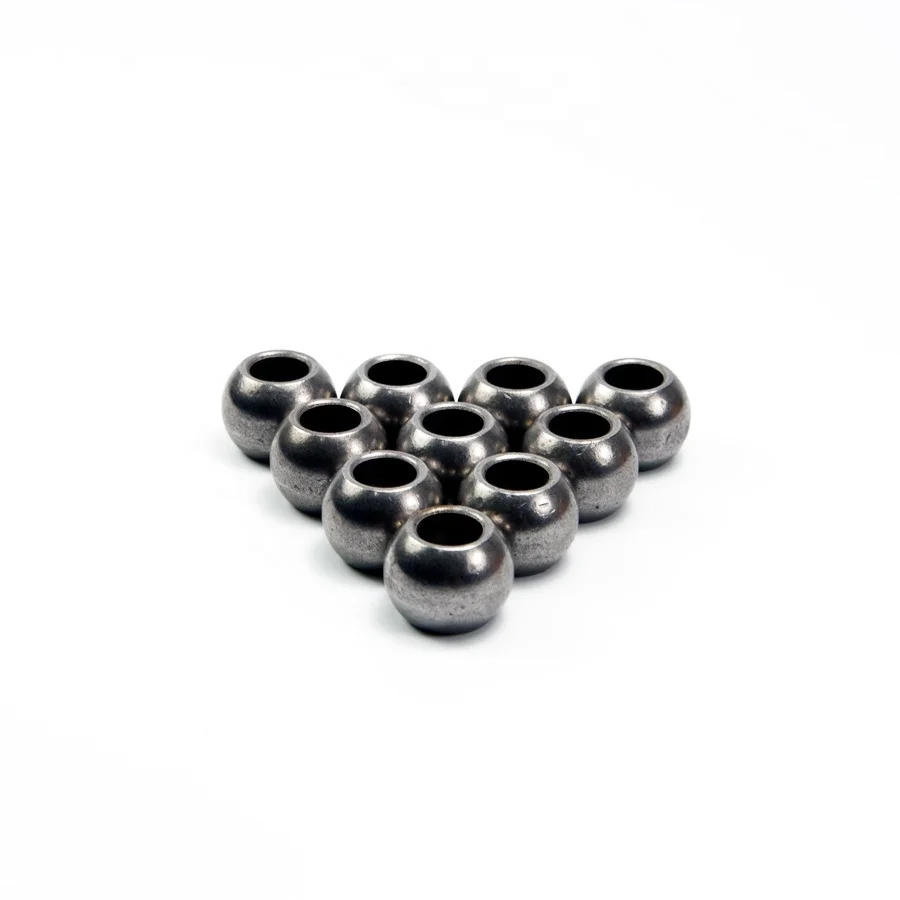

Sintered Metal Iron Spherical Fan Bushing
- Category: >>>
- Supplier: Dalon Machinery Co. Limited
Share on (1600529503120):
Product Overview
Description
Product Description
sintered iron oil retaining plain spherical cylindrical flange fan bush bearing bushing
DALON sintered iron bushing are manufactured of pressed iron powders by sintered technology and impregnated with lubricating oil and high porosity.
Increased iron content makes these iron bushing stronger and more resistant to shock loads than standard oil-embedded bushing; they can operate at lower speeds.
Startup friction causes these porous sintered iron bearing to release a thin layer of oil on the bearing’s surface. The oil contained in the porosity provides a constant lubrication between bearing and shaft, which resulting in a very low friction coefficient and maintenance-free for general engineering applications.
Increased iron content makes these iron bushing stronger and more resistant to shock loads than standard oil-embedded bushing; they can operate at lower speeds.
Startup friction causes these porous sintered iron bearing to release a thin layer of oil on the bearing’s surface. The oil contained in the porosity provides a constant lubrication between bearing and shaft, which resulting in a very low friction coefficient and maintenance-free for general engineering applications.
Details Images
Specification
Maximum Load | Static 20 N/mm2 |
Operating Temp. | -15 °F ~ +300 °F |
Density (Min) | 5.9 ~ 6.9 g/cm3 |
Porosity (Min) | 18 ~ 23% |
Sliding Speed | 0.1 ~ 6.0 m/s |
pU Factor | 0.1 ~ 1.8 N/mm2 * m/s |
Coefficient Friction | 0.05 ~ 0.25 |
Roughness | ≤ 0.3 ~ ≤ 0.6 µm |
Hardness (surface) | > HB145 |
DALON BUSHING ADVANTAGE
Sintered Iron Bushing is Suitable for use in a wide range of environments
* Marine environment
* Radio-active environments
* Contact with corrosive liquids or substances incompatible with oils
* Food preparation
Reduce of design and ownership costs by sintered iron bushing
* Maintenance-free operation
* Lower cost compared to cast metal and machined bearings
* Complex designs and forms possible
* High dimensional accuracy
* Excellent surface finish
* Reduced weight compared to similar non-porous components
* Marine environment
* Radio-active environments
* Contact with corrosive liquids or substances incompatible with oils
* Food preparation
Reduce of design and ownership costs by sintered iron bushing
* Maintenance-free operation
* Lower cost compared to cast metal and machined bearings
* Complex designs and forms possible
* High dimensional accuracy
* Excellent surface finish
* Reduced weight compared to similar non-porous components
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
DALON manufacturer of sintered bushing since 2002, offers a variety of solutions to meet our customer requirements.
All plain bearings are designed to handle radial loads, thrust loads, or a combination of the two. Radial loads are perpendicular to the shaft. Thrust loads are parallel to the shaft. Sleeve bearings handle radial loads. Flanged sleeve bearings handle both radial and thrust loads. Thrust bearings handle thrust loads.
Startup friction causes these porous sintered bronze bushing to release a thin layer of oil on the bearing’s surface.
All plain bearings are designed to handle radial loads, thrust loads, or a combination of the two. Radial loads are perpendicular to the shaft. Thrust loads are parallel to the shaft. Sleeve bearings handle radial loads. Flanged sleeve bearings handle both radial and thrust loads. Thrust bearings handle thrust loads.
Startup friction causes these porous sintered bronze bushing to release a thin layer of oil on the bearing’s surface.
Certifications
QMS_ISO CERTIFICATES
Quality management system GB/T19001-2016/ISO9001:2015 standard for the scope of activites sintered filter
SGS Certificate for DALON Bushing
RoHs Test result comply with the limits as set by RoHS Directive (EU) 2015/863 amending Annex II to Directive 2011/65/EU
REACH PASS TEST REPORT
Based on the list by EU Chemicals Agency(ECHA),regarding Regulation(EC) No.1907/2006 - REACH
-201 SVHC
Recommend Products
DALON ALSO OFFER DIFFERENT MATERIAL
DALON also could offer different material composition of sintered bearings.
Such as Iron / Bronze - Iron and etc.
Customized composition of material with increased iron content makes these sintered bushing stronger and more resistant to shock loads than standard oil-embedded bushing; they can operate at lower speeds.
Startup friction causes these porous sintered bushing to release a thin layer of oil on the bearing’s surface. The oil contained in the porosity provides a constant lubrication between bearing and shaft, which resulting in a very low friction coefficient and maintenance-free for general engineering applications.
