Product Overview

Description



Zhengzhou Sutong Electric Equipment Co., Ltd



1600.C Electric Crucible Enamel Melting Furnace with Funnel Alumina Crucible





Electric Crucible Enamel Melting Furnace Function:



Crucible enamel melting  furnace is mainly used in ceramics, glass ,enamel and other industries to producing frit, glass low-temperature flux, enamel glaze and bonding agent in the laboratory.



Electric Crucible Enamel Melting Furnace Usage:

Place a funnel crucible in this vertical crucible glass melting furnace ,and put into mixed grit to the crucible directly .A round port at the furnace bottom for liquid flow out, a stopper will seal this port when needed . When furnace is heated ,the stopper sealed the port very well to avoid melting material leak ,after melting ,lift the stopper and leak melted material .





1700C Electric crucible enamel melting furnace features :

• The Electric Crucible Enamel Melting Furnace has customized chamber and it is designed for sintering ceramic parts and component in Lab and Hobby Shop.


• The Electric Crucible Enamel Melting Furnace has a unique ceramic fiber insulation around the chamber to provide excellent uniformity and energy efficiency.


• The heating element is installed in the insulation for maximum heat transfer to the chamber.  Max. temperature can reach 1700 ^oC


• Built in precision digital temperature controller which is 30 segments programmable to control heating rate, cooling rate.





Main Specifications of electric crucible enamel melting furnace
Furnace inside chamber Size:	400*400*400mm
Max. Temperature	1700.C
Standard working temperature	1600.C
Temperature Control:	30 segments programmable and PID auto control
Heating rate	0~15 .C / min
Temperature accuracy:	+/-1.C
Heating Element	right -angle MoSi2 heating elements
Temperature measuring method	by B type thermocouple
Working Voltage	AC 3 phases  50/60HZ
Furnace structure:	double shells with fan cooling
Furnace chamber	light alumina ceramic fiber plate
Max. Power	24 KW
Loading way	from furnace top
Material liquid discharge	from the crucible hole on the furnace bottom





Standard package for crucible enamel melting furnace:

Part description	Quantity
Thermal couple	1 pc
Stainless steel tongs	1 set
Thermal gloves	1 pair
Operation manual	1 pc
funnel alumina crucible	1 pc
crucible stopper	1pc
solution discharge tube	1 pc

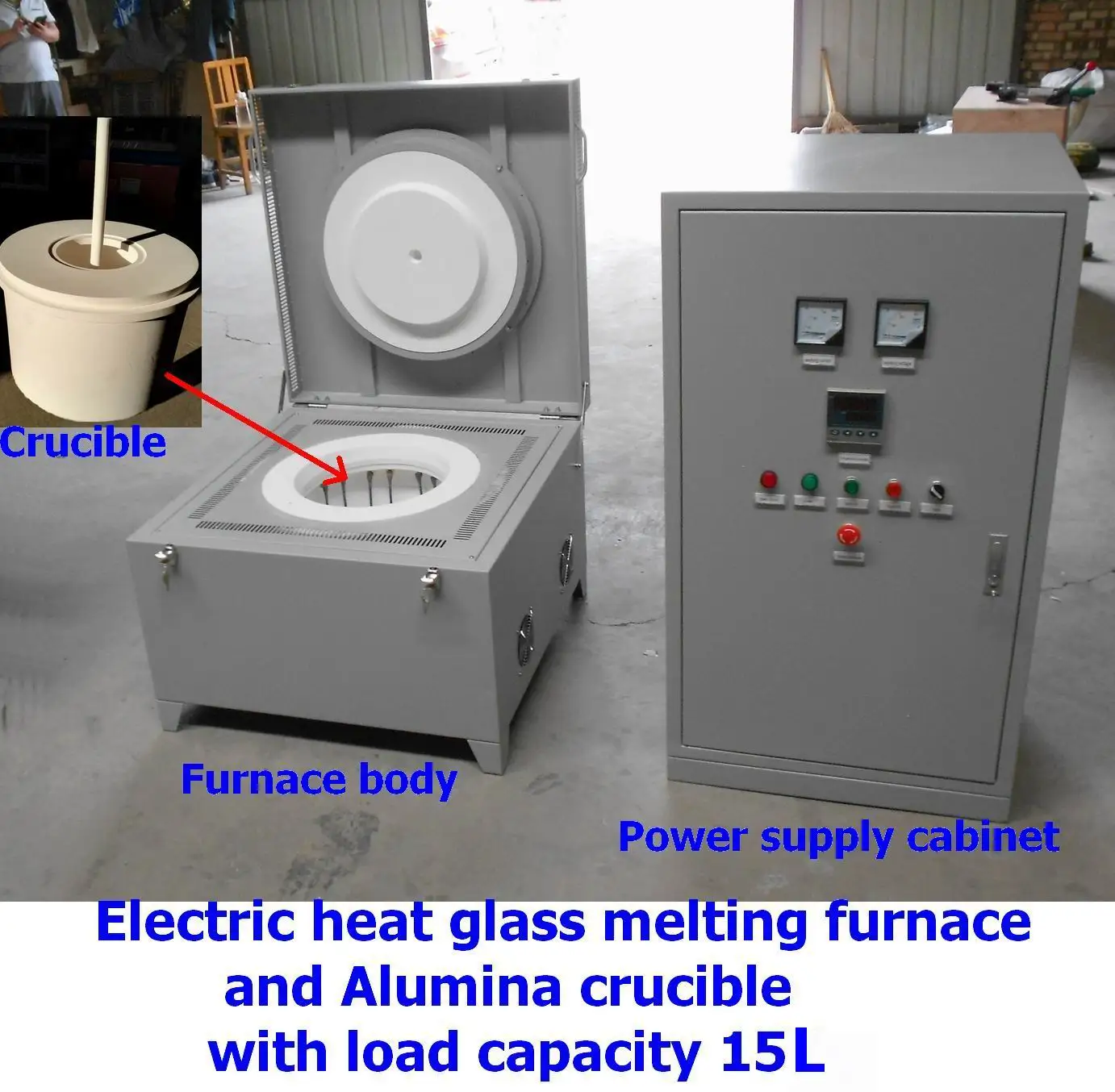

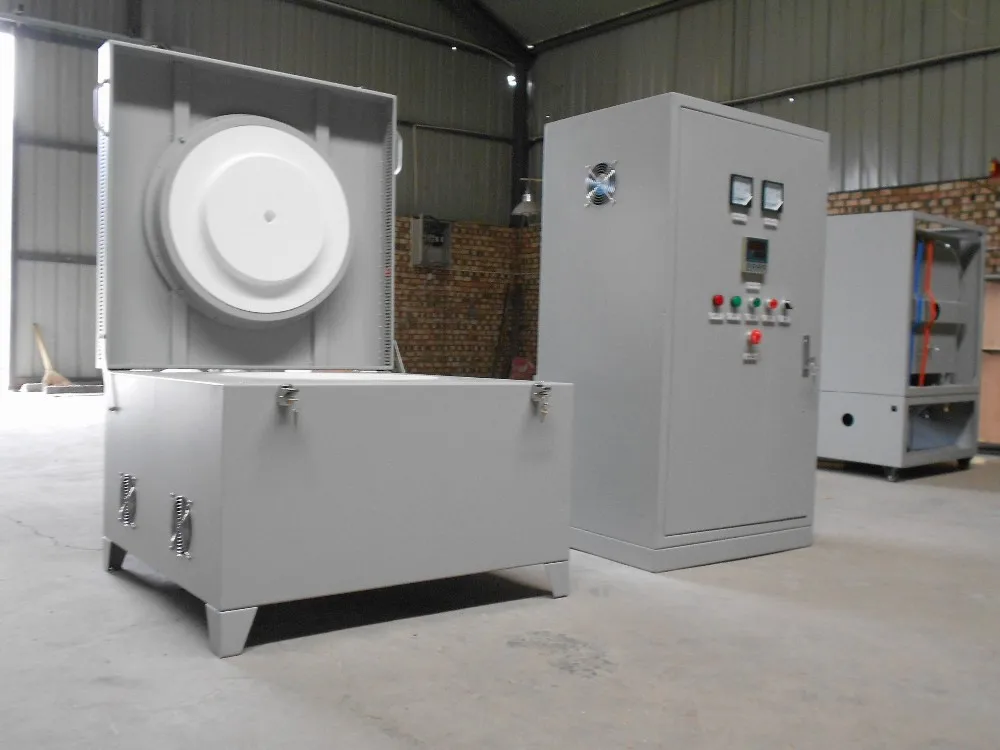

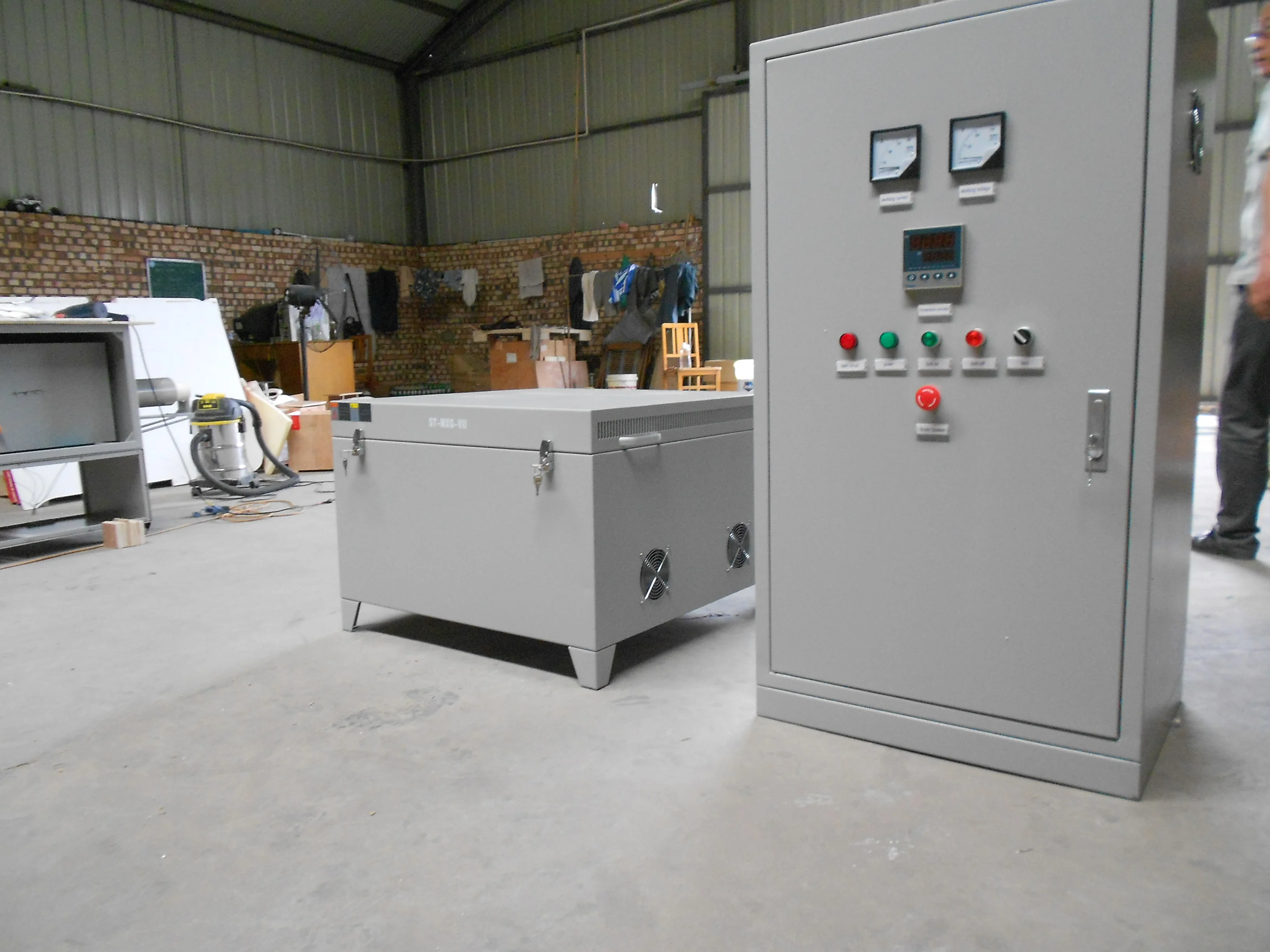

 1600.C Electric Crucible Enamel Melting Furnace and eletric panel























































1600.C Electric Crucible Enamel Melting Furnace--top view

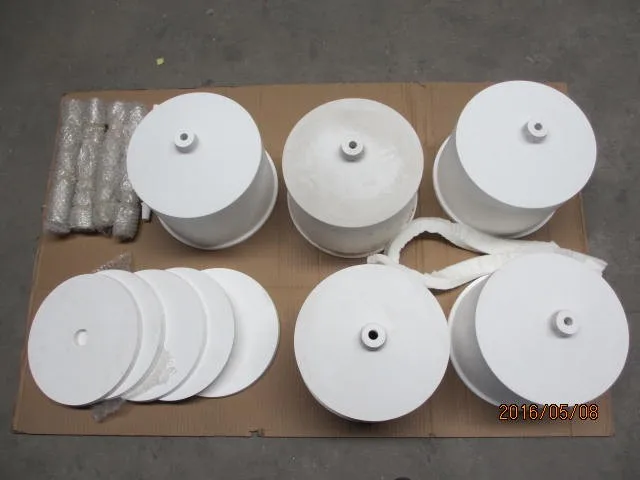

1600.C Electric Crucible Enamel Melting Furnace--funnel alumina crucible:



More detailed pictures of 1600.C Electric Crucible Enamel Melting Furnace:

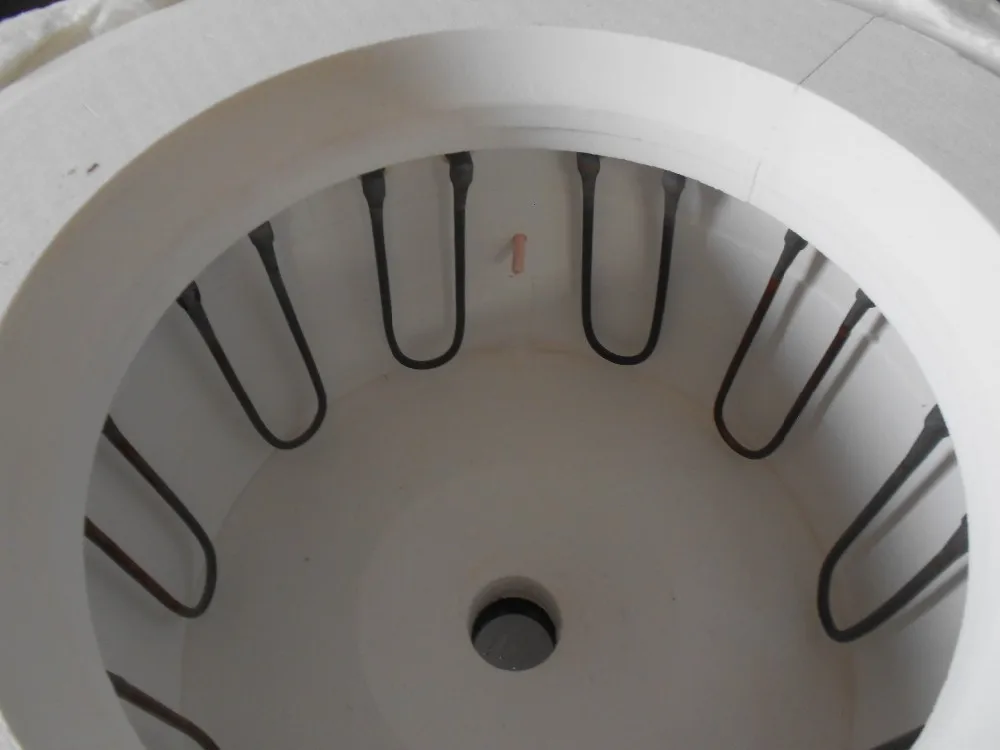

right-angle MoSi2 rod and furnace chamber:

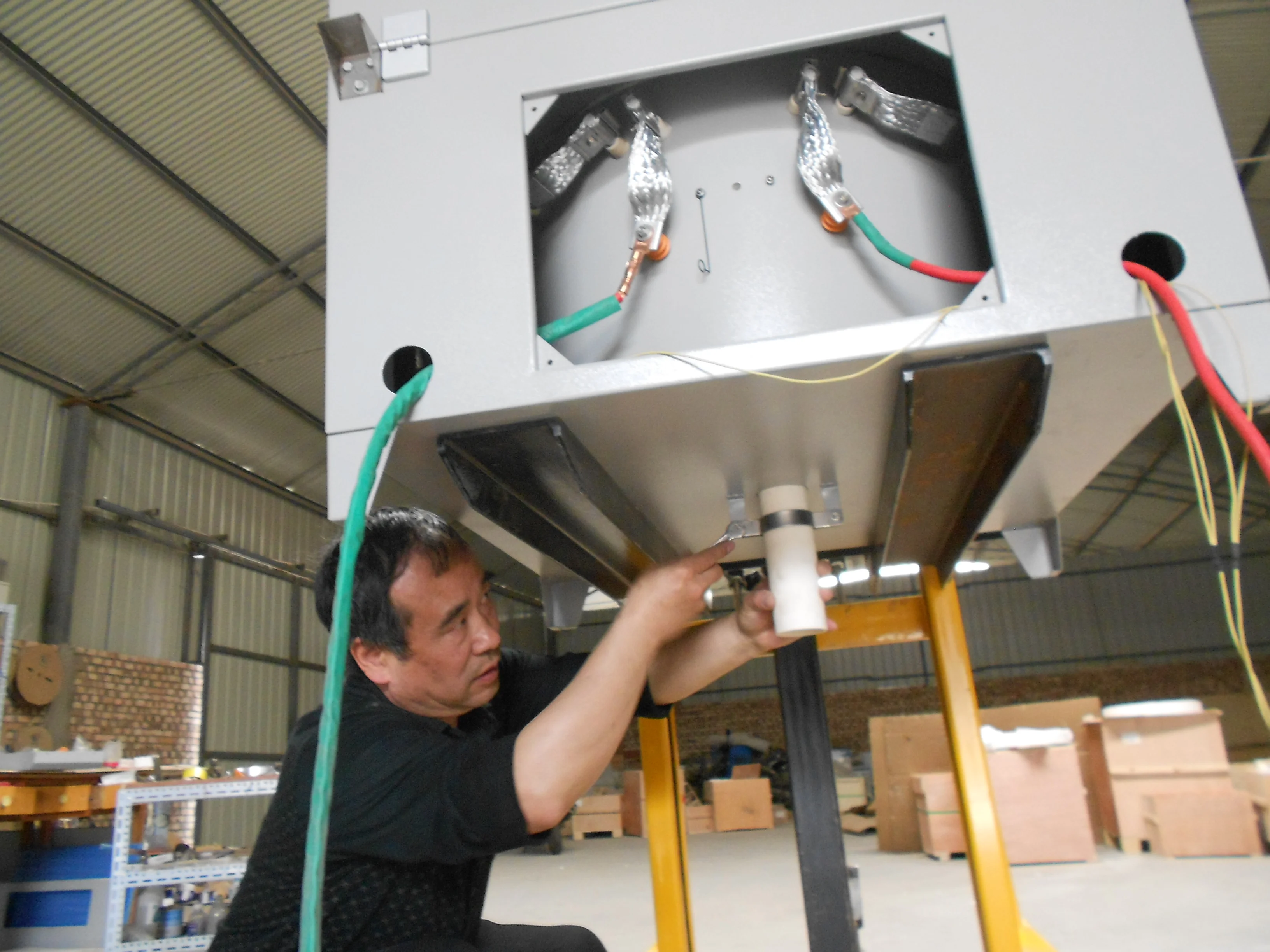

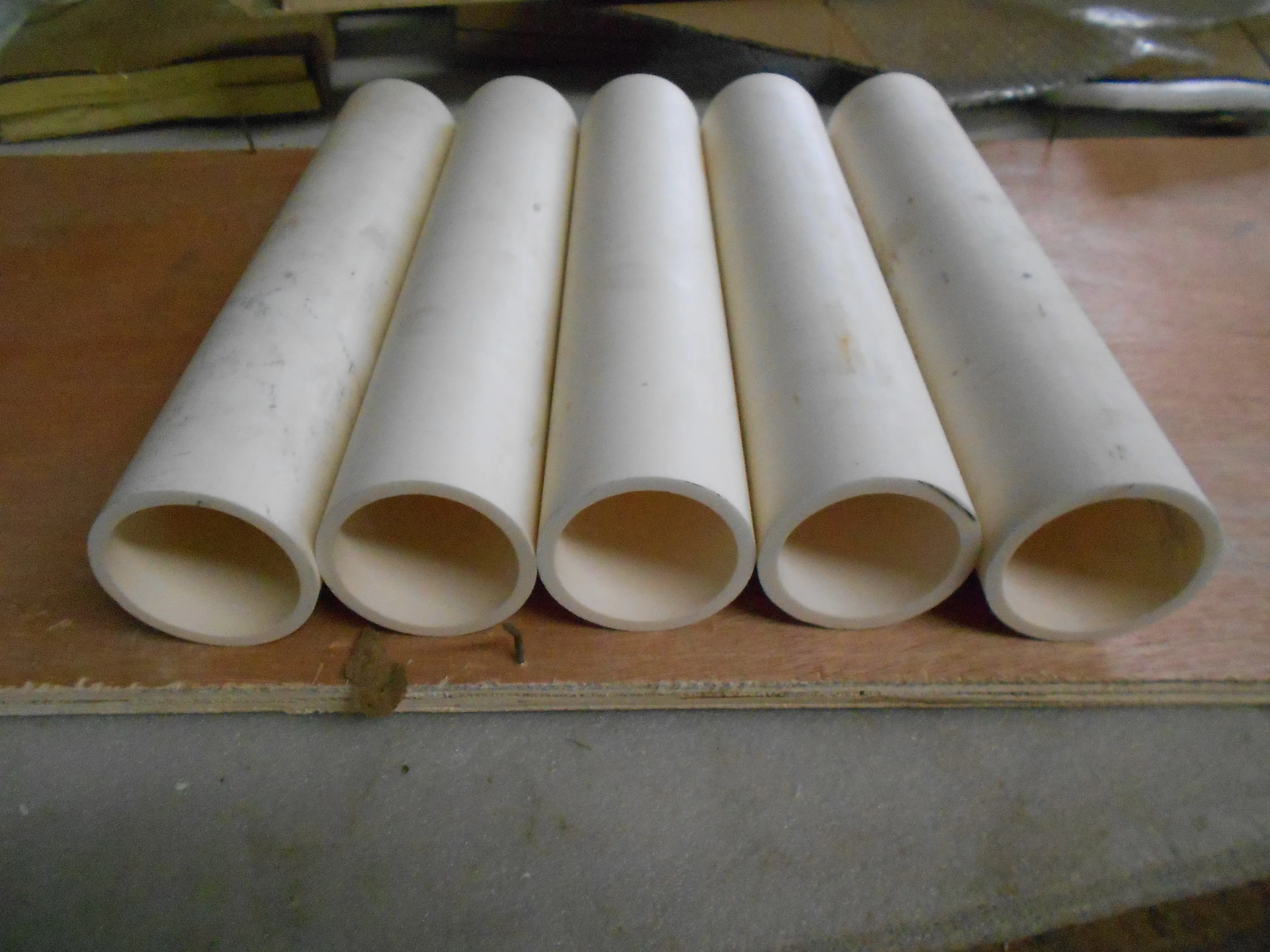

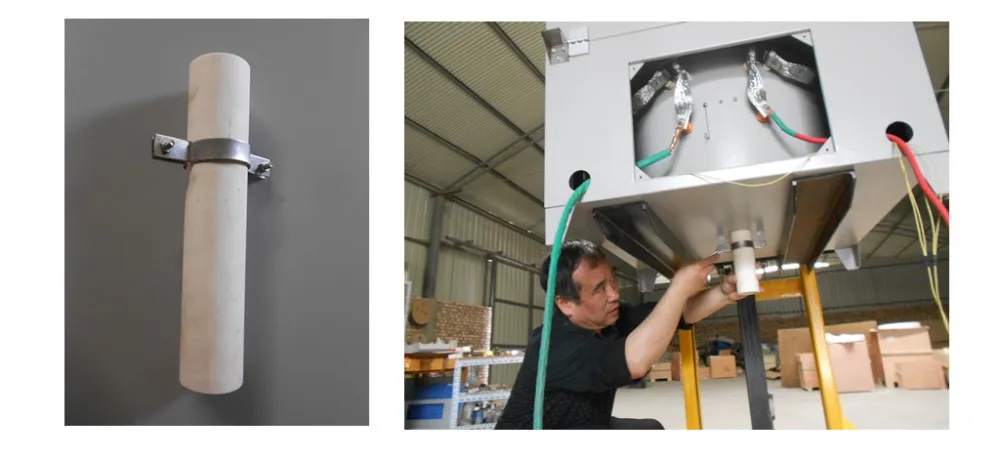

Discharge pipe and its installation :

Electric crucible enamel melting furnace--stopper:

Electric crucible enamel melting furnace--package:

Would you like to know more information about this crucible melting furnace , please send enquiry to us .
