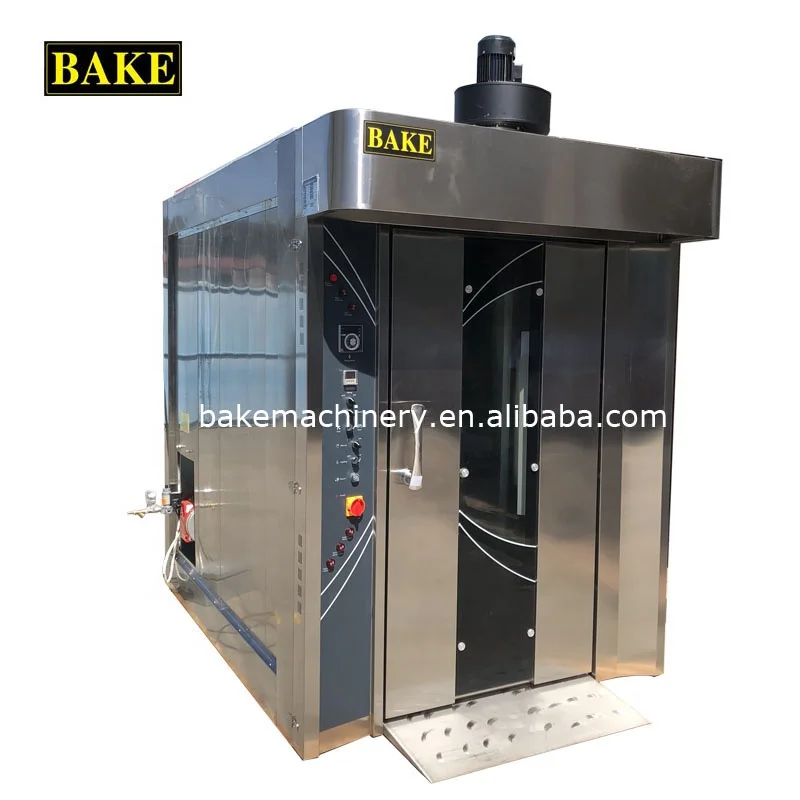

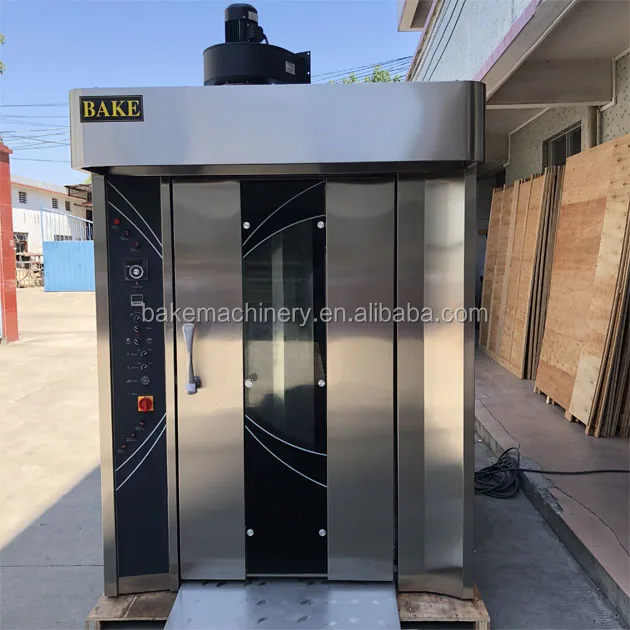

electric/diesel/gas rotary baking oven 32 trays China price for biscuit cookies
- Category: >>>
- Supplier: Shijiazhuang Bake Machine Tech Co. Ltd.
Share on (1600529530214):
Product Overview
Description
Product Description
Model | Energy | Voltage | Power | Max Temperature | Dimension | N.W. |
BK-D16E | electric | 380V | 52KW | 400℃ | 1440*2290*2755mm | 1680KG |
BK-D16D | diesel | 380V | 3.3KW | 400℃ | 1440*2290*2755mm | 1680KG |
BK-D16G | gas | 380V | 3.3KW | 400℃ | 1440*2290*2755mm | 1680KG |
BK-D32E | electric | 380V | 54KW | 400℃ | 1810*2270*2755mm | 1900KG |
BK-D32D | diesel | 380V | 3.5KW | 400℃ | 1810*2270*2755mm | 1900KG |
BK-D32G | gas | 380V | 3.5KW | 400℃ | 1810*2270*2755mm | 1900KG |
BK-T64E | electric | 380V | 72KW | 400℃ | 2390*3150*2755mm | 2850KG |
BK-T64D | diesel | 380V | 5KW | 400℃ | 2390*3150*2755mm | 2850KG |
BK-T64G | gas | 380V | 5KW | 400℃ | 2390*3150*2755mm | 2850KG |
Application
Various plate specifications can share a converter, such as 400 * 600 for roasting hamburgers and 460 * 720 for toast, which greatly improves efficiency!

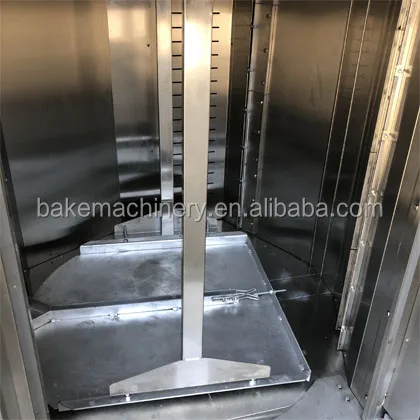

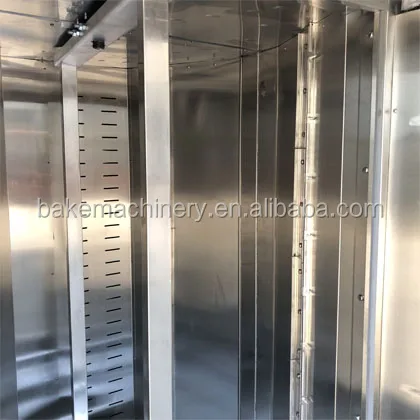

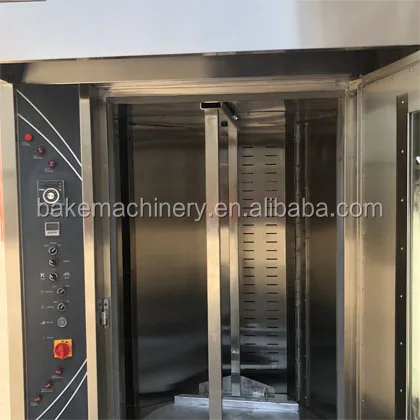

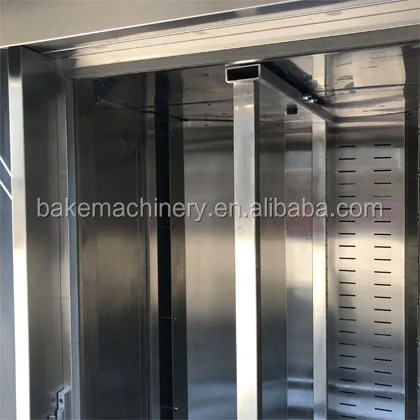

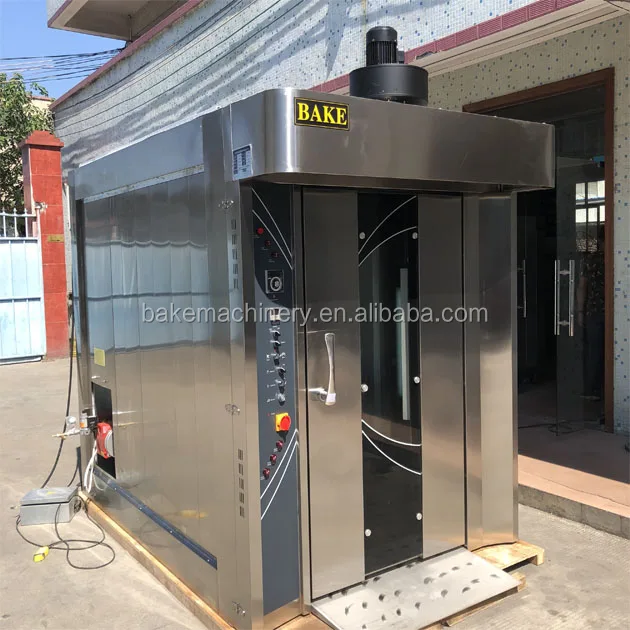

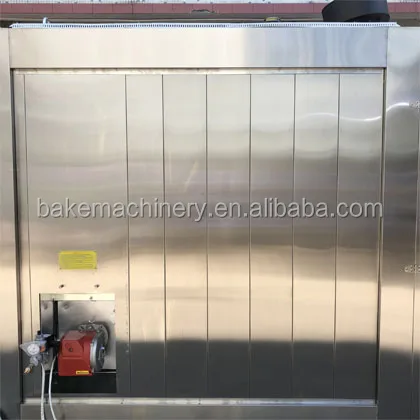

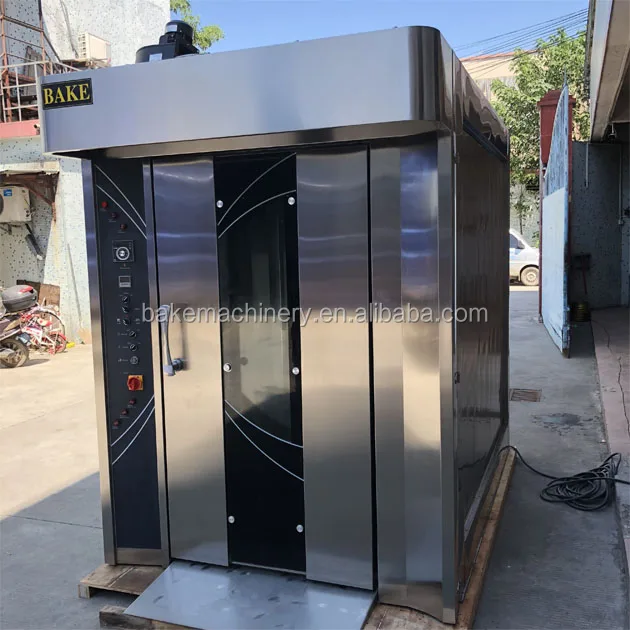

Detailed Images
Advantage
1. Furnace front is solid 1.2mm stainless steel 304, the other is 1.2mm stainless steel 201.
2. Converter is equipped with slow wind and fast wind (note: 380V itself has fast and slow wind; 220V itself has no fast and slow wind, if you want to have it, add 500USD frequency converter 2.50 days to customize the special motor).

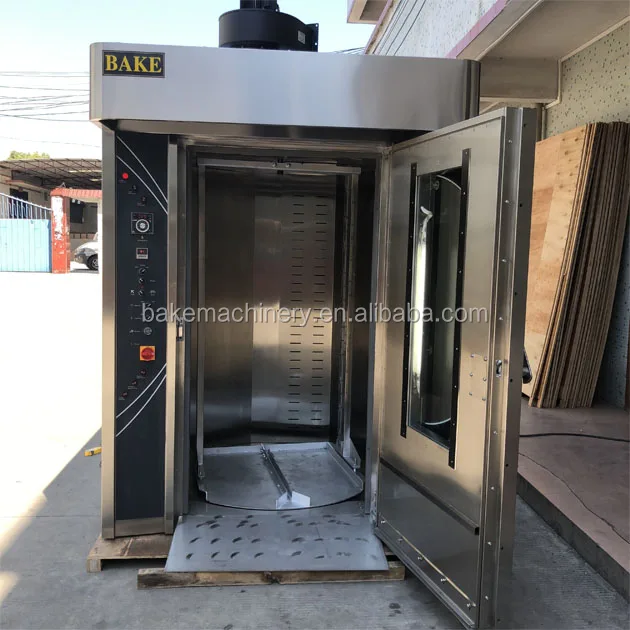

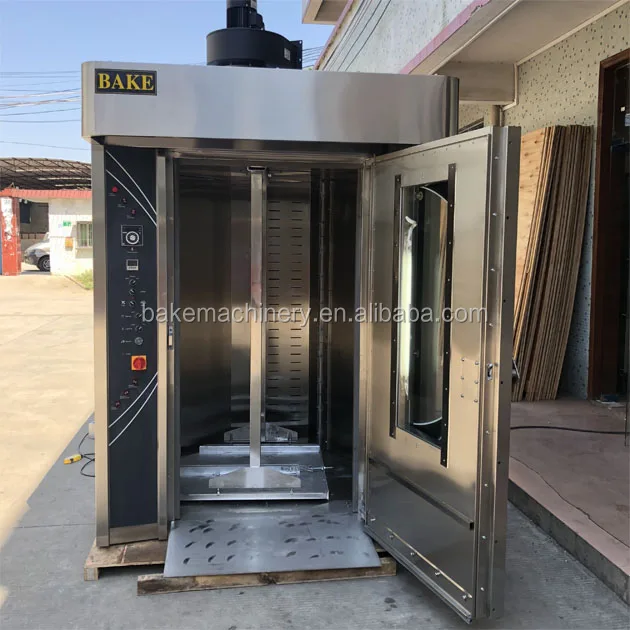

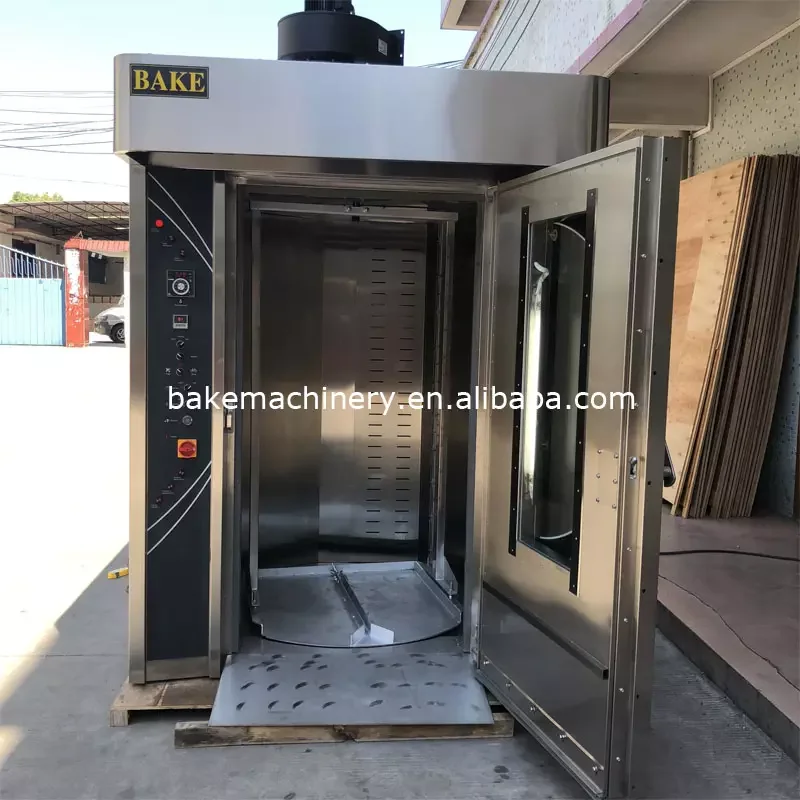

3. Open the furnace door and adjust it automatically. Close the door and run automatically. It is convenient for entering and leaving the furnace door.
4. Integrative door import and export design.

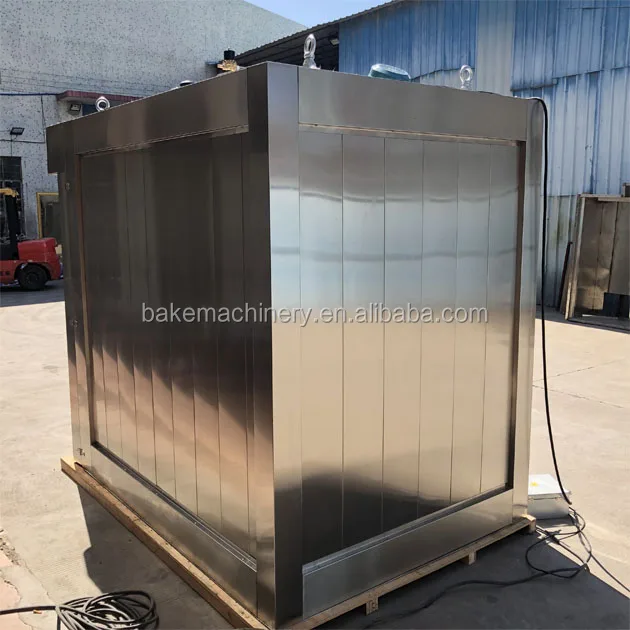

5. The thickness of insulation layer is over 150 mm.
6. The air outlet adopts a five-stage adjusting system, and the thickening design ensures that the air outlet does not deform, thus ensuring the stability of baked bread.
7. The combustion exchanger is forged by open die, and the heat exchanger is welded by seamless stainless steel pipe fittings.
8. The transmission is refined by German ball-milled carbon to ensure no distortion.

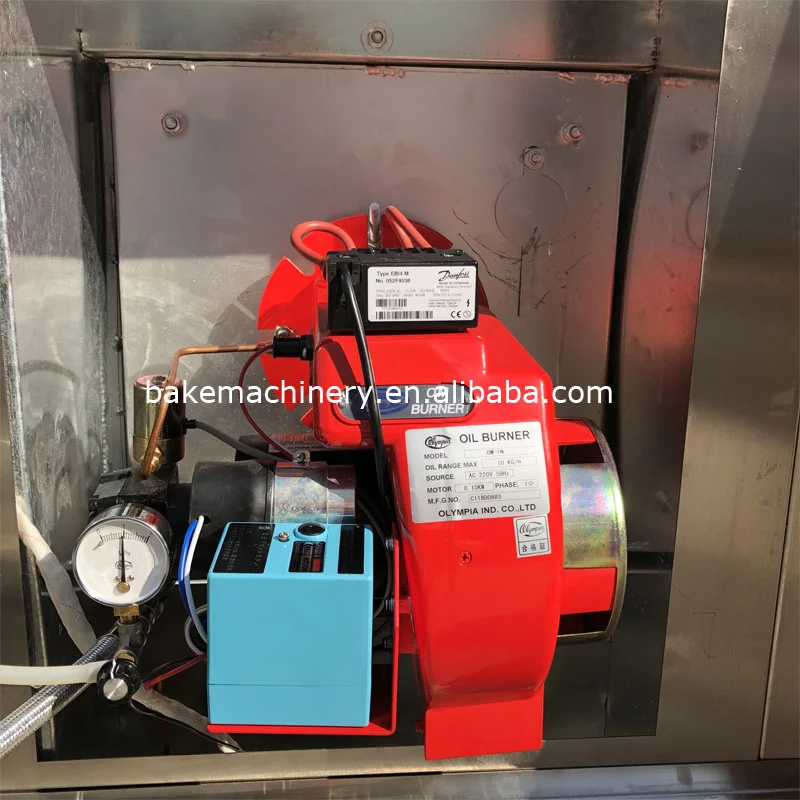

9. Use the Japanese Olympia burner.

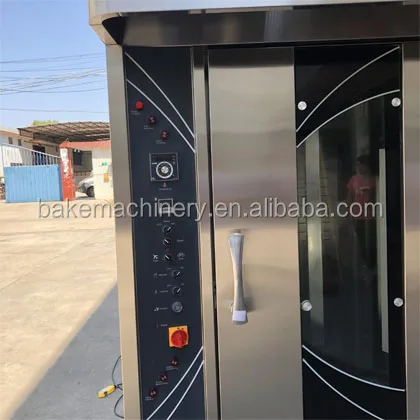

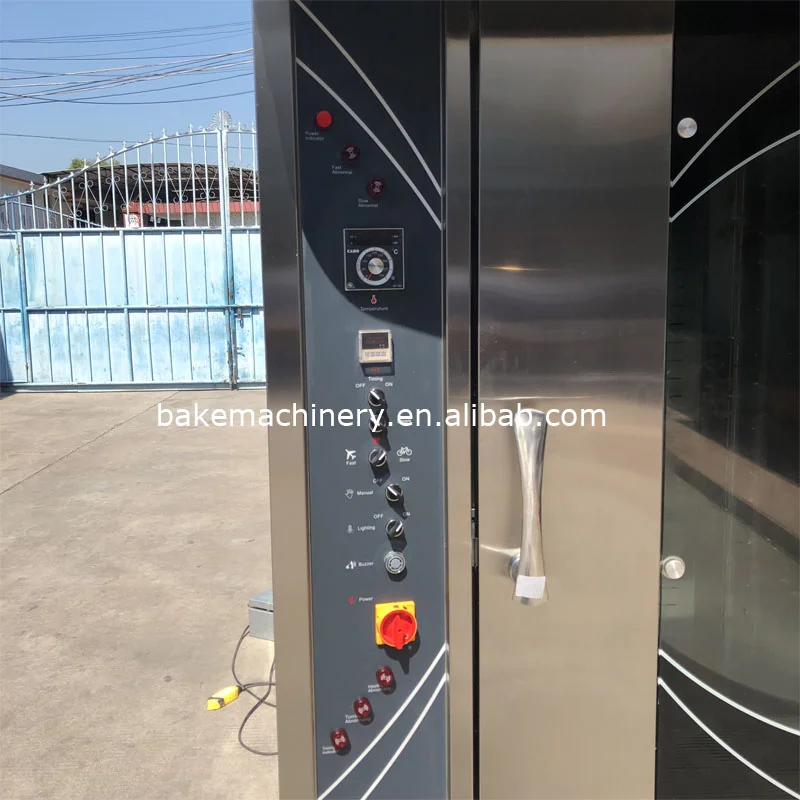

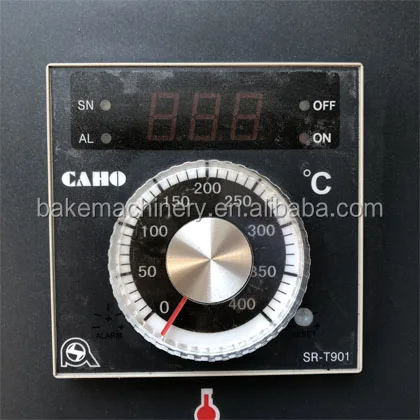

10. The dashboard uses Taiwan Xuanrong.
11. AC contactor, thermal relay switch and intermediate relay adopt German Schneider.

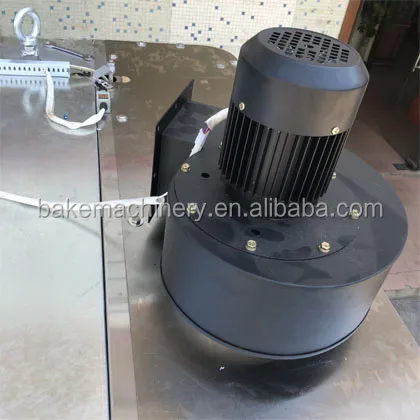

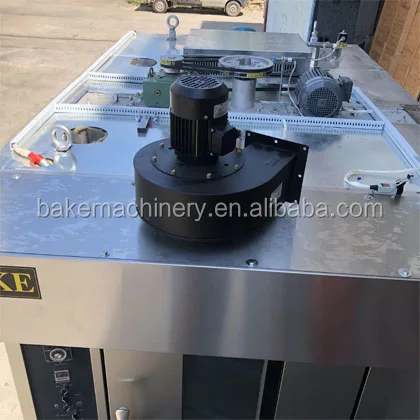

12. Furnace doors are equipped with automatic opening and exhaust system and imported exhaust fans, so as not to hurt people by hot air.

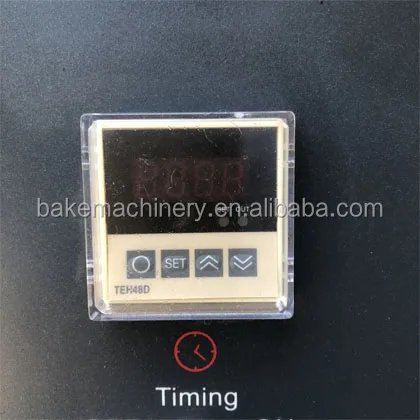

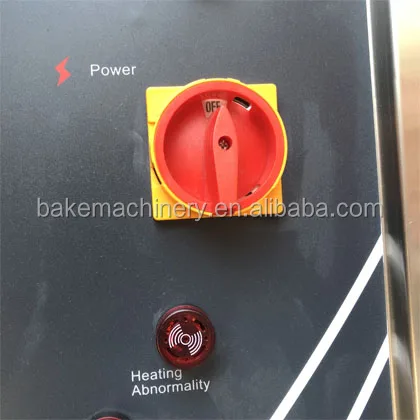

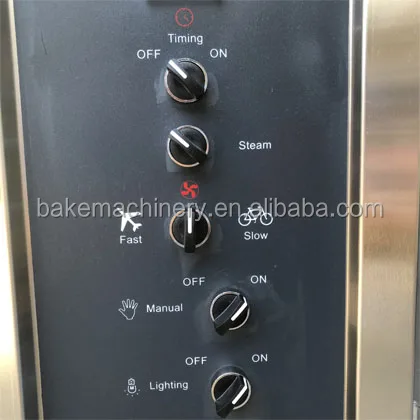

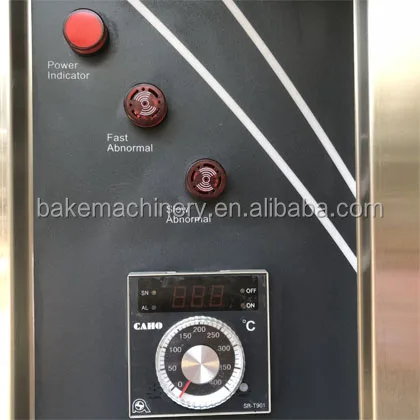

13. With timed alarm function, manual, automatic and lighting control system, equipped with fault detection system, it can quickly detect abnormal speed of motor, abnormal turntable and abnormal heating, so that customers can quickly remove faults.
2. Converter is equipped with slow wind and fast wind (note: 380V itself has fast and slow wind; 220V itself has no fast and slow wind, if you want to have it, add 500USD frequency converter 2.50 days to customize the special motor).
3. Open the furnace door and adjust it automatically. Close the door and run automatically. It is convenient for entering and leaving the furnace door.
4. Integrative door import and export design.
5. The thickness of insulation layer is over 150 mm.
6. The air outlet adopts a five-stage adjusting system, and the thickening design ensures that the air outlet does not deform, thus ensuring the stability of baked bread.
7. The combustion exchanger is forged by open die, and the heat exchanger is welded by seamless stainless steel pipe fittings.
8. The transmission is refined by German ball-milled carbon to ensure no distortion.
9. Use the Japanese Olympia burner.
10. The dashboard uses Taiwan Xuanrong.
11. AC contactor, thermal relay switch and intermediate relay adopt German Schneider.
12. Furnace doors are equipped with automatic opening and exhaust system and imported exhaust fans, so as not to hurt people by hot air.
13. With timed alarm function, manual, automatic and lighting control system, equipped with fault detection system, it can quickly detect abnormal speed of motor, abnormal turntable and abnormal heating, so that customers can quickly remove faults.

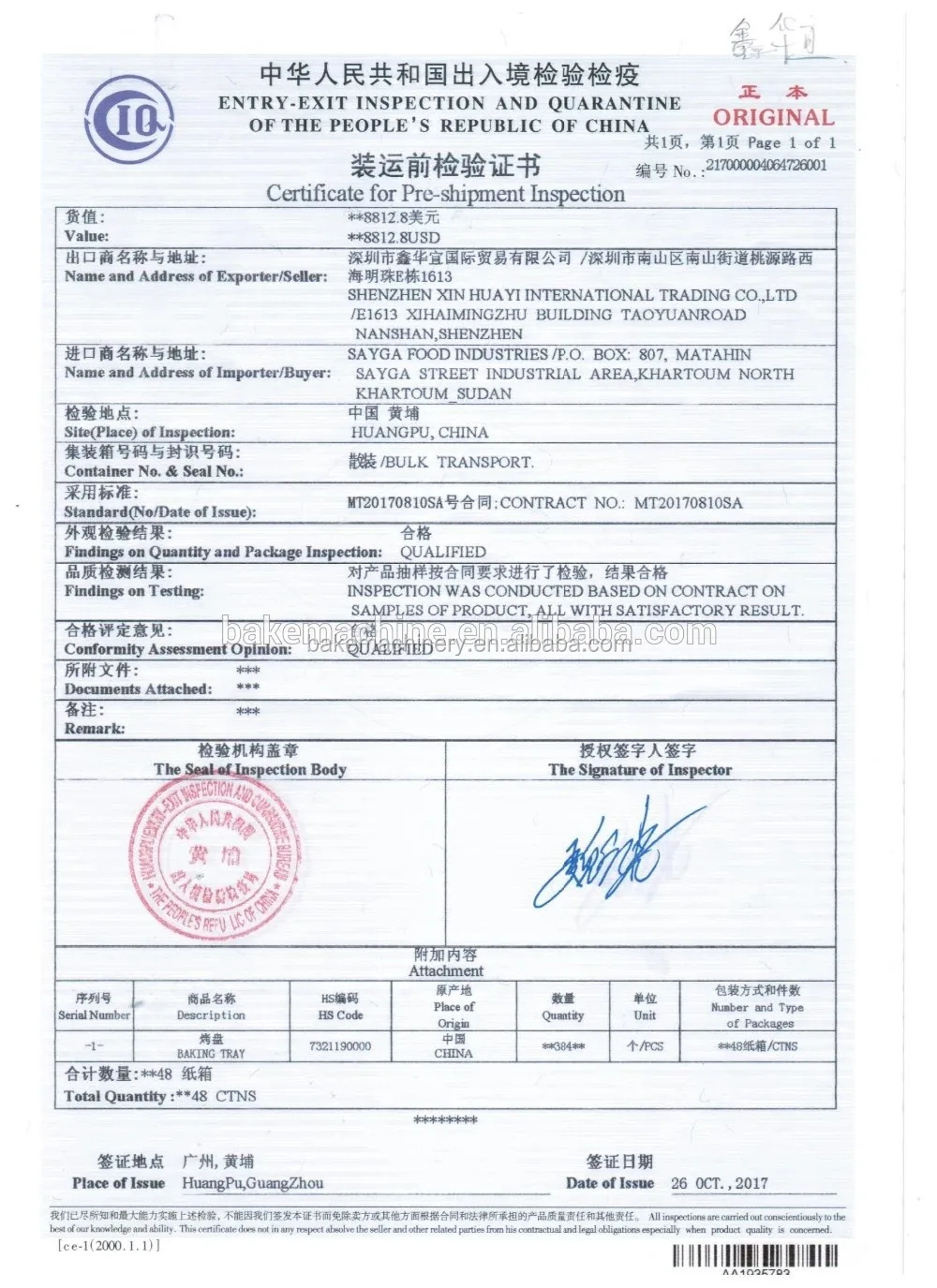

Certificate
Packing&Shipping
Packing details
Firstly, coat the machine surface with preservative solution (to protect stainless steel)
Secondly, map onto pudding fender (to prevent bump)
Thirdly, wrap the machine in plastic film (to prevent ventilation)
Fourthly, put the machine in wooden case/wooden frame (transport easily)
At last, tie bandage outside of the wooden case (reinforcement overall)
Secondly, map onto pudding fender (to prevent bump)
Thirdly, wrap the machine in plastic film (to prevent ventilation)
Fourthly, put the machine in wooden case/wooden frame (transport easily)
At last, tie bandage outside of the wooden case (reinforcement overall)

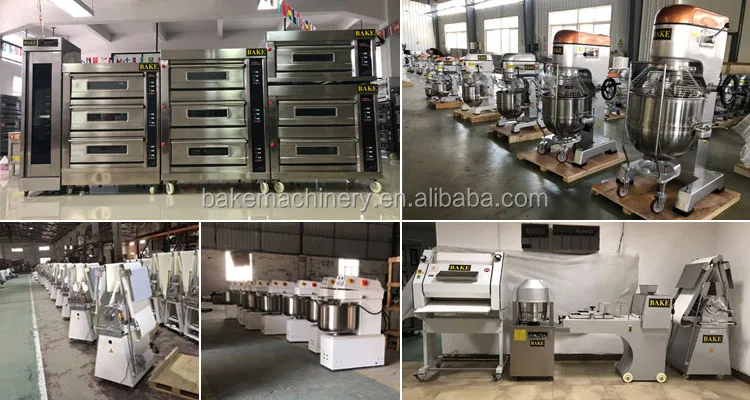

Company Introduction
BAKE Machinery Co,.Ltd estalished in1990,is one of the biggest enterprises on food machinery in China,also a large company professionally specialized in researching,manufacturing and marketing of bread bakery equipments.BAKE owns a lot of senior engineers and skilled workers that engaged in all types of works.

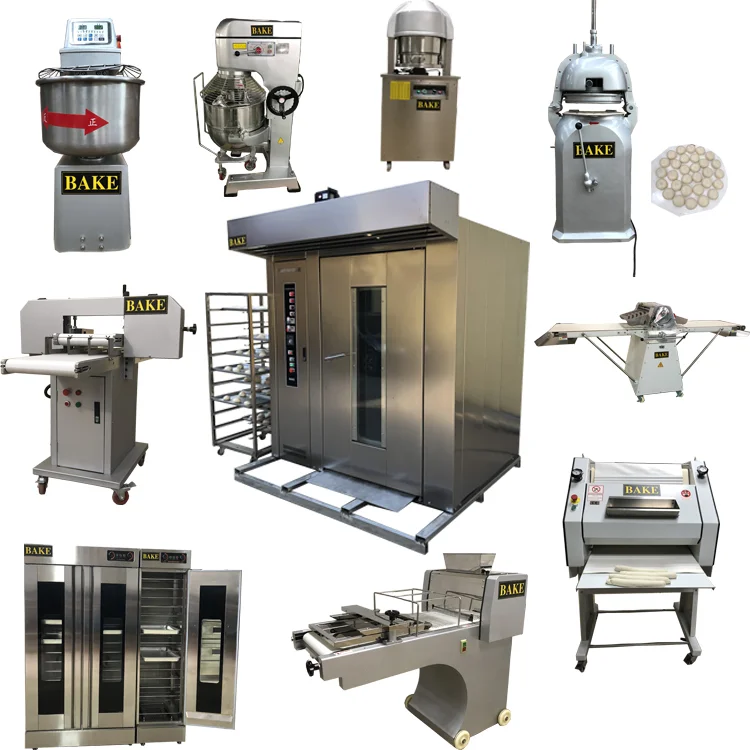

Our machines include all forms of food bakery machines,such as rotary rack oven,deck oven,convection oven,gas baking oven,diesel bread oven,tunnel oven,spiral mixer,planetary mixer,proofer,dough divider,dough pressing machine,toast moulder,French baguette moulder,croissant moulding machine,dough sheeter,toast slicer,hamburger slicer,water chiller,baking rack,tray and so on.In addition,we also produce correlative machines according to your design.BAKE gives the best endevor to quality and wins every customer's trust and support for our strict quality control ,primary management ,professional spirit and principle.In2004,BAKE was certifacated ISO9001:2000 and CE certification.BAKE has already set up whole sales net in China and exported products to lots of countries in the world. Because of best quality,favorable price and perfect after sale service,we get good credit and reputation from the clients.By making use of our expertise and business knowledge,we believe we will be able to offer more efficient products,better service and support.
Our warranty service:first,we can install the the bakery equipments for you in your bakery.Second,the warranty service is all life of the machines,and the first 14 months is free
FAQ
Q1:What is your terms of payment?
A:T/T 30% as deposit,and 70% before delivery.
Q2:What is your terms of delivery?
A:EXW,FOB,CFR,CIF,DDU,DDP.
Q3:How about your delivery time?
A:Generally,it will take 5 to 20 days after receiving your advance payment.
Q2:What is your terms of delivery?
A:EXW,FOB,CFR,CIF,DDU,DDP.
Q3:How about your delivery time?
A:Generally,it will take 5 to 20 days after receiving your advance payment.
