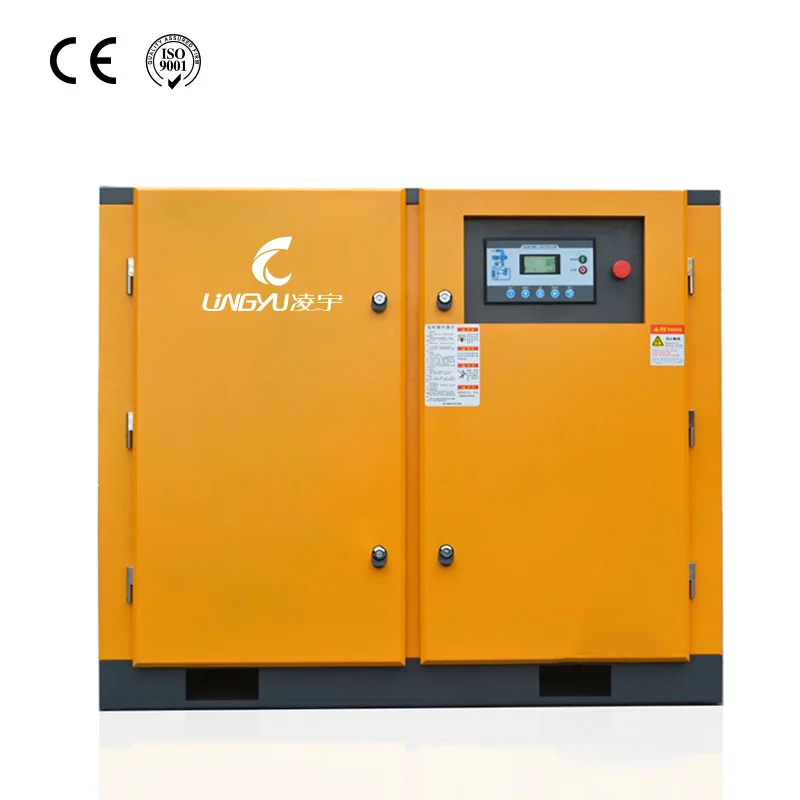

2~7 Bar 8 Bar 10 Bar Oil Lubricated/Oil Injected 2 ~40 Bar Oil Free/Oilless Pm VSD Rotary Screw Type Industrial Air Compressor
- Category: >>>
- Supplier: Zhongshan Lingyu Machinery Co. Ltd.
Share on (1600529572492):
Product Overview
Description
Product Overview
Product Display

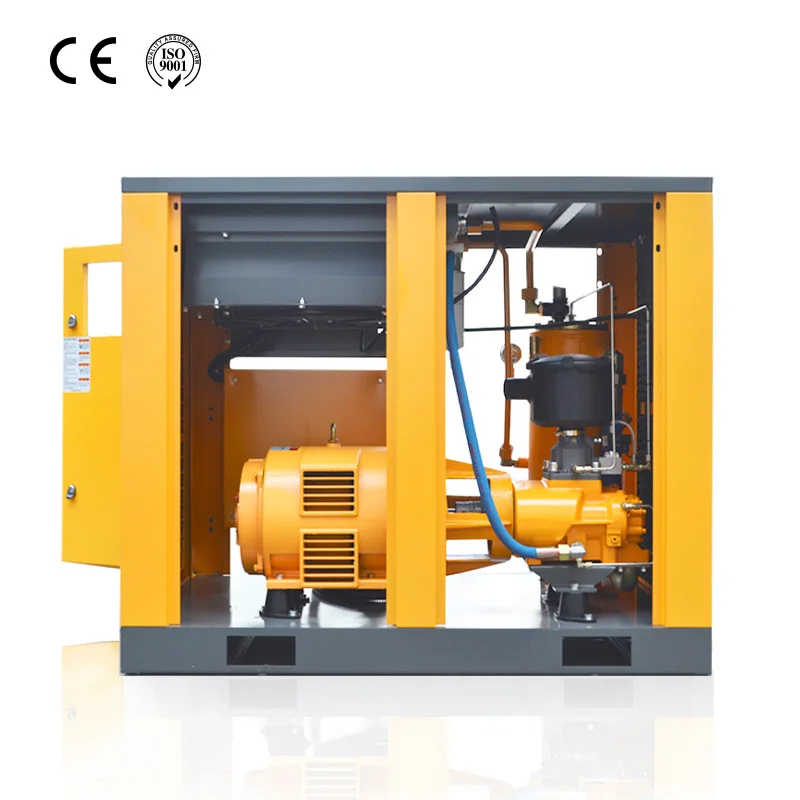

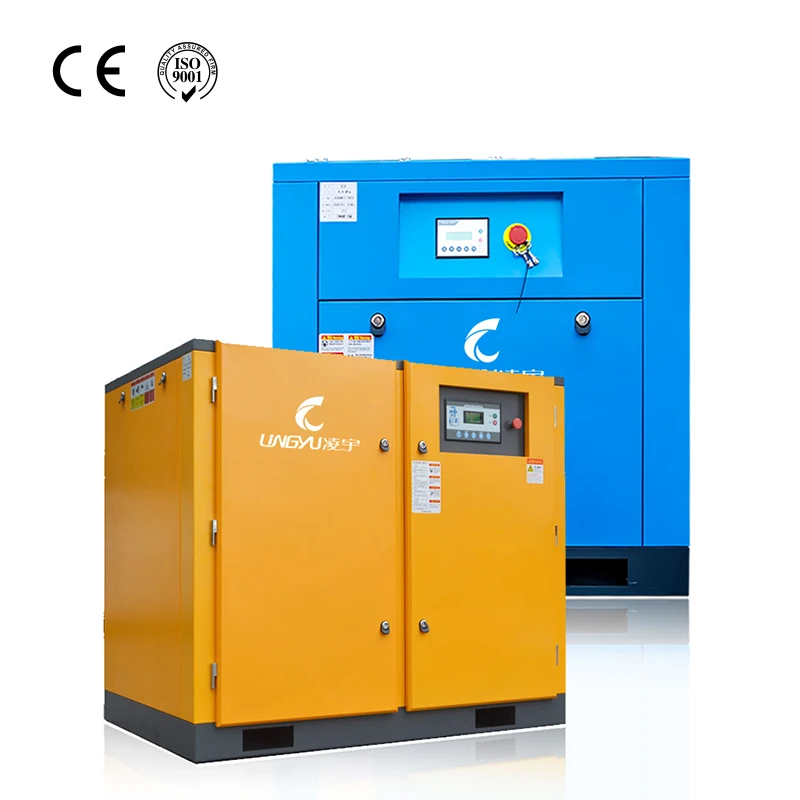

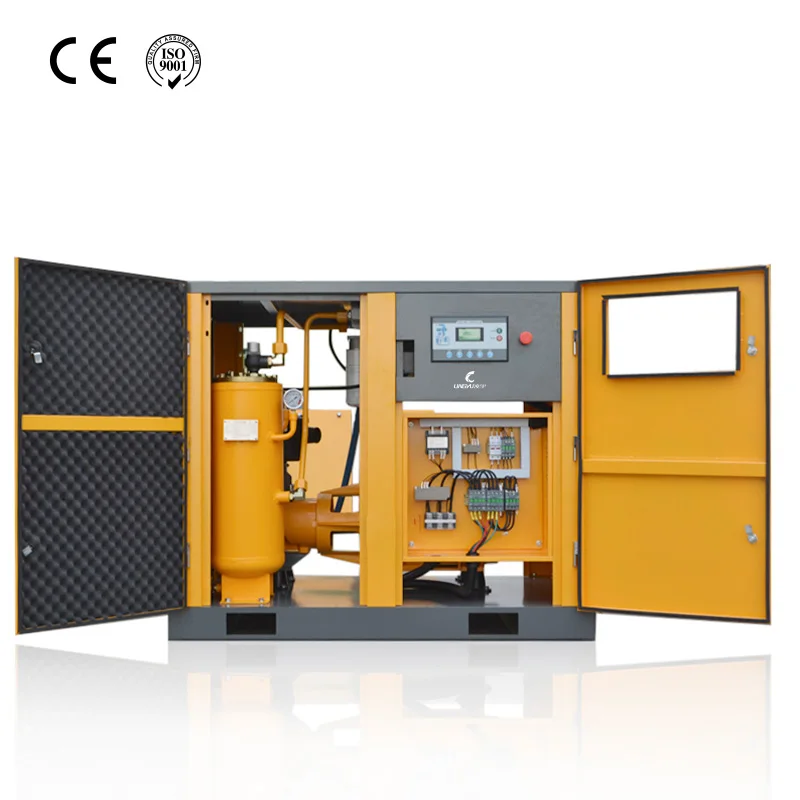

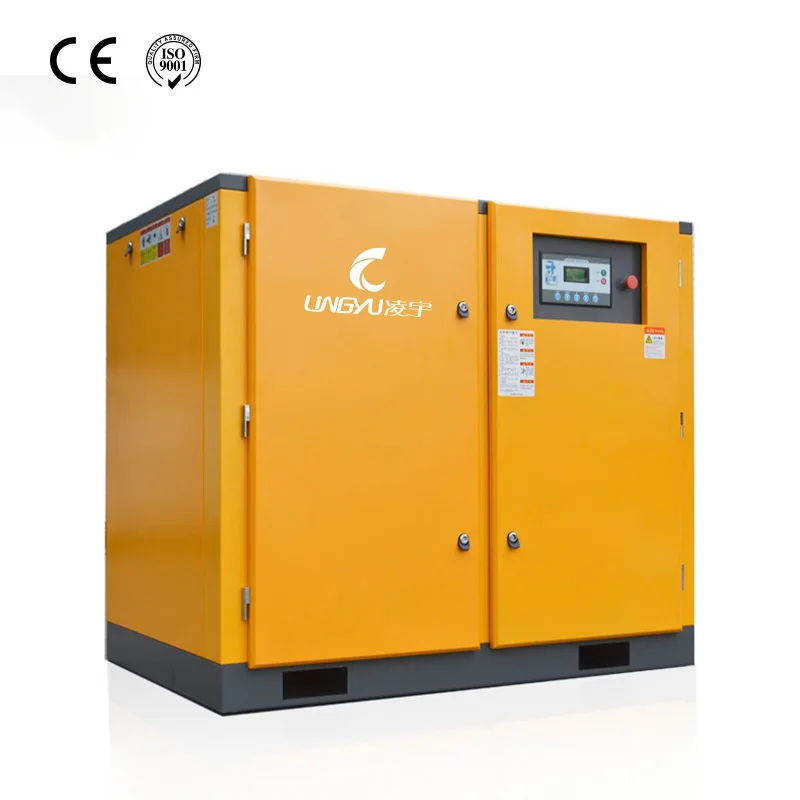

2~7 Bar 8 Bar 10 Bar Oil-Lubricated/Oil-Injected 2 ~40 Bar Oil-Free/Oilless Pm VSD Rotary Screw Type Industrial Air Compressor

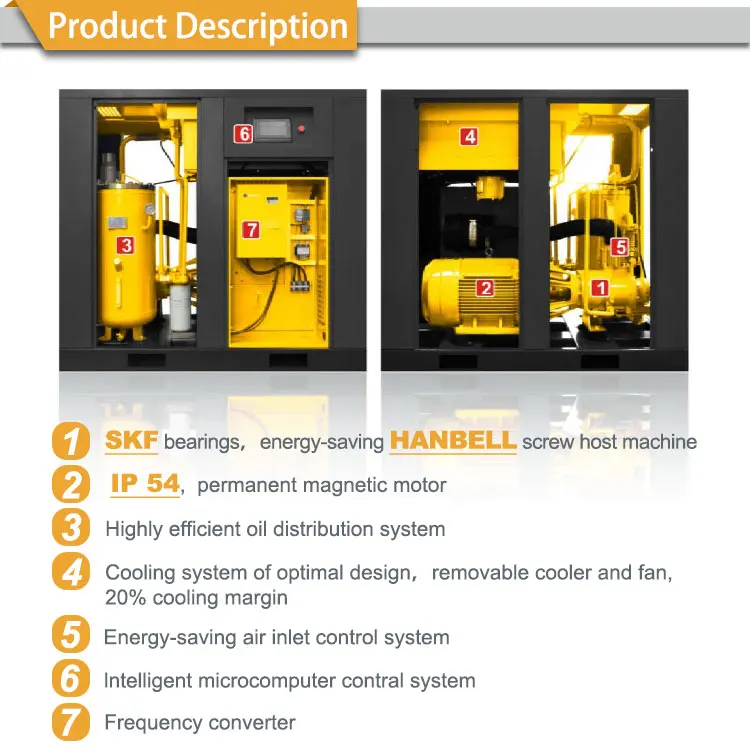

1. SKF bearings，energy-saving HANBELL screw host machine
2. IP 54, permanent magnetic motor
3. Highly efficient oil distribution system
4. Cooling system of optimal design，
removable cooler and fan, 20% cooling margin.
5. Energy-saving air inlet control system
6. lntelligent microcomputer contral system
2. IP 54, permanent magnetic motor
3. Highly efficient oil distribution system
4. Cooling system of optimal design，
removable cooler and fan, 20% cooling margin.
5. Energy-saving air inlet control system
6. lntelligent microcomputer contral system

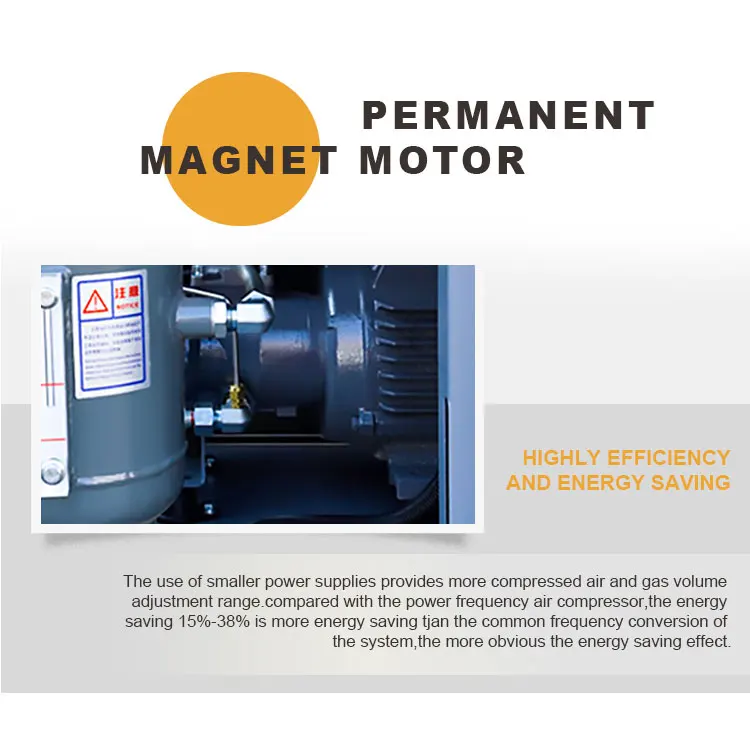

HIGHLY EFFICIENCYAND ENERGY SAVING
The use of smaller power supplies provides more compressed air and gas volume
adjustment range.compared with the power frequency air compressor,the energy
saving 15%-38% is more energy saving tjan the common frequency conversion of
the system,the more obvious the energy saving effect.
The use of smaller power supplies provides more compressed air and gas volume
adjustment range.compared with the power frequency air compressor,the energy
saving 15%-38% is more energy saving tjan the common frequency conversion of
the system,the more obvious the energy saving effect.
Product Paramenters
MODEL | Power | Pressure | Capacity | Dimensions | Weight | Outlet Pipe | Noise Level | ||
KW | HP | Mpa | m³/min | (L*W*H)MM | KG | DIAMETER | DB | ||
LY-G10 | 7.5 | 10 | 0.7 | 1.2 | 800*700*930 | 195 | Rp1/2 | 68 | |
LY-G15 | 11 | 15 | 0.7 | 1.65 | 1080*750*1000 | 292 | Rp3/4 | 68 | |
LY-G20 | 15 | 20 | 0.7 | 2.5 | 1080*750*1000 | 311 | Rp3/4 | 68 | |
LY-G25 | 18.5 | 25 | 0.7 | 3.2 | 1380*850*1160 | 420 | Rp1 | 70 | |
LY-G30 | 22 | 30 | 0.7 | 3.8 | 1380*850*1160 | 443 | Rp1 | 70 | |
LY-G40 | 30 | 40 | 0.7 | 5.3 | 1380*850*1160 | 520 | Rp1 | 72 | |
LY-G50 | 37 | 50 | 0.7 | 6.8 | 1500*1100*1330 | 654 | Rp1,1/2 | 72 | |
LY-G60 | 45 | 60 | 0.7 | 7.4 | 1500*1100*1330 | 720 | Rp1,1/2 | 74 | |
LY-G75 | 55 | 75 | 0.7 | 10.0 | 1800*1250*1680 | 1120 | Rp2 | 74 | |
LY-G100 | 75 | 100 | 0.7 | 13.4 | 1800*1250*1680 | 1240 | Rp2 | 80 | |
LY-G120 | 90 | 120 | 0.7 | 16.2 | 2000*1250*1670 | 1500 | Rp2 | 85 | |
LY-G150 | 110 | 150 | 0.7 | 21 | 2300*1470*1840 | 1700 | Rp2,1/2 | 85 | |
LY-G175 | 132 | 175 | 0.7 | 24.5 | 2300*1470*1840 | 2000 | Rp2,1/2 | 85 | |
LY-G200 | 160 | 200 | 0.7 | 28.7 | 2300*1470*1840 | 2300 | Rp2,1/2 | 85 | |
LY-G250 | 185 | 250 | 0.7 | 32 | 3600*2100*2280 | 3100 | DN80 | 88 | |
LY-G300 | 220 | 300 | 0.7 | 36 | 3600*2100*2280 | 3300 | DN100 | 88 | |
LY-G350 | 250 | 350 | 0.7 | 42 | 3600*2100*2280 | 3500 | DN100 | 88 | |
LY-G430 | 315 | 430 | 0.7 | 51 | 4100*2100*2280 | 4100 | DN125 | 88 | |
LY-G480 | 355 | 480 | 0.7 | 64 | 4100*2100*2280 | 4500 | DN125 | 88 | |
LY-G540 | 400 | 540 | 0.7 | 71.2 | 4100*2100*2280 | 5100 | DN125 | 88 | |
Product name | 2~7 Bar 8 Bar 10 Bar Oil-Lubricated/Oil-Injected 2 ~40 Bar Oil-Free/Oilless Pm VSD Rotary Screw Type Industrial Air Compressor | ||||||
Model | LY-G10 | ||||||
Power | 7.5KW | ||||||
Free Air Delivery/discharge pressure | 1.1m³/min@0.8Mpa; 0.95m³/min@1.0Mpa; | ||||||
Driven model | Belt drive | ||||||
Ambient temperrature | -5-+45℃ | ||||||
Noise | 68±2Db(A) | ||||||

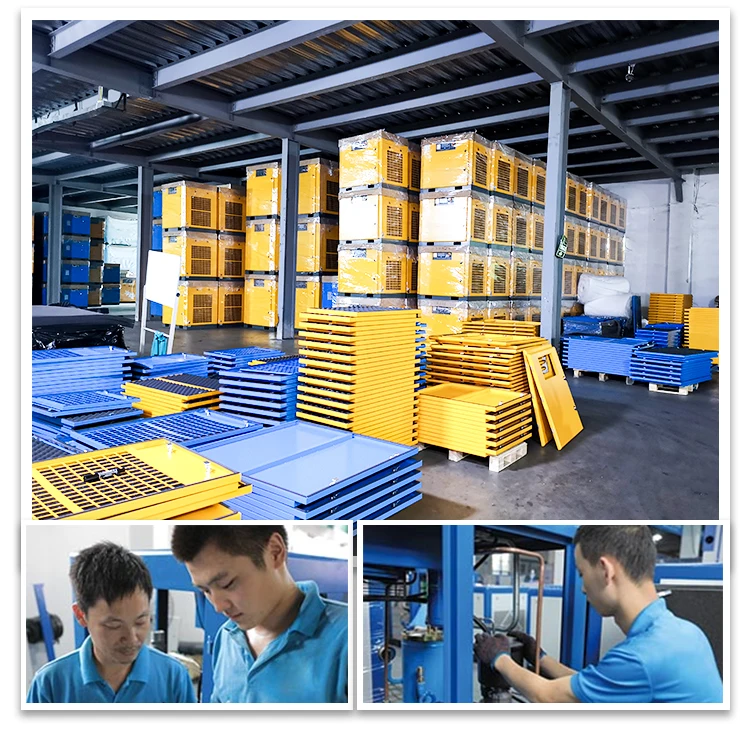

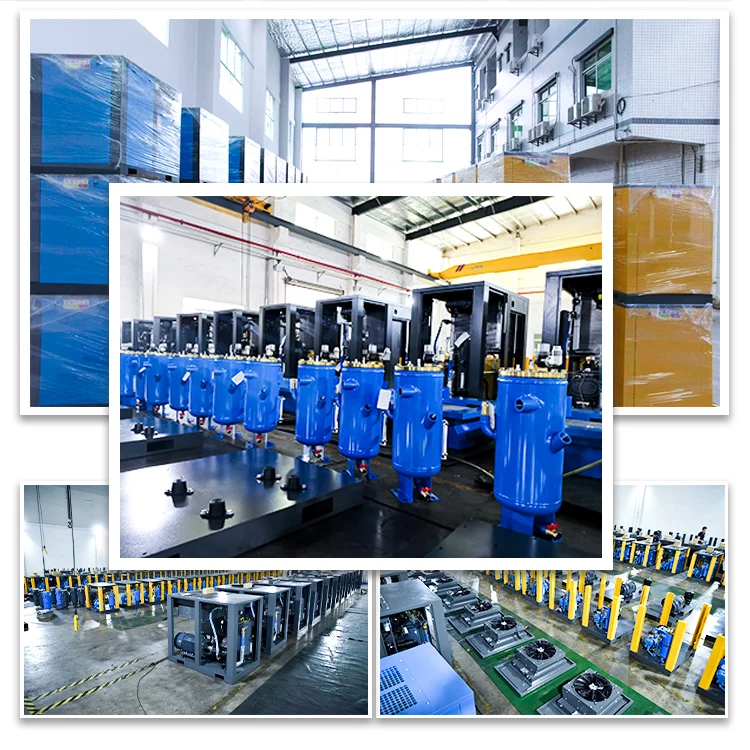

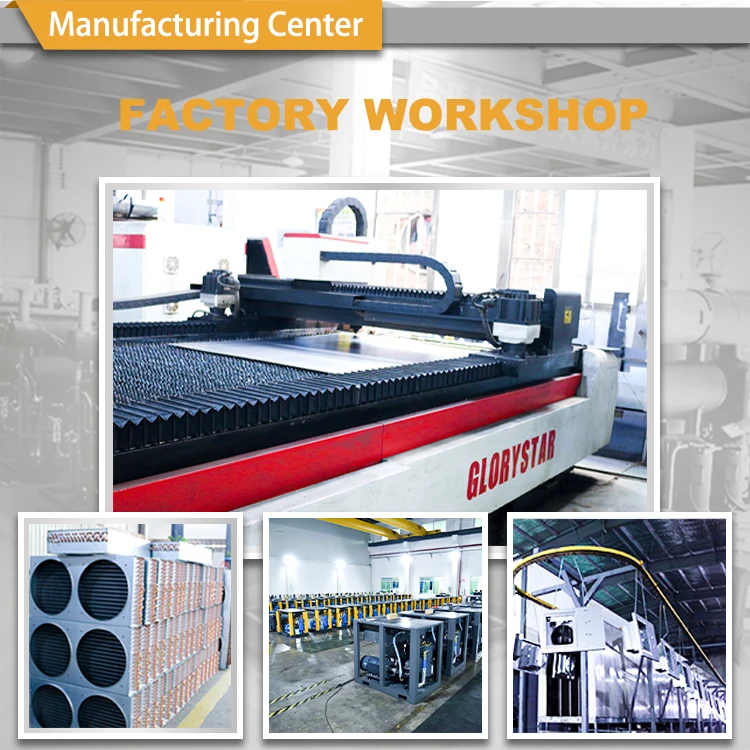

Factory display
Contact us (24hours online)
Distributor Wanted
If you are a agent of Lingyu Global Countries, the rights you have :
Products： the most competitive product channels.
After-sales： professional 24-hour after-sale technical support.
Price： lowest price and spare parts support.
Market：professional marketing support.
Technology： strong advanced manufacturing capability support.
Exhibition
FAQ
FAQ
Q: Are you a factory or a trading company?
A: We are factory. And we have ourselves trading company.
Q: What is the specific address of your company?
A: No.3, 2nd Street, yuanle Road, Dongsheng Town,
Zhongshan City, Guangdong Province, China
Q: Do your company accept ODM & OEM?
A: Yes, of course. We accept full ODM & OEM.
Q: What about the voltage of products?
Can they be customized?
A: Yes, of course. The voltage can be customized
according to your requirement.
Q: Do your company offer spare parts of the machines?
A: Yes, of course, high quality spare parts are
available in our factory.
Q: What are your payment terms?
A: 30% T/T in advance, 70% T/T before delivery.
Q: What payment ways do you accept?
A: T/T, Western Union
Q: How long will you take to arrange the goods?
A: For normal voltages,we can delivery the goods within 7-15
days. For other electricity or other customized machines,
wewill delivery within 25-30 days.
A: We are factory. And we have ourselves trading company.
Q: What is the specific address of your company?
A: No.3, 2nd Street, yuanle Road, Dongsheng Town,
Zhongshan City, Guangdong Province, China
Q: Do your company accept ODM & OEM?
A: Yes, of course. We accept full ODM & OEM.
Q: What about the voltage of products?
Can they be customized?
A: Yes, of course. The voltage can be customized
according to your requirement.
Q: Do your company offer spare parts of the machines?
A: Yes, of course, high quality spare parts are
available in our factory.
Q: What are your payment terms?
A: 30% T/T in advance, 70% T/T before delivery.
Q: What payment ways do you accept?
A: T/T, Western Union
Q: How long will you take to arrange the goods?
A: For normal voltages,we can delivery the goods within 7-15
days. For other electricity or other customized machines,
wewill delivery within 25-30 days.
