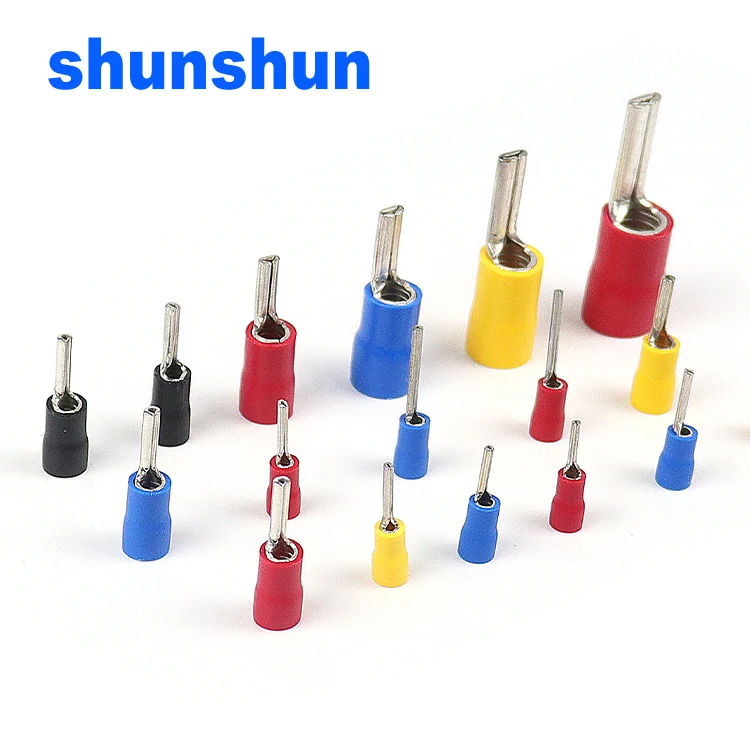

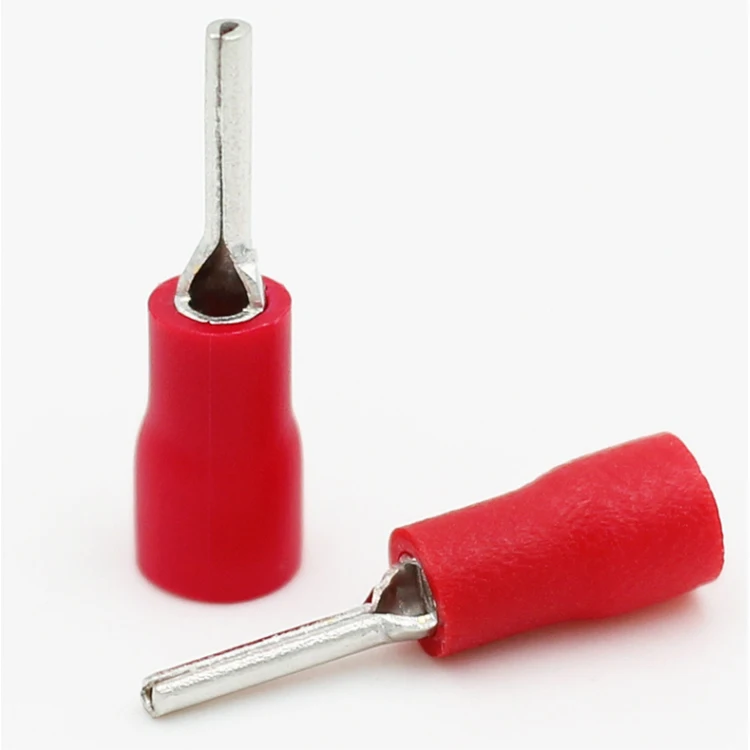

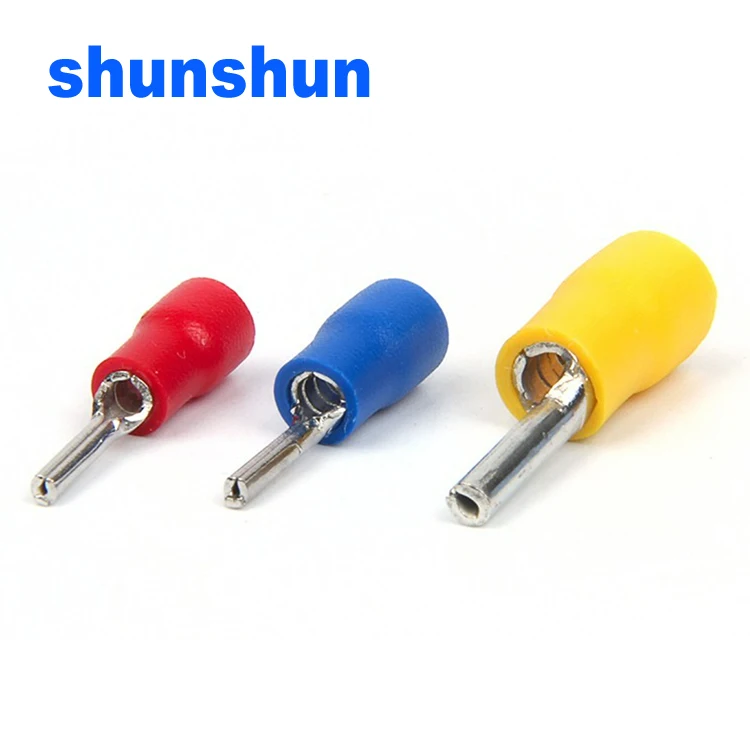

Copper Needle Pin Crimp Electric Cable Wire Connector Terminals
- Category: >>>
- Supplier: Wenzhou Shunshun Electric Co. Ltd.
Share on (1600529681094):
Product Overview
Description

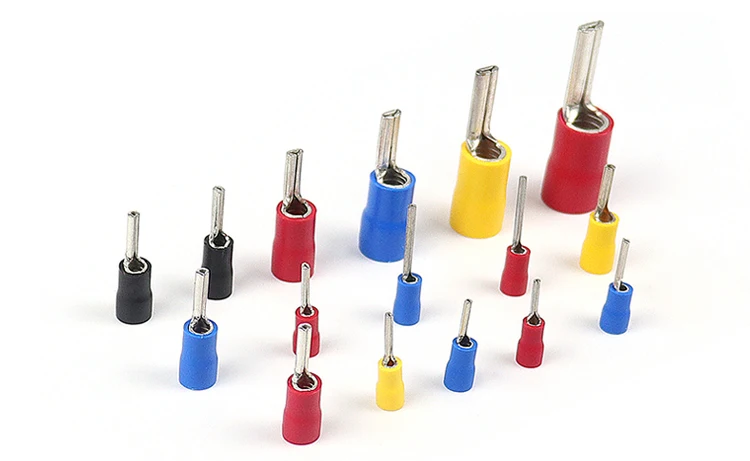

PTV series Needle Pin Crimp Wire Connector Terminals

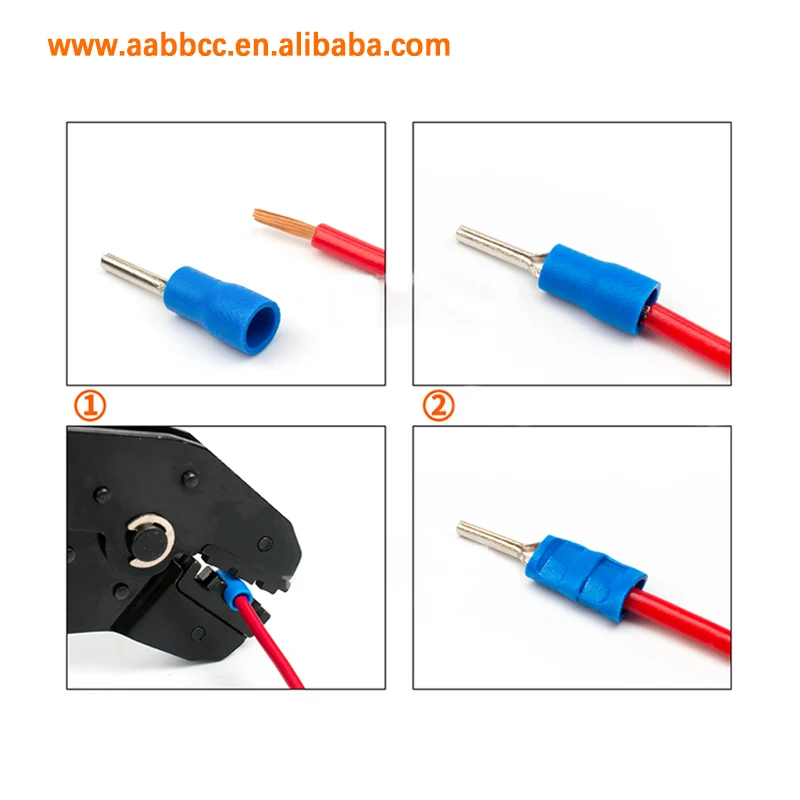

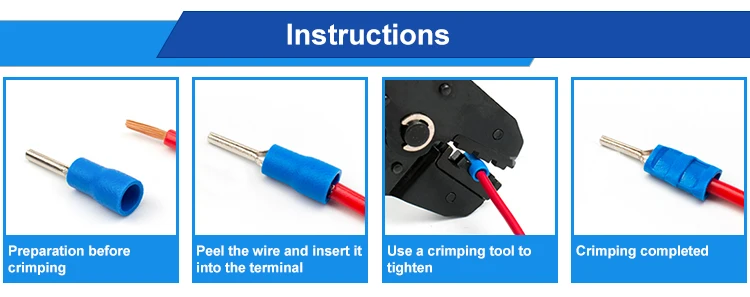

Instructions
Product specification
Product Name | PTV series Needle Pin Crimp Wire Connector Terminals |
Material | Terminal Body：Copper/Brass Surface :Tin Plating Insulation:PVC |
Wire Gauge A.W.G | 10 AWG ~ 24 AWG |
Color | Red,Blue,Black,Yellow |
Pack | 100 pcs/bag |
Delivery Time | Shipped within 7 days it depend on your order |
OEM/ODM | Avaiable |
Conductor Section : 16AWG~22AWG (0.5mm²~1.5mm²） Max Current：19A | ||||||||||

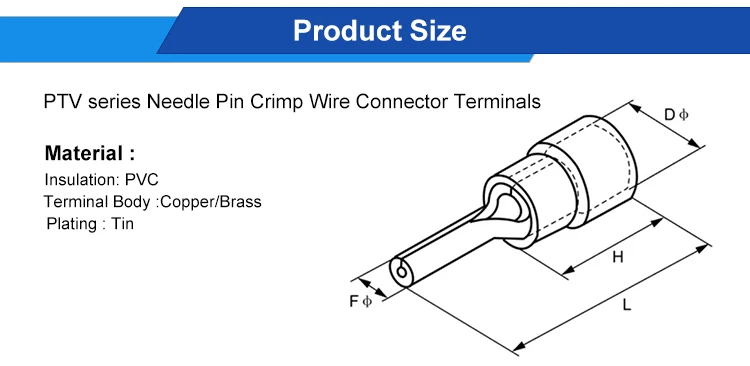

ITEM NO. | Dimension(mm) | Color | ||||||||
F | L | H | DΦ | |||||||
PTV1.25-9 | 1.9 | 19 | 10 | 4.3 | Red | |||||
PTV1.25-10 | 1.9 | 20 | ||||||||
PTV1.25-12 | 1.9 | 22 | ||||||||
PTV1.25-13 | 1.9 | 23 | ||||||||
PTV1.25-18 | 1.9 | 28 | ||||||||
Conductor Section : 14AWG~16AWG (1.5mm²~2.5mm²） Max Current：27A | ||||||||||
ITEM NO. | Dimension(mm) | Color | ||||||||
F | L | H | DΦ | |||||||
PTV2-9 | 1.9 | 19 | 10 | 4.9 | Blue | |||||
PTV2-10 | 1.9 | 20 | ||||||||
PTV2-12 | 1.9 | 22 | ||||||||
PTV2-13 | 1.9 | 23 | ||||||||
PTV2-18 | 1.9 | 28 | ||||||||
Conductor Section : 12AWG~14AWG (2.5mm²~4.0mm²） Max Current：37A | ||||||||||
ITEM NO. | Dimension(mm) | Color | ||||||||
F | L | H | DΦ | |||||||
PTV3.5-10 | 2.8 | 20 | 13 | 6.2 | Black | |||||
PTV3.5-13 | 2.8 | 25.5 | ||||||||
Conductor Section : 10AWG~12AWG (4.0mm²~6.0mm²） Max Current：48A | ||||||||||
ITEM NO. | Dimension(mm) | Color | ||||||||
F | L | H | DΦ | |||||||
PTV5.5-13 | 2.8 | 25.5 | 13 | 6.7 | Yellow | |||||

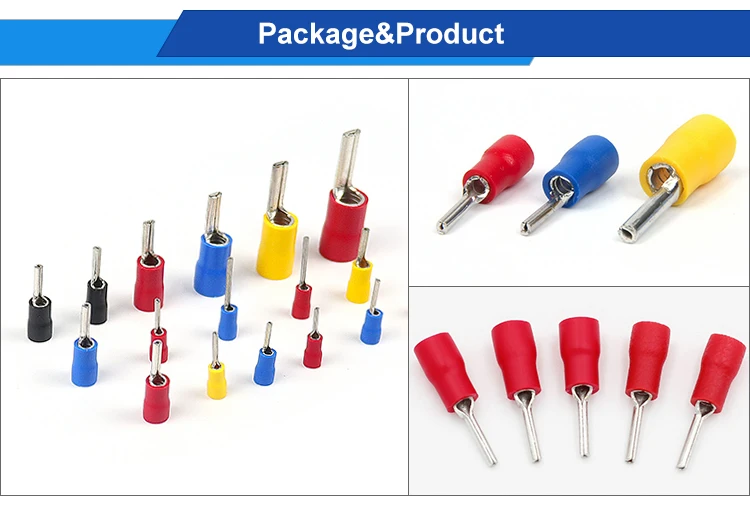

Package&Product
To my dear customers :
1. Delivery Time ?
3~5 days.
100 pcs/bag
2. Minimum Order ?
Minimum order is 1 bag , 1 bag is 100 pieces , means minimum order is 100 pieces .
3. Are you factory or trading company ?
We are factory . 10 + years rich experience factory.
4. What is the quality of the products ?
The quality grade is A grade , good copper , good brass.
5. How is the packing ?
Our packing is very good ,for the air transportation and shipping all is very good packing .
6. What is your email and contact number?
Our email is : shunshun1618@163.com
Our whatsapp number : +86 15868075823
Our website : chinashunshun.en.alibaba.com
