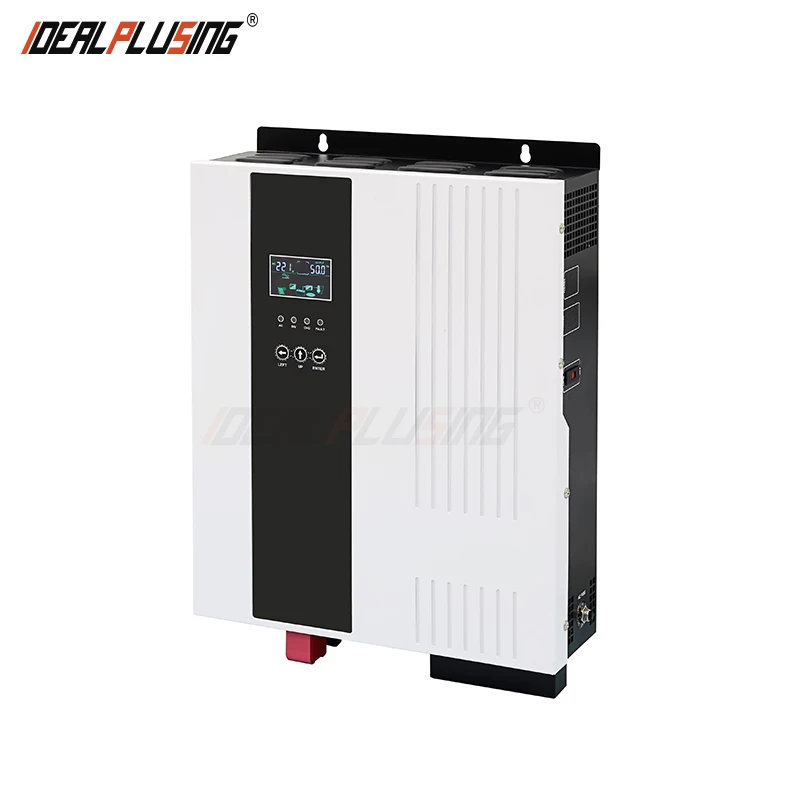

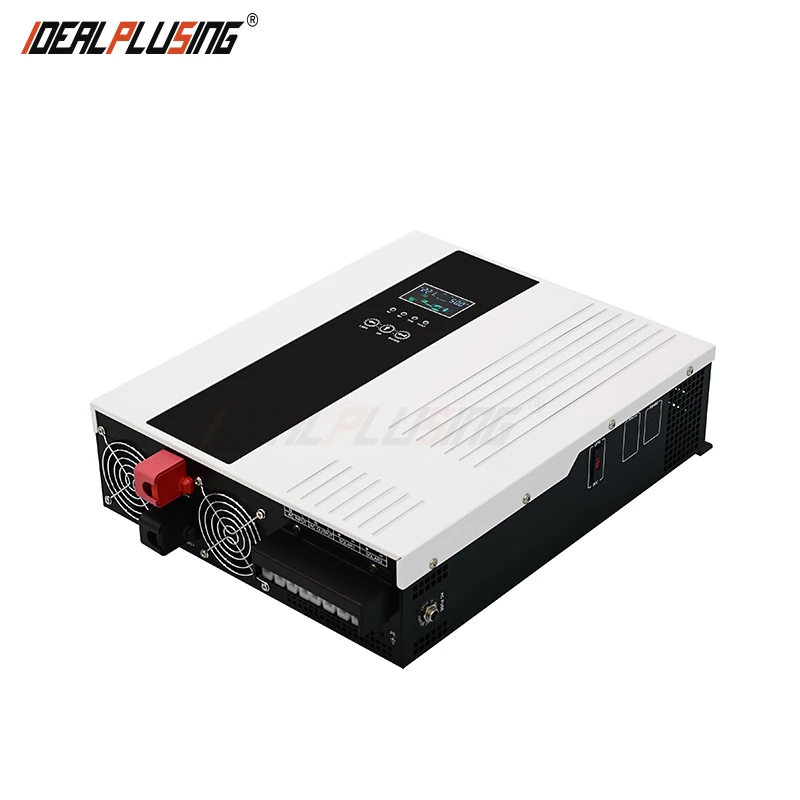

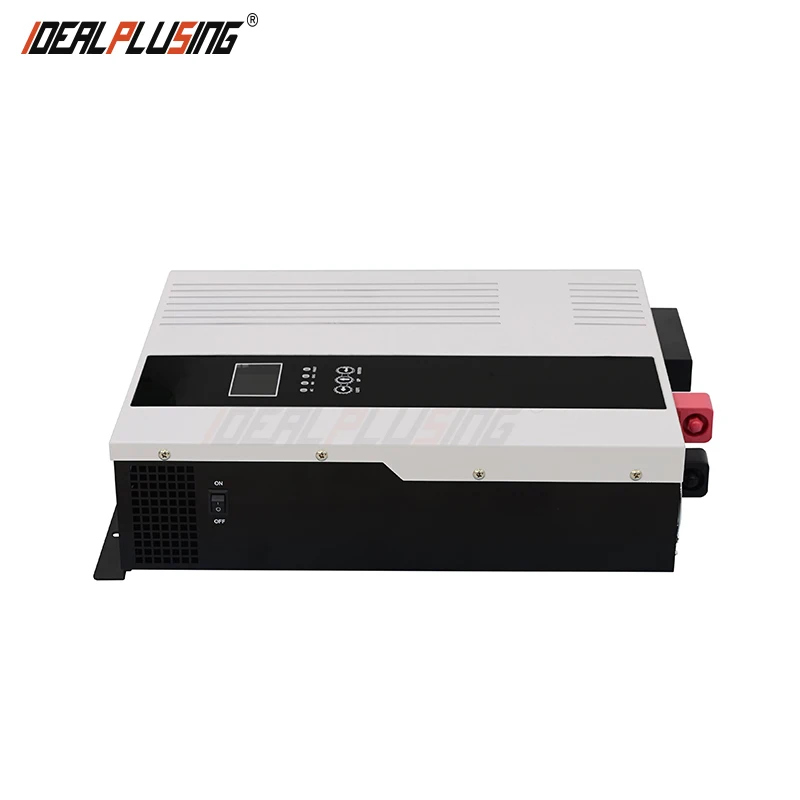

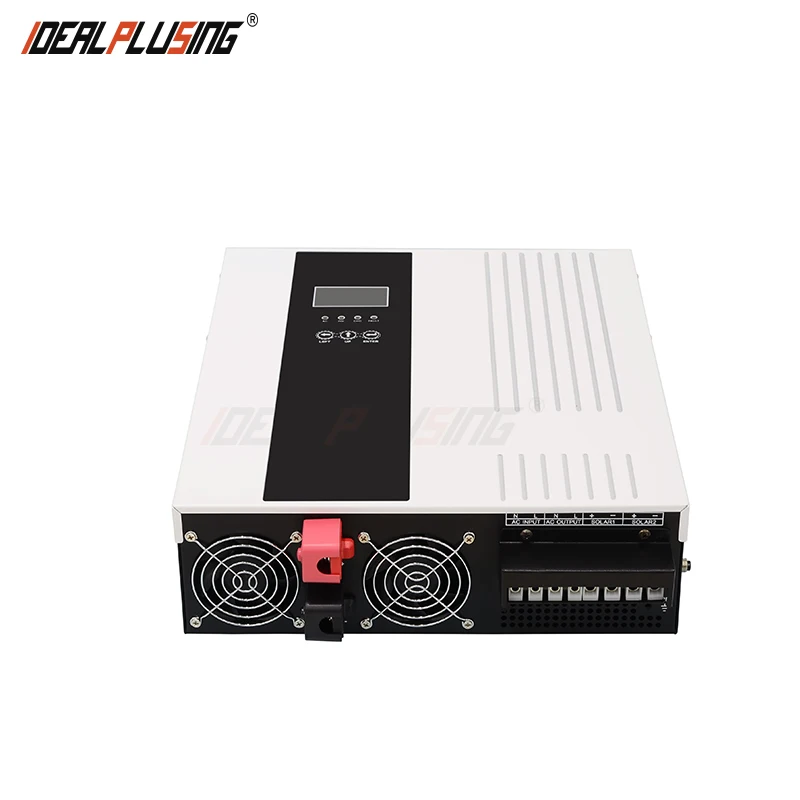

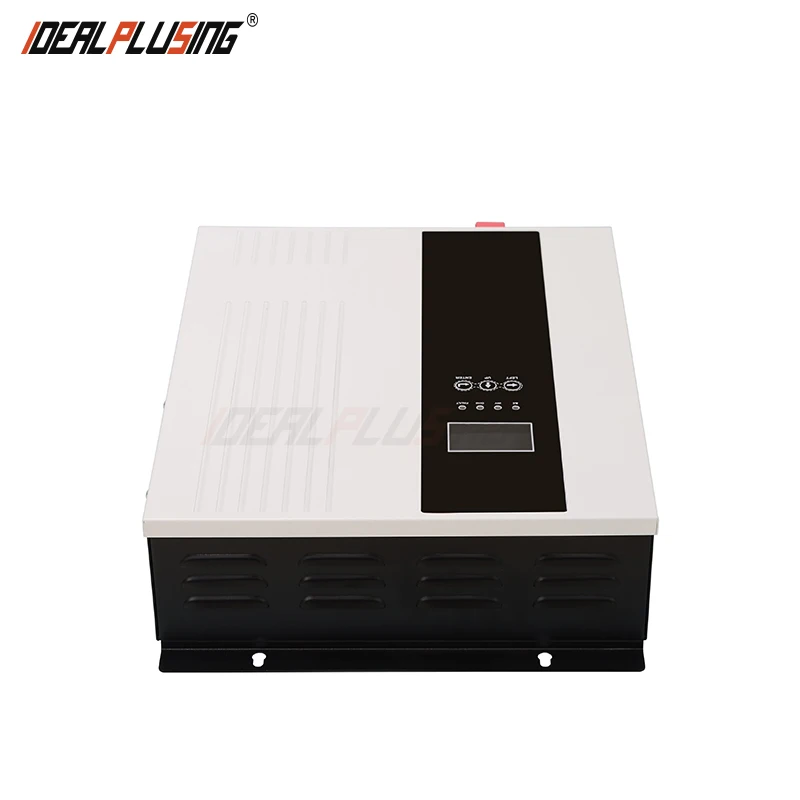

1KW 1.5KW 3.2KW 7.2KW 5KW Off Grid MPPT Solar Inverter Power 5000 watt Hybrid Solar Power Inverters

Product Overview

Description

1KW 1.5KW 3.2KW 7.2KW 5KW Off Grid MPPT Solar Inverter Power 5000 watt Hybrid Solar Power Inverters

Product Description



(1) High-frequency design, high power density, small size, high efficiency, low no-load loss.

(2) Built-in MPPT or PWM solar charge controller optional.

(3) Pure sine wave output, any types of loads adaptable.

(4) Battery charge and discharge voltage parameters adjustable, suitable for different types of batteries, can prolong the life of the battery and improve system performance.

(5) AC charge current 0~60A adjustable, battery capacity configuration more flexible.

(6) Three working modes adjustable: AC first, Battery first, PV first.

(7) Output voltage/frequency adjustable function, adapt to the different grid environments.

(8) Extra wide voltage and frequency input range, support mains or generator.

(9) LED+LCD display, easy operation, and data checking can set each function and data directly;

(10) Multi-protection function(overload,over-temperature, short circuit protection and so on)

(11) RS485 communication port/APP optional.

Application Area

Office and public facilities, household system, network transmission equipment, manufacturing, control system, solar energy system, oil field, drilling field operation, etc.

Provide stable, reliable, and safe solutions for families, islands, ships, and other small photovoltaic power systems

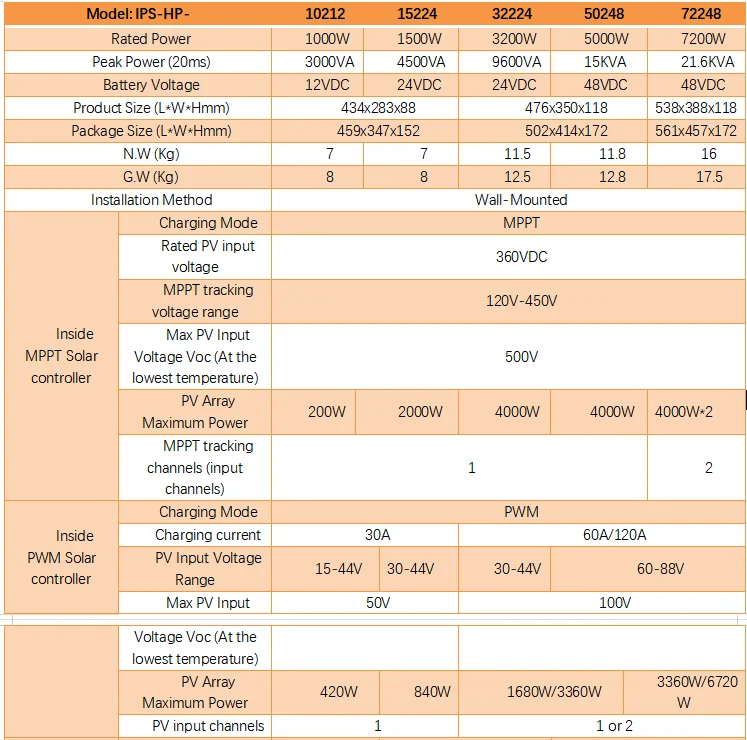

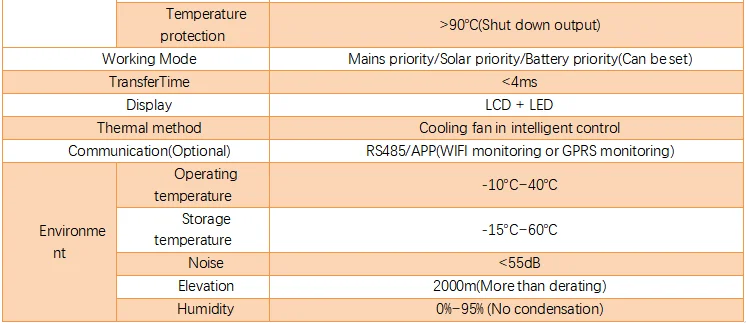

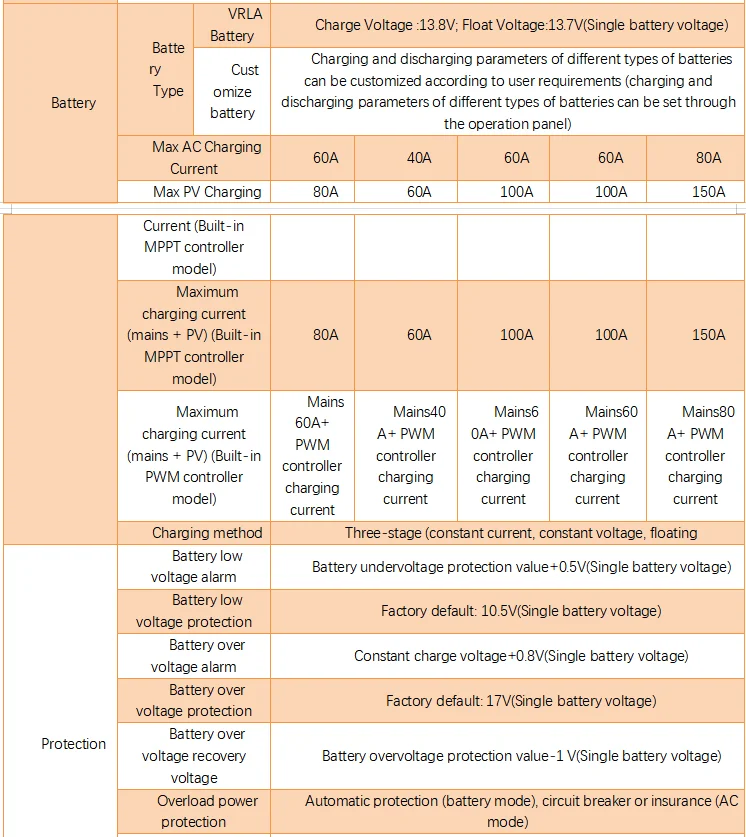

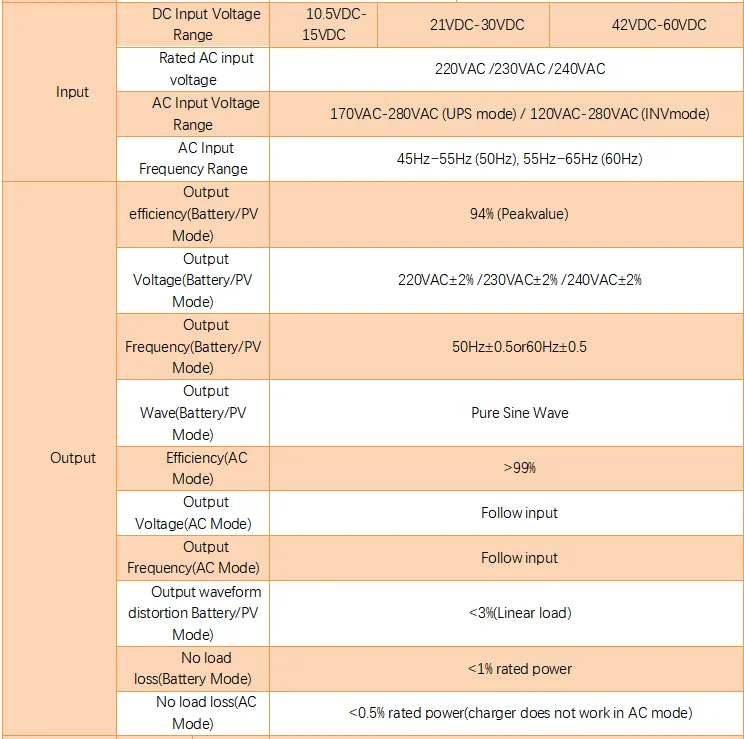

Technical parameter

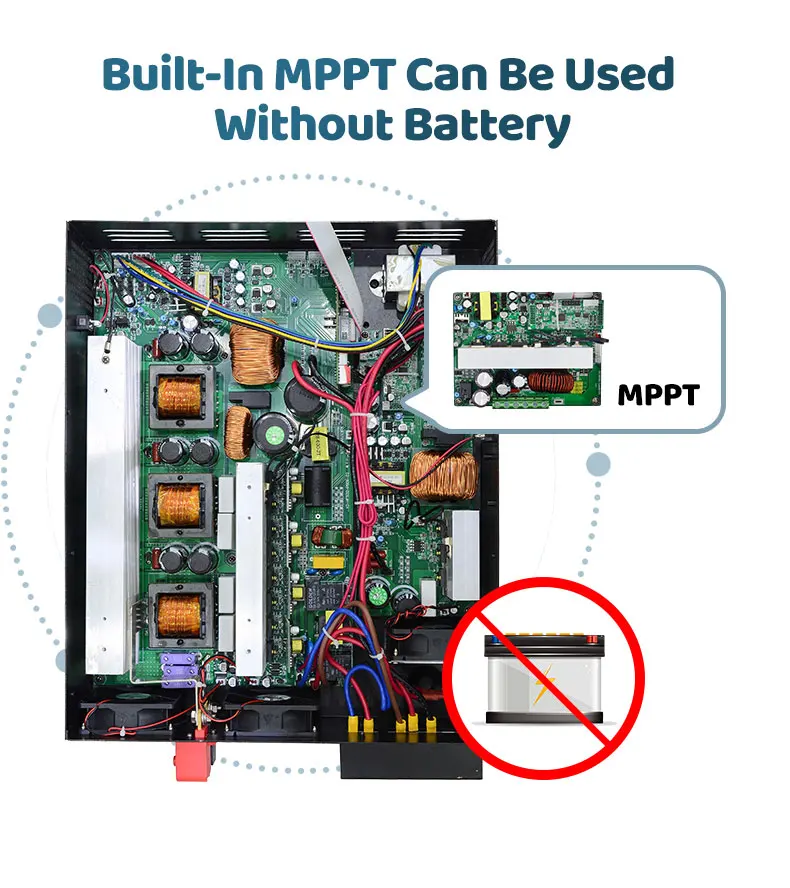

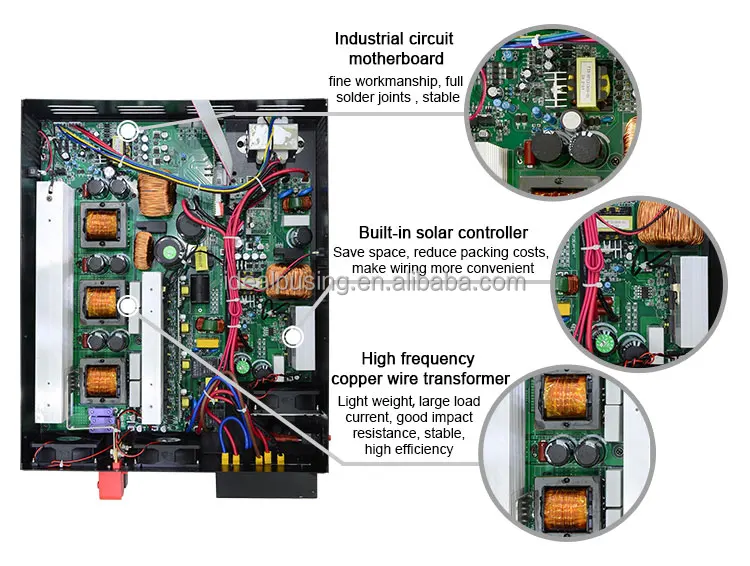

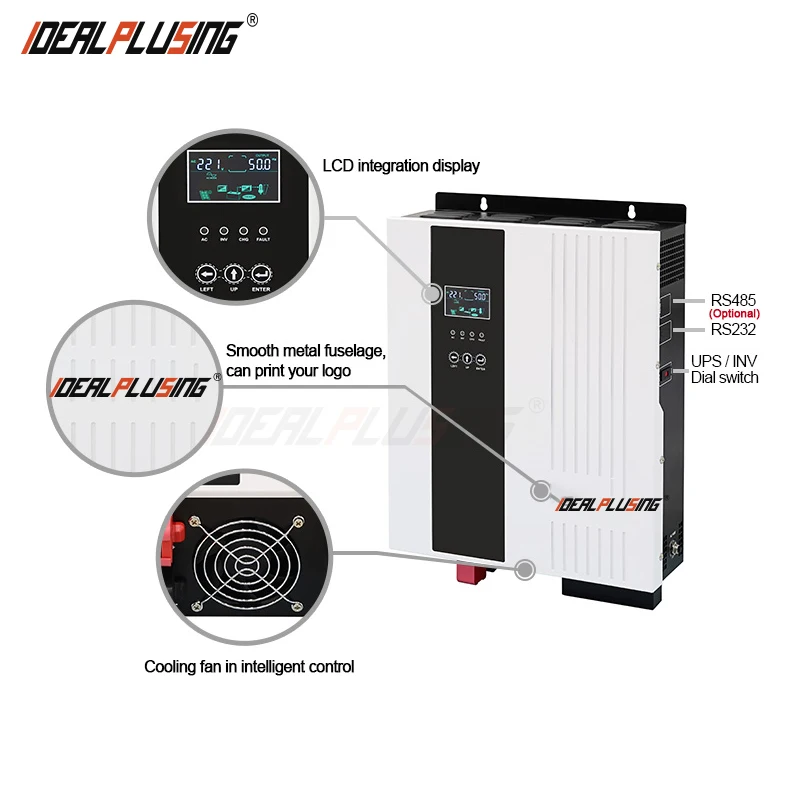

Detail drawing

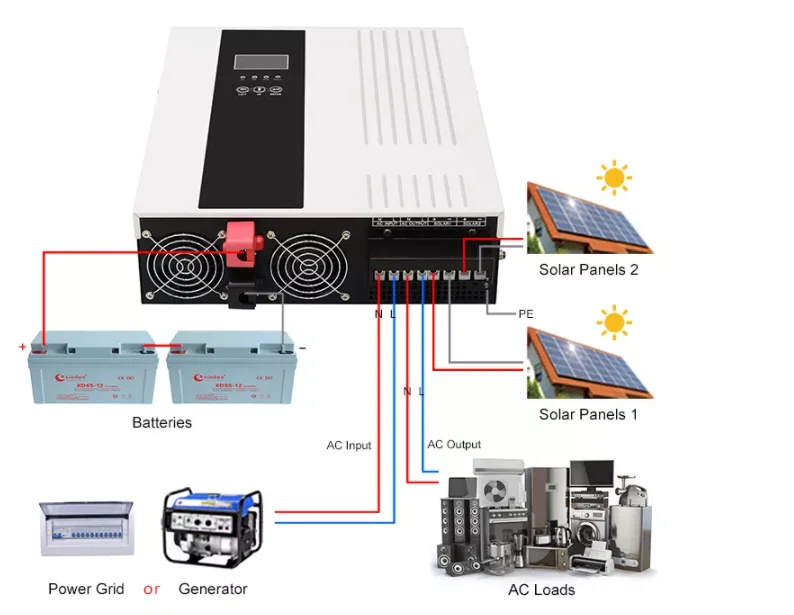

Inverter Wiring Diagram
