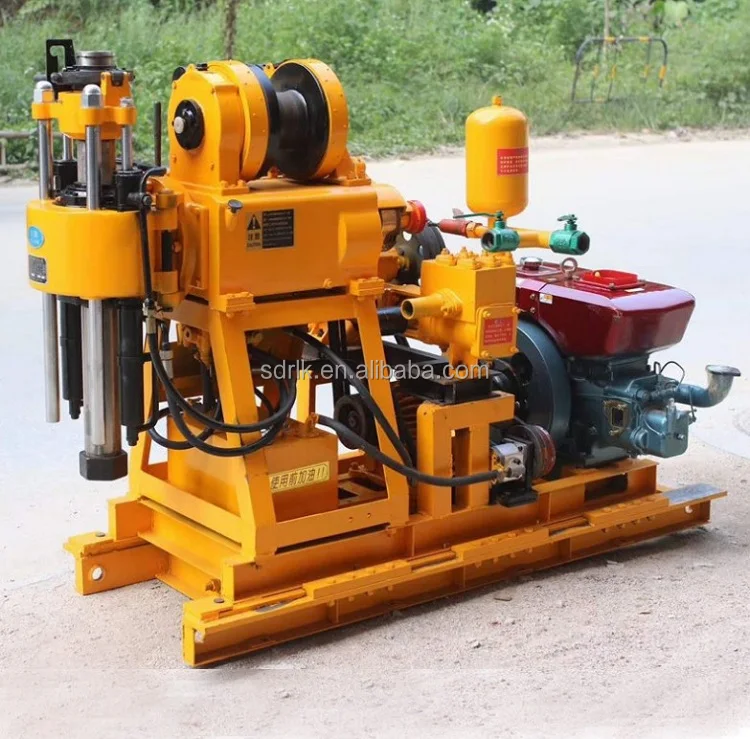

100m Rotary Water Well Drilling Rig Water Well Rock Drilling Machine Mine Drilling Machine

Product Overview

Description

100m Rotary Water Well Drilling Rig Water Well Rock Drilling Machine Mine Drilling Machine

B.for the winch,we use large module planetary gear and add supporting frame,greatly increasing hoisting and braking ability of the
winch.
C.vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and
other complex geoloical conditions.
D.we are the first one to equip mud pump with the flow 160L/min in china so that it will save cost and also make the machine
compact,moblie and lightweight.



1. With hydraulic automatic feeding device, elevated drilling efficiency.

2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.

3. Centralized handles, easy operation, safe and reliable.

4. The pump and diesel engine are installed on common base frame in order to have a compact structure and occupy small field area. lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.



Main Feature:

1,It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.



2,It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.



3, It has hole bottom pressure gauge to be easy to master the situation in the hole.



4, It also has advantage of Compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountain areas.



Main Parameter:

Drilling Rig
Drilling diameter(mm)	75,91,110,130,150,300
Drilling depth (m)	150,100,70,50,30
Drill pipe diameter (mm)	42,50
Drilling angle(°)	90~75
Equipment size(L * B * H)	1730 * 860 * 1360 (mm)
Rig weight (except engine)	700
Winch assembly
Winch maximum lifting force (single rope)	20
Reel speed (r/min)	20,39,85,170
Reel circumferential speed(m/s)	0.172,0.345,0.738,1.476
Wire rope diameter(mm)	9.3
Wire rope density (m)	40
Diesel engine or motor
Diesel engine	1115
Rated speed (r/min)	2200
Rated pressure(Mpa)	12.5
Rated power (KW)	11
Rated speed (r/min)	1460
