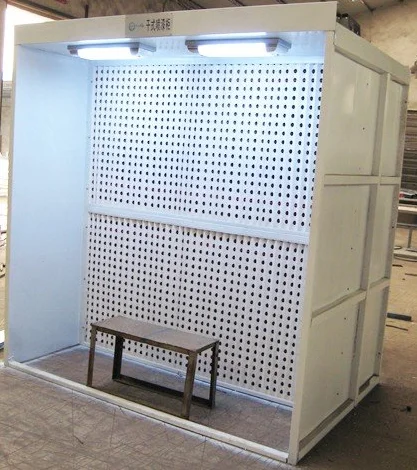

Auto Dry Filter Spray Open Front Paint Booth
Dry spray paint room is mainly composed:
--1 set of spray booth
-- 2 sets of independent LED lighting system
-- 1 sets of dry filter
-- 2 sets of exhaust duct
-- 1 set of control box
It is made of 1.5mm galvanized sheet and assembled structure.
Independent LED Lighting System
2 sets in top, each with 1 pc 36W LED explosion-proof lighting

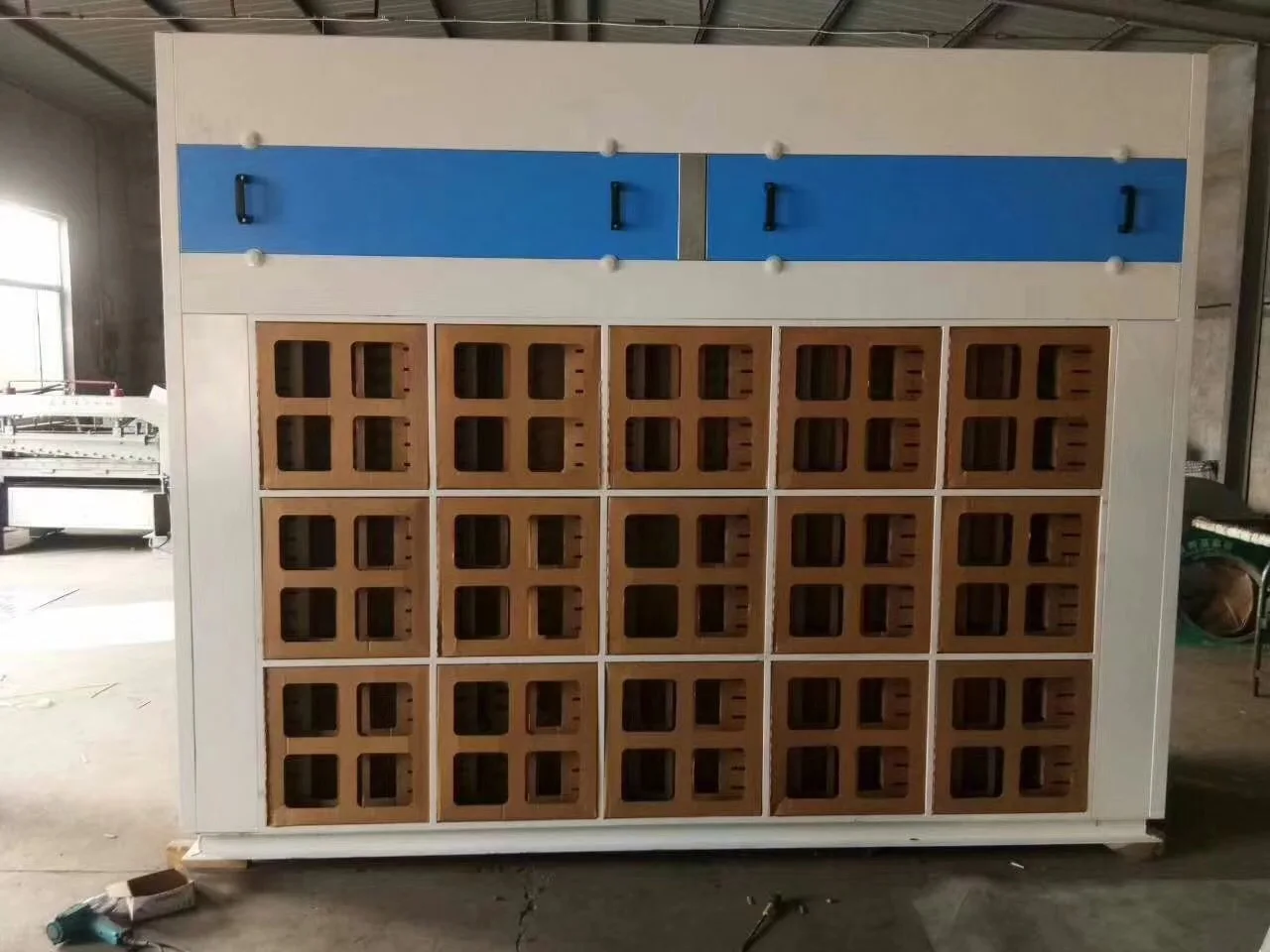

1.Including exhaust fan, paint fog filter system (filter paper + filter cotton), support shell and other parts.
2. exhaust fan: T40-4-1.2kw axial fan (2 units)
Exhaust air volume: 7640m^3/h (single unit)
Fan pressure: 360Pa
Wind speed: 0.45m/s
Illumination: 500 LX
Equipped with 2 sets of diameter 630mm, long 3000mm exhaust duct, mainly made of 0.8mm galvanized sheet.
Control lighting, fan, time setting, emergency stop and other functions.
|Place of Origin||Shandong, China (Mainland)|
|After-sales Service Provided||Engineers available to service machinery overseas|
|Packing Details||Proper packing suitable for container loading|
|Delivery Details||with 4 months|
|Payment Term||50% T/T for deposit, the rest 50% T/T before delivery|
|Remark||The price is based on FOB terms Qingdao port. If you need CFR or CIF price, please do feel free to contact us.|
