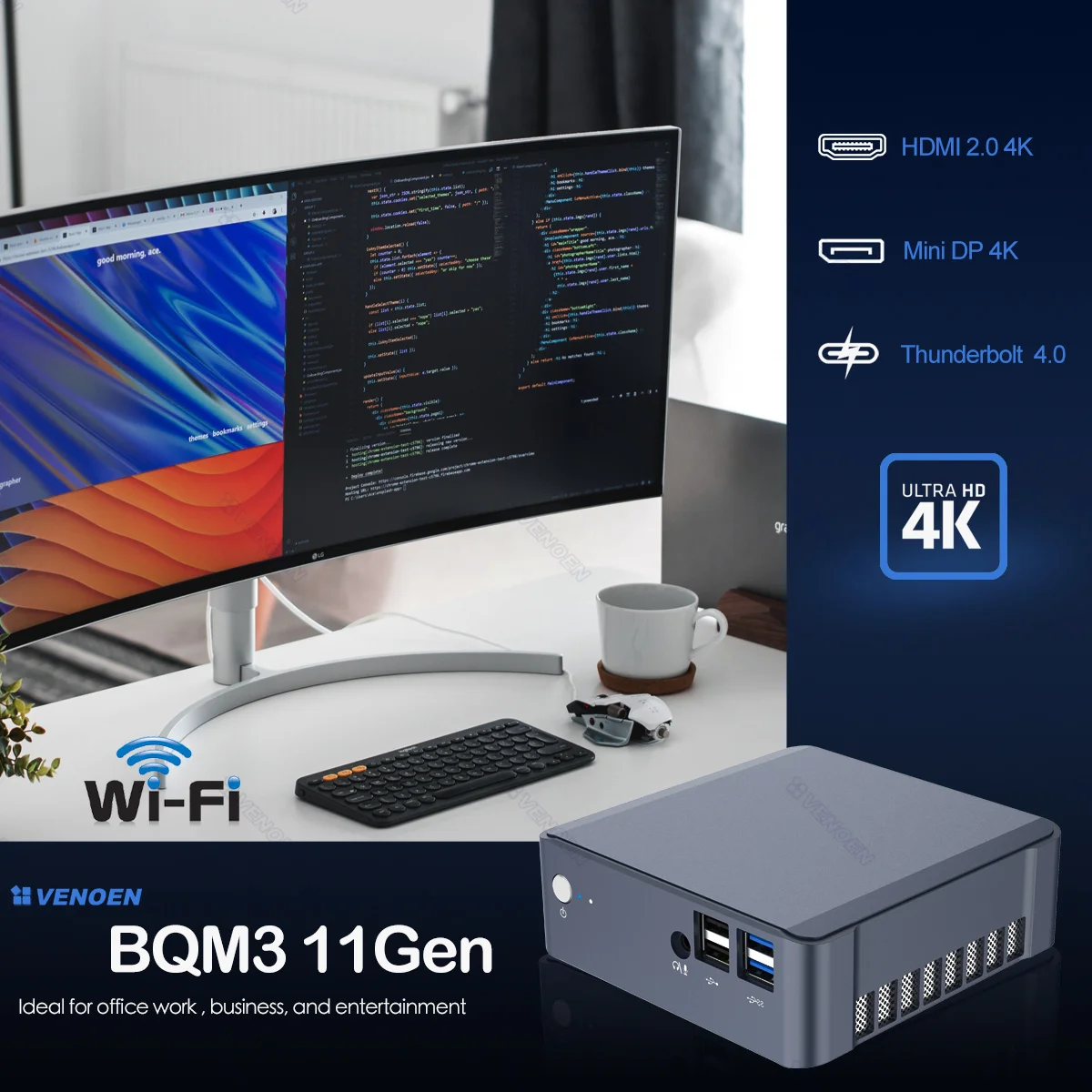

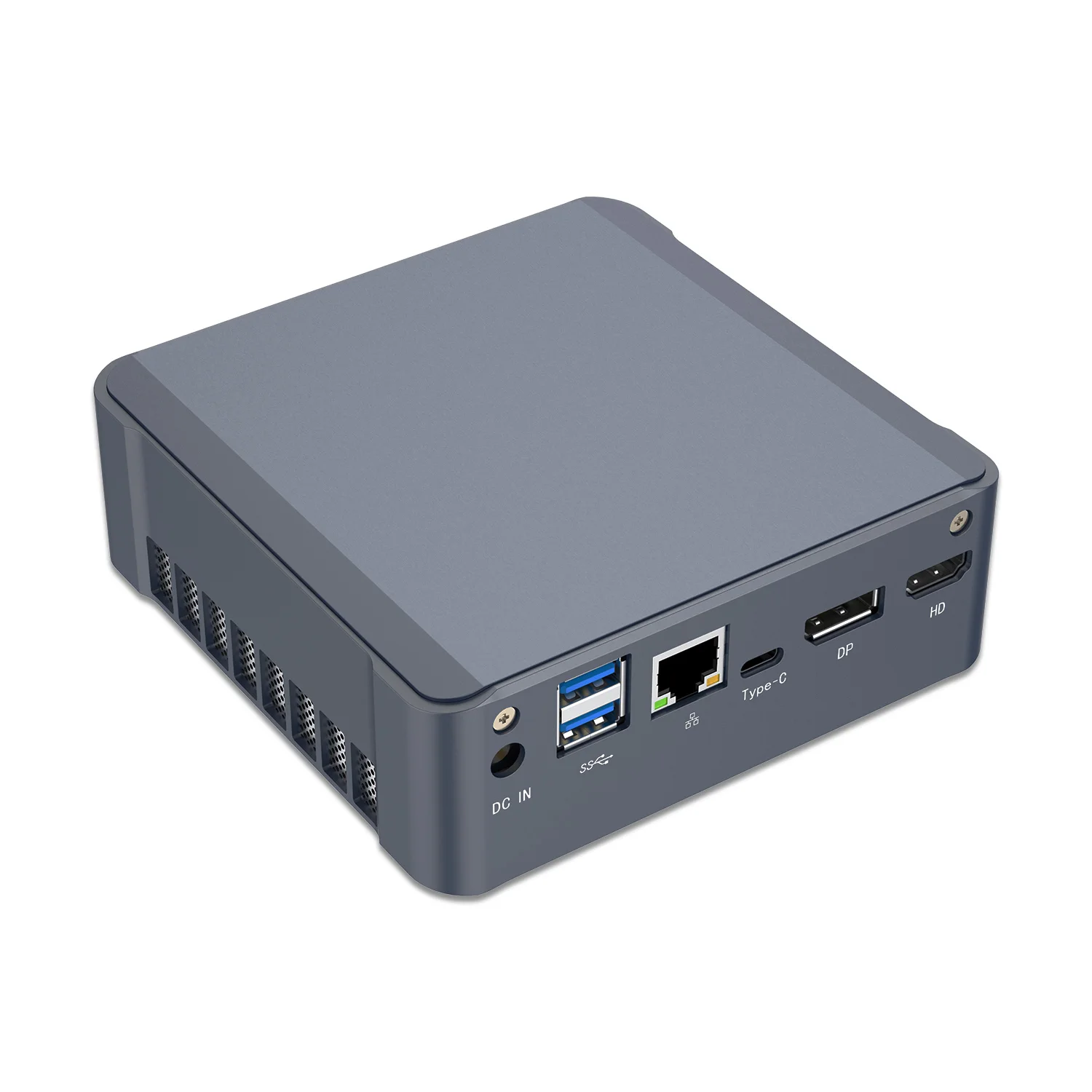

Mini PC Windows 11 Desktop Intel i7 1165G 8G DDR4/256G SSD Gaming&Working&Office Mini PC Support Windows 10 4K Dual Output WiFi
- Category: >>>
- Supplier: Xuzhou Venoen Technology Co. Ltd.
Share on (1600530208034):
Product Overview
Description
Product Description
NUC Mini Pc 11Th Gen Core i7-1165G7 i5-1135G7 4cores 8threads Thunderbolt 4 Desktop Computer Win11/10 Linux HD2.0 DP 4K WiFi BT
Processor Performance:
1. CPU: In-tel Core i3-1115G4 - 2 Cores 4 Threads, 6M Cache, up to 4.10 GHz, In-tel® UHD Graphics2. CPU: In-tel Core i5-1135G7 - 4 Cores 8 Threads, 8M Cache, up to 4.20 GHz, In-tel® Iris® Xe Graphics
- Build-in a powerful copper fan for heat dissipation, 19V Lower power supply, Aluminum alloy case, Good heat dissipation can keep the computer steady working 7*24 hours.
- Low power consumption only 15W, energy-saving up to 90% compare to traditional desktop computers;
- Support 2*SO-DIMM DDR4 memory slot up to 64GB.
- 1*M.2 22*80 SSD for SATA/NVME PCIE3.0_x4 SSD+1*2.5'' SATA HDD/SSD.
- Support 1*HDMI+1*DP, and Type-C, three display.
- Onboard newest In-tel Iris Xe Graphics that is comparable to NVI-DIA GeForce MX350 discrete graphics card.

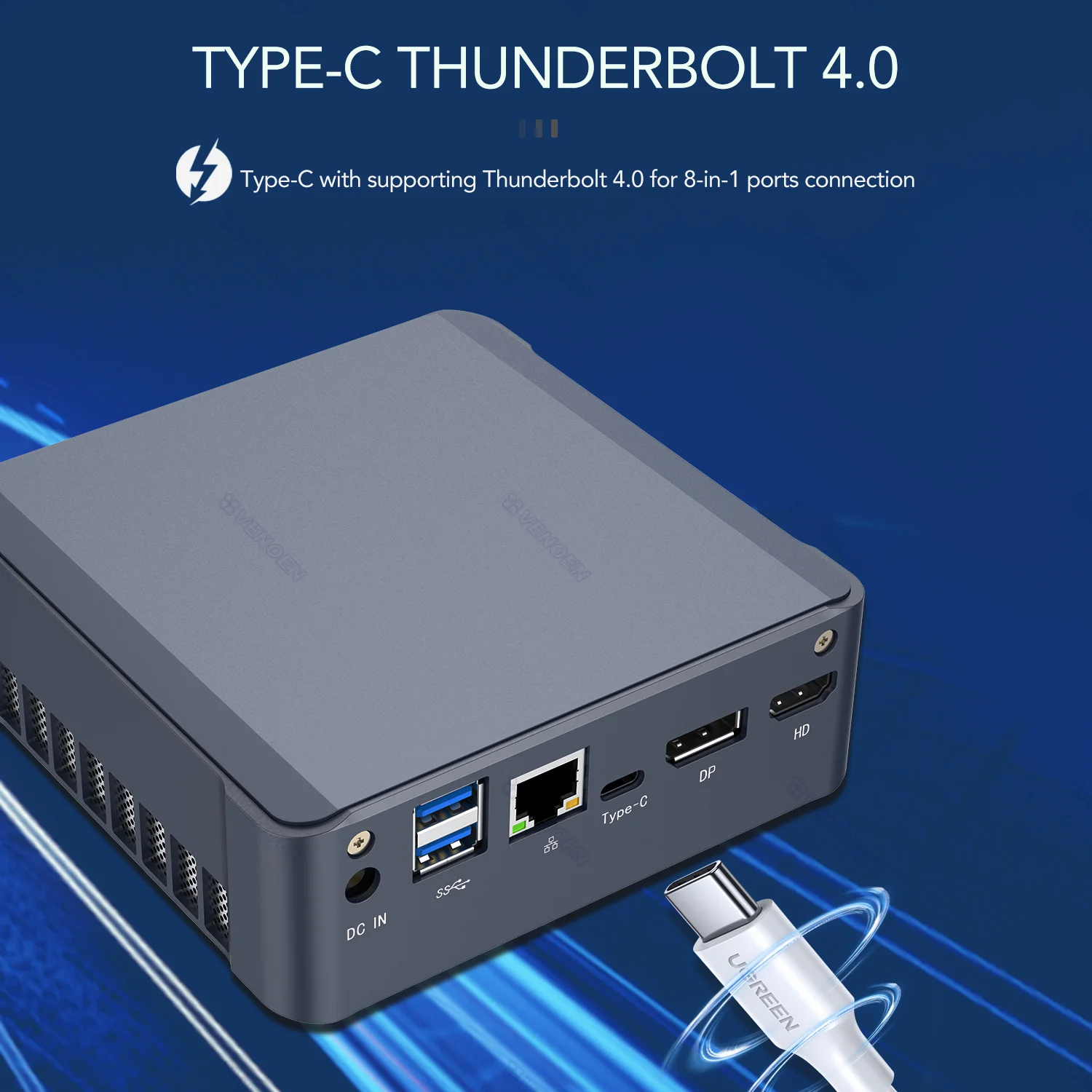

- Full featured Type-C, support In-tel Thunderbolt 4 (8K@60GHz) function.
- AMI UEFI BIOS, support PXE, WOL.
3. CPU: In-tel Core i7-1165G7 - 4 Cores 8 Threads, 12M Cache, up to 4.70 GHz, In-tel® Iris® Xe Graphics
Main Features:
- Smart tiny case 128*128*44mm(L*H*W) , NW: 1.4KG, powerful processor 11Th Gen stronger performance.- Build-in a powerful copper fan for heat dissipation, 19V Lower power supply, Aluminum alloy case, Good heat dissipation can keep the computer steady working 7*24 hours.
- Low power consumption only 15W, energy-saving up to 90% compare to traditional desktop computers;
- Support 2*SO-DIMM DDR4 memory slot up to 64GB.
- 1*M.2 22*80 SSD for SATA/NVME PCIE3.0_x4 SSD+1*2.5'' SATA HDD/SSD.
- Support 1*HDMI+1*DP, and Type-C, three display.
- Onboard newest In-tel Iris Xe Graphics that is comparable to NVI-DIA GeForce MX350 discrete graphics card.
- Full featured Type-C, support In-tel Thunderbolt 4 (8K@60GHz) function.
- AMI UEFI BIOS, support PXE, WOL.
If you need 2*HDMI version, please contact me, thank you.
Basic Information: | ||
CPU | In-tel Core i7-1165G7/i5-1135G7/i3-1115G4 | |
TDP | 12-28W | |
Memory | support 2 x DDR4 SO-DIMM memory slot up to 64GB | |
OS | Win 11/10/Linux/Ubuntu etc | |
PXE | YES | |
Audio | Azalia Codec support 2.1 channel output High Definition Audio Controller | |
Network | Onboard RTL8111 PCI-E Gigabit Ethernet NIC 10/100/1000 BaseT LAN | |
Video | In-tel® UHD Graphics/ In-tel® Iris Xe Graphics | |

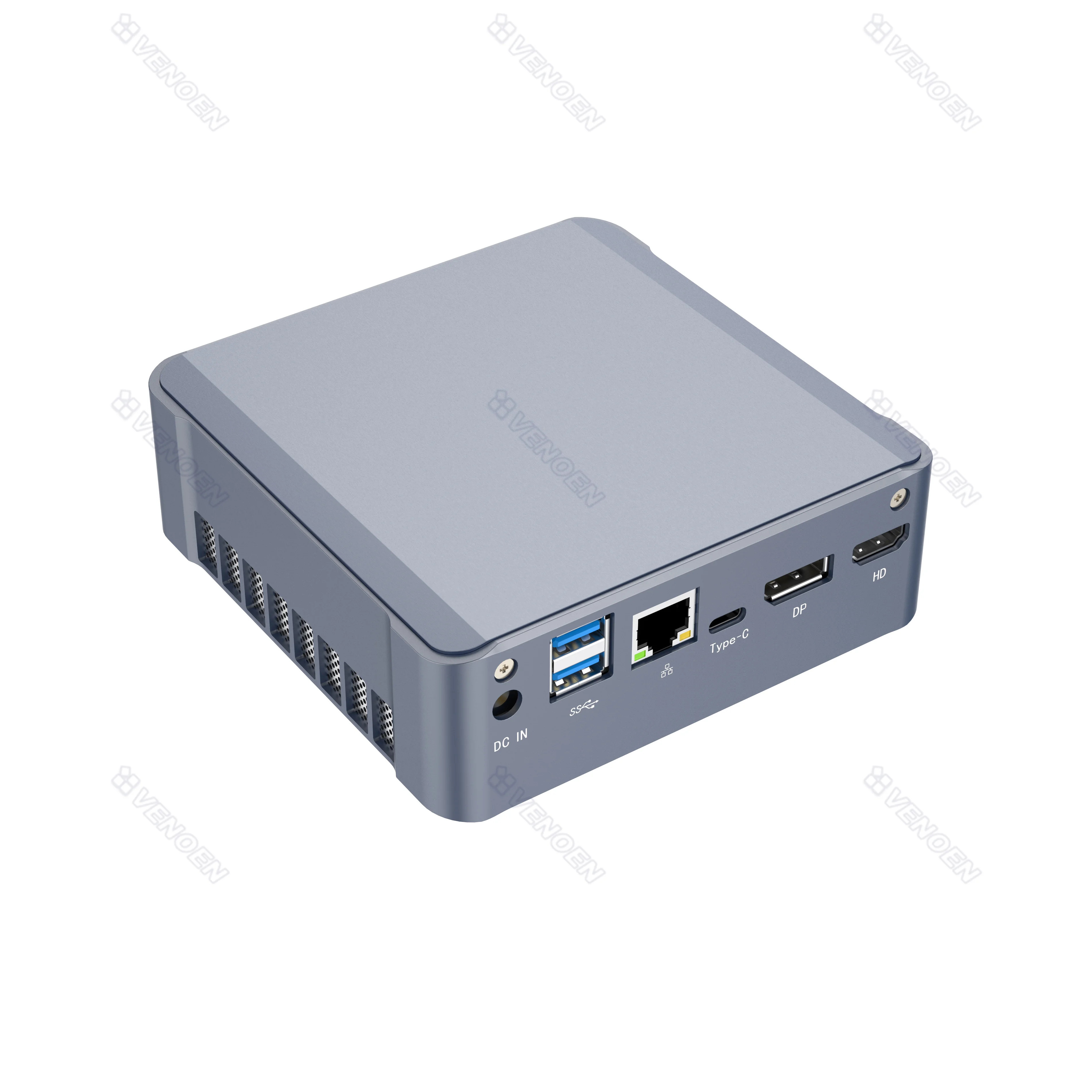

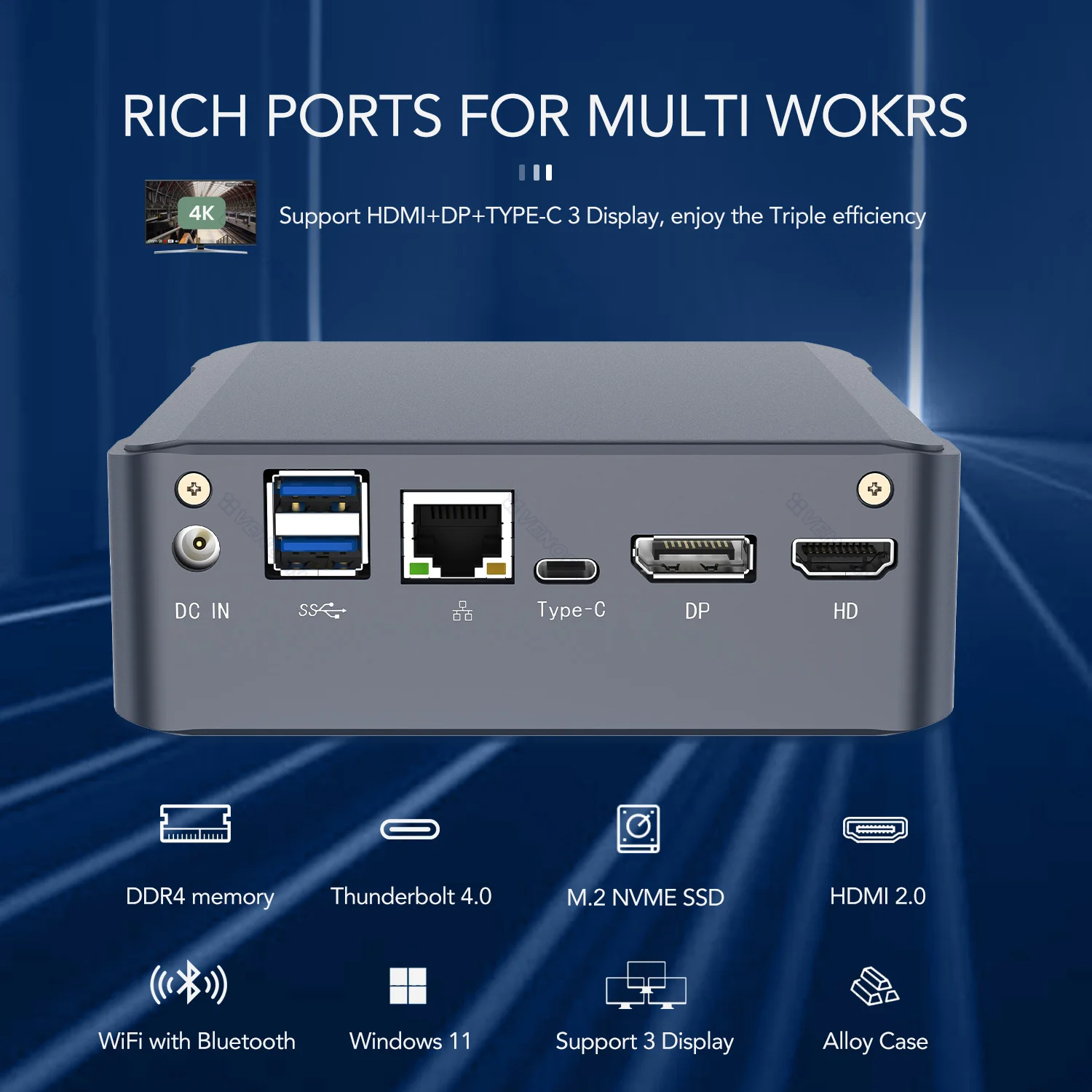

Input/output port | ||
Switch | 1 x Power On/Off Switch | |
Power | 1 x 12-19V DC In | |
USB | 4 x USB 3.0, 2 x USB 2.0, 1 x Type-C (Thunderbolt 4) | |
Display | 1 x HD-MI 2.0, 1 x DP 1.4 | |
Audio | 1 x SPK, 1 x MIC | |
LAN | 1 x RJ45 Giga LAN | |
Storage | ||
M.2 SSD | 1 x M.2 22*80 SSD for SATA/NVME PCIE3.0_x4 | |
SATA | 1 x SATA3.0 slot for 7.0mm SATA HDD/SSD | |
Wi-Fi | ||
Module | 1 x M.2 2230 slot (support WIFI/BT) | |
Power and Working Environment | ||
Input | DC100-240V AC/50-60Hz | |
Output | 19V, 3.42A | |
Operating Temperature | 0/70 Centigrade (32~140°F) | |
Relative Humidity | 0%~90% (non-condensing) | |
Product Dimension & Details | ||

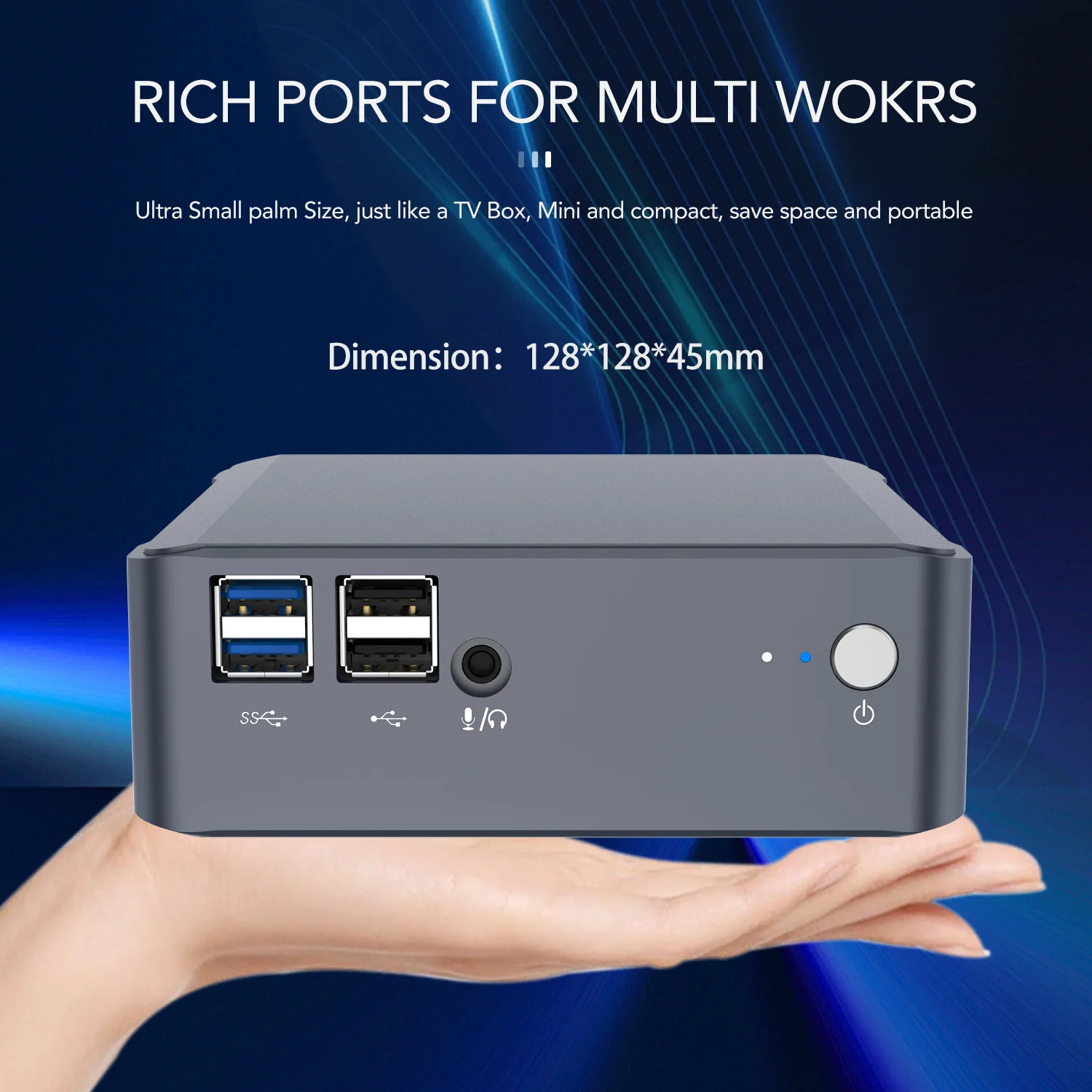

Size | 128*128*44mm | |
Weight | Net 0.62kg, Gross 1.43kg | |
Cooling Mode | Silent Cooling Fan | |
Functions | Support PXE, WOL | |

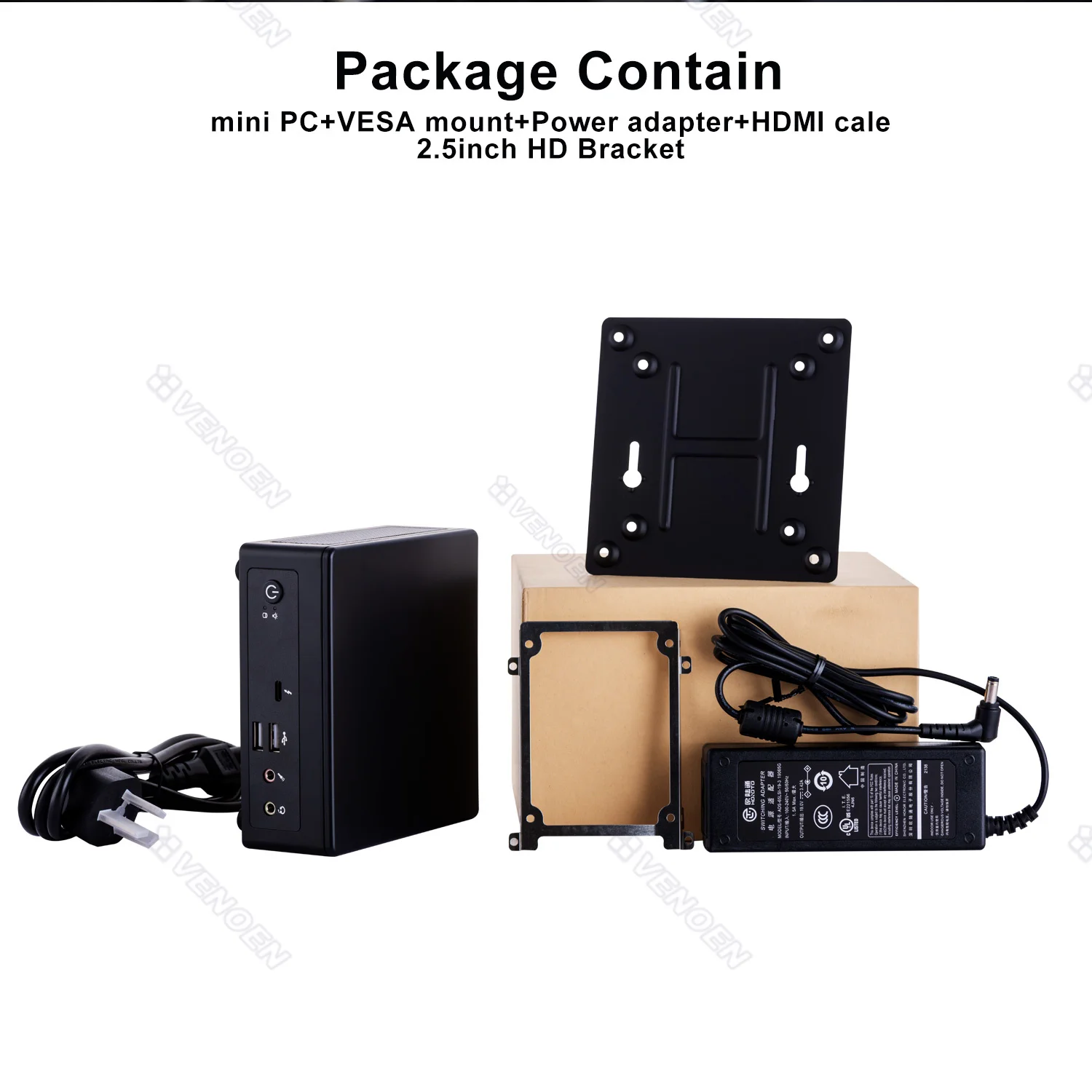

Package Content | ||
Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 4xMount Screws, 1xHD-MI cable, 1xSATA cable | |
Packing&Shipping
Packing List:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)

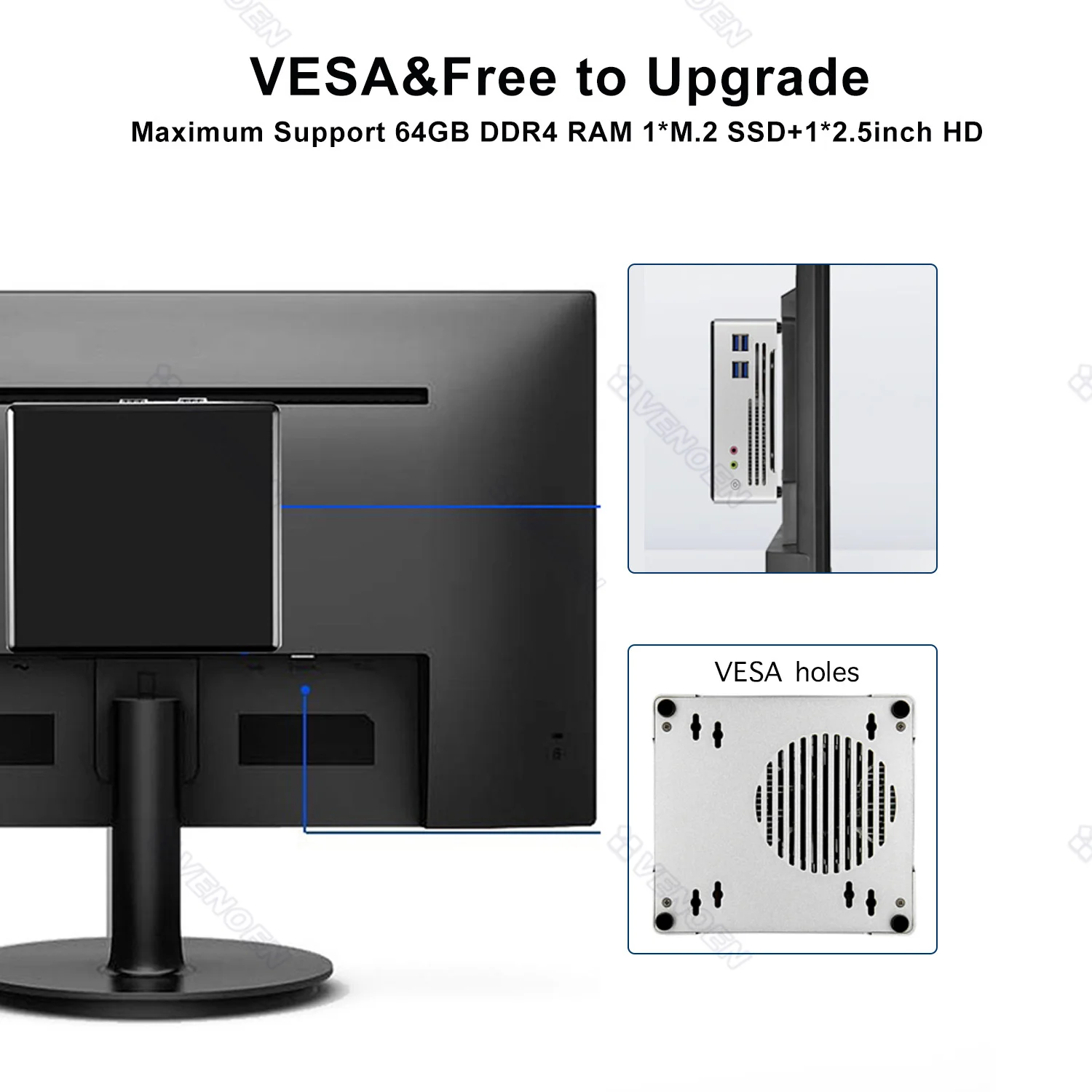

1 x VESA mount(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA mount(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Related Products
OEM&ODM Service
We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Assisting customers in their journey towards customized solutions:
☑ Logo(Packing , Computer Logo)
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
Company Introduction
VENOEN Technology Co., Limited was founded in 2013 in XuZhou as a mini computer developer and wholesaler, our factory is located in Shenzhen, producing and supplying thin client and mini PC since 2006. There are 10 professional international sales person in VENOEN overseas sales offices, most of them has 3 to 8 years international sales experience; 5 technical support team has 10 years computer support experience and also support technical guidance in our factory since 2006.
We support retail, wholesale or agency of mini PC, OEM and ODM service and Drop Shipping services to all over the world.
As Quality is our culture, we fully believe quality is the soul of an enterprise, all our products are high quality finishes with
CE, RoHS, FCC, SGS, certifications, with 3 years warranty and competitive price, our products will give you an edge over your competitors;
We support retail, wholesale or agency of mini PC, OEM and ODM service and Drop Shipping services to all over the world.
As Quality is our culture, we fully believe quality is the soul of an enterprise, all our products are high quality finishes with
CE, RoHS, FCC, SGS, certifications, with 3 years warranty and competitive price, our products will give you an edge over your competitors;
FAQ
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
