220T Good Price Low Pressure Hot Chamber And Cold Chamber Die Casting Machine
220T Good Price Low Pressure Hot Chamber And Cold Chamber Die Casting Machine
220T Good Price Low Pressure Hot Chamber And Cold Chamber Die Casting Machine
220T Good Price Low Pressure Hot Chamber And Cold Chamber Die Casting Machine
220T Good Price Low Pressure Hot Chamber And Cold Chamber Die Casting Machine
220T Good Price Low Pressure Hot Chamber And Cold Chamber Die Casting Machine
220T Good Price Low Pressure Hot Chamber And Cold Chamber Die Casting Machine

220T Good Price Low Pressure Hot Chamber And Cold Chamber Die Casting Machine

Share on (1600530218500):


Price:$29,500.00

Quantity:


Product Overview

Description

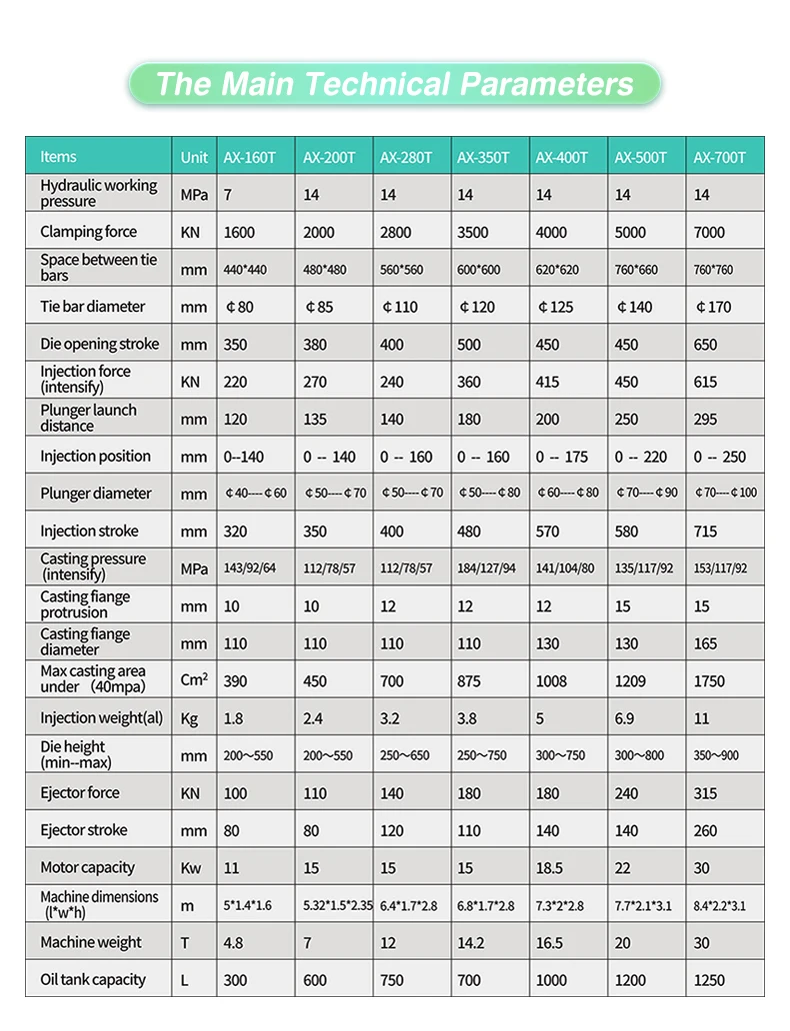

Item
Unit
Specification
Hydraulic Working Pressure
MPa
14
Clamping Force
KN
2000
Space Between Tie Bars
mm
480*480
Tie Bar Diameter
mm
￠85
Die Opening Stroke
mm
380
Injection Force(intensify)
KN
270
Plunger launch distance
mm
135
Injection position
mm
0 -- 140
Plunger Diameter
mm
￠50----￠70
Injection Stroke
mm
350
Casting pressure (intensify)
MPa
112/78/57
Casting Flange Protrusion
mm
10
Casting Flange Diameter
mm
110
Max Casting Area Under 40Mpa
CM2
450
injection Weight(Al)
Kg
2.4
Die Height(Min--Max)
mm
200～550
Ejector Force
KN
110
Ejector Stoke
mm
80
Motor Capacity
Kw
15
Machine Dimensions (L*W*H)
m
5.32*1.5*2.35
Referential Machine Weight For Uplifting
T
7
Oil Tank Capacity
L
600


We reserve the right to make any technical improvement without further notice
