UIC860-0 Standard UIC60 Heavy Steel Rail For Railway Construction
US $590.00-$720.00
DIN A75 High Quality Best Price Railroad Track Railway Steel Rail Railtrack Rail Manufacturer
- Category: Steel Rails >>>
- Supplier: Zhejiang Zhongding Iron And Steel Co. Ltd.
Share on (1600530294829):
Product Overview
Description
Product Description
DIN A75 High Quality Best Price Railroad Track Railway Steel Rail Railtrack Rail Manufacturer
Crane rail is widely used in overhead gantry and floor-mounted crane for port, wharf, shipyards, warehouses, and other
manufacturers. Various types of crane rails for sale vary in section profile (specification) to meet the load capacity of
different cranes. The general feature of crane rail is the wide base, thick web and low center of gravity.
A 100 crane rail specification This type (type A) of crane rail is hot-rolled flat bottom rails. It belongs to a hot sale series of DIN536 rail defined by Germany and prevalent in Europe.
*Sizes of DIN 536 crane rail includes A45, A55, A65, A75, A100, A120, A150. The number represents the width of the head in millimeter. A 100 rail has a 100 millimeter width of the head.
*Regarding the material, grade700, 900A and 1100 are available as the requests of customers. Crane rail with harder strength is supplied to fulfil the utilizing for projects demands a heavier load of cranes.
*Different material gives the crane rail different chemical property. The tensile strength of A100 rail is from 690 to 1080
N/mm².
manufacturers. Various types of crane rails for sale vary in section profile (specification) to meet the load capacity of
different cranes. The general feature of crane rail is the wide base, thick web and low center of gravity.
A 100 crane rail specification This type (type A) of crane rail is hot-rolled flat bottom rails. It belongs to a hot sale series of DIN536 rail defined by Germany and prevalent in Europe.
*Sizes of DIN 536 crane rail includes A45, A55, A65, A75, A100, A120, A150. The number represents the width of the head in millimeter. A 100 rail has a 100 millimeter width of the head.
*Regarding the material, grade700, 900A and 1100 are available as the requests of customers. Crane rail with harder strength is supplied to fulfil the utilizing for projects demands a heavier load of cranes.
*Different material gives the crane rail different chemical property. The tensile strength of A100 rail is from 690 to 1080
N/mm².
Specification
DIN A75 High Quality Best Price Railroad Track Railway Steel Rail Railtrack Rail Manufacturer | ||
Standard | AiSi ASTM bs DIN GB JIS EN(GB3426-82) | |
Grade | 700/900A/1100 | |
Rail Heigth | 85mm or Customer's requirements. | |
Bottom Width | 200mm or Customer's requirements. | |
Web Thickness | 45mm or Customer's requirements. | |
Head Width | 75mm or Customer's requirements. | |
Place of Origin | China | |
Zhejiang | ||
Type | Crane Steel Rail | |
Weight | 56.2kg/m | |
Usage | Railway Mining,Architectural decoration,Structural pipe making,Gantry Crane,Train,etc. | |
Secondary Or Not | Non-secondary | |
Tolerance | ±1% | |
Delivery Time | 8-14 days | |
Samples | Freely | |
Length | 10-12m or Customer's requirements | |
Payment Term | T/T 30% Deposit | |
MOQ | 1 TON | |
Steel rail,also called rail track,steel track,is the main component of railway track. Its function is to guide the wheels of the locomotive,bear the great pressure of the wheel, and keep the stability of railway transportation.The rail must provide continuous, smooth and minimum rolling surfaces for the wheels.In electrified railway or automatic block section,rail can also be used as an orbital circuit.
Size about Railroad Steel Rail Railway Crane Steel Rail A75:
The dimension of A75 crane rail consists of the width of the head, the hight, the base and the web.The weight is 56.2kg/m. The standard length of A75 rail is 10-12m.
Product Name | Type | Section Size/mm | N.W. KG/M | Material | Length | ||||||
Height | Bottom Width | Head Width | Waist Thick | ||||||||
Crane rail | A45 | 55 | 125 | 45 | 24 | 22.1 | 700/900A/1100 | 10-12M | |||
A55 | 65 | 150 | 55 | 31 | 31.8 | 700/900A/1100 | 10-12M | ||||
A65 | 75 | 175 | 65 | 38 | 43.1 | 700/900A/1100 | 10-12M | ||||
A75 | 85 | 200 | 75 | 45 | 56.2 | 700/900A/1100 | 10-12M | ||||
A100 | 95 | 200 | 100 | 60 | 74.3 | 700/900A/1100 | 10-12M | ||||
A120 | 105 | 220 | 120 | 75 | 100 | 700/900A/1100 | 10-12M | ||||
A150 | 150 | 220 | 150 | 80 | 150.3 | 700/900A/1100 | 10-12M | ||||
DIN A75 High Quality Best Price Railroad Track Railway Steel Rail Railtrack Rail Manufacturer
Chemical composition of A75 crane rail
Crane rail size | Minimum tensile strength N/mm2 | C % | Si % max | Mn % | P % max | S % max |
A45, A55, A65, A75, A100, A120, A150 | 690 | 0.40-0.60 | 0.35 | 0.8-1.2 | 0.045 | 0.045 |
A75, A100 | 880 | 0.60-0.80 | 0.50 | 0.80-1.30 | 0.045 | 0.045 |
A120, A150 | 880 | 0.55-0.75 | 0.50 | 1.30-1.70 | 0.045 | 0.045 |
GB Standard:
light rail (6kg, 8kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, 30kg)
heavy rail (38kg, 43kg, 50kg, 60kg, 75kg)
crane rail(Qu70, Qu80, Qu100, Qu120)
Other Different International Standards:
JIS E Standard(jis37A JISCR73 JISCR100)
UIC Standard (uic50, uic54, uic60)
DIN Standard (A45, A55, A65, A75, A120)
ASTM/AREMA Standard, BS Standard, and etc.
light rail (6kg, 8kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, 30kg)
heavy rail (38kg, 43kg, 50kg, 60kg, 75kg)
crane rail(Qu70, Qu80, Qu100, Qu120)
Other Different International Standards:
JIS E Standard(jis37A JISCR73 JISCR100)
UIC Standard (uic50, uic54, uic60)
DIN Standard (A45, A55, A65, A75, A120)
ASTM/AREMA Standard, BS Standard, and etc.
Chinese Standard light rail:
GB6KG; GB9KG; GB12KG; GB15KG; GB22KG; GB30KG;
Chinese Standard heavy rail:
GB38KG; GB43KG; GB50KG;
Chinese Standardcrane rail:
QU70; QU80; QU100; QU120;
American standard steel rail
ASCE25; ASCE30; ASCE40; ASCE60; ASCE75; ASCE85; 90RA; 115RE; 136RE; 175LBs;
BS Standard steel Rail:
50O; 60A; 75A; 75R; 80A; 80R; 90A; 100A; 113A
UIC860 Standard steel Rail
UIC54; UIC60;
South Africa standard steel rail:
15KG; 22KG; 30KG; 40KG; 48KG; 57KG
Jiis e Standard steel Rail:
JIS15KG; JIS22KG; JIS30a; JIS37A; JIS50N; CR73; CR100;
EN Standard steel Rail:
49E1; 49E2; 50E1; 50E2; 50E4; 50E5; 50E6; 54E1; 54E2; 54E3; 55E1; 60E1
Australian standard steel rail:
31KG; 47KG; 50KG; 60KG; 68KG; 73KG; 86KG; 89KG;
Indian Standard Steel Rail:
ISCR50; ISCR60; ISCR70; ISCR80; ISCR100; ISCR120;
DIN Standard Steel Rail:
A65; A75; A100; A120
GB6KG; GB9KG; GB12KG; GB15KG; GB22KG; GB30KG;
Chinese Standard heavy rail:
GB38KG; GB43KG; GB50KG;
Chinese Standardcrane rail:
QU70; QU80; QU100; QU120;
American standard steel rail
ASCE25; ASCE30; ASCE40; ASCE60; ASCE75; ASCE85; 90RA; 115RE; 136RE; 175LBs;
BS Standard steel Rail:
50O; 60A; 75A; 75R; 80A; 80R; 90A; 100A; 113A
UIC860 Standard steel Rail
UIC54; UIC60;
South Africa standard steel rail:
15KG; 22KG; 30KG; 40KG; 48KG; 57KG
Jiis e Standard steel Rail:
JIS15KG; JIS22KG; JIS30a; JIS37A; JIS50N; CR73; CR100;
EN Standard steel Rail:
49E1; 49E2; 50E1; 50E2; 50E4; 50E5; 50E6; 54E1; 54E2; 54E3; 55E1; 60E1
Australian standard steel rail:
31KG; 47KG; 50KG; 60KG; 68KG; 73KG; 86KG; 89KG;
Indian Standard Steel Rail:
ISCR50; ISCR60; ISCR70; ISCR80; ISCR100; ISCR120;
DIN Standard Steel Rail:
A65; A75; A100; A120

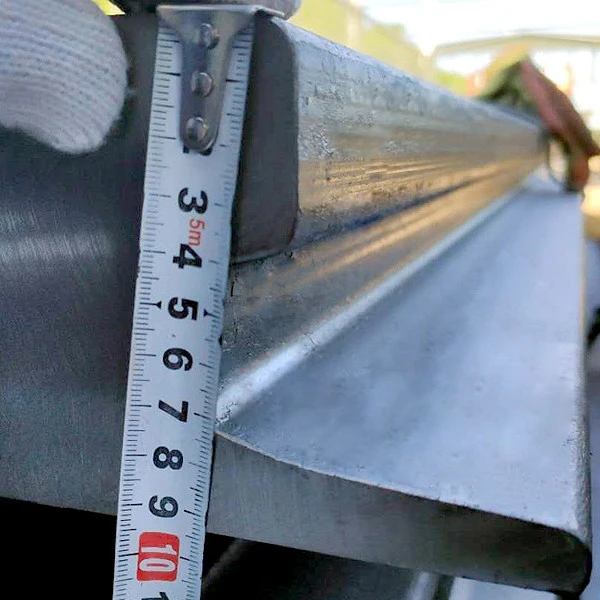

Product Details
DIN A75 High Quality Best Price Railroad Track Railway Steel Rail Railtrack Rail Manufacturer
Packing & Delivery
DIN A75 High Quality Best Price Railroad Track Railway Steel Rail Railtrack Rail Manufacturer
Company Profile
DIN A75 High Quality Best Price Railroad Track Railway Steel Rail Railtrack Rail Manufacturer
Application
DIN A75 High Quality Best Price Railroad Track Railway Steel Rail Railtrack Rail Manufacturer
FAQ
Q:Do you provide free samples?
A:Yes,we can provide a free sample for testing,buyer should bear all the shipping costs.
Q:Do you accept small orders?
A:You don't need to worry about this problem,just consult.
Q:Do you accept the third party inspection?
A:Yes absolutely we accept.
Q:How could you guarantee your products?
A:Each piece of products is manufactured by certified workshops,inspected by Linxu piece by piece according to national QA/QC standard.We also could issue the warranty to customer to guarantee the quality.
Q:What are the advantages of your company?
A:(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements.
Q:What is your terms of payment?
A:Payment<=1000USD,100% in advance.Payment>=1000USD,30% T/T in advance,balance based on BL copy or LC at sight.
Q:How about our price?
A:Our price is very competitive because we are a factory.Pls feel free to contact us if you are interested in our products.
Q:How long is your delivery time?
A:Different products have different delivery time.The products will be delivered as soon as possible on the basis of the quality assurance.Usually the delivery time is within 7 days after we received your deposit.
A:Yes,we can provide a free sample for testing,buyer should bear all the shipping costs.
Q:Do you accept small orders?
A:You don't need to worry about this problem,just consult.
Q:Do you accept the third party inspection?
A:Yes absolutely we accept.
Q:How could you guarantee your products?
A:Each piece of products is manufactured by certified workshops,inspected by Linxu piece by piece according to national QA/QC standard.We also could issue the warranty to customer to guarantee the quality.
Q:What are the advantages of your company?
A:(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements.
Q:What is your terms of payment?
A:Payment<=1000USD,100% in advance.Payment>=1000USD,30% T/T in advance,balance based on BL copy or LC at sight.
Q:How about our price?
A:Our price is very competitive because we are a factory.Pls feel free to contact us if you are interested in our products.
Q:How long is your delivery time?
A:Different products have different delivery time.The products will be delivered as soon as possible on the basis of the quality assurance.Usually the delivery time is within 7 days after we received your deposit.
Q:What can you buy from us?
Seamless Steel Pipe/Welded Steel Pipe,Hot Rolled Plate/Color Steel Plate,Round Bar,etc.
Seamless Steel Pipe/Welded Steel Pipe,Hot Rolled Plate/Color Steel Plate,Round Bar,etc.
*Note: If you have any question, please feel free to click “Contact Supplier” as below,we will get back to you immediately.
