TM903 Tenmars Multimedia LAN Cable Tester Handheld Network Cable Tester LAN Cable Failure Detector
- Category: WiFi Finder >>>
- Supplier: Shenzhen Graigar Technology Co. Ltd.
Share on (1600530296333):
Product Overview
Description
Product Description
TM903 Tenmars Multimedia LAN Cable Tester Handheld Network Cable Tester LAN Cable Failure Detector
Product Description:
- Detects opens, shorts, miswires and split pairs
on the twisted pair cabling.
- Measures length.
- Low battery detector.
- Auto backlit.
- Auto power off.
APPLICATION:

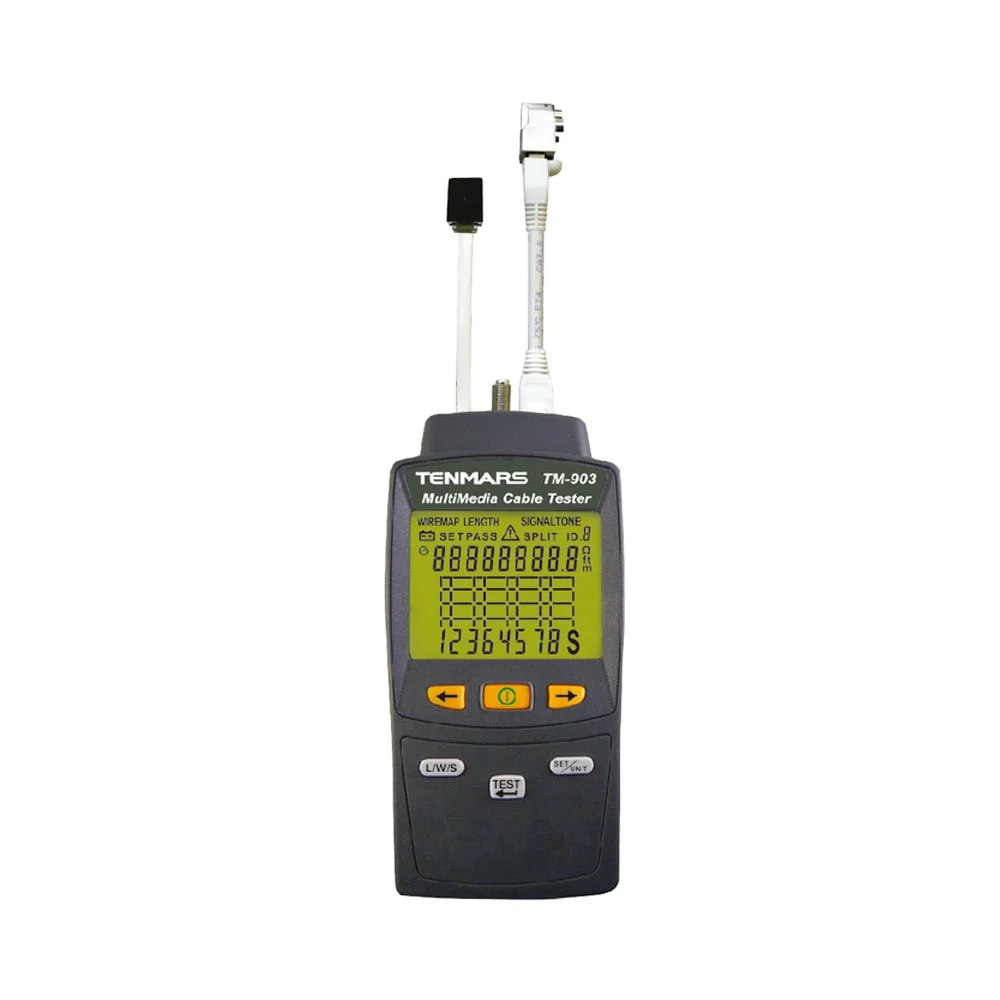

The TM-903 Multimedia Cable Tester is a hand-held test instrument that lets you verify and troubleshoot the LAN cable of twisted pair.
It displays graph wire-map, opens, shorts, miswires, split pairs and the remote ID number all on one screen.
Using multiple remote ID up to 8 locators to test on RJ-45 (UTP, STP) LAN cable, video coaxial cable and RJ11 voice cable.
SPECIFICATION:
Model: | TM-903 |
Connectors type | RJ-45, F-Connector and RJ11 |
Cable category | LAN cable (UTP, STP), video coaxial cable and voice cable. |
Wire-map test | Detects opens, shorts, miswires, split pairs |
Length test | up to 255 M (836 ft) |
Length resolution | 0.1 m (ft) |
Length units | Meter and Foot |
Accuracy | +/- 10% + 1.0M (3 ft) |
Power | 1.5V battery x 6 |
Battery life | Approx. continuous testing : 200 times |
Operate Maximum Power | 20mA |
Operating temp. and RH | 5 to 40 C, below 80% RH. |
Storage temp. and RH | -10 to 60C, below 70%. |
Dimensions | 156(L) x 73(W) x 35(H) mm. |
Weight | About 170g |
Accessories | User’s manual x 1, 1.5V AAA battery x 6, Carrying case Test Cable x1, Remote ID (1) x1 |
Product Images:
