VH 300 L stainless steel charcoal powder animal feed protein mixer baby milk powder mixer mixing tanks
- Category: >>>
- Supplier: Sinoped International (Liaoning) Co. Ltd.
Share on (1600530301890):
Product Overview
Description
Application
V-type mixer is used in the pharmaceutical, chemical, foodstuffs industries and scientific research units.It is fully sealed and dust- free operation.

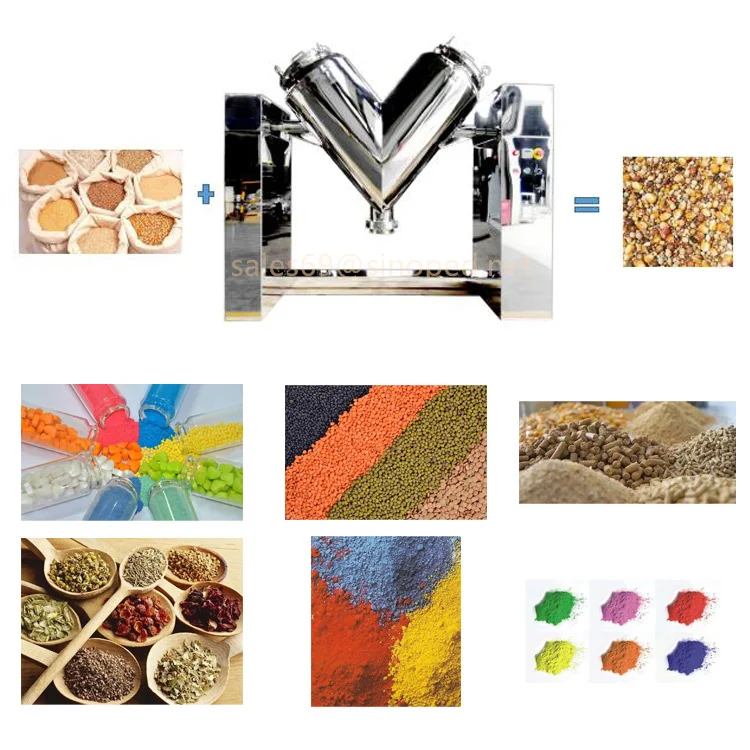

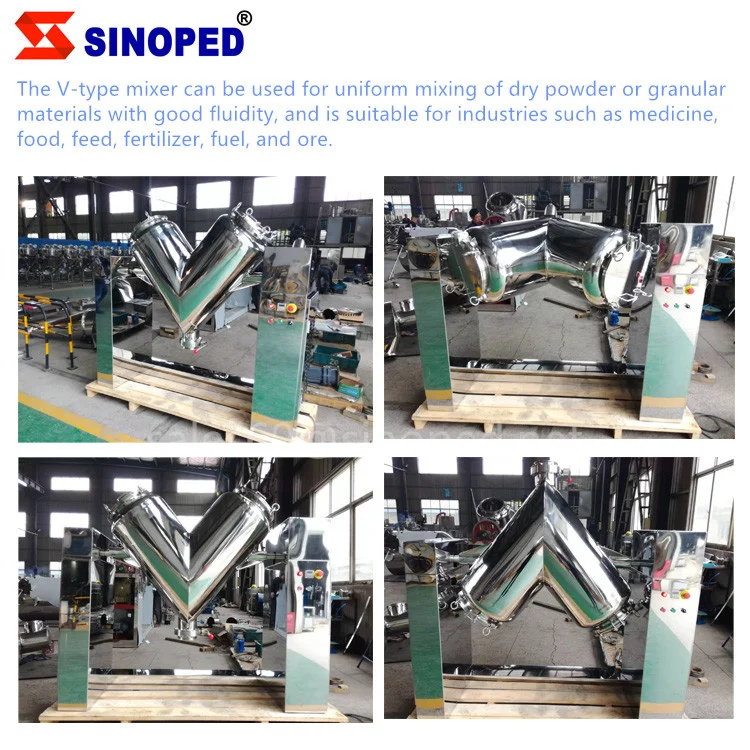

The V-type mixer can be used for uniform mixing of dry powder or granular materials with good fluidity, and is suitable for industries such as medicine, food, feed, fertilizer, fuel, and ore.
Medicine: a mixture of capsule particles, Chinese medicine seasonings, powdered or granular Chinese herbal medicines, etc.
Feed: It can be mixed with various feeds such as fish feed, poultry feed, wild animal feed, and bird feed.
Food: such as condiments, additives, vitamins, various sugar products, etc.
Fuel: a mixture of various firecrackers, fireworks and other raw materials.
Ore: It can be mixed with various powdery or granular ores.
The V-type mixer can be used for uniform mixing of dry powder or granular materials with good fluidity, and is suitable for industries such as medicine, food, feed, fertilizer, fuel, and ore.
Medicine: a mixture of capsule particles, Chinese medicine seasonings, powdered or granular Chinese herbal medicines, etc.
Feed: It can be mixed with various feeds such as fish feed, poultry feed, wild animal feed, and bird feed.
Food: such as condiments, additives, vitamins, various sugar products, etc.
Fuel: a mixture of various firecrackers, fireworks and other raw materials.
Ore: It can be mixed with various powdery or granular ores.
production process
Working Principles：
The reducing mechanism drives the barrel rotary, and the length of two barrels is different, which will produce asymmetry. And then the machine take advantage of this asymmetry for mixing materials. When the machine is running, materials from the decomposition to the combination, as potential energy differences, which will produce lateral force to promote the horizontal exchange of materials; and materials from the combination to the decomposition, as materials plane differences, which will produce lateral force to promote the horizontal exchange of materials again. The barrels rotary one cycle, which will make 25% of materials flow from one barrel to the other one; at the same time the materials will also produce radial flow, and then the materials can horizontally and radially decompose, alternating combination, so that the materials can mix evenly.

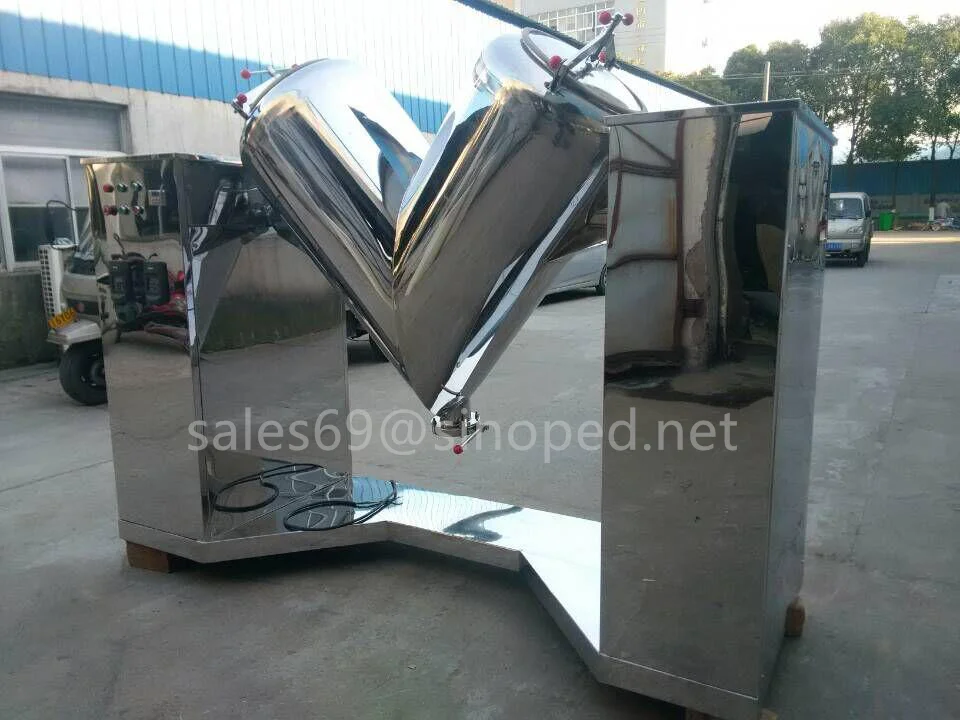

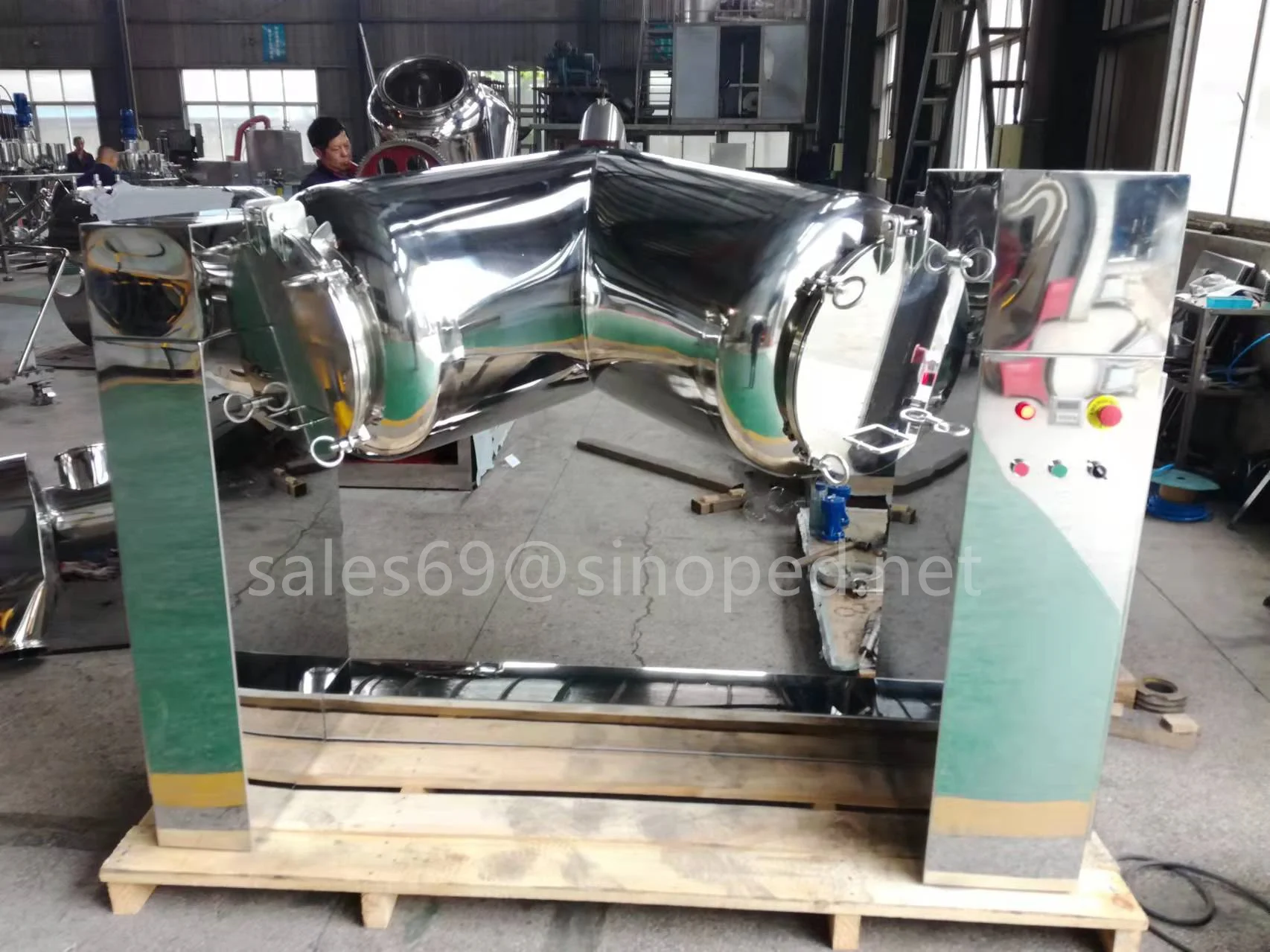

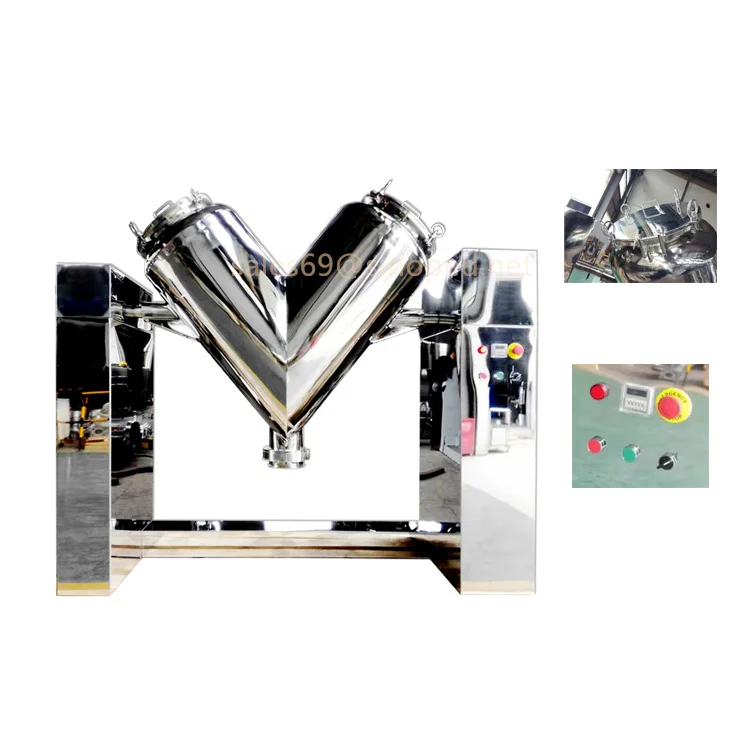

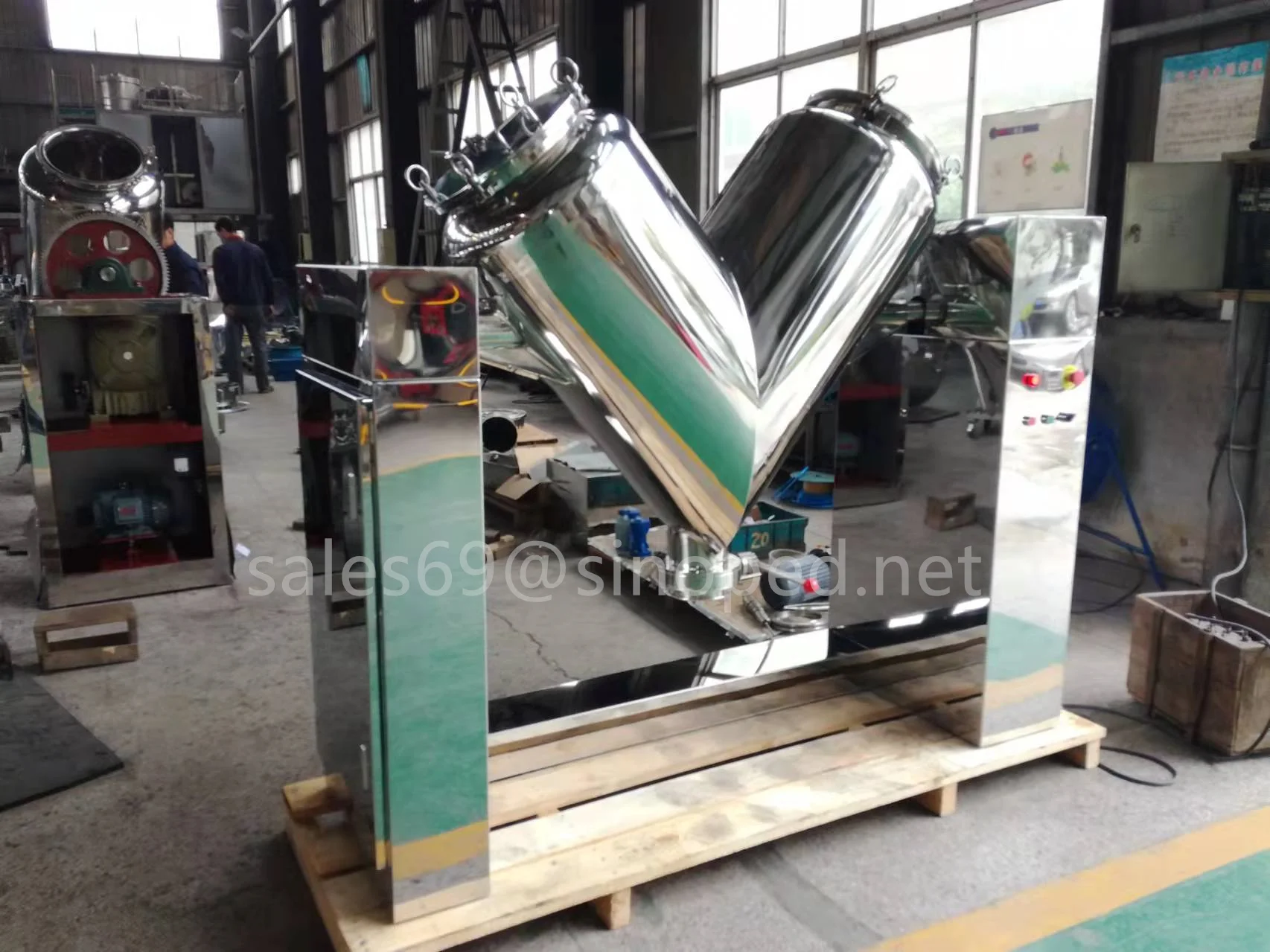

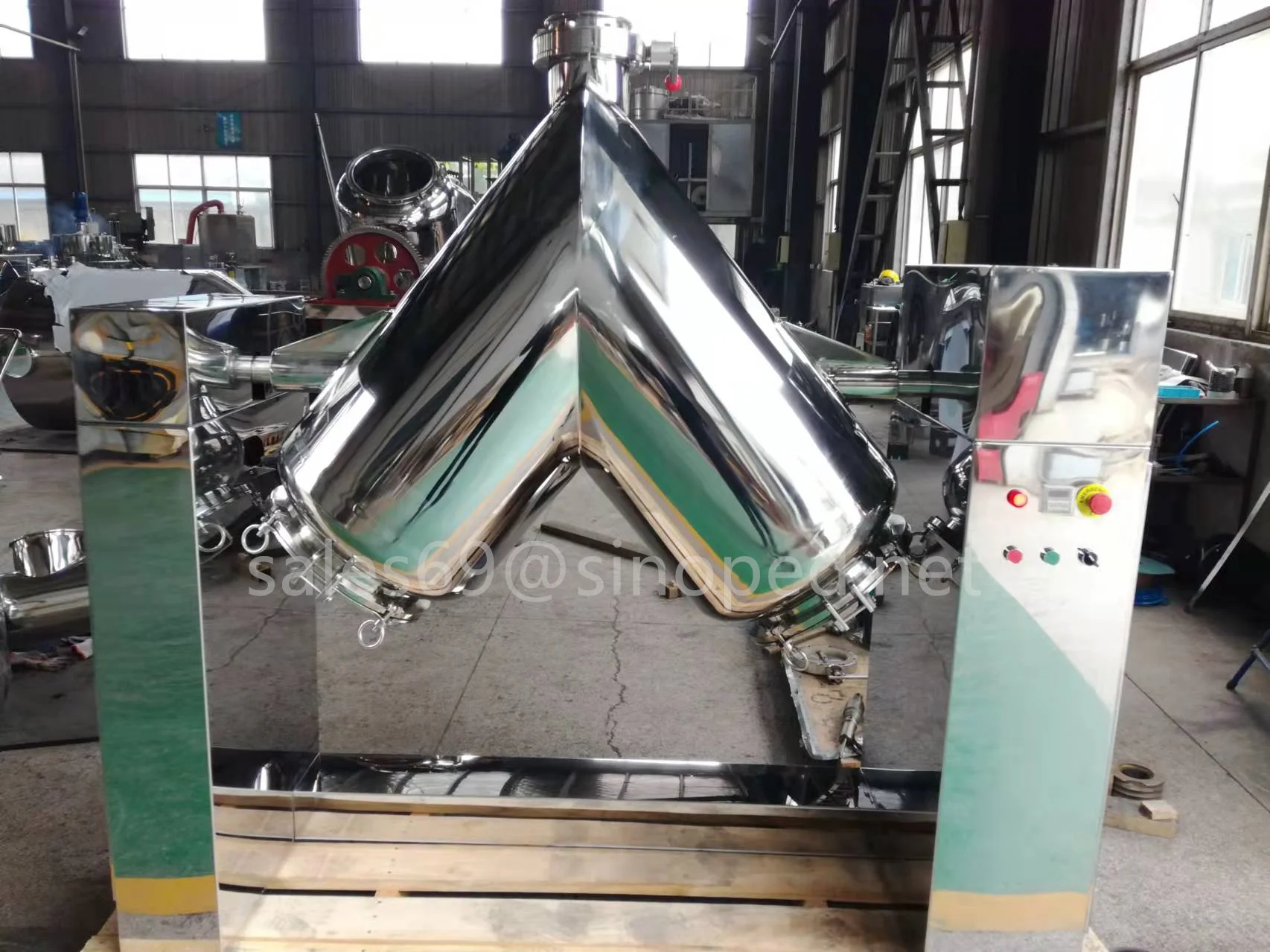

The V type mixer is composed of two cylinders welded together in a V shape. Due to the rotating movement, the powder particles are continuously alternated, divided, and merged in the inclined cylinder; the materials are randomly transferred from one V-shaped area to another, and the powder particles are superimposed in space for multiple times to achieve mixing purpose.
Operation and Maintenance：
1.Connect the power first, setting the required mixing time, then turn on the switch, the machine begin running.
2.After the mixing, if you found that the position of discharging port is not the best position, you should turn off the power first, and adjust the position of discharging port.

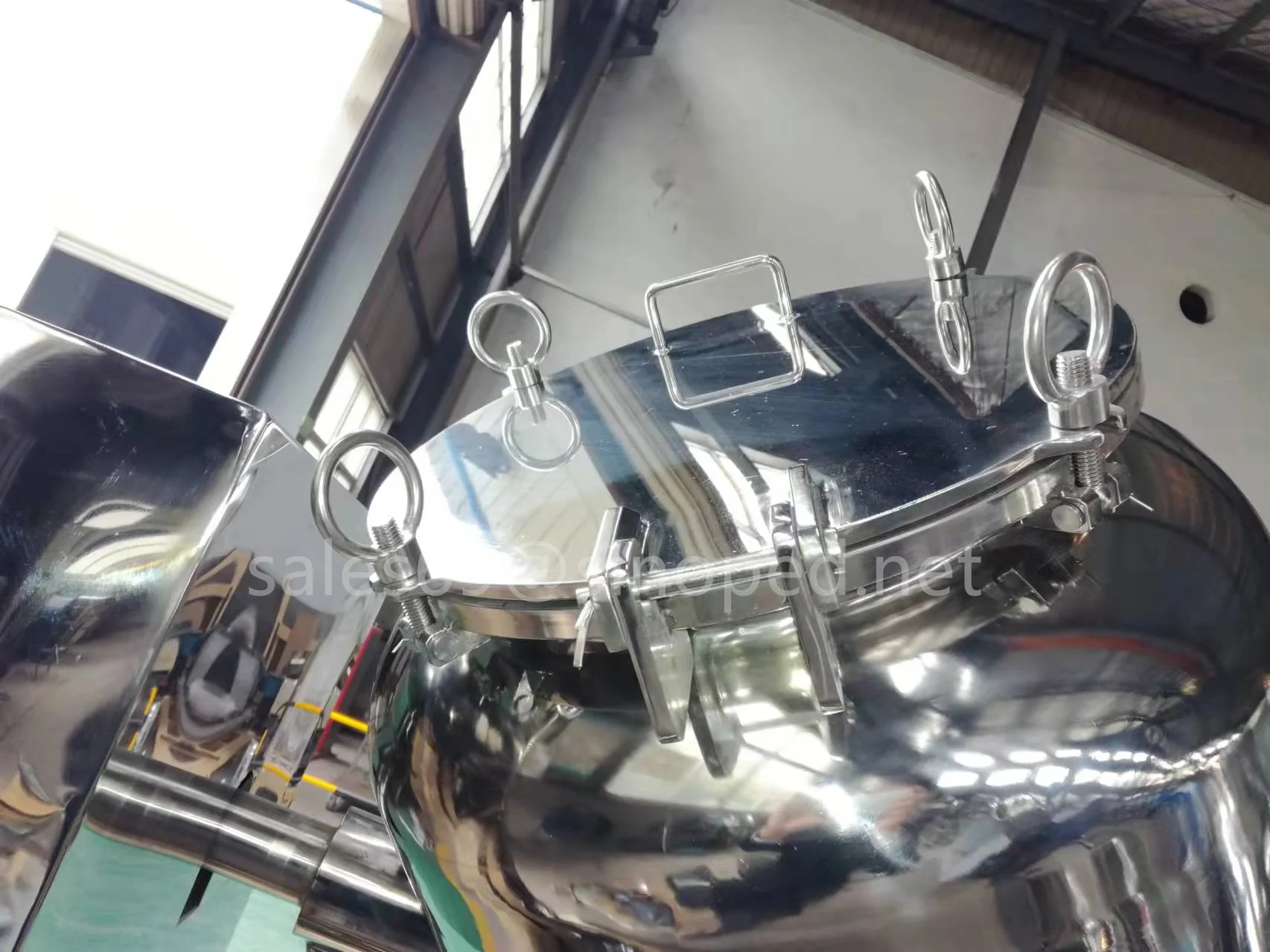

3.Before you use the machine, you should check the appliance, if it is normal; and check the covers of mixing barrels, if the covers are tightly closed.
4.User should clean the machine after the finish of work, especially the barrels, prevent the residual materials.
5.Note that the reducer should be added enough lubricating oil(generally use the 30 # machine oil), and the transmission should be added grease lubricant.
6.Users should maintain the machine once each half of year, change the lubricating oil of reducer, check if the appliance is aging, the appliance should be replaced if it is aging.
7. After you have been using the machine for one year or more, you should make a big maintenance, check the gab between each parts, and appropriately adjust them, so that the machine can keep in good condition.
The reducing mechanism drives the barrel rotary, and the length of two barrels is different, which will produce asymmetry. And then the machine take advantage of this asymmetry for mixing materials. When the machine is running, materials from the decomposition to the combination, as potential energy differences, which will produce lateral force to promote the horizontal exchange of materials; and materials from the combination to the decomposition, as materials plane differences, which will produce lateral force to promote the horizontal exchange of materials again. The barrels rotary one cycle, which will make 25% of materials flow from one barrel to the other one; at the same time the materials will also produce radial flow, and then the materials can horizontally and radially decompose, alternating combination, so that the materials can mix evenly.
The V type mixer is composed of two cylinders welded together in a V shape. Due to the rotating movement, the powder particles are continuously alternated, divided, and merged in the inclined cylinder; the materials are randomly transferred from one V-shaped area to another, and the powder particles are superimposed in space for multiple times to achieve mixing purpose.
Operation and Maintenance：
1.Connect the power first, setting the required mixing time, then turn on the switch, the machine begin running.
2.After the mixing, if you found that the position of discharging port is not the best position, you should turn off the power first, and adjust the position of discharging port.
3.Before you use the machine, you should check the appliance, if it is normal; and check the covers of mixing barrels, if the covers are tightly closed.
4.User should clean the machine after the finish of work, especially the barrels, prevent the residual materials.
5.Note that the reducer should be added enough lubricating oil(generally use the 30 # machine oil), and the transmission should be added grease lubricant.
6.Users should maintain the machine once each half of year, change the lubricating oil of reducer, check if the appliance is aging, the appliance should be replaced if it is aging.
7. After you have been using the machine for one year or more, you should make a big maintenance, check the gab between each parts, and appropriately adjust them, so that the machine can keep in good condition.

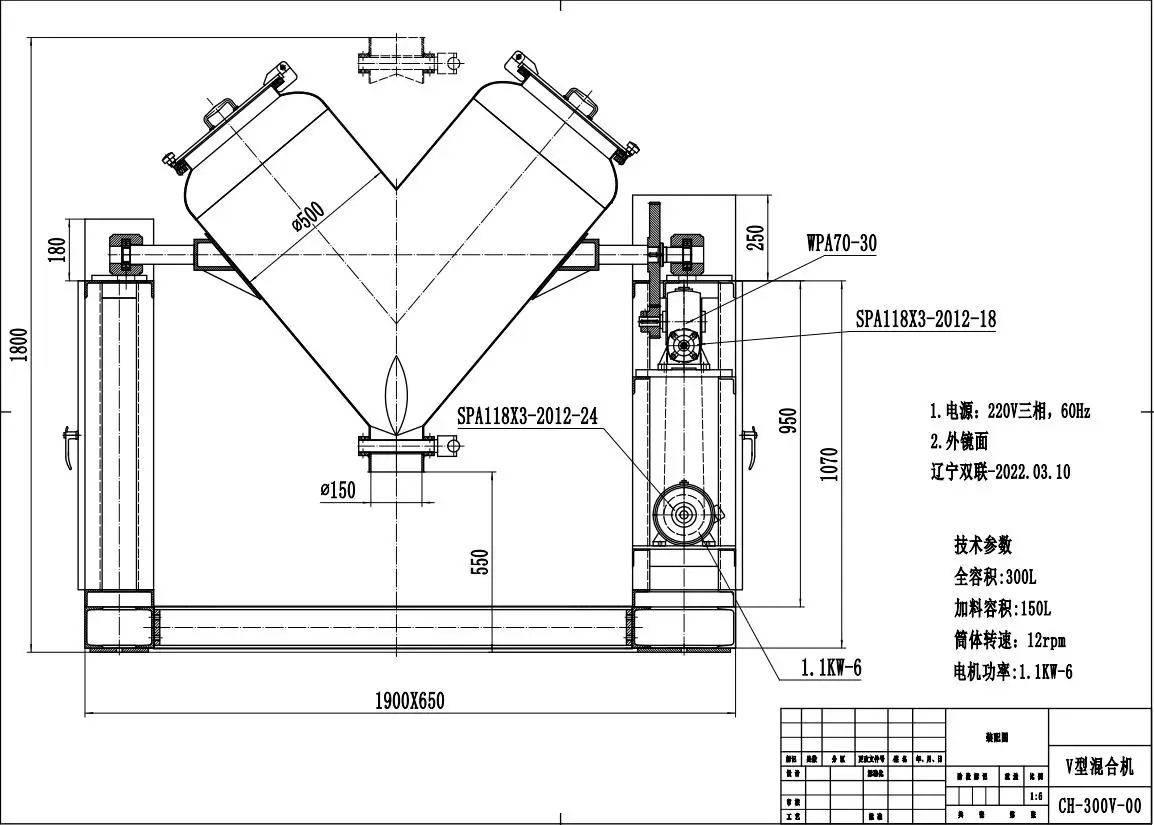

Specification
Model | VH50 | VH100 | VH200 | VH300 | VH500 | ||||
Full volume(L) | 50 | 100 | 200 | 300 | 500 | ||||
Net volume(L) | 20 | 40 | 80 | 120 | 200 | ||||
loading factor | 40% | ||||||||
Max filling volume（kg） | 25 | 50 | 100 | 150 | 250 | ||||
Optimized filling volume（kg） | 14 | 28 | 56 | 80 | 140 | ||||
Diameter of main body（mm） | Φ300 | Φ355 | Φ450 | Φ500 | Φ550 | ||||
Inlet diameter（mm） | Φ160 | Φ160 | Φ250 | Φ300 | Φ350 | ||||
Outlet diameter（mm） | Φ80 | Φ100 | Φ150 | Φ200 | Φ200 | ||||
Power of motor(kw) | 0.75 | 1.1 | 2.2 | 2.2 | 2.2 | ||||
Stirring speed(r/min) | 20 | 15 | 15 | 15 | 13 | ||||
Overall dimensions | 1350*460*1160 | 1580*650*1460 | 1750*690*1600 | 2015*720*1735 | 2450*980*2050 | ||||
Workshop Environment

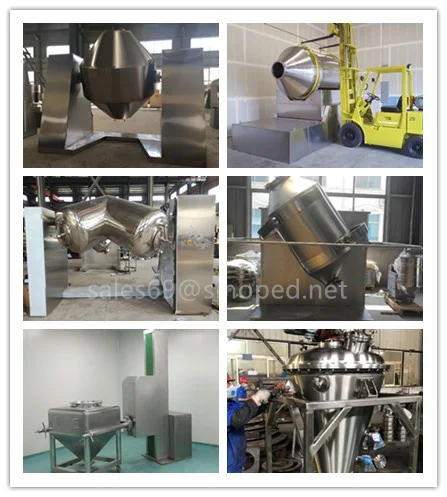

Other Type
