Digital Gas Station Automatic Level Controller Tank Gauges System

What are automatic tank gauges used for?

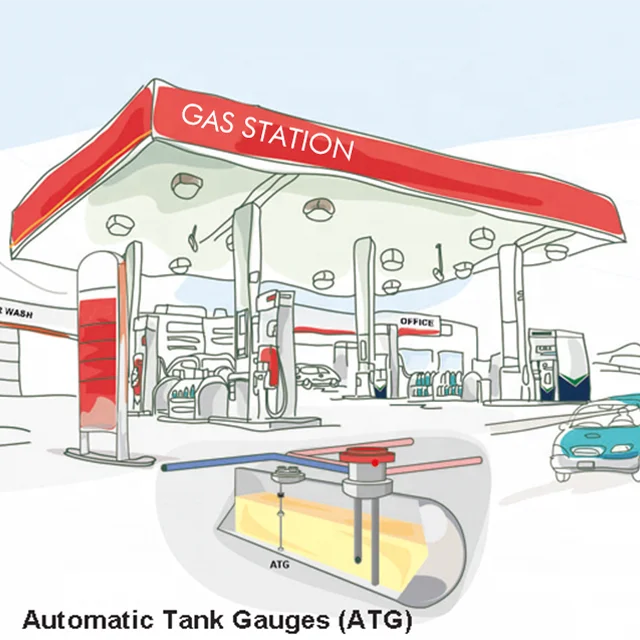

Automatic tank gauges are used for monitoring fuel level, volume, water level and temperature inside fuel storage tanks.

What can I benefit from automatic tank gauges system?

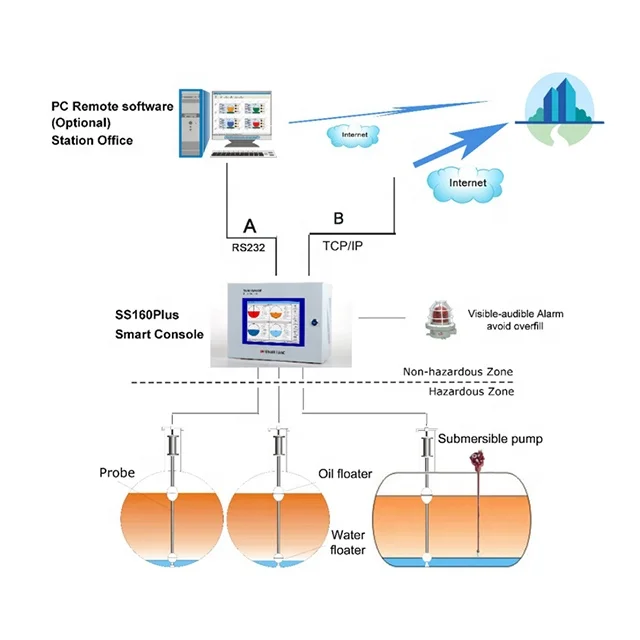

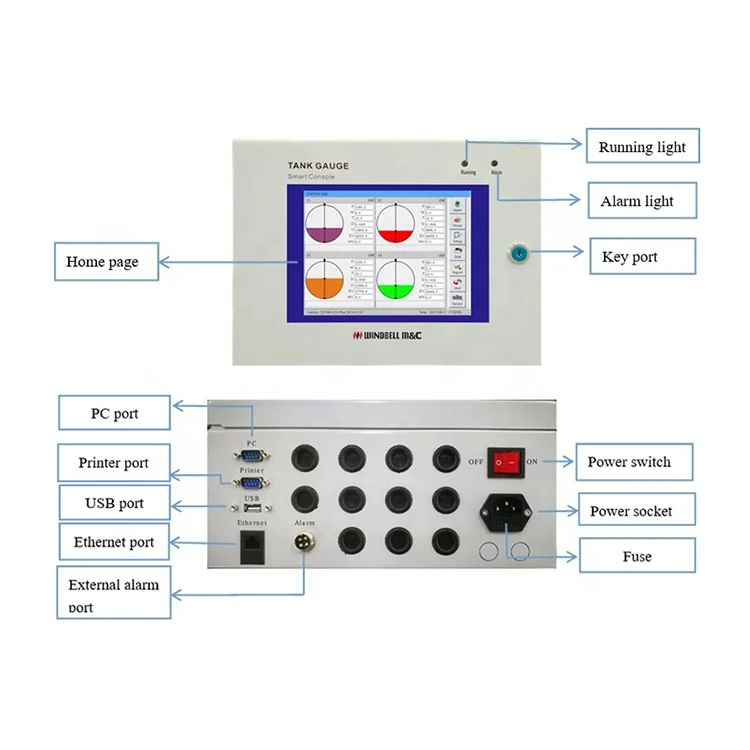

The tank gauge smart console is a powerful product developed and produced by Windbell. Together with SP300 series magnetostrictive liquid level meter constitute the complete automatic tank gauges system.
The smart console is the display terminal of the automatic fuel level indicator system. and can detect 1 to 12 tanks at the same time. It can monitor product level, water level, temperature, product volume, water volume, empty volume, all kinds of alarms, inventory and delivery information in real time.
International graphic touch screen and user-friendly icon, makes it is easy for new user.

1. International graphic touch screen and user-friendly icons, easy to use.


2. Standard measurement unit, mm or inch, liter or gallon, meet different requirements from different countries.

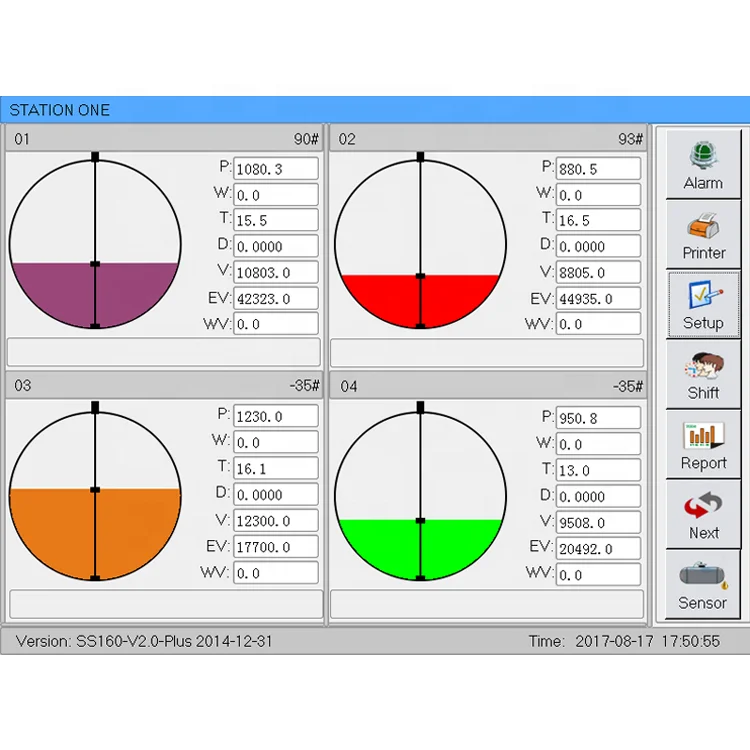

3. Display product volume and water volume, empty volume, product level and water level, and product temperature for individual tanks.

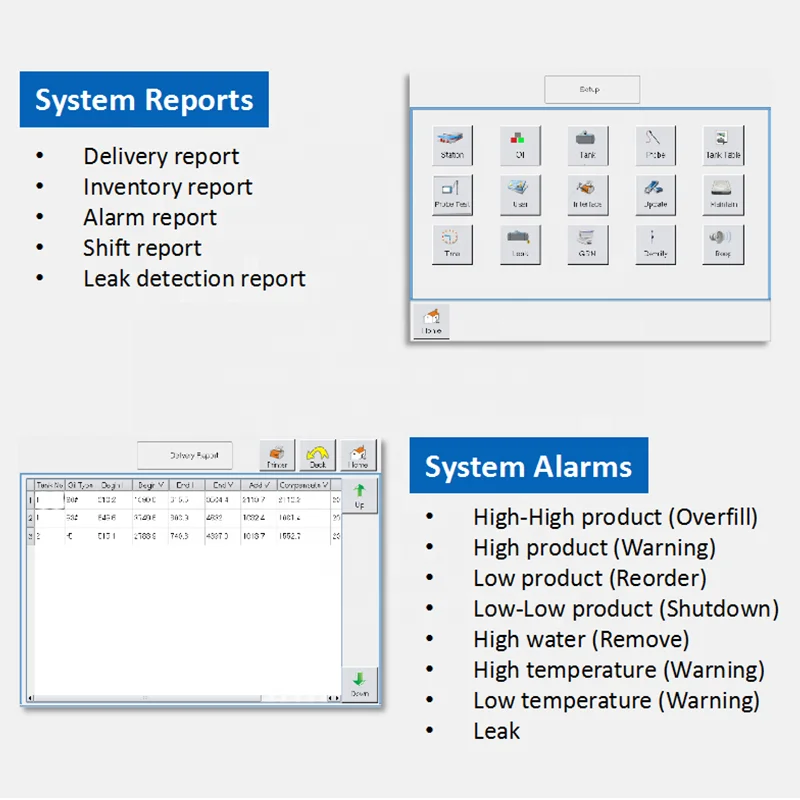

4. Reports include current inventory, delivery history, alarm, shift, leak, system log, SMS.


5. Operating language optional, support English, Spanish, Portuguese, French, Russian. And can be customized.


6. Support import & export data, tank volume table import, very convenient for console configuration.


7. Monitor up to 12 probes (tanks). Standard configuration is 6 probes.


8. Monitor up to 40 leak sensors.


9. Printing reports by optional external printer or optional built-in printer without any software.


10. Automatic alarm function can show any abnormal status of tanks.


11. Administrator password, different authorization, safe management.


12. Compatible with PC remote software on site's computer.


13. Support standard static or dynamic leak detection on 0.38 L/H or 0.76 L/H.


14. Optional density probe can monitor product quality. Fuel density can be shown in real time on the console.


15. Open communication protocol, can connect to the central control system of mainstream fuel dispensers, totally satisfy management demand of oil retail companies.


16. Update program by USB port, one-touch operation, easy and convenient.


17. iTank APP, support Android and IOS system, monitor tank information remotely in real time.


18. Boot welcome interface can be customized.
