digital differential pressure indicators with display

Product Overview

Description

Overview:

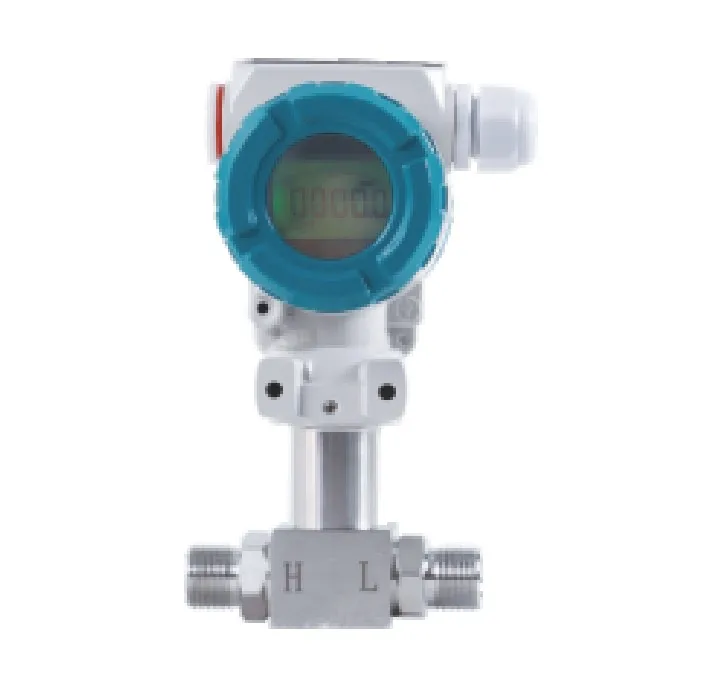

Qp-86x differential pressure transmitter adopts diffused silicon differential pressure sensor and stainless steel case,the two pressure interfaces cab be connected on the measures pipeline or impulse line,suitable for measuring differential pressure of gas and liquid.

Main features:

Industrial protection grade,

Optional LCD and LED display

Measuring range	0-3.5MPa	Accuracy	<0.5%F.S
Stability	≤0.1%/year	Static pressure	≤10MPa
Operating Temperature	-30~80℃	Medium Temperature	-40~85℃
Power Supply	10-30VDC	Output signal	4-20mA/0-5/10V/RS485
