Cassava Leaves Maize Grinding Machine Tea Leaf Crusher Thyme Red Pepper Disk Mill Grinding Machine Grain Flour Grinder Machine
- Category: >>>
- Supplier: Shanghai Fengxun International Trade Co. Ltd.
Share on (1600530350327):
Product Overview
Description
Products Description

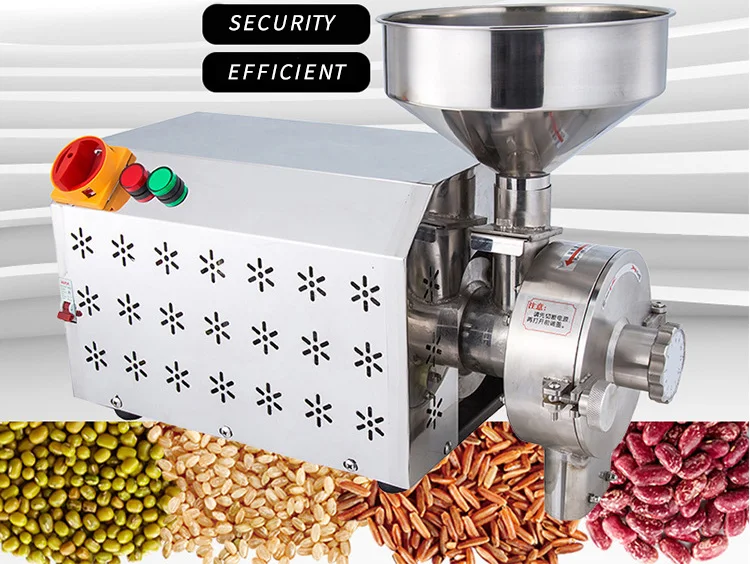

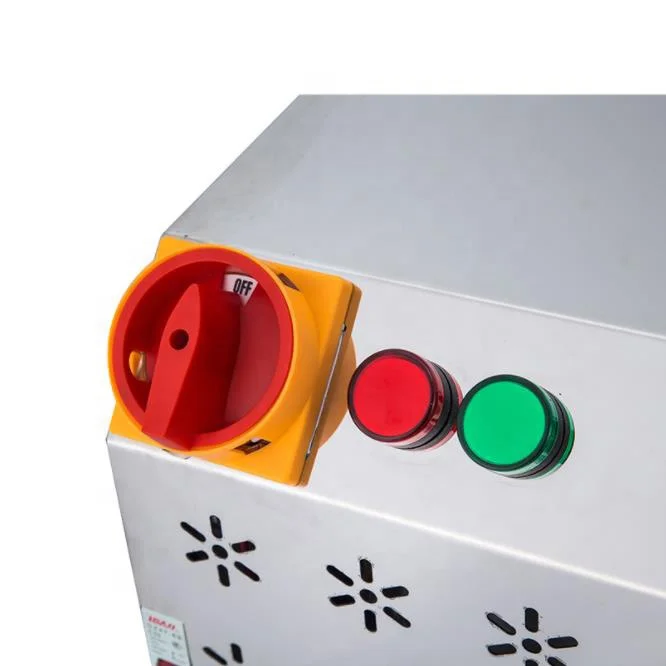

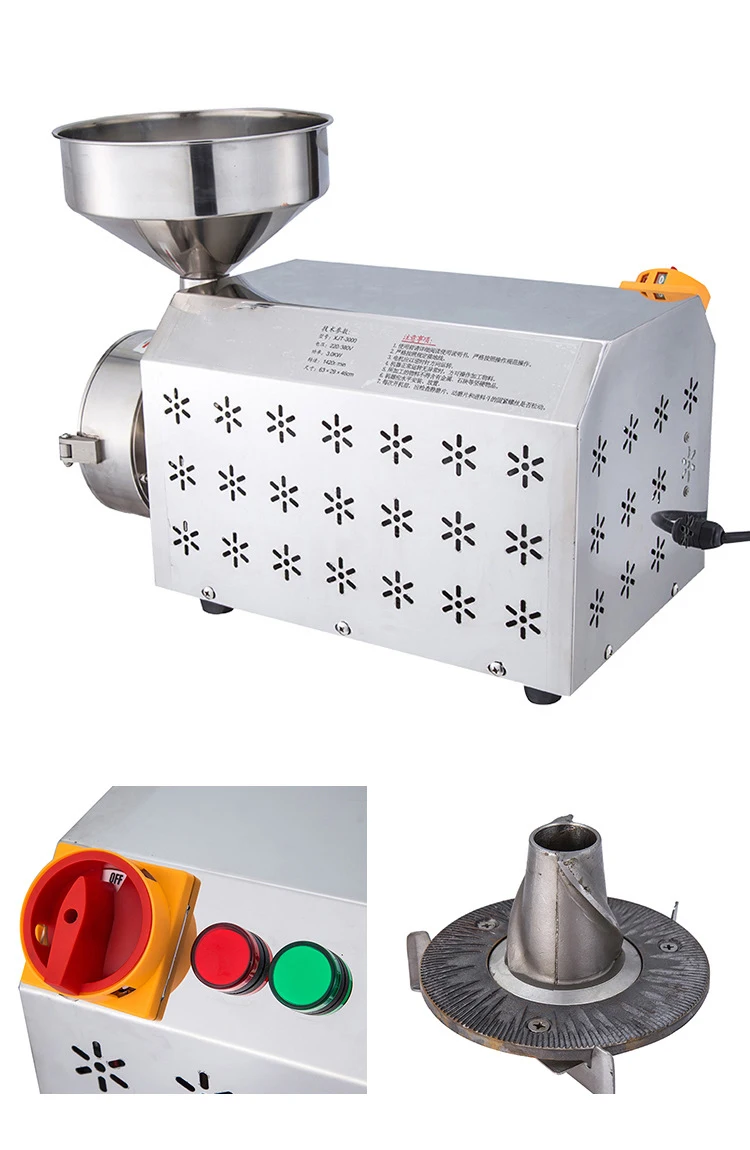

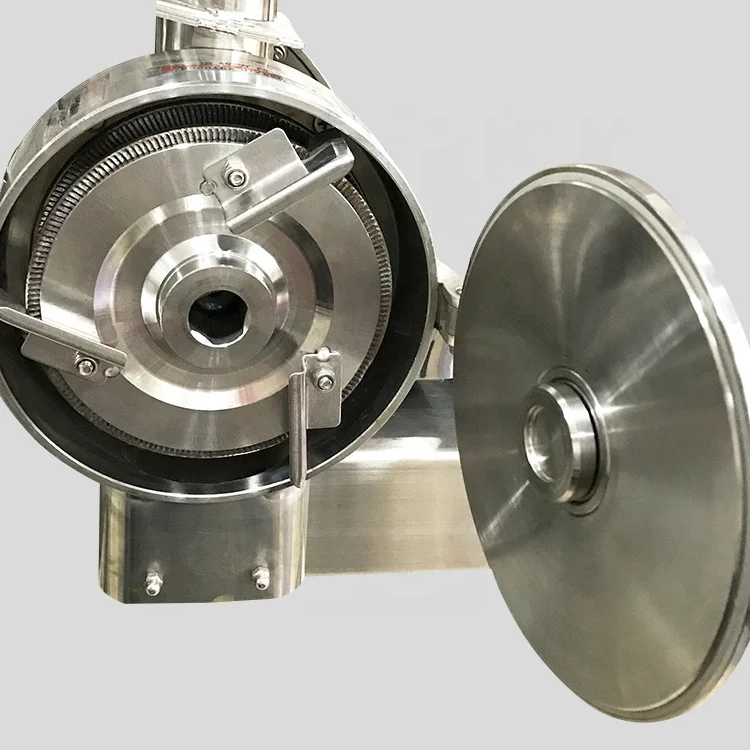

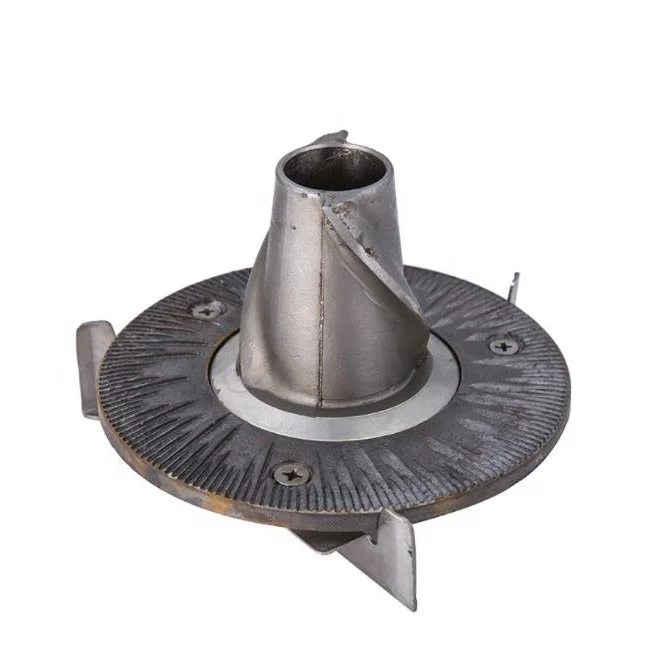

This machine adopts the asynchronous motor to directly drive the grinding disc, so that the two grinding discs rub each other in the working mode to smash the articles. Continuous cutting and smashing one to two times can achieve the desired effect. The crushing fineness is 50-200 mesh,new Gart's new upgraded grain cereal mill uses food grade stainless steel, strong brand copper wire motor, and the fuselage shell is easy to dissipate heat to achieve continuous work and slow heat. The grinding disc uses three scraping chips to easily change the grinding disc without the need to adjust the dynamic balance again. All models use high-power power switches and have circuit observation switches.
Product Paramenters
Model | XJT-1200 | XJT-2200 | XJT-3000 | XJT-3000D |
Voltage | 220v | 220/380v | 220/380v | 220/380v |
Power | 1.1kw | 2.2kw | 3kw | 3.5/4kw |
Workload | 10-20kg/h | 20-40kg/h | 20-50kg/h | 20-60kg/h |
Weight | 27kg | 42kg | 50kg | 60kg |
Appearance size | 470*220*340mm | 600*260*430mm | 630*290*460mm | 690*290*460mm |

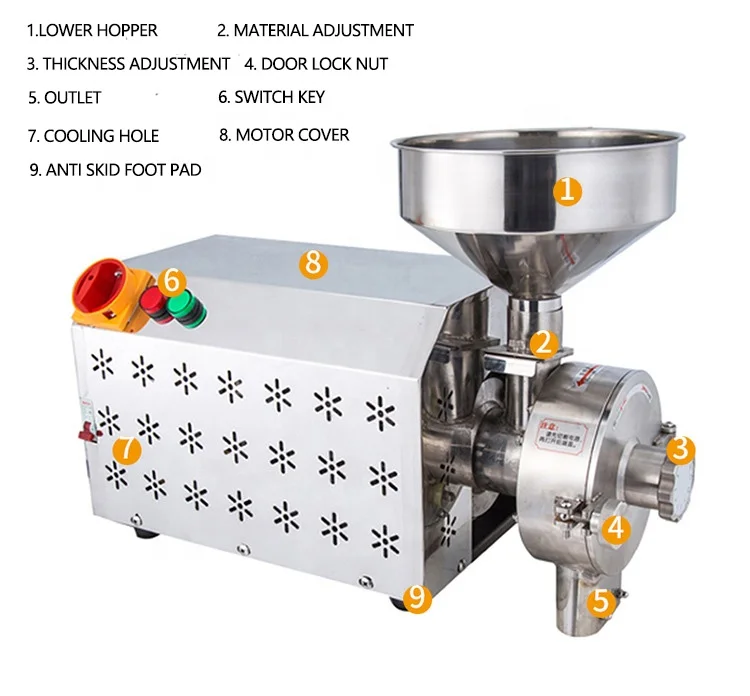

Details Images
Features:

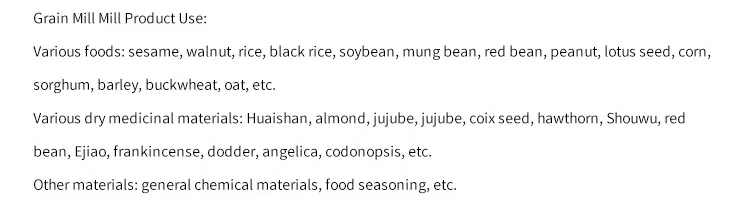

1.It is suitable for Chinese herbal medicines, seasonings, spices, chemicals, etc.
2.the product contact materials are food grade stainless steel, using the national standard copper wire brand motor, flowing water type cutting is not blocking material, continuous work does not heat.
3.according to different requirements, the sieve can be replaced, the fineness of the sieve is 20-200 mesh.
4.Working principle The material enters the pulverizing chamber through the feeding hopper and the feeding hopper, and firstly pulverizes in the first pulverizing chamber by the relative movement between the rotating sprocket and the static sprocket wheel,and the initially pulverized material passes through the upper row of the rotating sprocket wheel. The hole is discharged into the second pulverizing chamber (outer pulverizing chamber), and the hammer head with high speed is rotated in the outer pulverizing chamber, and the relative operation between the high-speed rotating hammer head and the inner ring of the pulverizing inner chamber and the blow, tear and rubbing action are acted upon. The pulverized material is pulverized and discharged into the collecting bag (or) through the screen net under the action of centrifugal force.
1.It is suitable for Chinese herbal medicines, seasonings, spices, chemicals, etc.
2.the product contact materials are food grade stainless steel, using the national standard copper wire brand motor, flowing water type cutting is not blocking material, continuous work does not heat.
3.according to different requirements, the sieve can be replaced, the fineness of the sieve is 20-200 mesh.
4.Working principle The material enters the pulverizing chamber through the feeding hopper and the feeding hopper, and firstly pulverizes in the first pulverizing chamber by the relative movement between the rotating sprocket and the static sprocket wheel,and the initially pulverized material passes through the upper row of the rotating sprocket wheel. The hole is discharged into the second pulverizing chamber (outer pulverizing chamber), and the hammer head with high speed is rotated in the outer pulverizing chamber, and the relative operation between the high-speed rotating hammer head and the inner ring of the pulverizing inner chamber and the blow, tear and rubbing action are acted upon. The pulverized material is pulverized and discharged into the collecting bag (or) through the screen net under the action of centrifugal force.
