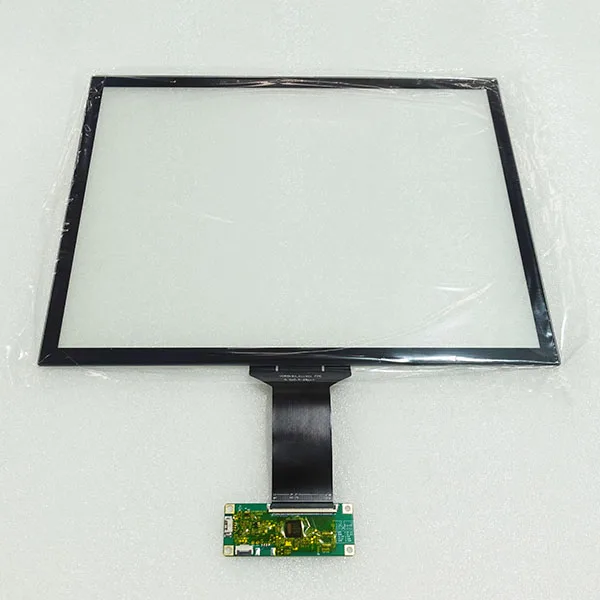

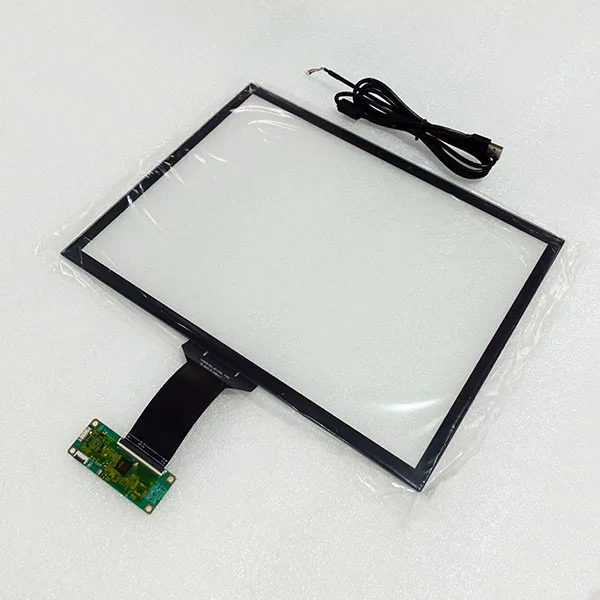

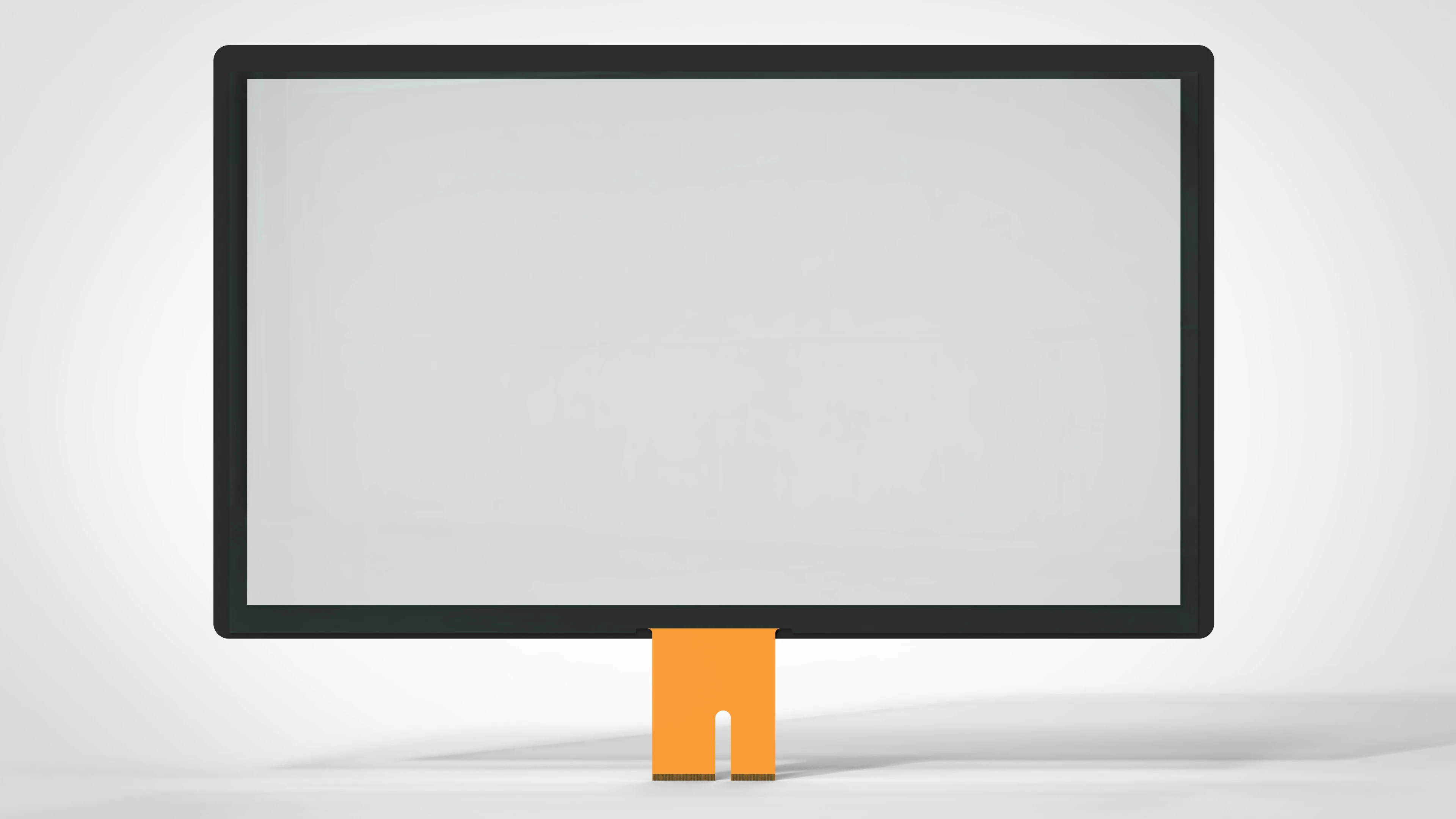

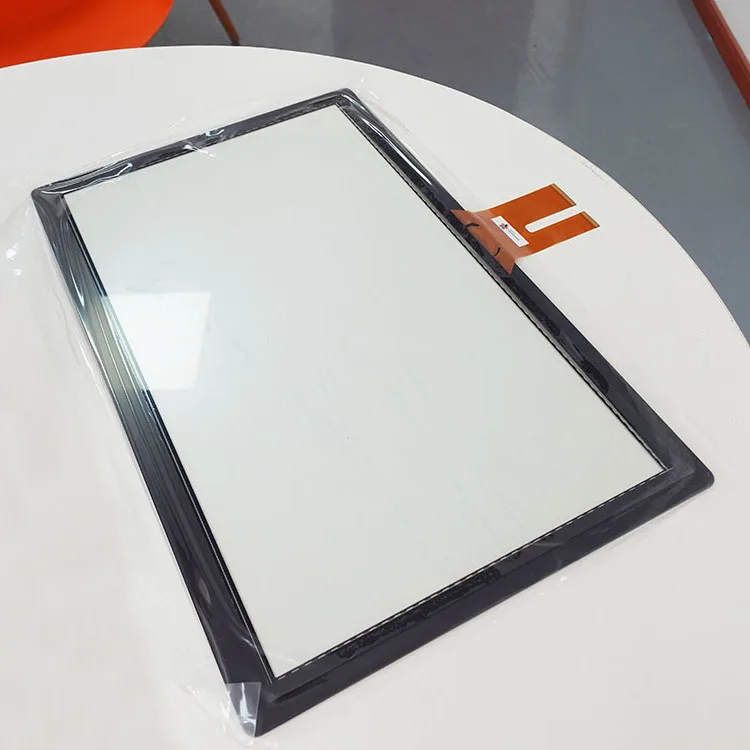

touch screen with h d m i capacitive touch sensors 5v touch screen panel
- Category: >>>
- Supplier: Markhub Smartech (Suzhou) Co. Ltd.
Share on (1600530352355):
Product Overview
Description
Specification
Item | Specification | Unit | |
Viewing Area | 699.4(L)×393.9(W) | mm | |
Cover lens O.D. | 809(L)×504(W) | mm | |
Sensor O.D. (X) | 715.32 | mm | |
Sensor O.D. (Y) | 413.62 | mm | |
Transparency | ≧85% | - | |
Power Consumption | Active Mode: Max.120mA @ USB Input 5V | ||
Idle Mode: 90mA @ USB Input 5V | mm | ||
Sleep Mode: less than 1mA @ USB Input 5V | mm | ||
Stacked Structure
Controller on Board

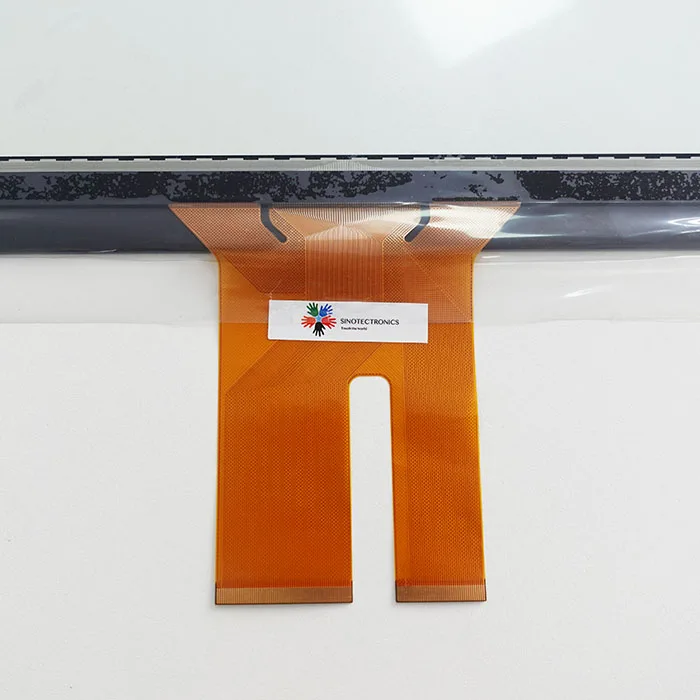

Controller on FPC
Item | Specification | Unit |
Cover | 4.0 | mm |
Top OCA | 0.125 | mm |
Film Sensor | 0.125 | mm |
Bottom OCA | 0.125 | mm |
Film Sensor | 0.125 | mm |

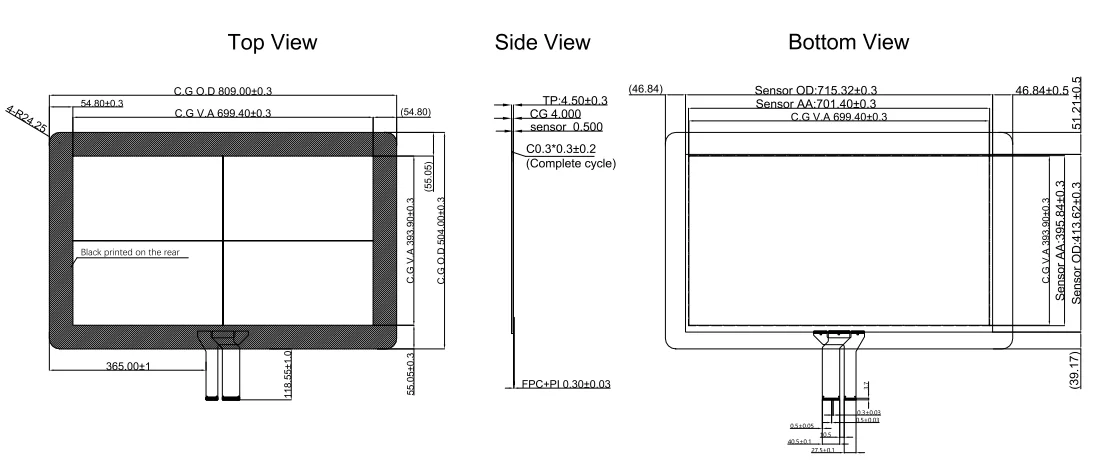

Drawing

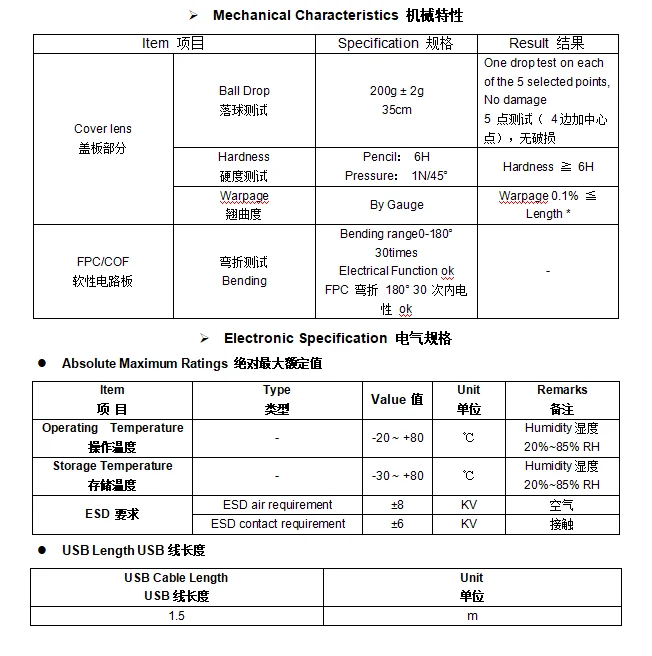

Related Tests

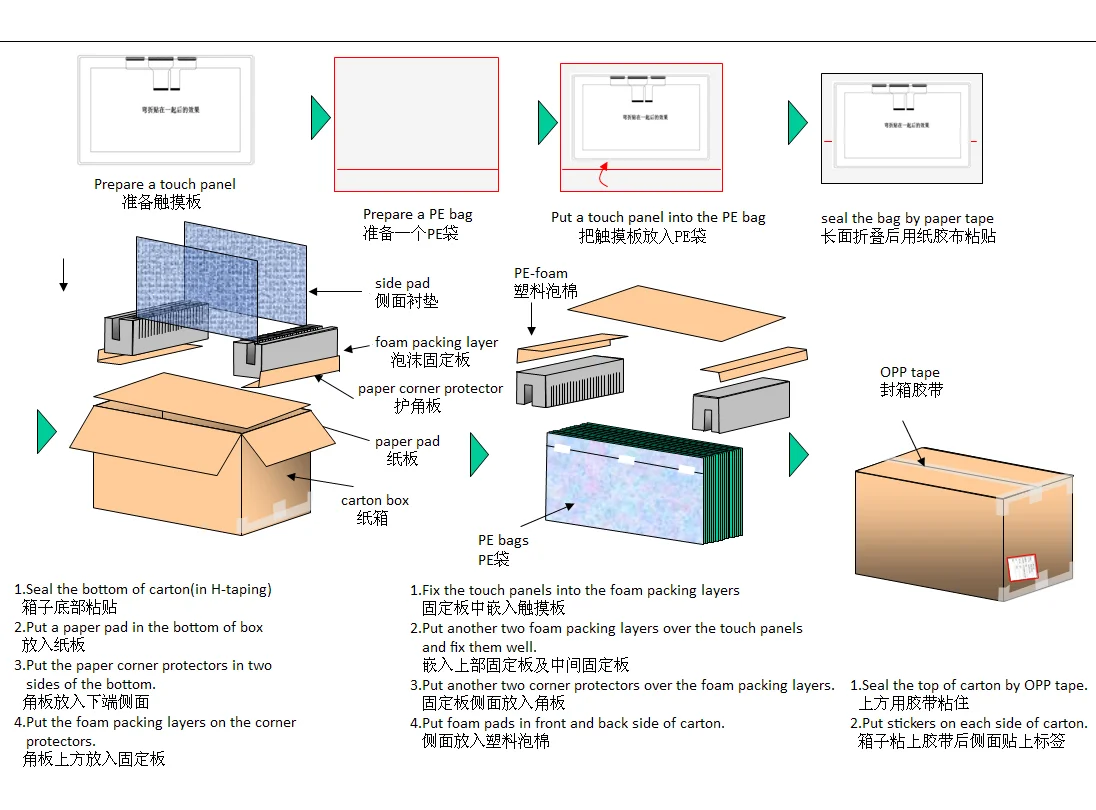

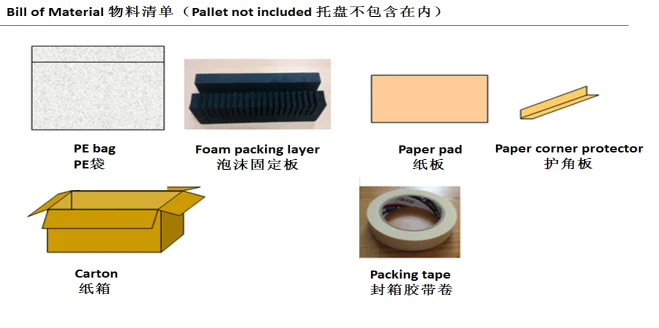

Packing
Company Profile
MARKHUB SMARTECH CO., LTD. is a branch of SINOTECTRONICS INC., concentrating on serving SNT-IPD product R+D and manufacturing.
With strong background of professional touch technologies and Display solutions, we are dedicating to offer to global market with our standard quality products as well as customized products. Markhub products are exported to more than 40 countries and regions globally via Sinotectronics, as the business grow steadily, we are happy to introduce our own branded products with unique design, like iTAYFT branded for our touch monitor series, and MIRROAWILLOV branded for our Mirror series products, moreover, our products are widely used in Retail, Signage, Gaming Machine, ATM/VTM, Education and Meeting, etc.
We would like to grow together with you and provide you more and more excellent products for serving the market, let’s join hand together, touch the world!

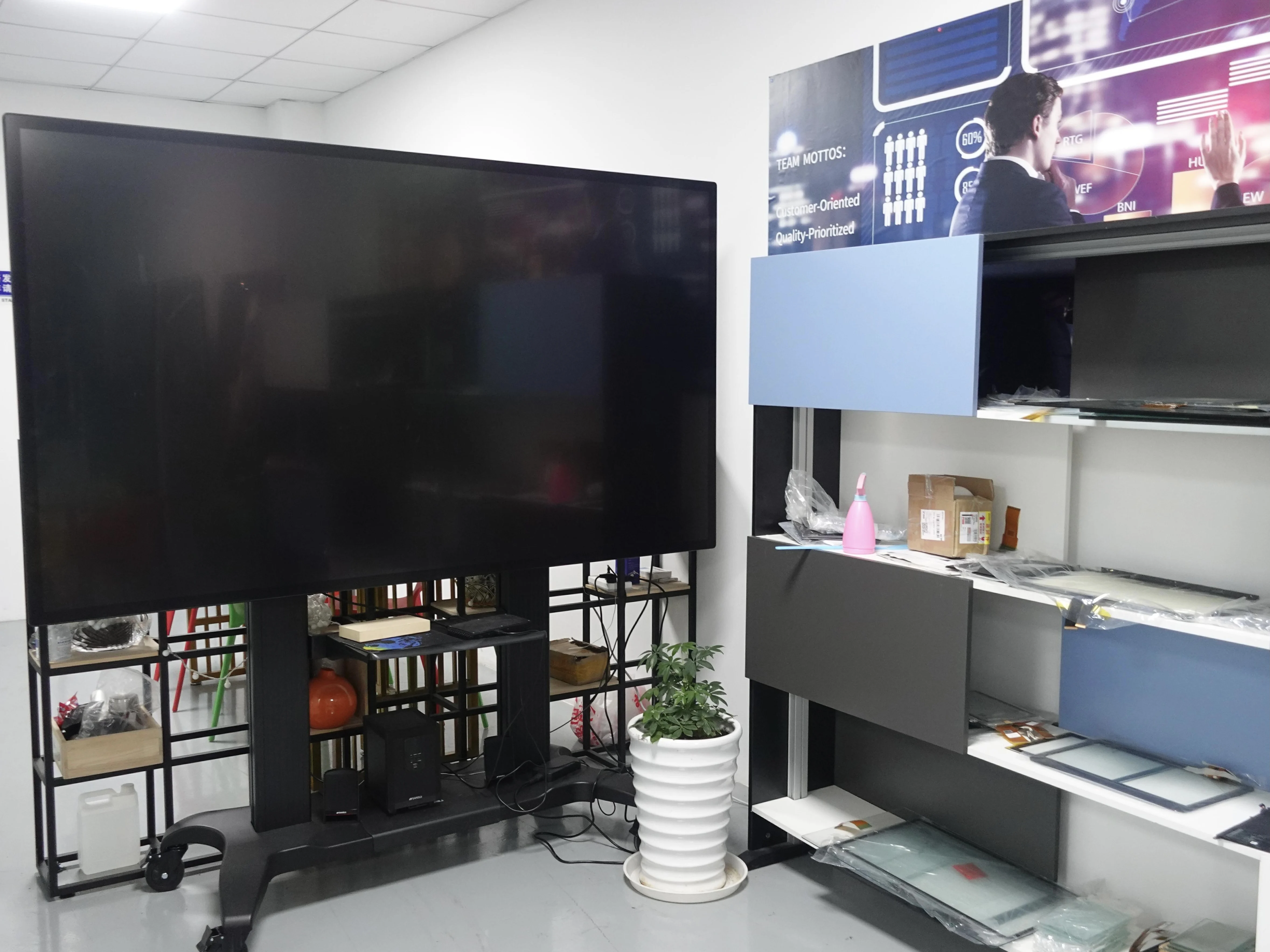

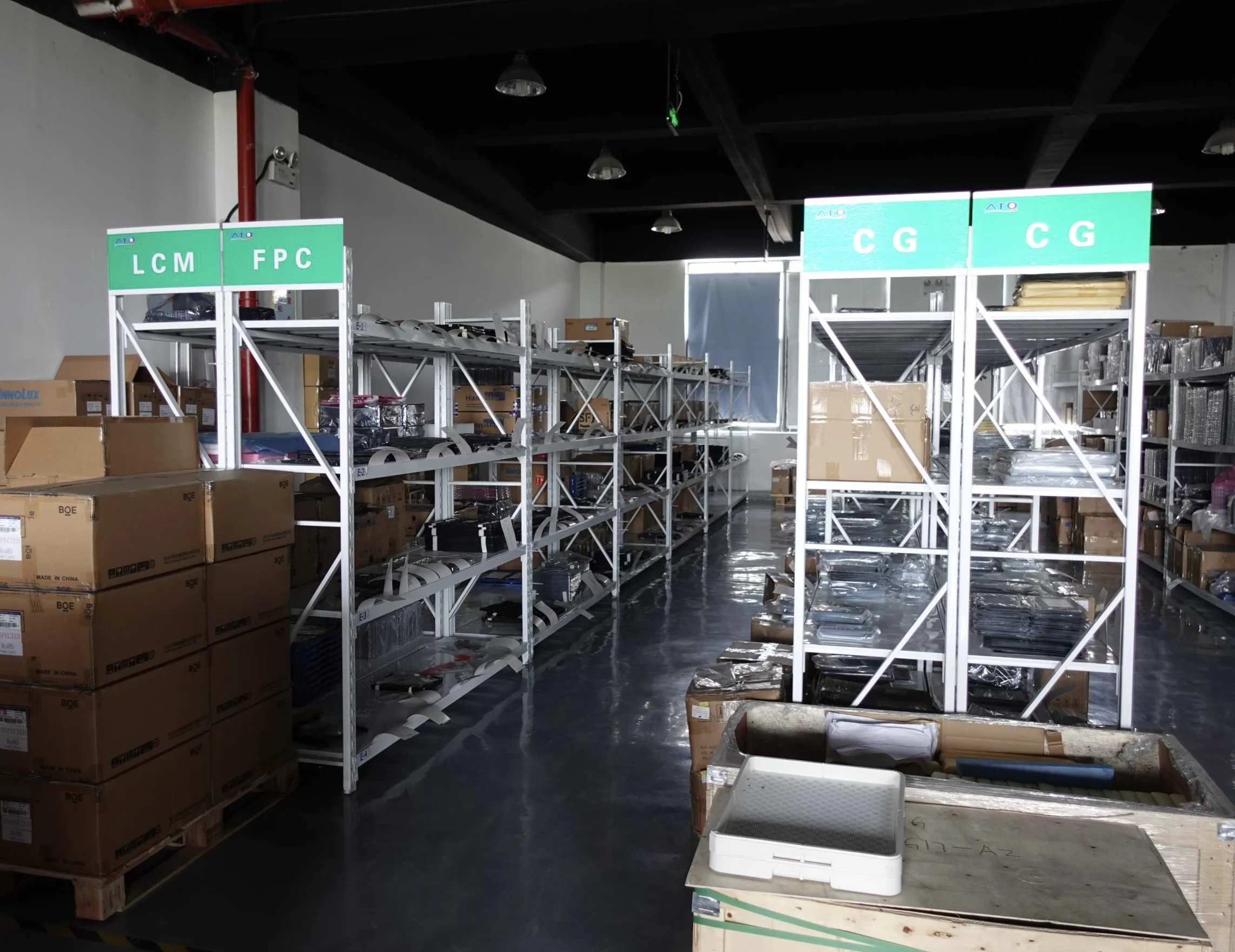

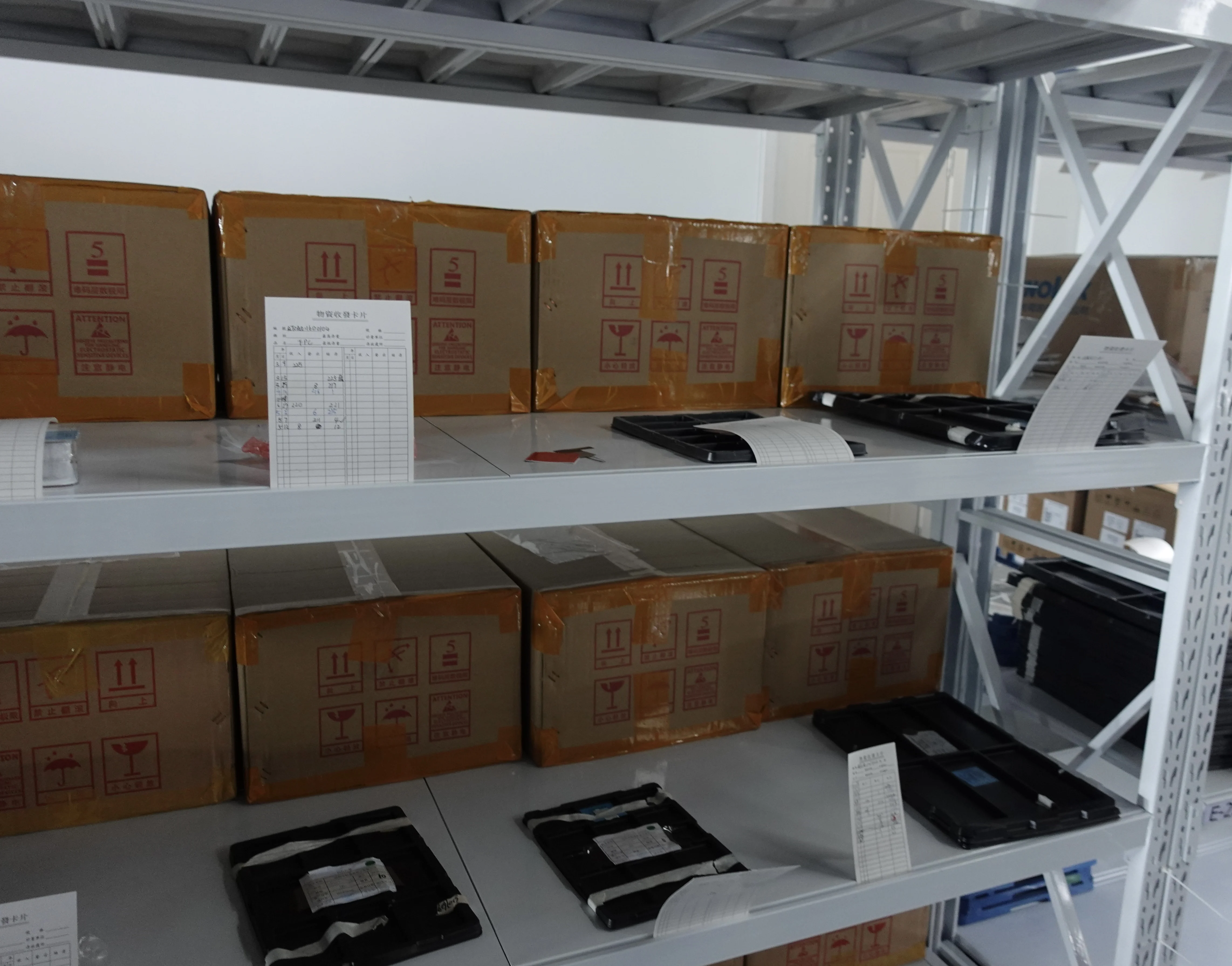

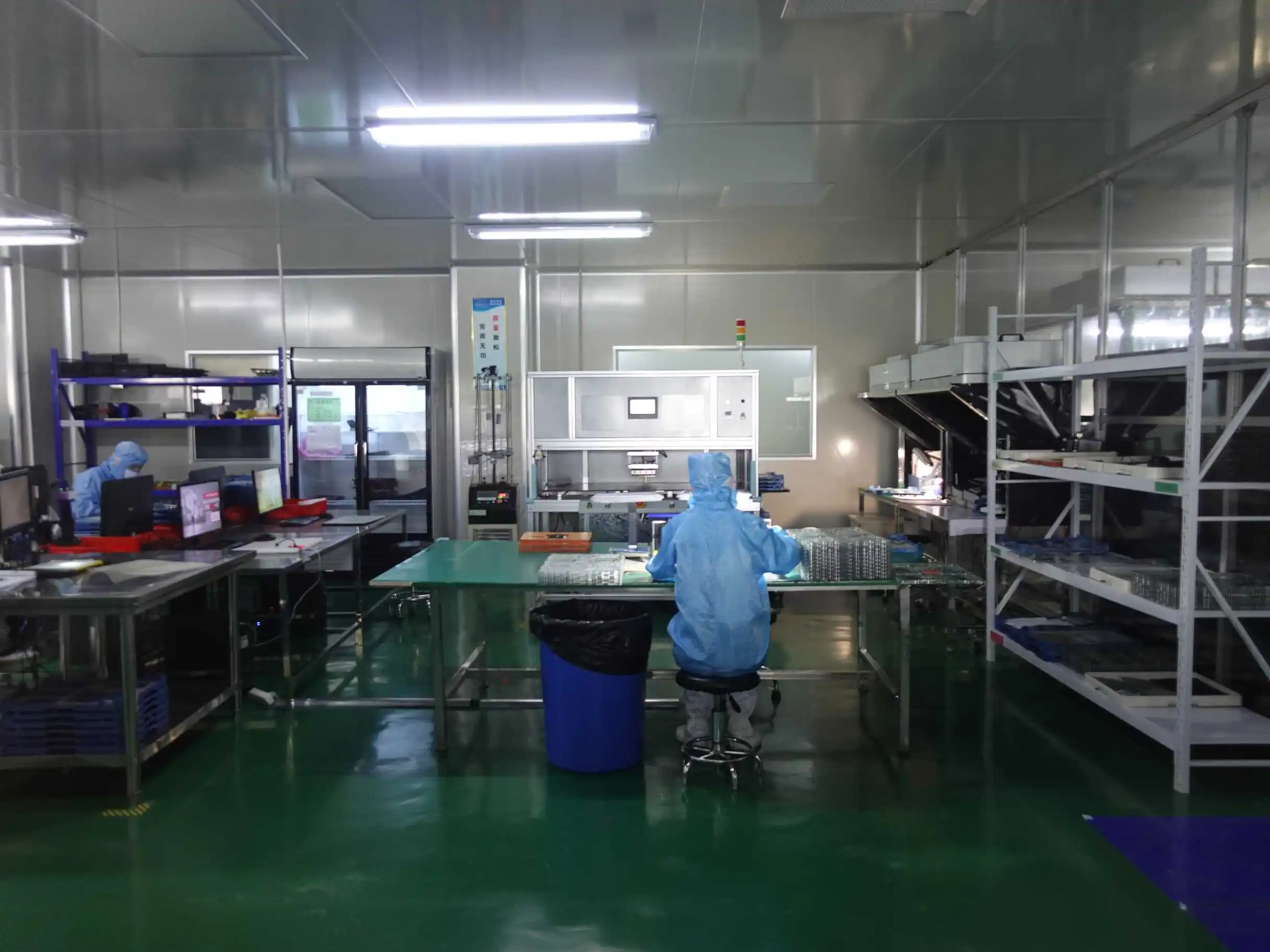

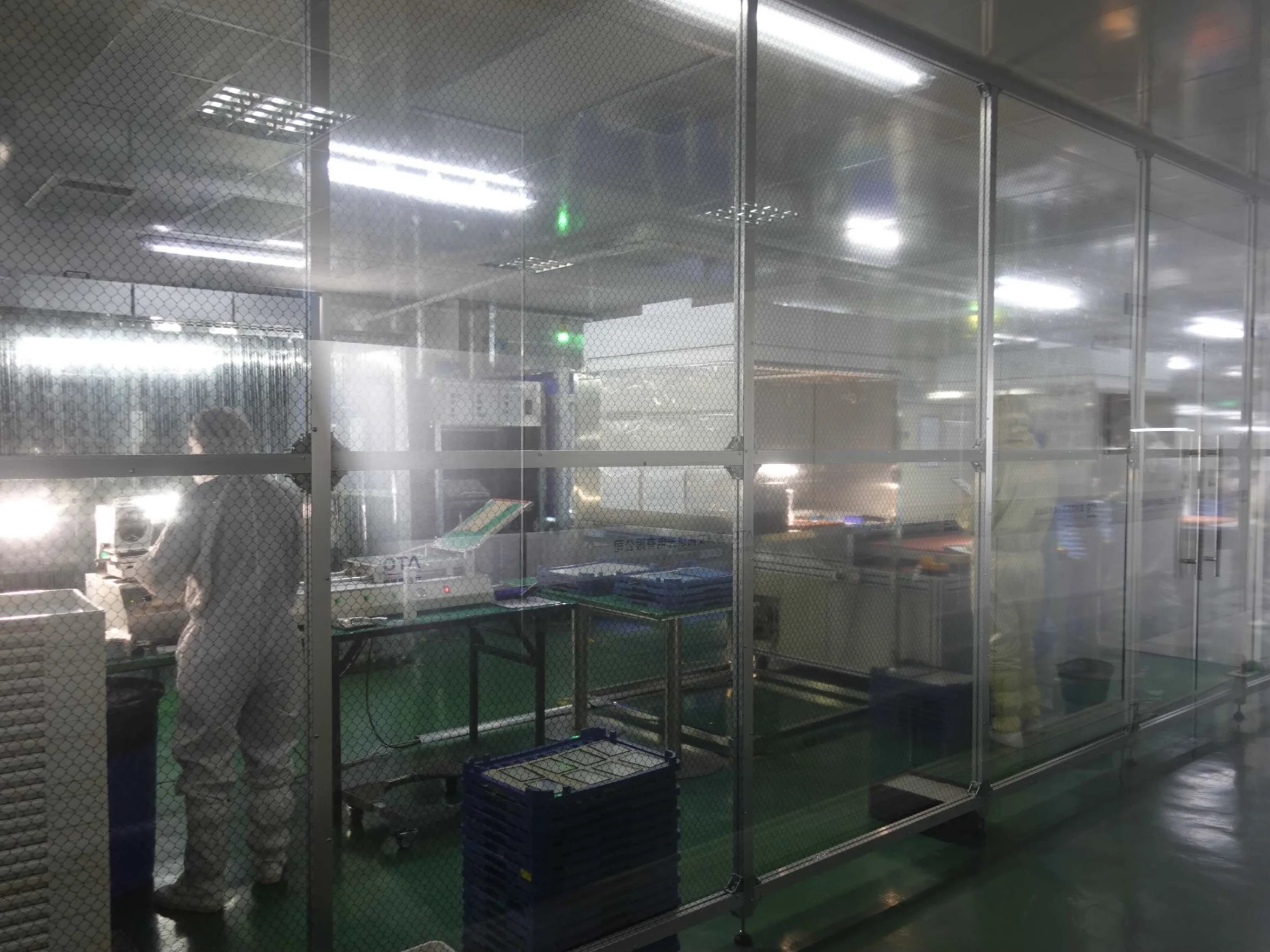

Our Workshop
