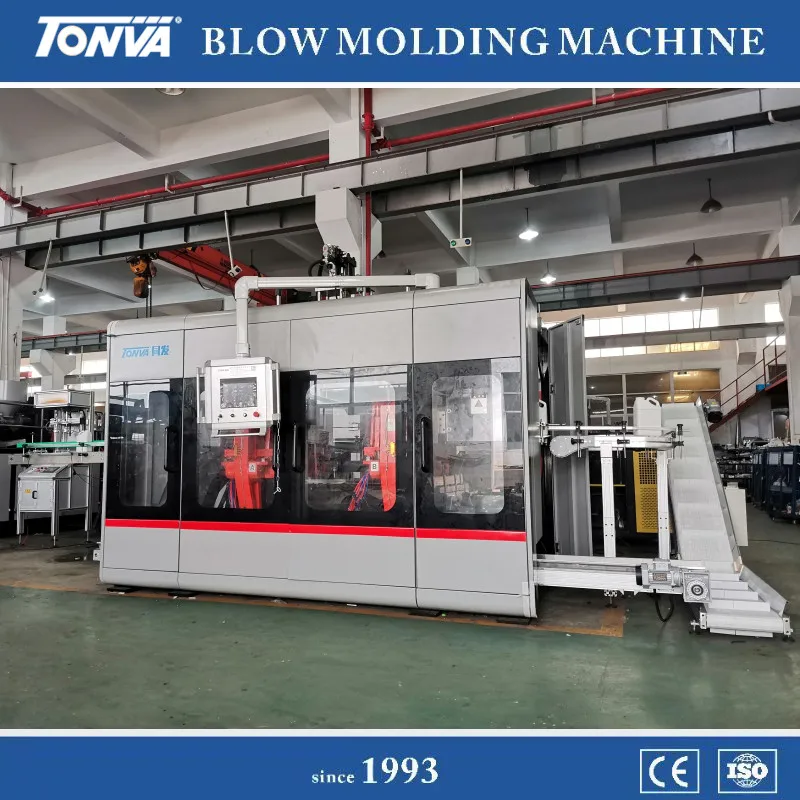

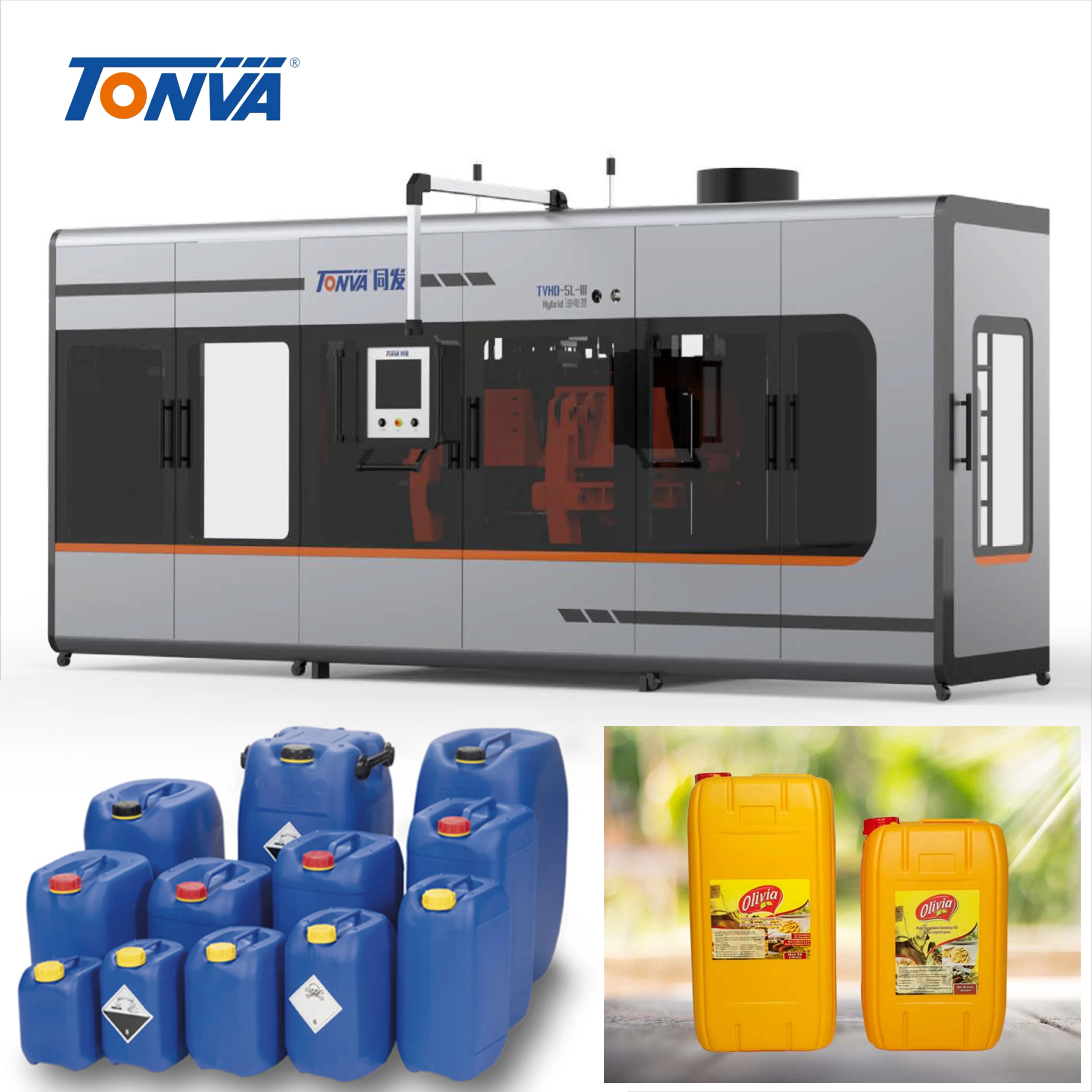

Tonva Making 5 Gallons Motor Oil Barrel Extrusion Blow Molding Machine
- Category: >>>
- Supplier: Zhejiang Tonva Plastics Machine Co. Ltd.
Share on (1600530367295):
Product Overview
Description
Product Description
1. Double stations, single die-head;
2. Single layer, suitable for HDPE material;
3. Hydraulic/ Hybrid/ Electric driven for
option;
option;
4. Two platens with arm toggle clamping structure, liner guide way for clamping and moving;
5. With lubrication system;
6.Power supply: 380v/50hz/3ph (depending on clients requests);
7. Fully automatic design to save labor cost.
8. Optional for view strip;
9. Optional for adding parison controller;
10. Optional for multiple layers co-extrusion

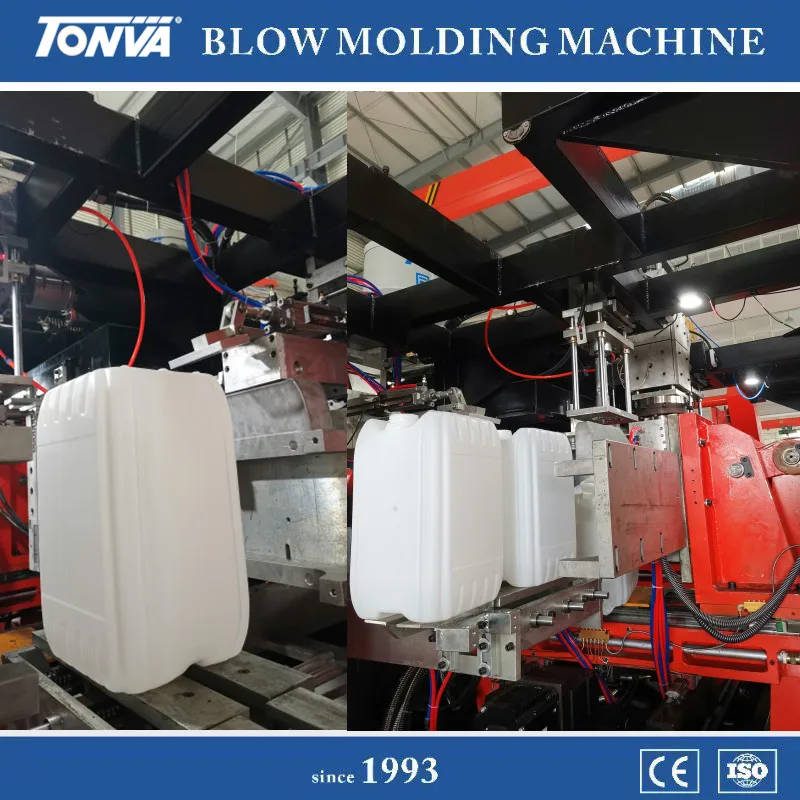

11. Suitable for making all kinds of oil bottles /drums/ jerrycan/ barrels/ tanks/ canisters/ containers;
Main Configuration
.* Screw: specially designed based on material’s trait, high quality nitriding steel 38CrMoAl, with nitriding surface HV≥800,
brittleness≤2;
* Barrel: high quality nitriding steel 38CrMoAlA, with nitriding surface HV≥900，brittleness≤2;
* Drive Mode: inverter and hard gear surface decelerator;
* Temperature Controlling: automatic temperature control model;
* Cooling Mode: adopting water cooler for the processing zone, fan cooler for the rest zones;
* Die-head System: the melting plastic out of the extrusion system is divided through the core parts of die-head, distributed by the die-head channel to become several shaped sections;

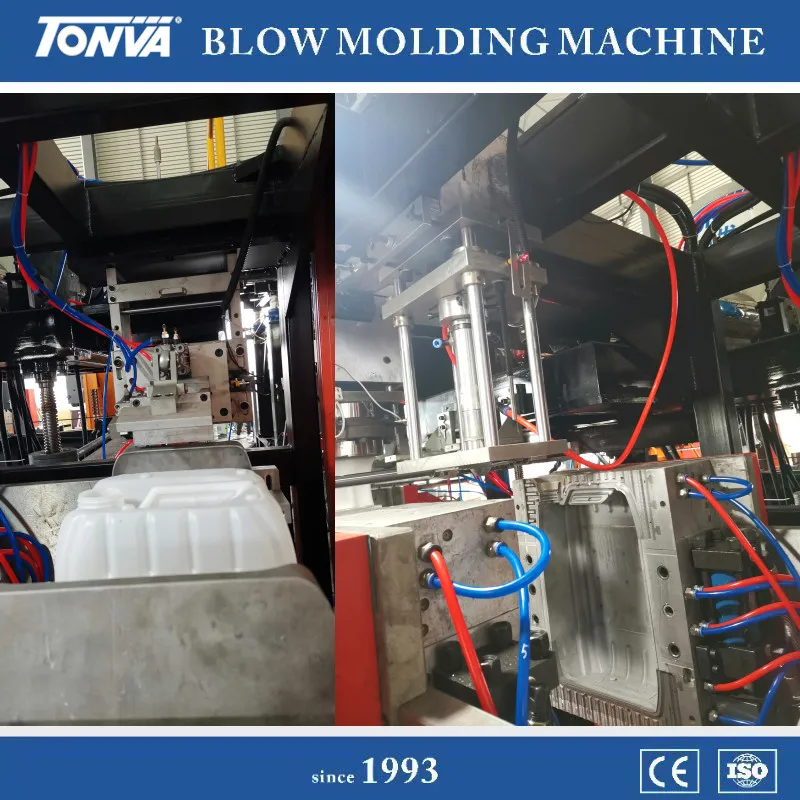

* Clamping System: fixed clamping system, double tie-bar, single cylinder clamping wider space for the mould, installing and dismantling the mould easily, linear roll guide rail;
* PLC + HMI: adopting PLC to control the action program of the whole machine; adopting HMI for communication, parameter setting, modification and picture display; every parameter could be set and modified directly with the complete obstacle self-diagnosing function, menu operated directly and conveniently;
brittleness≤2;
* Barrel: high quality nitriding steel 38CrMoAlA, with nitriding surface HV≥900，brittleness≤2;
* Drive Mode: inverter and hard gear surface decelerator;
* Temperature Controlling: automatic temperature control model;
* Cooling Mode: adopting water cooler for the processing zone, fan cooler for the rest zones;
* Die-head System: the melting plastic out of the extrusion system is divided through the core parts of die-head, distributed by the die-head channel to become several shaped sections;
* Clamping System: fixed clamping system, double tie-bar, single cylinder clamping wider space for the mould, installing and dismantling the mould easily, linear roll guide rail;
* PLC + HMI: adopting PLC to control the action program of the whole machine; adopting HMI for communication, parameter setting, modification and picture display; every parameter could be set and modified directly with the complete obstacle self-diagnosing function, menu operated directly and conveniently;

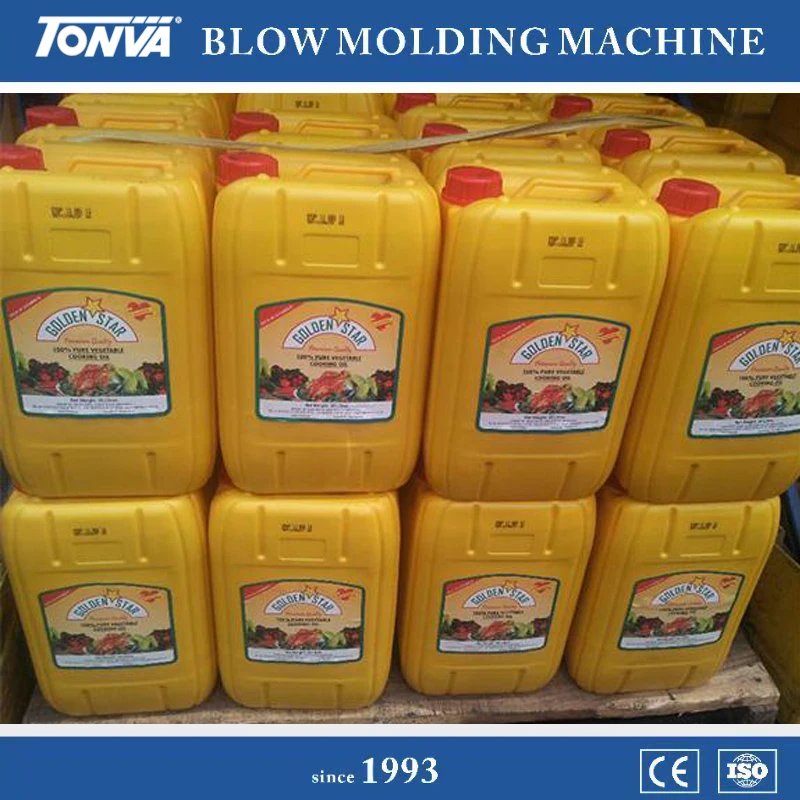

Application

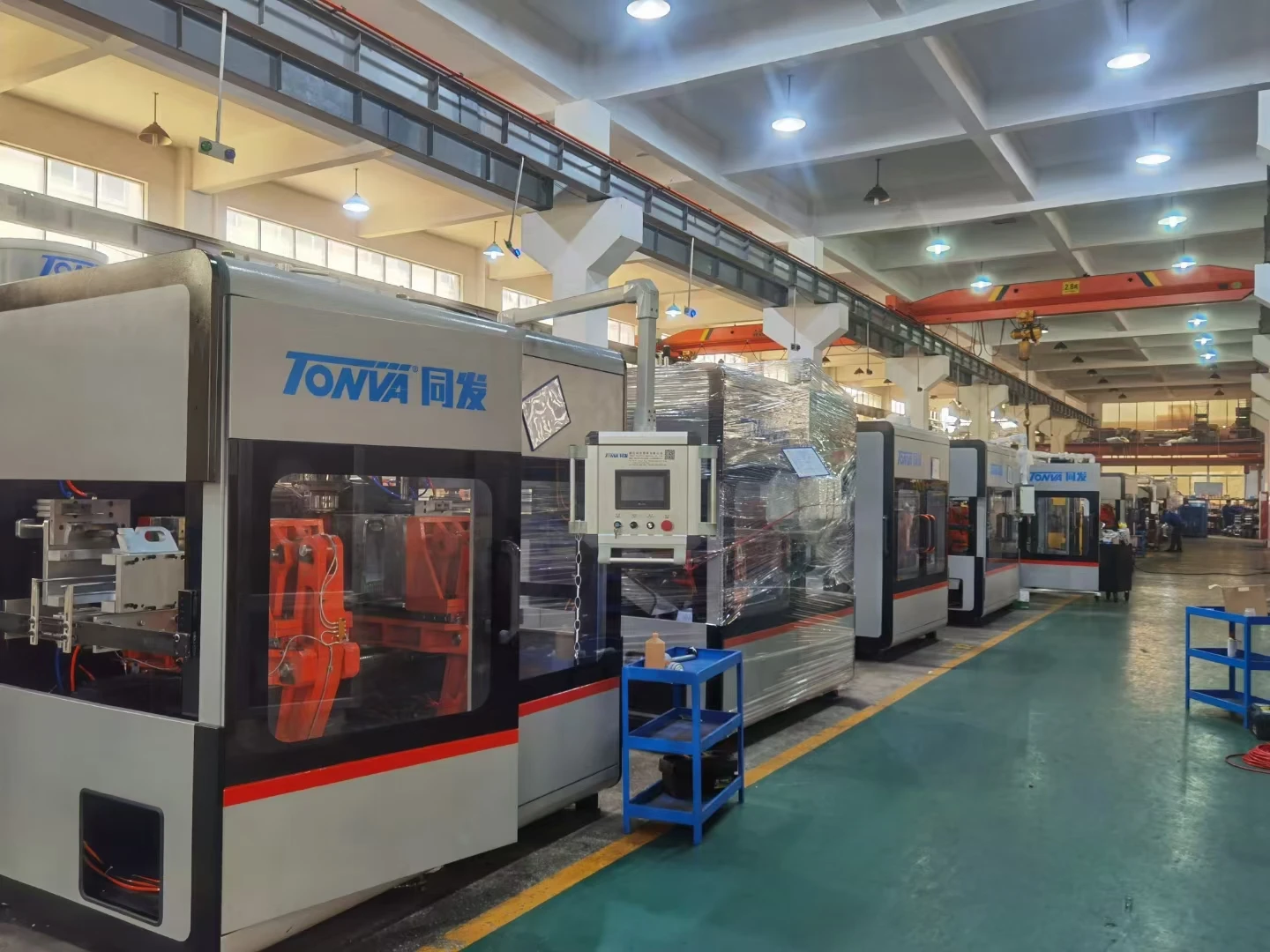

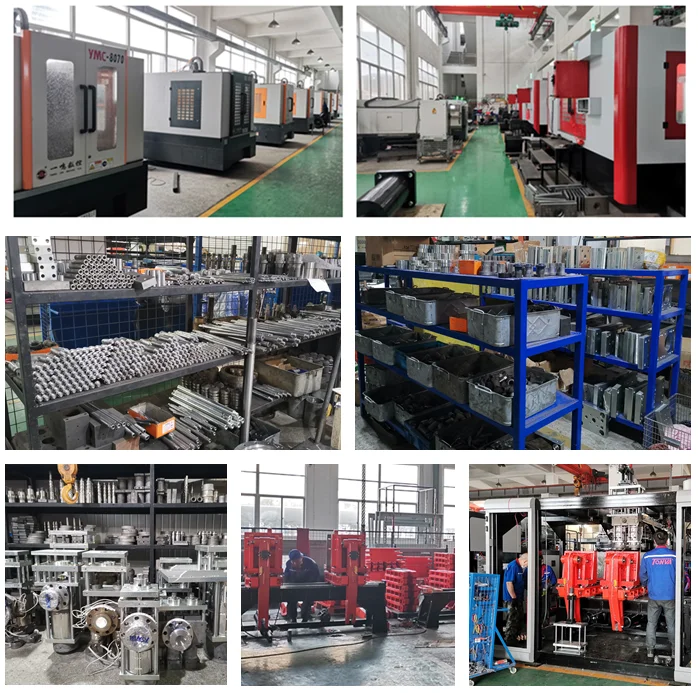

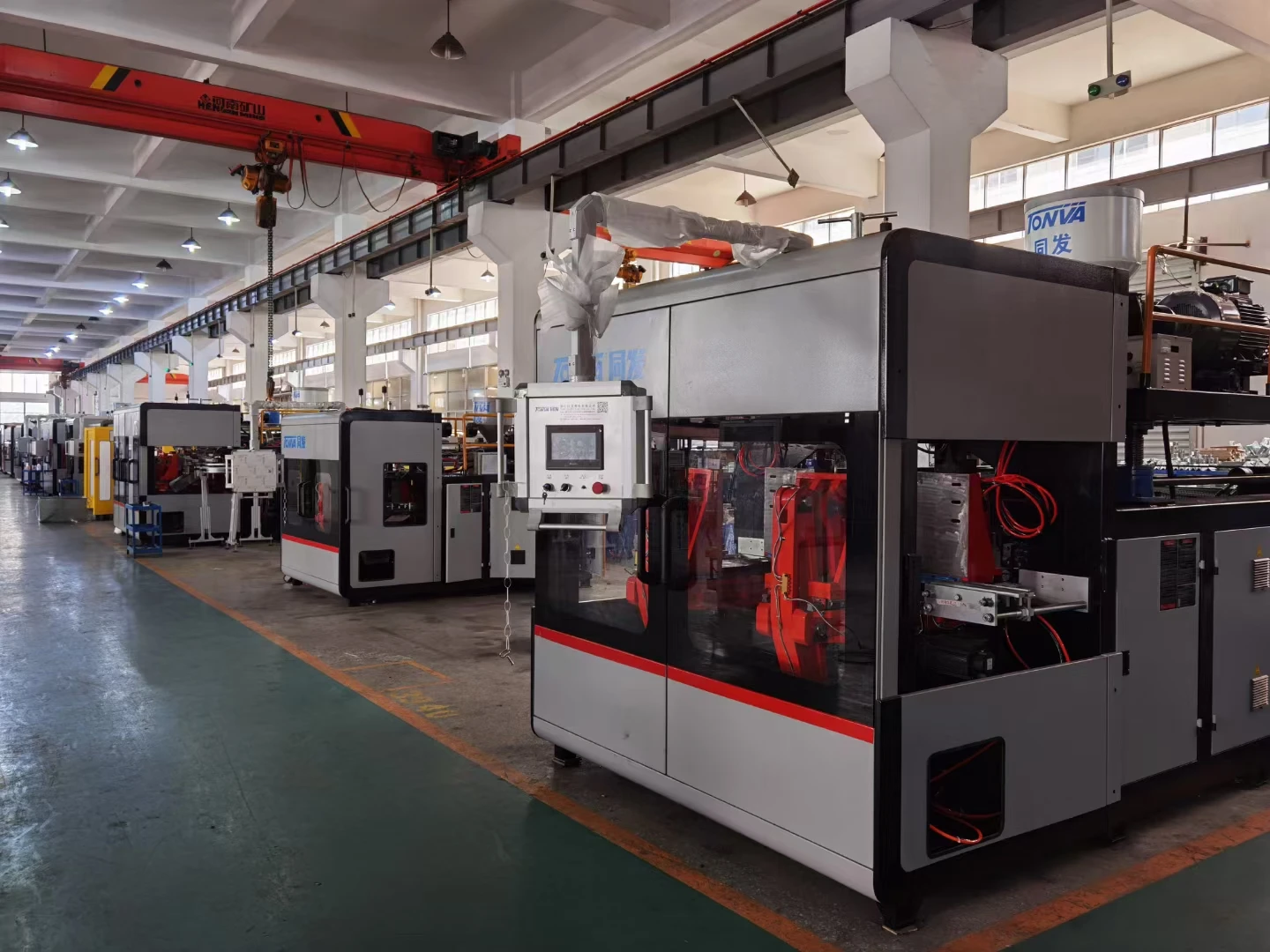

Our Plant

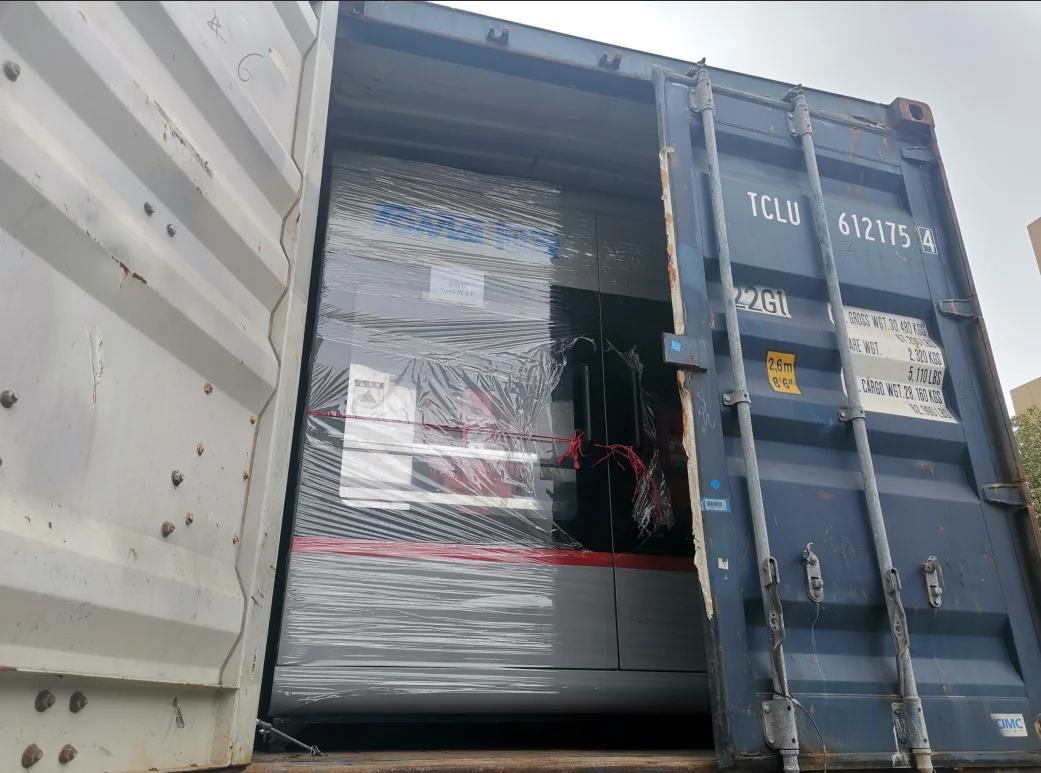

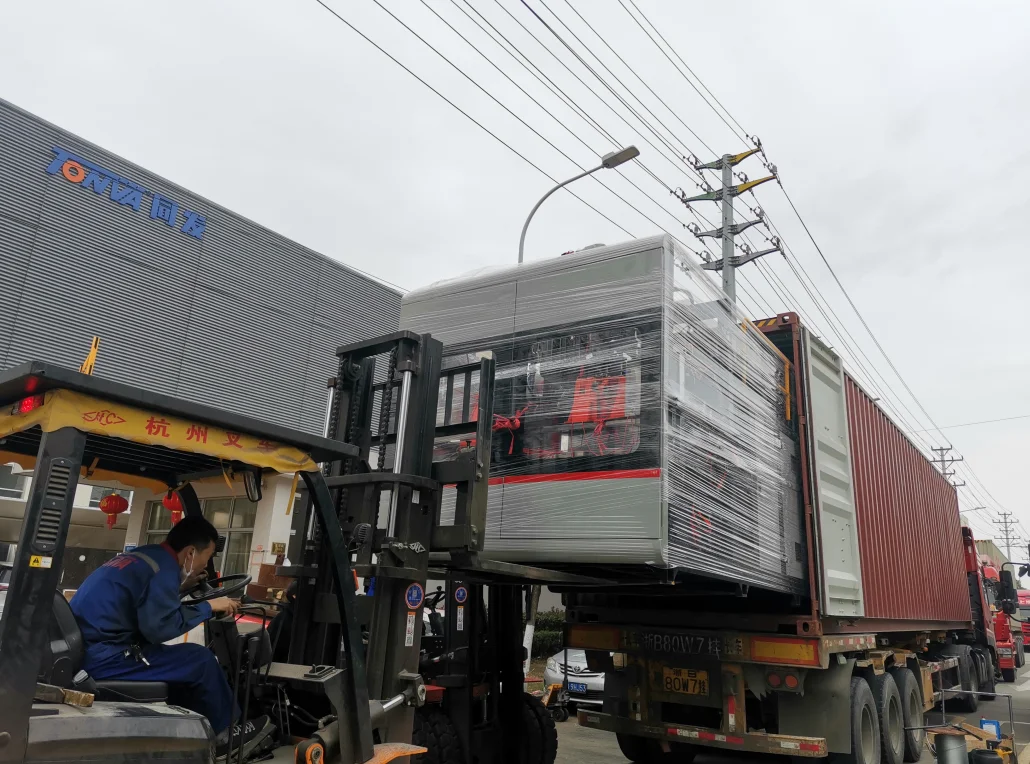

Packing & Delivery
Our Service
* 24-hour response by email or telephone;
* Full production line available;
* OEM and ODM service provided;
* Technical support online service provided;
* On-site training and installation service provided;
* Spare parts replacement and repair service provided;
* Constant back-up support service;
* Consultancy solutions for plastic products from new start-up business to large group.
* Full production line available;
* OEM and ODM service provided;
* Technical support online service provided;
* On-site training and installation service provided;
* Spare parts replacement and repair service provided;
* Constant back-up support service;
* Consultancy solutions for plastic products from new start-up business to large group.
