Product Overview
Description
Rotary Evaporator Crystallizer Labtech Rotary Evaporator 50L
Product Description
| Model | R1005/1006 | R1010 | R1020 | R1050 |
| Optimum Ambient(℃) | 5~35 | |||
| Power Supply(V/Hz) | Single phase 220/60 | Three phase 380/60 | ||

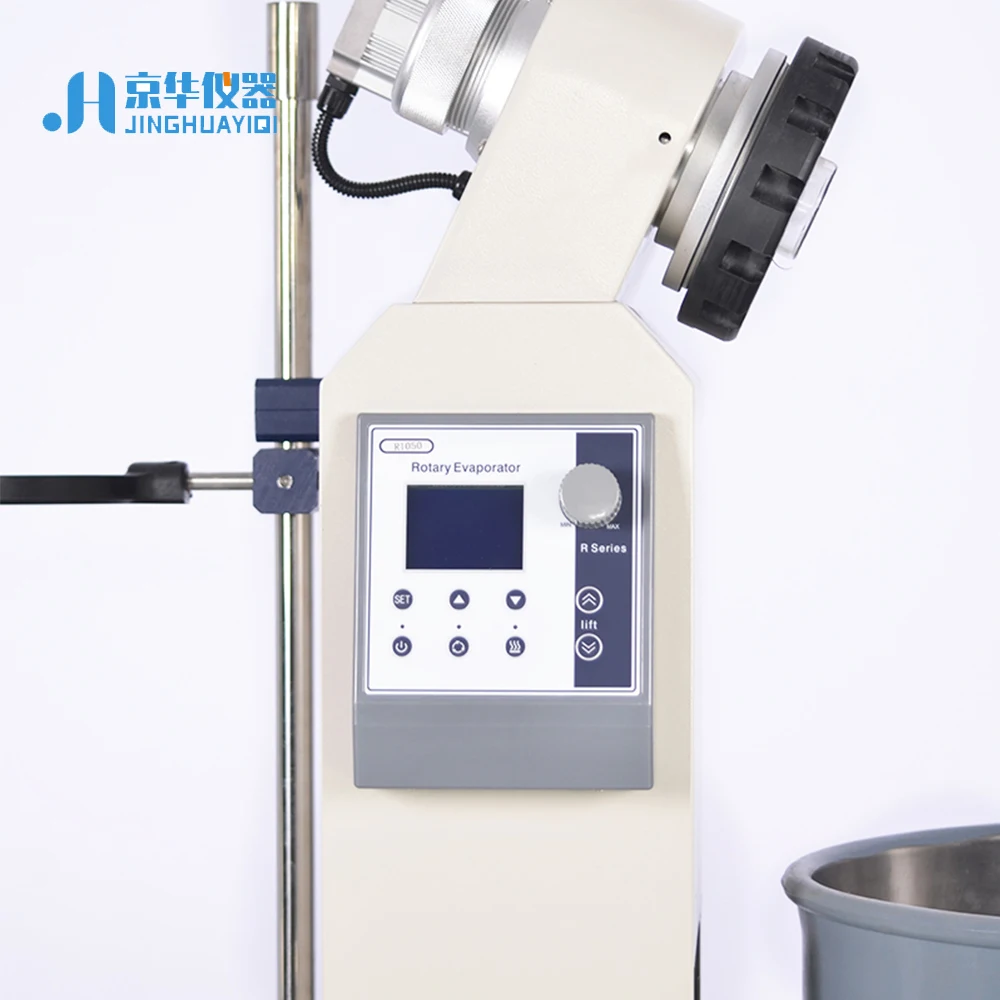

| Host speed | Digital display frequency conversion stepless speed regulation | Digital DC stepless speed regulation | ||
| Motor Rotating Control(rpm) | 10~140 | 20~130 | 20~110 | |
| Rotary motor(W) | 40 | Brushless 250 | ||
| Temperature Control(℃) | Digital Display,Room Temp-99 | |||
| Maximum vacuum(Pa) | 399.9(≤3mmHg) | |||

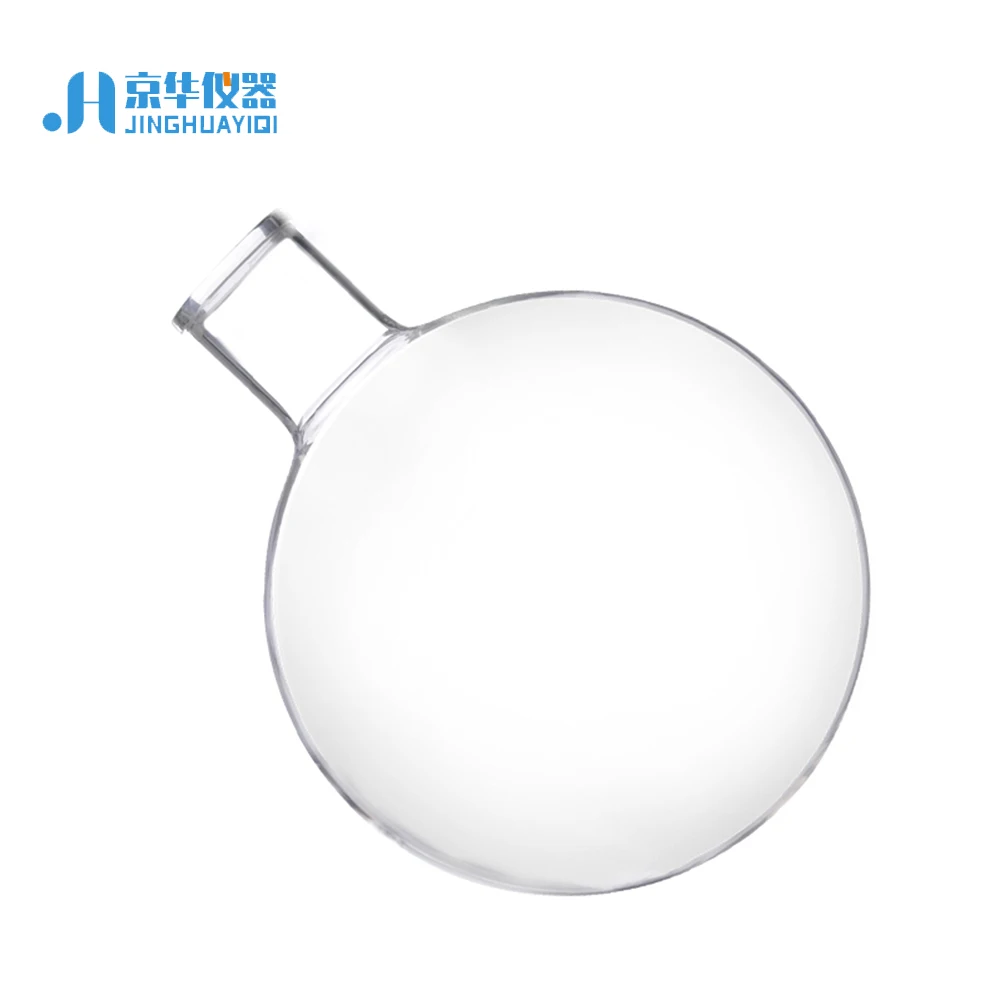

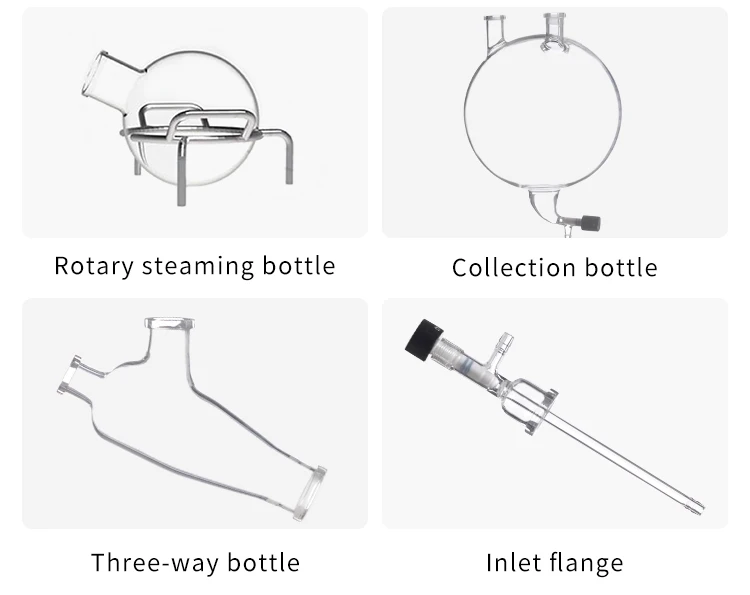

| Rotary Flask(L) | 5/6 FlangetypeØ50 | 10 FlangetypeØ125 | 20 FlangetypeØ125 | 50 FlangetypeØ125 |
| Collection Flask(L) | 3 | 5 | 10 | 20 |

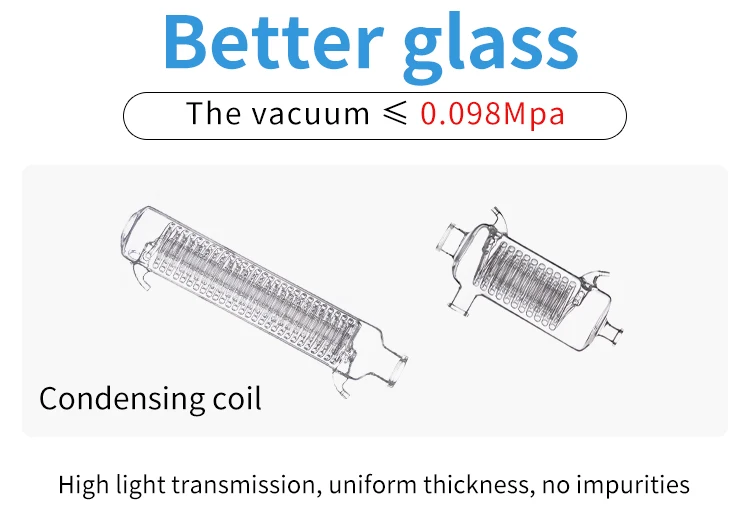

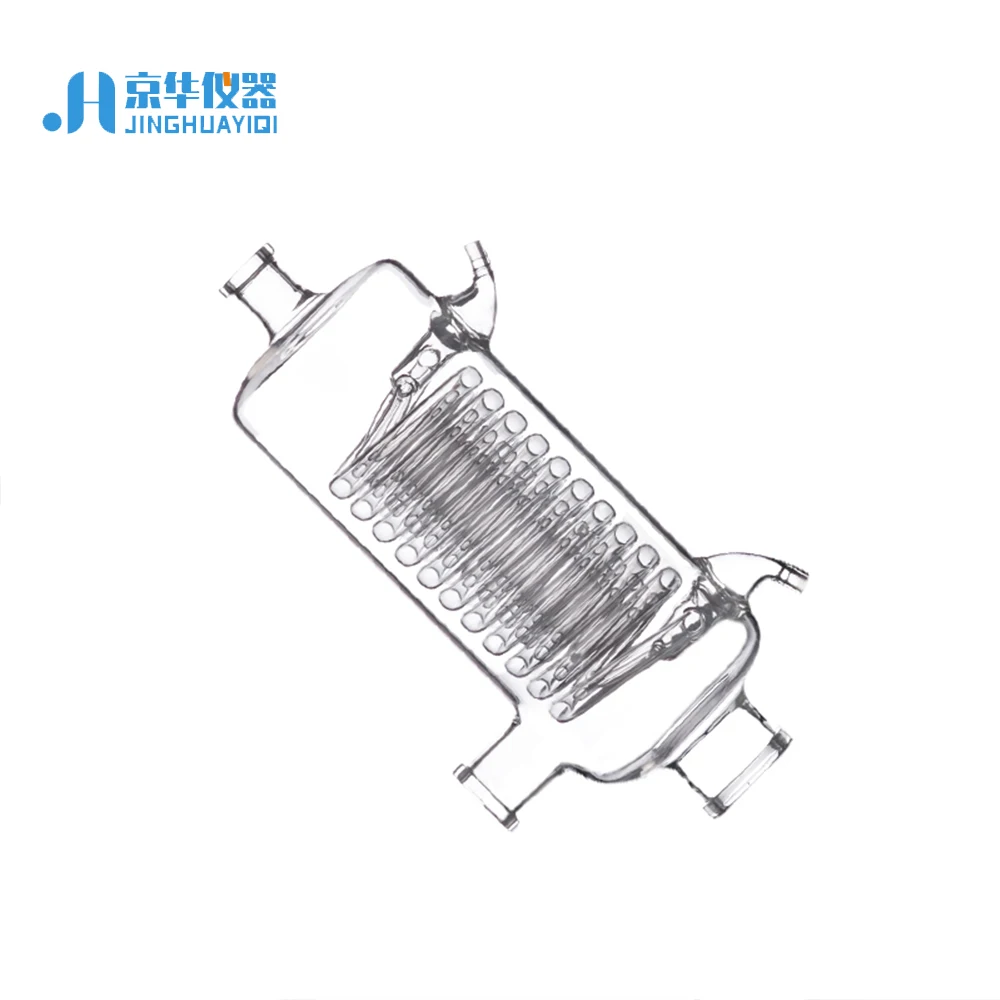

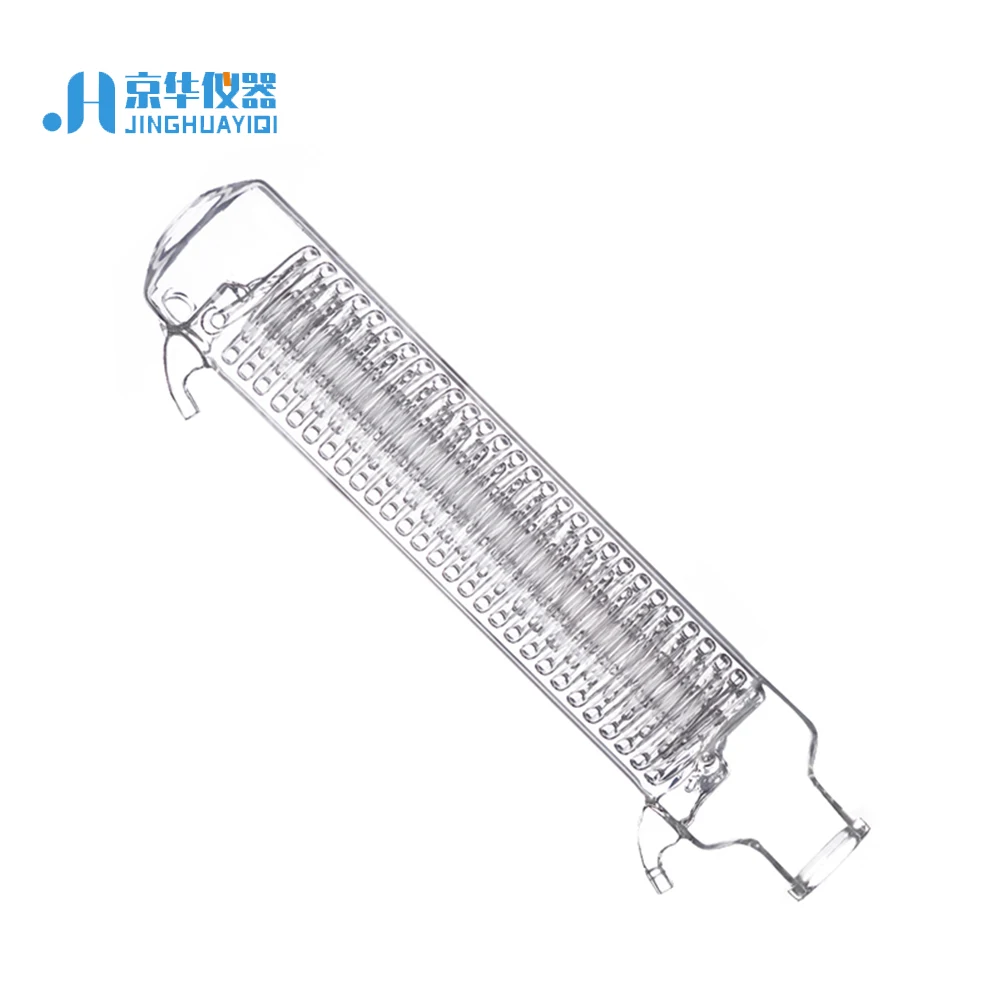

| Condenser | Vertical double serpentine tube | Vertical, main cold + sub-cool, high efficiency three-return condenser | ||
| Condensation area(m2) | 0.27 | Main cold 0.42 Deputy cold 0.22 | Main cold 0.8 Deputy cold 0.39 | Main cold 0.91 Deputy cold 0.52 |
| Evaporation Speed(L/h) | Water≥2 Alcohol≥4 | Water≥3.5 Alcohol≥7 | Water≥5 Alcohol≥13 | Water≥10 Alcohol≥23 |
| Water bath material | Stainless Steel | |||
| Bath Size(mm) | Φ300×170 | Φ350×220 | Φ450×260 | Φ550×320 |
| Lift Type | Electric(Automatic) lift | |||
| Lift Distance(mm) | 0~150 | 0~160 | 0~190 | 0~180 |
| Motor Power(kW) | 2.0 | 3.0 | 4.0 | 4.0(220V) |
| Dimension(mm) | 860×500×1000 | 920×550×1700 | 1250×600×2100 | 1320×770×2340 |
