HVHIPOT GDQH 601 SF6 Gas Recovery Device Vacuumizing and Refilling Devices For Switchgear

Product Overview

Description

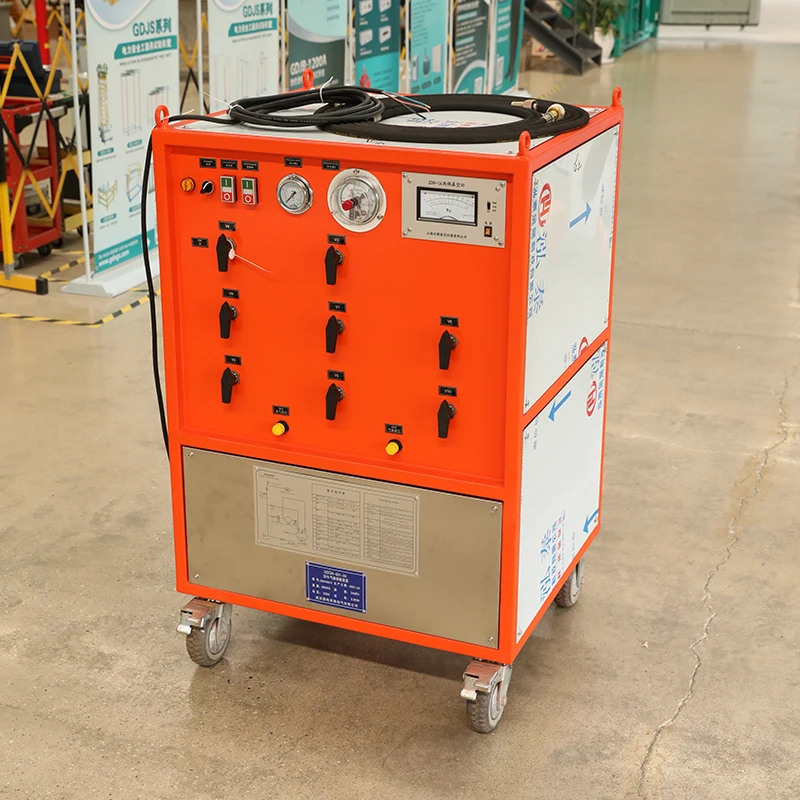

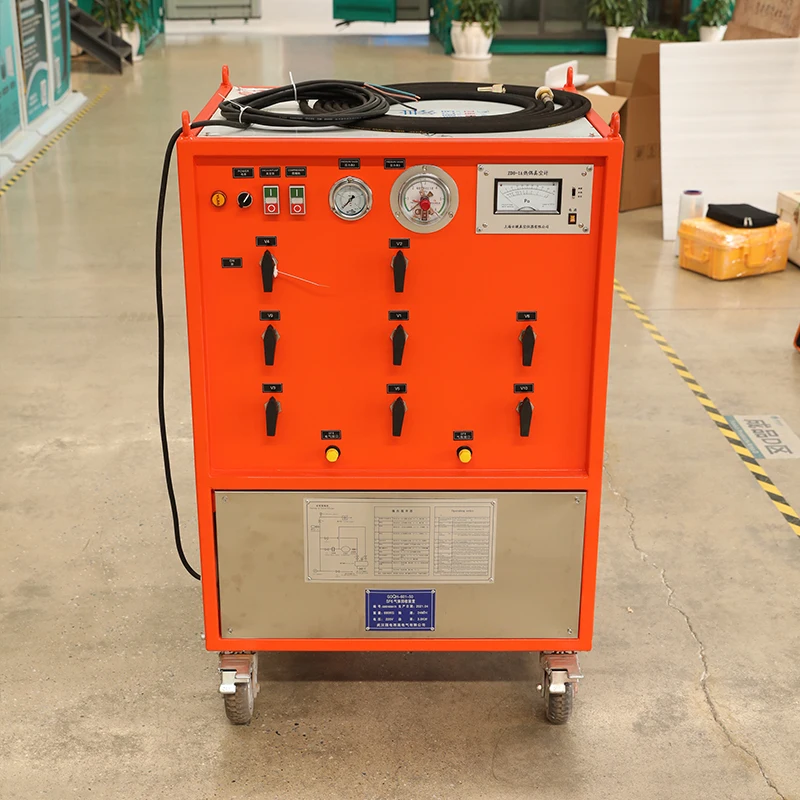

GDQH-601-50 SF6 Gas Recovery Device Vacuumizing and Refilling Devices For Switchgear





General Information



This device is a special equipment for SF6 gas insulated electrical equipment manufacturing, using and scientific research departments to recover from SF6 equipment, purify SF6 gas, it has the ability to vacuum and inflate.







Main functions



1. This equipment can vacuum the SF6 electrical switch and measure the degree of vacuum.

2. Can fill SF6 electrical switch with SF6 gas.

3. Can recover gas from SF6 electrical switch.

4. It can purify the recovered SF6 gas.

5. Store SF6 gas.

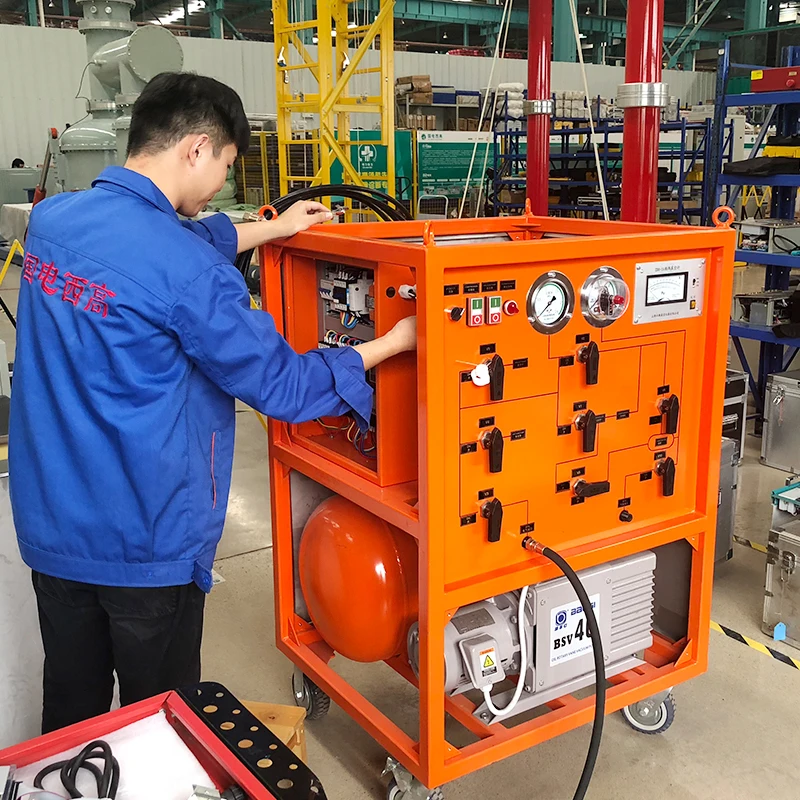

Main components



1.Vacuum pump: BSV24   20m³ / H   0.5Pa

2.Compressor: MT18   6.75m³ / H

3.Purification system: D48 filter element F-03 adsorbent   heating system.

4.Cooling system: Air cooling

5.Storage tank:  50L container, safety valve, pressure 3.9Mpa

6. Valve:  ball-valve 3-365R01   DN15

7. Control system: It can perform various operations and instrument monitoring of the device.

8. Connection pipe: DN10 high pressure hose M20 * 1.5.





Technical Specifications



Vacuum rate	20M3/H vacuum degree: 10Pa
Inflation rate	10M3/H
Recovery rate	8M3/H
SF6 gas recovery rate	95~98%
Working temperature	-10℃~+45℃
Storage tank	50L  3.9MPa
Initial recovery pressure	8bar
Unit weight	200KG
Power supply	220V ± 10%, 50Hz
Power	4kW
