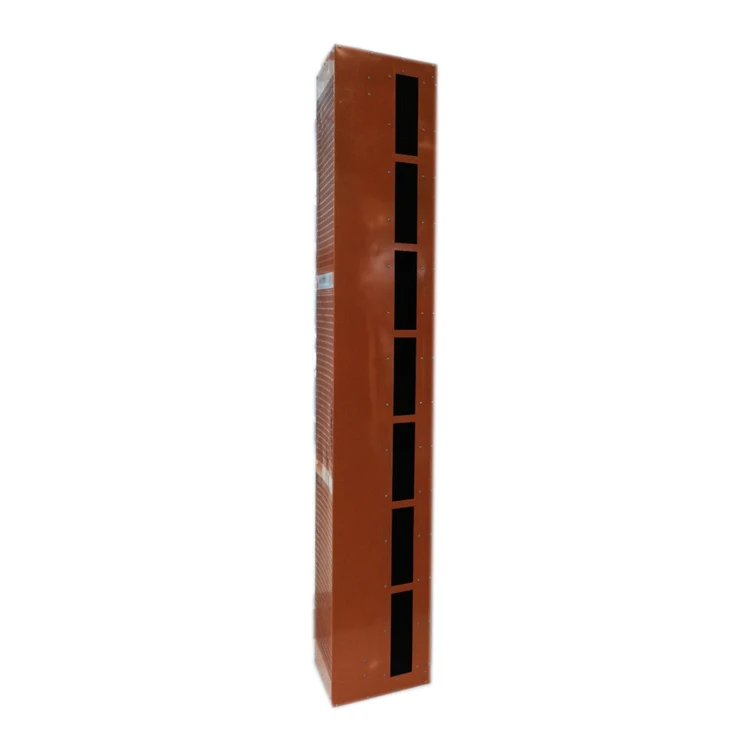

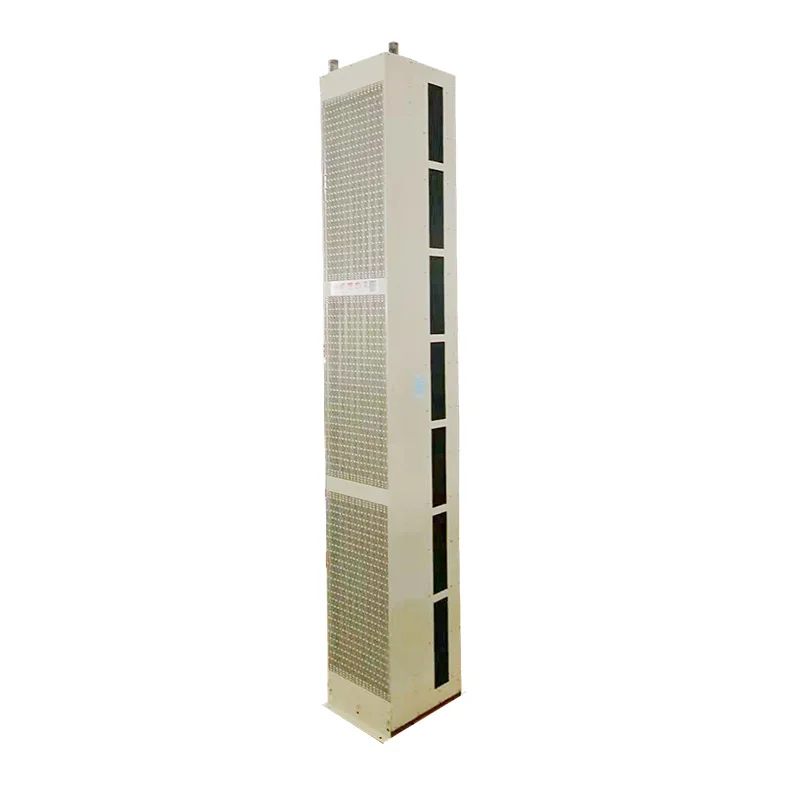

2200mm Side Air Supply Wholesale OEM Factory Price air curtain Manufacturer Supplier Hot Sale Centrifugal Air Curtain for door
- Category: >>>
- Supplier: Shenyang Qiaogong Cooling And Heating Technology Co. Ltd.
Share on (1600530397061):
Product Overview
Description
General Information

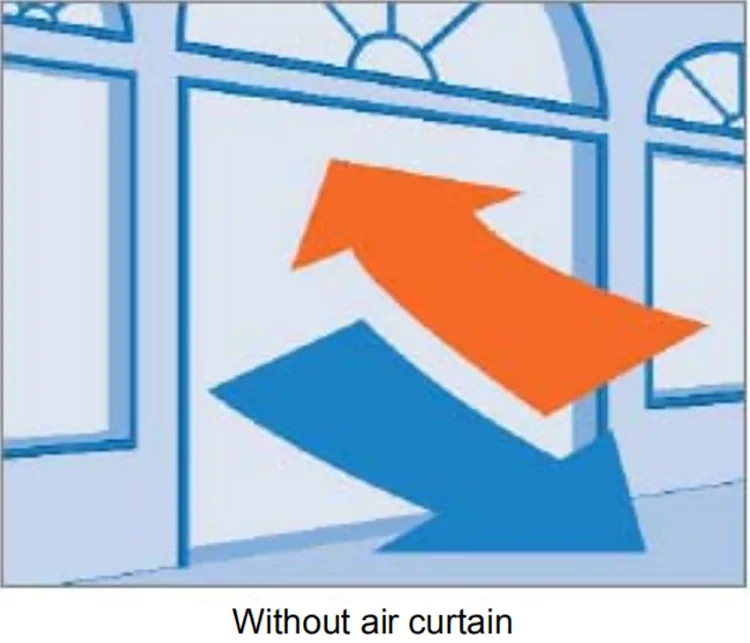

The primary reason for installing air curtains is to prevent the influx of cold outside air through a door opening into a heated area.
Air curtains control the internal climate by emitting an air stream with enough velocity to meet the floor so creating an air barrier in the door area.
Air curtains provide uniform air distribution across the full width of the door, keeping heated or conditioned air inside the building and stopping the influx of outside air, draughts, and dust.
Proper use of air curtains can make a big difference between indoor and outdoor in terms of temperature, humidity and cleanliness, which can save energy and improve comfort.
Air curtains control the internal climate by emitting an air stream with enough velocity to meet the floor so creating an air barrier in the door area.
Air curtains provide uniform air distribution across the full width of the door, keeping heated or conditioned air inside the building and stopping the influx of outside air, draughts, and dust.
Proper use of air curtains can make a big difference between indoor and outdoor in terms of temperature, humidity and cleanliness, which can save energy and improve comfort.
Product features

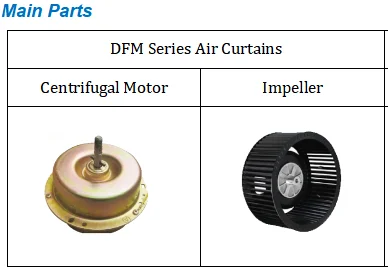

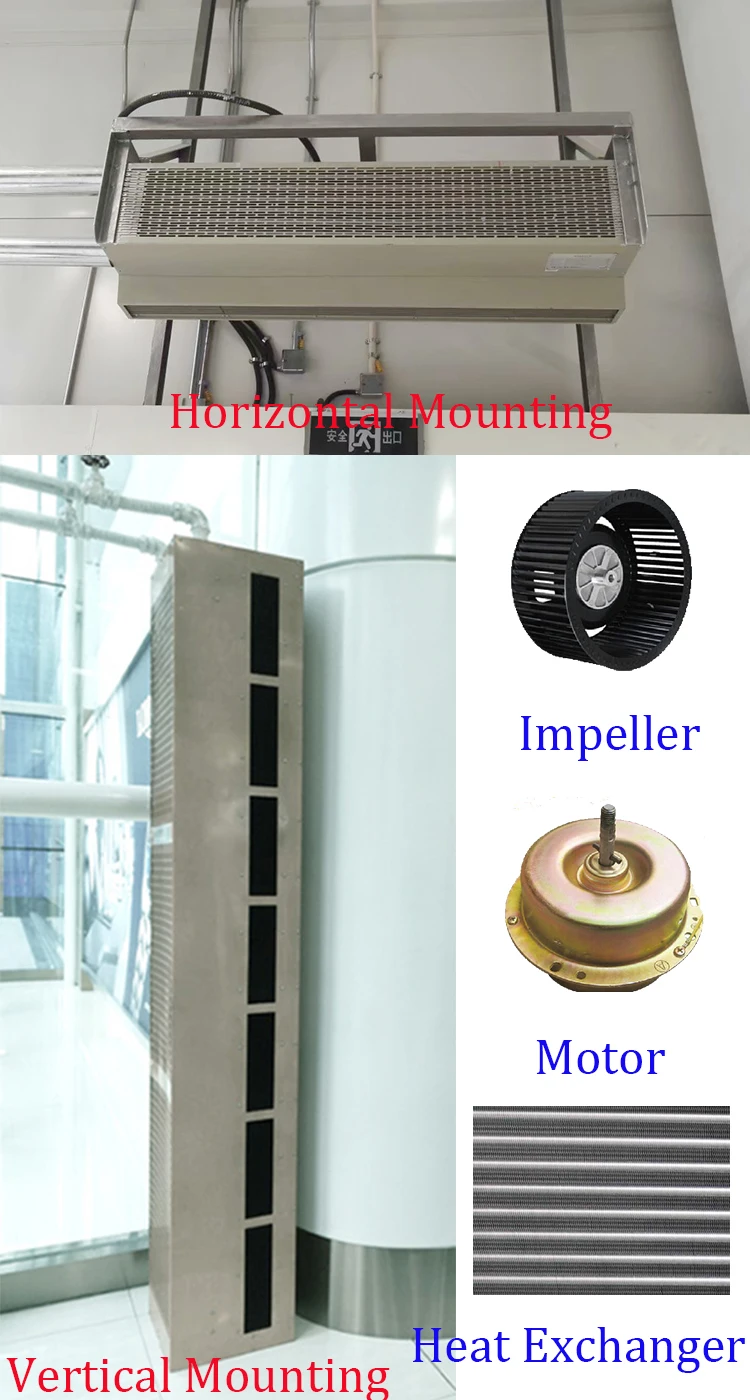

*The DRM series air curtain adopts centrifugal fan, and take in air from the front of the product. At least 100mm distance should be reserved above the product. Suitable for use in factories, workshops, warehouses, logistics centers, gymnasiums,shopping mall,banks, clubs, office buildings and other places.
*Products without control are suitable for engineering, and need to be equipped with a control box. It is recommended to purchase from our factory. Usually a door is equipped with a control box to control the use of each air curtain separately.
*The remote control model can be controlled remotely, which is flexible and convenient.

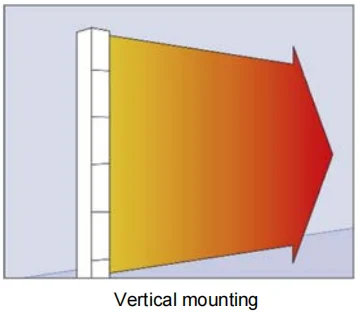

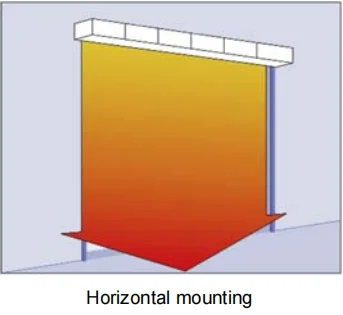

*For horizontal mounting, products are installed side by side, in principle, the total length of side-by-side installation is not less than the size of the normally open door, but if the indoor space is small or the reserved electric load is small, this restriction is not applicable.For vertical mounting, products are installed on both sides of the door, fixed to the floor, and the height of the air outlet is not lower than the height of the door.
*Products without control are suitable for engineering, and need to be equipped with a control box. It is recommended to purchase from our factory. Usually a door is equipped with a control box to control the use of each air curtain separately.
*The remote control model can be controlled remotely, which is flexible and convenient.
*For horizontal mounting, products are installed side by side, in principle, the total length of side-by-side installation is not less than the size of the normally open door, but if the indoor space is small or the reserved electric load is small, this restriction is not applicable.For vertical mounting, products are installed on both sides of the door, fixed to the floor, and the height of the air outlet is not lower than the height of the door.
The solution
Technical Data
Horizontal Mounting
Model | DRM-2209Q | DRM-2212Q | DRM-2215Q | DRM-2218Q | DRM-2221Q |
Mounting height(m) | ≤2.7m | ≤2.7m | ≤2.7m | ≤2.7m | ≤2.7m |
Length(m) | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 |
Width(m) | 0.41 | 0.41 | 0.41 | 0.41 | 0.41 |
Height(m) | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 |
Airflow rate(m3/h) | 2700 | 3600 | 4500 | 5400 | 6300 |
Outlet air velocity(m/s) | 12 | 12 | 12 | 12 | 12 |
Power(kW) | 3×0.16 | 4×0.16 | 5×0.16 | 6×0.16 | 7×0.16 |
Voltage(V～) | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 |
Condensing water volume(kg/h) | 56 | 72 | 89.6 | 107.2 | 124.8 |
Heating capacity(kW) | 35 | 45 | 56 | 67 | 78 |
Interface pipe diameter | DN32 | DN32 | DN40 | DN40 | DN40 |
Supply air temp.(℃) | 54 | 53 | 53 | 53 | 53 |
Weight(kg) | 60 | 75 | 90 | 105 | 128 |
Noise(dB(A)) | <52 | <52 | <52 | <52 | <52 |
Model | DRM-2512QG | DRM-2515QG | DRM-2518QG | DRM-2522QG |
Mounting height(m) | ≤3.5m | ≤3.5m | ≤3.5m | ≤3.5m |
Length(m) | 1.15 | 1.45 | 1.8 | 2.15 |
Width(m) | 0.41 | 0.41 | 0.41 | 0.41 |
Height(m) | 0.38 | 0.38 | 0.38 | 0.38 |
Airflow rate(m3/h) | 4050 | 5400 | 6750 | 8100 |
Outlet air velocity(m/s) | 15 | 15 | 15 | 15 |
Power(kW) | 3×0.18 | 4×0.18 | 5×0.18 | 6×0.18 |
Voltage(V～) | 220/380 | 220/380 | 220/380 | 220/380 |
Condensing water volume(kg/h) | 80 | 108.8 | 137.6 | 168 |
Heating capacity(kW) | 50 | 68 | 86 | 105 |
Interface pipe diameter | DN40 | DN40 | DN50 | DN50 |
Supply air temp.(℃) | 52 | 53 | 53 | 55 |
Weight(kg) | 85 | 105 | 125 | 145 |
Noise(dB(A)) | <54 | <54 | <54 | <54 |
Model | DRM-2812QG | DRM-2816QG | DRM-2820QG | DRM-2824QG |
Mounting height(m) | ≤4.5m | ≤4.5m | ≤4.5m | ≤4.5m |
Length(m) | 1.2 | 1.6 | 2 | 2.4 |
Width(m) | 0.41 | 0.41 | 0.41 | 0.41 |
Height(m) | 0.42 | 0.42 | 0.42 | 0.42 |
Airflow rate(m3/h) | 5400 | 7200 | 10000 | 12000 |
Outlet air velocity(m/s) | 15 | 15 | 15 | 15 |
Power(kW) | 3×0.25 | 4×0.25 | 5×0.25 | 6×0.25 |
Voltage(V～) | 220/380 | 220/380 | 220/380 | 220/380 |
Condensing water volume(kg/h) | 92.8 | 137.6 | 172.8 | 208 |
Heating capacity(kW) | 58 | 86 | 108 | 130 |
Interface pipe diameter | DN40 | DN50 | DN50 | DN50 |
Supply air temp.(℃) | 53 | 53 | 54 | 54 |
Weight(kg) | 100 | 125 | 150 | 175 |
Noise(dB(A)) | <56 | <56 | <56 | <56 |

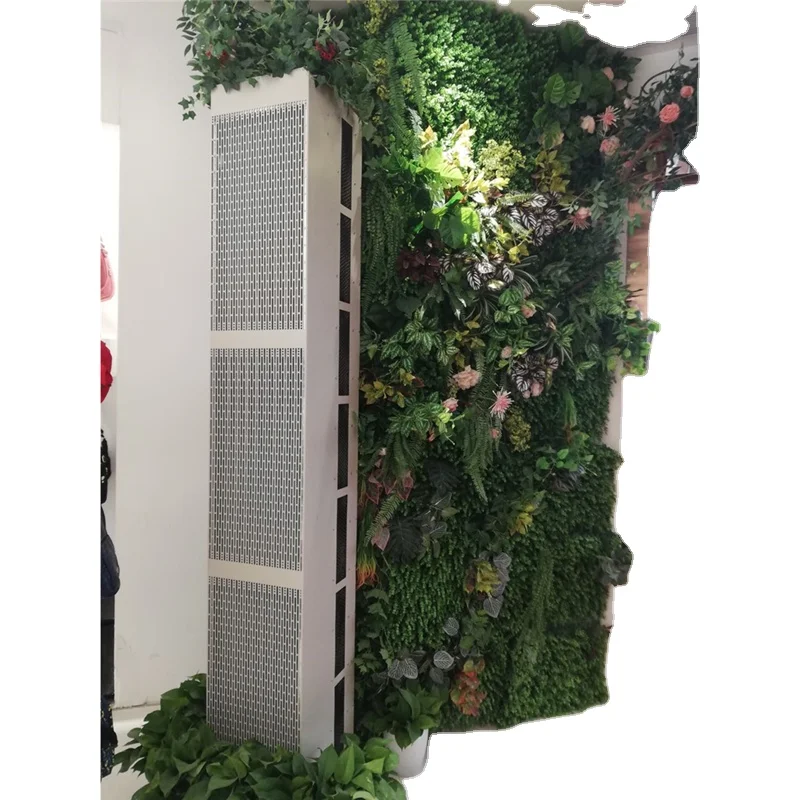

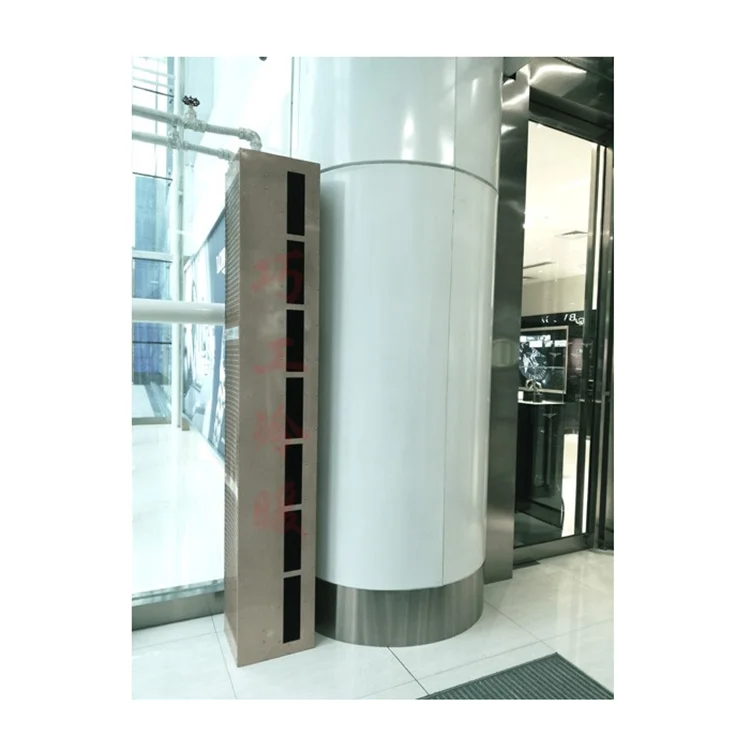

Vertical Mounting
Model | DRM-2515QG-C | DRM-2522QG-C | DRM-2525QG-C | DRM-2820QG-C | DRM-2825QG-C |
Applicable door width(m) | ≤3.5m | ≤3.5m | ≤3.5m | ≤5m | ≤5m |
Length(m) | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 |
Width(m) | 0.38 | 0.38 | 0.38 | 0.42 | 0.42 |
Height(m) | 1.5 | 2.2 | 2.5 | 2 | 2.5 |
Airflow rate(m3/h) | 5400 | 8400 | 9450 | 10000 | 12000 |
Outlet air velocity(m/s) | 15 | 15 | 15 | 15 | 15 |
Power(kW) | 4×0.18 | 6×0.18 | 7×0.18 | 5×0.25 | 6×0.25 |
Voltage(V～) | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 |
Condensing water volume(kg/h) | 123.2 | 180.8 | 204.8 | 153.6 | 211.2 |
Heating capacity(kW) | 77 | 113 | 128 | 96 | 132 |
Interface pipe diameter | DN40 | DN50 | DN50 | DN50 | DN50 |
Supply air temp.(℃) | 58 | 56 | 56 | 56 | 56 |
Weight(kg) | 90 | 130 | 150 | 130 | 160 |
Noise(dB(A)) | <54 | <54 | <54 | <56 | <56 |

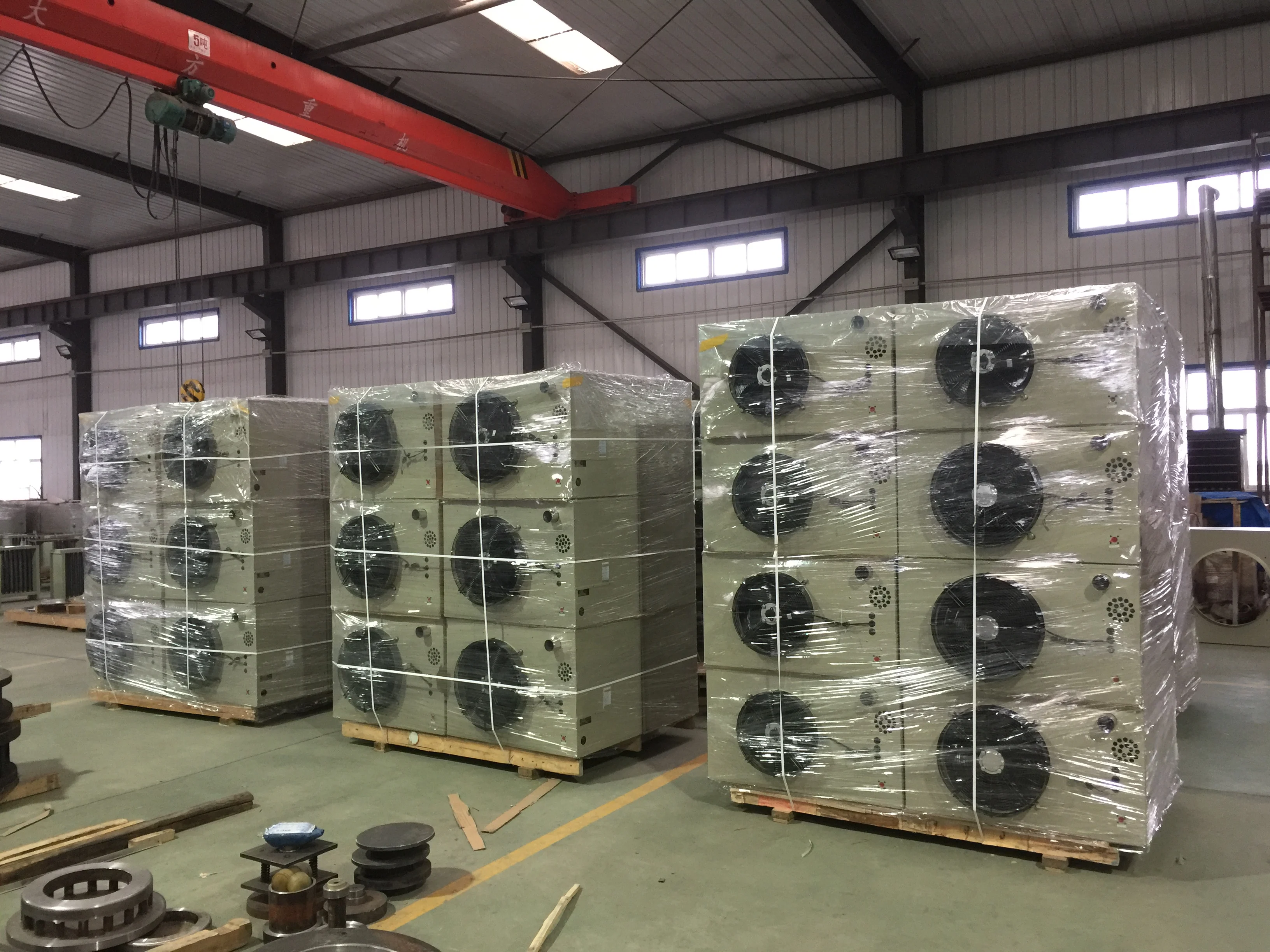

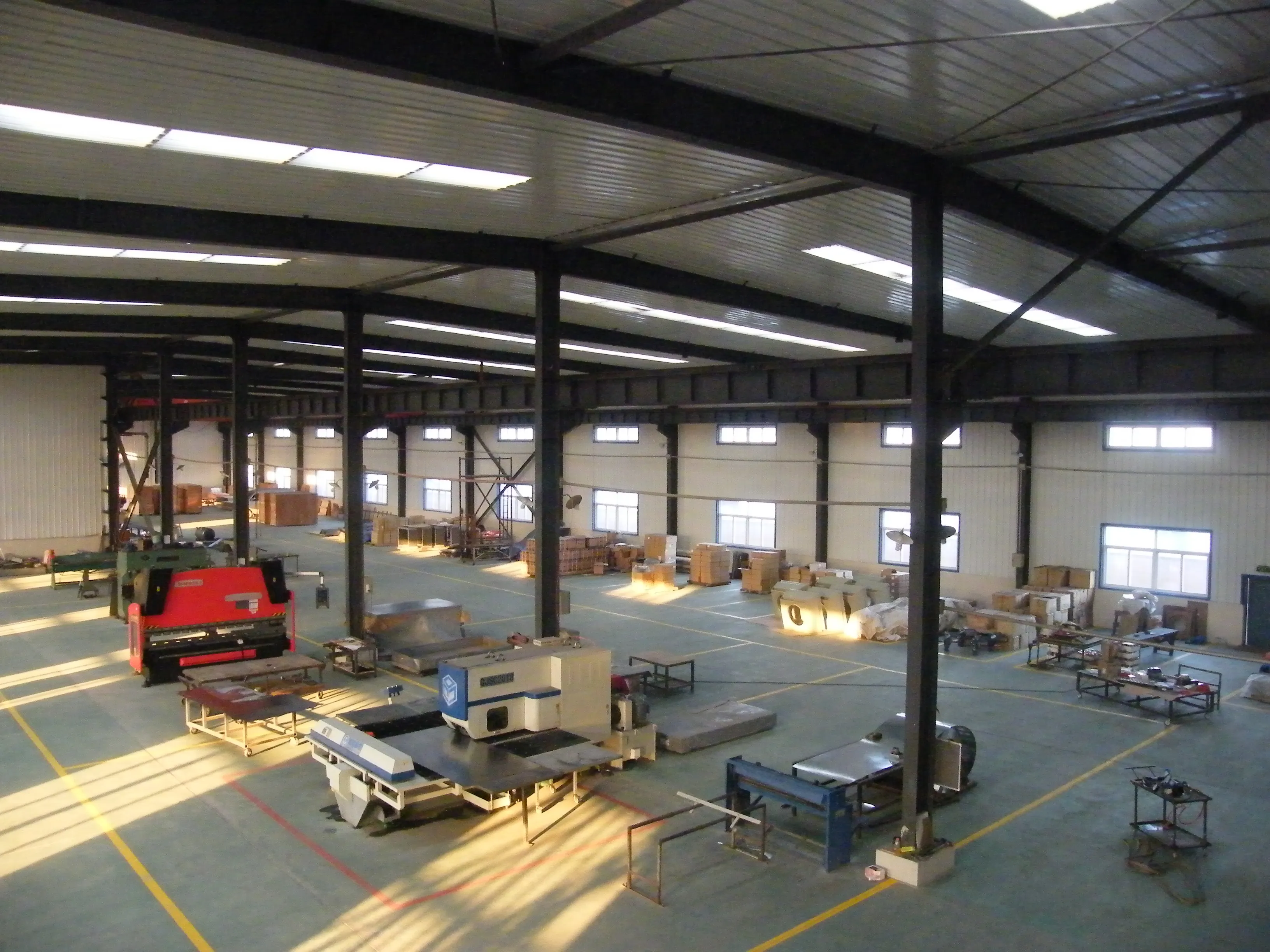

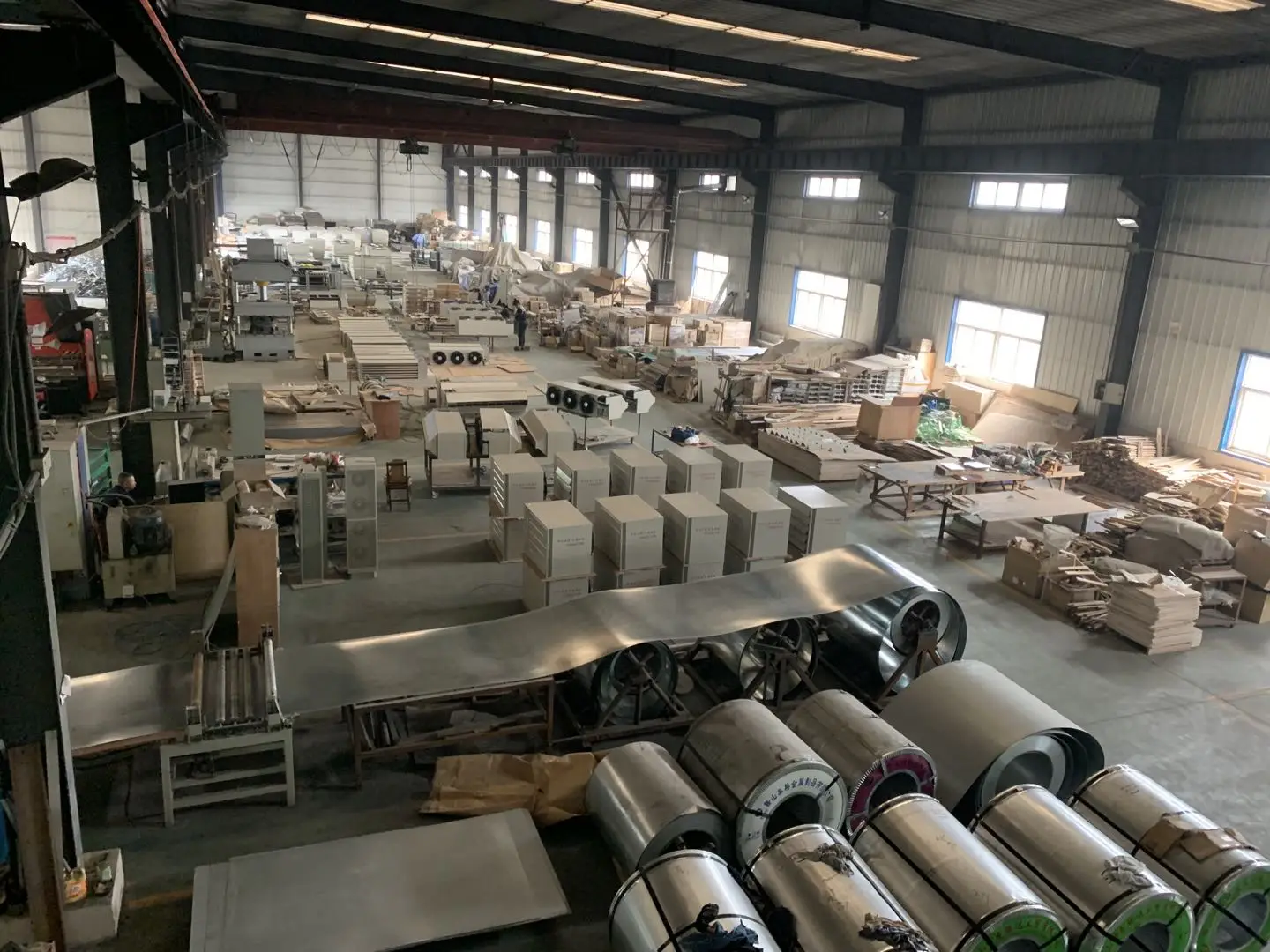

Our Factory
Our customers
Package
FAQ
1. Where is your company located? Are you a factory or a trading company?
A: Our factory located in Tieling City, Liaoning Province, China.
B: We are a factory.
2. What products your factory supply ?
Hot water unit heater, Steam unit heater, Electric unit heater, Gas fired unit heater, Warm air curtain, axial fans, air heater
etc.
3. Can Electric parameter be customized?
Yes, pls let us know '?Voltage-?Phases-?Hz'.
4. Can you do our logo or brand on the equipment?
Yes, OEM & ODM are all available.
5. Can I order some samples at first to see the quality?
Yes, of course.
6. What's your trade term & payment term?
Trade terms: EXW/ FOB/ CFR/ CIF;
Terms of payment: T/T, L/C, D/P, or paid by third party are available.
7. Do you have the products in stock?
Yes. There are some series products in stock.
8. What's the delivery time?
Normally, it will take 30 days .
9. Can I mix different models in one container?
Yes, but need to meet the MOQ.
1. Where is your company located? Are you a factory or a trading company?
A: Our factory located in Tieling City, Liaoning Province, China.
B: We are a factory.
2. What products your factory supply ?
Hot water unit heater, Steam unit heater, Electric unit heater, Gas fired unit heater, Warm air curtain, axial fans, air heater
etc.
3. Can Electric parameter be customized?
Yes, pls let us know '?Voltage-?Phases-?Hz'.
4. Can you do our logo or brand on the equipment?
Yes, OEM & ODM are all available.
5. Can I order some samples at first to see the quality?
Yes, of course.
6. What's your trade term & payment term?
Trade terms: EXW/ FOB/ CFR/ CIF;
Terms of payment: T/T, L/C, D/P, or paid by third party are available.
7. Do you have the products in stock?
Yes. There are some series products in stock.
8. What's the delivery time?
Normally, it will take 30 days .
9. Can I mix different models in one container?
Yes, but need to meet the MOQ.
