popular vacuum tube Solar water heaters stainless steel water heating system with heat pipe heat collector
- Category: >>>
- Supplier: Zhejiang Handa New Energy Co. Ltd.
Share on (1600530397985):
Product Overview
Description
Details Images
Products Description
Type | Pre-heated pressure system | ||||||
Inner Tank Material | Food grade SUS304 2B or SUS316L | ||||||
Inner Tank Diameter | Φ360mm;Φ370mm;Φ380mm;Φ420mm | ||||||
Inner Tank Thickness | 0.31mm;0.38mm;0.4mm | ||||||
Outer Tank Material | SPCC;PVDF;SUS304;SUS316;Colorful plate | ||||||
Outer Tank Diameter | Φ460mm;Φ470mm;Φ480mm;Φ520mm | ||||||
Inner Tank Thickness | 0.4mm 0.45mm 0.5mm | ||||||
Tube Material | 3-target all glass tube ( High quality borosilicate glass ) | ||||||
Vacuum Tube Size(mm) | 58/1800 (diameter/length) | ||||||
Tube Number | 9/10/12/15/18/20/24/30/32/36/40....... | ||||||
Frames (Stand Parts) | Galvanized plate, Stainless steel or Aluminum alloy | ||||||
Insulation Layer | High quality polyurethane foam made by advanced high pressure foam machine | ||||||
Insulation Thickness | 50mm,55mm,60mm | ||||||
Hail Resistance | 25mm | ||||||
Operation Pressure | 6bar | ||||||
Electric booster | Optional | ||||||

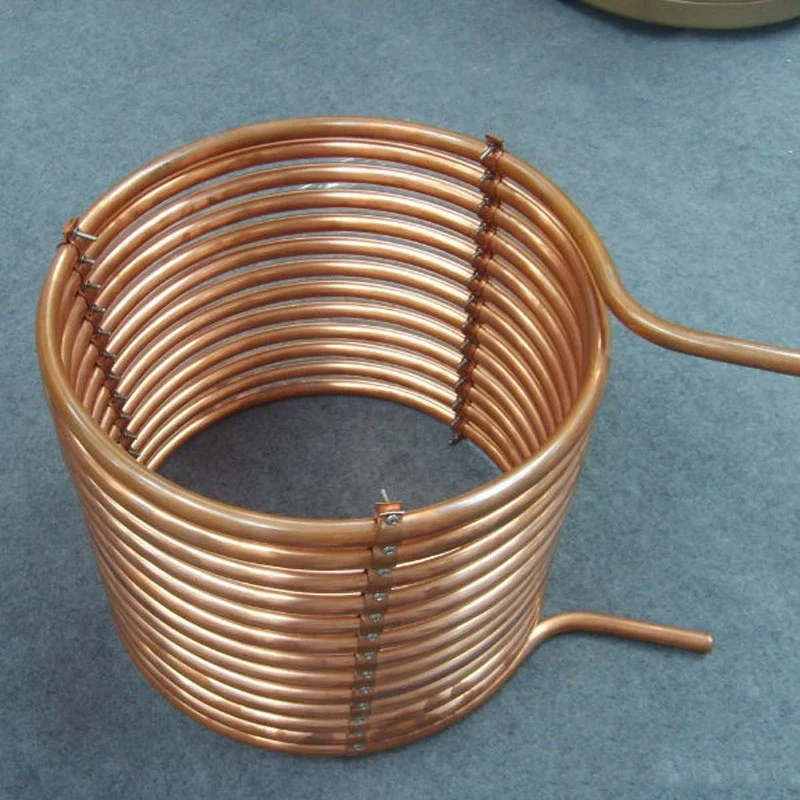

Heat exchanger | Diameter 12mm*1mm red copper | ||||||
Working principle | Thermal exchanger pressure | ||||||

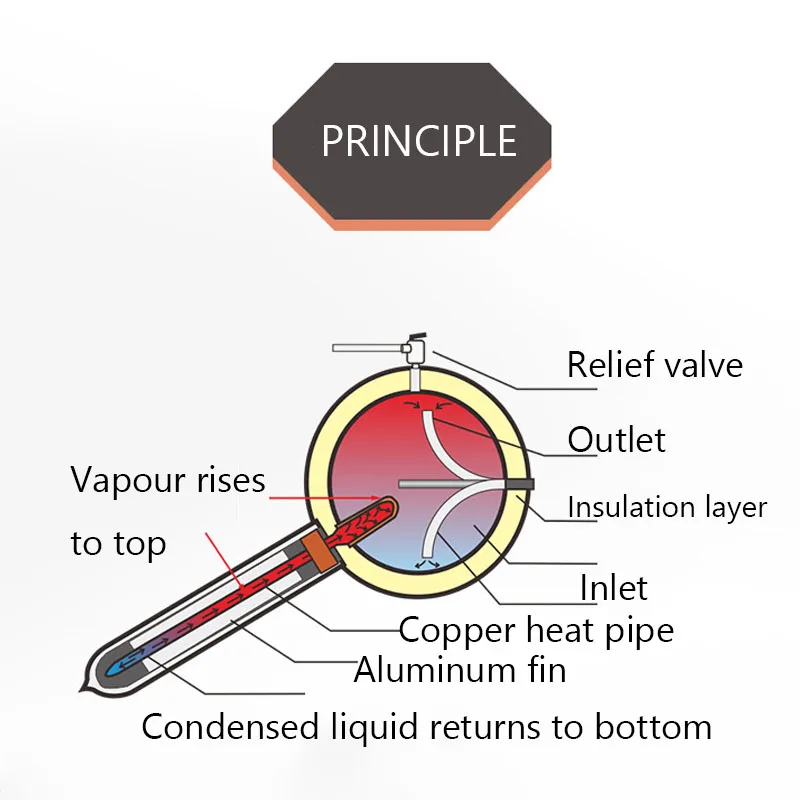

Working principle
Product packaging
Company Profile
Certificate
