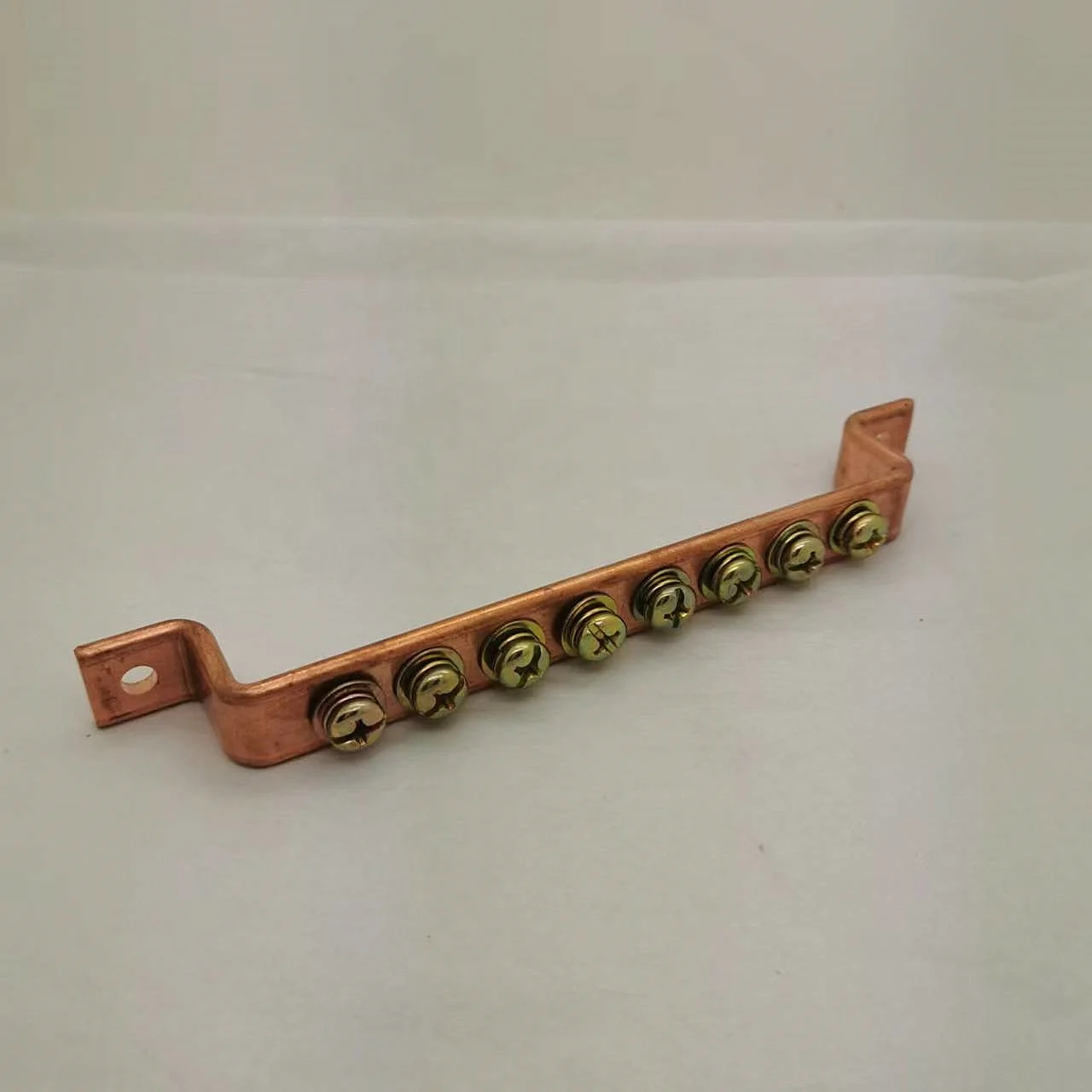

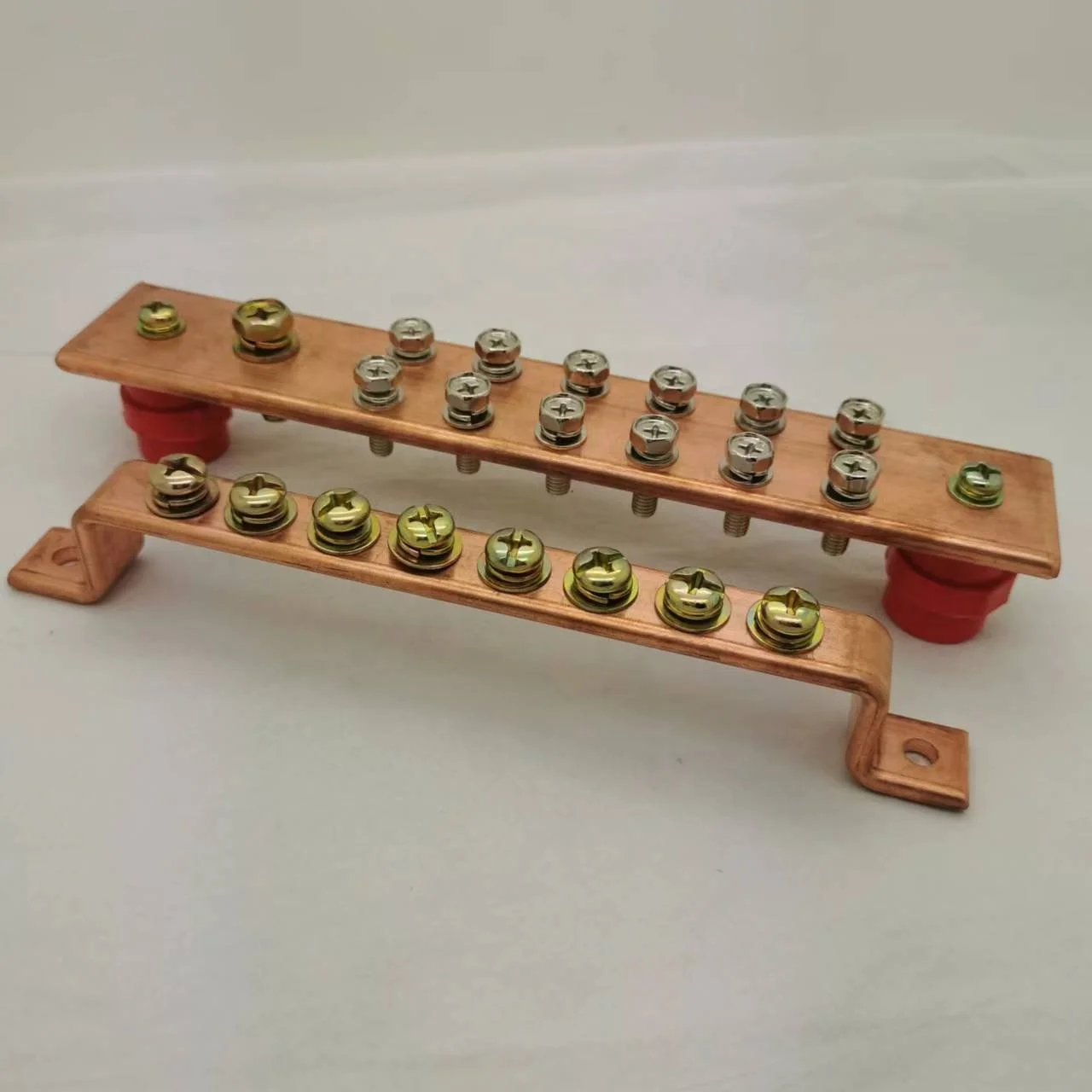

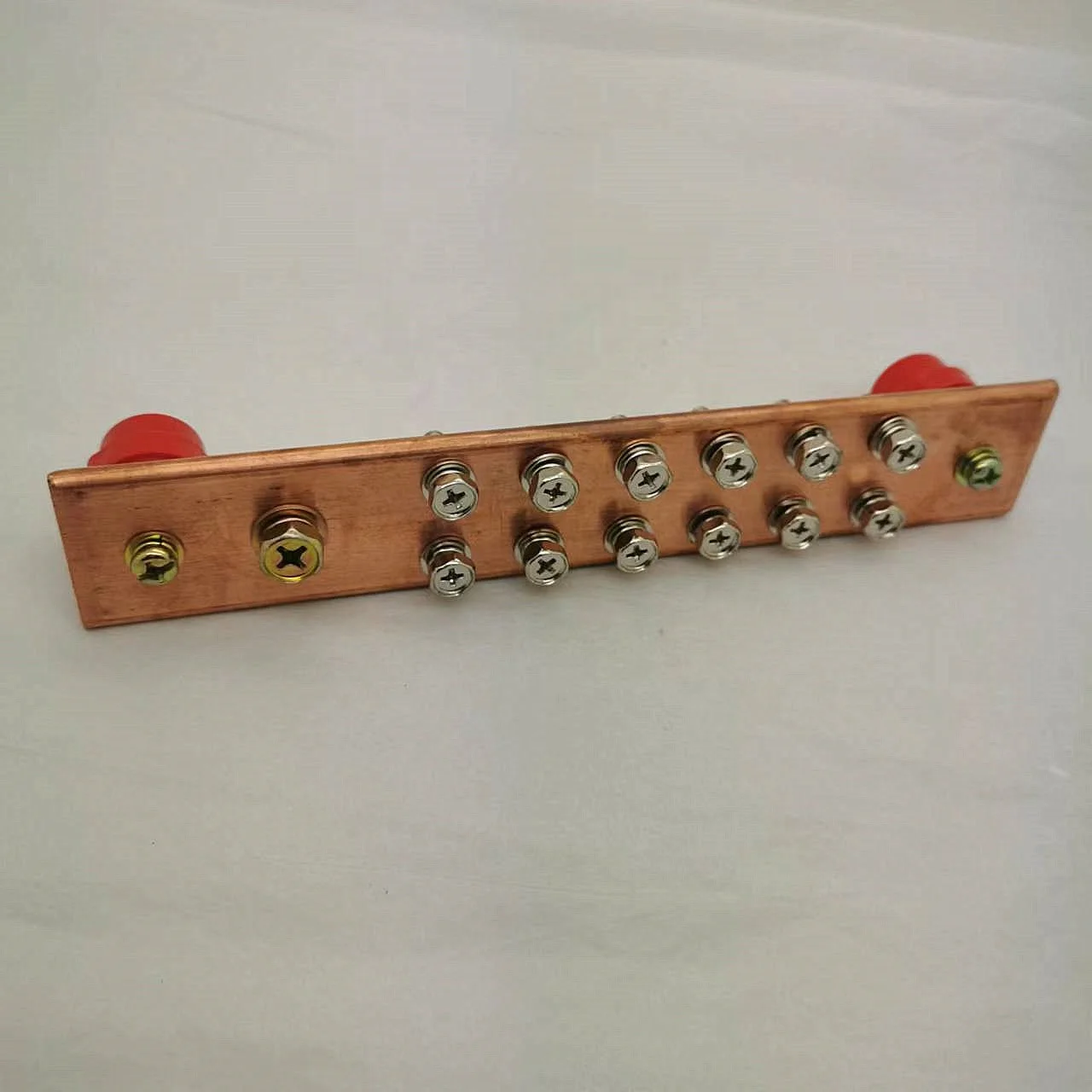

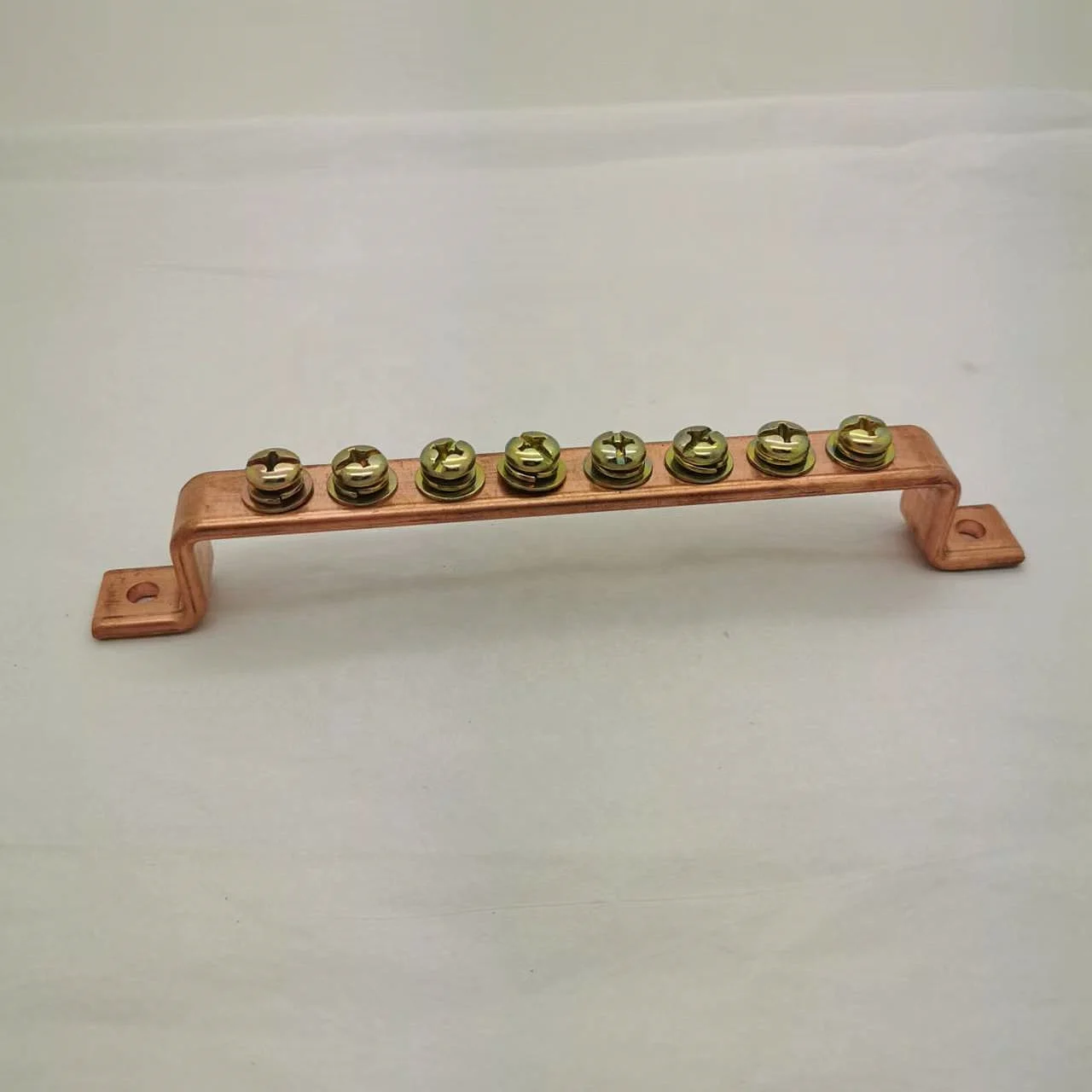

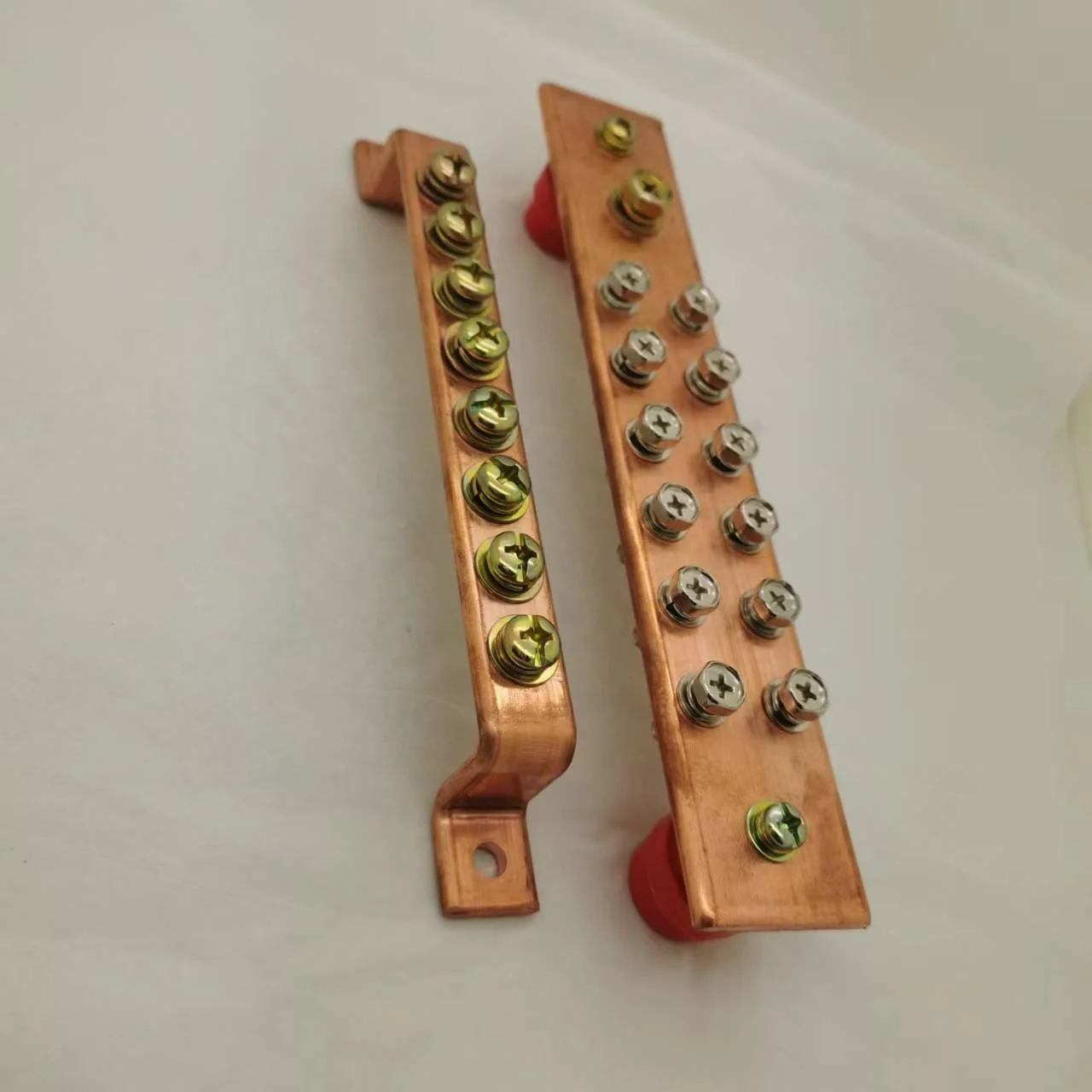

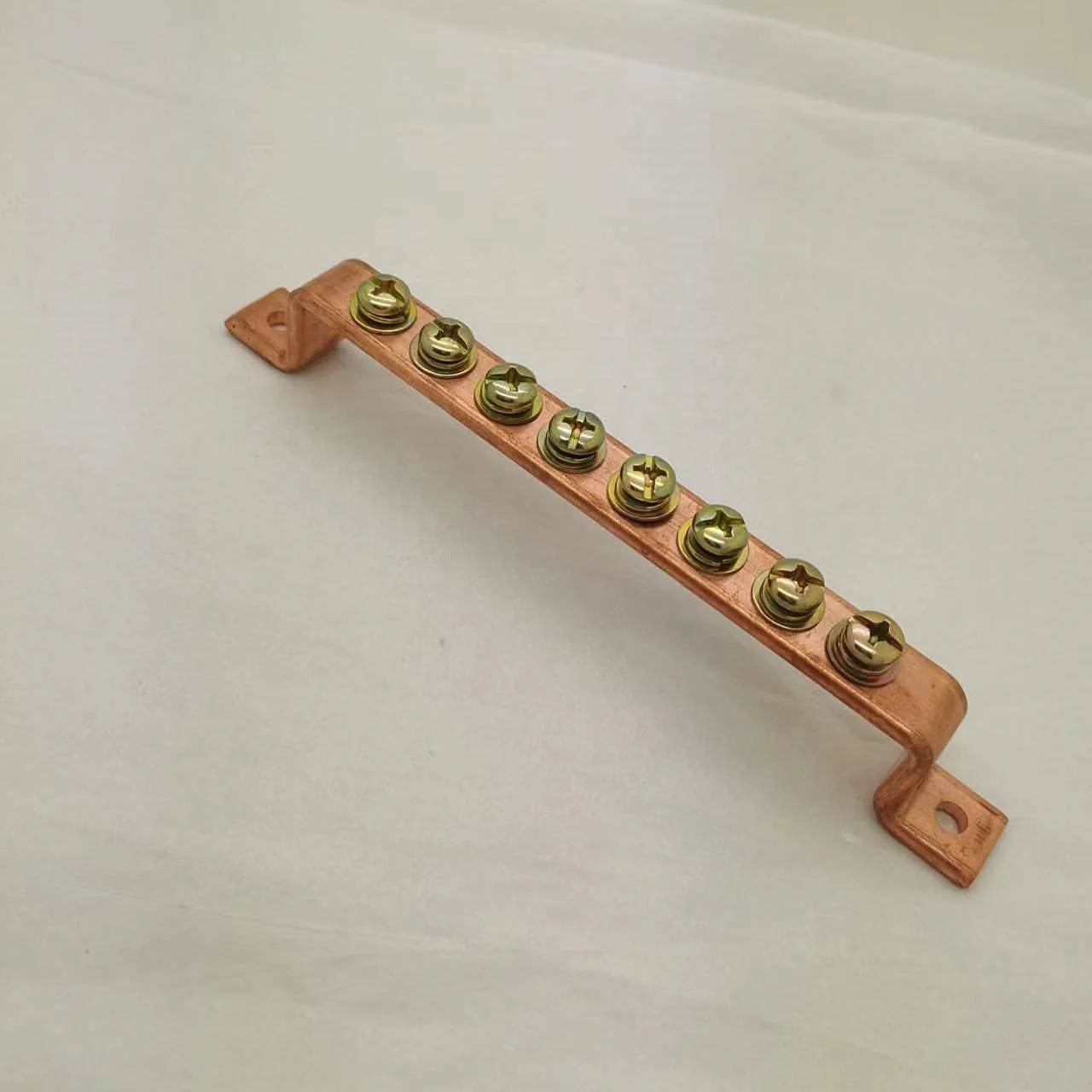

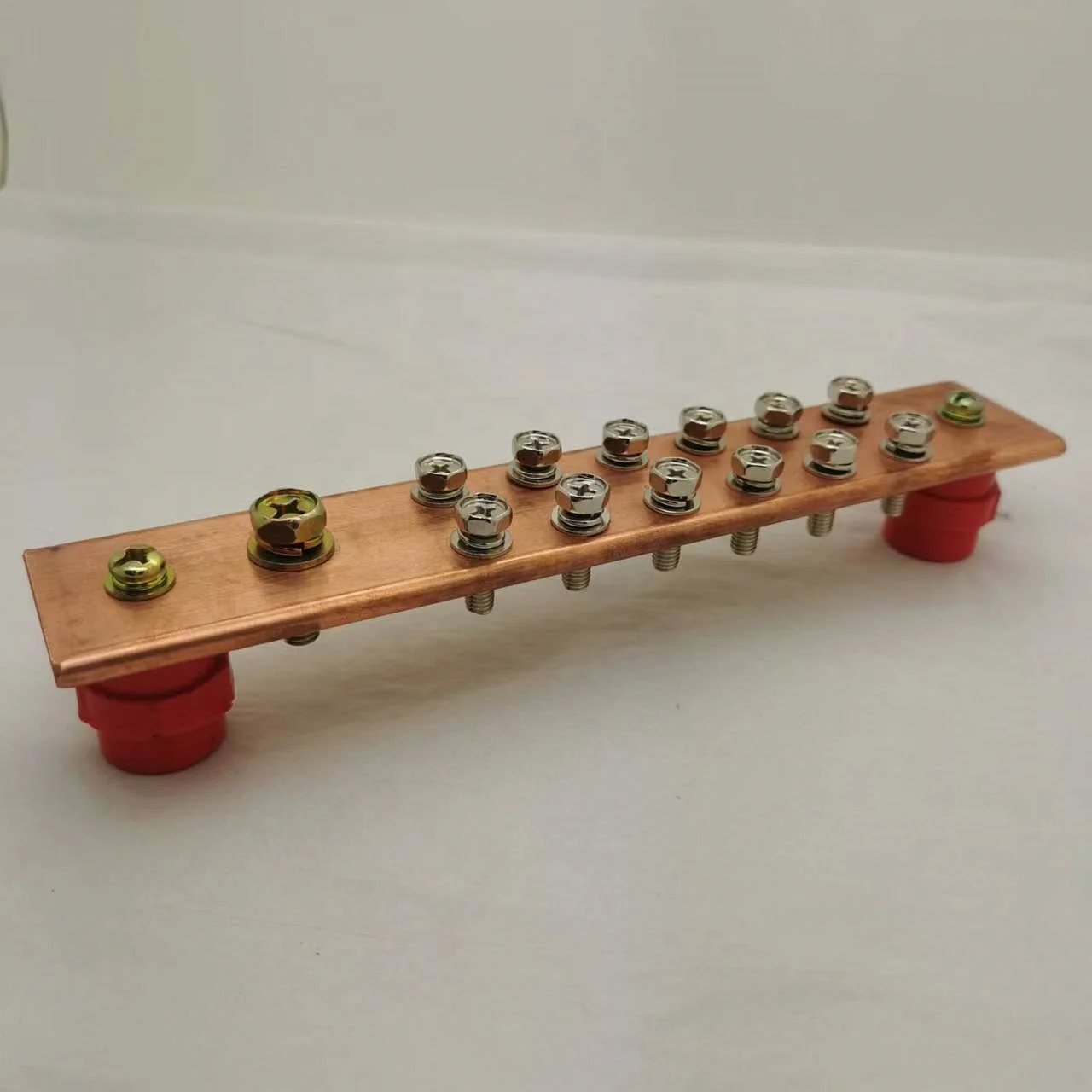

electrical panel bus bar for copper material terminal

Copper Alloy Electrical Connectors Terminal Range Avaialble Standard &Customized as per Drawing :

POLE TYPE TERMINALS

CUSTOMISED TERMINAL CONNECTORS

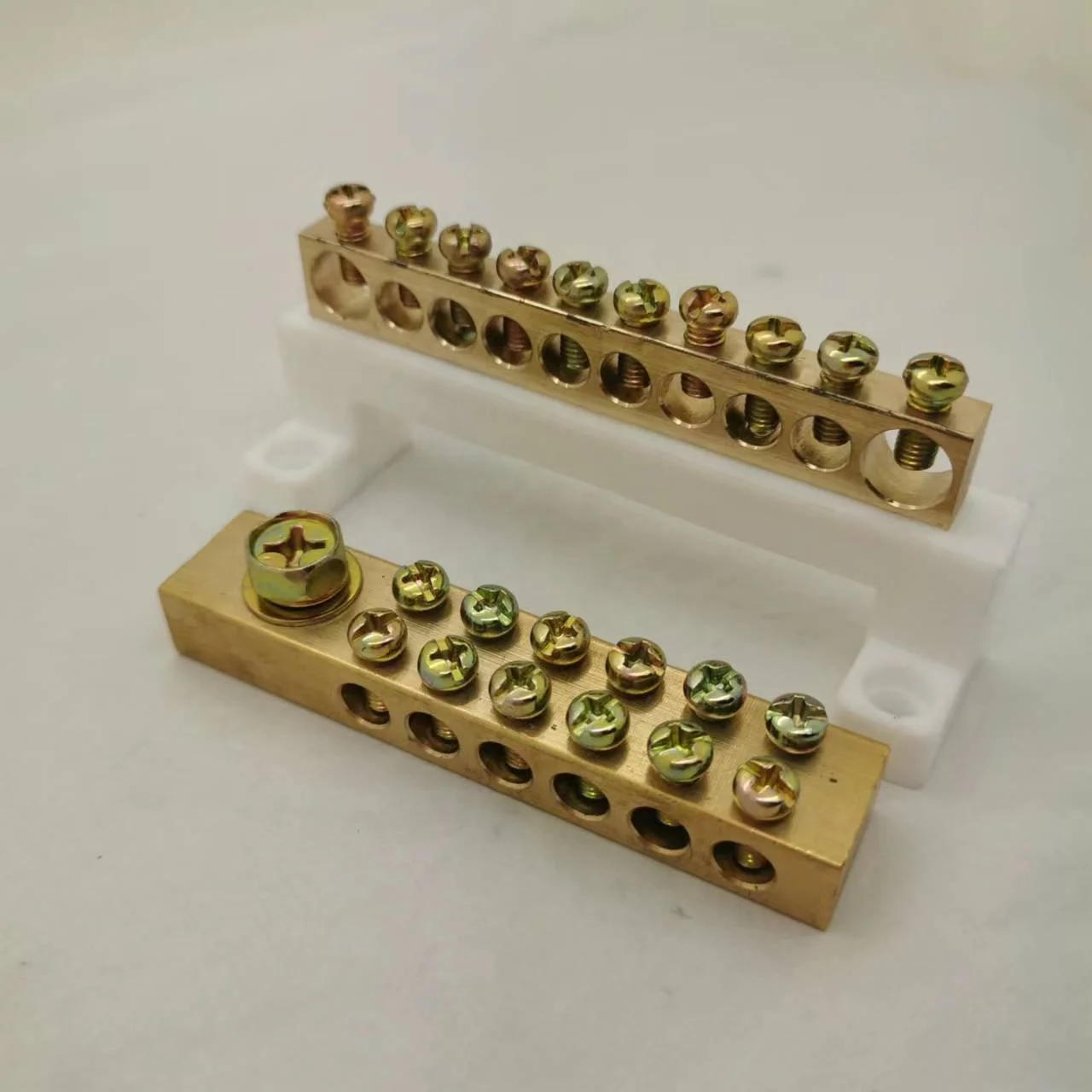

NEUTRAL BAR

METER TERMINAL

METER CONNECTORS

PORCELAIN TERMINAL

NEUTRAL LINKS FROM 5AMP TO 60AMP LENGHT UPTO 1000MM ( 1 METER ) FROM 1 WAY TO 150 WAYS.

EARTHING BARS PUNCHED WITH NUMBER

DISCONNECTING LINK WITH EARTH BAR 1 & 2 WAY DISCONNECTION.

CUSTOMISED TERMINAL AS PER DRAWING

COPPER CABLE LUGS RANGE IN MM2, DIN, AWG, AUTOMOTIVE & CUSTOMIZED AS PER DRAWING

COPPER SPLICES, FERRULES, SLEEVES & CONNECTORS RANGE

ALUMINIUM CABLE LUGS RANGES IN MM2 & DIN STANDARD.

FORGED DIN ALUMINIUM CABLE LUGS RANGE

IN LINE CONNECTORS COPPER & ALUMINIUM

FORK, PIN, SPADE, FLATE TERMINAL RANGE & CUSTOMIZED TERMINALS AS PER DRAWING

Bus  bar is an eqiupotential system established by several metal parts for earthing conducitivity and connection system.

The voltage for equipotential system is almost zero which will play a roll in protection of people and equipment when currents or problems occur.

 Earthing copper bar is the most popular connection products for the current days.

Technical Data

1.Supplied in hard, half hard and soft annealing temper.

2.Width:  20mm to 600mm.

3.Thickness: 3~12mm or say 0.02~0.08 inch

4.Length: 0.3m,3m, 5m, 6m, also can be made according to special requirements

5.Nut and Hole: According to requirement
