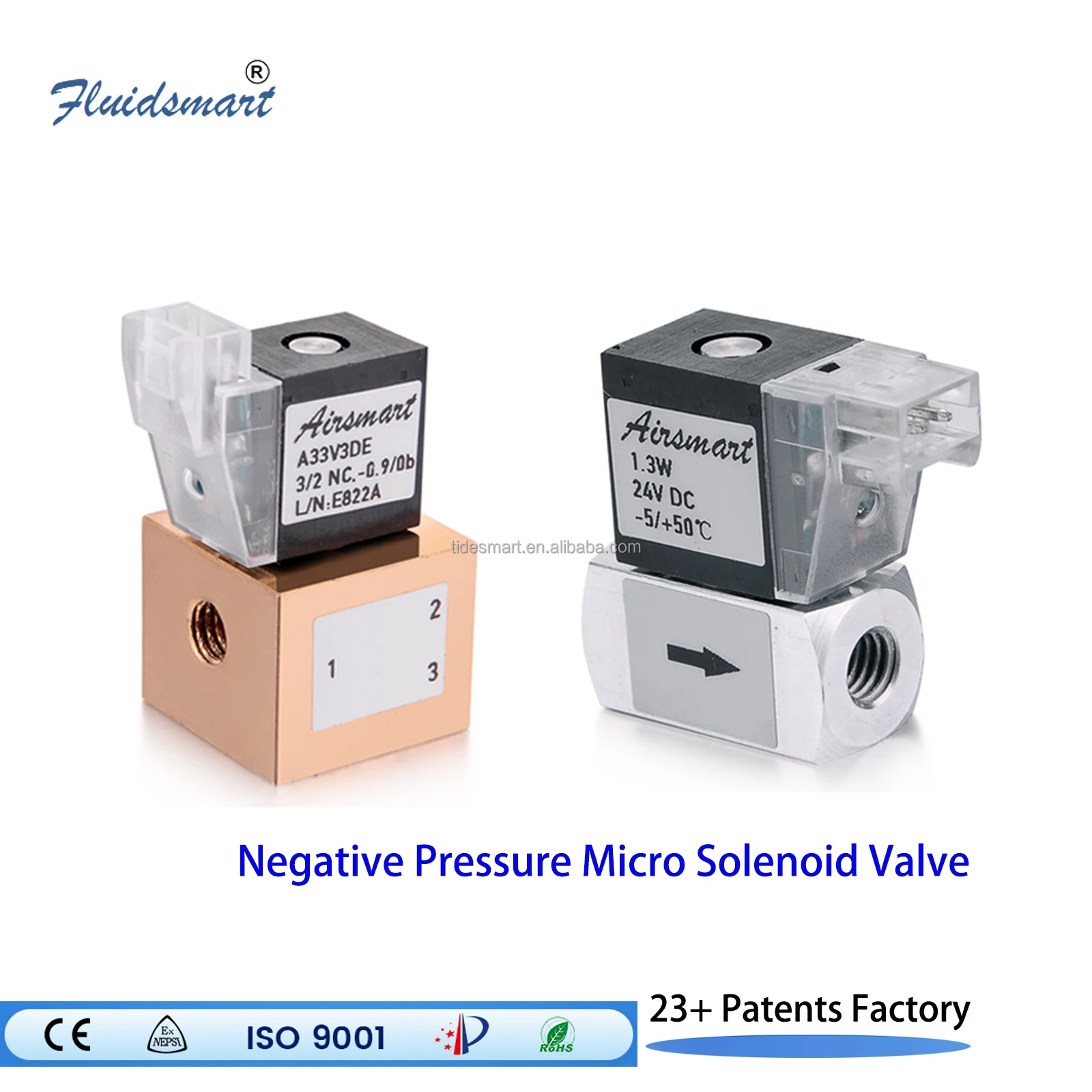

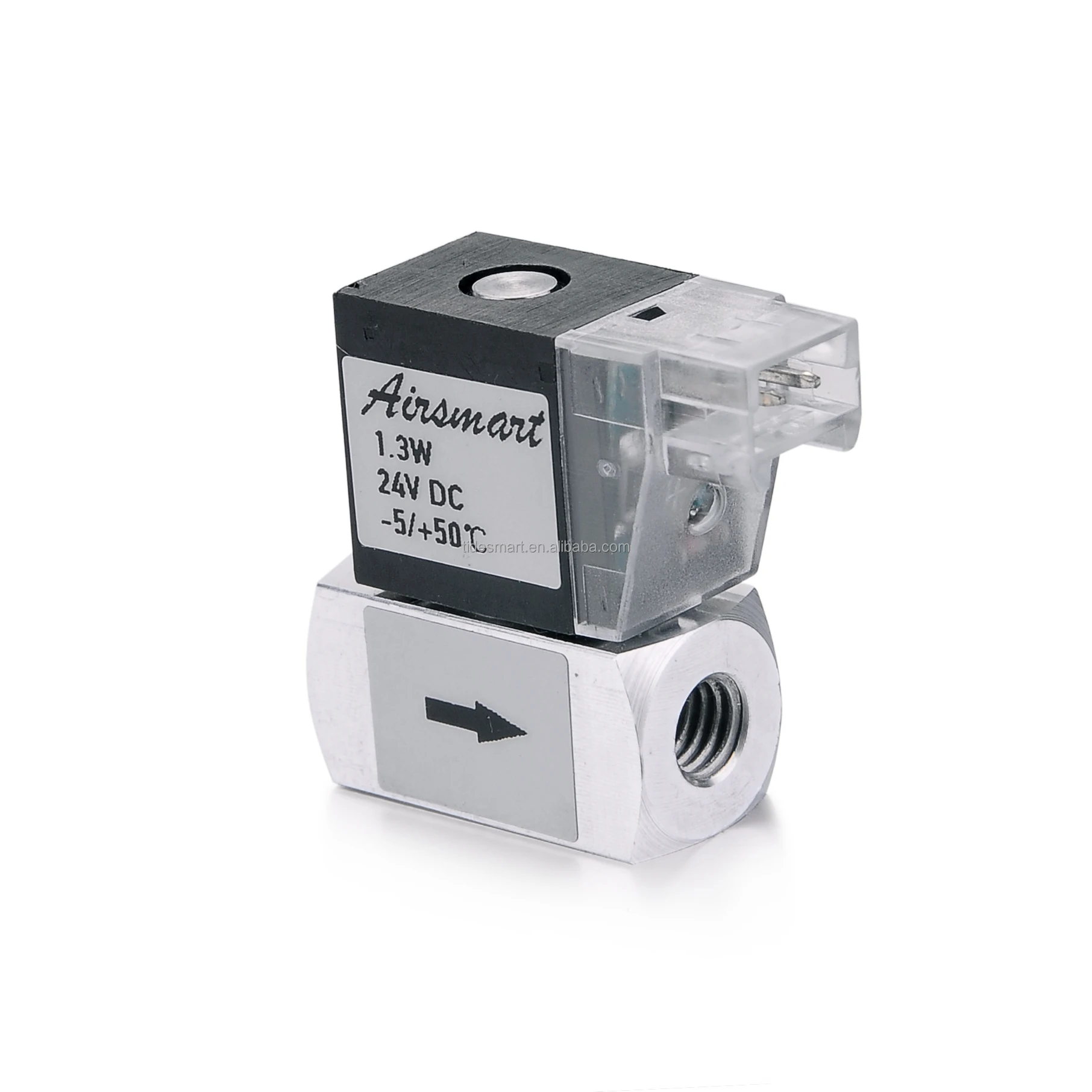

Electric micro valve 24v 2 way and 3 way vacuum solenoid valve miniature solenoid valve 12v 24v
- Category: >>>
- Supplier: Tide Smart Technology (Shanghai) Co. Ltd
Share on (1600530482224):
Product Overview
Description
request to connect extra pipe
Features
Features
* Negative Pressure
* two position two way 2/2
* two position two way 2/2
* Voltage: 12vdc
* Traffic: >14L/min
* Pressure of work:
-100~+100Kpa
* Power: 1.3w(DC)
* Service life:50 million times
* Medium: Air,
* Medium: Air,
filter precision 40μm
*Material: Valve Body(Resin)
Core/Spring(SUS)
Seal Parts: FKM/NBR
Model:A31V3DE
Model: | A31V3DE |
Solenoid Valve Type: | Negative Pressure 2-position, 2-way |

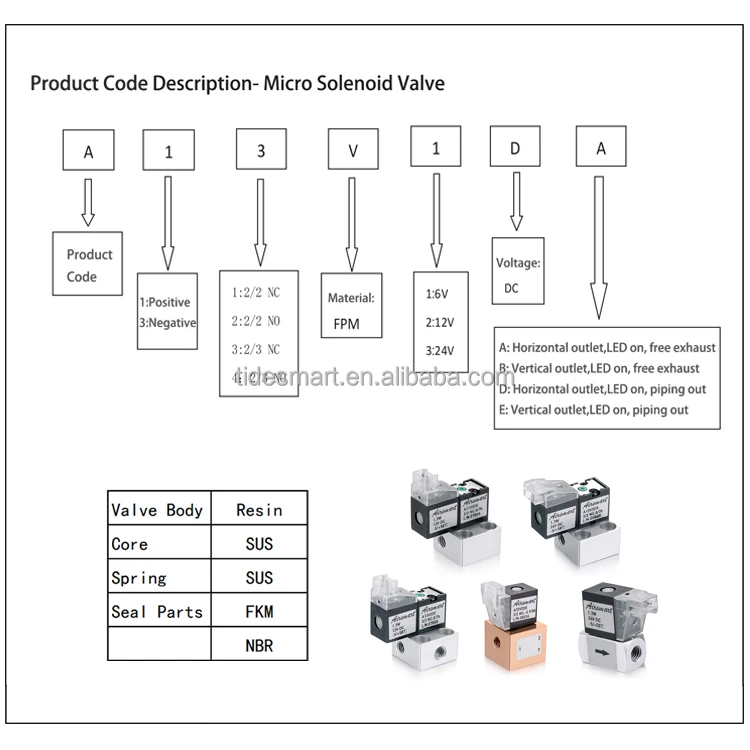

Connection: | see product code description |
Medium: | Air,filter precision 40μm |
Pressure of work: | -100~+100Kpa |
Nominal diameter: | 0.7mm |
Traffic: | >14l/min |
Turn on response time: | 6 ~8ms(customized <5ms) |
Turn off response time: | 8 ~10ms |
Use environment and medium temperature: | -5℃~+50℃（No freeze） |
Max.operate frequency | 45Hz |
Service life: | 50 million times |
Mounting holes: | M1.7 |
Voltage: | 24vdc |
Allowable voltage fluctuation: | -5%~+10% |
Power: | 1.3W(DC) |
Coil level: | F(155℃) |
Materials: | Valve Body(Resin); Core/Spring(SUS); Seal Parts（FKM/NBR） |
Dimensions(mm): | 25*11*28mm |
Net. Weight(g): | 22g |
