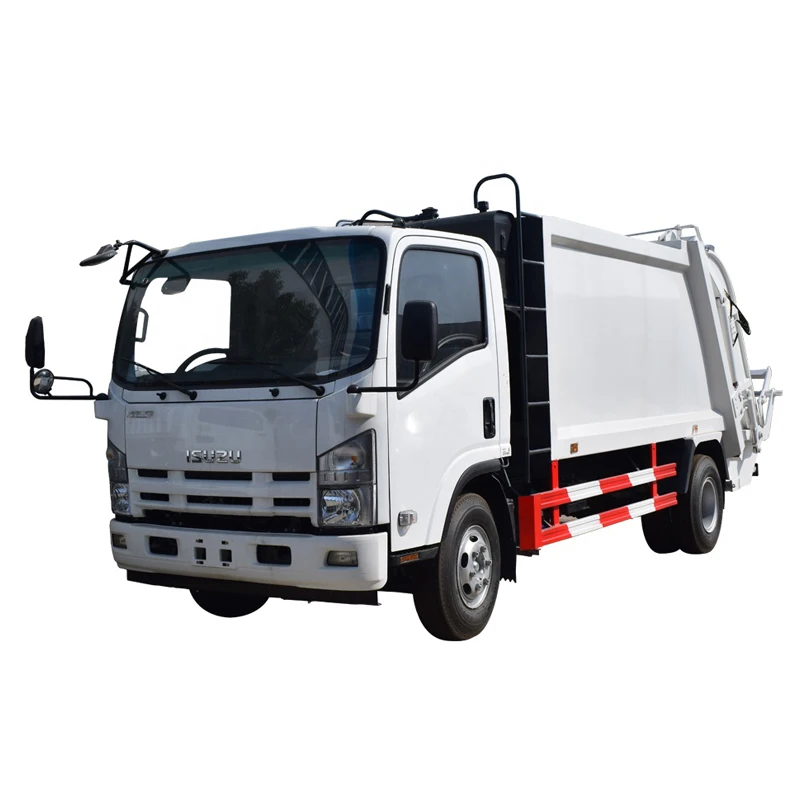

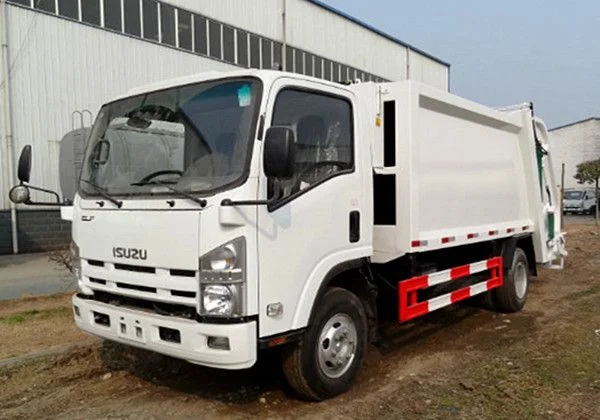

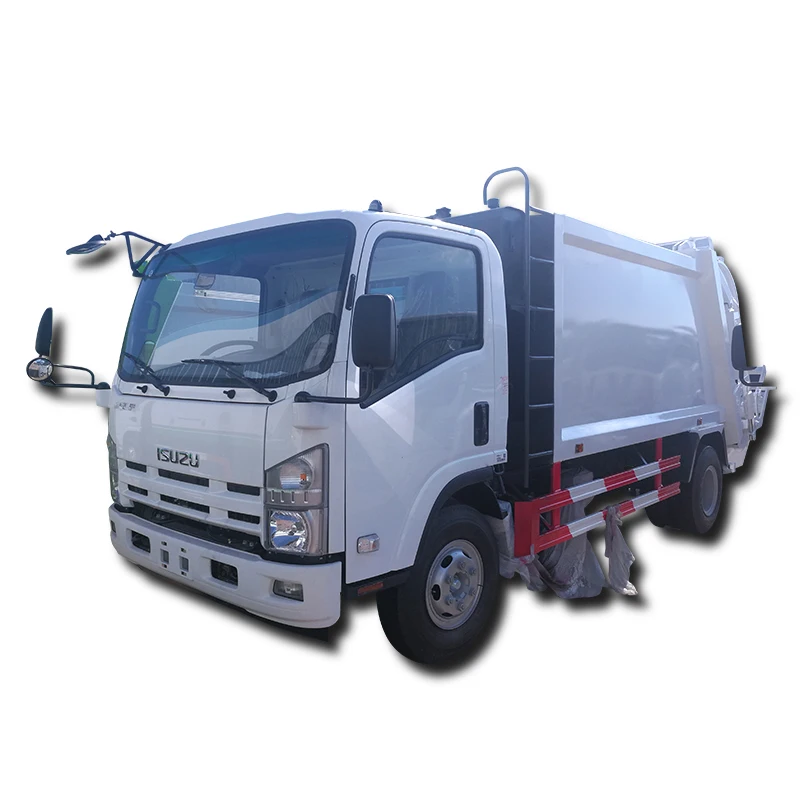

ISUZU 10 cubic meter 4X2 6 WHEELER 5 tons garbage compactor truck
- Category: >>>
- Supplier: Ningbo Zhongsheng Ruida International Trade Limited Company
Share on (1600530487004):
Product Overview
Description
Product Description
Specification
Dimension | Overall Length | 7,600mm | |
Overall Width | 2,400mm | ||
Overall height | 3,400mm | ||
Wheelbase | 5,200mm | ||
Structural Weight Rating | Tare Weight | 5,200 approx | |
Payload | 5,000 kg | ||
G.V.W.R. | 10,200 kg approx | ||
Engine | 4HK1-TC51, Euro 5 emission standard, Electronical Control, turbo charger and intercooler | ISUZU 4HK1-TC51, Euro 5 emission standard, Electronical Control, turbo charger and intercooler | |
Cylinder | 4 cylinders in line | ||
Maximum output | 192 hp (141 Kw) at 2600 rpm | ||
Maximum torque | 510 Nm 1600 r/min | ||
Displacement | 5.193 L | ||
Transmission | ISUZU MLD-6Q , 6 forwards and 1 reverse | ||
Frame | U-profile parallel ladder frame | ||
Suspension | leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer | ||
Front Axle | 3 tons payload | ||
Rear Axle | 6 tons payload | ||
Tire | 235/75R17.5 Radial tire | ||
Garbage Compactor Body | Volume of the Garbage Compactor Tank Body(m3) | 10M3 | |
Volume of the Filler(m3) | 1.5 | ||
Height of Filler Entrance(mm) | 1100 | ||
Time of one Loading Cycle(s) | <30 | ||
Time of one Unloading Cycle(s) | <45 | ||
Max Brake Crase Pressure(kgf) | >18000 | ||
Brake | Service brake: dual circuit compressed air brake | ||
Parking brake(emergency brake) , spring energy,compressed air operating on rear wheels | |||
Auxiliary brake | engine exhaust brake WEVB | ||
Multipurpose
Modifications
Postal vehicles, urban logistics vehicles, refrigerated vehicles, Modifications: hook-up garbage trucks, municipal climbing
trucks, boarding trucks, etc. for environmental sanitation, municipal administration, airports, etc
Postal vehicles, urban logistics vehicles, refrigerated vehicles, Modifications: hook-up garbage trucks, municipal climbing
trucks, boarding trucks, etc. for environmental sanitation, municipal administration, airports, etc
Customization
Send us message for different usages: Van truck, cargo truck. Cargo box customization.
Send us message for different usages: Van truck, cargo truck. Cargo box customization.
Advantage
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company profile
Ningbo Zhongsheng Ruida International Trade Limited Company dealing in the world's top brand such as ISUZU(QINGLING) 、SINOTRUCK 、ZOOMLION，etc. We have rich experience in exporting projects of ISUZU 、SINOTRUCK、ZOOMLION and other world's top brands.
Meanwhile our company is officially authorized marketing company of China ISUZU(QINGLING) commercial vehicles around the world ,which provides exporting of full range of China ISUZU trucks.
Certificate
Worldwide business
FAQ
Q: How about the delivery time?
A: 60 days after confirming the order and receiving the down payment during the valid time of the price, full payment for delivery.
Q: What’s the payment terms?
A: By T/T, (30%deposit + 70% balance), other payment terms can be negotiate.
Q: How is the quality of the machine exported from your country?
A: All of the machines we export are in excellent condition, brand new and ready to work.
Q:What is your warranty?
A: We provide one year maintenance for our clients.
A: 60 days after confirming the order and receiving the down payment during the valid time of the price, full payment for delivery.
Q: What’s the payment terms?
A: By T/T, (30%deposit + 70% balance), other payment terms can be negotiate.
Q: How is the quality of the machine exported from your country?
A: All of the machines we export are in excellent condition, brand new and ready to work.
Q:What is your warranty?
A: We provide one year maintenance for our clients.
