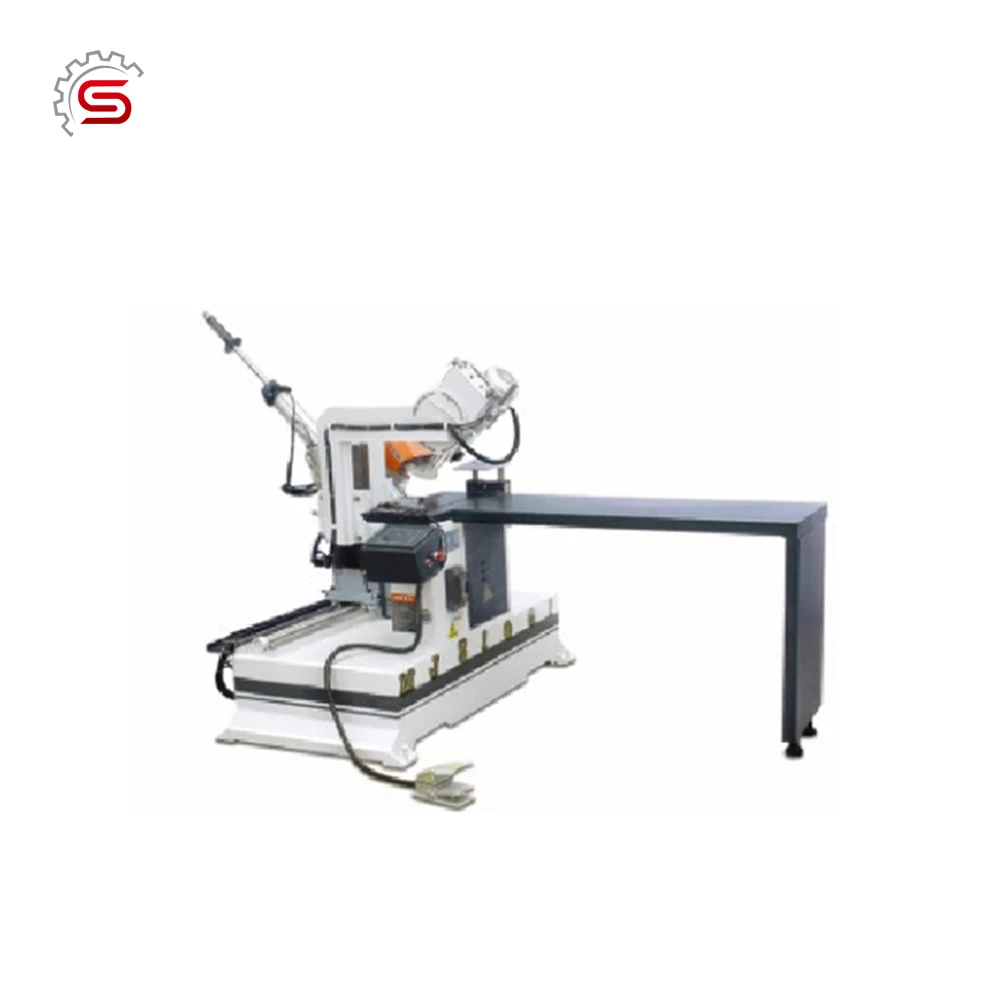

High Quality wooden Window Door Frame Cutting Machine Saw
High Quality wooden Window Door Frame Cutting Machine Saw

High Quality wooden Window Door Frame Cutting Machine Saw

Share on (1600530562895):


Price:$16,000.00 - $18,000.00

Quantity:


Product Overview

Description







Model
MJZ1032UW
Max saw diametre
250mm
Max working depth
70mm
Max drill diametre
16mm
Max working width
600mm
Max working height
100mm
Saw-drill head rotating angle
45°/90°
Number of saw
2
Number of drill
6/10
Sawing spindles speed
5600r/min
Drilling spindle speed
2840r/min
Total motor power
10.9kw
Max working length
2600mm
Min working length
650mm




Greatly improve the processing capacity and production efficiency by shortening the auxiliary working time.In addition, it reduces
the number of traditional machine tools, saves the number of operators and reduces the floor area of the workshop.
1. Improve processing capacity and production efficiency.
2. Improve wood yield. 3. Improve product quality and processing precision.
4. Expand the technological range and increase the product variety.




Features:
1.Convenient control panel ,easy operation and high accuracy.
2.Body adopts quality cast iron, which can keep the machine more
sturdy.
3.Worktable uses the special treatment and polishing, high precision and well weat-resistance.
4.Suitable for polishing furniture panels, decorative panels, and so on.








Model
MJZ1032UW
MJZ1031U
Max saw diametre
250mm
250mm
Max working depth
70mm
70mm
Max drill diametre
16mm
16mm
Max working width
600mm
500mm
Max working height
100mm
100mm
Saw-drill head rotating angle
45°/90°
45°
Number of saw
2
1
Number of drill
6/10
3/5
Sawing spindles speed
5600r/min
5600r/min
Drilling spindle speed
2840r/min
2840r/min
Total motor power
10.9kw
5.2kw
Max working length
2600mm
Min working length
650mm
