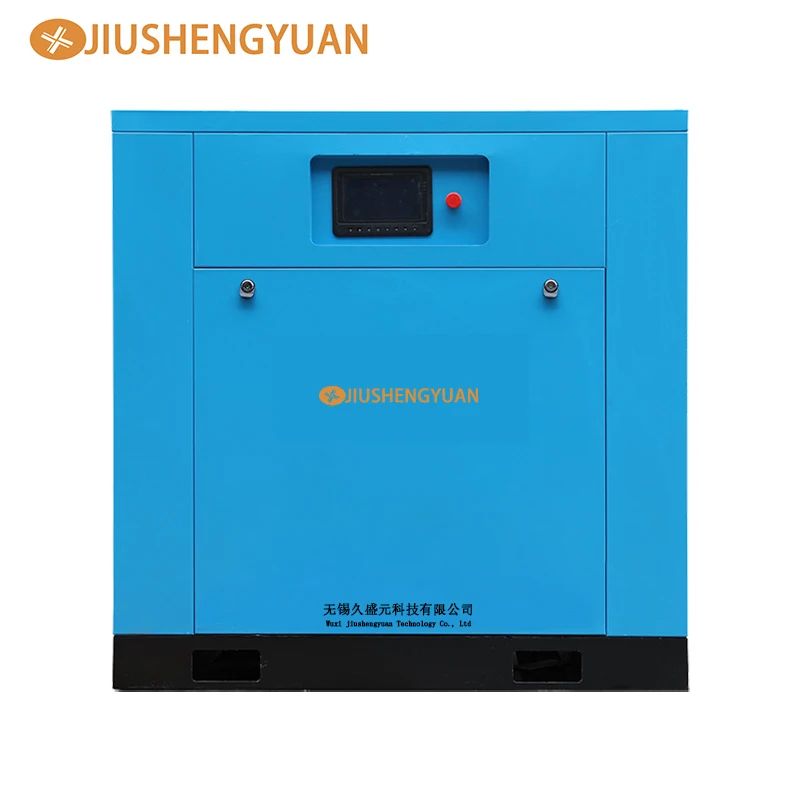

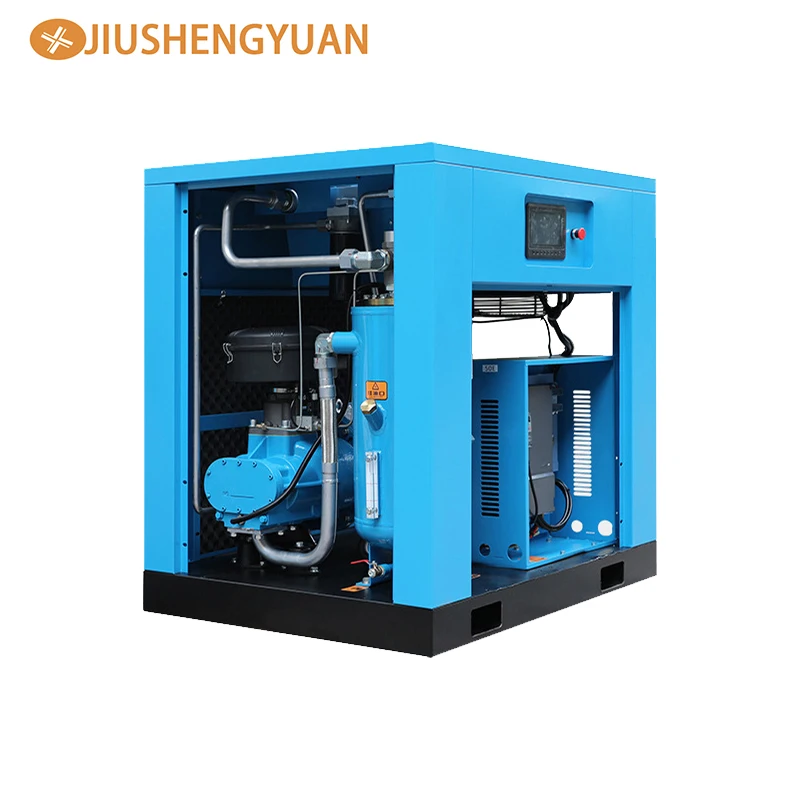

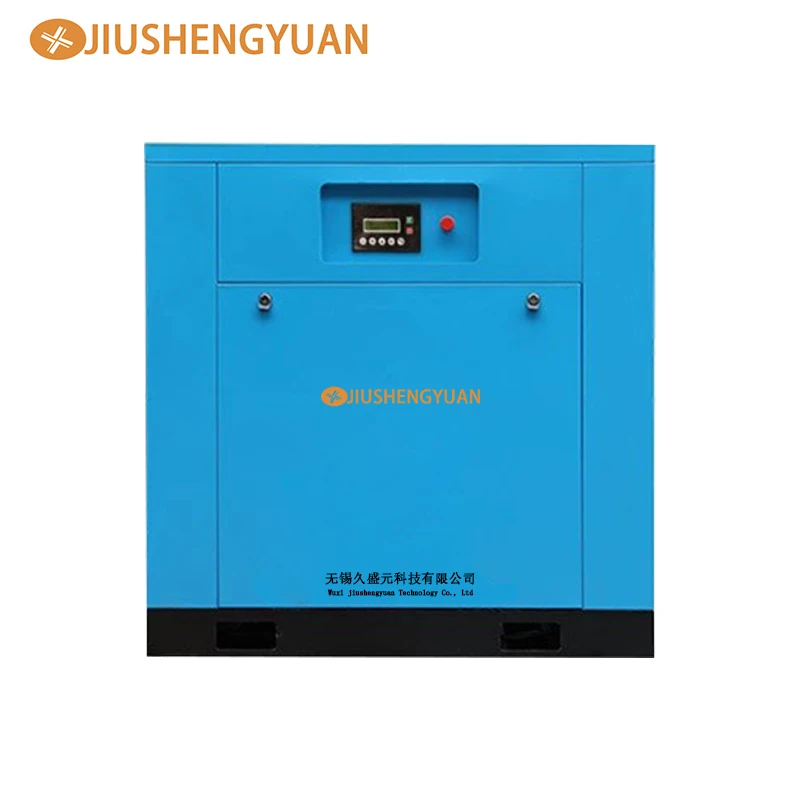

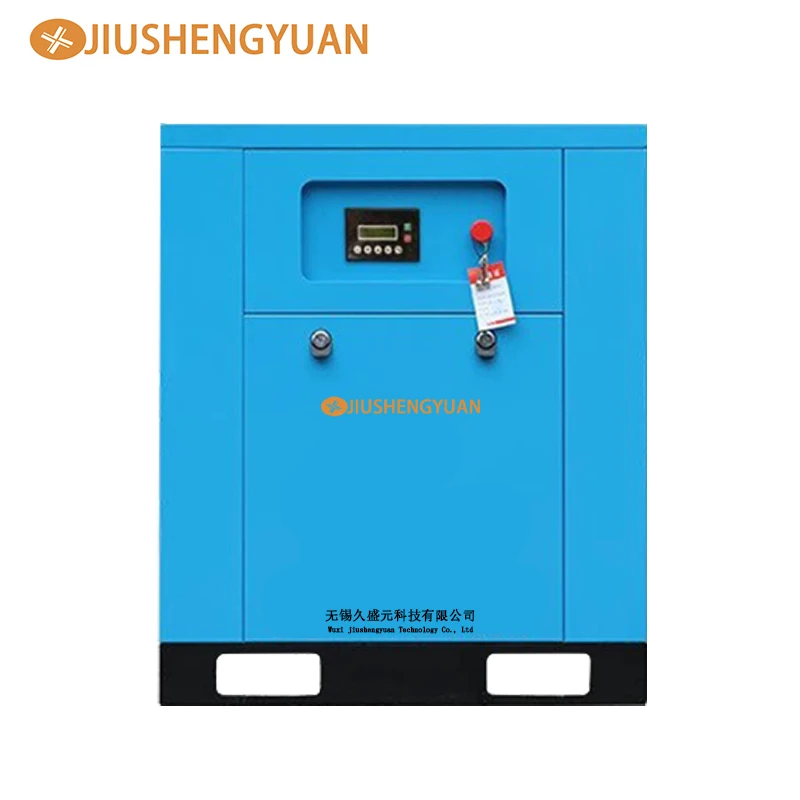

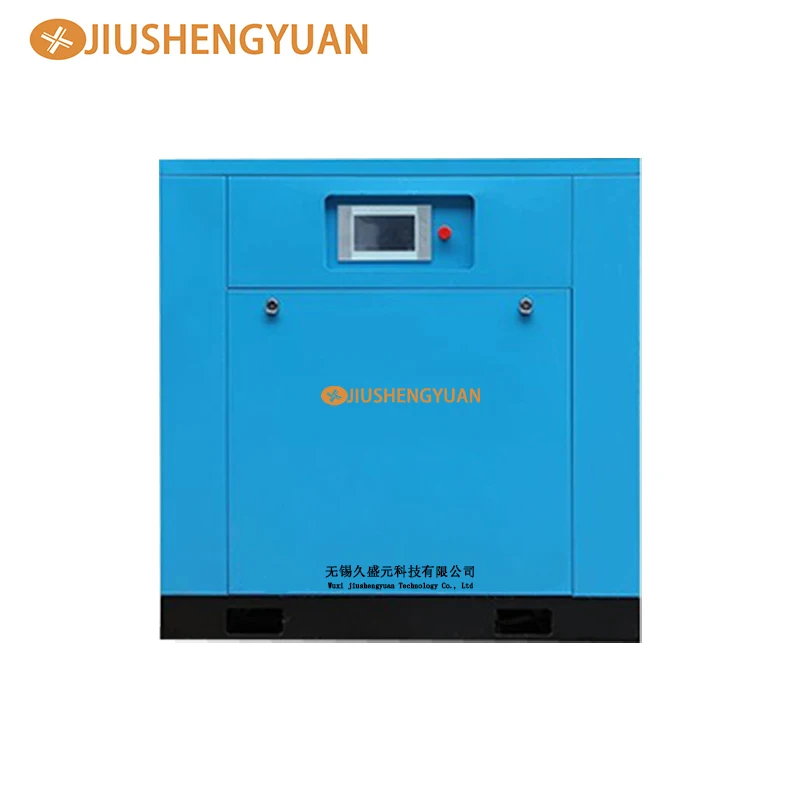

Special Hot Selling Air Compressor Machines 3 Phase Oil Injected Industry Air Compressor China Screw Zhejiang 185kw 7bar DN 150
- Category: >>>
- Supplier: Wuxi Jiushengyuan Science & Technology Co. Ltd
Share on (1600530579021):
Product Overview
Description
Product Overview
PRODUCT SPECIFICATIONS
Two Stage Screw Energy Saving Air Compressor | ||||||||||||||||
Project | DY-20SV | DY-25SV | DY-30SV | DY-40SV | DY-50SV | DY-60SV | DY-75SV | DY-100SV | ||||||||
Exhaust volume/Exhaust pressure min/Mpa | 3m³ /0.7mpa | 3.6m³ /0.7mpa | 4.2m70.7mpa | 6.5m³ /0.7mpa | 7.2m³ /0.7mpa | 9.8m70.7mpa | 12.8m³ /0.7mpa | 17.5m³ /0.7mpa | ||||||||
2.9m³ /0.8mpa | 3.5m³ /0.8mpa | 4.1m70.8mpa | 6.4m³ /0.8mpa | 7.1m³ /0.8mpa | 9.7m³ /0.8mpa | 12.5m³ /0.8mpa | 16.5m³ /0.8mpa | |||||||||
2.4IYI3 /1.0mpa | 2.9m³ /1.0mpa | 3.5m³ /1.0mpa | 4.9m³ /1.0mpa | 6.3m³ /1.0mpa | 7.8m³ /1.0mpa | 9.6m³ /1.0mpa | 12.5m³ /1.0mpa | |||||||||
2.2m³ /1.3mpa | 2.5m³ /1.3mpa | 3.2m³ /1.3mpa | 4.2m³ /1.3mpa | 5.4m³ /1.3mpa | 6.5m³ /1.3mpa | 8.6m³ /1.3mpa | 11.2m³ /1.3mpa | |||||||||
Lubricating oil quantity（L） | 18 | 30 | 65 | |||||||||||||
Noise dB(A) | 68 ±2 | 72 ±2 | ||||||||||||||
Driving mode | Direct link | |||||||||||||||
Power Supply | 380V/50Hz | |||||||||||||||
power | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | ||||||||
Startup mode | 丫一△，Start up, frequency conversion start | |||||||||||||||
L(mm) | 1440 | 1720 | 2100 | |||||||||||||
W(mm) | 870 | 1110 | 1350 | |||||||||||||
H(mm) | 1220 | 1480 | 1720 | |||||||||||||
Weight(KG) | 780 | 1080 | 2080 | |||||||||||||
Outlet pipe diameter | G1-% | G1-Y2 | G2 | |||||||||||||
Project | DY125SV | DY150SV | DY175SV | DY200SV | DY250SV | DY270SV | DY300SV | DY-350SV | |||||||
Exhaust volume/Exhaust pressure min/Mpa | 20.8m³/0.7mpa | 24.5m³/0.7mpa | 30m70.7mpa | 34.5m³/0.7mpa | 41 m：70.7mpa | 44.6m³/0.7mpa | 48.6m³/0.7mpa | 55m70.7mpa | |||||||
19.8m³/0.8mpa | 23.5m³/0.8mpa | 28m³/0.8mpa | 33.6m70.8mpa | 38.4m³/0.8mpa | 43m³/0.8mpa | 47m³/0.8mpa | 54m³/0.8mpa | ||||||||
16.9m³/1.0mpa | 19.7m³/1.0mpa | 23.5m³/1.0mpa | 30m³/1.0mpa | 32.5m³/1.0mpa | 38.5m³/1.0mpa | 41m³/1.0mpa | 46m³/1.0mpa | ||||||||
14.3m³/1.3mpa | 17.6m³/1.3mpa | 19.8m³/1.3mpa | 23.8m³/1.3mpa | 28.6m³/1.3mpa | 32.8m³/1.3mpa | 38m³/1.3mpa | 40m³/1.3mpa | ||||||||
Lubricating oil quantity（L） | 102 | 120 | 140 | 170 | |||||||||||
Noise dB(A) | 72 ±2 | 75 ±2 | 82 ±2 | ||||||||||||
Driving mode | Direct link | ||||||||||||||
Power Supply | 380V/50Hz | ||||||||||||||
power | 90 | 110 | 132 | 160 | 185 | 200 | 220 | 250 | |||||||
Startup mode | 丫一△，Start up, frequency conversion start | ||||||||||||||
L(mm) | 2460 | 2900 | 3800 | ||||||||||||
W(mm) | 1700 | 1800 | 1980 | ||||||||||||
H(mm) | 1900 | 2020 | 2150 | ||||||||||||
Weight(KG) | 3280 | 3480 | 3980 | 4280 | 5450 | 5600 | 6500 | 6600 | |||||||
Outlet pipe diameter | G2-% | G3 | G3 | DN100 | |||||||||||
Application
Company Profile
Wuxi Jiushengyuan Technology Co., Ltd.
Wuxi Jiushengyuan Technology Co., Ltd. is a high-tech enterprise specializing in the r&d, production and sales of air compressor,Established in 2012, it is located in the new industrial park of wuxi city, Products: screw type, small reciprocating,translational, vortex type air compressor.Power cover 0.75kw to 450KW, more than 1000 product specifications.Products are found inover 100 countries and regions The company has passed iso9001-2008 quality system certification, ISO14001 environmental management system certification, ISO28001 occupational health and safety management system certification.
The company continues to adhere to the concept of "innovation reflects value", focuses on builds the honest Jiushengyuan, produces the first-class air compressor product, and builds the world first-class air compressor production base.
The company continues to adhere to the concept of "innovation reflects value", focuses on builds the honest Jiushengyuan, produces the first-class air compressor product, and builds the world first-class air compressor production base.
FAQ
Q1: Why customer choose us?
A: Wuxi Jiushengyuan Technology Co., Ltd., 10 years focus on screw air compressor. We have professional team to support how to choose air compressor.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Jiangsu,China.
Q3: What's your delivery time?
A: Generally 7-15 days, if urgently order, pls contact our sales in advance.
Q4: How long is your air compressor warranty?
A: One or Two years for the whole machine. In China we are the manufacturer for 10 years warranty.
Q5: How long could your air compressor be used?
A: Generally, more than 10 years.
Q6: What's payment term?
A: T/T, L/C, Western Union, Credit Card, and etc.Also we could accept USD, RMB, Euro and other currency.
Q7: How about your customer service?
A: 24 hours on-line service available. 48hours problem sovled promise.
Q8:How about your price?
A: We have different model for your different customers with competive price.
Q9: How about your after-service?
A: 1,We can reply you within 2 hours by email, and welcome to our company to have training.
2, We also can guide you by online for any after service in time.
