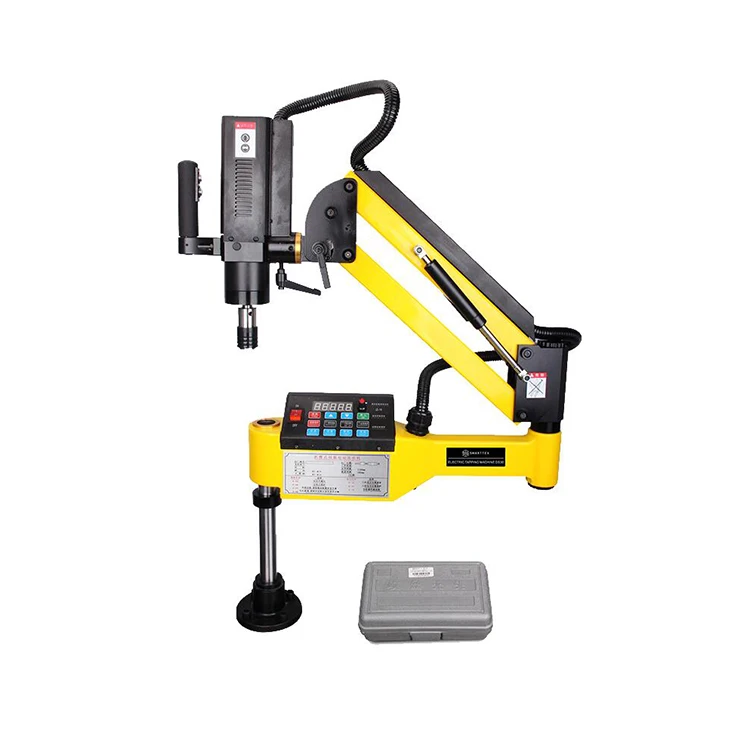

Automatic Servo Motor Tapping Electric Tapping Machine With Touch Screen
- Category: >>>
- Supplier: Sunrise Mechatronic Technology Co. Ltd.
Share on (1600530582286):
Product Overview
Description
Product Paramenters
Model | ZG-16 | ZG-30 | ZG-36 |
VOLTAGE | 220V/50HZ | 220V/50HZ | 220V/50HZ |
POWER | 600W 0-312RPM | 1200W 0-150RPM | 1200W 0-150RPM |
TAP RANGE | M3-M16 | M6-M30 | M6-M36 |
COLLET | M3,M4,M5,M6-8,M10,M12,M14,M16 | M6-8,M10,M12,M14,M16,M18-20,M22,M24,M30 | M6-8,M10,M12,M14,M16,M18-20,M22,M24,M27-30,M33,M36 |
Product display
Electric tapping machine is a kind of small and large steel pieces of coarse teeth, fine teeth, non-standard tooth spacing forward and reverse fastening connection thread, transmission connection thread and pipe thread for internal thread tapping machine, this machine belongs to the category of flexible tapping, the remarkable feature is folding arm operation, adapt to the M42 thread tapping requirements.
Machine Feature：

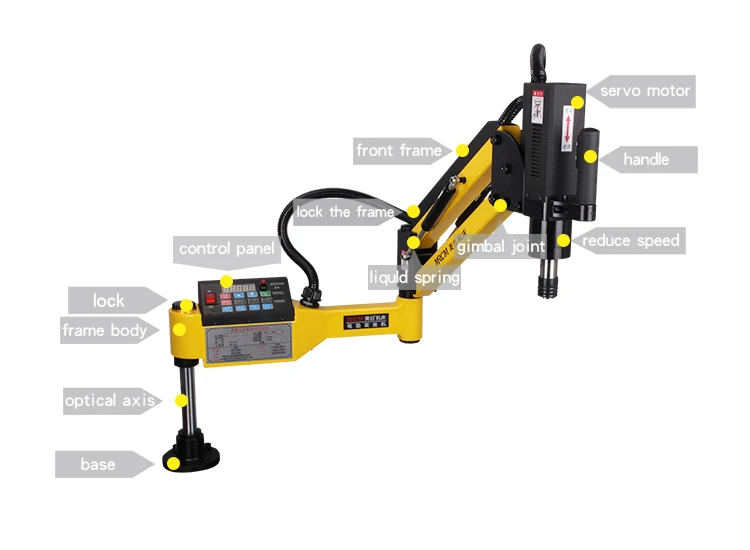

1, the machine adopts servo drive control, with intelligent torque protection, instead of the traditional lathe, drilling machine or manual tapping limitations.
2, advanced mechanical design, a variety of processes using mold castings, the overall rigidity is strong, durable, non deformation, beautiful appearance.

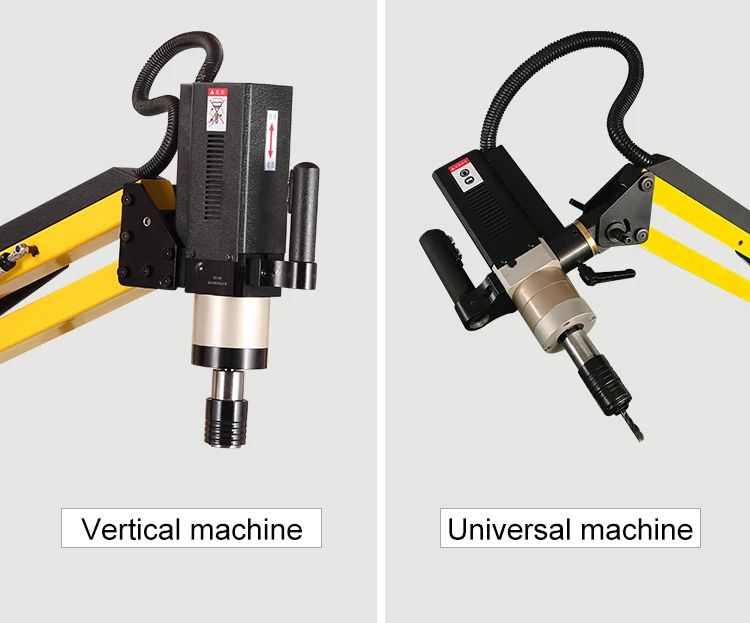

3. The high definition touch screen is simple and flexible. It can realize the vertical and horizontal work of complex and heavy workpiece, locate quickly, and process accurately.
4, stepless speed change, manual, automatic, linkage three modes of work, whatever you choose.
5, automatic mode can effectively control the depth of tapping, without the operation button, automatic control by depth controller.
6, repeated positioning fast, tapping speed, high production efficiency.
1, the machine adopts servo drive control, with intelligent torque protection, instead of the traditional lathe, drilling machine or manual tapping limitations.
2, advanced mechanical design, a variety of processes using mold castings, the overall rigidity is strong, durable, non deformation, beautiful appearance.
3. The high definition touch screen is simple and flexible. It can realize the vertical and horizontal work of complex and heavy workpiece, locate quickly, and process accurately.
4, stepless speed change, manual, automatic, linkage three modes of work, whatever you choose.
5, automatic mode can effectively control the depth of tapping, without the operation button, automatic control by depth controller.
6, repeated positioning fast, tapping speed, high production efficiency.
