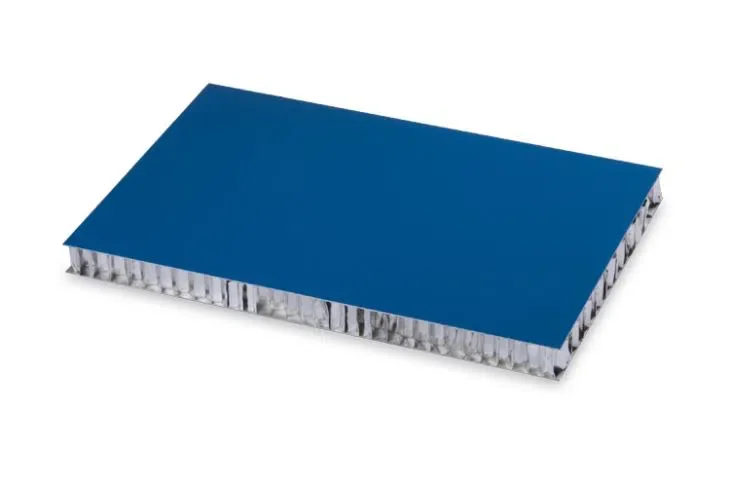

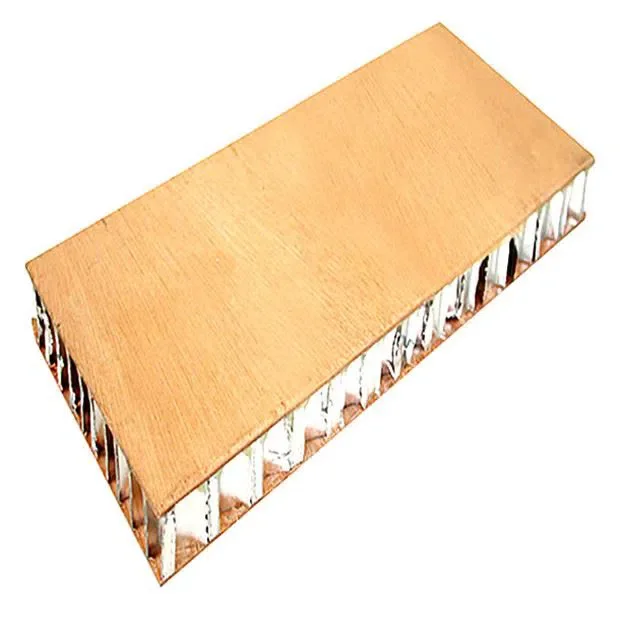

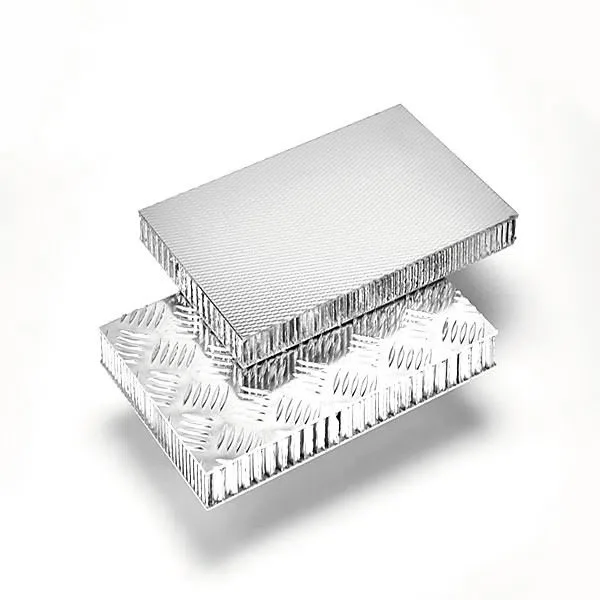

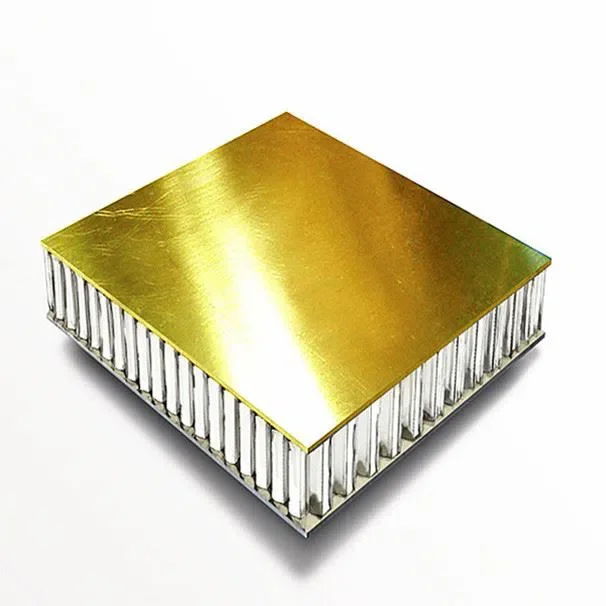

4x8 aircraft aluminum honeycomb alloy structure sheets panels
- Category: >>>
- Supplier: Xiamen Togen Building Products Co. Ltd.
Share on (1600530586319):
Product Overview
Description
Introduction

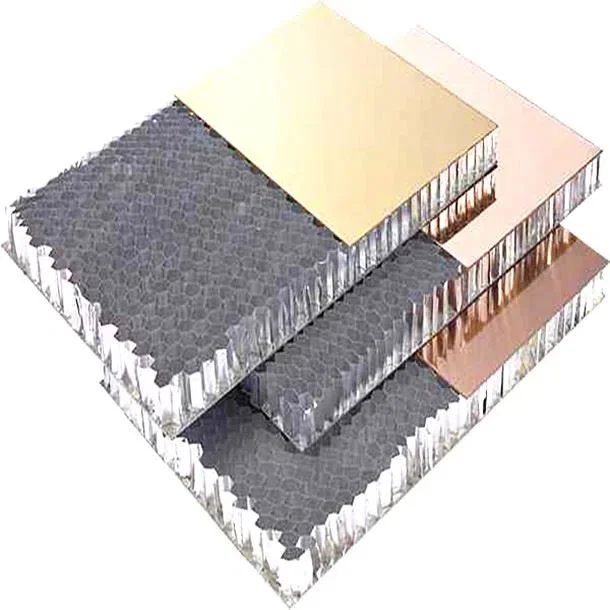

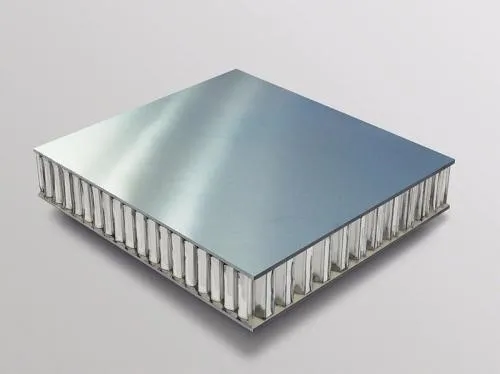

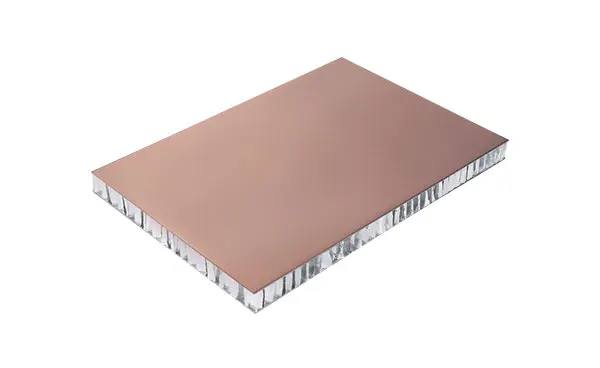

Introduction of the Aluminum Honeycomb Panel
Aluminum honeycomb panel is a honeycomb sandwich plate with honeycomb structure as its core, which is inspired by the natural hexagonal honeycomb. The unique honeycomb structure makes its weight lighter than other materials in the same volume, and the stiffness and overall stability is very good as well. What’s more, aluminum honeycomb panel also has the advantages of sound insulation and heat insulation. The aluminum alloys are neither radioactive nor volatile. They can be completely recycled and reused, then saving resources and energy, and minimizing environmental pollution. This makes honeycomb aluminum panels used as a new energy-saving, environmentally friendly and healthy material.
Specification
1. Width: ≤ 2200mm
2. Length width: ≤9000mm
3. Overall thickness: 5-100mm
4. Core: Aluminum honeycomb (Alloy 3003h18)with hexagonal cells
3. Overall thickness: 5-100mm
4. Core: Aluminum honeycomb (Alloy 3003h18)with hexagonal cells

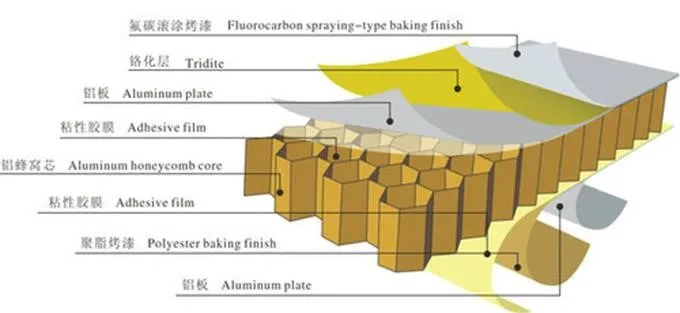

Composition

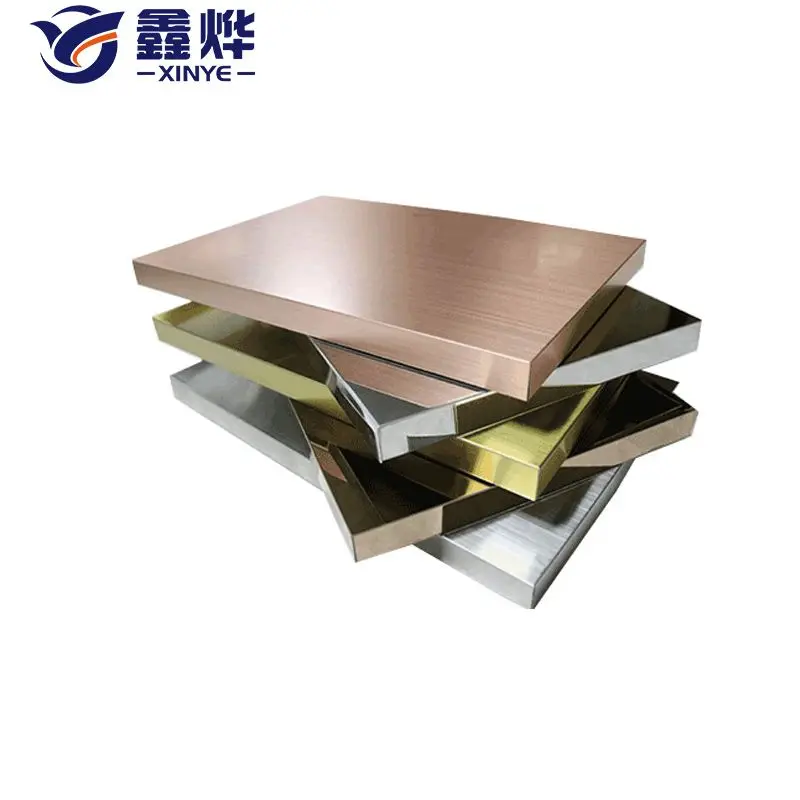

1. Face-panel, stainless steel panel, aluminum solid panel, roller-coating aluminum panel.
Normal Thickness: 1.0-3mm
2. Back-panel, galvanized steel sheet, stainless steel panel, aluminum solid panel
2. Back-panel, galvanized steel sheet, stainless steel panel, aluminum solid panel
Normal Thickness: 0.8-3mm
3. Honeycomb core, AA3003H18 aluminum honeycomb core
3. Honeycomb core, AA3003H18 aluminum honeycomb core
Normal Thickness: 0.06m
Suface Treatment
Our aluminum sheet surface treatment includes powder coating, PVDF powder coating, PVDF rolling coating, and wooden transfer. We ensure you the quality of our aluminum panel as we never used aluminum scrap or recycled aluminum.
Polyvinylidene fluoride (PVDF) coatings are a factory-applied, resin-based coating system, typically with embedded color pigment particles that support a wide range of matte-finish colors. They are most commonly used for architectural coating applications due to their superior resistance to weathering by sunlight, moisture, or temperature.
Aluminum wall cladding, curtain wall, and roofing sheet are some of the most common applications for PVDF coatings.
Polyester powder coating is a dry material sprayed onto a work piece and then cured to form a protective covering. This method of covering and protecting objects has a number of advantages over conventional wet coverings. Polyester powder coating creates a stronger and more durable finish and is more economical and safer for the environment than many forms of liquid coatings. As a result, powder coating systems have become very common in commercial and industrial processes
Polyvinylidene fluoride (PVDF) coatings are a factory-applied, resin-based coating system, typically with embedded color pigment particles that support a wide range of matte-finish colors. They are most commonly used for architectural coating applications due to their superior resistance to weathering by sunlight, moisture, or temperature.
Aluminum wall cladding, curtain wall, and roofing sheet are some of the most common applications for PVDF coatings.
Polyester powder coating is a dry material sprayed onto a work piece and then cured to form a protective covering. This method of covering and protecting objects has a number of advantages over conventional wet coverings. Polyester powder coating creates a stronger and more durable finish and is more economical and safer for the environment than many forms of liquid coatings. As a result, powder coating systems have become very common in commercial and industrial processes
1. Advantages of Aluminum Honeycomb Panel
1. Lightweight and low density.
The core layer of the honeycomb panel is a typical cellular structure, the continuous polygonal cells are regularly arranged, so that the solid portion of the honeycomb panel has a small cross-sectional area, and so the density of honeycomb panel is lower than the other sandwich materials.
The core layer of the honeycomb panel is a typical cellular structure, the continuous polygonal cells are regularly arranged, so that the solid portion of the honeycomb panel has a small cross-sectional area, and so the density of honeycomb panel is lower than the other sandwich materials.
2. High strength and good rigidity.
According to mechanical analysis, the structure of honeycomb panel is connected with each other like I-beams. The skin sheet bears the in-plane load like I-beam flange, function of honeycomb core is similar to the web of I-beam, bearing shear stress, connecting and support both skin sheet. However, different with I-beam web, the honeycomb core is not a thin rib but a dense reinforcement. The core layer is bonded to the entire surface of the board, and the height of core layer is much larger than the thickness of skin sheet, which makes section inertia moment multiplied, the overall stability is also increased while the overall stiffness is increased.
According to mechanical analysis, the structure of honeycomb panel is connected with each other like I-beams. The skin sheet bears the in-plane load like I-beam flange, function of honeycomb core is similar to the web of I-beam, bearing shear stress, connecting and support both skin sheet. However, different with I-beam web, the honeycomb core is not a thin rib but a dense reinforcement. The core layer is bonded to the entire surface of the board, and the height of core layer is much larger than the thickness of skin sheet, which makes section inertia moment multiplied, the overall stability is also increased while the overall stiffness is increased.
3. Good impact resistance and vibration damping.
When the honeycomb panel is subjected to external impact, the impact force can be converted into the plastic deformation energy of the honeycomb core, therefore, impact energy can be effectively absorbed. Through the self-dropping ball impact test on the aluminum honeycomb panel, there is no crack by inspecting dent area and depth of impact site, which indicates that the toughness of the aluminum honeycomb panel is better and the impact resistance is stronger, and most of the energy can be absorbed by its own deformation. The damping effect is good.
When the honeycomb panel is subjected to external impact, the impact force can be converted into the plastic deformation energy of the honeycomb core, therefore, impact energy can be effectively absorbed. Through the self-dropping ball impact test on the aluminum honeycomb panel, there is no crack by inspecting dent area and depth of impact site, which indicates that the toughness of the aluminum honeycomb panel is better and the impact resistance is stronger, and most of the energy can be absorbed by its own deformation. The damping effect is good.
4. Sound insulation and heat insulation.
The material used to produce the honeycomb panel itself has no heat insulation and sound insulation properties, aluminum is a good conductor of heat and sound. However, the unique structure of the honeycomb panel makes it has good heat insulation and sound insulation performance.
The material used to produce the honeycomb panel itself has no heat insulation and sound insulation properties, aluminum is a good conductor of heat and sound. However, the unique structure of the honeycomb panel makes it has good heat insulation and sound insulation performance.
5. Non-combustible and moisture resistance.
The aluminum panel is made of aluminum plate and aluminum honeycomb core. The aluminum alloy is a non-combustible material, which plays a good role in fire retardant and fire protection. In addition, the aluminum alloy itself has good chemical stability, corrosion resistance, and moisture resistance.
6. Good formability and optional thickness.
The thickness of the honeycomb aluminum panel can be selected at 6mm-100mm according to actual needs, and the shape can also be made into a flat plate, a single curved panel or a double curved panel according to specific requirements. Honeycomb aluminum panel not only has good formability but also is not easily deformed after forming.
7. No pollution, energy saving and environmental protection.
The raw material of aluminum honeycomb panel is aluminum alloy, which is not radioactive and does not volatilize any harmful gases. Honeycomb panels can also be completely recycled, saving resources and energy, and meeting the requirements of energy saving and environmental protection. In addition, the honeycomb panel reduces the load of the transportation vehicle, improves the power, reduces the fuel consumption, and exhaust pollution while saving energy.
8. Beautiful appearance and easy to clean.
The skin sheet of honeycomb panel can be used directly (mill finish) or coated with different colors or patterns. (RAL color, wooden patterns or even stone patterns)
The aluminum panel is made of aluminum plate and aluminum honeycomb core. The aluminum alloy is a non-combustible material, which plays a good role in fire retardant and fire protection. In addition, the aluminum alloy itself has good chemical stability, corrosion resistance, and moisture resistance.
6. Good formability and optional thickness.
The thickness of the honeycomb aluminum panel can be selected at 6mm-100mm according to actual needs, and the shape can also be made into a flat plate, a single curved panel or a double curved panel according to specific requirements. Honeycomb aluminum panel not only has good formability but also is not easily deformed after forming.
7. No pollution, energy saving and environmental protection.
The raw material of aluminum honeycomb panel is aluminum alloy, which is not radioactive and does not volatilize any harmful gases. Honeycomb panels can also be completely recycled, saving resources and energy, and meeting the requirements of energy saving and environmental protection. In addition, the honeycomb panel reduces the load of the transportation vehicle, improves the power, reduces the fuel consumption, and exhaust pollution while saving energy.
8. Beautiful appearance and easy to clean.
The skin sheet of honeycomb panel can be used directly (mill finish) or coated with different colors or patterns. (RAL color, wooden patterns or even stone patterns)

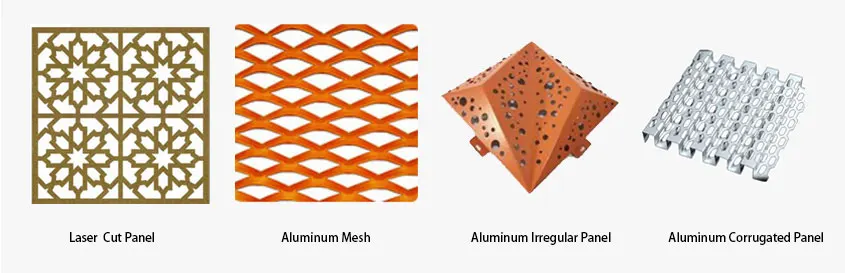

Related Products

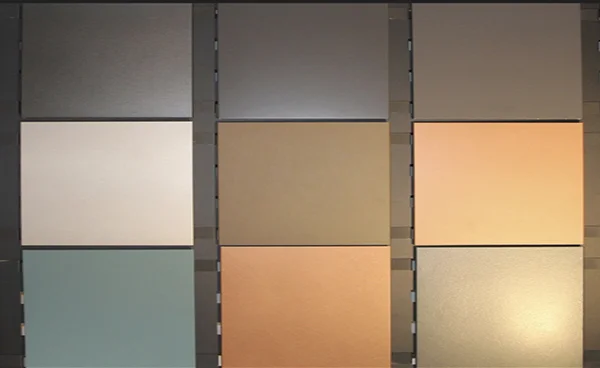

PATTERN & COLOR
We supply wood finish, stone finish, Chameleon color, solid color, metallic color, and customized colors and patterns. Also if you have any other customized color please let us know your pantone/RAL color code, or send us your actual sample for us to simulate. Brief introduction to different colors and finishes:
Woodgrain Finish reminds people of ecology and environmental protection, reflecting simple but profound connotations.

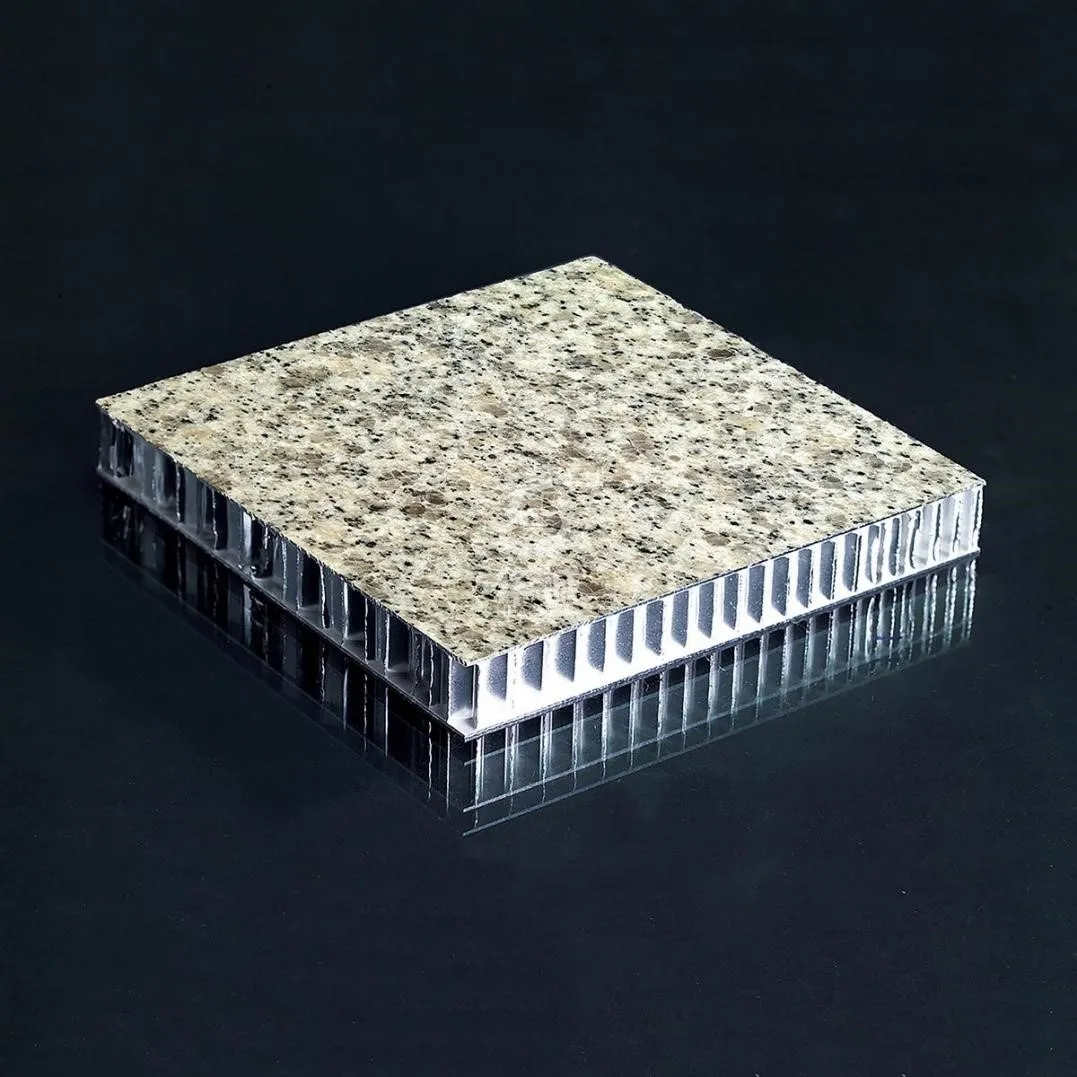

Stone finish can be defined as a new fashion universally used in office buildings and museums as it is serious and solemn. As a combination of tradition and modern, stone finish shows the development of ages

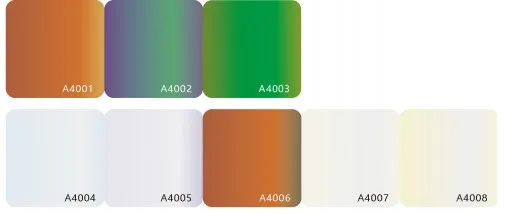

Different colors keep transitioning in the sun, refreshing people's visual experience.
Metallic texture gives off a feeling of high-tech, which is stunning and mysterious, making people want to reach down the surface and touch

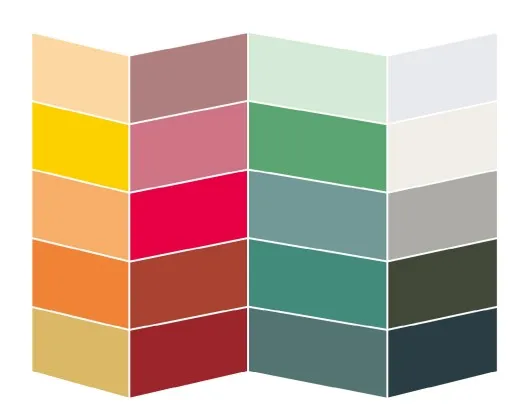

Solid color is a good choice as they are simple but straightforward and never seem to be out of date. Every single color can be an expression of the emotion architect is trying to convey
We provide Custom Finish tailored to your preferences. You name it, and we will do our best to guarantee your satisfaction.

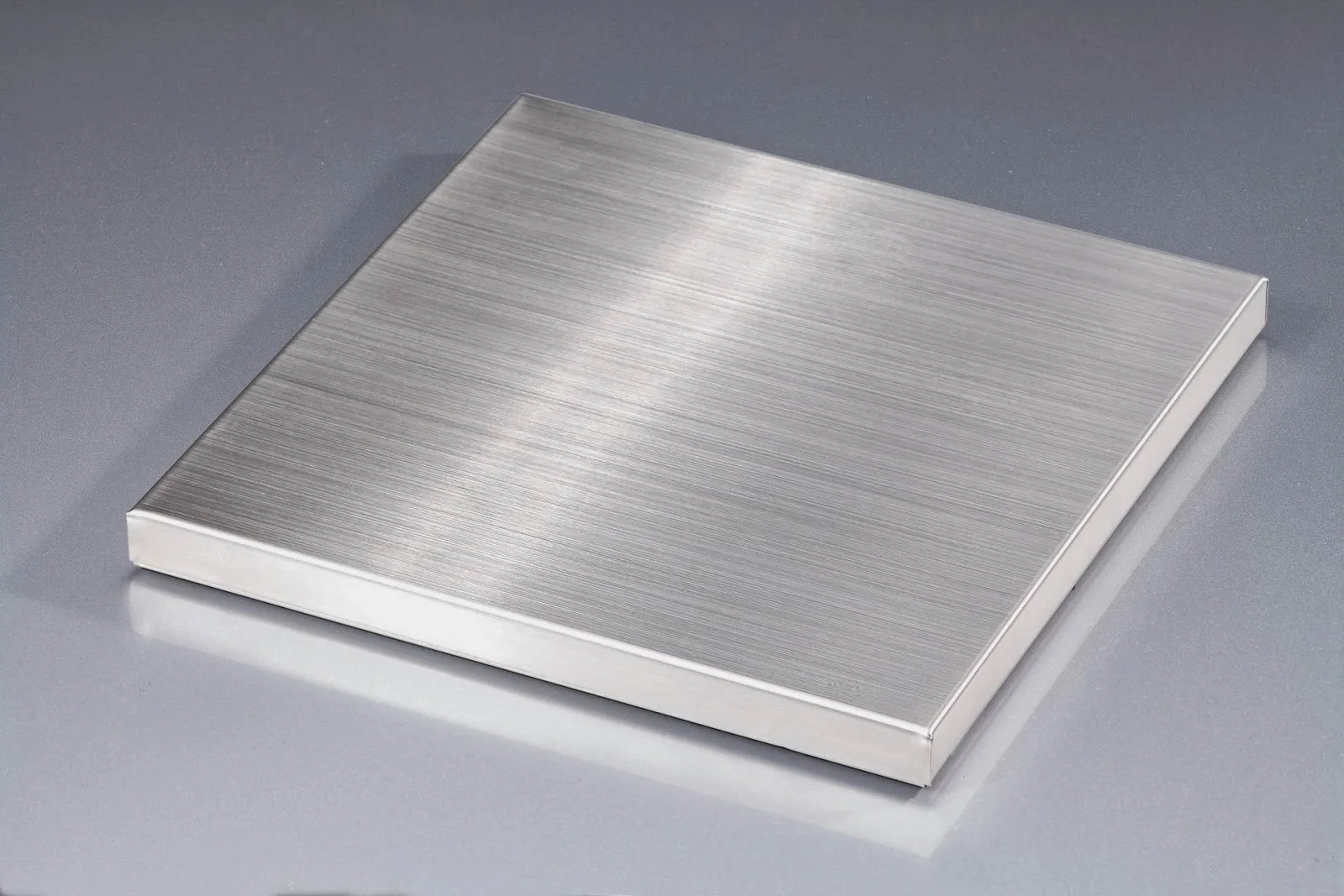

Color for stainless steel panel
Sand blasting
Surface colouration
Brush

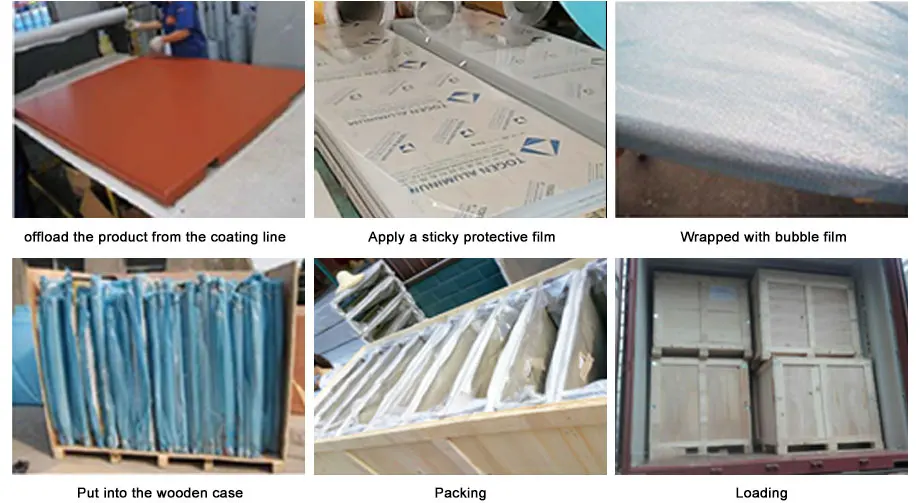

Packaging

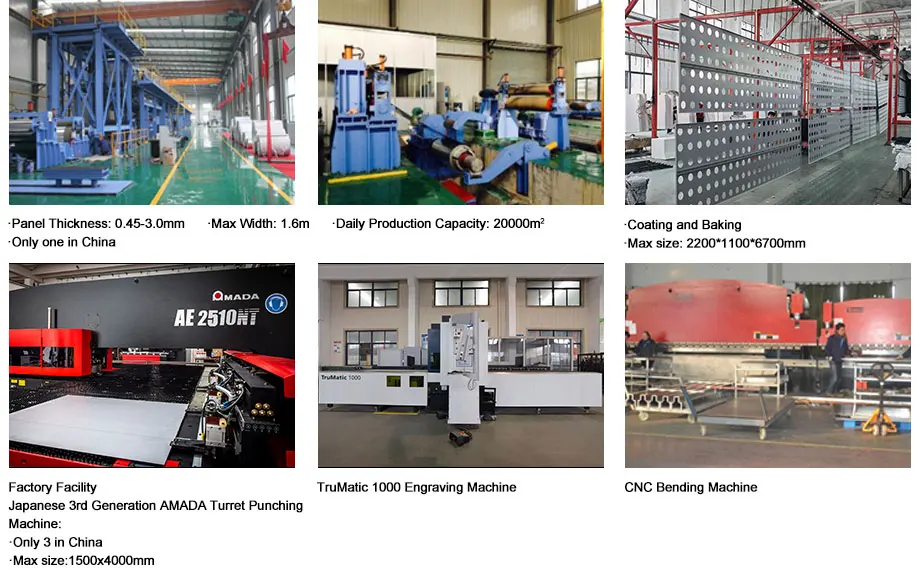

Factory
Project

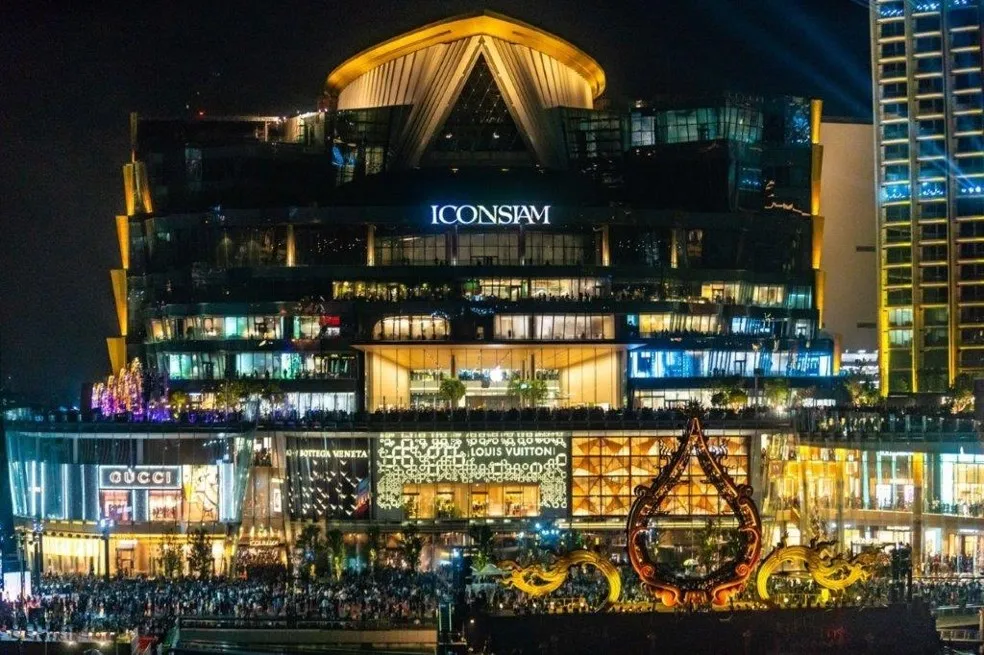

Icon Siam Retail Mall，Bangkok, Thailand
* Product: 25mm Irregular-shaped Aluminum Honeycomb Panel
(3mm Aluminum Sheet+19mm Core+3mm Aluminum Sheet)
* Qty: 550m2
* Jumbo Size: 2200*3400mm
* Material: AA3003
* PVDF Coating
* Project Status: Completed
