Brand New Carlo Gavazzi DUB71CB2310V Monitoring Relay Voltage 1 Phase Din Rail 115 230VAC SPDT 0.1 10VAC/DC Good Price

We can provide a range of electrical accessories. We have more than 8 years experience in this area. And we supply a wide range of products :

1. Brand :  Sch-neider, SMC, Finder, Len-ze, Pep-perl+Fu-chs, Tur-ck, IFM, Leu-ze, Om-ron, AB-B, Phi-lips, Sie-mens, Balluff, IFM, Fatek...

2. Item : Engineering Solution/Safety and Security Services Provider, Systems Integrator/Process Control & Automation Contractor.

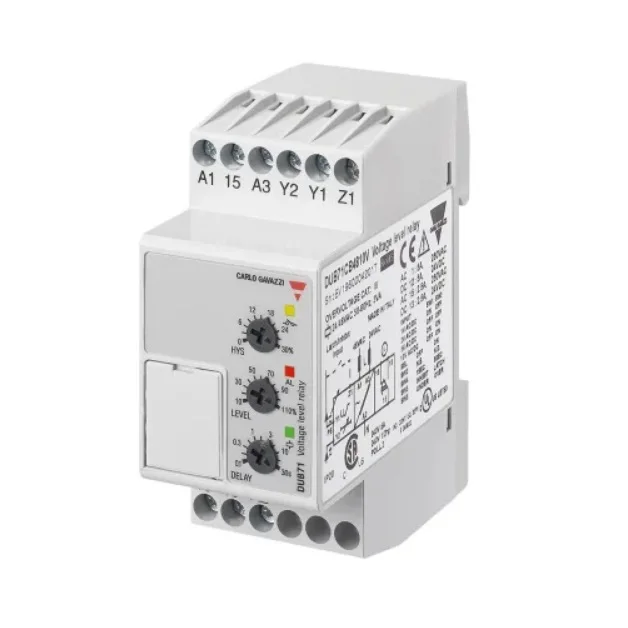

Carlo Gavazzi Monitoring Relay 1-Phase True RMS AC/DC Over or Under Voltage, DIN-Rail, SPDT, 0.1-10VAC/DC, Supply: 115/230VAC.

DUB71 is a precise TRMS AC/DC over or under voltage (selectable by DIP switch) monitoring relay. Owing to the built-in latch function, the ON-position of the relay output can be maintained. Inhibit function can be used to avoid relay operation when not desired (maintenance, transitions). The LED's indicate the state of the alarm and the output relay. 35.5 mm wide housing suitable both for back and front panel mounting

General Characteristics

• TRMS AC/DC over or under voltage monitoring relays


• Selection of measuring range by DIP-switches


• Measuring ranges from 0.1 to 500 V AC/DC


• Adjustable voltage on relative scale


• Adjustable hysteresis on relative scale


• Adjustable delay function (0.1 to 30 s)


• Programmable latching or inhibit at set level


• Output: 5 A SPDT relay N.D. or N.E. selectable


• For mounting on DIN-rail in accordance with DIN/EN 50 022


• 35.5 mm DIN-rail housing


• LED indication for relay, alarm and power supply ON

Have thousands of inverters, servos, PLCs, encoders, switches, buttons, connectors, sensors, fans, cables, Relays for frequency converter inverter machine, IGBT power module, VFD/VSD, power supply and HMIs in stock.

Shipment: UPS, DHL, FEDEX, TNT, ARAMEX, EMS

Payment: T/T

Leadtime: some stock parts can ship out within 2days. Some is 3-5days for booking. But high power and special parts should be weeks.

If any need, pls contact us freely.
