Flex 03NX 45W flexible solar panel for roofing sheet shingles
- Category: >>>
- Supplier: Jinan Lin Quan Import And Export Co. Ltd.
Share on (1600530621260):
Product Overview
Description
Product Description
Flex-03NX-45W flexible solar panel for roofing sheet shingles
Representing the sales and marketing of UNISOLAR Flexible Solar Laminate both in domestic and abroad market.
After years of development and efforts, Linquan Industry has successfully introduces flex solar PV to over 200 projects in China, Australia, Canada, USA, Japan, France, etc.
In order to continue the idea of flex solar after USA Unisolar went down, we have registered the brand"UNISOLAR" in China.
Starting cooperating with Hanergy group from year 2015, Linquan Industry successfully lead the flex PV idea to CIGS, with much higher efficiency and more advanced technology.

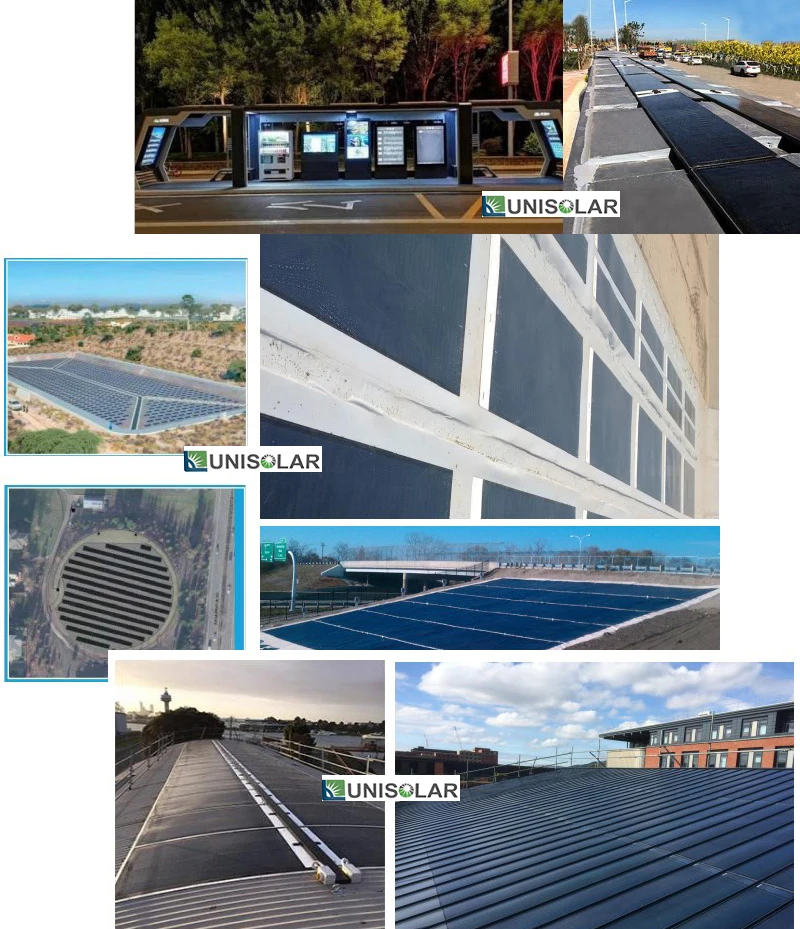

Now, under the brand of UNISOLAR, we are focusing on being the most professional provider for thin film flexible solar PV for below applications:
-Roofing flexible solar system
-BIPV wall clading flexible solar system
-Street furniture lighting system powered by Flex Solar
-RV Roof, Caravan, Boat & Yacht
-Street Lighting Pole bonded by Flex Solar
-Any other areas suitable for direct bonding flex solar panel
In order to continue the idea of flex solar after USA Unisolar went down, we have registered the brand"UNISOLAR" in China.
Starting cooperating with Hanergy group from year 2015, Linquan Industry successfully lead the flex PV idea to CIGS, with much higher efficiency and more advanced technology.
Now, under the brand of UNISOLAR, we are focusing on being the most professional provider for thin film flexible solar PV for below applications:
-Roofing flexible solar system
-BIPV wall clading flexible solar system
-Street furniture lighting system powered by Flex Solar
-RV Roof, Caravan, Boat & Yacht
-Street Lighting Pole bonded by Flex Solar
-Any other areas suitable for direct bonding flex solar panel
Specification
Electrical Parameter:
Model Selection | FLEX-03NX-40w | FLEX-DEM-03NX-45w | ||
Capacity rating | Pmax | 40W | 45W | |
Tolerance of Pmax | W | +5 / -0 | +5/-0 | |
Module aperture area efficiency | % | 13.3% | 15.0% | |
Maximum Power Voltage | Vmpp | 11.1V | 11.6V | |
Maximum Power Current | Impp | 3.88A | 3.95V | |
Open circuit voltage | Voc | 14.1V | 14.6V | |
Short circuit current | Isc | 4.67A | 4.60A | |
Maximum Series Fuse Rating | A | 10A | ||
Maximum System Voltage | (IEC/UL) | 1000/1000V | ||
Note 1:
Standard Test Conditions (STC): Cell Temperature at 25°C; Solar irradiance intensity of 1000 W/m2; AM1.5 solar reference spectrum (ASTM E892)
Temperature Coefficients
NOCT | [℃] | 48 |
Temperature Coefficient of PMPP | Vmax | -0.38 %℃ |
Temperature Coefficient of VOC | Voc | -0.28 %℃ |
Temperature Coefficient of ISC | Isc | 0.008 %℃ |
Low-Light performance
Intensity | Relative Efficiency |
1000 W/m2 | 100% |
500 W/m2 | 99% |
200 W/m2 | 91% |
Mechanical Specifications
Model Numbers | FLEX-DEM-03NX |
Length | 1100 mm |
Width | 348 mm |
Thickness, Maximum at J-Box*,Module | 17 mm, 2.5 mm |
Weight(Module without adhesive) | 0.77 kg |
Weight(Module with adhesive) | 1.0 kg |
Weight/Area(Module without adhesive) | 2.0 kg/m2 |
Weight/Area(Module with adhesive) | 2.7 kg/m2 |
Junction Box Type | IP68 |
Cable connections | MC4 Compatible |
Cell type | Copper Indium Gallium Diselenide (CIGS) |
Warranty | 5 years workmanship; 5/10/25 year power output |
Certifications | UL 1703, IEC 61646, IEC 61730 |

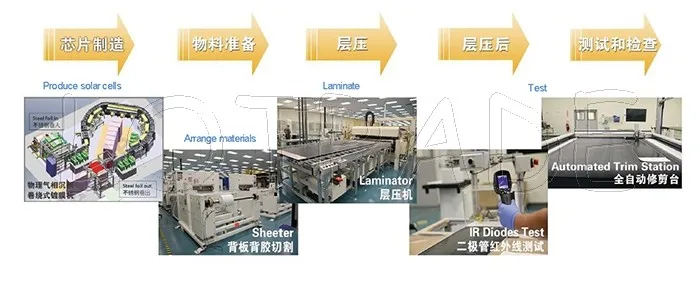

Production Flows
Important components in the production process of Solar panels
UNISOLAR 45w CIGS Flexible Thin Film Solar Panels Flex-03N
Our Advantages
CIGS Rollable Amorphous Silicon Adhesive Solar Panel Advantages as follows:
1.Lightweight: Less than 2.4 kg/m2 (<0.5 lb/ft2 ). Because FLEX–02 modules are so much lighter than heavy rigid silicon panels mounted with racks, they are the best solution for building structures with low dead load and environmental load limitations(such as snow). The modules are also ideal for other structures, such as autos, trucks, and RVs, that are not constructed to support the weight of traditional solar panels.
2. Powerful: MiaSolé FLEX modules are the highest efficiency flexible thin-film CIGS modules in production today, providing the highest power density per kilogram in a commercially available solar module. Our aperture efficiencies are as high as 17%,providing over four times the power generation per kilogram of silicon. In the future, efficiencies of up to 20% are expected.
3. Easy to Install: MiaSolé FLEX modules use peel-and-stick application. This eliminates penetrations into the structure, reducing the chance of leaks. Peel-and-stick application also allows for installation on surfaces such as autos, trucks, and RVs where racks would not be feasible, and lowers the balance-of-systems (BOS) costs and complexity when mounting FLEX modules on rooftops.

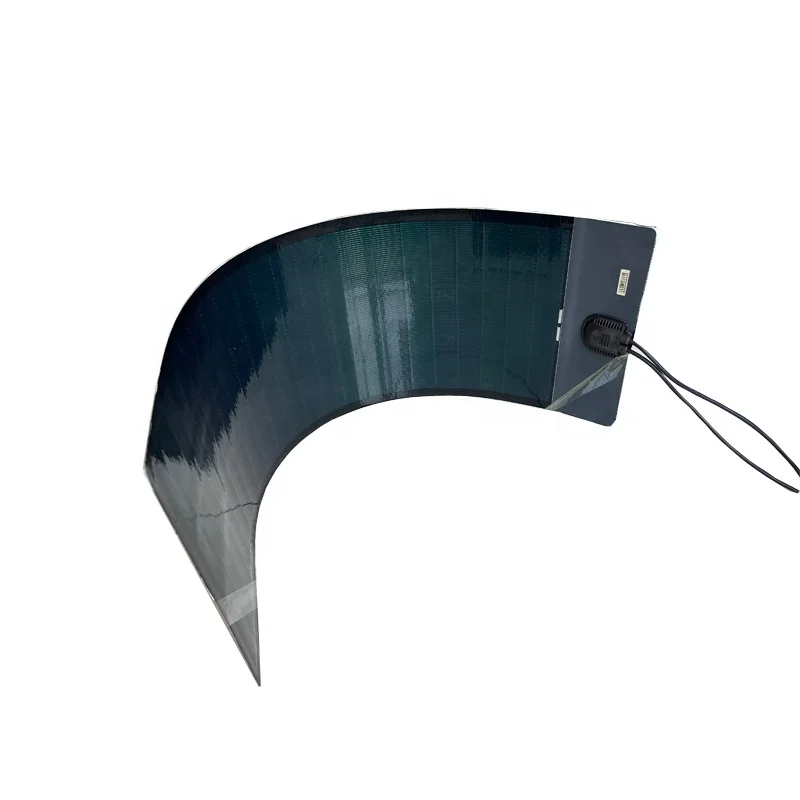

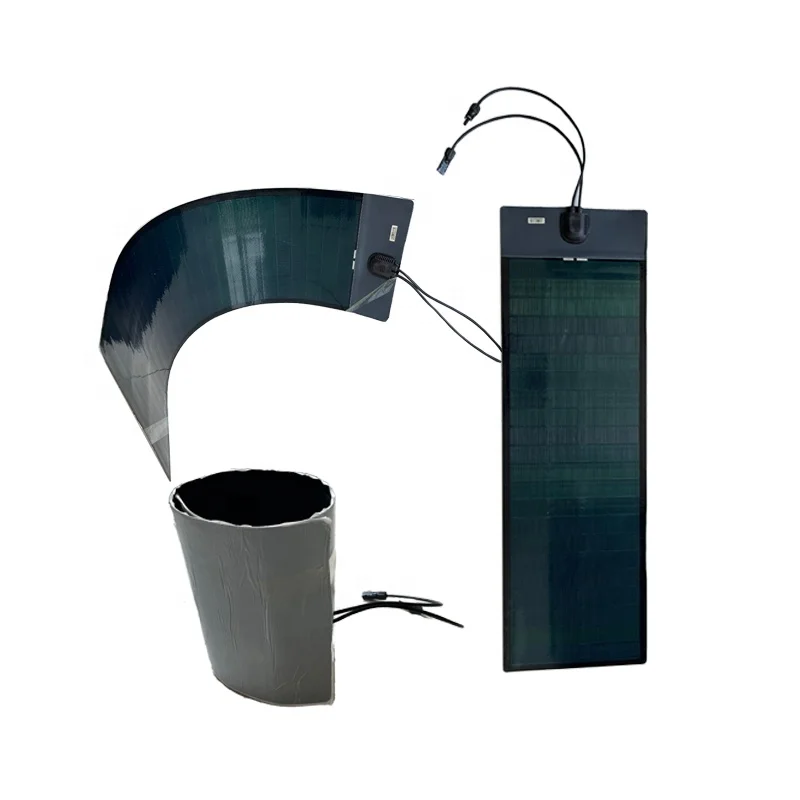

4. Flexible: MiaSolé FLEX modules conform to curved surfaces, enabling solar power generation on surfaces not suited to
traditional rigid silicon panels.
5. Shatterproof: FLEX modules are shatterproof, and won't break if struck by debris.
6. Resistant to Natural Disasters: MiaSolé modules are thin (2.5mm) and adhere directly to surfaces, providing excellent wind and seismic resistance.
7. Reliable: MiaSolé modules' unique redundant interconnect design enables industry-leading reliability.
1.Lightweight: Less than 2.4 kg/m2 (<0.5 lb/ft2 ). Because FLEX–02 modules are so much lighter than heavy rigid silicon panels mounted with racks, they are the best solution for building structures with low dead load and environmental load limitations(such as snow). The modules are also ideal for other structures, such as autos, trucks, and RVs, that are not constructed to support the weight of traditional solar panels.
2. Powerful: MiaSolé FLEX modules are the highest efficiency flexible thin-film CIGS modules in production today, providing the highest power density per kilogram in a commercially available solar module. Our aperture efficiencies are as high as 17%,providing over four times the power generation per kilogram of silicon. In the future, efficiencies of up to 20% are expected.
3. Easy to Install: MiaSolé FLEX modules use peel-and-stick application. This eliminates penetrations into the structure, reducing the chance of leaks. Peel-and-stick application also allows for installation on surfaces such as autos, trucks, and RVs where racks would not be feasible, and lowers the balance-of-systems (BOS) costs and complexity when mounting FLEX modules on rooftops.
4. Flexible: MiaSolé FLEX modules conform to curved surfaces, enabling solar power generation on surfaces not suited to
traditional rigid silicon panels.
5. Shatterproof: FLEX modules are shatterproof, and won't break if struck by debris.
6. Resistant to Natural Disasters: MiaSolé modules are thin (2.5mm) and adhere directly to surfaces, providing excellent wind and seismic resistance.
7. Reliable: MiaSolé modules' unique redundant interconnect design enables industry-leading reliability.

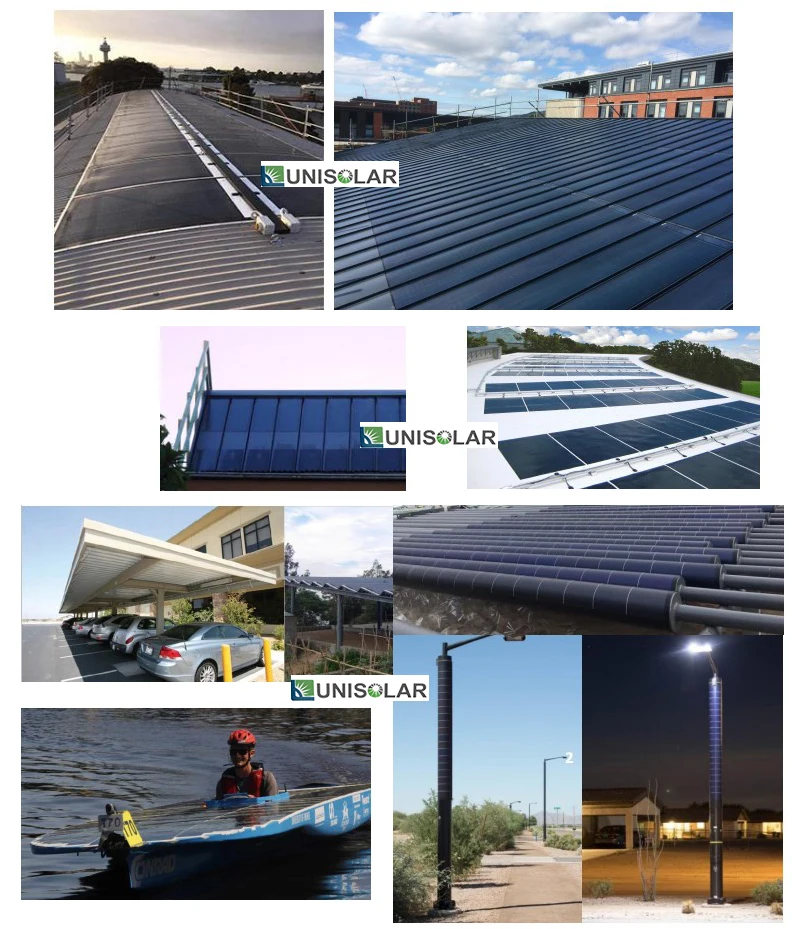

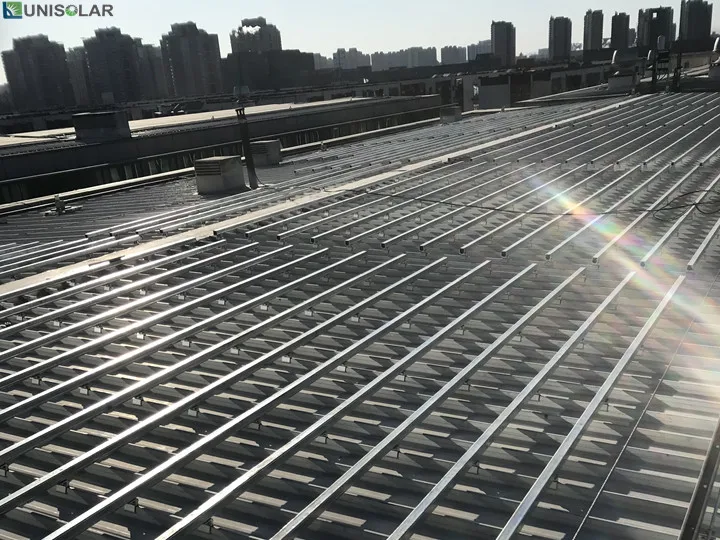

Application
Now, under the brand of UNISOLAR, we are focusing on being the most professional provider for thin film flexible solar PV for below applications:
-Roofing flexible solar system
-BIPV wall clading flexible solar system
-Street furniture lighting system powered by Flex Solar
-RV Roof, Caravan, Boat & Yacht
-Street Lighting Pole bonded by Flex Solar
-Any other areas suitable for direct bonding flex solar panel
-Roofing flexible solar system
-BIPV wall clading flexible solar system
-Street furniture lighting system powered by Flex Solar
-RV Roof, Caravan, Boat & Yacht
-Street Lighting Pole bonded by Flex Solar
-Any other areas suitable for direct bonding flex solar panel
Application Criterion
• New or qualified new roof installations
• Installation by certified installers only
• Installation temperature between 10°C-40 °C (50°F-100°F)
• Maximum roof temperature 85°C (185°F)
• Minimum slope: 5°
• Maximum slope 60°
• Membrane: Select EPDM and TPO substrates from approved manufacturers only
• Metal: PVDF Coated (Galvalume® or Zincalume®) steel metal roofing pan with flat surface (without pencil beads or decorative
stippling) and 406 mm (16“) minimum width
Refer to manufacturers installation guide for approved substrates and installation methods
Multi-Contact (MC®) Connectors
• New or qualified new roof installations
• Installation by certified installers only
• Installation temperature between 10°C-40 °C (50°F-100°F)
• Maximum roof temperature 85°C (185°F)
• Minimum slope: 5°
• Maximum slope 60°
• Membrane: Select EPDM and TPO substrates from approved manufacturers only
• Metal: PVDF Coated (Galvalume® or Zincalume®) steel metal roofing pan with flat surface (without pencil beads or decorative
stippling) and 406 mm (16“) minimum width
Refer to manufacturers installation guide for approved substrates and installation methods
Multi-Contact (MC®) Connectors

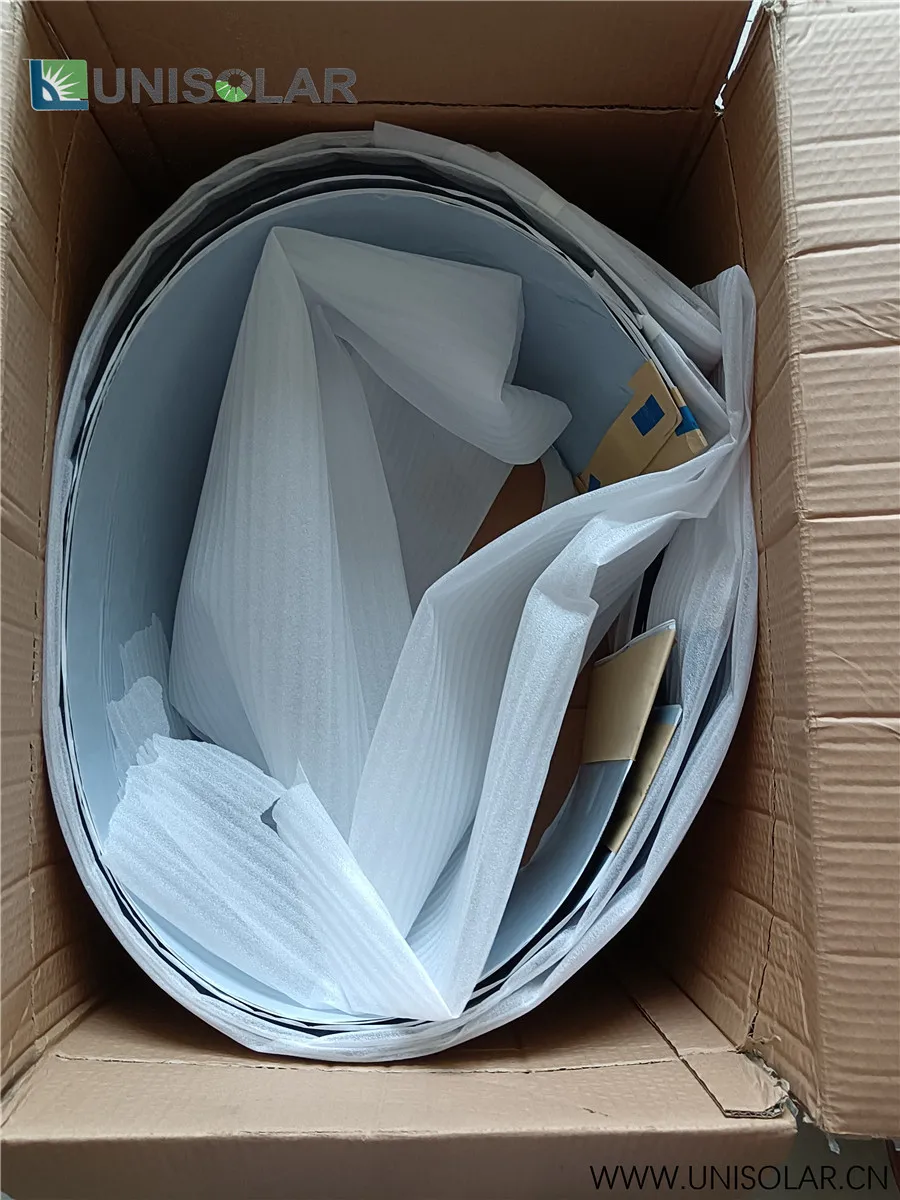

Packing&Shipping

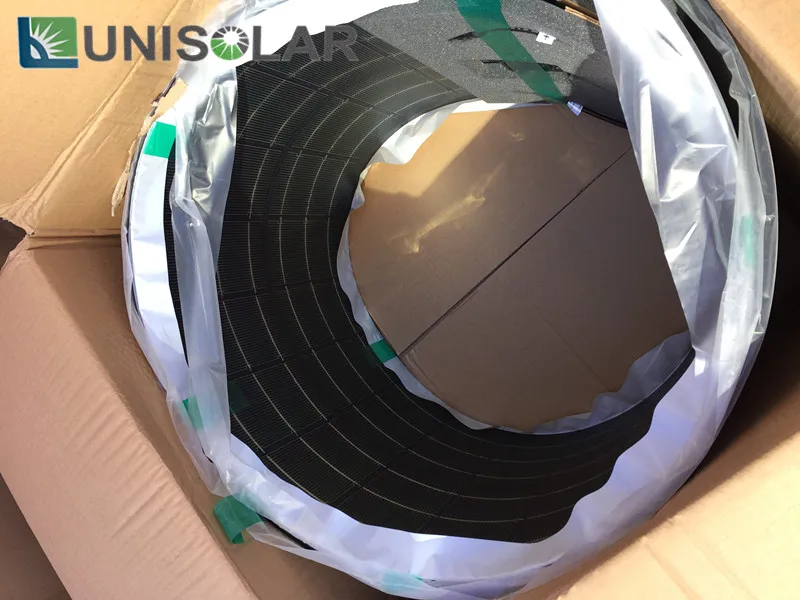

SOLAR PANELS CIGS Flexible Waterproof Thin Film Portable Solar Panel package as follows:
