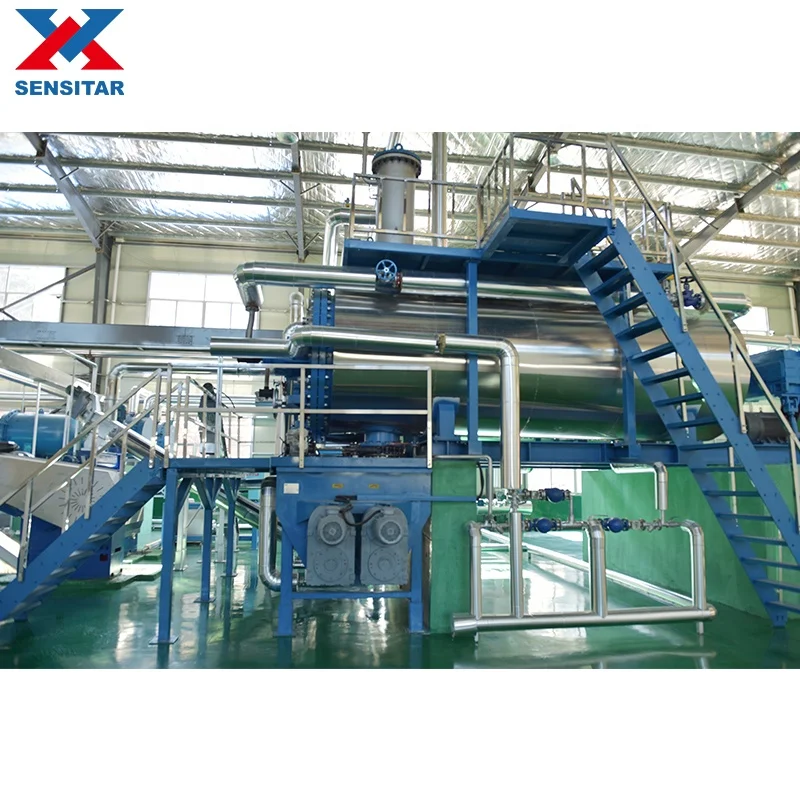

The fish meal processing line mainly consists of a cooker, a press, a dryer, a cooler and a hammer mill etc.It is a modern design with easy operation, low energy consumption, low maintenance and long work life. The finished products are high quality fish meal and oil.
Technological proces
Simple process introduction
The raw fish or fish steaks and waste are fed into crusher, and then continuously fed into the cooker by a conveyor.After the material is cooked, it is directly put into the press to get meal cake and oil. Meal cake goes into the dryer to dry.Sizing

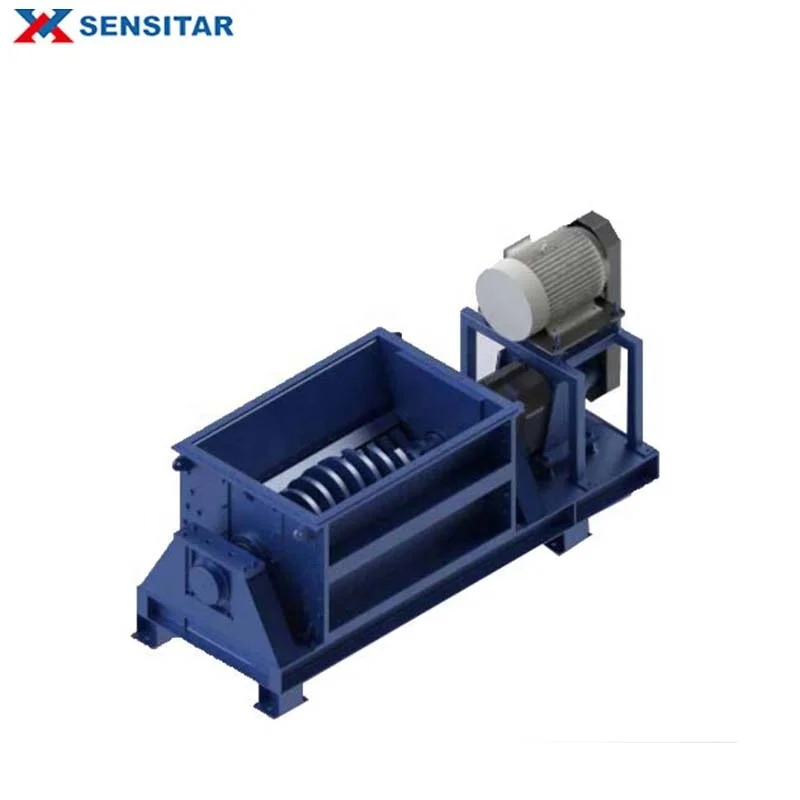

The pre-breaker is installed as the first stage of a fish meal plant , All knives and anvils are hard faced .Low operation costs are assured.The motor size and breaker shaft speed can be adjusted to the required capacity.
Pressing
Large capacity , occupy a small workshop area .Low power consumption , easy operation , management and maintenance. Low residual oil press cake , good oil quality , the processed cake is loose and not fragile .

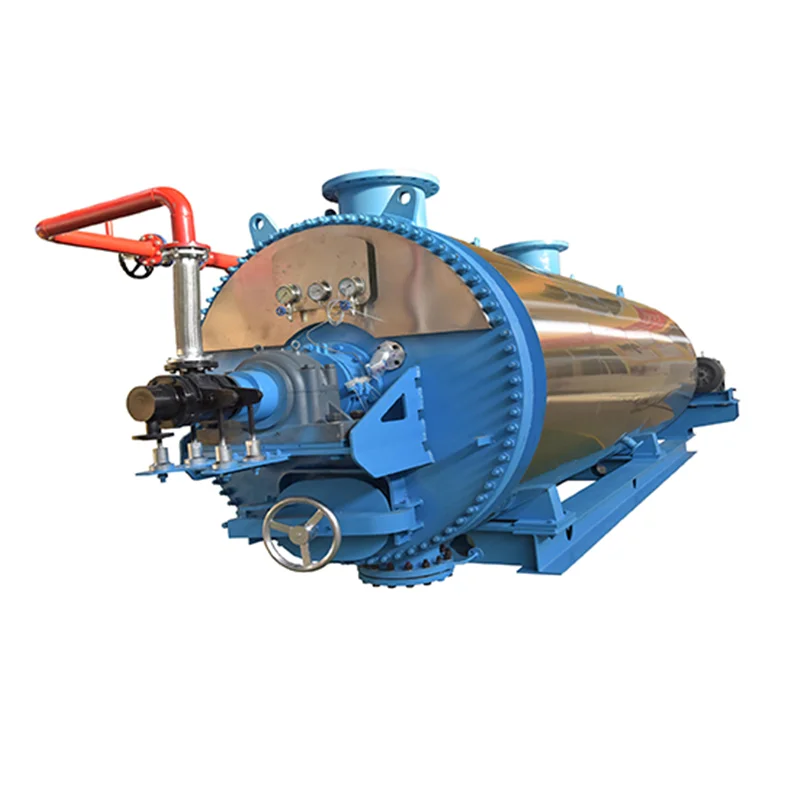

Cooking&heating
The cooker is to cook fish via high temperature..It’s a main machine of the whole line.The indirect cooker are applied in processes where high yield from raw material of variable quality and composition is required .
Cooker Type | Capacity(t/h) | length(mm) | Height(mm) | Width(mm) | Weight(metric ton) |
XFC0605 | 2.6-3.5 | 3350 | 1050 | 1200 | 4 |
XFC0806 | 6.4-8.0 | 8250 | 1850 | 1850 | 12 |
XFC0808 | 8.8-11.0 | 10200 | 1850 | 1850 | 14 |
XFC1108 | 12.8-16.0 | 10900 | 2350 | 2200 | 20 |
XFC1110 | 16.0-20.0 | 12800 | 2350 | 2200 | 23 |
XFC1112 | 20.0-25.0 | 14850 | 2350 | 2200 | 27 |
XFC1310 | 20.0-25.0 | 13050 | 2450 | 2200 | 32 |
XFC1312 | 24.0-30.0 | 15050 | 2450 | 2200 | 36 |
XFC1314 | 28.0-35.0 | 17050 | 2450 | 2200 | 40 |
XFC1612 | 30.4-38.0 | 15150 | 3450 | 2400 | 40 |
XFC1614 | 35.2-44.0 | 17150 | 3450 | 2400 | 47 |
XFC1616 | 40.0-50.0 | 19150 | 3450 | 2400 | 55 |
Other equipment

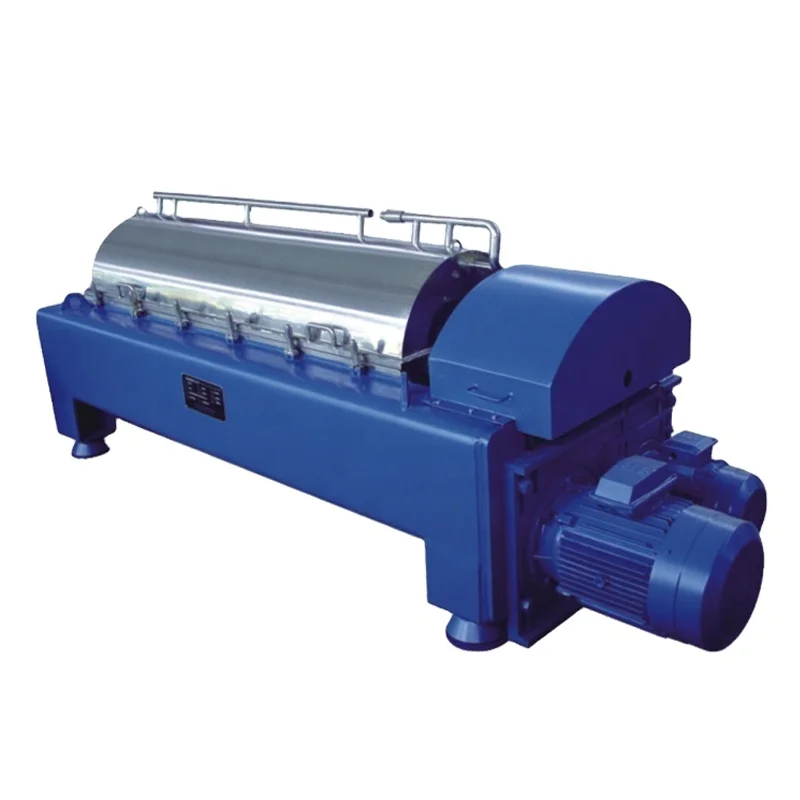

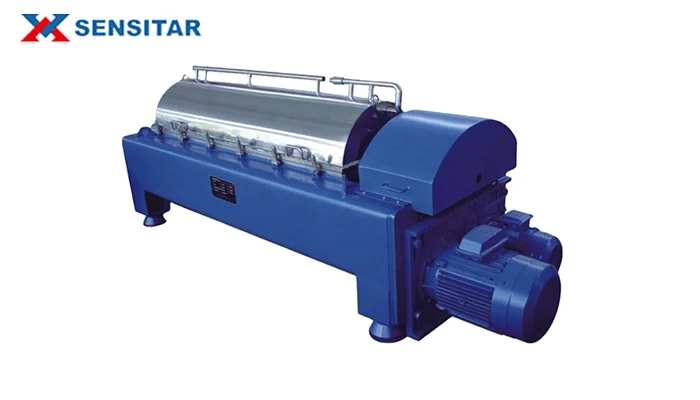

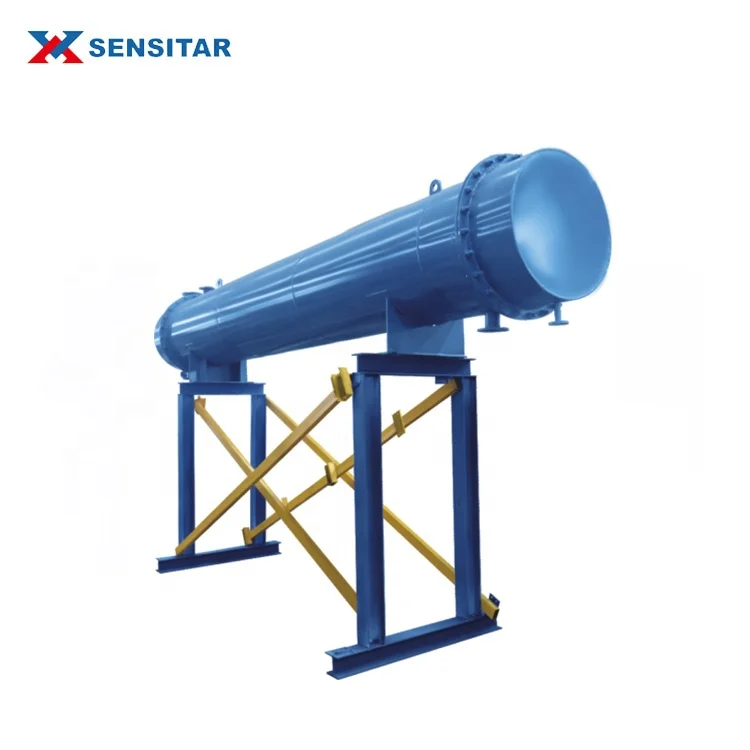

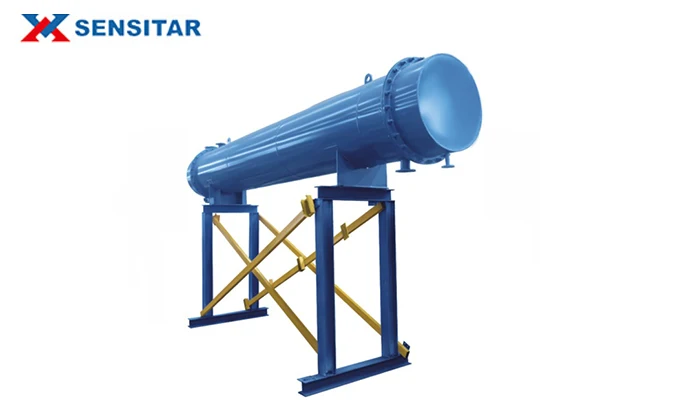

Cooler Decanter Air condenser
Application
Whole fish(different kinds of fresh fish, fish heads, fish sausages and offals,fish waste),food waste, other aquatic products,like shrimp,loach,etc
Final product: skimmed fish meal
Moisture of final product: less than 12%
Note: usually the capacity of fish meal is based on fish type and fish quality
Moisture of final product: less than 12%
Note: usually the capacity of fish meal is based on fish type and fish quality

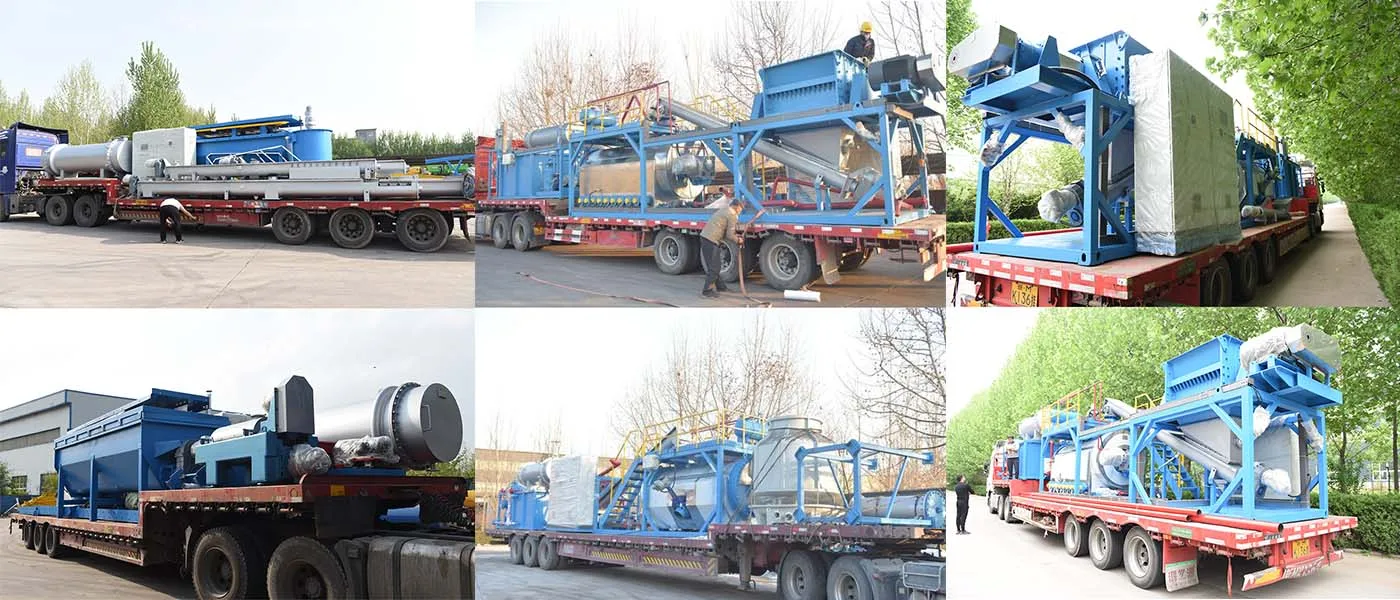

Packing & Logistic
Package: standard package for sea
We usually pack our products by standard sea package. We always choose the best and safe packaging material to make sure your product won't be damaged during delivery.
We usually pack our products by standard sea package. We always choose the best and safe packaging material to make sure your product won't be damaged during delivery.

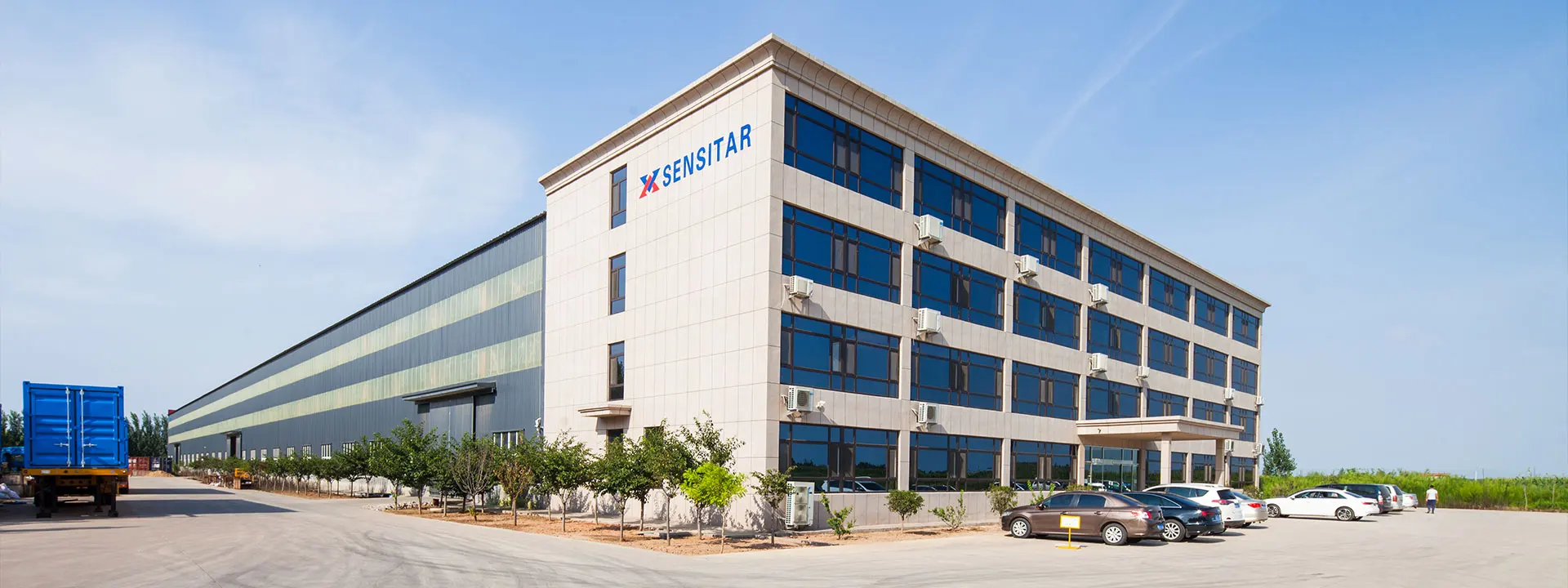

Company Introduction

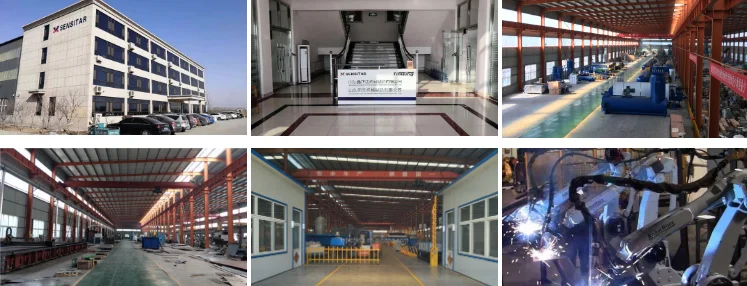

Sensitar is a comprehensive research and development machinery manufacturer of fish meal and animal feed machine, with government A2 pressure vessel, owns a modern factory with over 20000 square meters, have 16 professional senior engineers, one UK technical adviser. Absorbing advanced technologies from Denmark, the company has gained thirteen patents. Meanwhile, the company has passed ISO certificate, CE certificate, ASME certificate, SGS certificate.We establish a long-term cooperation relation with companies of South Korea, USA, Germany, Russia, Thailand, Malaysia, Philippines etc.
Our company also produces food processing machine and pressure vessel,inculding Sterilization autoclave,Jacketed pot,Vacuum cooling machine,Vulcanization tank,Autoclave,wood processing machine etc.
Our Customer

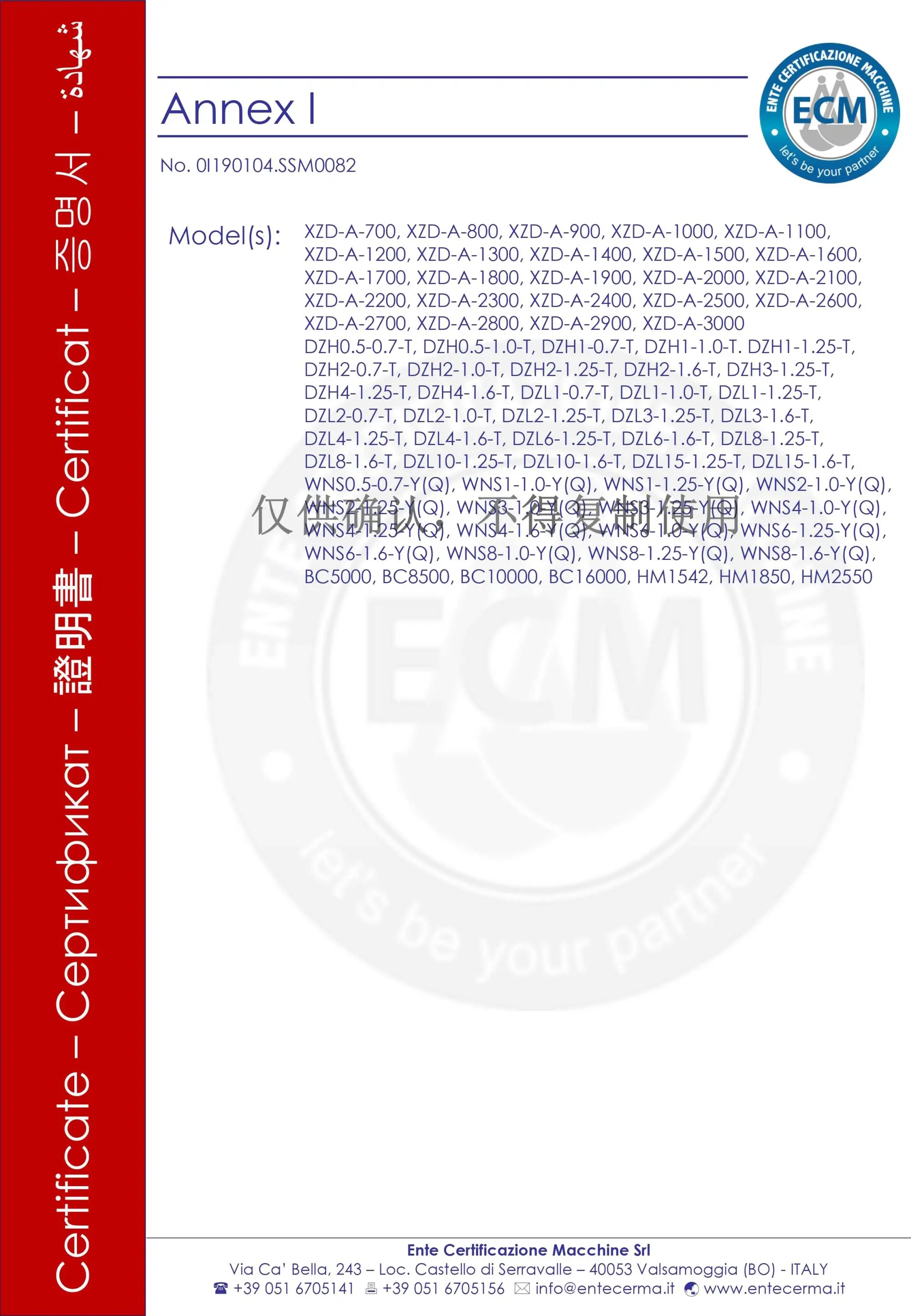

Certificate
