High Speed Steel Wire Nail Making Manufacturing Cutting Machine Price
- Category: >>>
- Supplier: Xuchang Huarui Machinery Co. Ltd.
Share on (1600530651722):
Product Overview
Description
Product Introduction
High Speed Steel Wire Nail Making Manufacturing Cutting Machine Price

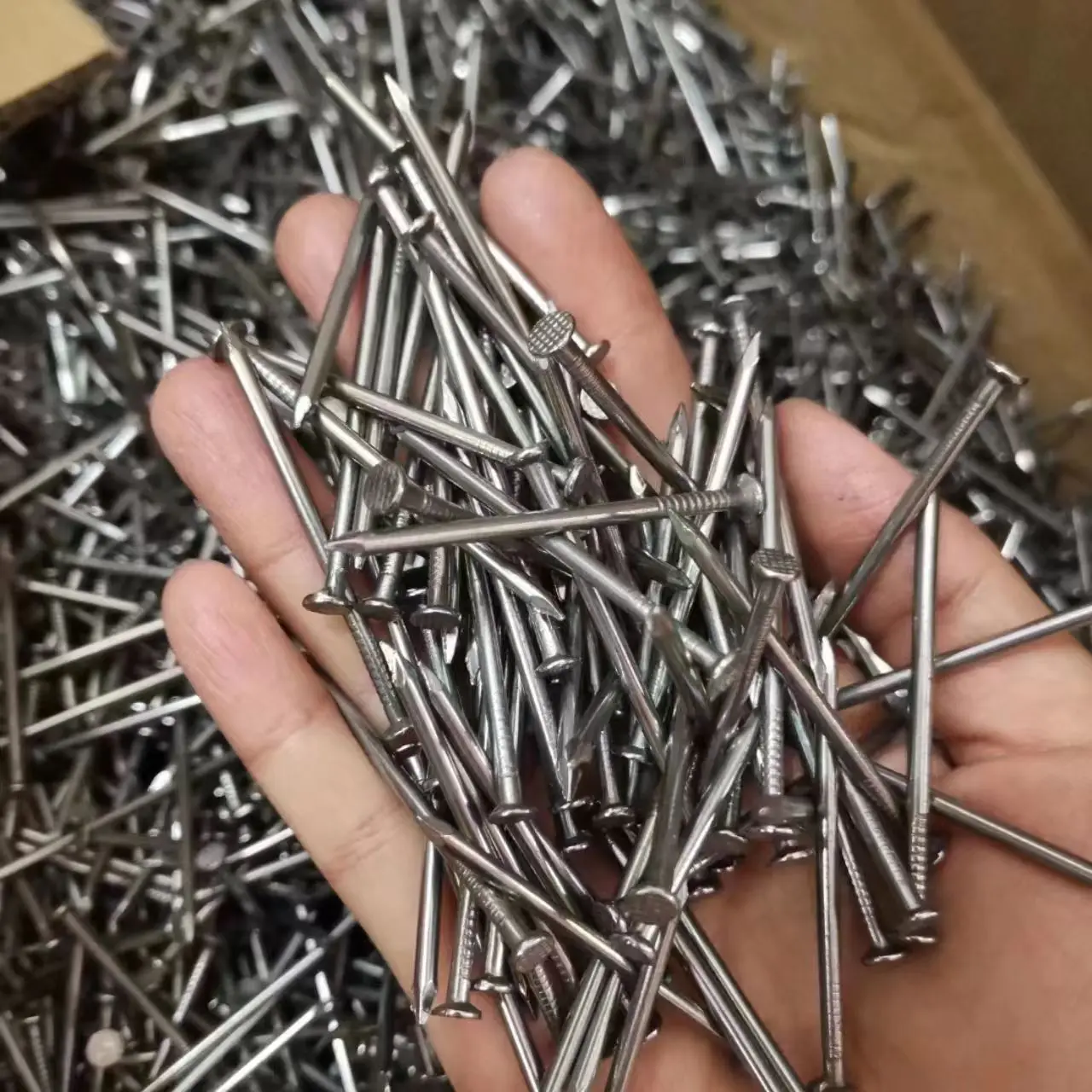

Nails are one of the most widely used hardware in construction and decoration. Common nails are used in many scenarios, simple to make and profitable. They are the first choice of many primary hardware production factories.

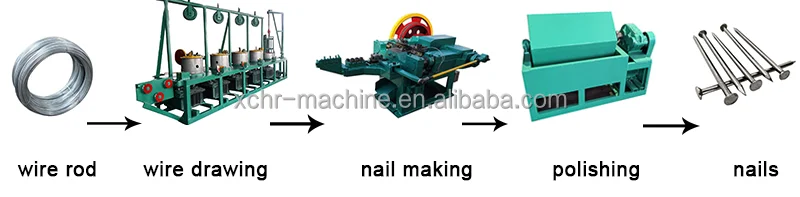

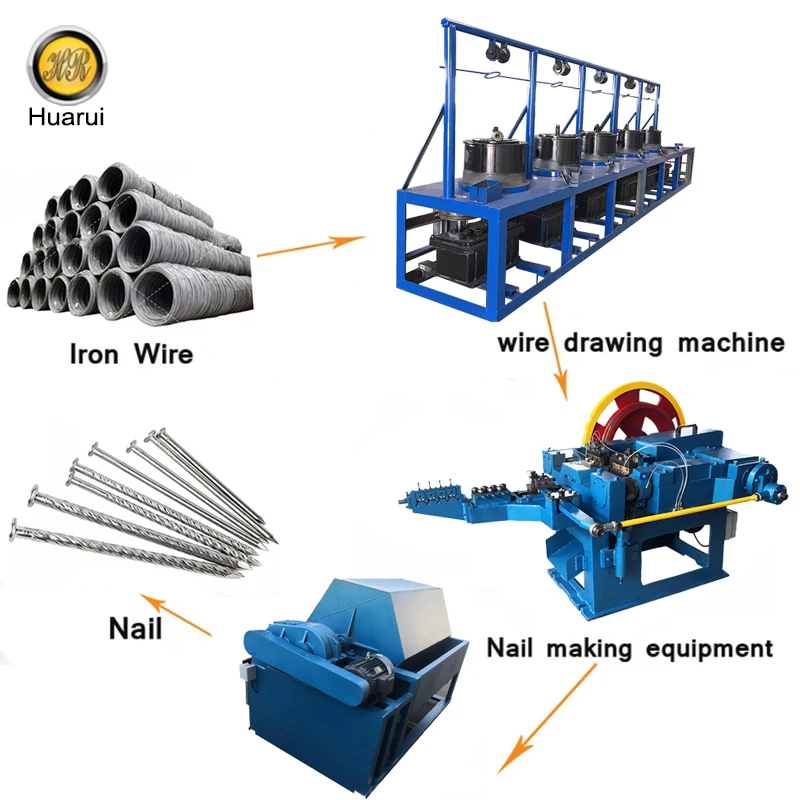

It contains 5 machines :
Wire Drawing Machine ( Draw raw wire roll to any diameter you need in order to making corresponding size nails. )
Nail Making Machine ( Make Nails : Cutting Upsetting )
Nail Polishing Machine ( Clip removing, make nails smother and brighter )
PRODUCT SPECIFICATIONS
Features:
1- Easy operation.
2- It can produce different size nails. (Only change size mode)
3- High speed and low noise.
3- High speed and low noise.
4- The production line can work automatically.
5- Free training is offered. 2022 Hot Sale Automatic Nail Making Machine Complete Production Line
5- Free training is offered. 2022 Hot Sale Automatic Nail Making Machine Complete Production Line
1- Wire Drawing Machine (Two options)
This is the wire drawing machine. If the diameter of wire is thick before it entering the nail making machine, this machine can reduce the diameter of wire, then the user can get the diameter that you need.
This machine is suitable for small production line ,to draw the diameter to what you want.
Model No. | WSL500 | WSL650 |
Max. Inlet Diameter | 6.5mm | 12mm |
Min. Outlet Diameter | 2.0mm | 2.0mm |
Motor Power | 11kw | 18.5kw |
Drawing Speed | 56m/min | 65m/min |
Option 2: Combined Wire Drawing Machine
This machine can draw wire several times during 1 producing process and it can be customized according to your demands (Wire rod diameter and nail diameter).
Remarks : This machine comes with descaling machine and discharge machine.
Model No. | LS1-3-500 |
Max. Inlet Diameter | 6.5mm |
Min. Outlet Diameter | 2mm |
Motor Power | 11/15kw/set |
Capacity | Customized |

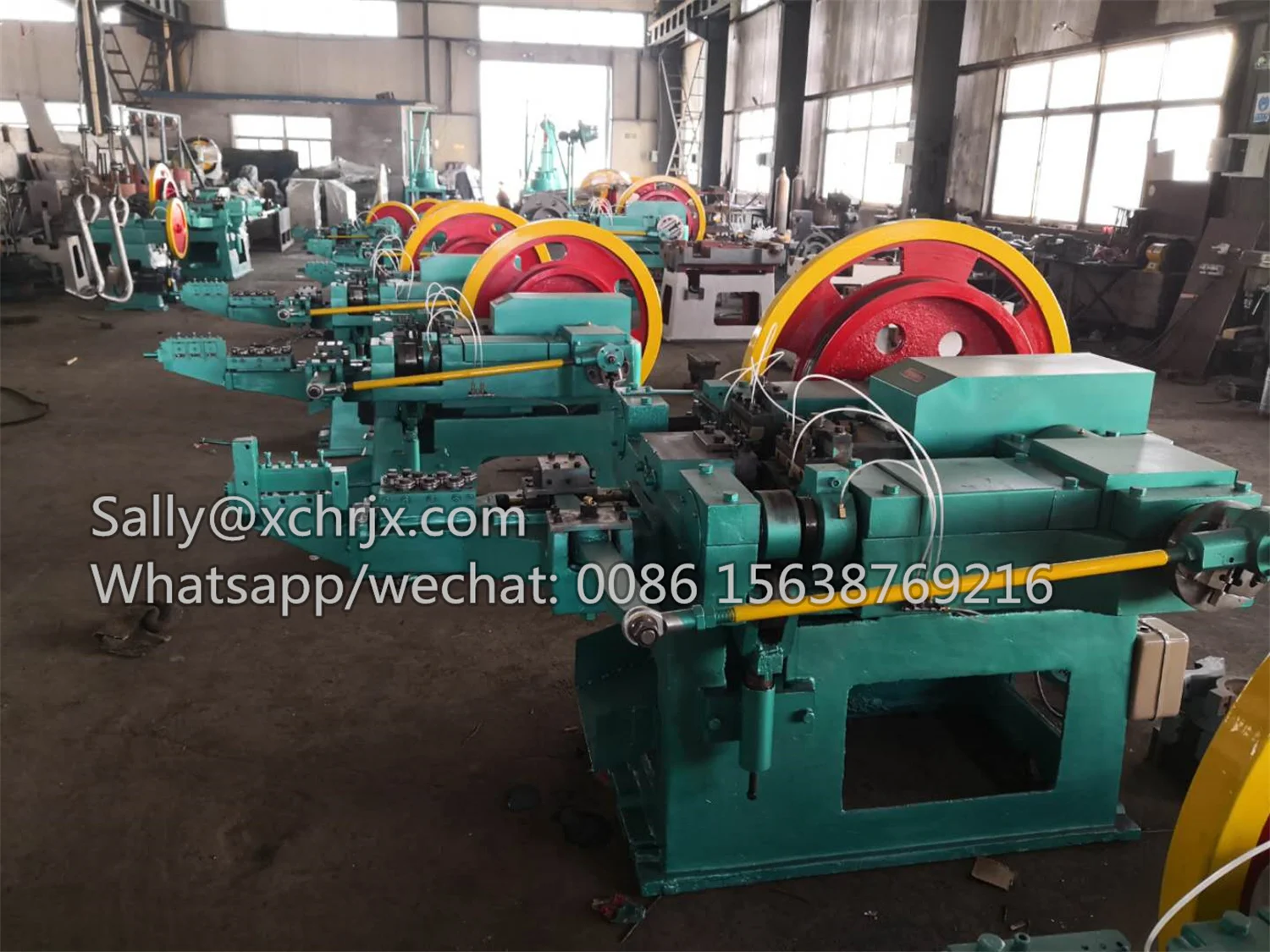

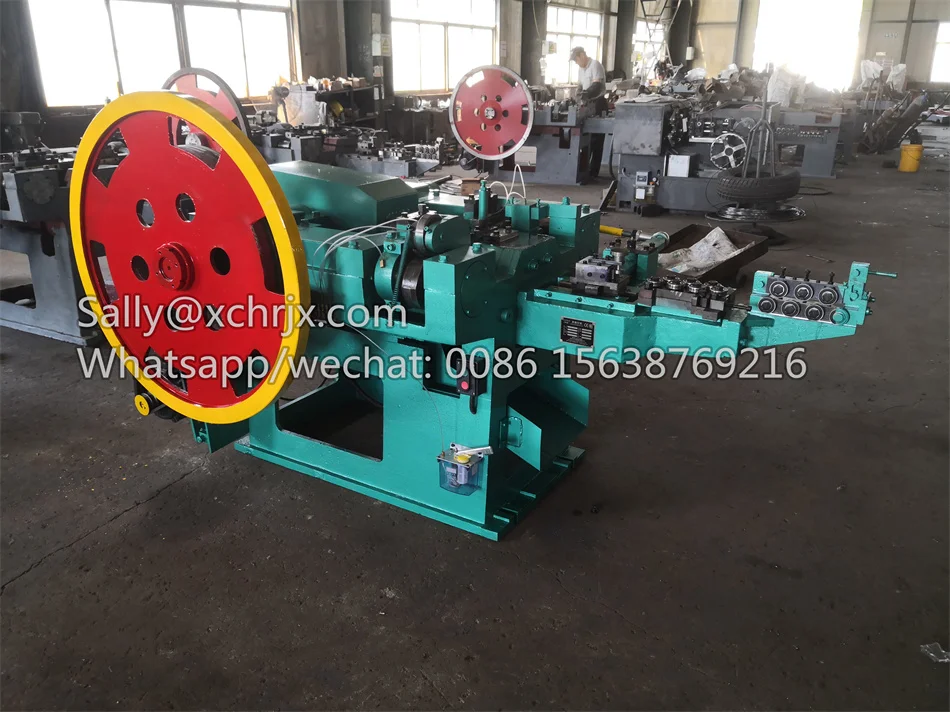

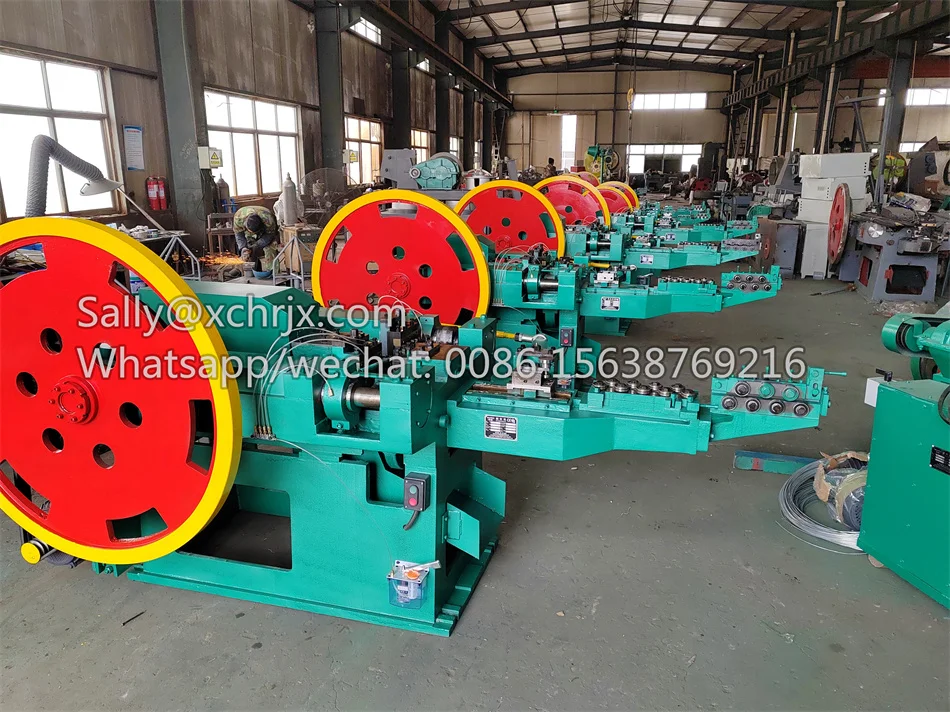

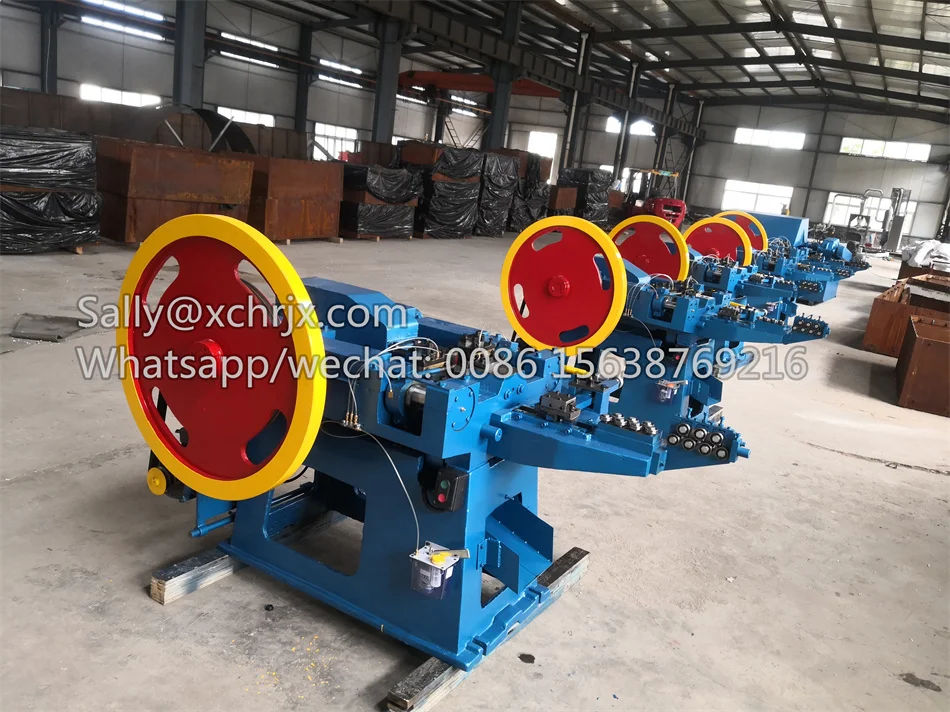

2- Nail Making Machine
This machine adopts plunger type structure so as to ensure the features such as high speed ,low noise and less impact. It can make the high quality of oil rivet nails and other shaped nails used for high speed welding nailer and nail gun.
Model No. | Diameter of Nails | Length of Nails | Speed | Power | Size | Weight |
Z94-1C | 0.9-1.6mm | 9-25mm | 450pcs/min | 1.5kw | 1.5*1.3*1.1m | 1.2 tons |
Z94-2C | 1.2-2.8mm | 16-50mm | 380pcs/min | 2.2kw | 1.7*1.3*1.4m | 1.45 tons |
Z94-3C | 1.0-3.5mm | 30-75mm | 320pcs/min | 3kw | 2.0*1.4*1.4m | 1.8 tons |
Z94-4C | 2.8-4.5mm | 50-100mm | 260pcs/min | 4kw | 2.2*1.6*1.6m | 2 tons |
Z94-4C(2) | 2.8-5.5mm | 50-130mm | 260pcs/min | 4kw | 2.3*1.6*1.3m | 2.1 tons |
Z94-5.5C | 3.8-6mm | 75-150mm | 220pcs/min | 5.5kw | 2.5*1.8*1.5m | 2.3 tons |
Z94-6C | 4-8mm | 100-200mm | 180pcs/min | 11kw | 3.4*1.9*1.5m | 5 tons |
Z94-6A(2) | 3-6.5mm | 175-400mm | 80pcs/min | 15kw | 3.5*1.9*1.8m | 3 tons |
Z94-8A | 5-10mm | 180-320mm | 120pcs/min | 22kw | 6*2.1*1.9m | 10 tons |
3- Nail Polishing Machine
This is an accessory machine for nail making machine , and it can make nails smother and brighter.
Model No. | SD-400 | D-1000 |
Motor Power | 2.2kw | 7.5kw |
Size | 1.64*0.9*1.0m | 2.0*1.5*1.4m |
Capacity | 400kg/batch | 1000kg/batch |
Other auxiliary machines:
Pointing rolling machine
This machine makes the wire end sharpen enough to go into a wire drawing machine or nail-making machine.
Pointing rolling range: 2-12mm
power: 2.2kw
Butt welding machine
This machine can weld two wire heads together to save time and greatly improve work efficiency.
Butting range :2-8mm
Voltage: 380v/220v
Automatic cutter grinder
When the nail knife of the nail making machine is not so sharp, the user can use this machine to sharpen it.
Diameter of grinding wheel: 200mm
Power: 0.75kw

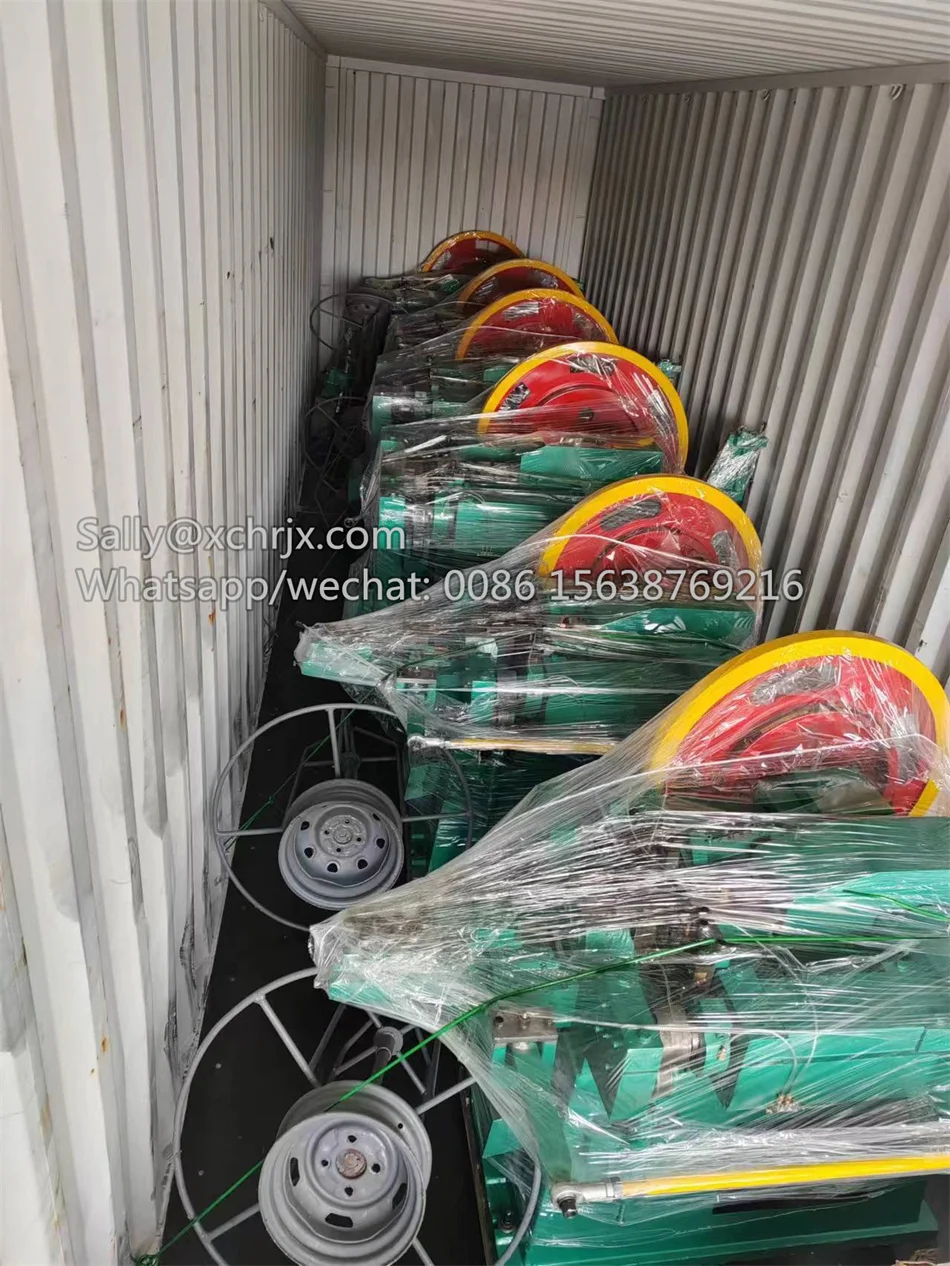

Product packaging
(Less than Container Load shipment)
WOODEN CASE PACKAGE or as required.

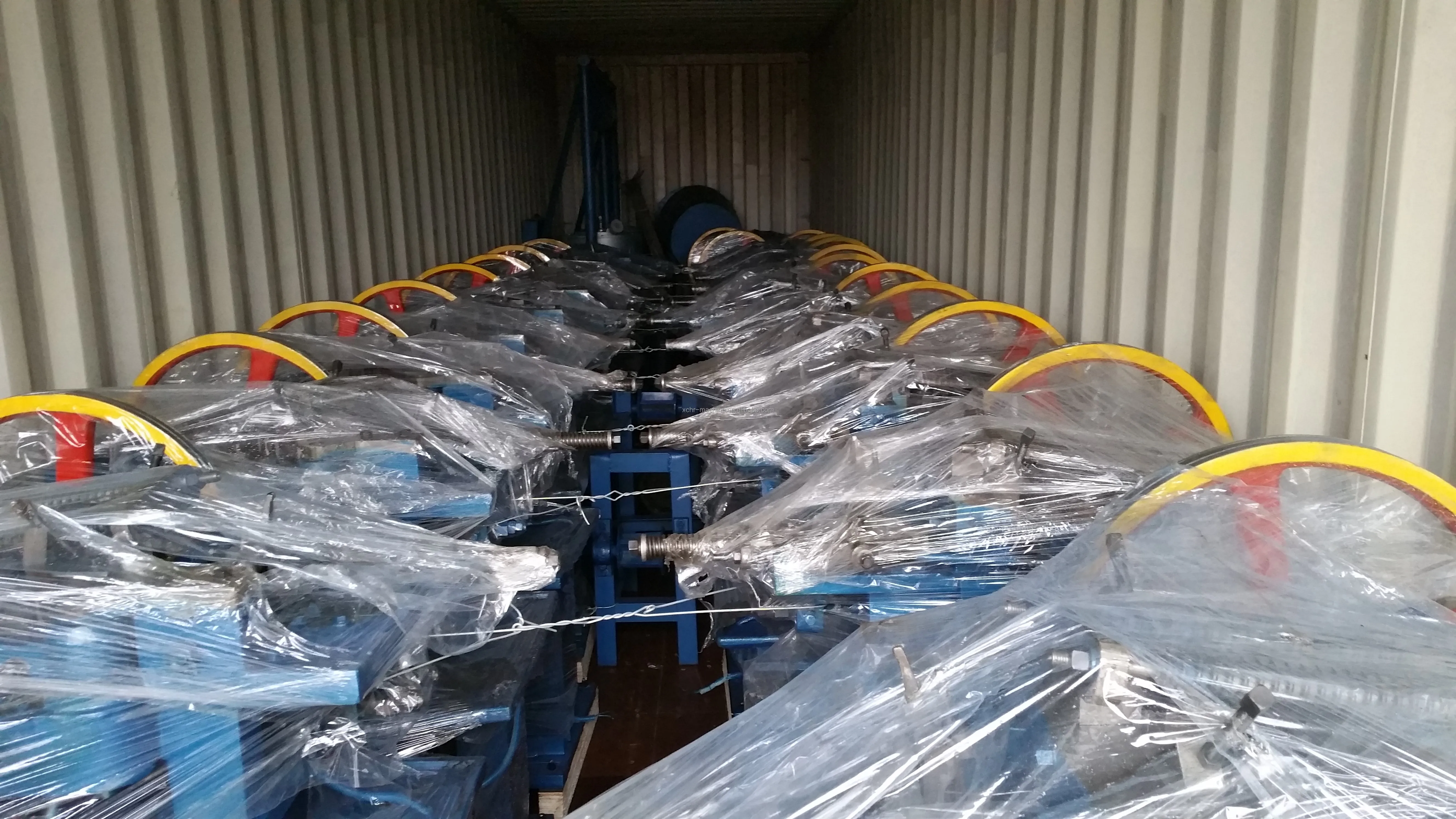

(Full Container Load)
Wrap it in plastic film and fix it to the container.Strong Concrete Nails Making Machine 1/2 4 Inch Hard Cement Nails
Masonry Nails Production Line
Masonry Nails Production Line
2022 Hot Sale Automatic Nail Making Machine Complete Production Line

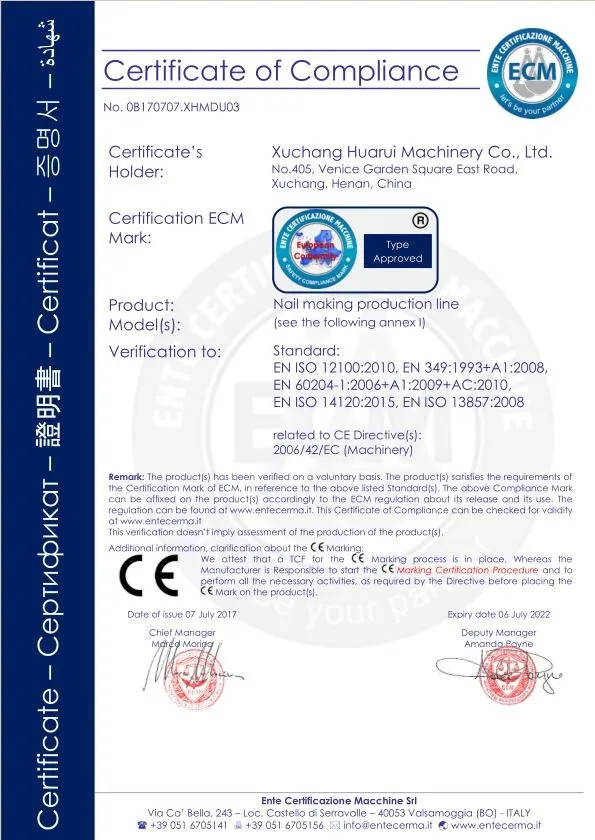

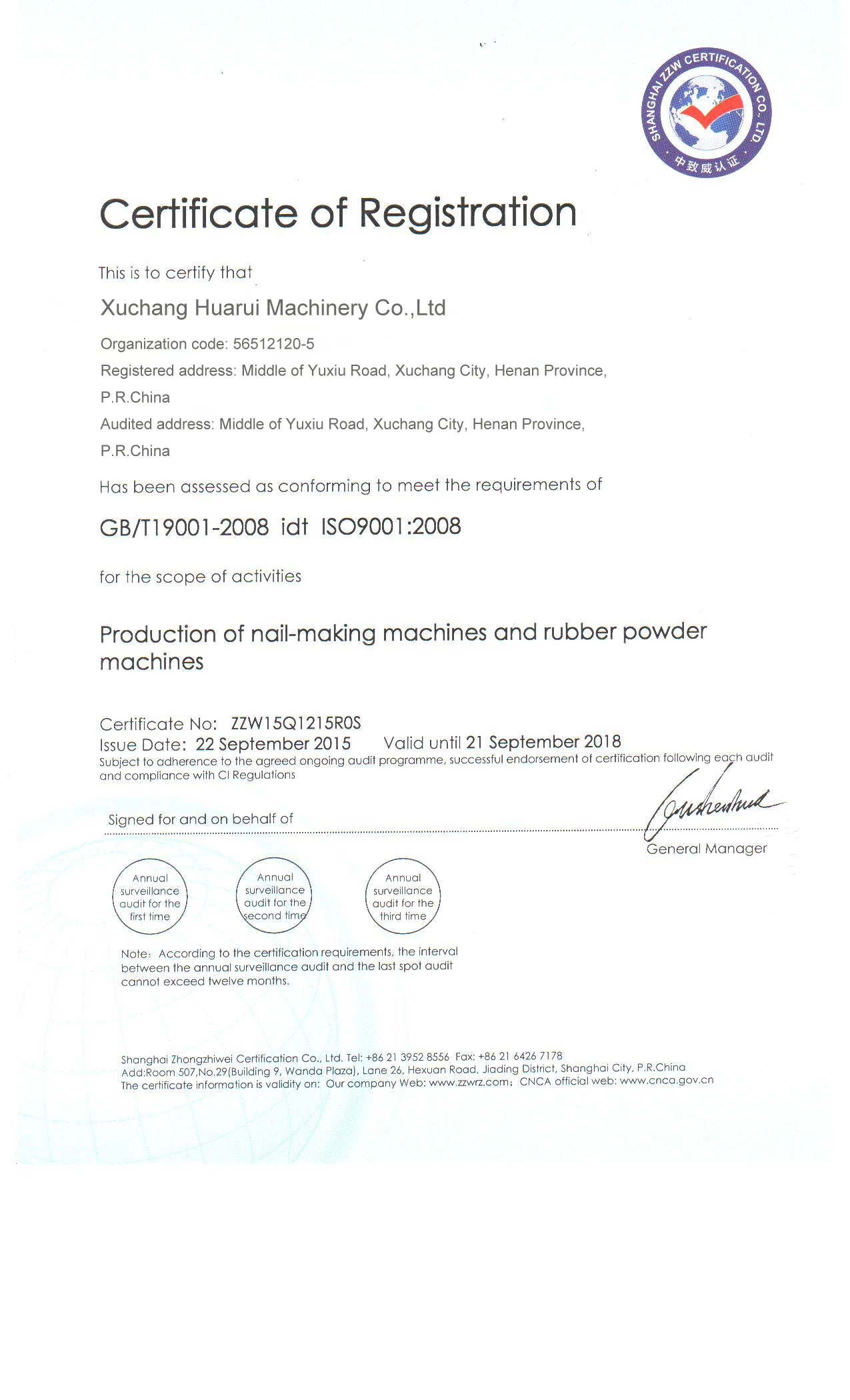

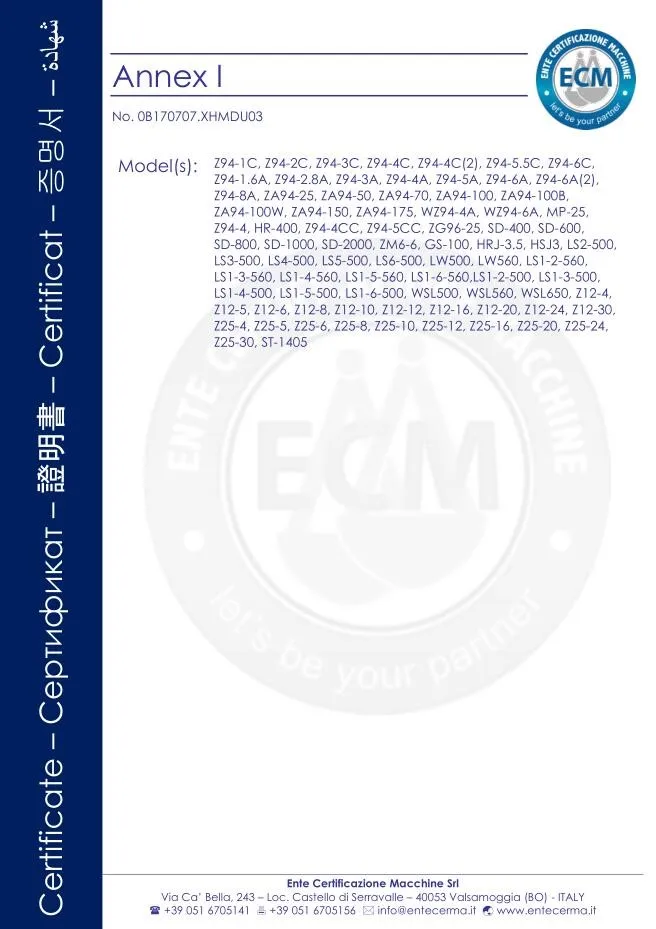

Certifications
Our Customers

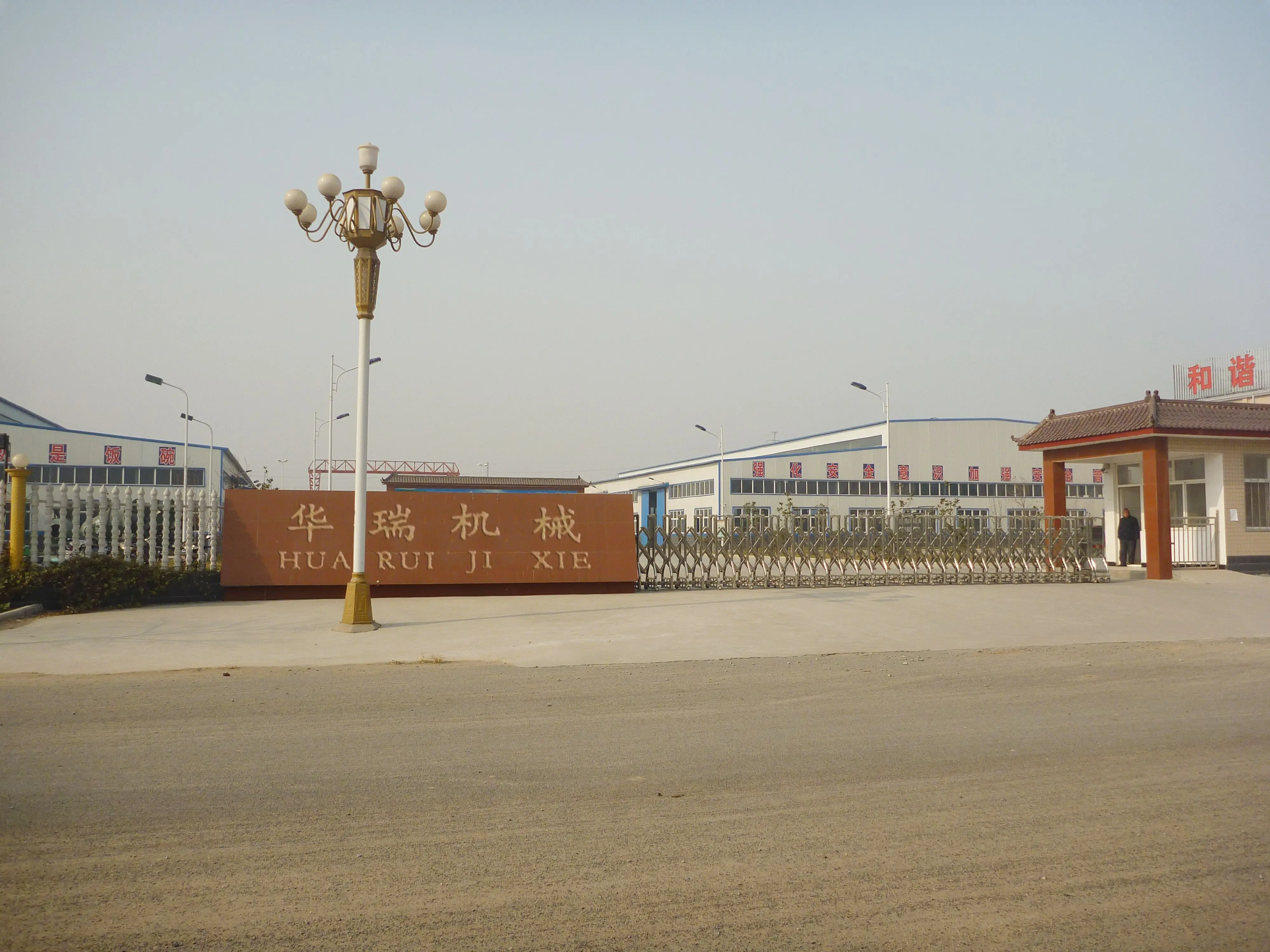

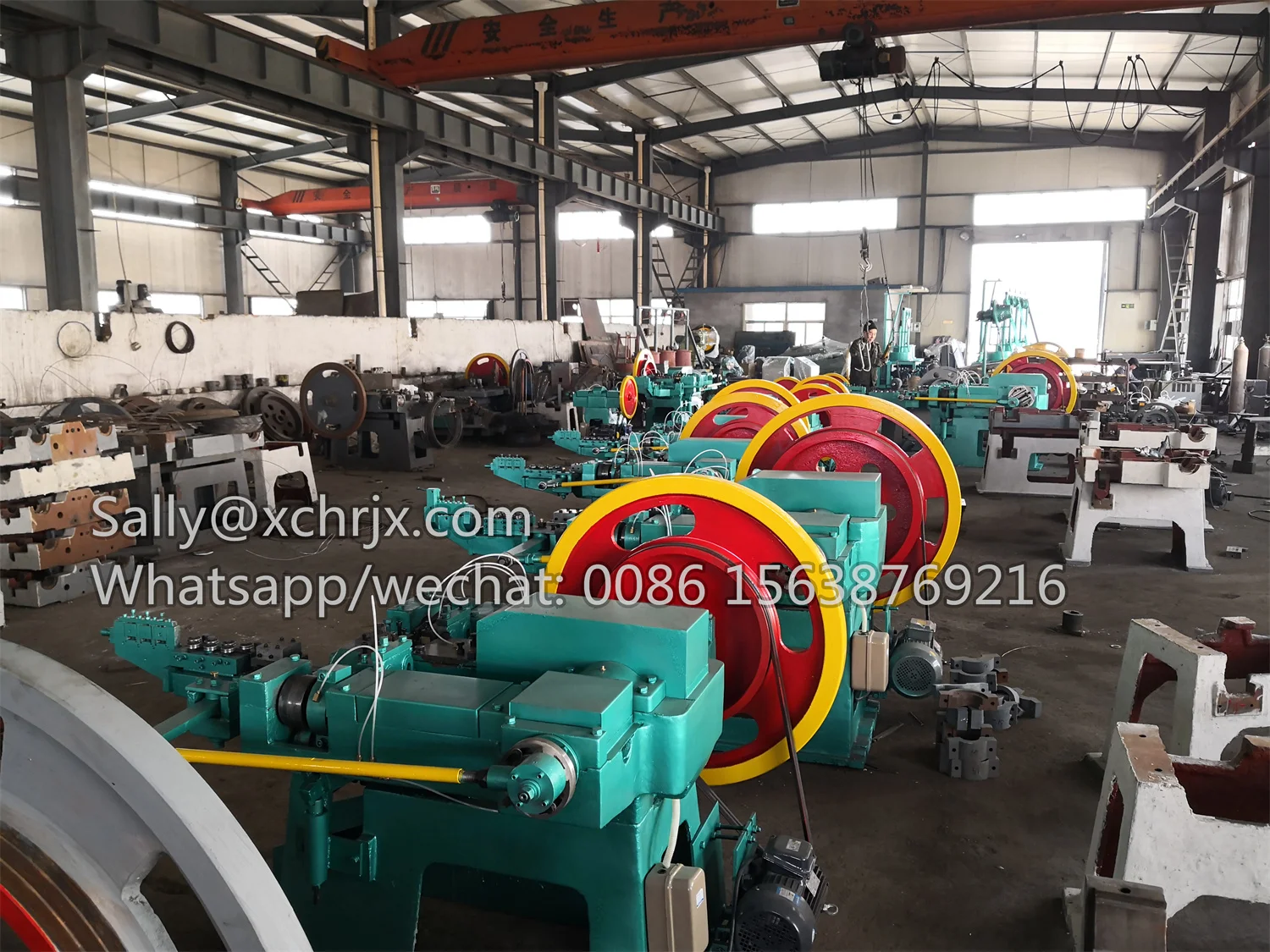

Company Profile
Xuchang Huarui Machinery Co., Ltd
Xuchang Huarui Machinery Co., Ltd. was established in 1990, mainly engaged in R&D and manufactures nail making machines, waste tire recycling machines and auxiliary equipment. After years of pragmatic innovation, exploration and development, Xuchang Huarui Machinery Co., Ltd. has developed from a small machinery factory into a large-scale and well known machinery company.
Our main products are full automatic nail making machines, waste tire recycling machine, wire drawing machine, steel bar straightening and cutting machine, CNC wire bending machine and auxiliary equipment. Our scale of production is among the best in the profession, sales networks are spread out all over the world, and have a favorable reputation for customers.
As a professional machinery company, we always devote ourselves to producing the best products and providing excellent service for customers. The satisfaction of clients and good reputation is our highest pursuit. We stick to the principle of "Quality First, Customer Uppermost", and ensure quality first, service first. In order to service customers best, the warranty of all our products is two years. We are ready to join hands with our friends to establish a bright future. Strong Concrete Nails Making Machine 1/2 4 Inch Hard Cement Nails Masonry Nails Production Line
Our main products are full automatic nail making machines, waste tire recycling machine, wire drawing machine, steel bar straightening and cutting machine, CNC wire bending machine and auxiliary equipment. Our scale of production is among the best in the profession, sales networks are spread out all over the world, and have a favorable reputation for customers.
As a professional machinery company, we always devote ourselves to producing the best products and providing excellent service for customers. The satisfaction of clients and good reputation is our highest pursuit. We stick to the principle of "Quality First, Customer Uppermost", and ensure quality first, service first. In order to service customers best, the warranty of all our products is two years. We are ready to join hands with our friends to establish a bright future. Strong Concrete Nails Making Machine 1/2 4 Inch Hard Cement Nails Masonry Nails Production Line
