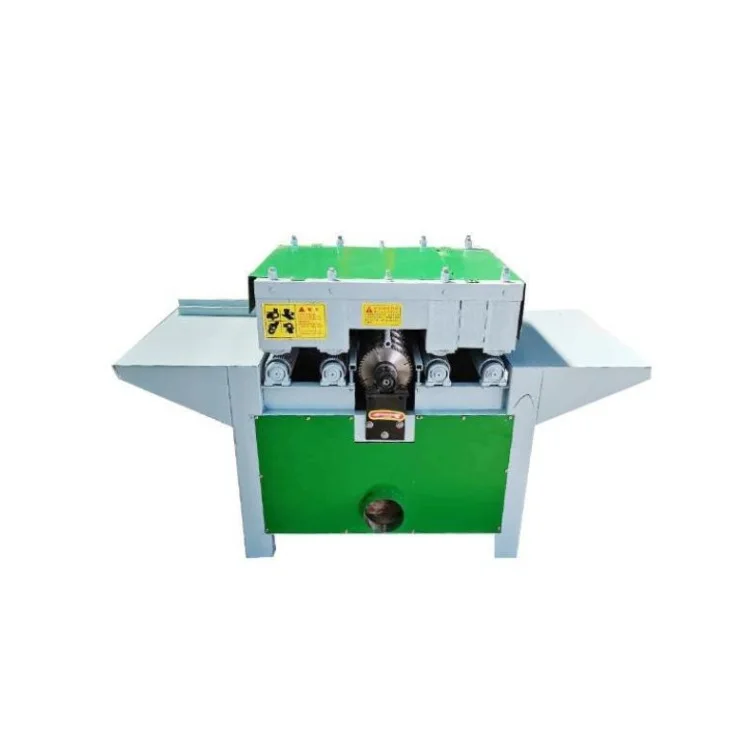

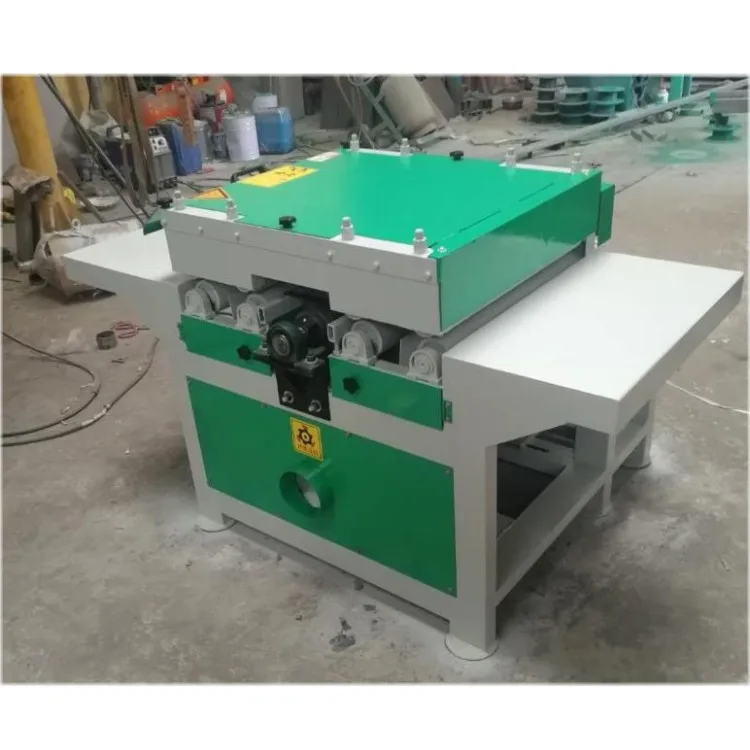

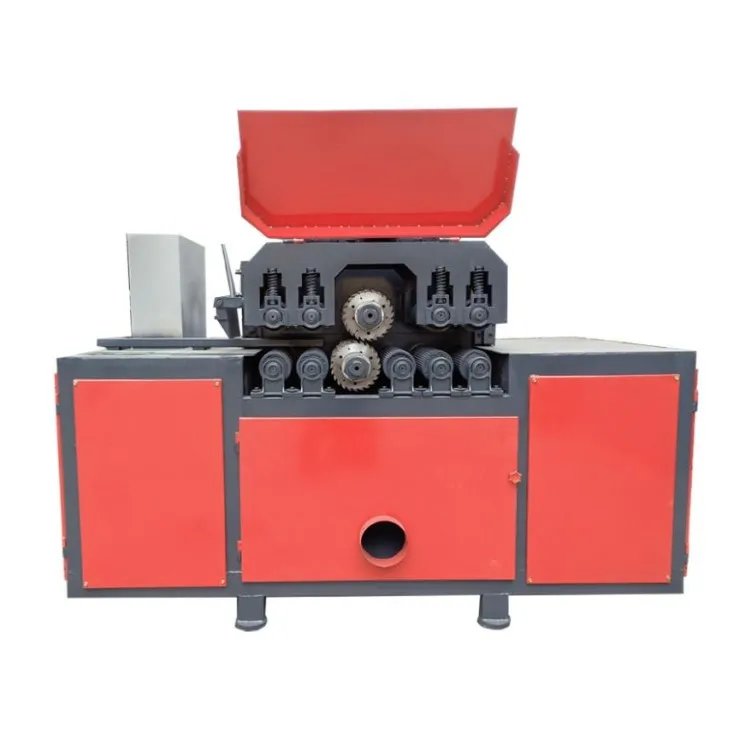

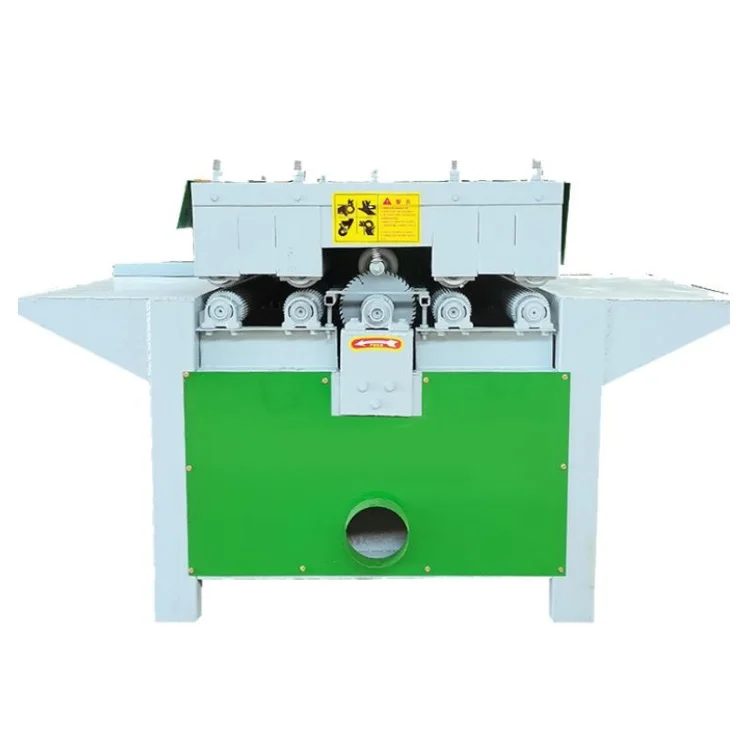

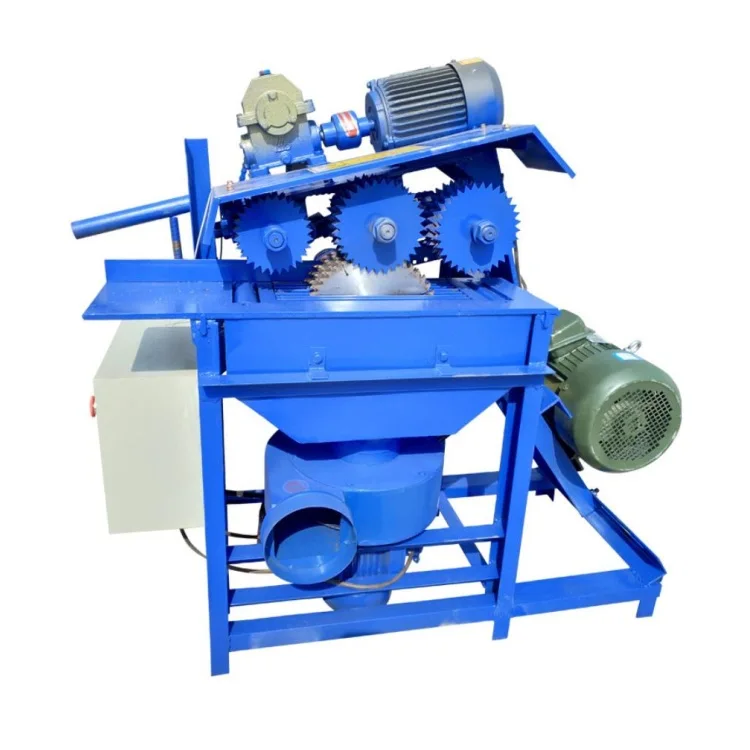

Low price multi blade rip wood cutting band saw machine
- Category: Wood Saw Machines >>>
- Supplier: Henan Kellen Machinery Equipment Co. Ltd.
Share on (1600530655544):
Product Overview
Description
Product Applications

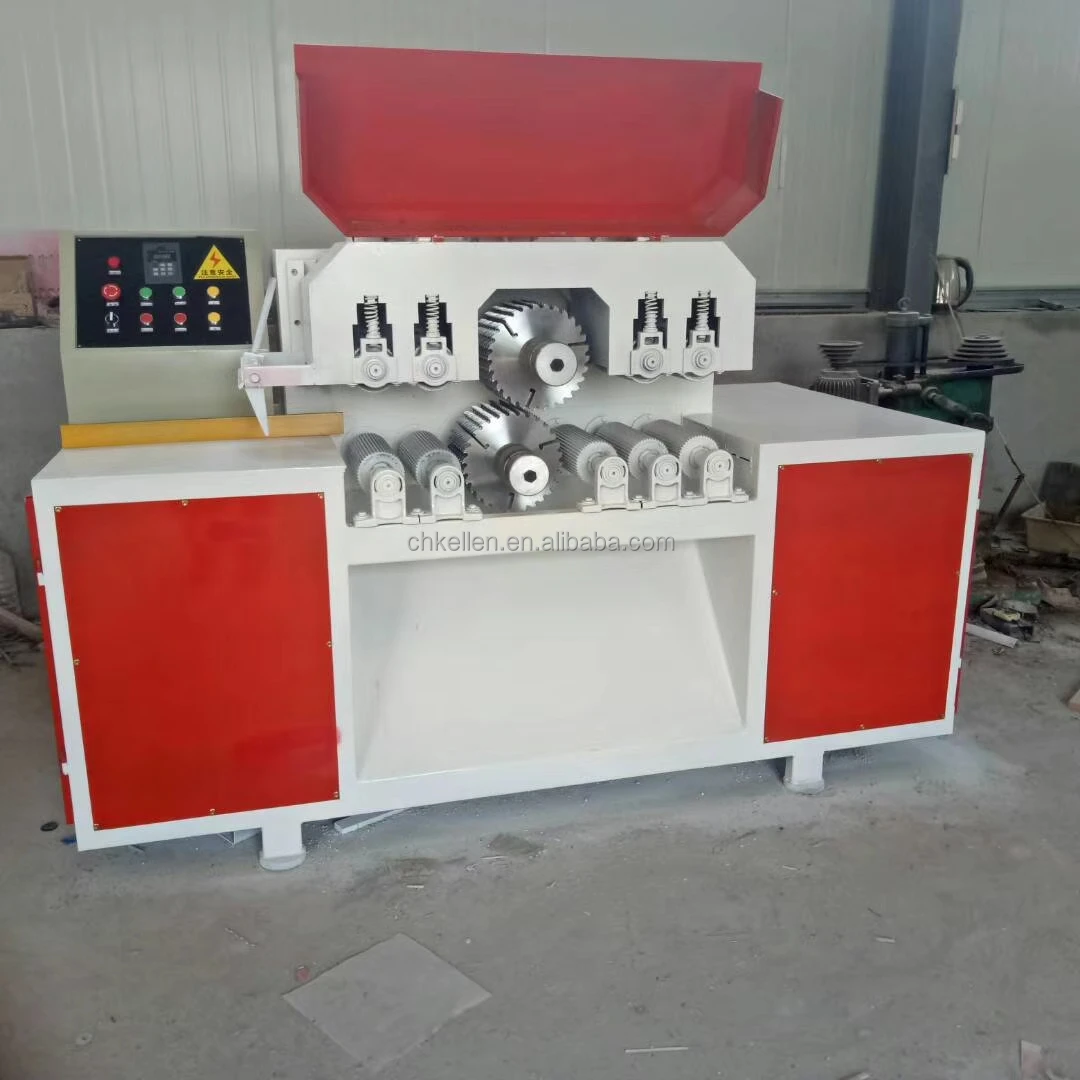

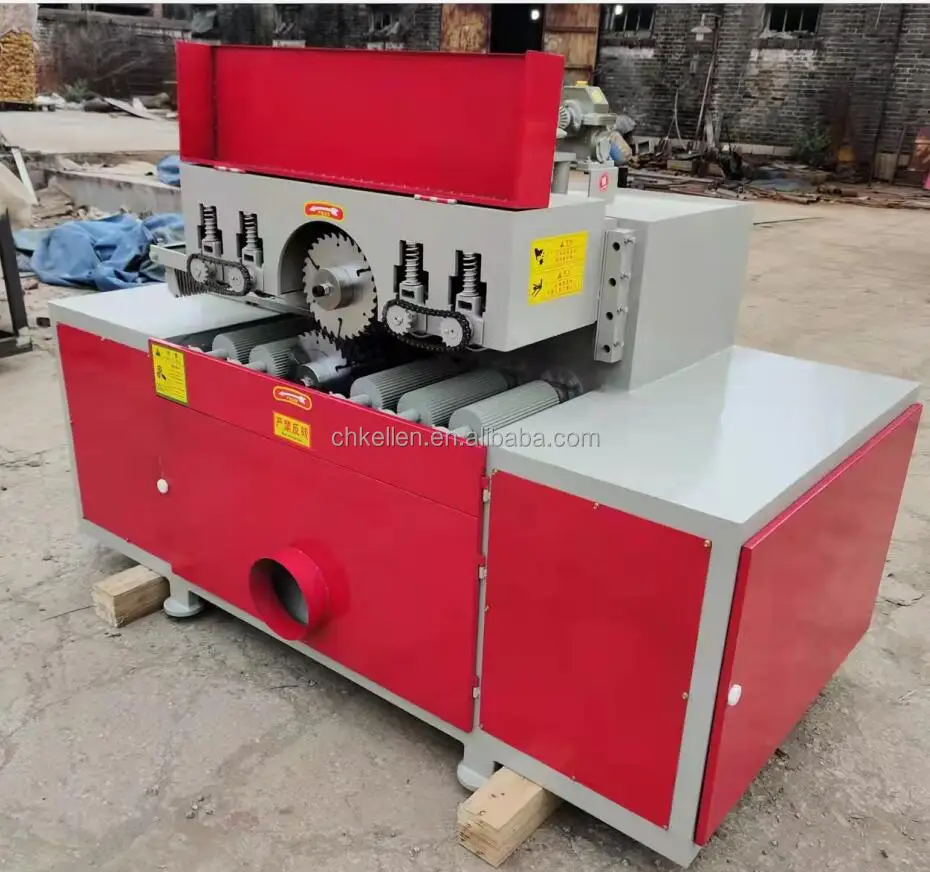

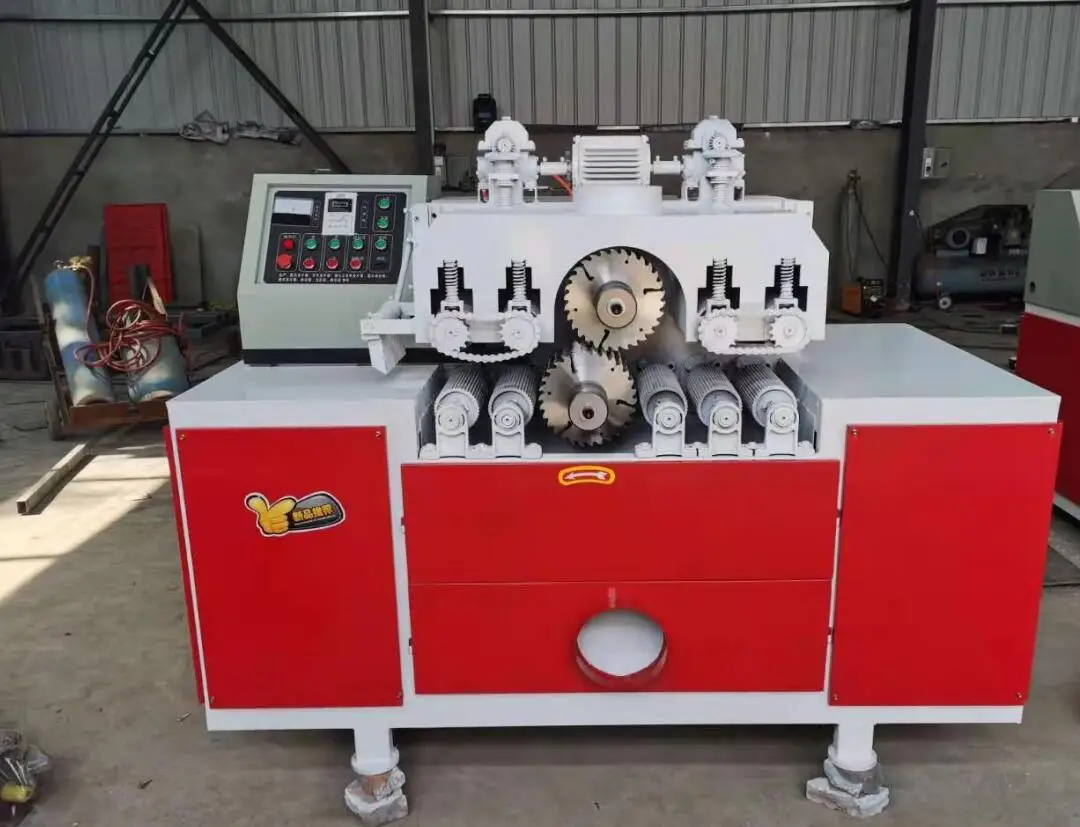

Hot Market New-type Automatic Multi Blade Rip Wood Saw Machine
The wood multi-blade sawing machine is mainly used for cutting wood boards, waste wood, logs, wood blocks and other wood materials to process a variety of specifications of wood blocks.
Our KELLEN machine is designed with upper and lower axis, which has large processing diameter. Wood block multi - blade saw with automatic feed, feed speed adjustable. This product has the feacture of stable feeding, fine processing, high efficiency, low consumables and high safety factor. It is suitable for the processing of dry and wet materials, and is an ideal equipment for construction, furniture and other industries.
Welcome to inquire about our products.
Working principle：
According to the pre-adjusted size, a plurality of wooden strips can be sawed and fed by the feeding wheel, and the upper and lower feeding wheels are used to synchronously feed the material.
Parameters
As for this machine, we have many specifications for you to choose . You can tell me your requirements. Then I'll recommend the most suitable machine for you.
Model | KL-6 | KL-8 | KL-10 | KL-12 | KL-15 |
Feed length (cm) | 30-400 | 30-400 | 30-400 | 30-400 | 40-400 |
Feed thickness (cm) | 2-6 | 2-8 | 2-10 | 2-12 | 2-15 |
Feed width (cm) | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited |
Main motor power (kw) | 15+18.5 | 15+18.5 | 18.5*2 | 18.5*2 | 22+18.5 |
Feeding motor power (kw) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
Saw blade specification (mm) | 160 | 180 | 205 | 230 | 255 |
Spindle diameter(mm) | 50 | 50 | 50 | 50 | 50 |
Spindle speed (r/min) | 3400 | 3400 | 2930 | 2930 | 2930 |
Size (cm) | 100*200*130 | 100*200*150 | 100*200*155 | 100*200*160 | 100*200*167 |
Weight (kg) | 1300 | 1300 | 1400 | 1400 | 1400 |
Product Details

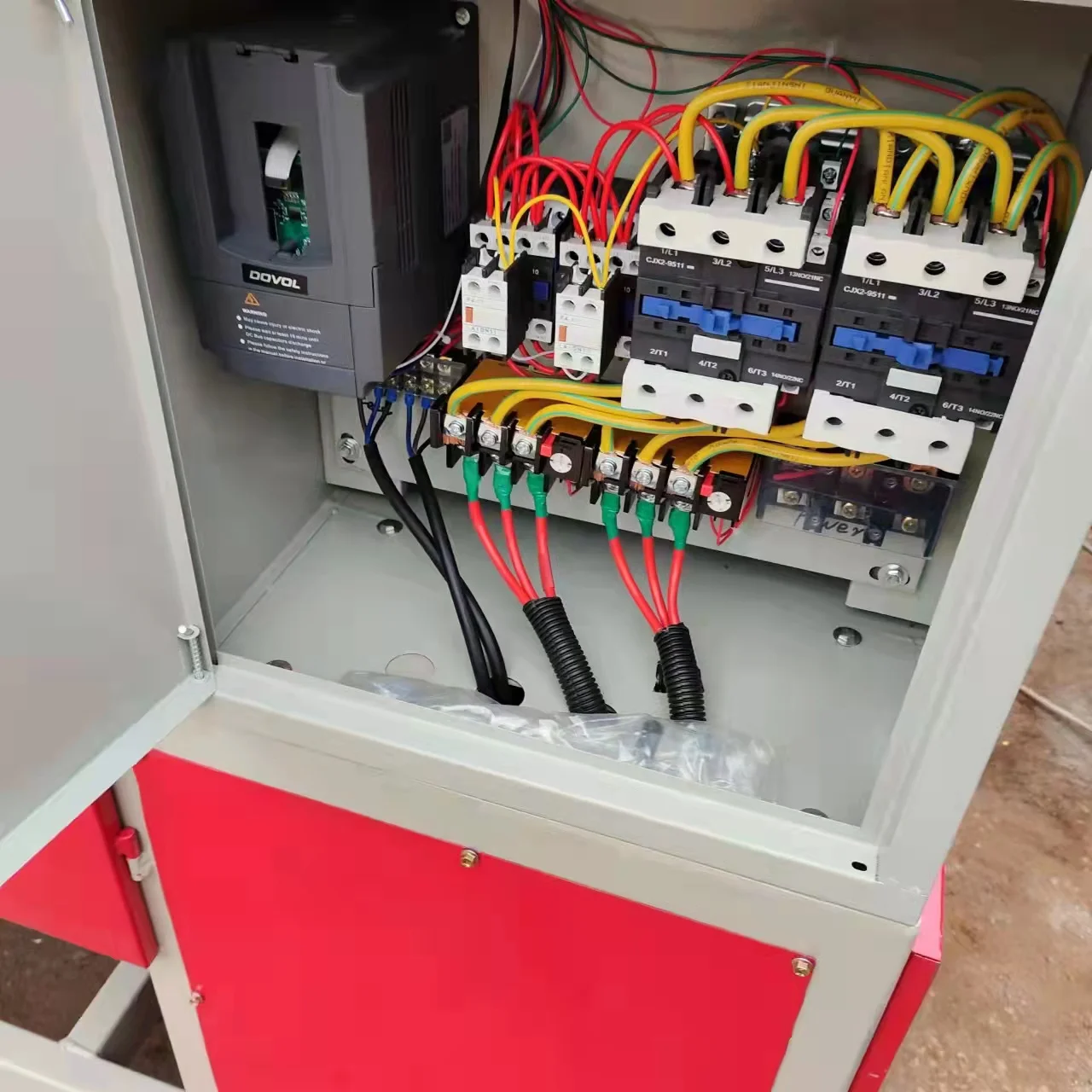

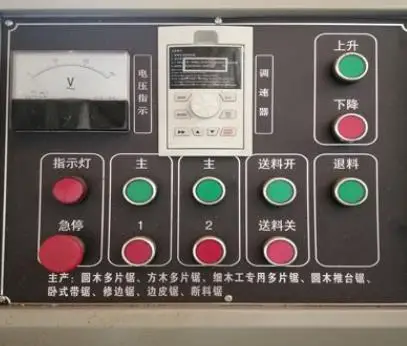

CNC electric box
It is durable and easy to operate.

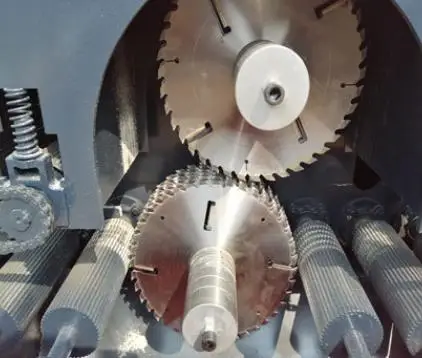

Wear-resistant saw blade

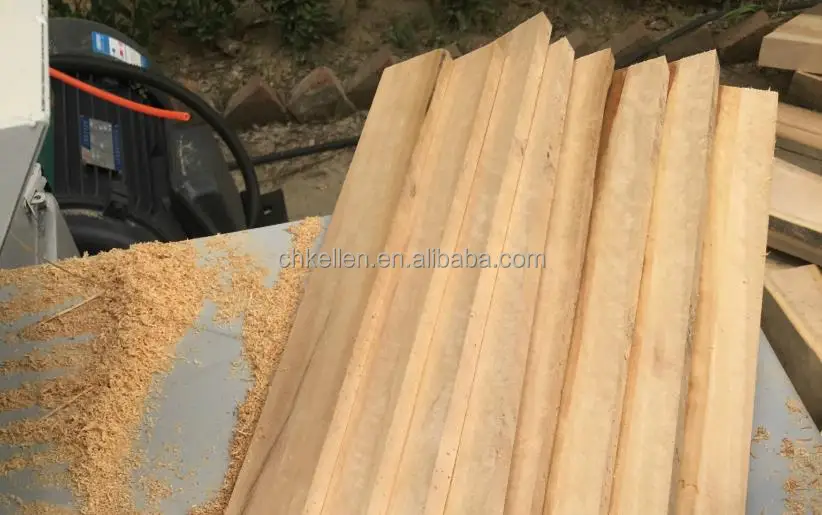

The saw is smooth and requires no secondary machining.

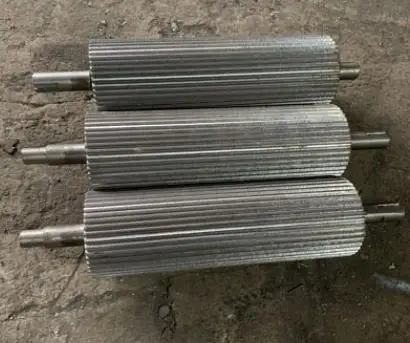

Conveyor roller
High quality pressing roller is stable to operate
Core motor
Axis cooling technology reduces thetemperature of spindle and saw blade

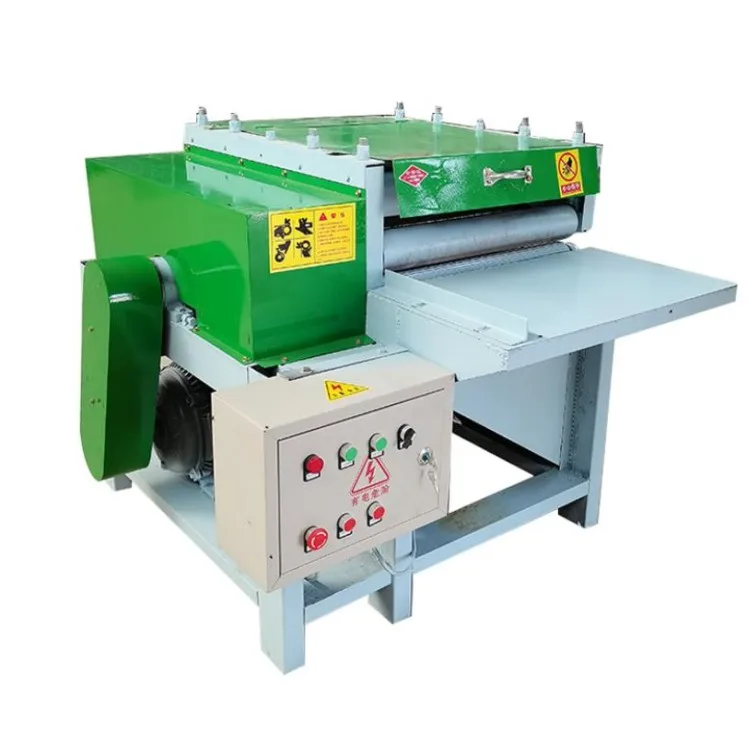

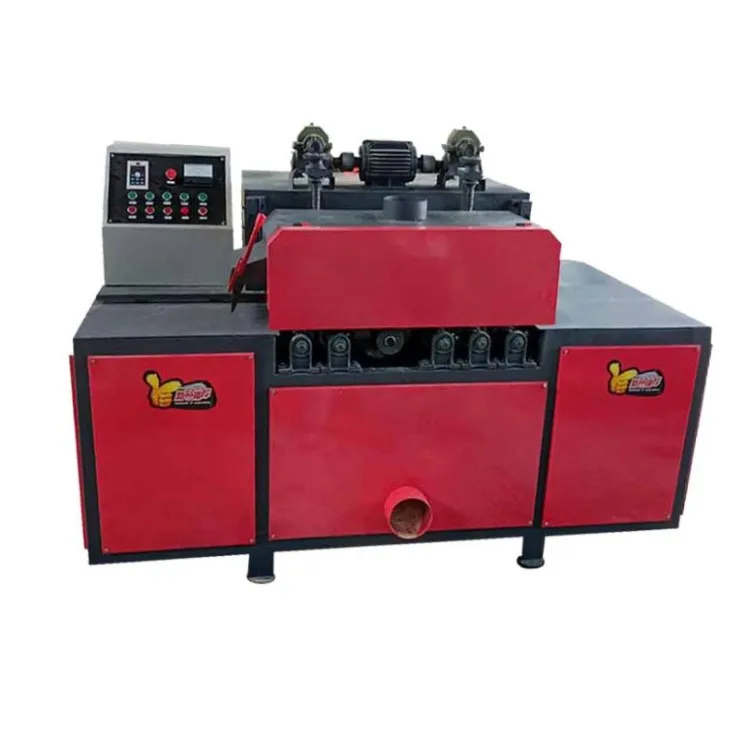

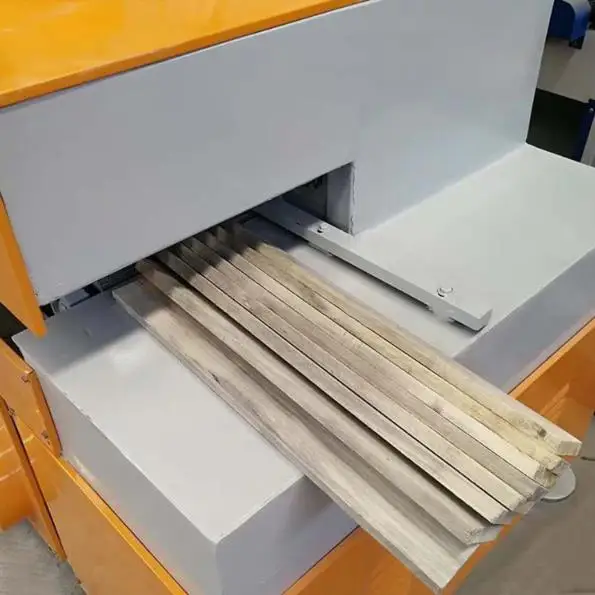

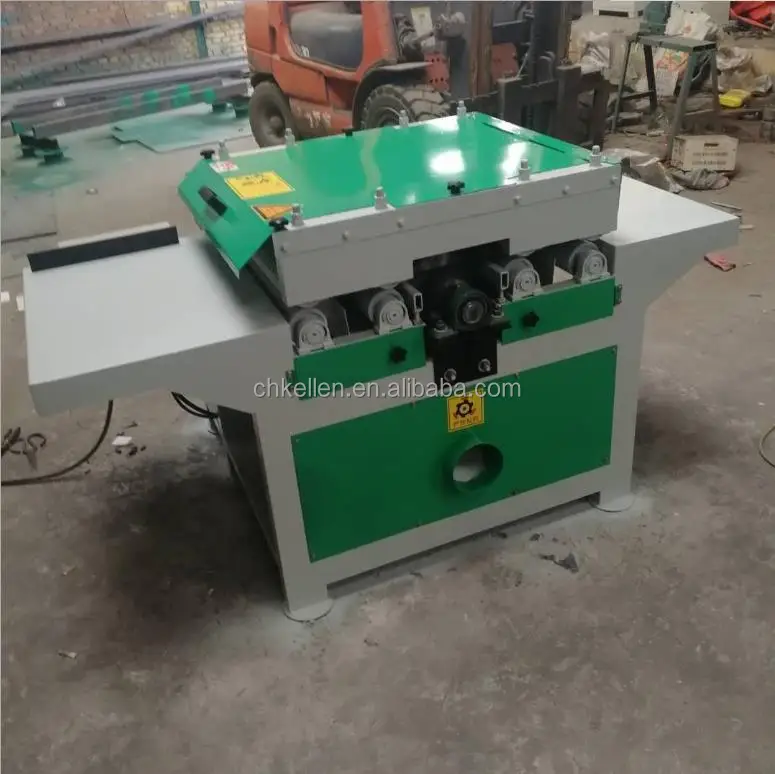

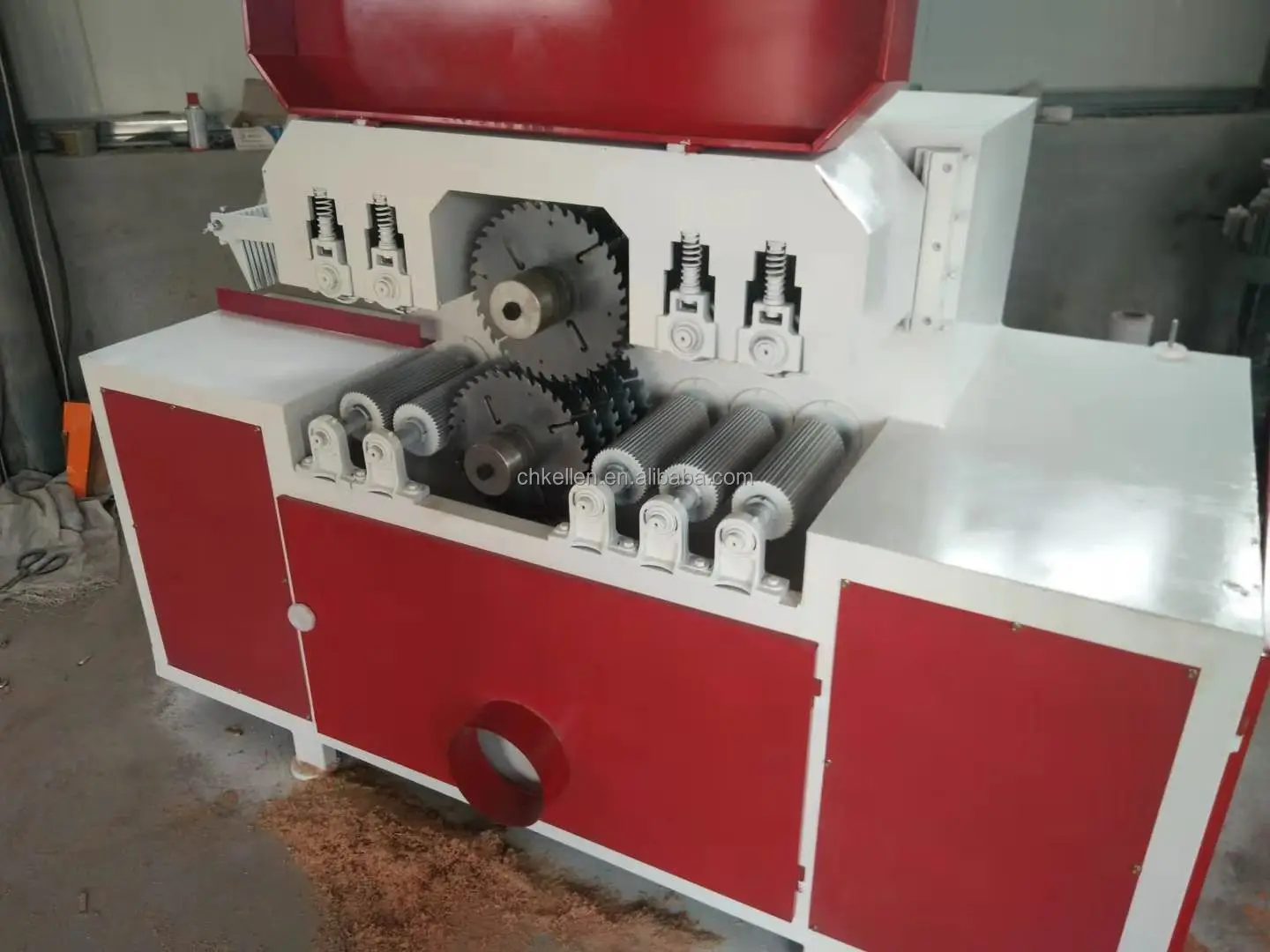

Product Display
Application

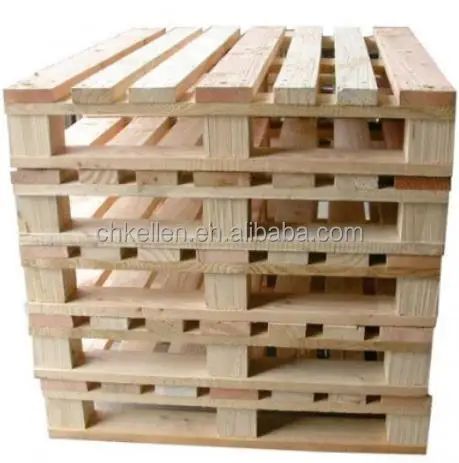

The machine is specially designed for material modification, wood strip and wood core board. Woodworking industry,such as board making ,laminated wood ,boarded,floor,packing case and pallet boards,as well building trades and finished slats.
