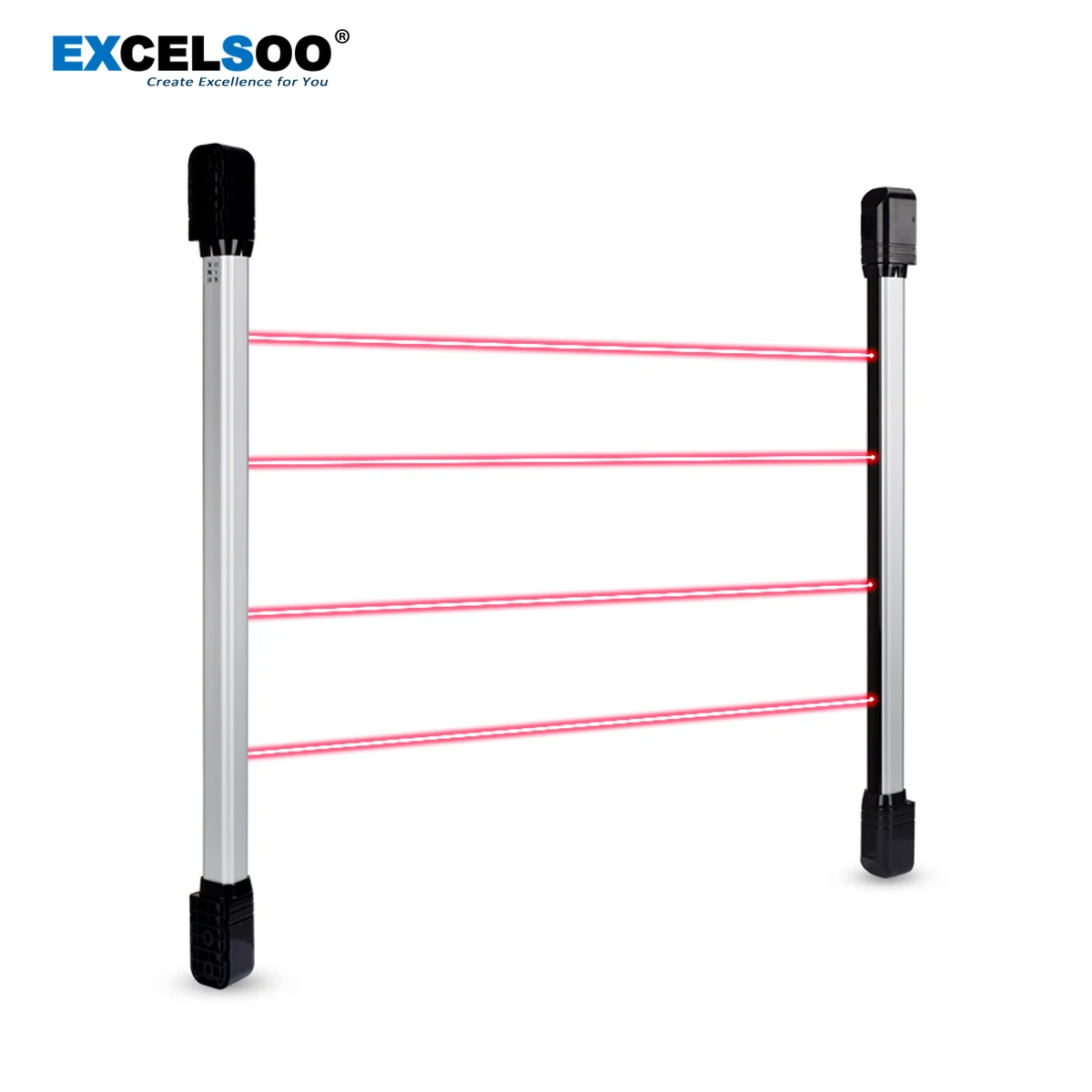

EX ABI Series Digital Active Infrared Barriers Light Curtain for Automatic Gate

Share on (1600530668763):


Price:

Quantity:


Product Overview

Description



Specification

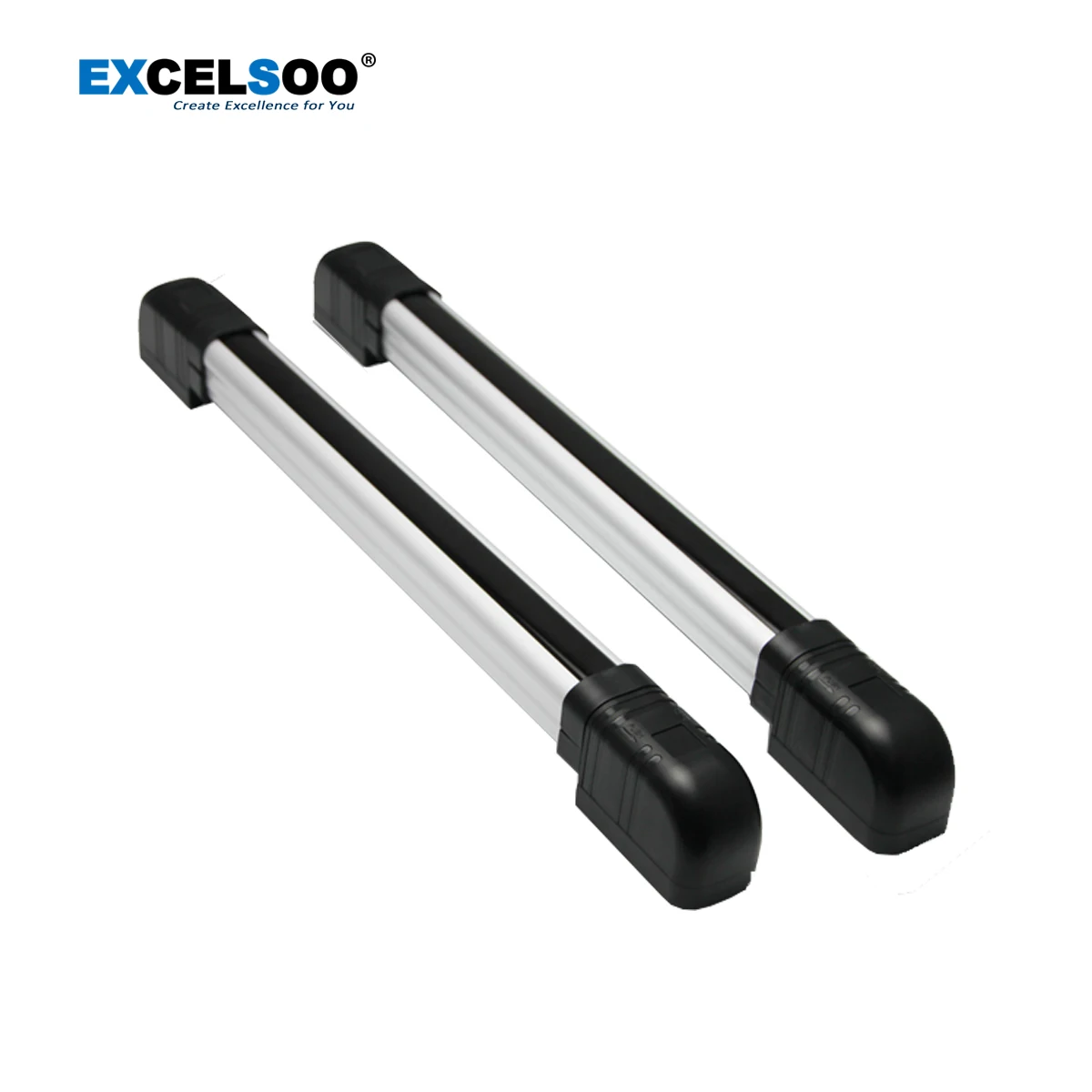

EX-ABI Series Digital Active Infrared Barriers Light Curtain
Contact us once you have a shining idea!
E-mail: yyung@excelsoo.com
Ph./WhatsApp/WeChat: +86-138-2870-1707


EX-ABI Series Digital Active Infrared Barriers Light Curtain

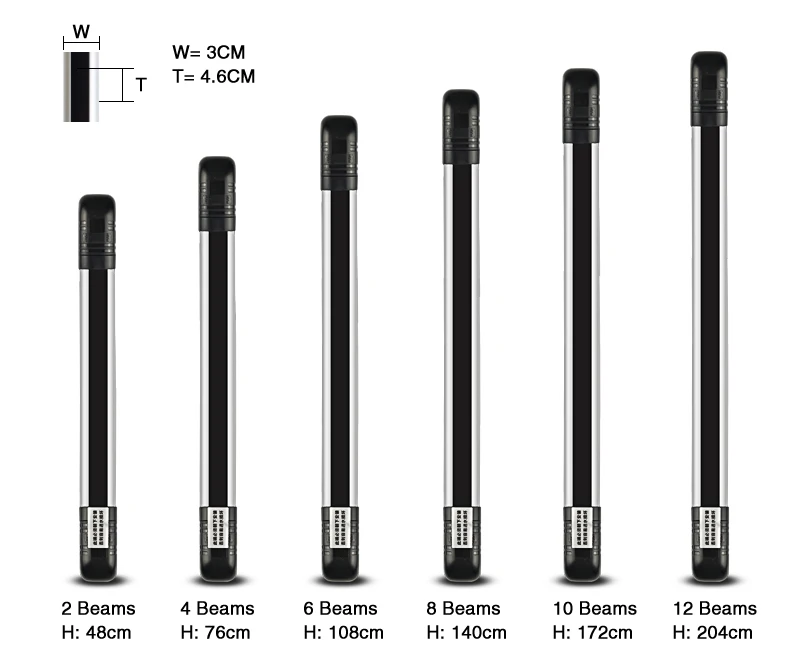

Model
ABI-02
ABI-04
ABI-06
ABI-08
ABI-10
ABI-12
Beams Qty.
2
4
6
8
10
12
Height
48cm
76cm
108cm
140cm
172cm
204cm
Detection Distance
10m/30m/60m/100m
Detection Method
Simultaneous interruption of adjacent 2 infrared beams
Beam Frequency
2 Channel ( A and B )
Light Source
Infrared LED
Response Speed
40m/sec
Protection Level
IP65
Alarm Output
NO/NC (optional)
Power Supply
DC9-30V / 50-120mA(Max)
Operating Temperature
-30℃~70℃
Tamper Switch
NC, opens when cover removed
Alignment Angle
Horizontal 180°(±90°), Vertical unadjustable
Additional Features
LED indicator, buzzer
Material
PC engineering plastic, Aluminum housing
Application Scenarios
Industrial parks, factories, schools, villas, factories, communities, prisons, etc.

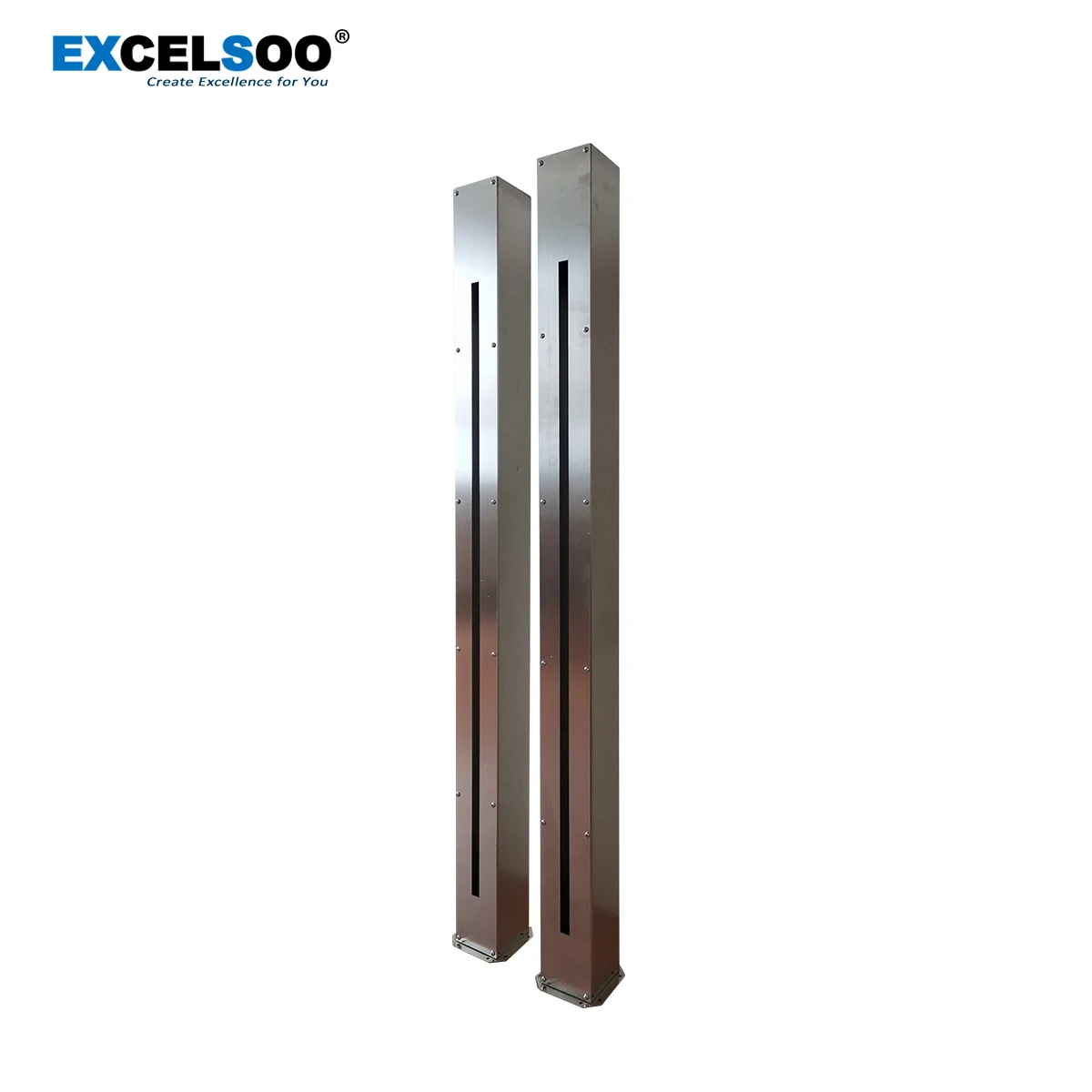

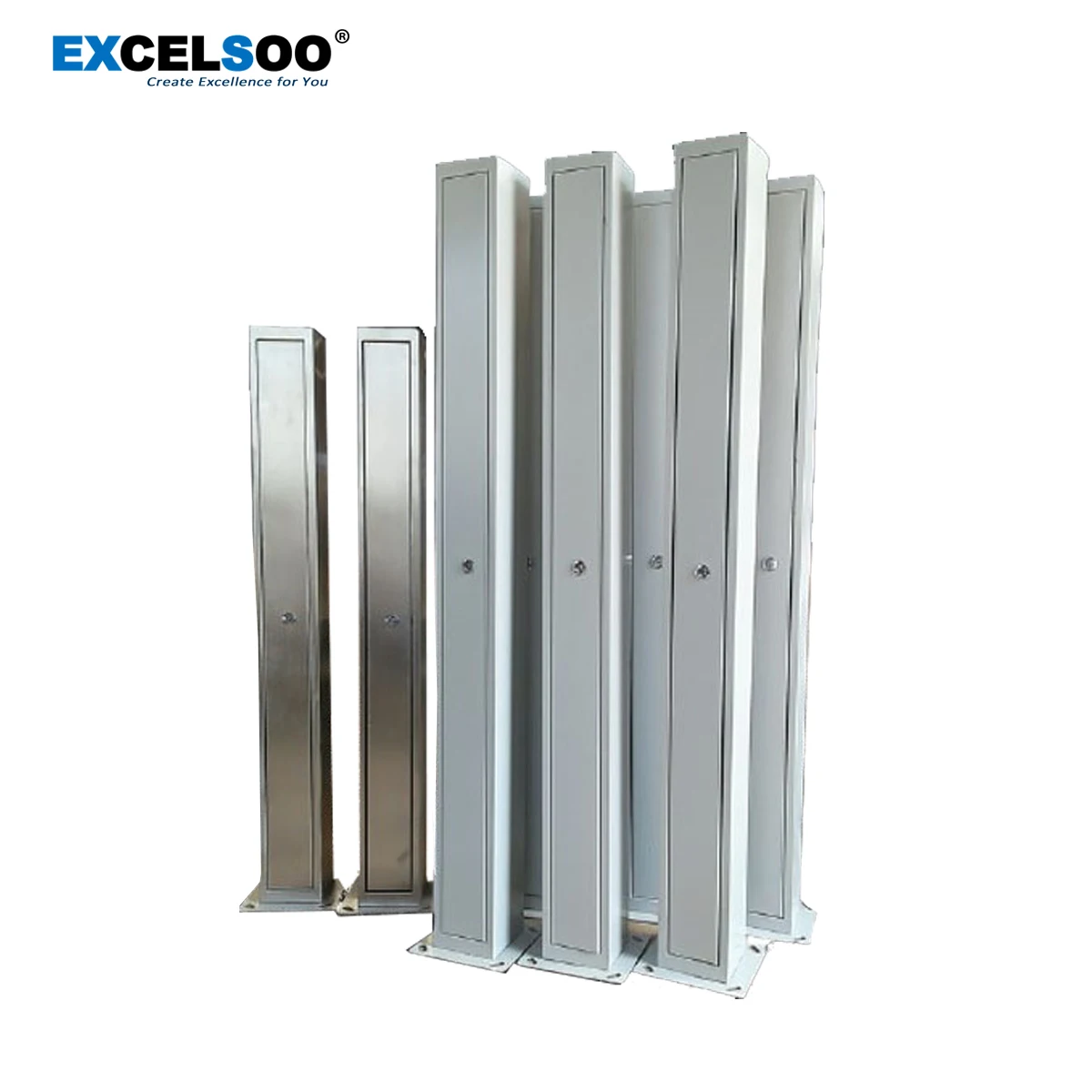

 EX-ABX Series Active Infrared Barriers Light Curtain Protective Box
EX-ABX Series Infrared Barriers Photocell Beam Sensor Protective Box embeds the infrared electronic grating device into the stainless steel pole. At the same time, the pole is slotted on one side to match the light-emitting surface of the infrared electronic grating, which effectively protects the infrared electronic grating from external damage and provides users with a reliable security guarantee. It is suitable for multiple occasions such as weighbridge inspection, vehicle entrances, and exits, factories, schools, hydropower stations, military area ammunition depots, etc.


Material:
201/304 Stainless steel pole, iron, carbon steel spray plastic, etc. can be customized according to customer requirements


Common Dimensions:
140*135*900mm (L*W*H)
140*135*1200mm (L*W*H)
140*135*1500mm (L*W*H)
140*135*1800mm (L*W*H)
140*135*2100mm (L*W*H)
OEM/ODM is supported.


Key Features:
- Made of high-quality stainless steel, suitable for use in highly corrosive environments;
- Windows, not sticky water, dust, snow, etc.
- Explosion-proof, waterproof, and dust-proof design, suitable for indoor and outdoor installation, can be used all day;
- Easily deal with weather such as wind, frost, snow, fog, tide, direct sunlight, etc.
- Good anti-seismic and anti-interference ability;
- The cam lock switch has a reasonable and reliable design to ensure that disassembly waves will not damage the detector;
- No synchronization line, easy installation, and debugging.



Common Dimensions::
Factory workshop, petroleum, chemical, pharmaceutical, brewing and other potentially dangerous places, it is required to be used when perimeter detection is required, and it can also be installed outdoors as an infrared grating housing.


Product Description

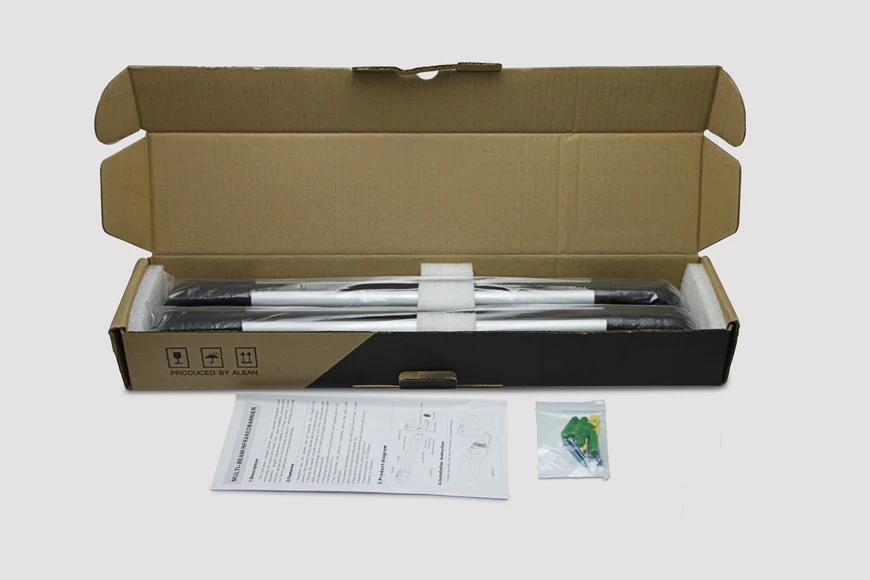

Packing & Delivery




Paper Box


Company Profile






As a top parking system and gate automation solutions supplier in china, Excelsoo offers a broad range of high-quality security system products, such as Parking Systems, Door Access Control, and Gate Automation for building, guardhouses, houses, and so on. With a professional R&D team and two production bases, OEM/ODM services can be provided quickly.

In the character of an R&D-driven enterprise, Excelsoo's professional R&D team is full of passion and rich experience. 30% of the engineers experienced more than 10 years in parking systems, we know customer needs and industry development trends greatly. 30% of annual revenues in R&D investment ensure to provide customers with high-quality services and products.

Based on the deep understanding of intelligent hardware and IoT technology, Exelsoo concentrated on four major product systems, parking access, parking guidance, pedestrian access, door access and presents customers with a full range of product lines and comprehensive application solutions from hardware to software, from R&D to production, from projects to the cloud platform, from stand-alone devices to IoT networks.

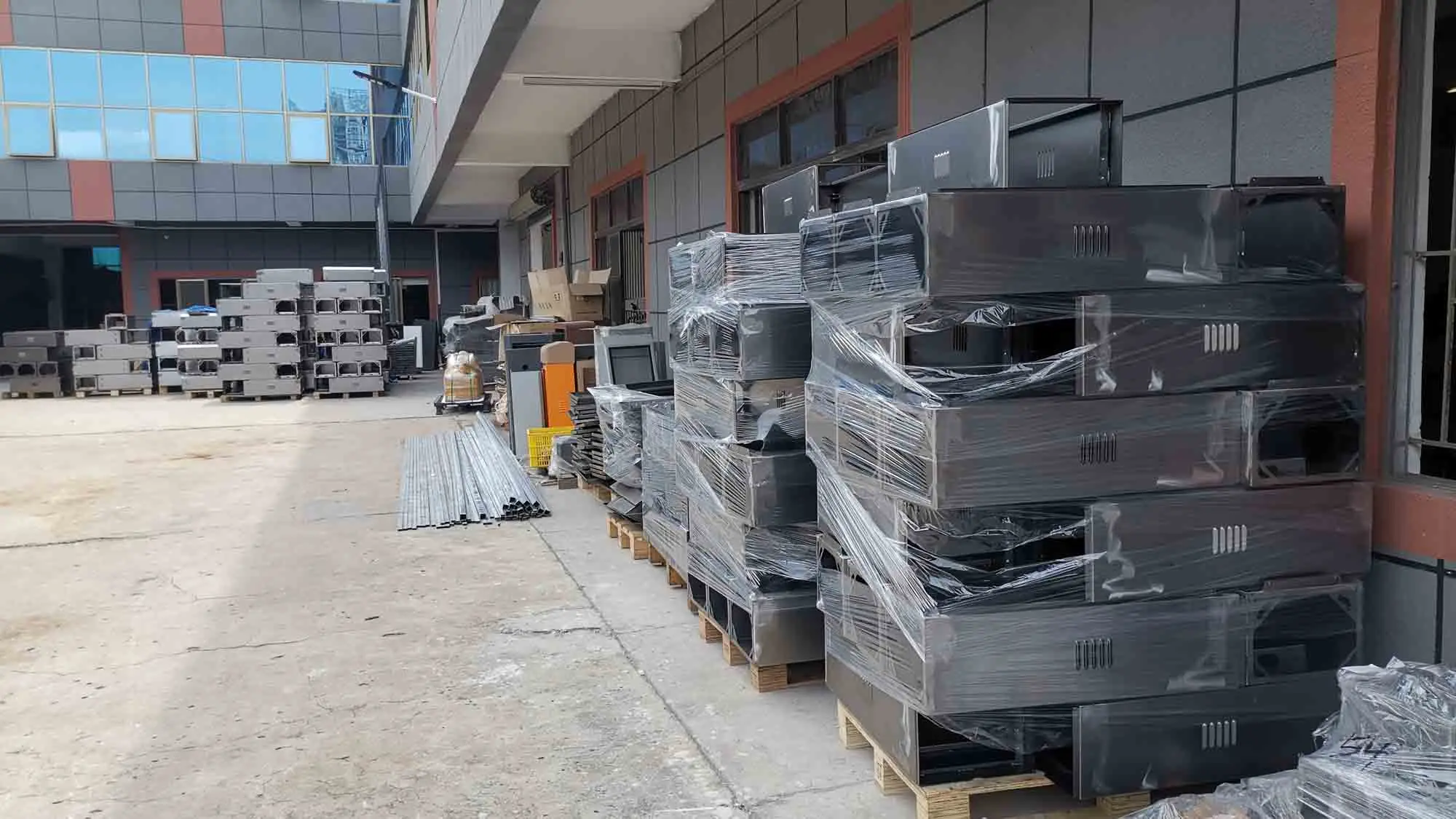

The 2 highly smart production bases of barrier gates and pedestrian gates make certain Excelsoo handles OEM/ODM orders quickly and efficiently. From raw materials such as steel plates and component parts to the major processes of cutting, stamping, welding, spraying, and assembling, as well as the inspection and optimization of each process, a complete ISO Quality Management System (QMS) is applied. Top-quality coating powder and automotive-grade spraying process ensure that the barrier color does not change for 5 years; CNC machines and smart robots reach the goals of better consistency, reliability, stability, and productivity of the barriers.
