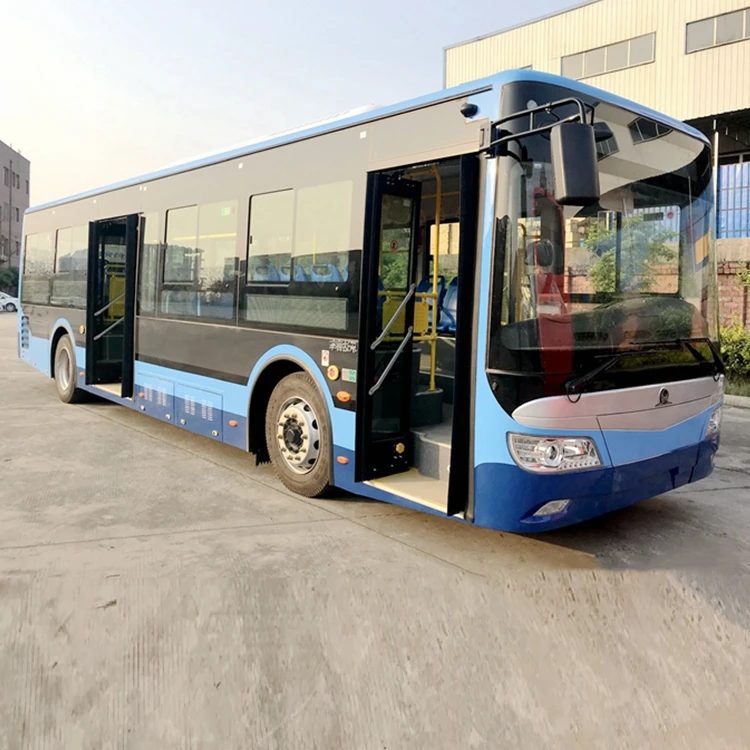

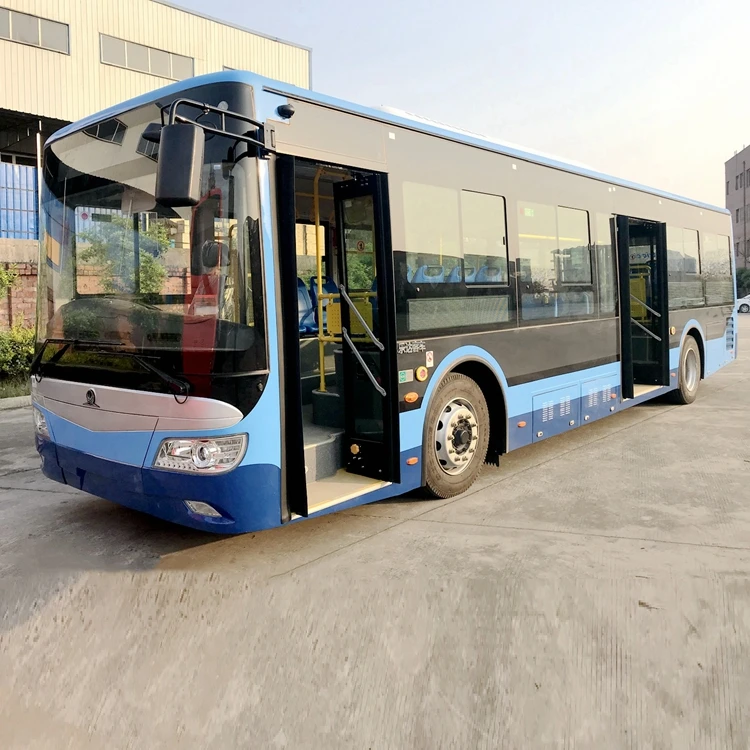

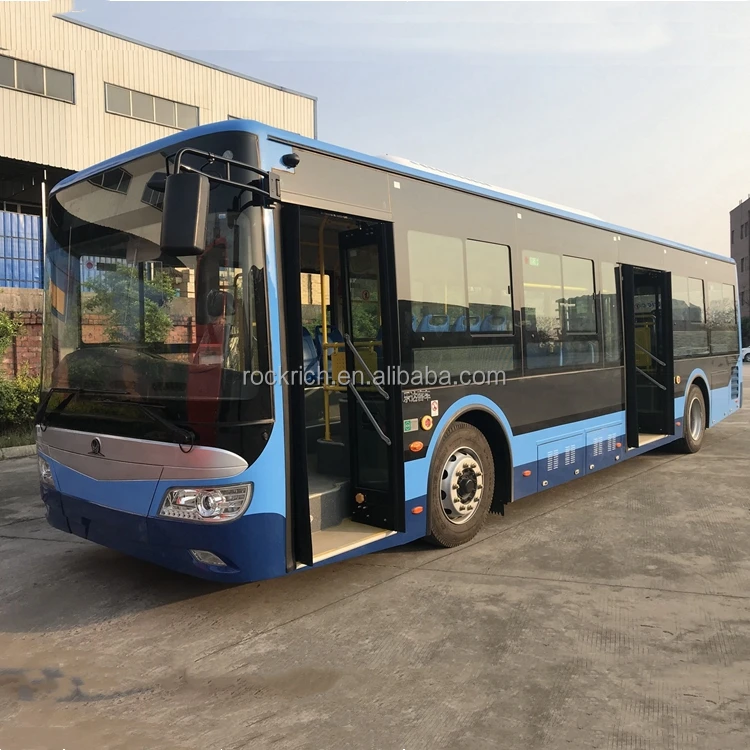

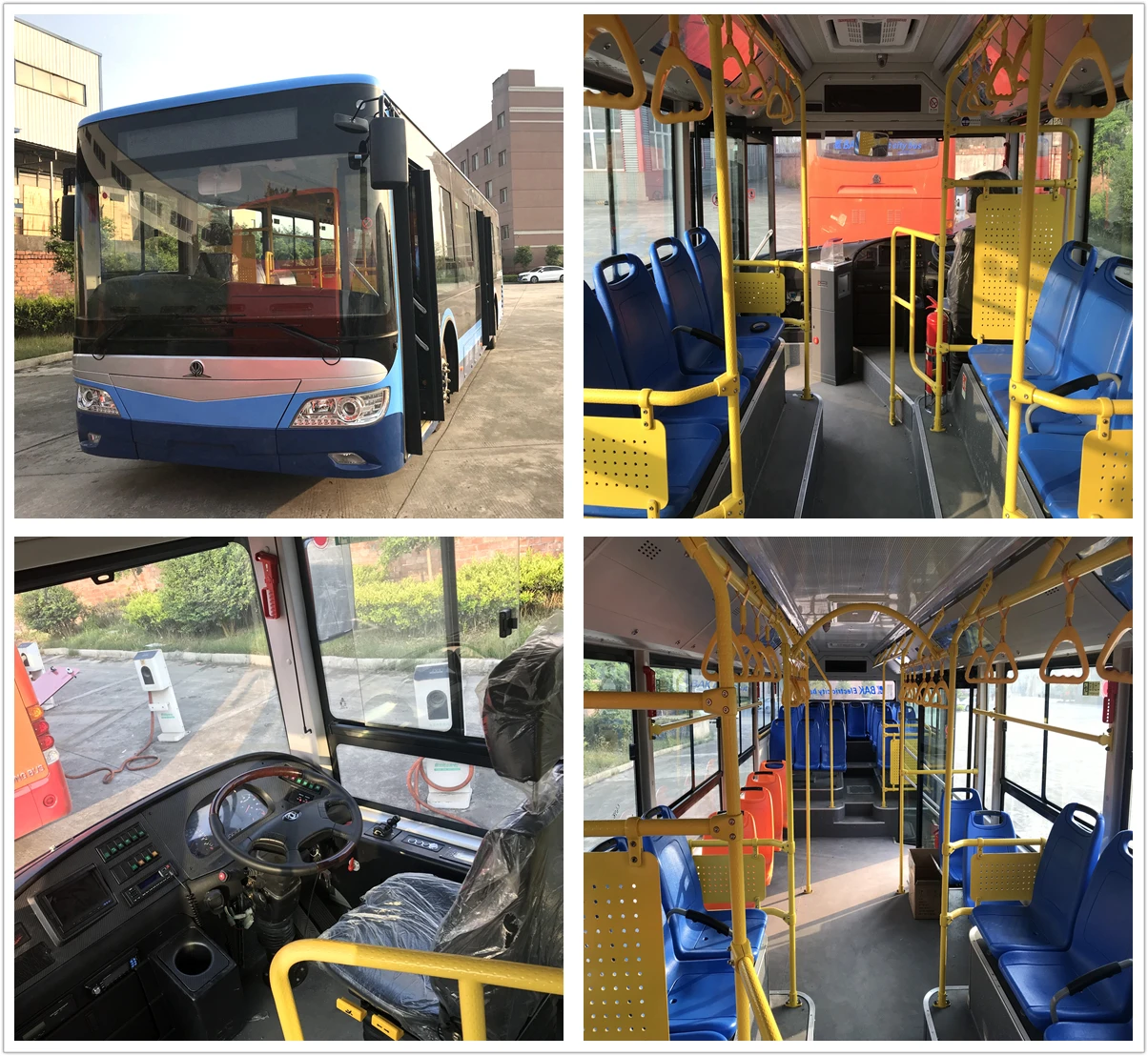

2022 China new energy electric bus 10.5m 34 seaters city bus
- Category: >>>
- Supplier: Shiyan Rockrich Industry & Trade Co. Ltd.
Share on (1600530678293):
Product Overview
Description
Products Description
Specification
Overall specification | Overall length (mm) | 10500 | ||
Overall width (mm) | 2550 | |||
Overall height (mm) | 3150 | |||
Wheelbase (mm) | 5600 | |||
Front/rear overhang (mm) | 2230/2570 | |||
Front/rear wheel tread (mm) | 2050/1865 | |||
Approach/departure angle | 8.5°/10° | |||
Max. GVW (kg) | 18000 | |||
Min. Turning diameter (m) | 11 | |||
Min. Ground clearance (mm) | 240 | |||
Max. Gradeability (%) | ≥17 | |||
Max. Speed (km/h) | 69 | |||
Seat | 34+1 | |||
Max. Passenger capacity | 90 | |||
Electric motor controller | Controlling mode | Turning Torque | ||
Model No. | CU5189 | |||
Main motor | Model No. | TM5035JA | ||
Driving battery | Driving source | LFP | ||
Driving battery | Capacity | 225KWh(120Wh/Kg,585.2V/446.25Ah) | ||
Type | PPermanent magnet synchronous motor | |||
Peak power (kw) | 196KW /3000rpm/2500 N.m | |||
Chassis model | Chassis brand | two step / Dongfeng | ||
Suspension | Leaf spring : front3/rear4 | |||
Front axle | Dongfeng Dana 6.4T | |||
Rear axle | Dongfeng Dana 11T | |||
Driving shaft | Enhanced driving shaft | |||
Braking | Front disc / rear drum | |||
ABS | Yes | |||
Adjustable arm | Automatic ，Chinese brand | |||
Tire | 275/70R22.5-16PR | |||
Storage battery | DC/DC+12V/150AH x2 DC/DC+12V/150AH x2 maintenance-free storage battery | |||
Company Profile

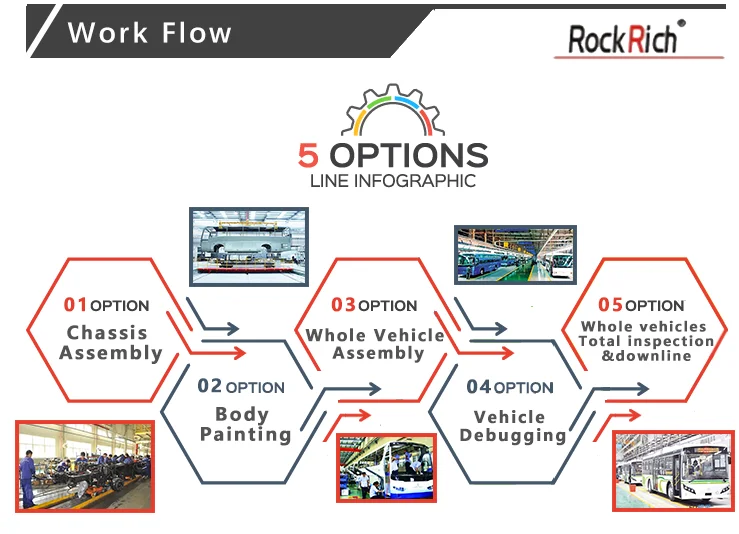

work flow
Customer Visit
Packing & Delivey
FAQ
1.What is the warranty?
You can enjoy technical support by phone or email forever.We will provide a prompt solution.We also offer the most convenient and efficient spare parts support with competitive price.
2.What is the delivery time?
The delivery time is usually within 35 workdays after we received your prepayment.
3.Do you provide customized service?
Yes, we offer customized service as you need for the performance,including special requirements.
4.What is the payment method?
TT 30% as deposit, balance before shipment by TT or L/C at sight.
5.Why us?
We guarantee professional one-stop service,competitive price with high performance.
You can enjoy technical support by phone or email forever.We will provide a prompt solution.We also offer the most convenient and efficient spare parts support with competitive price.
2.What is the delivery time?
The delivery time is usually within 35 workdays after we received your prepayment.
3.Do you provide customized service?
Yes, we offer customized service as you need for the performance,including special requirements.
4.What is the payment method?
TT 30% as deposit, balance before shipment by TT or L/C at sight.
5.Why us?
We guarantee professional one-stop service,competitive price with high performance.
