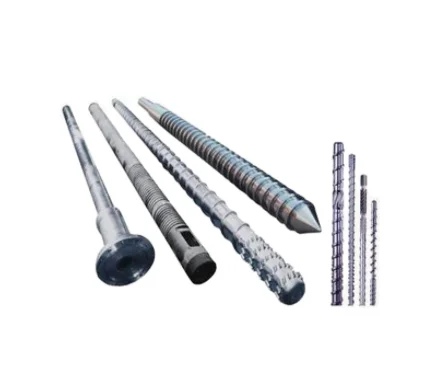

D75 Injection Screw Cylinder Screw And Barrel For Fanuc Injection Machine
- Category: >>>
- Supplier: Guangdong Juguangheng Automation Equipment Co. Ltd.
Share on (1600530700982):
Product Overview
Description
Products Description
Brand Name | FANUC | ||||||
Supplier | China | ||||||
Category | Rubber Machinery Parts | ||||||
Surface Hardness | HV900-1050 | ||||||
Straightness | 62-270mm | ||||||
Surfaceness | Ra0.4 | ||||||
Material | Nitride Alloy | ||||||
Scope of Application | Industrial | ||||||
Nitride Brittleness | Rubber Machine | ||||||
WE SELL

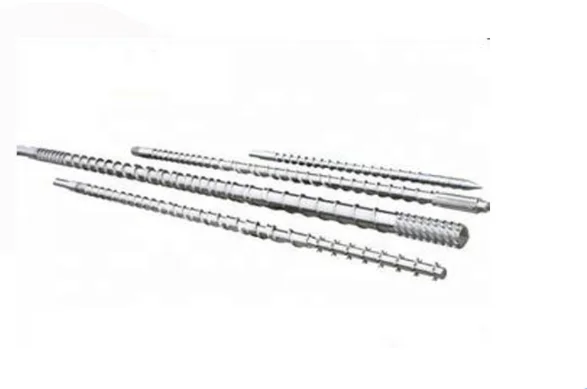

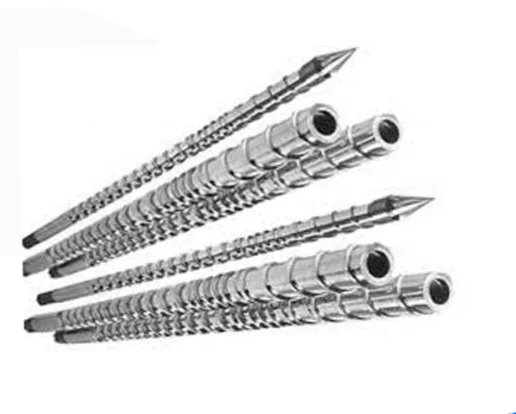

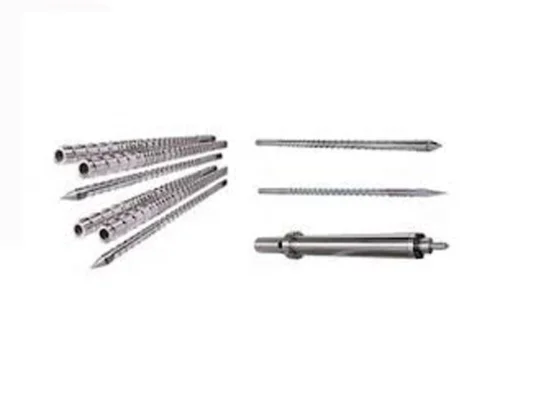

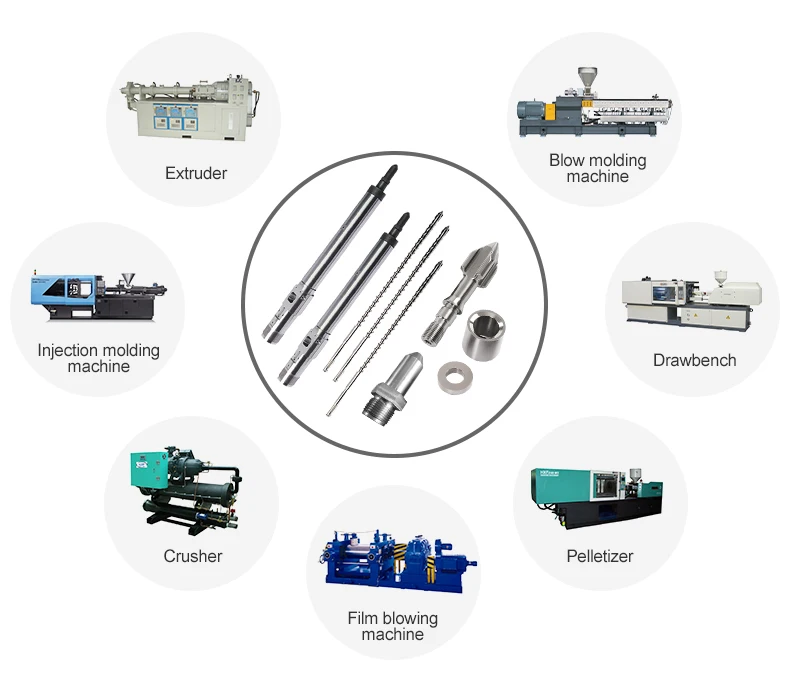

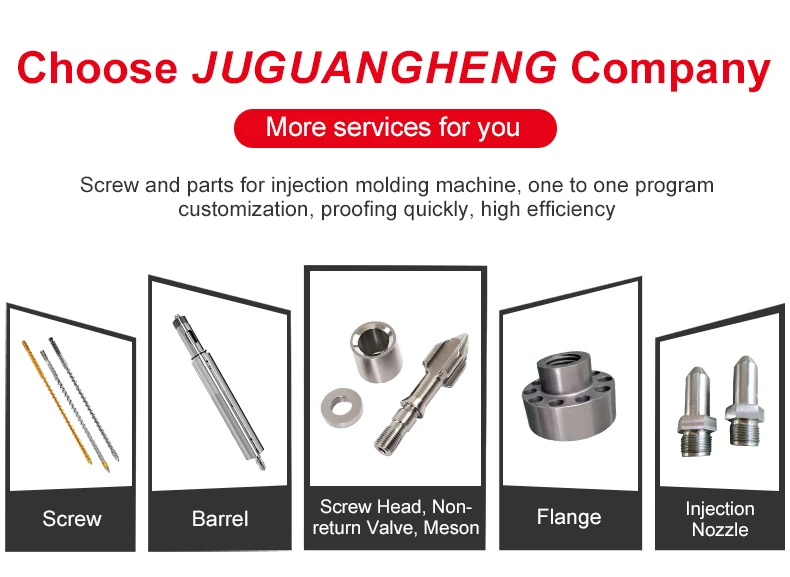

Nitriding screw, double alloy screw( A, B and C type), single or double screw, screw head, non-return valve, sealing resin ring, nozzle and flange, screw and barrel for different brands of injection molding machine, extruder and rubber machine.
Nitriding screw, double alloy screw( A, B and C type), single or double screw, screw head, non-return valve, sealing resin ring, nozzle and flange, screw and barrel for different brands of injection molding machine, extruder and rubber machine.
Brands of injection molding machine:
FANUC, HAITIAN, NIIGATA, KAWAGUCHI, MEIKI, Netstal, L.K, KraussMaffel, BORCHE, ENGEL, WELLTEC, etc.
Applicable Plastic:
A large amount of plastic can be used for screw and barrel of injection molding machine, such as PA, PP, PE, POM, PBT, ABS, PS, PVC, PEI, PC, PEEK, etc.

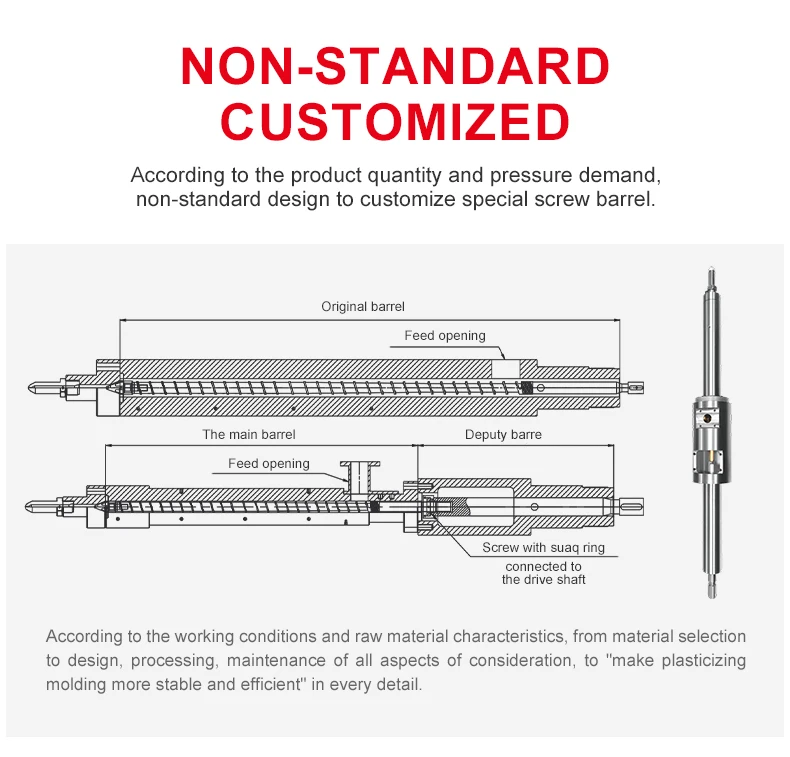

Guangdong Juguangheng Automation Equipment Co., Ltd provides customized screw, barrel and other products according customer's demand..
FANUC, HAITIAN, NIIGATA, KAWAGUCHI, MEIKI, Netstal, L.K, KraussMaffel, BORCHE, ENGEL, WELLTEC, etc.
Applicable Plastic:
A large amount of plastic can be used for screw and barrel of injection molding machine, such as PA, PP, PE, POM, PBT, ABS, PS, PVC, PEI, PC, PEEK, etc.
Guangdong Juguangheng Automation Equipment Co., Ltd provides customized screw, barrel and other products according customer's demand..
You may also like
Product Paramenters
Screw Diameter | Screw Length | Outside Diameter of Barrel Wall | Barrel Wall Length |
∅14-∅16 | 450mm-650mm | ∅65-∅75 | 450mm-650mm |
∅18-∅22 | 450mm-650mm | ∅65-∅75 | 450mm-650mm |
∅24-∅28 | 450mm-700mm | ∅65-∅88 | 450mm-700mm |
∅24-∅28 | 650mm-650mm | ∅90-∅98 | 650mm-820mm |
∅30 | 850mm-900mm | ∅85-∅98 | 750mm-820mm |
∅30-∅32 | 1000mm-1200mm | ∅98-∅108 | 950mm-1150mm |
∅34 | 1000mm-1200mm | ∅98-∅108 | 950mm-1150mm |
∅36 | 850mm | ∅110 | 950mm |
∅36 | 1050mm-1200mm | ∅110 | 1050mm-1250mm |
∅38 | 950mm-1200mm | ∅98-∅118 | 950mm-1150mm |
∅40 | 1050mm-1250mm | ∅105-∅118 | 1050mm-1200mm |
∅42 | 1050mm-1250mm | ∅105-∅118 | 1050mm-1200mm |
∅44 | 1050mm-1250mm | ∅105-∅118 | 1050mm-1200mm |
∅46 | 1050mm-1250mm | ∅105-∅118 | 1050mm-1200mm |
∅48 | 1050mm-1250mm | ∅105-∅118 | 1050mm-1200mm |
Model | L/D | Output Capacity (kg/h) | Screw Rotation Speed (rpm) | Driving Motor (kw) | Center Height (mm) |
JGH | 20:1 | 3-5 | 10-60 | 1.1/1.5/2.2 | 1000-1400 |
JGH | 25:1 | 5-8 | 10-60 | 2.2/3.0/4.0 | 1000-1400 |
JGH | 25:1 | 5-10 | 10-60 | 2.2/3.0/4.0 | 1000-1400 |
JGH | 25-36:1 | 10-120 | 10-150 | 5.5-22 | 1000-1400 |
JGH | 25-36:1 | 60-300 | 20-150 | 22-75 | 1000 |
JGH | 25-36:1 | 200-450 | 20-150 | 30-132 | 1000 |
JGH | 25-36:1 | 180-600 | 20-110 | 30-185 | 1000-1100 |
JGH | 25-36:1 | 320-1000 | 20-90 | 75-280 | 1000-1250 |

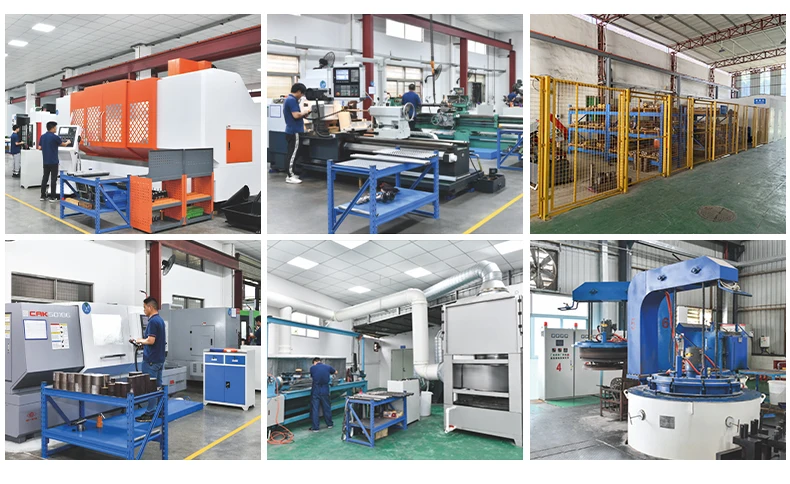

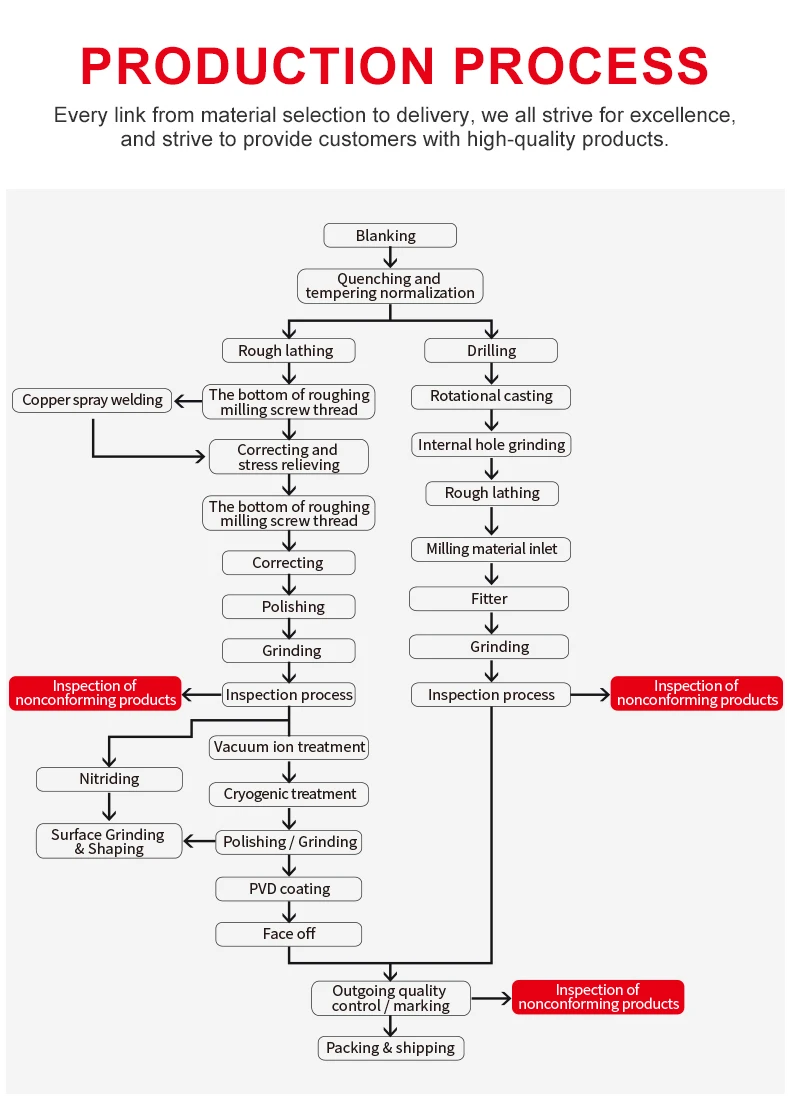

Manufacturing Technique
Technical Information | ||||||
Main Base Materials | 1. 38CrMoAlA (SACM645) | Main Alloy Materials | 1. Ni-based alloy/ Deloro alloy | |||
2. SKD-61(Special Tool Steel) | 2.Tungsten carbide/Wolfram carbide | |||||
3. 42CrMo(Ultrahigh Strength Steel) | 3.NiCo-based alloy | |||||
4. DC53(Cold Workdie Steel) | 4.Fe-based alloy | |||||
5. W6Mo5Cr4V2 (High-speed Tool Steel) | 5. Co-based alloy | |||||
Processing Technics | 1.Heat treatment | Technical Parameters | Nitriding layer depth: 0.5-0.8mm | |||
2. Quenching | Nitrided hardness: 900-1000HV | |||||
3. Nitriding treatment | Bimetallic layer depth: 3mm | |||||
4. Bimetallic alloy welding for screw | Bimetallic hardness: 57~69HRC | |||||
5. Bimetallic alloy centrifugal casting for barrel | Hard-chrome plating hardness after nitriding: ≥950 HV | |||||
6. Hard-chrome electroplating | Chrome-plating layer depth: 0.03~0.09mm | |||||
Surface roughness: Ra 0.4 | ||||||
Linearity of screw: 0.015mm | ||||||

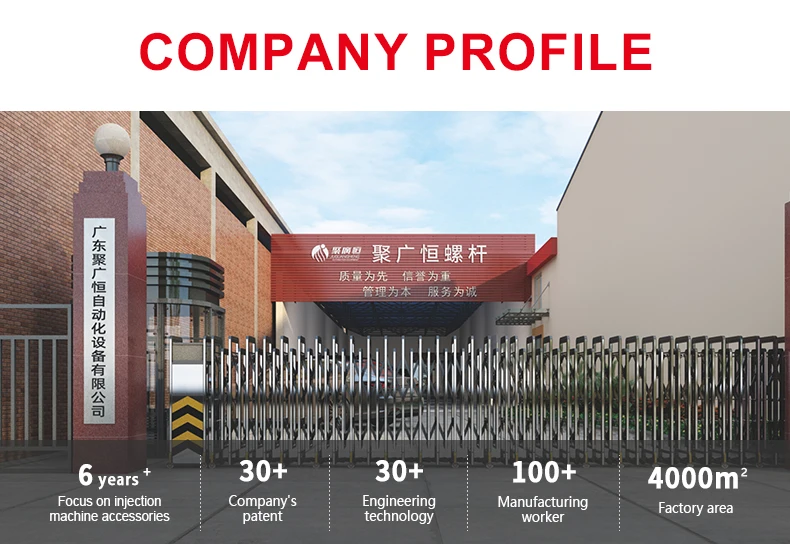

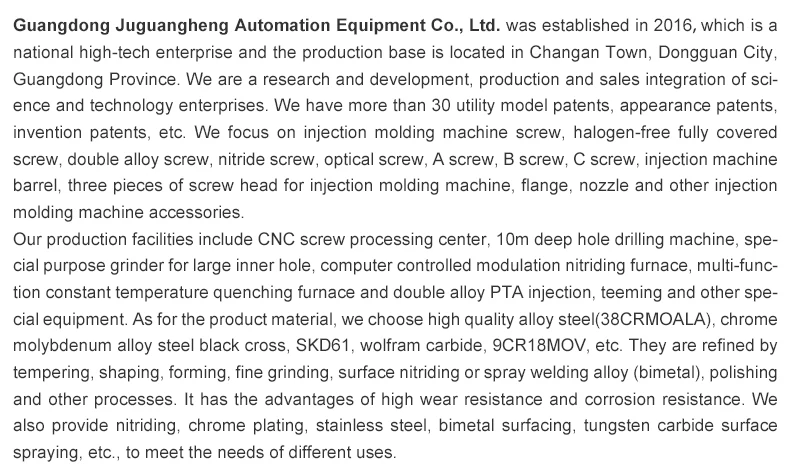

Company Profile
Our Advantages
Certifications
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2016, sell to Southeast Asia(50.00%), North America(10.00%), Northern Europe(2.00%).
There are total about 51-100 people in our office.

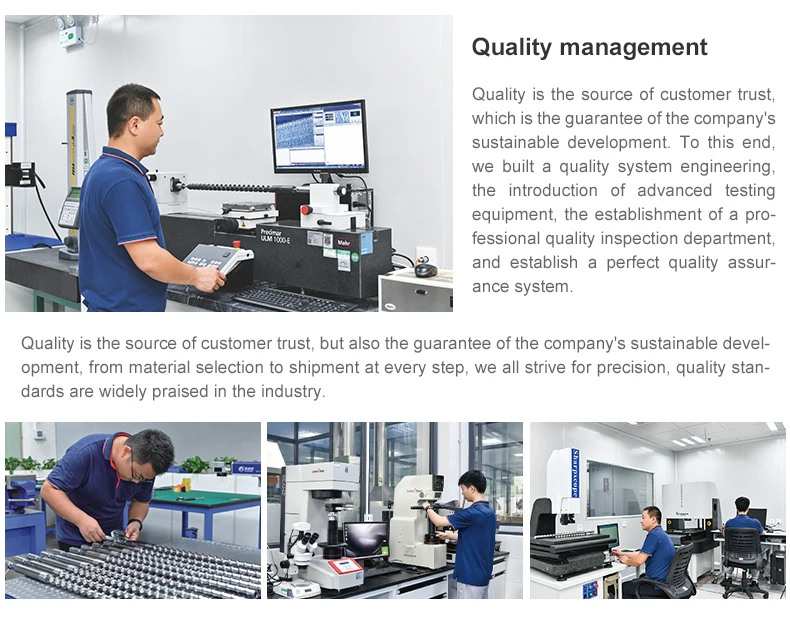

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
special injection molding machine screw, double alloy screw, bimetal screw, screw barrel and other injection molding machine accessories. We also can customize screw and barrel for different bands of injection molding machine.
4. Why should you buy from us not from other suppliers?
1) Specializes in automation equipments
2) More than 10 years of industry experience, control each production link.
3) With a sales team of more than 50 people, products are sold all over the world
5. What services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD;
Accepted Payment Type: T/T;
Language Spoken: English, Chinese.
We are based in Guangdong, China, start from 2016, sell to Southeast Asia(50.00%), North America(10.00%), Northern Europe(2.00%).
There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
special injection molding machine screw, double alloy screw, bimetal screw, screw barrel and other injection molding machine accessories. We also can customize screw and barrel for different bands of injection molding machine.
4. Why should you buy from us not from other suppliers?
1) Specializes in automation equipments
2) More than 10 years of industry experience, control each production link.
3) With a sales team of more than 50 people, products are sold all over the world
5. What services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD;
Accepted Payment Type: T/T;
Language Spoken: English, Chinese.
