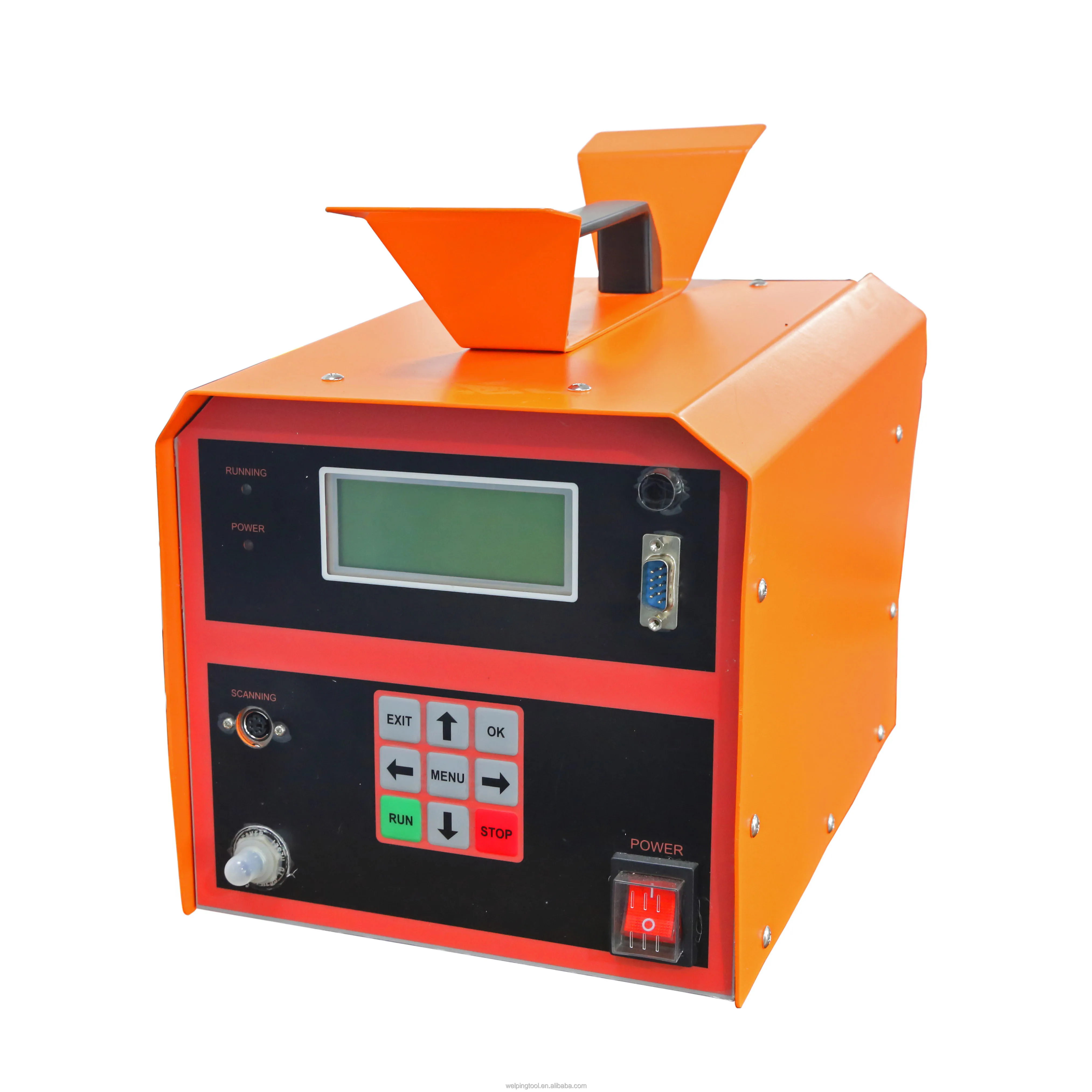

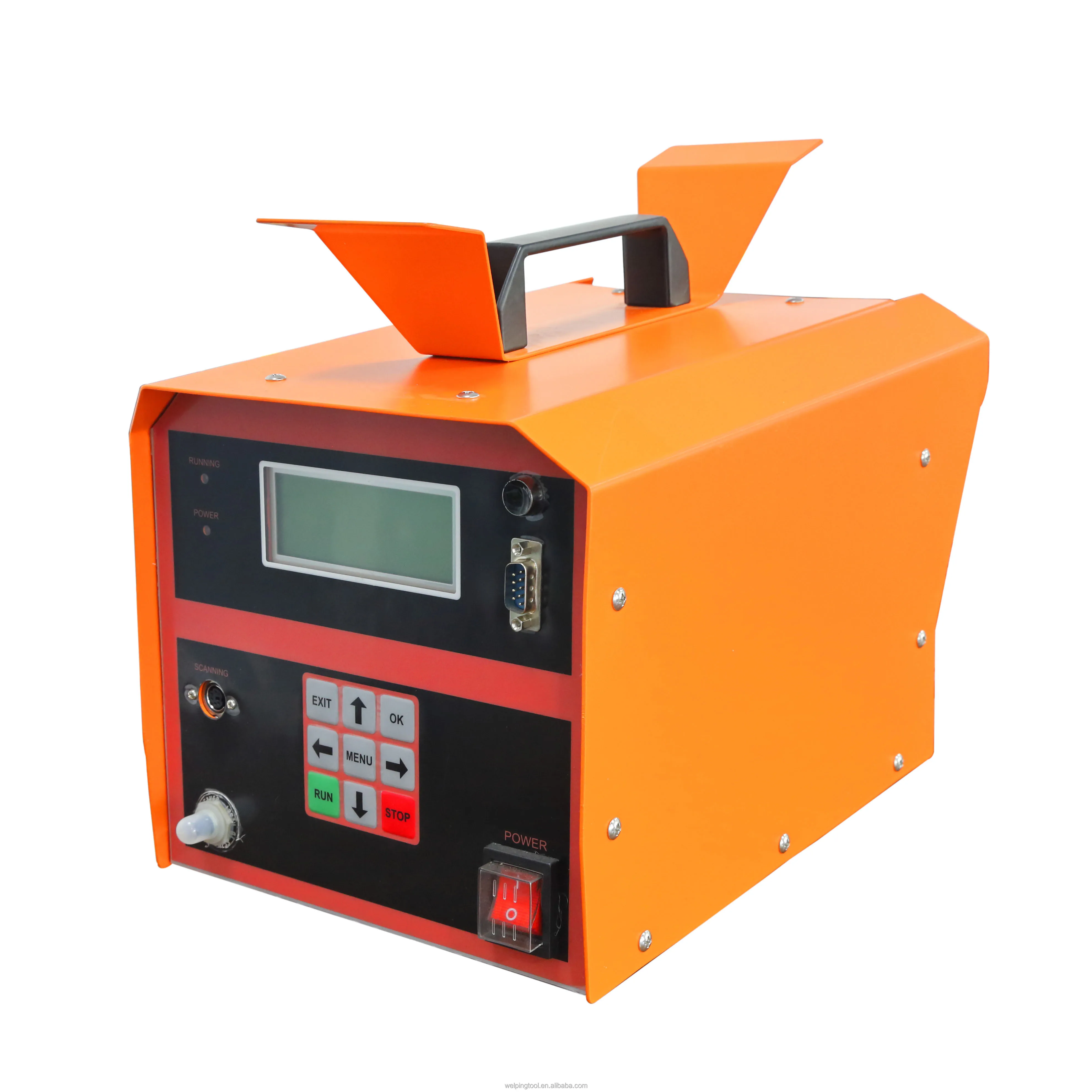

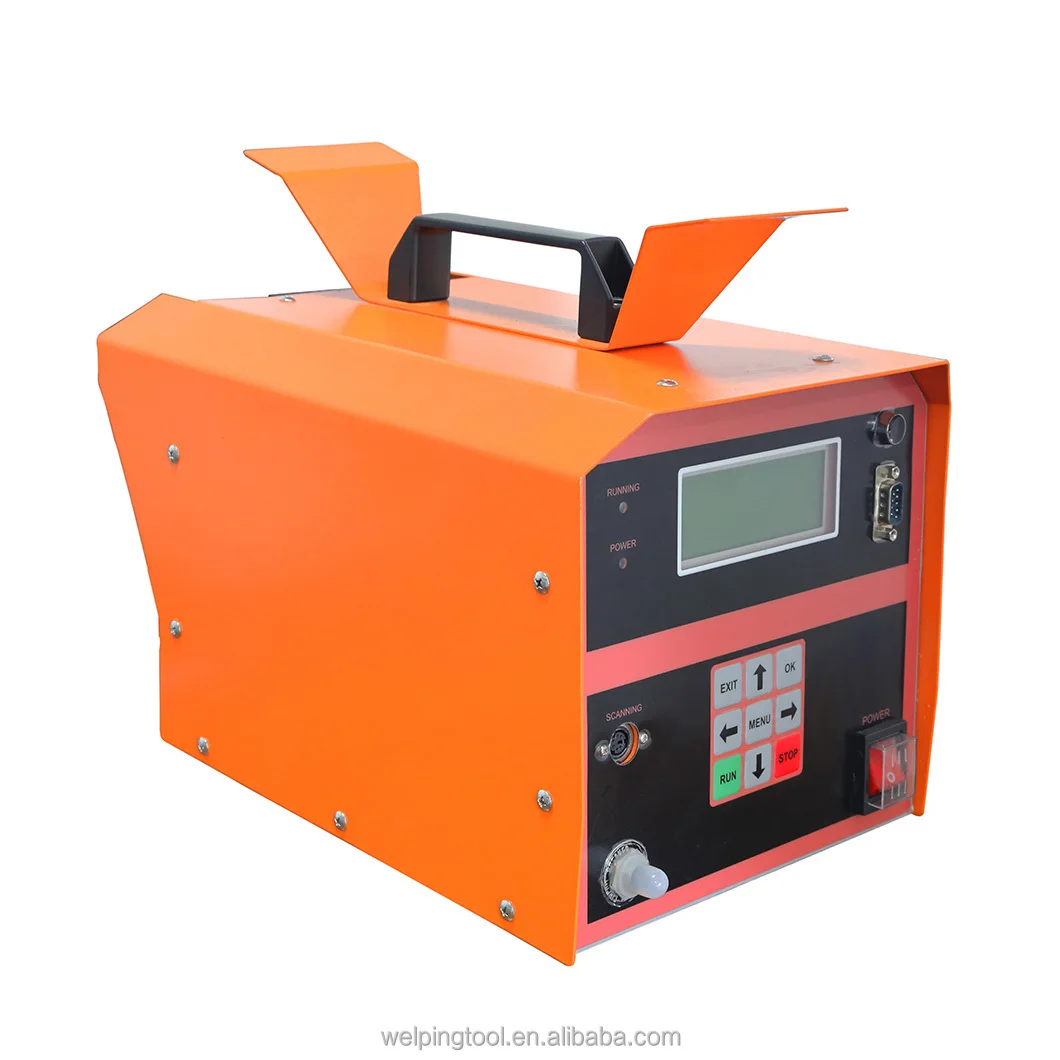

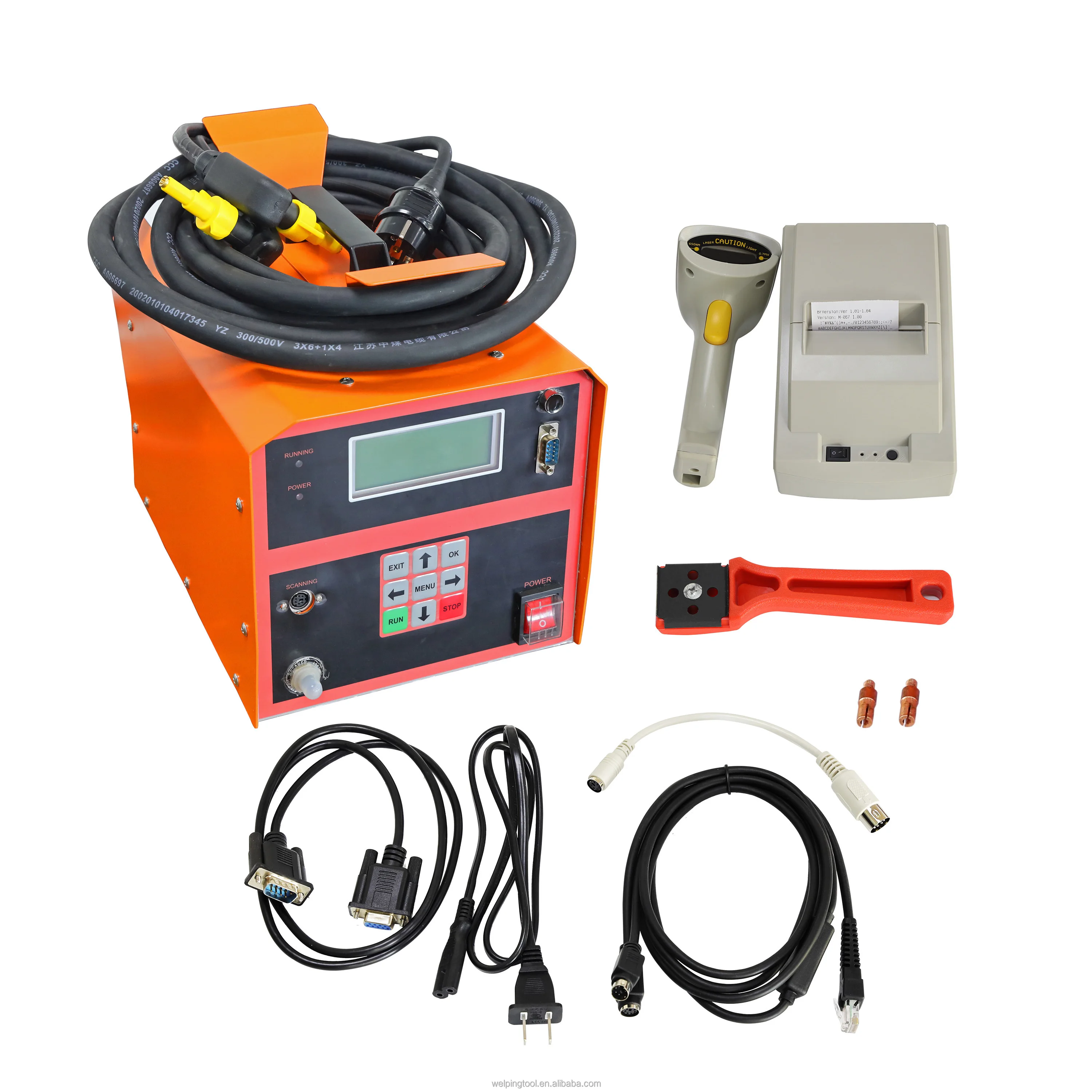

Welping 200MM PE Electric Welding Machine Pe Tube Pipeline Electrofusion Welder
- Category: >>>
- Supplier: Hangzhou Welping Machinery Equipment Co. Ltd.
Share on (1600530708540):
Product Overview
Description
Product Overview
WP20F Electrofusion Welding Machine
Electrofusion welding is widely used in PE and PP pipe jointing, with various kind of electrofusion fittings. With the tool of
electrofusion welder, the connection job can be done efficiently.
electrofusion welder, the connection job can be done efficiently.
Productiion Specifications
1. Control core of high lever MCU, for accurate welding control
2. Built-in Voltage stabilizer, for steady welding 3. Industrial level electrical parts, for steady performance
4. Over-load protection design, guarantee safe operation
Production Specification | ||
Model | WP20F | |
Welding mode | automatic and manual | |
Suitable materia | PE, PP | |
Max. welding range | 200mm | |
Power supply | 220V±20%, 50~60 Hz | |
Power | 2.5kw | |
Ambient temperature | -15~45℃ | |
Voltage control mode | 10~50V adjustable | |
Current control mode | 1~80A adjustable | |
Time adjusting range | 1-9999 seconds | |
Data record | 100 | |
Duty rate | 80% | |

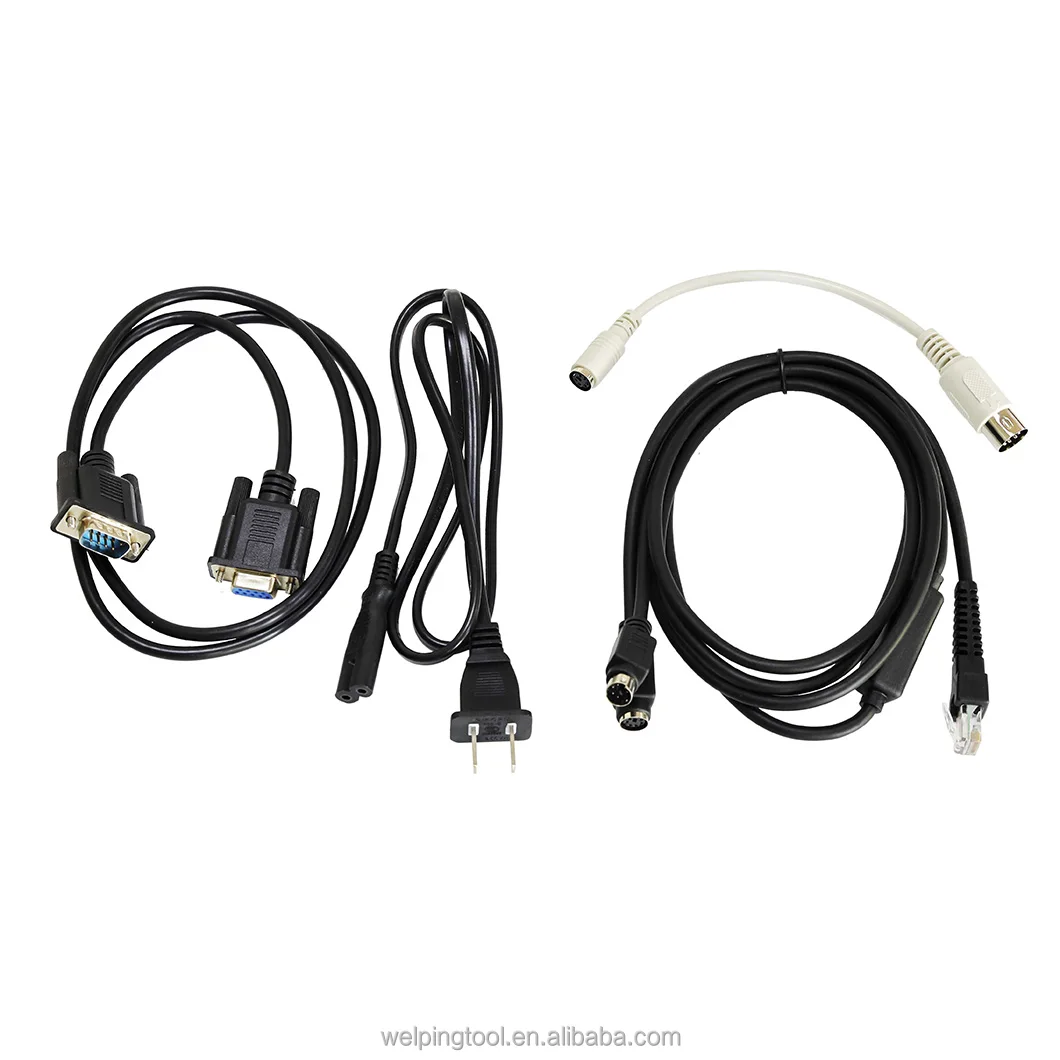

Data interface (Optional) | scanner, printer | |
Net weight | 18.5kg | |
Total Volume | 0.04cbm | |

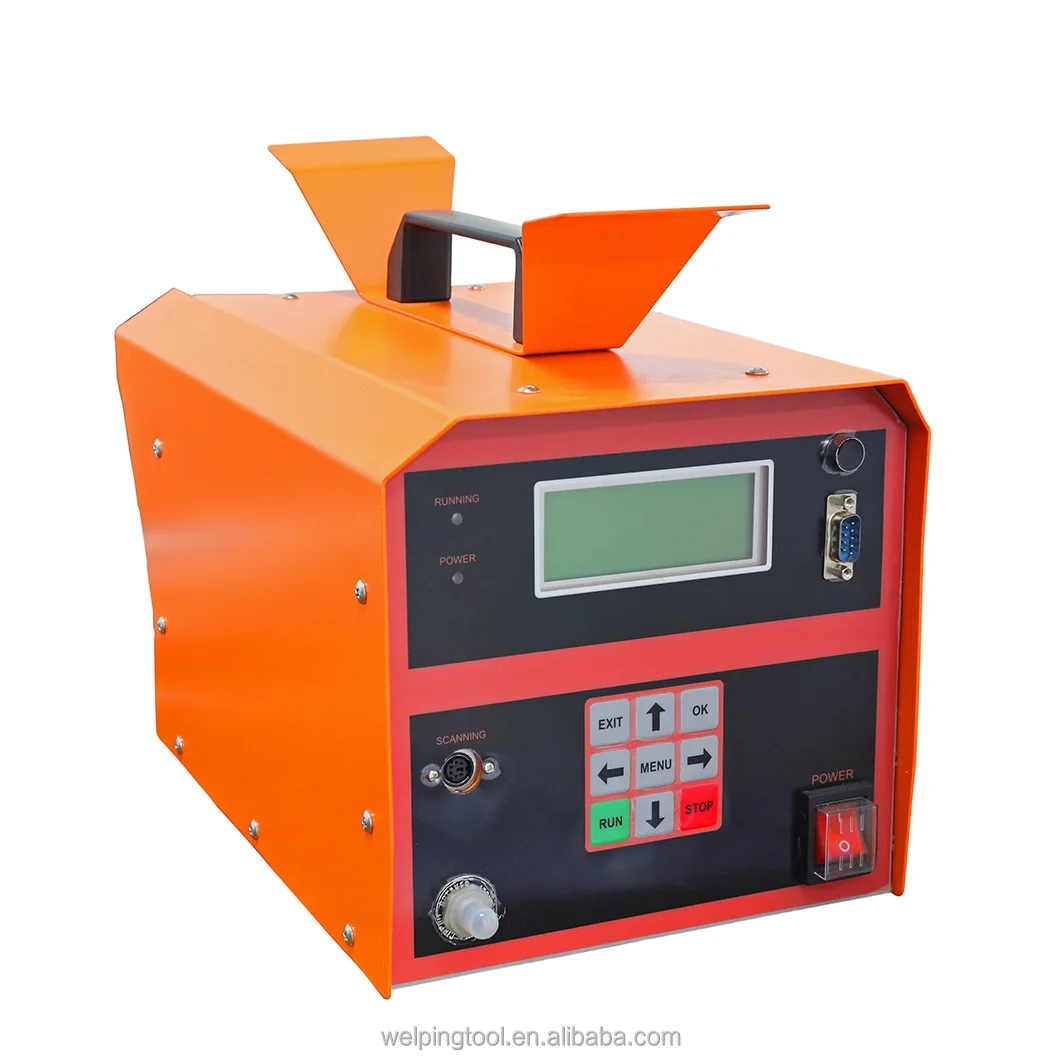

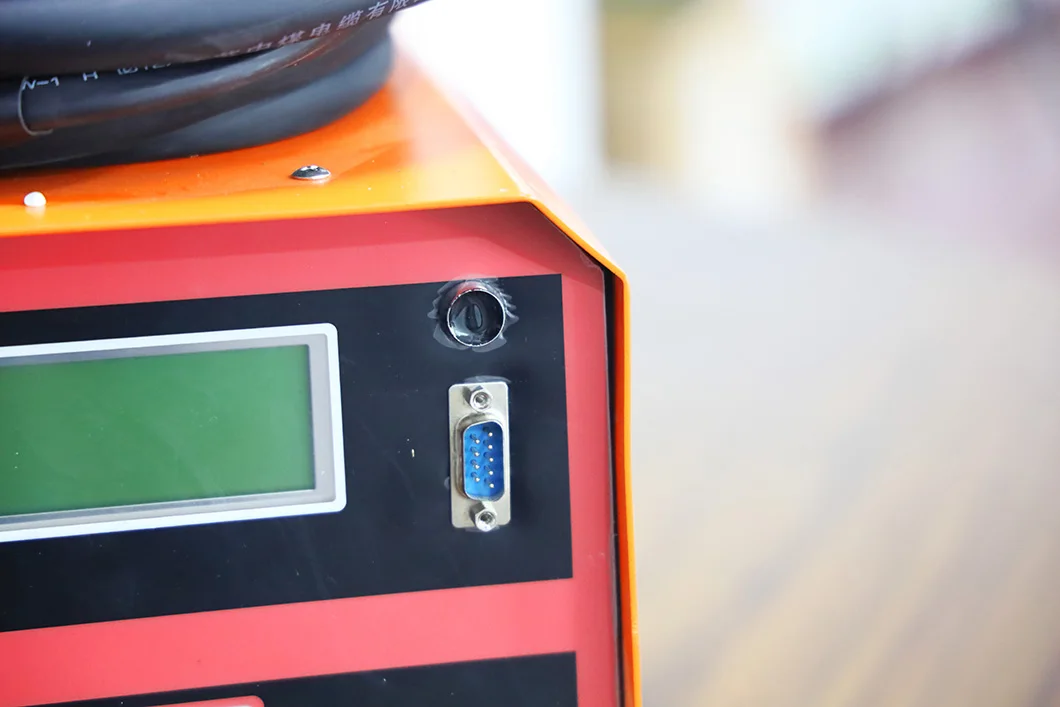

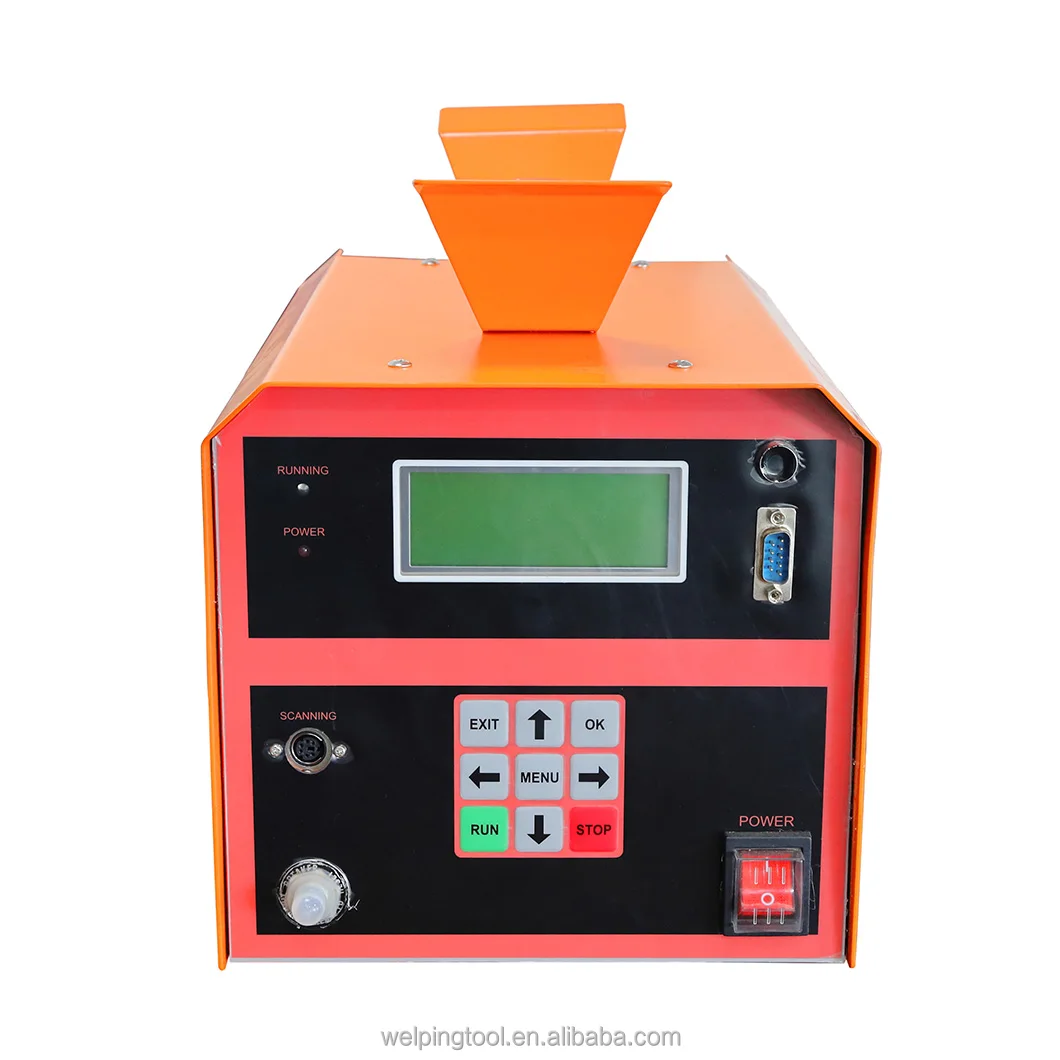

Panel
· Clear HD LCD screen
· English OS
· Touch button - Easy operate
· 170-250V wide voltage input power
· 40-70HZ frequency

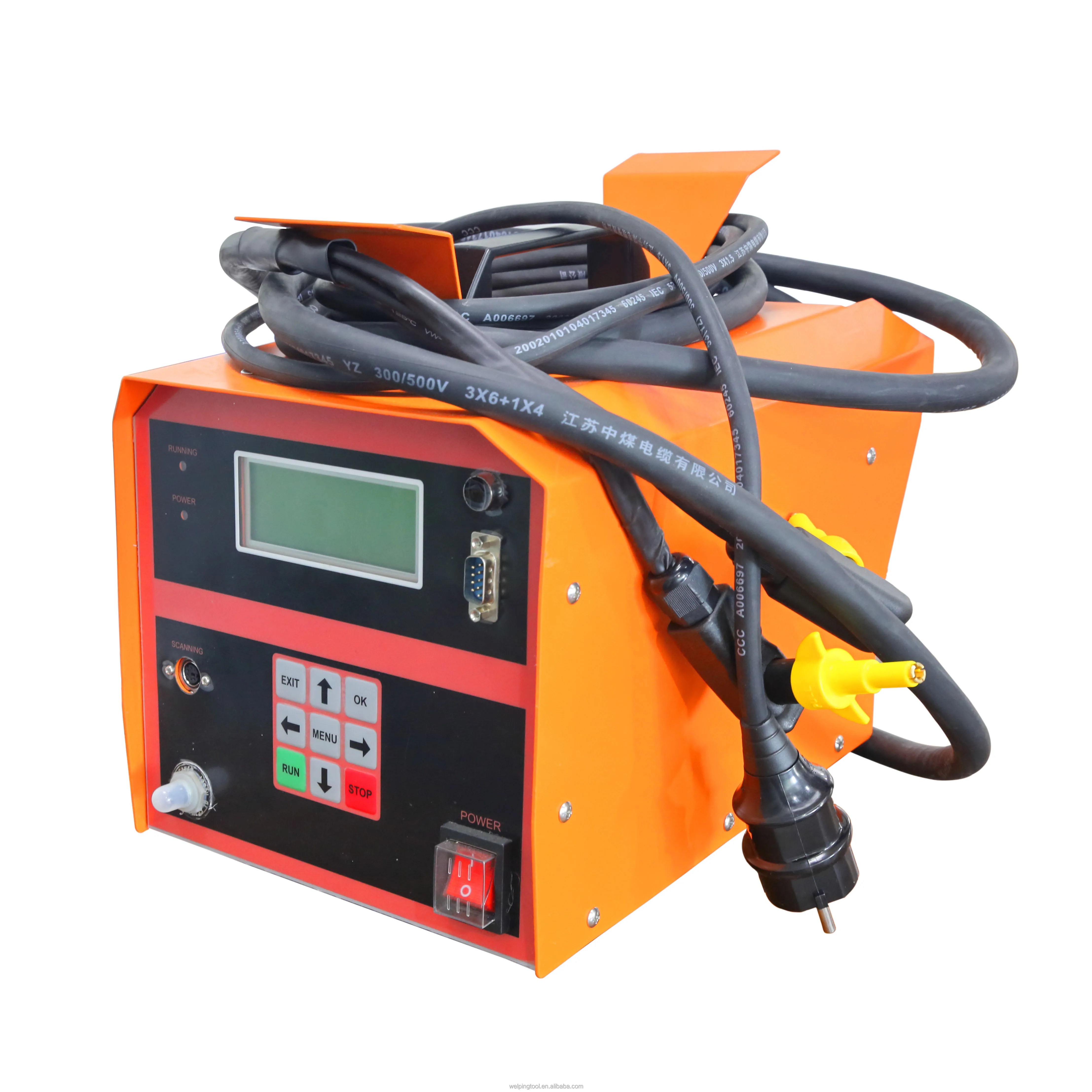

- 4mm² pure cooper wire
- Muuti-function connector, suitable for various terminals
- High temperature resistance
Product packaging
Model No. | Length(cm) | Width(cm) | Height(cm) | N.W(kg) | G.W.(kg) |
WP20F Electrofusion Welding | 40 | 29 | 35 | 18.5 | 19.5 |
Applications

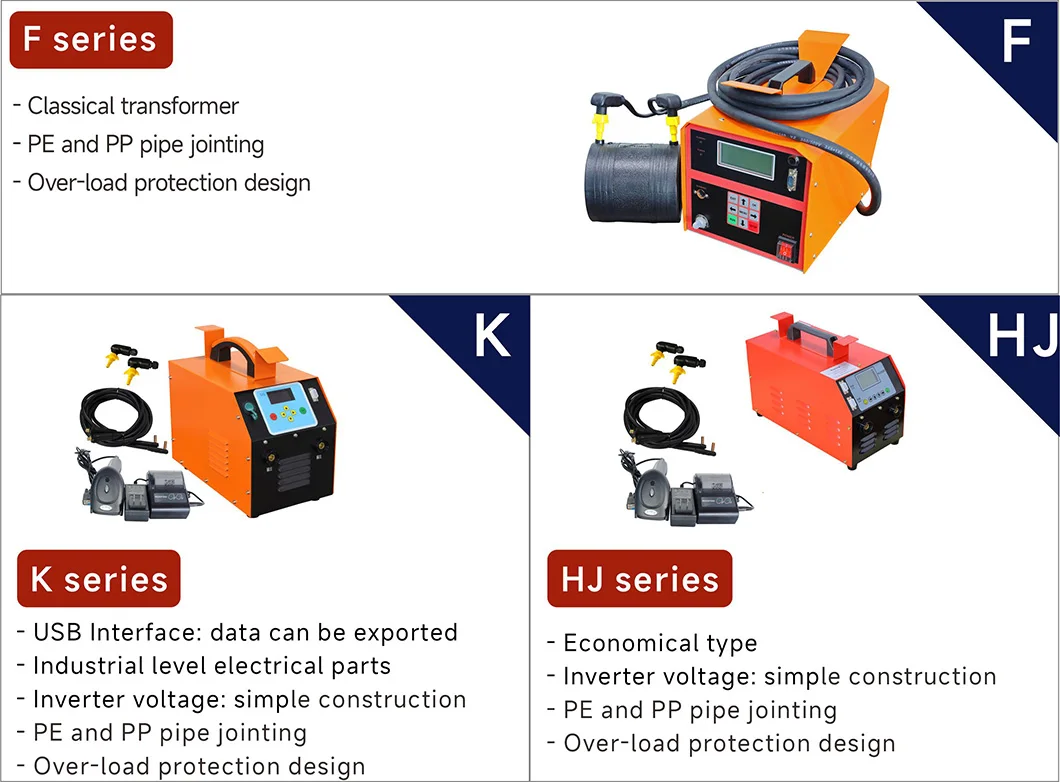

Series Product
SN | Model | Max.welding range | Power supply | |
1 | WP20F | 200mm | 2.5kw | |
2 | WP35F | 315mm | 3.5kw | |
3 | WP35K | 315mm | 3.5kw | |
4 | WP40K | 355mm | 4.0kw | |
5 | WP45K | 450mm | 4.5kw | |
6 | WP60K | 630mm | 6.0kw | |
7 | WP100K | 1000mm | 10kw | |
8 | HJ3500 | 315mm | 3.5kw | |
9 | HJ6300 | 500mm | 6.3kw | |
10 | HJ7500 | 630mm | 7.5kw | |
11 | HJ12000 | 1000mm | 12kw |
